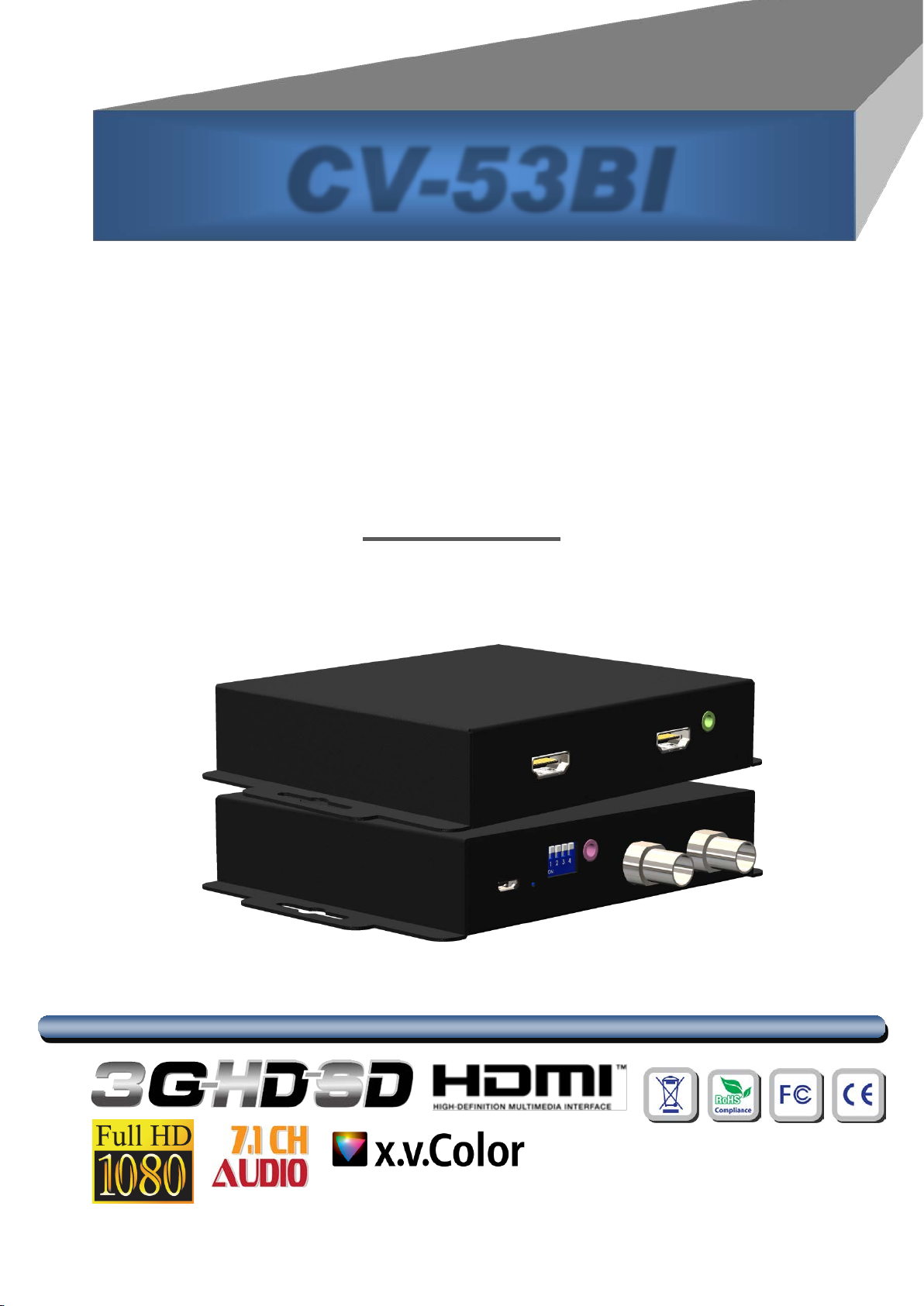

C4i CV-53BI User manual
3G/HD/SD-SDI and HDMI Bi-directional
Converter with Audio Embedder &
Extractor
User Manual
rev: 180704
Made in Taiwan
CV-53BI
Safety and Notice
The CV-53BI 3G/HD/SD-SDI and HDMI Bi-directional Converter with Audio Embedder &
Extractor has been tested for conformance to safety regulations and requirements, and has been
certified for international use. However, like all electronic equipments, the CV-53BI should be used
with care. Please read and follow the safety instructions to protect yourself from possible injury and
to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ............................................................................................................... 1
FEATURES ........................................................................................................................1
PACKAGE CONTENTS...................................................................................................... 1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTION ......................................................................................................3
CONNECTION DIAGRAM..................................................................................................4
SUPPORTED RESOLUTIONS...........................................................................................5
LIMITED WARRANTY........................................................................................................6
SIGNAL MEASUREMENT..................................................................................................7
1
INTRODUCTION
The CV-53BI 3G/HD/SD-SDI and HDMI Bi-directional Converter with Audio Embedder & Extractor
provides a professional way to convert HDMI to 3G/HD/SD SDI & 3G/HD/SD-SDI to HDMI in real time.
The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both
audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes
available. The CV-53BI also provides one low jitter SDI output and to provide more flexible application
possibility, CV-53BI is also equipped with high quality analog stereo embedder & extractor. With the use
of CV-53BI, the most popular uncompressed video interface in the consumer world is readily available for
professional SDI equipment!
FEATURES
●Supported high-definition (HD) formats:
NTSC 525@59.94, PAL 625@50, 720p@50,[email protected], 720p@60, 1080i@50, [email protected],
Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
●Auto 3G/HD/SD-SDI detection
●Support HDMI Deep Color
●Supports analog stereo embedder & extractor
●One SDI compliant output and one HDMI compliant output
PACKAGE CONTENTS
●1x CV-53BI
●1x 5V/2A power adapter
●1x User Manual
2
SPECIFICATIONS
Model Name
CV-53BI
Technical
SDI standards 3G-SDI & HD-SDI & SD-SDI
HDMI standards HDMI 1.3
Auto 3G/HD/SD-SDI
detection
Yes
Video bandwidth [SDI][2.97Gpbs & 2.975/1.001Gbps]
[HDMI] [6.75Gbps]
Video support
[3G] 1080p50/59.94/60 (4:2:2)
[HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz,
1080p @23.98/24/25/29.97/30Hz
[SD] – NTSC @59.94Hz, PAL @50Hz
[HDMI ] up to 1080p60
Input signal 1x SDI + 1x HDMI + 1x Audio
Output signal 1x HDMI + 1x SDI + 1x Audio
Output impedance(SDI)
75
Ω
Synchronization mode Internal synchronization or external synchronization
Eye pattern characteristics Extra low alignment jitter 0.05UI at HD
Cable equalization
[3G-SDI] up to 90m (300ft)
[HD-SDI] up to 150m (500ft)
[SD-SDI] up to 300m (1000ft)
Audio support Yes
PCB stack-up 6-layer board [impedance control — differential 100Ω; single 50Ω]
Input 1x BNC [SDI] + 1x HDMI + 1x Audio Jack
Output 1x HDMI + 1x BNC [SDI] + 1x Audio Jack
BNC connector 75Ωinter-locked socket
HDMI connector Type A [19-pin female]
DIP switch 4-pin [1 pin for EDID use, 2 pin for Audio use]
Mechanical
Housing
Dimensions
[L x W x H]
Model 114 x 108 x 26mm[4.5" x 4.3" x 1" ]
Package 264 x 170 x 77mm[10.3" x 6.7" x 3"]
Carton 430 x 358 x 291mm[1'4" x 1'2" x 11.5"]
Weight Model 212g[7.5 oz]
Package 506g[1.1 lbs]
Power supply 5V 2A DC
Power consumption 6 Watts [max]
Operation temperature
0~40
°
C [32~104
°
F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
3
PANEL DESCRIPTION
Front Panel
1. HDMI IN: Connects to a HDMI source with a HDMI male-male cable
2. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.
3. Stereo Audio Output (Please refer to the “PIN#1 of Notes”)
Rear Panel
4. +5V DC: Connect to a 5V DC power supply.
5. LED: Power LED indicator
6. 4-Pin Dip Switch (Please refer to “Notes”)
7. Stereo Audio Input (Please refer to the “PIN#2 of Notes”)
8. SDI OUT:3G/HD/SD-SDI output
9. SDI IN: 3G/HD/SD-SDI input
*Notes: DIP Switch Position
DIP Switch Position
Description
4-Pin
PIN#1
ON []
Audio Extractor’s Connector Selection – from BNC [SDI] Input
OFF []
Audio Extractor’s Connector Selection – from HDMI Input
PIN#2
ON []
Stereo Audio Embedder(2ch) to BNC[SDI] Output
OFF []
Disable Stereo Audio Embedder Function
PIN#3
ON []
Reserved
OFF []
Reserved
PIN#4
ON []
EDID-Full-HD(1080p@60) 2ch audio
OFF []
EDID-Full-HD(1080p@60) 7.1ch audio
4

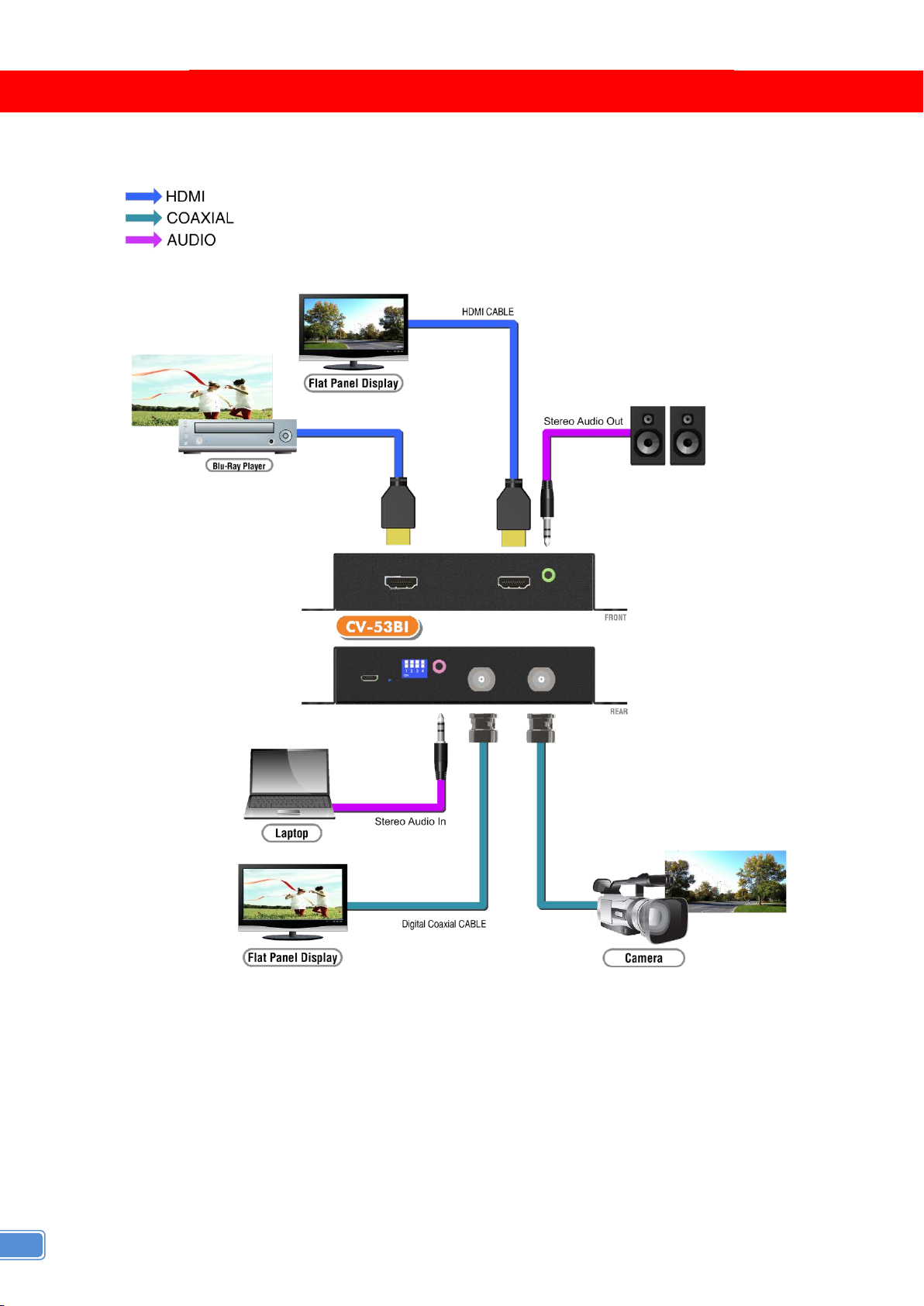

CONNECTION DIAGRAM
5
SUPPORTED RESOLUTIONS
3G-SDI Output
1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M
HD-SDI Output
720p @ 50Hz SMPTE 296M -3
720p @ 60 / 59.94Hz SMPTE 296M -1, -2
1080i @ 50Hz SMPTE 274M -6
1080i @ 60 / 59.94Hz SMPTE 274M -4, -5
1080p @ 24 / 23.98Hz SMPTE 274M -10, -11
1080p @ 25Hz SMPTE 274M -9
1080p @ 30 / 29.97Hz SMPTE 274M -7, -8
SD-SDI Output
NTSC
PAL B,D,G,H,I
6
LIMITED WARRANTY
The SELLER warrants the CV-53BI 3G/HD/SD-SDI and HDMI Bi-directional Converter
with Audio Embedder & Extractor to be free from defects in the material and workmanship for
1 year from the date of purchase from the SELLER or an authorized dealer. Should this product
fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair
or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or
any unauthorized modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price
of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the
day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the
unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be
accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day
warranty and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained in
this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or omission in this manual, even if advised of
the possibility of such damages. Also, the technical information contained herein regarding
the CV-53BI features and specifications is subject to change without further notice.
7

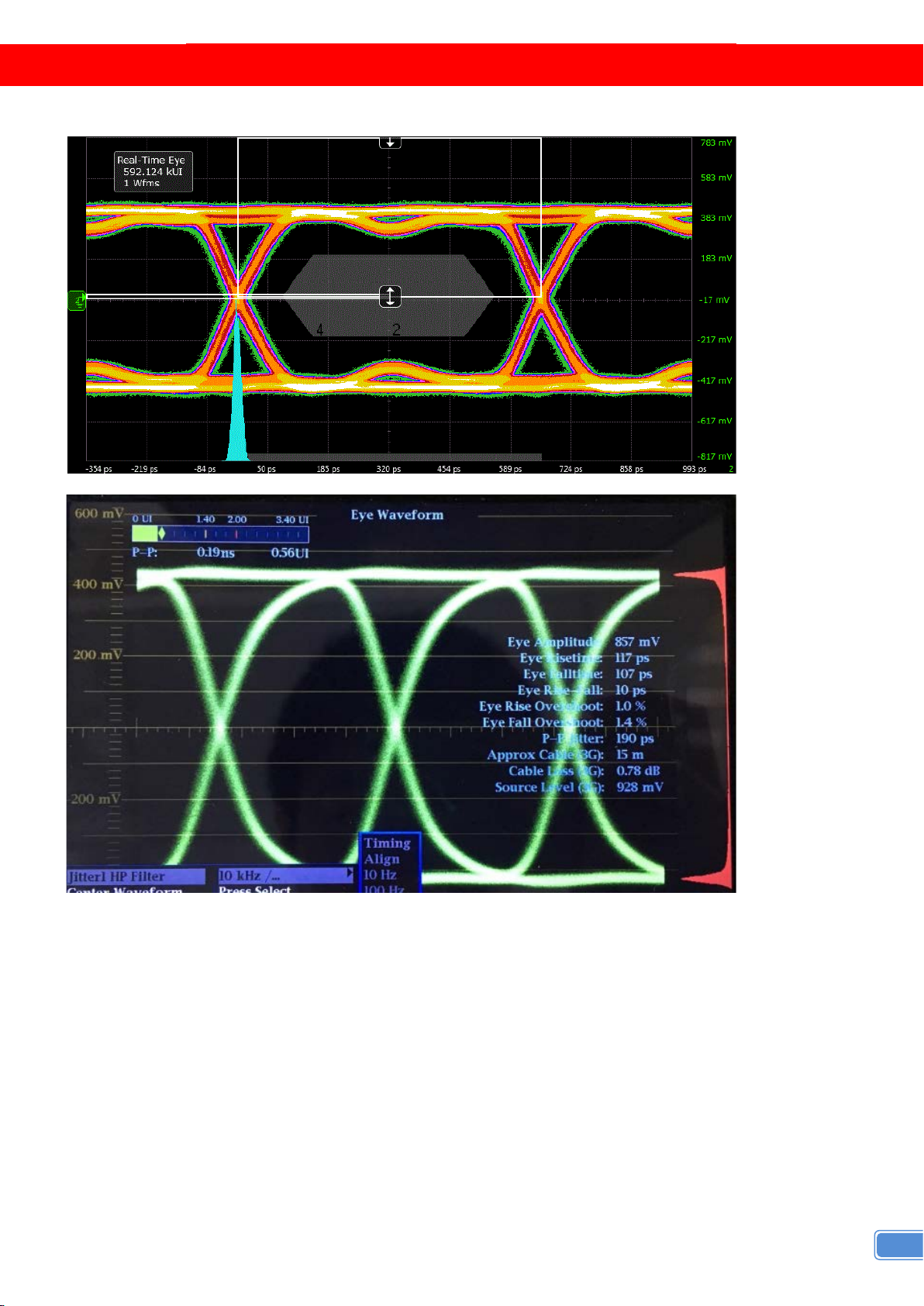

SIGNAL MEASUREMENT
Table of contents
