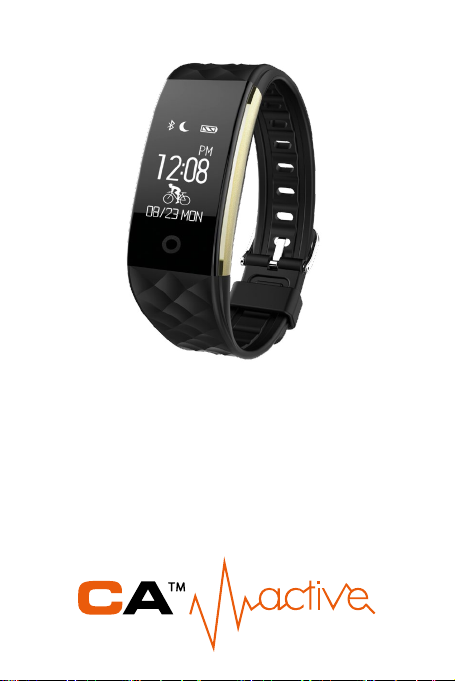

CA active PASSION User manual
CA2102 Sport Bracelet
PASSION
EN User Manual
3
Please consult your doctor before starting a new exercise.
The smart watch has no medicinal use anyway, though it
can monitor your real-time heart rate dynamically. Remem-
ber to consult your doctor before starting any exercise and
dieting program.
This watch supports Android 4.3, IOS7.0, and Bluetooth 4.0
or above.
This watch supports nearly 200 mainstream mobile phone
models, including iphone and Android
Supported iphones: iPhone4s/5/5C/5S/6/6 PLUS/6S/6S
PLUS
Supported Android phones: Xiaomi: MI4, MI 3, NOTE LTE,
HM NOTE 2, HM NOTE1S, 4C, HM 2A
HUAWEI: MT7, H60, P7
MEIZU: M1 NOTE, MX4, MX4 PRO, MX5, M2 NOTE
SAMSUNG: S4, S5, S6, NOTE2, NOTE3, NOTE4, NOTE5, A7
OPPO: R7
VIVO: X5 PRO, X5S
LG: NEXUS 5, D885
ONEPLUS: A0001
Warning
Device Requirement
Compatibility
4

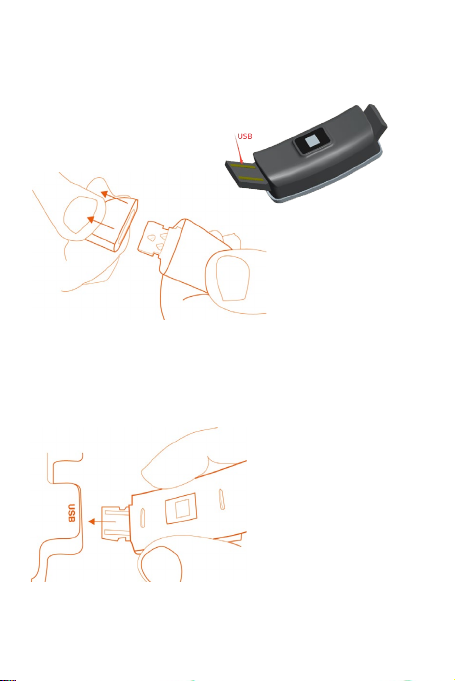

To charge the watch, remove its main unit from your wrist
and place it on the USB charging base (5V500MA), Keep the
main unit on the charging base at least 2 hours. To ensure
good contact during charging, the metal contact should be
free of contamination, oxidation, and impurities.
During charging, a
symbol will be dis-
played on the screen
to indicate the charg-
ing progress. If you
keep the watch idle
for a long time, please
recharge it at least
once every 3 months.
Before using the watch, please charge it with a 5V500mA
USB device to ensure that it is full of electricity.
Charging
5

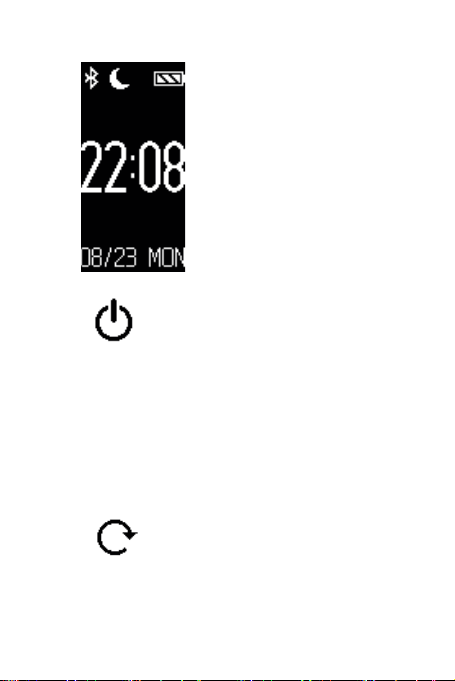

Long press the bottom of the watch
screen for 3 seconds, and the watch
will be powered on and a pairing
code will be displayed on the screen
to identify the watch.
Long press the button on the time interface
for 3 seconds to enter the secondary menus,
and browse through these menus to switch
to the Power O option. Long press this op-
tion to enter the Power O interface. On this
interface, switch from ON to OFF and the
numbers 5, 4, 3, 2, 1 will be displayed on the
screen. After the number 1 is displayed, the
watch will be powered o.
Among the secondary menus, select the Re-
set icon and long press it to enter the Reset
interface. On this interface, switch from O
to On, and the system will be reset and the
time and data of the watch will be reset to
the factory settings.
Power On
Power O
Reset
Connecting the watch to app
6
Scan the QR code with your phone, or search for “smart
wristband 2” on Google Play or Apple App Store and down-
load it.
Keep your watch close to your phone, and start and enter
the smart watch App. According to the application connec-
tion wizard, nd the bluetooth watch and nish pairing.
Then, press “Next” to nish connection.
For the iOS of Apple devices, a bluetooth pairing request
will be displayed after you successfully connect to the App
for the rst time. To receive such notications as incom-
ing calls and short messages from the IOS on your watch,
click Pair. Otherwise, you will unable to receive such noti-
cations.
for Android for iOS
Install the application
Connect the watch
7
To delete the watch after connecting it to your phone, open
the APP and choose Setting > My Watch. If you have reg-
istered an account and logged in to the account to bind
your watch, you need to unbind it by opening the App and
choose Setting > Device Management.
For the iOS of Apple devices, after deleting the watch ac-
cording to the steps above, choose System > Bluetooth on
your phone after being prompted to do so. Then, press the
exclamation mark after the device name and select Neglect
the Device on the popup dialog box. By doing so, you re-
move the ANCS connection of the watch and you will no
longer receive any notication from Apple
When connecting the watch to the Application
for the rst time, be sure to allow the Applica-
tion to obtain the related permissions. If you
forbid the Application to obtain your phone’s
permissions, some functions between the
watch and phone may be disabled!
Deleting the watch
IMPORTANT NOTE:
8

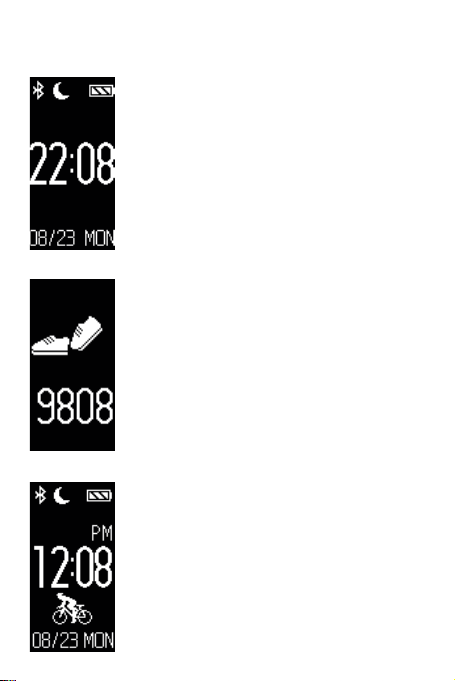

Time Mode
Step-counting mode
Riding mode
Function Interface
After you successfully pair your watch
with the APP for the rst time, the
watch will synchronize its time and
date with your phone.
The watch is in step-counting mode
by default when powered on. With the
watch on your wrist, if you walk and
swing your arms, the watch will record
your motion data which you can view
immediately.
On the bicycle interface, if you long
press the button for 3 seconds, you
will enter the riding mode. In this
mode, the watch will record your riding
time and the calories you have burned.
If you ride, the watch will display the
time and the calories you have burned.
If you do not ride, the watch will not
9
Heart rate detection
On the heart rate detection interface, if you long press the
button, you can use the heart rate detection function to
detect your real-time heart rate dynamically.
In the heart rate detection mode, the watch’s battery life
will be shortened.
To exit the heart rate
detection mode, long
press the button for 3
seconds in the heart
rate detection mode.
record the time. In the riding mode, the
watch consumes more power and thus
its battery life will be shortened.
To exit the riding mode, long press the
button for 3 seconds in the riding mode.
10

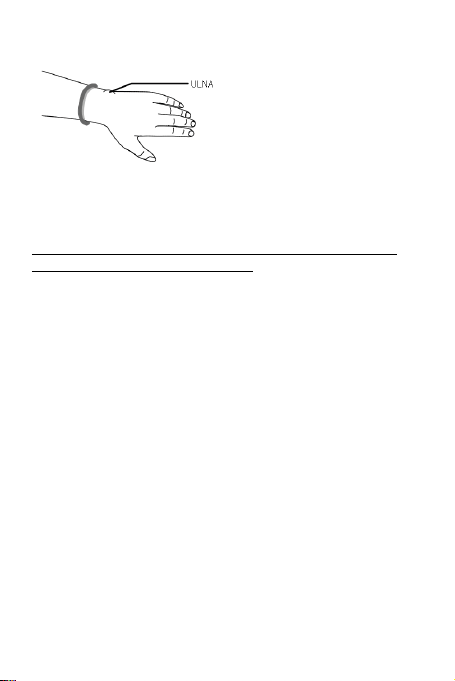

Please put on your watch on
your wrist, 2cm from the in-
side of your ulnaradius joint.
When measuring your heart rate, keep the heart rate sen-
sor clung to your skin and in good contact. Otherwise, the
light of the sensor may leak and the measurement data
may be incorrect.
Do not look directly at the green light of the sensor, which
may cause discomfort to your eyes.
Though this watch can detect your real-time heart rate dy-
namically, you are still recommended to keep still during
heart rate detection. Otherwise, it may take a longer time
to measure the heart rate or you may get incorrect data.
After the watch has measured the data, you can do exer-
cise again and view the dynamic data.
If great dierence exists between measurements, please
have a rest and make another measurement. If you make
5 successive measurements and take their average value,
you will get a correct result.
This watch measures your heart rate dynamically. Thus, it
gives dierent heart rate values when you are in dierent
states (talking, eating, and drinking). The real heart rate val-
ue depends on the actual situation.
11
After connecting your watch to the APP, you can set the
maximum heart rate warning value and synchronize it to
your watch. Then, when the heart rate value on your watch
reaches the maximum heart rate value, your watch will vi-
brate to give a prompt and at the same time, the heart
rate value will ash, telling you to stop intensive exercise. If
you are not clear of your maximum or minimum heart rate,
please consult your doctor before taking exercise.
Before making a measurement, ensure that there is no
contamination at the bottom of the heart rate sensor. Such
factors as skin color, thick hair, tattoo, and scar may aect
the detection result.
This heart rate detector works according to the PPG meas-
urement principle. Therefore, its precision may vary with
the physiological factors (blood circulation, blood pressure,
skin conditions, blood vessel location and density) which
aect light absorption and reection. When the measured
heart rate value is very great or very small, the measure-
ment value may be incorrect and you need to make anoth-
er measurement.
Long-time measurement may cause the watch to get hot.
If this makes you uncomfortable, you can take the watch
o your wrist and wear it again after it has cooled down.
You are recommended to make measurement when it is
warm because cold weather may aect the measurement
result.
12
In the time mode, long press the button for 3 seconds to
enter the interface for secondary menus. This interface
provides the following buttons:
Function Menu
Back
Sleeping
Remote-control music
This button allows you to return to the main
interface by long pressing it for 3 seconds.
This button allows you to enter the inter-
face for sleeping setting by long pressing
it for 3 seconds. The interface provides
two buttons for you to switch on or o the
sleeping mode.
After nish setting, a symbol will be dis-
played in time mode to indicate the sleep-
ing mode. In the sleeping mode, the watch
does not count your steps.
This button allows you to enter the music
play interface where you can control the
music player of your phone to play/pause
music, play the previous and next song.
(Support only the playing of the music in
the system). To return to the previous page,
long press the “Back” button.
13
Remote-control photo and video
Find my phone
Vibration on/o
This button allows you to enter the inter-
face for remote control photo or video,
where you can enable the Aplication to start
the built-in camera of the system to take
photos by long pressing this button.
If you have selected remote-control video,
the watch will start to take videos after you
press this button for the rst time and stop
to take videos after you press this button
again. If you long press this button, you exit
the photo mode.
This button allows you to active the func-
tion to nd your phone by long pressing
it for 3 seconds. If you press this button,
you will hear a ring tone (if the volume of
ring tone is on) which help you to nd your
phone. Phone vibration is not supported.
Long press this button, and you will exit this
function.
This button allows you to enter the inter-
face for switching on or o vibration by long
pressing this button. By default, vibration
is ON. When vibration is in OFF state, the
watch does not vibrate no matter what no-
tication is received.
14

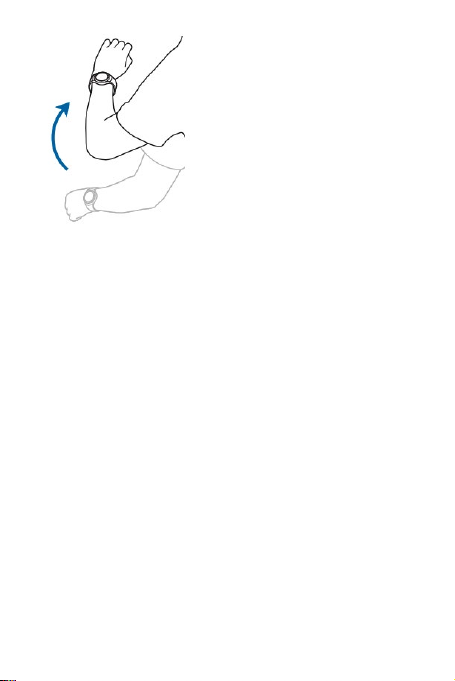

Palming screen ON
Main screen interface
If you enable this function,
the screen of the watch will
light up automatically when
you raise you wrist to help
you view the time.
The main interface displays the data about step counting,
distance, and calories you have burned. The buttons on the
upper right corner of this interface allow you to synchro-
nize and share history data. By clicking the heart-shaped
icon in the center, you can perform a heart rate test. The
APP will measure and record your current heart rate data.
Once the detection at the APP end is nished, the heart
rate detection will stop automatically.
By clicking the Setting icon on the upper right corner, you
can set the heart rate warning (vibration) switch and the
heart rate warning threshold. Then, after you synchronize
this setting to the watch, the watch will vibrate and the
heart rate value measured will ash when the maximum
heart rate is reached.
Application Functions and Settings
15
Trend
Outdoor exercise
Multi-exercise mode
After synchronizing the history data, you can view the ex-
ercise record of each day, each month and each year on
the daily records. You can also view the data about step
counting, distance, calories you have burned, and the goal
you have achieved.
After synchronizing the history data, you can also view the
data about your sleeping quality and the related history
records.
Enable the GPS on your phone, enable the network con-
nection, and open the map built in the APP, and you can re-
cord your movement and share it to social platforms.After
synchronizing the history data, you can also view the data
about your sleeping quality and the related history records.
When the multi-exercise mode is on, the watch will display
the corresponding exercise icons. To exit this mode, exit
the APP or long press the Multi-exercise mode button.
Rope skipping: Click this icon and START to start rope
skipping and FINISH to stop rope skipping, then the
watch will record the number of rope skippings.
Jumping jack: Click this icon and START to start jumping
jack and FINISH to stop jumping jack, then the watch will
record the number of jumping jacks.
Sit up: Click this icon and START to start sit up and FIN-
ISH to stop sit up, then the watch will record the number
of sit ups.
Treadmill: Click this icon and START to start treadmill
exercise and FINISH to stop treadmill exercise, then the
watch will record the distance you have covered.
16
Personal information:
Exercise goal
Phone anti-lost
Music remote control
After enter the APP, you are recommended to set your
personal information rst by choosing Setting > Personal
Information. The personal information you can set includes
nickname, head portrait, gender, date of birth, height,
weight, step pitch, and unit (metric/imperial). After nish
settings, you can synchronize your personal information to
your watch.
If this is the rst time for you to use this APP, you are rec-
ommended to register an account with your email address
and log in to the account. Also, you can have a try without
a login. If you have registered an account but forget the
password, you can click Forget Password, and the system
will send a mail to your register email for you to reset your
password.
This function allow you to set your exercise goal.
This function allows you to set anti-lost for your phone. By
default, this function is disabled (grey). If you enable this
function, your watch will vibrate to give a prompt when
your phone or watch is beyond the bluetooth connection
distance.
This function allows you to control (to play, pause, play the
previous song, play the next song) the music on the phone
via your watch. (The music player attached with the system
is supported).
Interface for function setting
17
Remote-control photo
Call notication
SMS notication
Alarm clock notication
Social media notication
This function allows you to switch on or o the photo func-
tion of the APP.
If you enable this function, you will receive a notication
when a call from one contact in the default system address
book is coming. You will receive no notication, however,
when a call from one contact in the third-party address
book is coming.
If you enable this function, you will receive a notication
when a system SMS is received and you can view the SMS.
You will receive no notication, however, when an SMS
from a third-party application is received.
This function allows you to set an alarm clock for 4 periods,
and set an on-o, snooze time, and alarm cycle for each
alarm clock. After nishing setting, click Synchronize to De-
vice to bring your setting into eect. This function supports
oine notication.
This watch supports the notications from such foreign
social applications as Facebook, Twitter, Line, SKYPE, and
WhatApp and displays the content of such notications
When a notication is received, the watch will display the
icon of the corresponding social application. You can click
this icon to view the message or long press this icon to exit.
NOTE: For an Apple system, all notications are uniformly
pushed by the notication center.
18
Long time sitting notication
My watch
Find watch
Device management
Clear data
Sleeping preference
User Manual
This function allows you to set an on-o, notication inter-
val, notication time segment, and notication period.
This function allows you to search for or add a watch.
Click Start to nd the watch you have bound it to your
phone. If the watch is found, it will vibrate to prompt you.
This function allows you to manage, uninstall, and rename
the watch you have bound.
This function allows you to clear the data on your watch
and the Application.
You can set the sleeping switch manually on the watch or
set the sleeping starting time on the APP. The APP allows
you to set a sleeping switch for three time segments. The
watch will automatically get into sleeping state at the begin-
ning of the time segment set and automatically stop sleep-
ing at the end of the time segment set. The watch does not
count your steps when it is in sleeping mode. You can view
your sleeping time in the history record of the APP.
This function allows you to view the help information about
the use of the watch.
19
Device update
About
1. Theoretically, the watch supports phones or tablets with operating
systems of IOS7.0 and above, Android 4.3 and above, and bluetooth
4.0, but not all mobile device models. The models supported are sub-
ject to the actual situation.
2. There are precision device in this watch. Please do not drop this
watch or let it hit hard objects, which may cause abrasion to the de-
vice surface or damage to the hardware.
3. Never dismantle or remake this watch, which may cause problems
or hinder the product’s warranty.
4. This watch uses 5V500MA for charging. It is prohibited to use the
power supply exceeding the voltage load. Otherwise, hardware dam-
age may be caused.
5. Never throw this watch into re. It may cause explosion.
6. This watch uses built-in battery which is non-detachable. Do not
try to replace the battery.
7. The watch works at 0-45°C, and its charging temperature is also
0-45°C.
8. Take care of the following items when putting on your watch: If you
have sensitive skin or if you wear your watch too tightly, you may felt
uncomfortable.
9. Please swipe o the sweat on your body and wrist in time. If the
watch strap contacts soap, sweat, allergens or contamination often,
it may cause allergy or pruritus to your skin.
10. If your watch is wet, be sure to dry it rst before charging it.
Otherwise, the watch may failure and the charging contact may be
corroded.
11. When working in an environment where the static electricity is
great, the bracket may fail, for example, gives no display or abnormal
display. Do not use your watch in high-pressure and high magnetic
environments where it may suer from electrostatic interference.
This function allows you to update the watch software.
This function allows you to view the APP version.
Precautions about watch usage
PL INSTRUKCJA UŻYTKOWNIKA
This manual suits for next models
1
Table of contents
Languages:
