USERMANUAL
BT01/BT02/BT03/BT04
JOHNLEE
COMPANYNAME@COPYRIGHT2020INCHINA
TheDistanceMonitoringBracelet(aliasnamesuchasdistance
Reminder,Protector,SmartDistanceAlert,SocialDistance
Reminder,SmartWristband,DistanceTraceBracelet,Smart
DistanceKeeper,KeyfobDistanceReminder,NeckletDistance
Reminder)especiallydesignedtoavoidclosingsocialcontact
fromanyonetotheothers,futurefunctionofthedeviceisfor
systemIntegratorstodevelopcloudapplicationforthecivilianin
ordertoguaranteeandmovementtraceabilityofcivilian(most
areworkers,employees&students)stayingatasafesocial
distancefromanytwoofclosingpeoplesandawayfrominfector
ofdisease.
BasingonLEDlightindicatorandvibrationnotice,anyoftwo
closingpeopleswillberemindedtoeachotherinrealtime.
Keypointistoinstructpeoplemoveawayfrompotentialdisease
andtraceabilityinthefuture.
NOTE:Thisdocumentisconstantlyupdatedandistherefore
subjecttochange.
ProductFeature
RealTimeDistanceMonitor/trackwithinaradiusof200cmanddetectionanglemorethan
100degreeauto‐detectionofclosingcontact(dependsonconfigurable)
OperatingFrequency:2.41Ghz‐BluetoothLowEnergyBLE5,5dBmmaximumPower
DetectionAccuracy:±30cm(dependsonenvironment)
DetectionInterval:1.5secondindefault(configurable1‐30)
DetectionThreshold:83dBmindefault(configurable70‐96)
Dimension(BT01):38(L)*30(W)*13mm(H)(body)/260(L)*36(W)*16.6mm(H)withstrap
Dimension(BT02‐BT04):47(L)*18(W)*11mm(H)withoutwristband
NetWeight:38.3g/BT01,20g/BT02‐BT03,28g/BT04
Color:Blackindefault(Blue/Orange/othersisoptionalonabovepicture)
Material:PC+SiliconTPE
PowerConsumption:Continueworking40days&replaceableCR2477battery
Continueworking5‐7days&rechargeablelithiumbattery90mA
Indicator:ClosingAlarm,Power&RechargewithLEDlight&Vibrator(Beeperisoptional)
TemperatureMeasurement:350C‐420C(ModelBT03oraboveonly)
Display:0.42inchOLED(ModelBT04oraboveonly)
PNPdevicewithoutappsorwithspecialinfrastructureandApps
Upto10240RecordsofclosingcontactcanbesavedanduploadedviaAPP/Gateway
infrastructure.
QuickOperation
STEP1:SwitchonBatterySupply(BT01requiredonly)
Thereis2optionseithertoremovetheprotectionfilmfrombatteryoropen
housingandcorrectbatteryinstallation
1stoption:RemoveTransparent
Protection/IsolationFilmfromthe
cornergapofdevice(nearby“”
button).ThefunctionofIsolationfilm
istonotdraindownbatterylifeduring
logisticsbeforeuse.
2ndoption:Opendevicehousingand
correctthebatteryplacementfromup
todown,refertothe“BatteryOperation”
Note:Whilethebatteryispoweredtothedevice,LEDlightfromdevicewillblink
lightfor5secondsimmediatelyandruninclosingdetectionautomaticallytotrack
thepotentialclosingdeviceandrecordintoitsmemory..
STEP2:PoweronDevice
Foranewdevice,keeptouching“”
Buttonfor8secondstoswitchon
braceletandensureitwillblinkLEDlight
andvibratingfor2or3times.
STEP3:DeviceRegistration
EachdevicewillbeboundedwithaNickName,LoginID(PersonalIDorMACaddress)
andpassword(Defaultis123456)thenassignedtotheendcustomer.Thisprocess
canbemadebyyouradministrator,ordoitbyyourselfviaourClientAPPasbelow
APPInstructionmentioned.Withoutregistrationofeachbracelet,closingdatawill
justrecordMACaddressofthedevice.
STEP4:WearingDevice&FollowMovementInstructionAwayfrom
ClosingContact
Everybraceletwaswith
enoughbatterylifeand
keepworkingproperly
foryouremployees,
workers,orstudents,
instructpeopletoawayfromothersduringworking/studying
STEP5:UploadingClosingContactViaGateway
Sinceeachbraceletwillrecordnomorethan10240closingcontacts,the
suggestionistouploaddataeverytimefromGatewayentrance/exitasbelow
GatewayAPPmentioned
FinalSTEP6:QueryClosingContact
AnypeopleallowtochecktheirclosingcontactbyClientApporPlatform.
MovementInstruction&DistanceMeasurement
Distancemeasurementwithclosingalarmsforany2closingdevicesisabout
150cm,theclosingalarmisLEDblinkingandvibrating
ProhibitedMovement
Theabovespecificscenewithvisualmovement(parallel,straightmeet,facing
meetandlinefollowstraightly)mustbeprohibitedasthemovementsiswith
knownrisky.Thedevicehaslimiteddetectionaccuracyasbelowsignalcoverability
graph

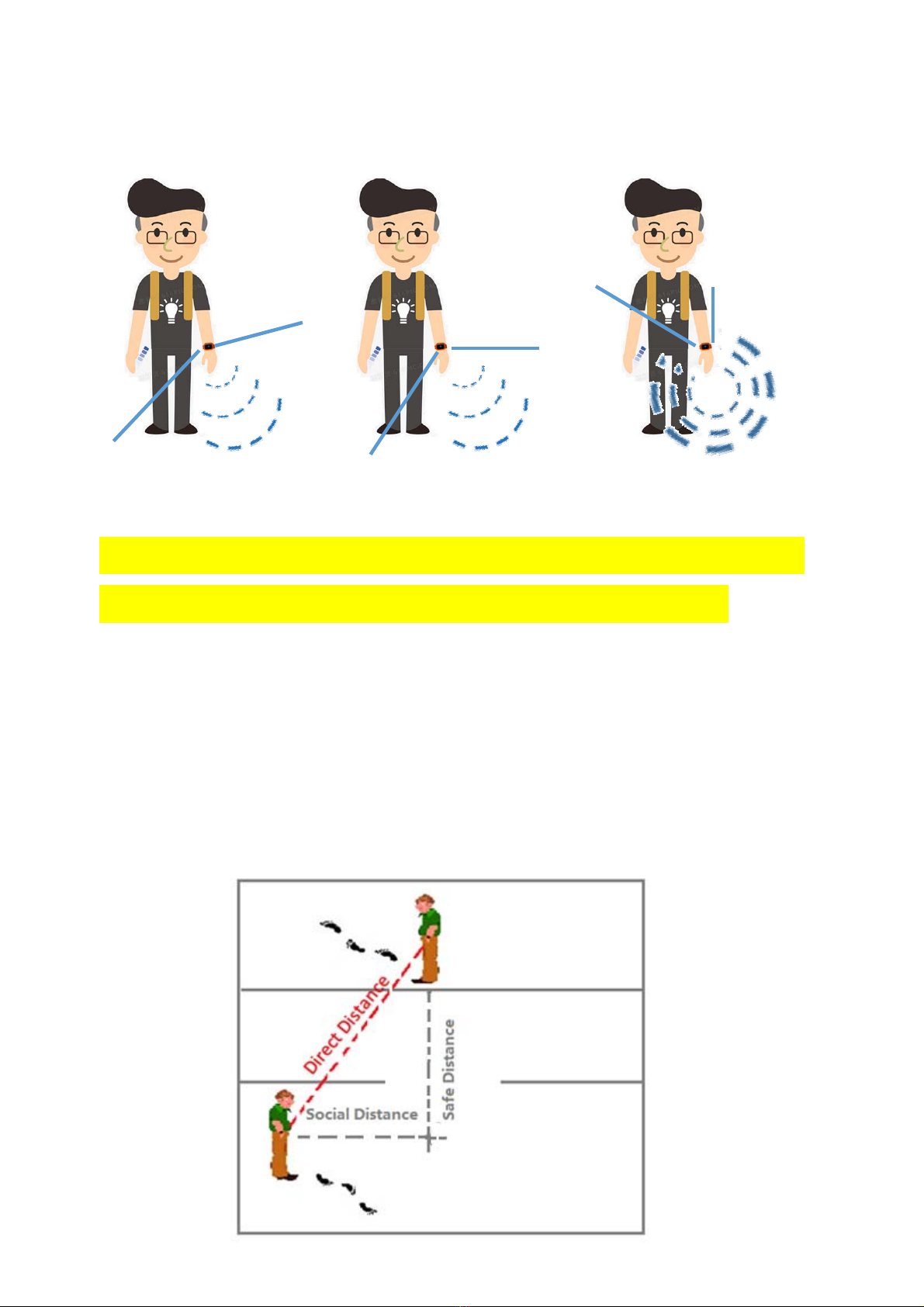

BT01BT02/03/04NewBT04with15.9transmission
Areliable/conformablewearingstyleismostimportancethantheotherssince
differentwearinghasdifferentmeasurement&detectionperformance.
DistanceDescription
1) Socialdistancemustbekeptabove1.5meter,otherwisedevicewillalarmfrom
onetotheothers
2)Safedistanceatleast0.5meterasthisisminimumrequirement.
3)Directdistanceshouldbediagonaldistancewith2.0meters+

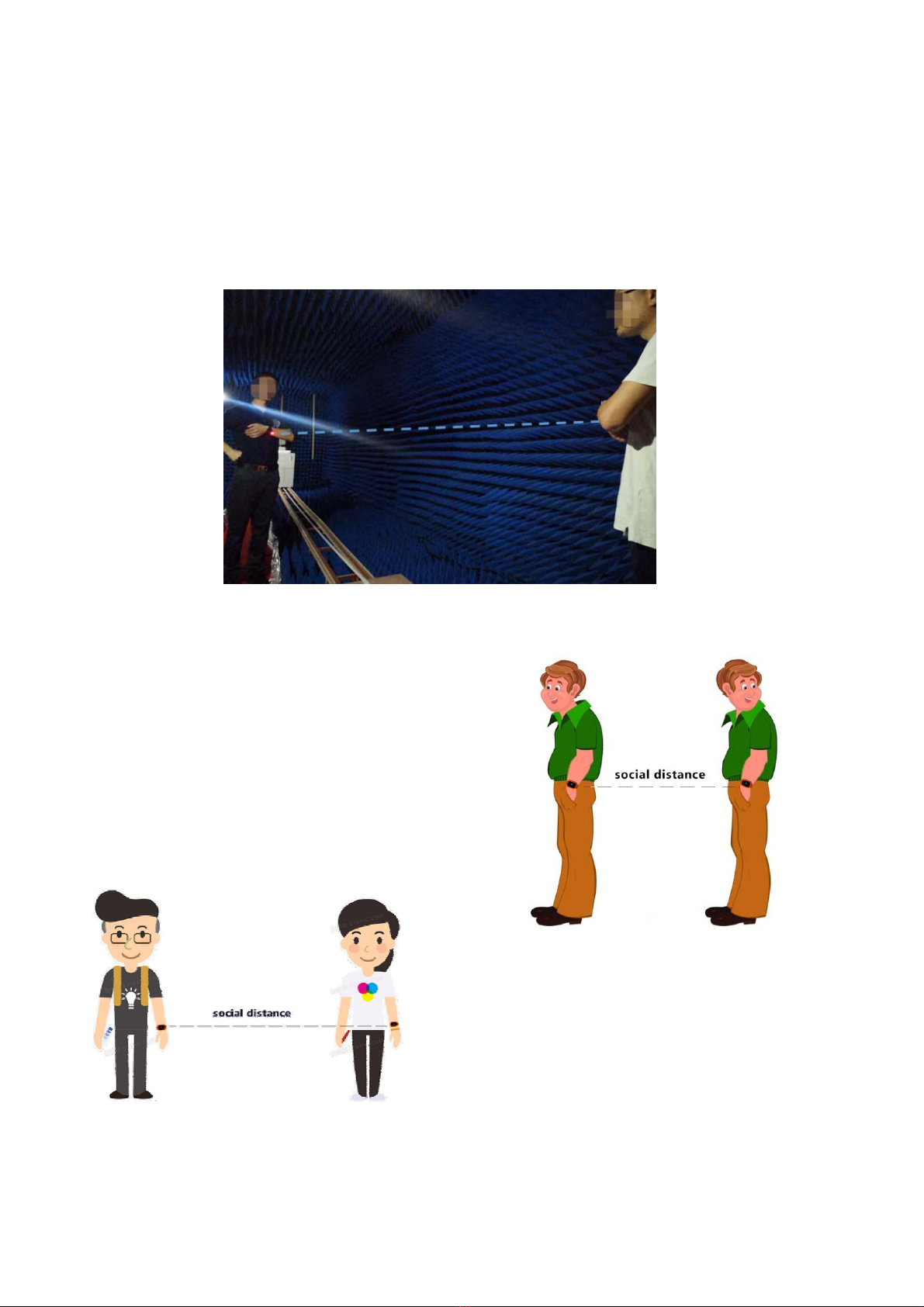

StandardMovementMeasurement(Basingon“EchoFree”Test)
KnownvariantmeasurementisduetoRFnoisessuchasreflection,shadow,
resistantandsoon,soStandardmovementtestisrecommendedinanECO‐FREE
chamber,thealarmdistanceofmeasurementisaround1.8m‐1.9meter.
MovementInstruction,remindpeopleawayfromclosingcontacts
Alarmdistanceisabout0.5‐2.0meterwhile
Peoplelinefollowasrightpictureduetobody
disturbanceoccursfortheRFsignal
Alarmdistanceisabout0.5‐1.5meter
Whilepeoplestay/walkingparallelly
Duetobodyandbodysize
Asdetectionrange&angleisinfluencedbyinfrastructurereflection,shadowand
bodydisturbanceoccurs,thedetectedsocialdistancewillbemorethan0.3meter
variantduetohugeman,slimgirlsanddifferentsizeofhumanbody.

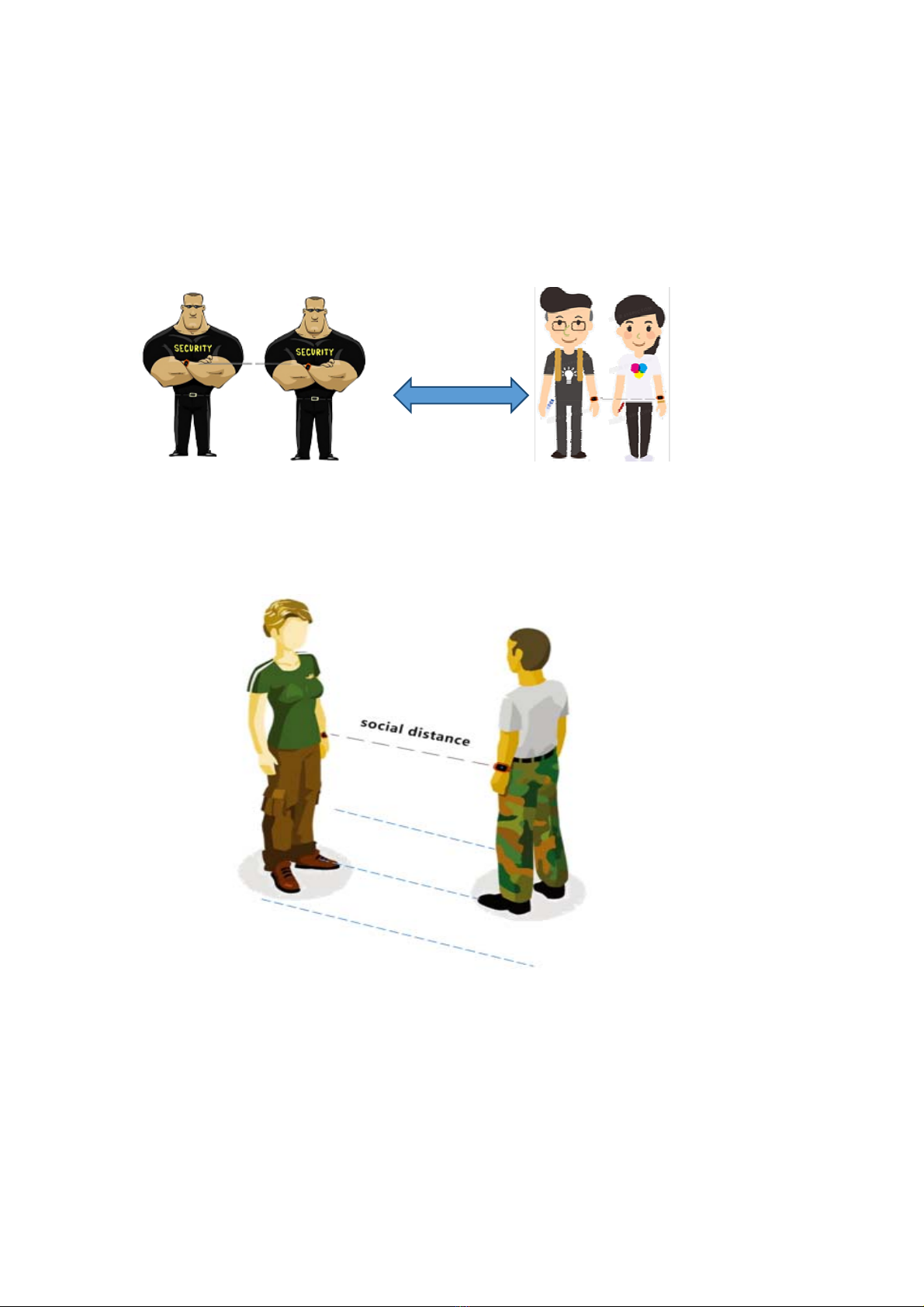

VS
Anytwomovementsarewalkingtogethercloselyasbelow,thealarmdistance
(socialdistance)isabout1.9meters
Belowcase,staticsocialdistancewillbemorethan2.5meter.
Belowcaseswitha90degreedirectionoftwomovements,thealarmofsocial
distanceisaround1.8meters
MovementGuideline
MovementGuideline
SocialDistance
BatteryOperation

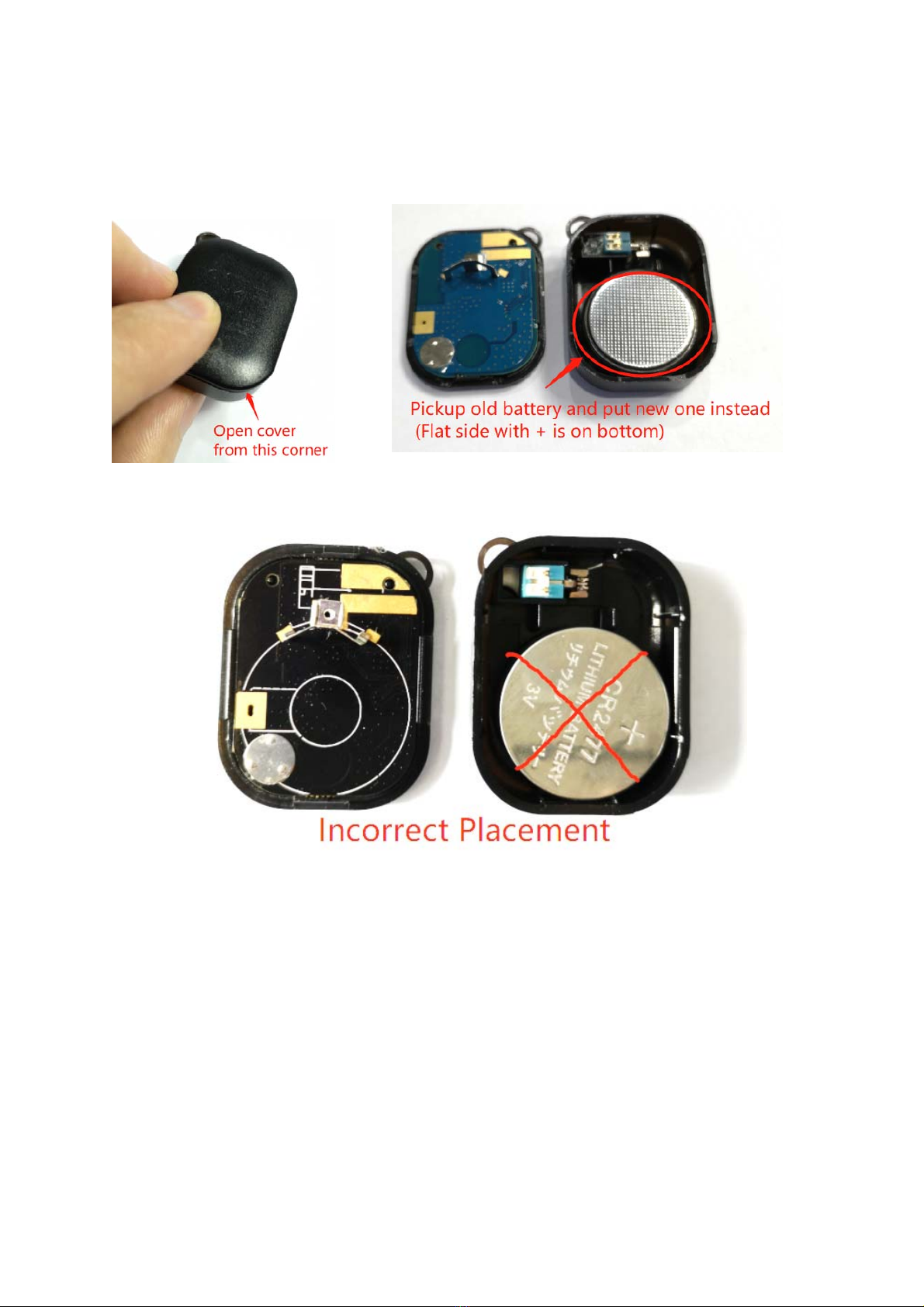

ReplaceBattery(BT01only)
Place new battery into socket properly,and follow up the body ear to cover
back the housing of bracelet and perform to test function see above STEP 4
from QUICK OPERATION

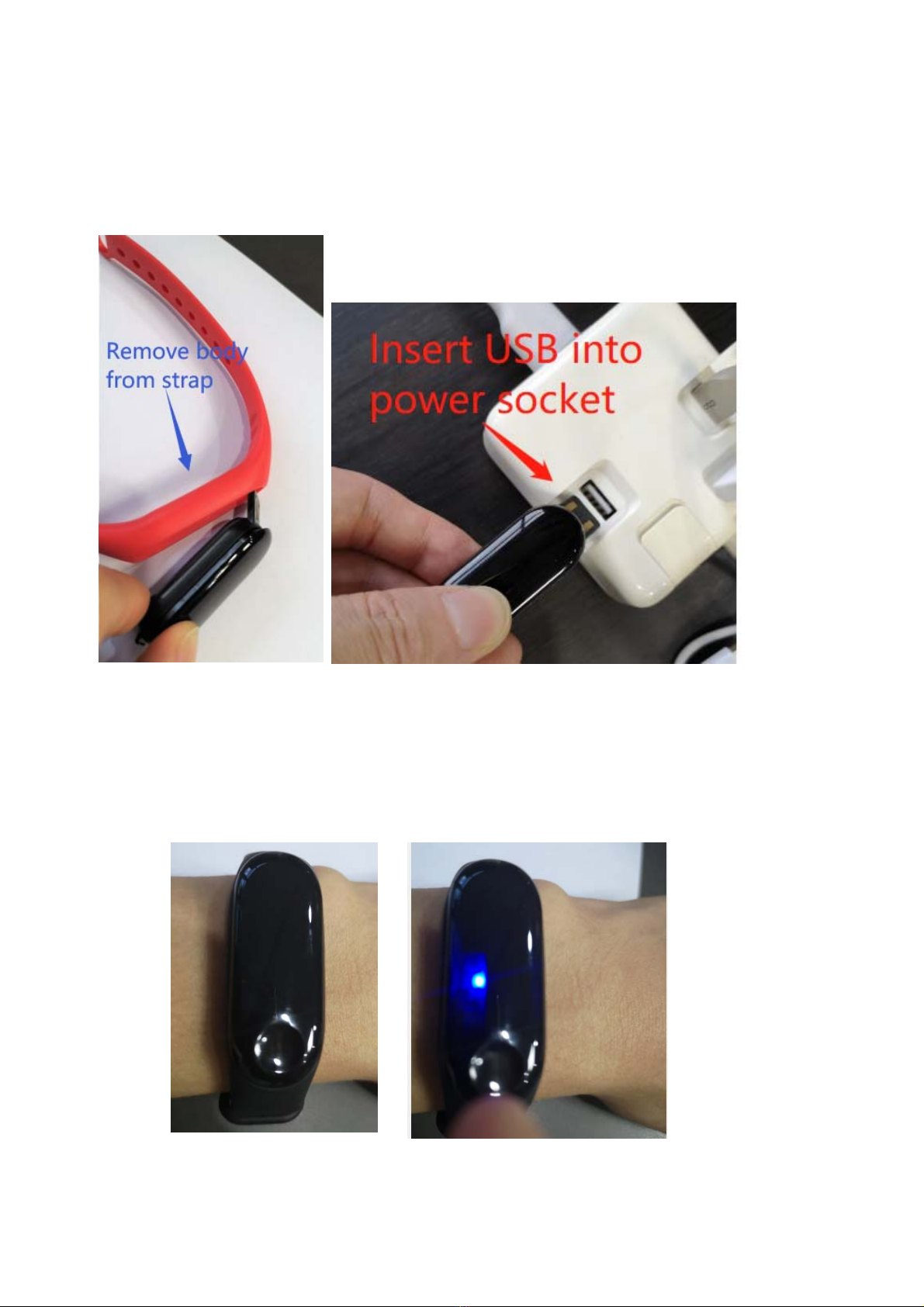

BatteryRecharge(BT02orabovemodels)
Remove band & take out the device body from bracelet, then insert USB port
into any power bank or an USB power supply socket as below for recharging
battery, around 30minutes will fully recharge battery.
When battery fully charged, assembly back the device body to the band and
ensure the bracelet are working properly, otherwise switching on again power
suppy for bracelet as below.
APPInstruction
UserRegistration“BT0X‐ClientAPP”(WebbasedPlatform)
ClientApp was designed to support both of end customers and administrators.
The function include registeration, reporting closing data, measure body
temperature, sync time, review closing data whom were contacting with in
the past.
ClientApp support also many login methods which is either by device MAC
address, your own account which is registered by yourself or the Login ID is
provided by administrators, the default password of 123456 can be changed
from web based Platform system. ClientApp is with different function
depending on the login ID which is assigned by the manager of Cloud
Platform.

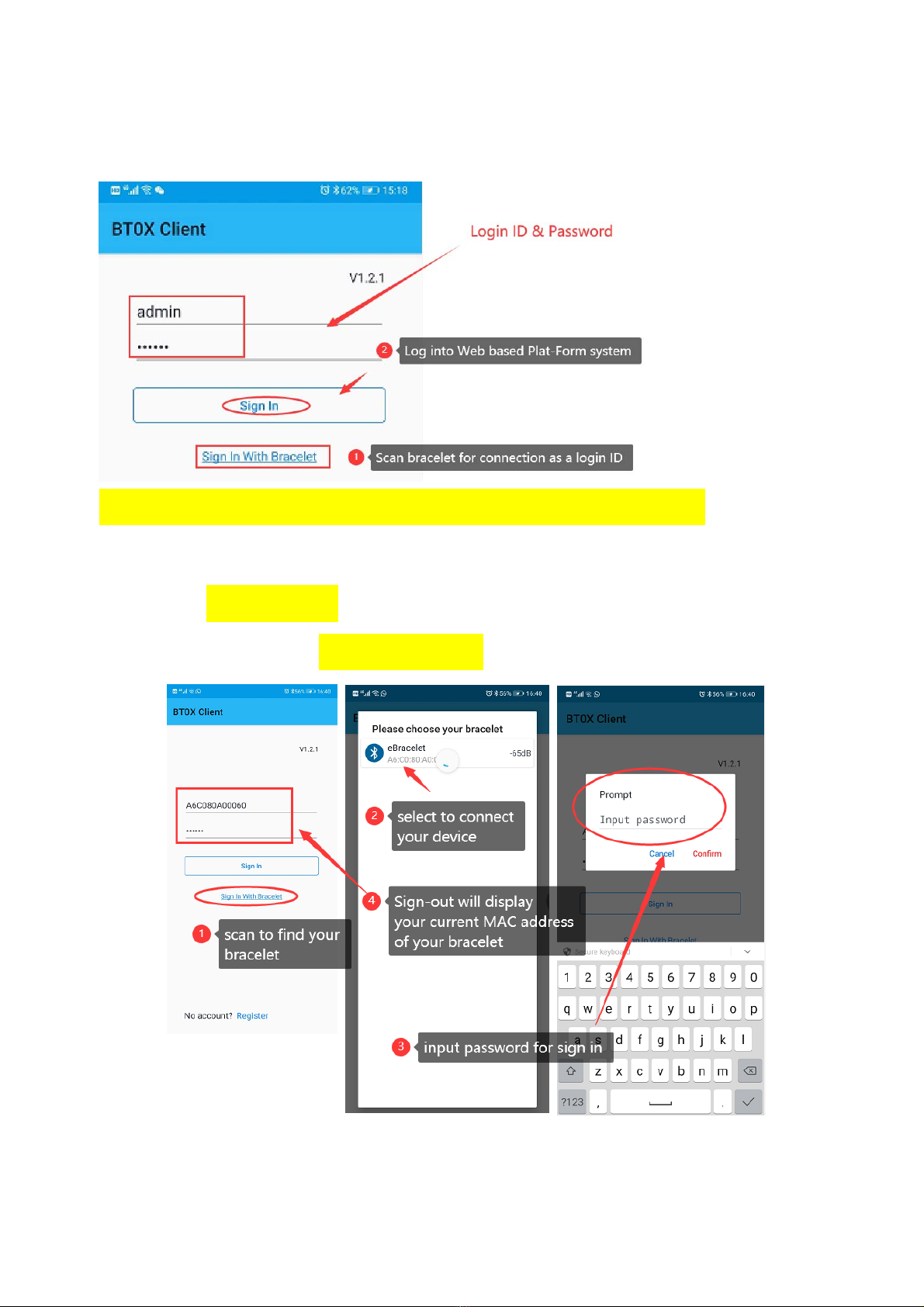

Login via Login ID
LoginID and password of your registeration, sign in to connect web based
cloud platform
Login via Bracelet itself (MAC address + default password)
“Sign in with bracelet” to browse device for new connection, while sign-out,
the default MAC address without sympol “:” of your bracelet will be restored
onto login ID including default password as below point 4.

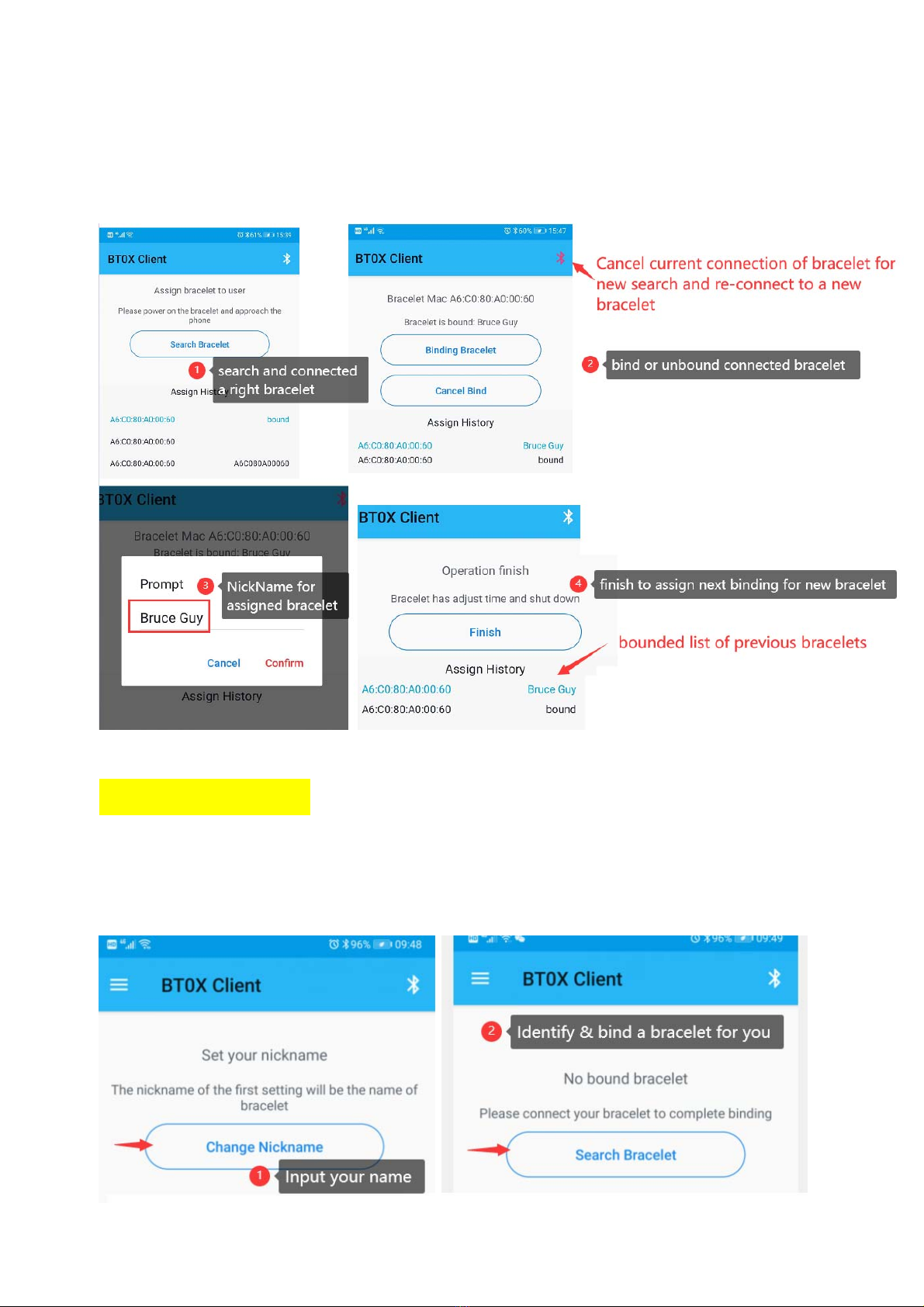

ClientApp provide also feature expantion management function to bind
bracelet for each new end users whom are going to wear those devices, and
ignore end customers to register devices one by one by themselves, cancel
bind/unbound function is also available for changing existing bracelet for
other end customer.
Personal registeration
A NickName will be required as below if the registeration is made by end
customer himself/herself.
“Cancel Bind” is available also from personal account for end customer to
unbound connected bracelet.
NOTE: Cancel Bind/Unbound function on above picture is also available to
be done from Web-based Could Platform tracking system.

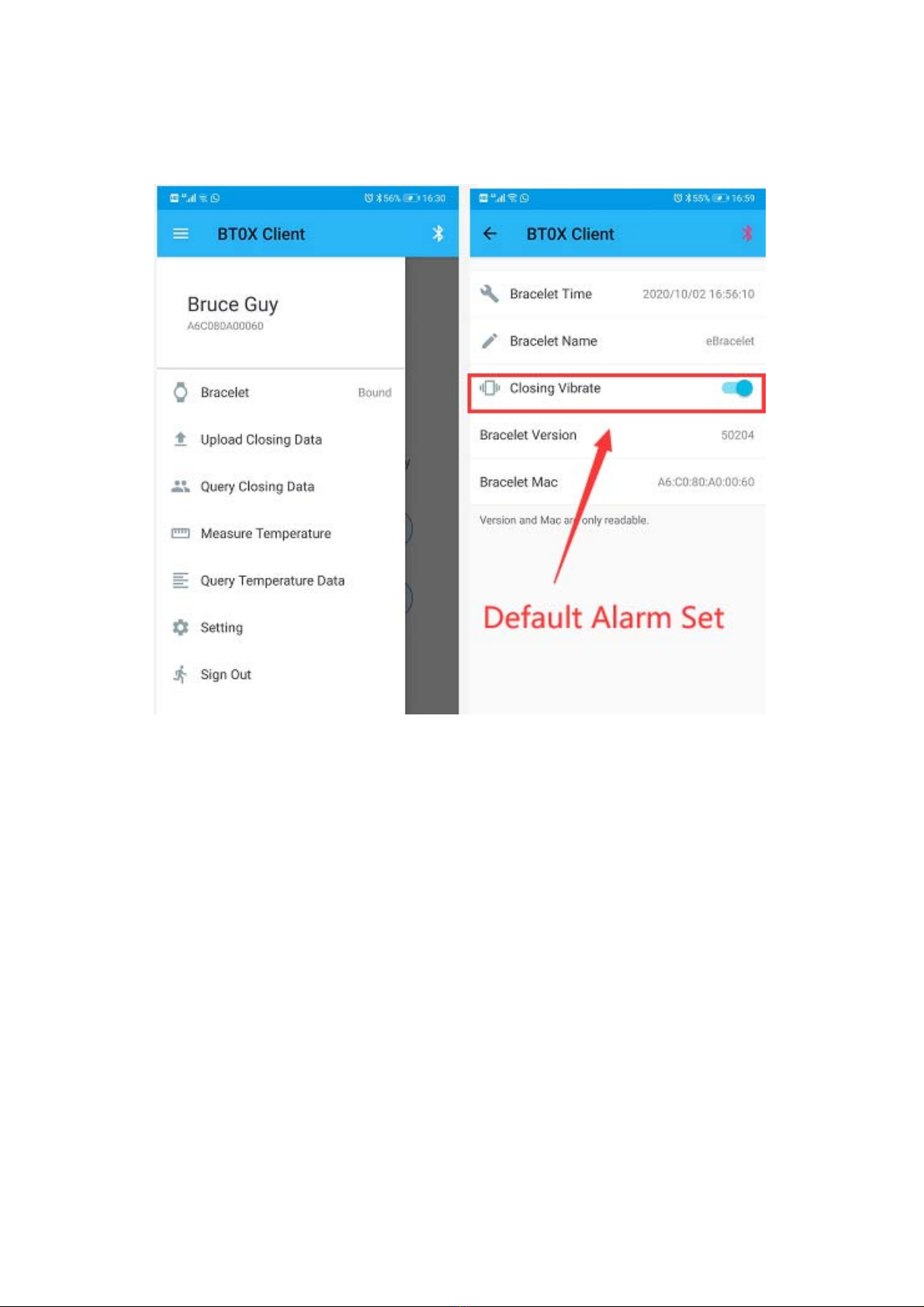

Inside sign-in account of ClientApp, it’s accepted to upload closing data,
measure current body temperature, config parameters for connected bracelet
such as enable /disable Vibrator and update bracelet’s time, query closing
data and query temperature data and so on.

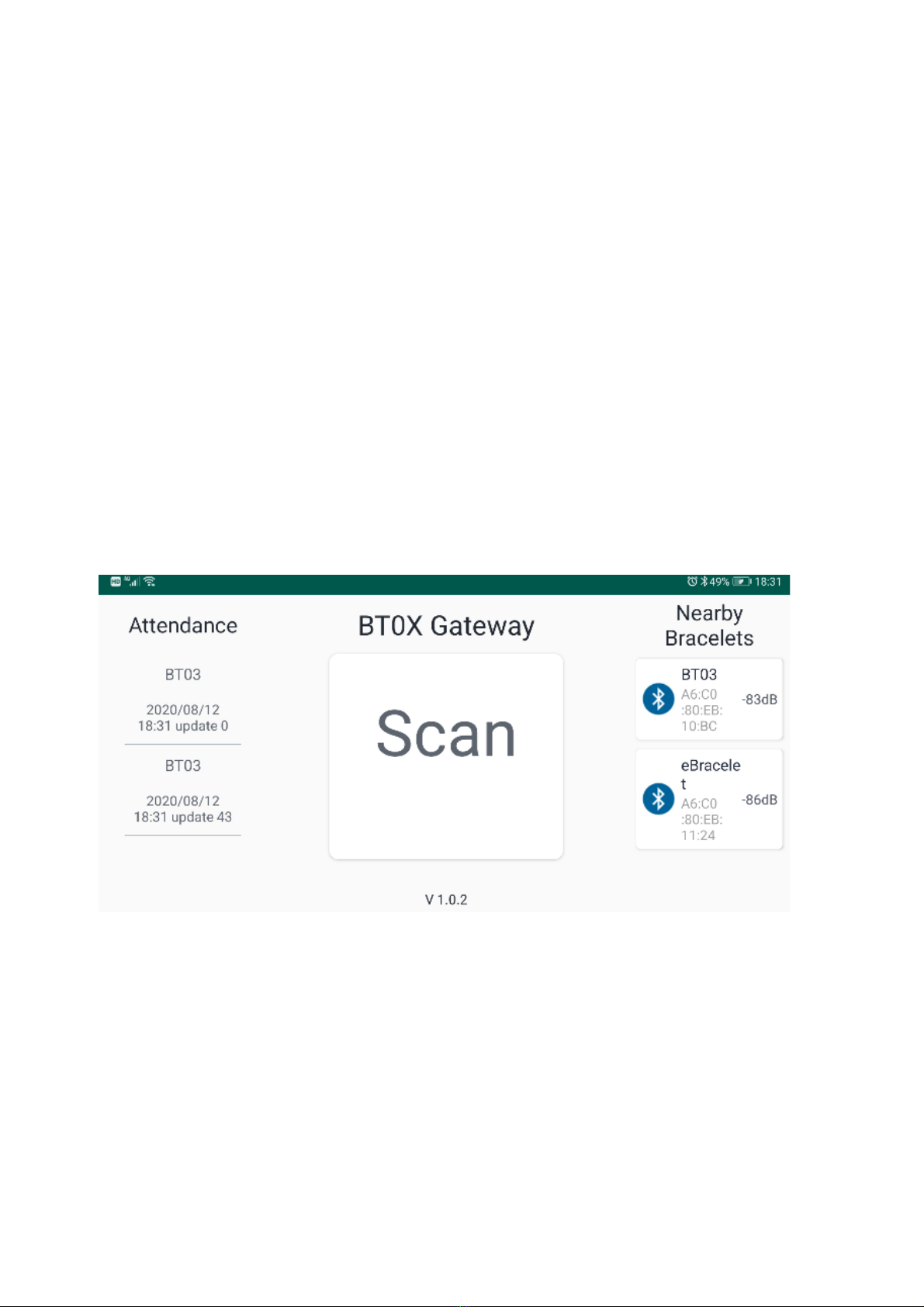

GatewayAPP(WebBasedPlatform)
Gateway app is designed especially for iPAD or Tablet in order to trace
nearby peoples from Gateway and upload closing data automatically from
each bracelet in real time, GatewayApp is working as an intelligent robot with
friendly interactive interface, wireless and very less operation for the
operators.
Each attendance transaction from gateway iPad/Tablet will include bracelet
selection, data uploading, empty buffer memory of closing data, renew and
sync bracelet’s timer from iPad or Tablet online system.
When the bounded bracelet nearby the iPad/Tablet with installed
gatewayapp, the bracelet will be connected to iPad/Tablet automatically and
the display of iPad/Tablet will inform person whom wearing bracelet how
many closing data was uploaded and what body temperature was measured
during that moment.
If the device was not yet bounded with a person by his/her “Nick Name”, the
“Update failed / The bracelet is unbound” reporting info will inform to the
operator on its screen as below.
NOTE: Any login ID can be used for GatewayApp as Gateway is just a function to collect
data from each bracelet, any associated bracelet with assigned loginID will show account
NickName, those info can be found also from web-based platform or be queried via
ClientApp by operators.

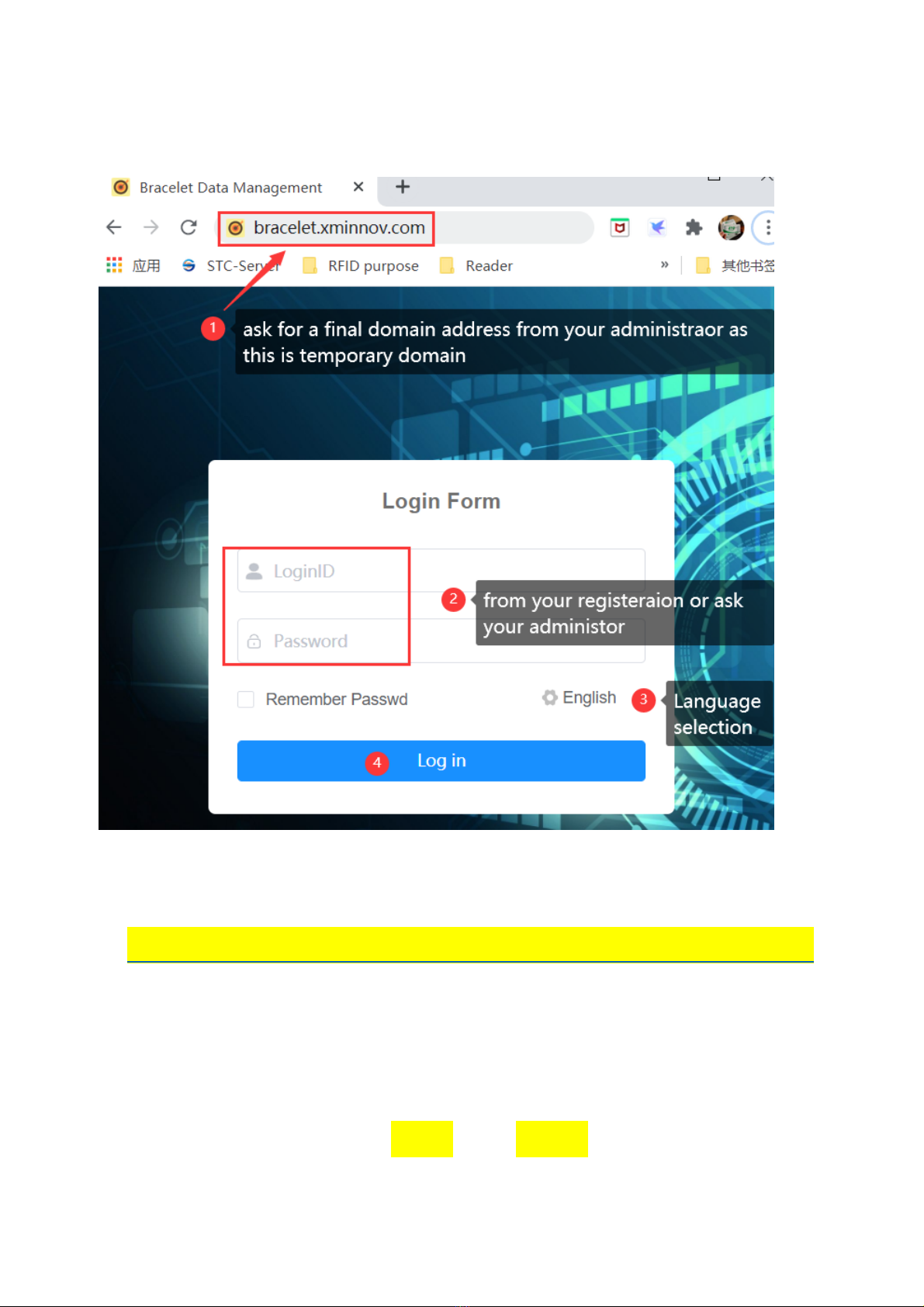

CentralManagementTrackingSystem(WebBasedPlatform)
NOTE:
1) Temporary management tracking system at http://bracelet.xminnov.com
2) Make sure the corrected input which is generated from your regsiteration
or was given from your distributor, the LoginID & Password with upper /
lower letters is accepted from our Platform. LoginID and password for
temporary administrator is “Admin” and “123456” for test purpose.
