cable matters 201044 User manual

email: [e-mail]
User Manual
Check for Thunderbolt 3 Windows driver
information at http://kb.cablematters.com
USB-C™ Multiport Video Adapter
with
UHS-II Card Reader and Power Delivery
Model 201044

Table of Contents
1. INTRODUCTION.....................................................................1
1.1 Introduction
1.2 Copyright and Trademarks
1.3 FCC Compliance Statement
2. PRODUCT OVERVIEW
2.1 Package Contents
2.2 Product Description ........................................................................ 2
2.3 Product Features
2.4 System Requirements
3. CONNECTION AND OPERATING INSTRUCTIONS ............3
3.1 Application Diagram
3.2 Connecting the Adapter to a computer with Power Delivery......... 4
3.3 Connecting to a LAN or router ....................................................... 5
3.4 Connecting a Display with HDMI.................................................... 6
3.5 Connecting a USB Peripheral Device ............................................ 7
3.6 Connecting an SD Memory Card
3.7 Troubleshooting Tips for Windows................................................. 8
4. TECHNICAL SPECIFICATIONS ............................................9
5. WARRANTY AND SUPPORT
5.1 Customer Support and Contact Information
5.2 Warranty Information
5.3 Limitations of Liability
www.cablematters.com

1
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
1. Introduction
1.1 Introduction
Thank you for your purchase from Cable Matters® Inc., the ‘Reliable
Connectivity’ company. This User Manual provides an overview of the features
and installation of the
USB-C™ Multiport Video Adapter with Card Reader and PD
Please read these instructions carefully before connecting, operating or
configuring this product. Please keep this user manual for future reference.
Contact [e-mail] for questions or product support.
1.2 Copyright and Trademarks
Specifications are subject to change without notice. Cable Matters is a
registered trademark or trademark of Cable Matters Inc. All rights reserved. All
other trademarks are the property of their respective owners.
USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum
Thunderbolt and the Thunderbolt Logo are trademarks of Intel Corporation in the U.S. and/or other countries.
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing, LLC in the United States and/or other countries.
1.3 FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: 1) This device must not cause harmful
interference, and 2) this device must accept any interference received,
including interference that may cause undesired operation.
2. Product Overview
2.1 Package Contents
Please check that the following items are contained in the package:
1 x USB-C Multiport Video Adapter with Card Reader and PD
1 x User Manual (available as a PDF from cablematters.com)

2
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
2.2 Product Description
The Cable Matters® USB-C™ Multiport Video Adapter with Card Reader and
Power Delivery is an essential companion for Windows computers with a
USB-C or Thunderbolt™ 3 port. Connect a USB peripheral device, an
Ethernet network, and a monitor with HDMI. Transfer files from an SD
memory card and charge a laptop while transferring data or viewing video.
2.3 Product Features
• USB-C™ and Thunderbolt™ 3 port compatible
• Connect a monitor with HDMI input
• Connect to a wired Gigabit Ethernet network
• Transfer files from a UHS-II SD card
• Connect a USB peripheral such as a flash drive, keyboard or mouse
• Supports 4K HDMI video resolutions up to 3840 x 2160 @ 30Hz
• Power and charge a laptop up to 100 watts
• ABS housing with metallic port panels
2.4 System Requirements
Computer: USB-C™ or Thunderbolt™ 3 computer port
Supported OS: Windows 10, macOS 10.11 and up
Video: HDMI display and HDMI cable
Computer with DP Alt mode over USB-C
Gigabit Ethernet Network: Router with an RJ45 port and RJ45 patch cable
USB 3.0: USB Type-A cable to connect a peripheral device
Power Delivery 2.0: USB-C charger and cable
Memory Card Support: SD/SDHC/SDXC UHS-I / UHS-II

3
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
3. Connection and Operating Instructions

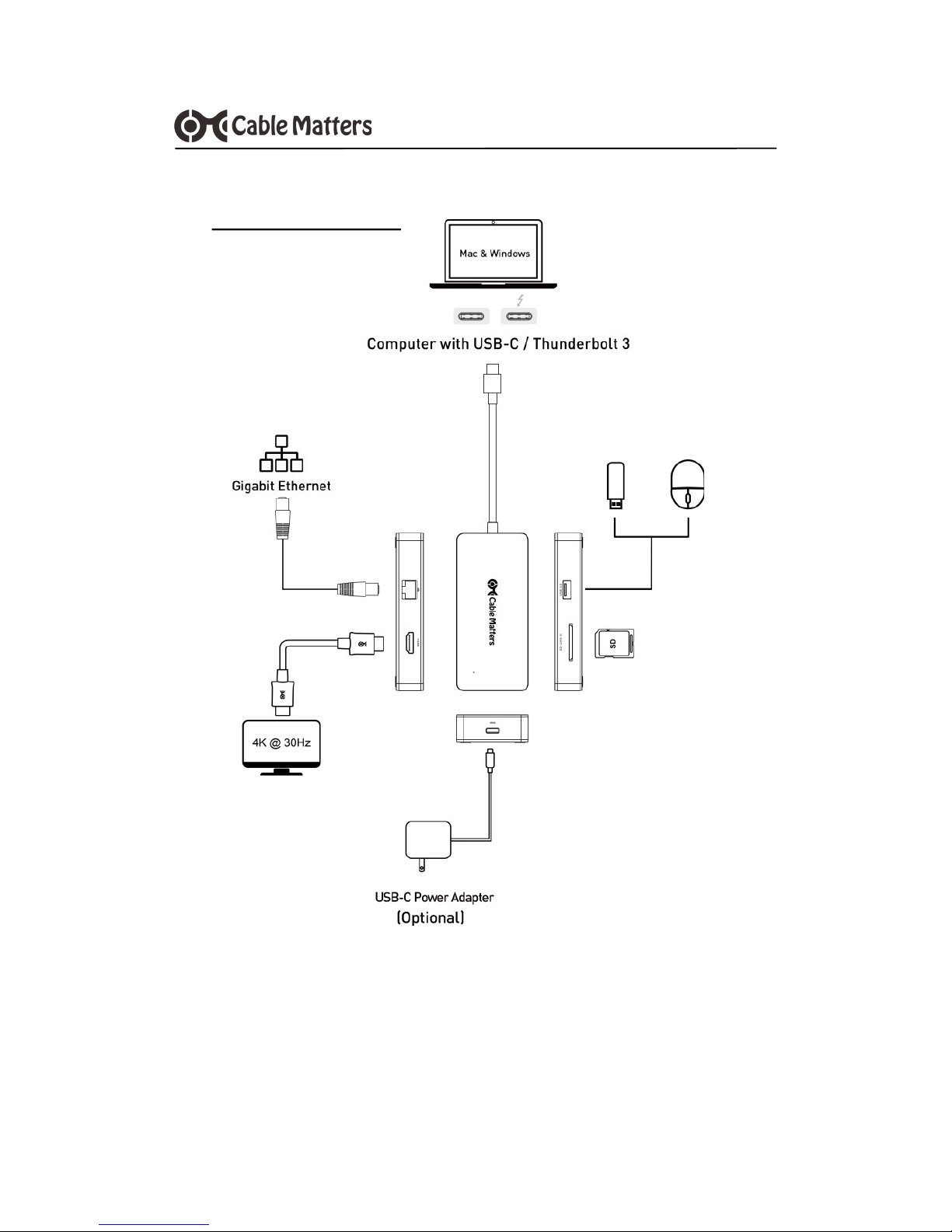

3.1 Application Diagram
• Connect to a Gigabit Ethernet network
• Add a USB 3.0/2.0 peripheral device
• Connect a display with HDMI input
• Transfer files from an SD memory card
• Charge a laptop while in use with a USB-C charger
Note: All cables to connect to
the Adapter are sold separately

4
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
3.2 Connecting the Multiport Adapter to a computer with PD
The Multiport Adapter can be connected to a USB-C charger
to charge a laptop while in use (with PD equipped computers).
Connect the Adapter to a USB-C charger for the best performance
Installation Instructions
1) Test with a fully charged laptop
2) Connect HDMI and Ethernet cables BEFORE connecting the Adapter
3) Connect a USB-C charger and cable to the PD port of the Adapter
4) Connect the Adapter to a USB-C port on the computer
5) Look for the charging indicator on your computer
Troubleshooting Tips (for charging a laptop)
• Check that the blue LED on the Adapter is lit
• USB-C Power Delivery must be supported by your computer for charging
• USB-C charger and cable must be rated for USB-C PD 2.0/3.0
• Adapter can only charge up to 100 watts (some computers require more)
• Use the USB-C charger and cable that came with the computer for the best
performance
Important Notes: (when using the PD power port)
• Do NOT disconnect power to the Adapter while in use or it may interrupt
the video, Ethernet, SD memory card or USB functions
Steps if the connected display or Ethernet function is not working:
1) Safely remove the SD card and USB devices
2) Unplug the Adapter and reboot the computer
3) Reconnect the Adapter to the computer
4) Check the PD connection to the USB-C charger
5) Check that the HDMI and Ethernet cables are securely connected

5
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
3.3 Connecting to a LAN or Router
Installation Instructions
1) Connect an RJ45 Ethernet patch cable to the Adapter
2) Connect the patch cable to a LAN or router port
3) Connect the Adapter PD port to power for the best performance
4) Connect the Adapter to a USB-C port on the computer
5) Check the documentation of your router to configure network access
Troubleshooting Tips
• Disconnect the Adapter and cables, reboot the computer, and reconnect
everything
• Check that the blue LED is lit on the Adapter
• Test by turning off all wireless connections
• Test the patch cable with a different device (Cat 6 is best for GbE)
Windows
Search Device Manager > Network adapters > Realtek GbE Family
Controller
Mac
Open System Preferences > Network > USB 10/100/1000 LAN

6
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
3.4 Connecting a Display with HDMI
Installation Instructions
1) Connect an HDMI cable (sold separately) to the Adapter
2) Connect the cable to the HDMI input of the display
3) Connect the Adapter PD port to power for the best performance
4) Connect the Adapter to a USB-C port on the computer
5) Select the HDMI video and audio input from the display menu
6) Select the audio output from the computer (optional)
Troubleshooting Tips
• Disconnect all cables, reboot the computer, and reconnect the everything
• 4K@30Hz video resolution requires a 4K-rated source, cable, and display
• Check that your computer supports an external video monitor
• Test with an HD (not 4K) display, if possible
Windows (Duplicate or Extend the Display)
Video: Press Windows Logo + P or
Search Display >Click on: Adjust Resolution
Audio: Search Sound > Click on: Display Name > Set as Default > OK
Mac (Duplicate or Extend the Display)
Video: Apple Menu > System Preferences > Displays > Arrangement >
Choose to Duplicate or Extend the display
Audio: Apple Menu > System Preferences > Sound > Output

7
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
Installation Instructions
1) Connect a USB 2.0 or 3.0 device to the Adapter (cable is sold separately)
2) Connect the Adapter PD port to a USB charger for the best performance
3) Connect the Adapter to a USB-C port on the computer
4) USB device should be recognized after downloading any needed drivers
5) Always Safely Remove or Eject the device before unplugging
Troubleshooting Tips
• Disconnect all cables, reboot the computer, and reconnect everything
• USB 3.0 port will not charge a device such as smartphone
• Test the USB device with a different computer
• Test the with a different USB cable
3.5 Connecting a USB Peripheral Device
Installation Instructions
1) Insert an SD card into the slot with the label facing up
2) Connect the Adapter PD port to a USB charger for the best performance
3) Connect the Adapter to a USB-C port on the computer
4) SD card should be recognized after downloading any needed drivers
5) Always Safely Remove or Eject the device before unplugging
Notes: Micro-SD cards are compatible with an SD adapter
Supports UHS I and UHS II
Do NOT unplug the power while transferring data
Troubleshooting Tips
• Safely remove the SD card from the Adapter
• Disconnect the Adapter, reboot the computer and reconnect everything
• Test the card with a different card reader
SD/SDHC/SDXC
3.6 Connecting an SD Memory Card

8
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
3.7 Troubleshooting Tips
• When using Power Delivery to charge a laptop, first connect all cables and
the USB-C charger BEFORE connecting the Adapter
• Check that your computer recognizes the Adapter - Blue LED should be lit
• Windows: Search Device Manager > Click on: Universal Serial Bus
devices > Cable Matters USB-C Multiport Adapter
• Mac: Search: Apple Menu > System Preferences > Network > USB
10/100/1000 LAN
Cabling
• Check that all cable and Adapter connections are secure
• Test any connected cables with different equipment
• 4K HDMI video resolution requires a 4K-rated cable
Computer/Host Source
• Test with a fully charged computer and the PD port connected to power
• Try a different USB-C port on the computer
• Try different video resolution and refresh rates supported by the display
• Check the HDMI audio output from the Playback Devices on the taskbar
• Verify that the HDMI audio is not muted
• Disconnect all cables, reboot the computer, and reconnect everything
Windows computers should check for updated BIOS, firmware and software
drivers from the computer manufacturer. Check for driver information at:
http://kb.cablematters.com
Mac computers should check for updated OS software patches from Apple.
Connected Display
• Select the HDMI input from the display menu
• Adjust the audio level from the display menu
• Test with an HD (not 4K) display, if possible
• 4K HDMI video resolution requires a 4K-rated display
Contact [e-mail] with the model numbers and
description of your hardware configuration.

9
www.cablematters.com
USB-C™ Multiport Video Adapter with Card Reader and PD
4. Technical Specifications
Host Connector: USB Type-C Male
Network Port: RJ45 8P/8C 568-B Female
USB Port: USB 3.0 Type A Female
Video Port: HDMI 19- Pin Female
Memory Card Slot: SD/SDHC/SDXC UHS-I / UHS-II
Power Port: USB-C 24-Pin Power Delivery 2.0
5V/9V/12V/15V/20V
Power Status Indicator: Blue LED
OS Support: Windows 10, macOS 10.11 and up
HDMI Resolution Support: Up to 3840 x 2160 @ 30Hz
HDMI Audio Support: 8-Ch LPCM, compressed audio.
Adapter Housing: 4.2 x 1.9 x 0.7 Inches / 3 Ounces
Cable Tail Length: 4 Inches
Compliance: C E, FCC
Warranty: Limited One-Year
Note: Specifications are subject to change without notice
5. Warranty and Support
5.1 Customer Support and Contact Information
Cable Matters offers lifetime technical support as an integral part of our commitment to
provide industry leading solutions.
Email us with any questions at [e-mail].
5.2 Warranty Information
This product is backed by a limited one-year warranty. The warranty covers parts and labor
costs only. Cable Matters does not warrant its products from defects or damages arising
from misuse, abuse, or normal wear.
5.3 Limitation of Liability
In no event shall Cable Matters Inc. (including their officers, directors, employees or
agents) be liable for any damages (whether direct or indirect, special, punitive, incidental,
consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of, or related to the use of this product exceeding the actual price paid for the product
(as allowed by state law).

www.cablematters.com
View compatible products at www.cablematters.com
USB-IF Certified
USB-C 100W Charging Cable
Model 201040
(3-Pack)
4K-Rated HDMI Cables
Model 300019
(5-Pack)
Snagless Cat 6 Patch Cables
Model 160021
