Cablematic HDEX004M1 User manual

U S E R M A N U A L
HDMI Splitter 1X4 By Single CAT
Up TO 60m & Support D Full HD
Model No：HDEX004M1
Enjoy the vivid world!

INTRODUCTION
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Our series of HDM Converters, switchers, extenders, matrixes and splitters are designed to
make your A/V device use more convenient, more comfortable, more productive and more
cost-efficient.
This extender can extend and connect one HD Source to four HD Displays or Projectors by
four pieces of cat6/7 at the same time. The extending distance can reach 60m. This
extender meets the needs of multi-route and low-cost HD Signal long distance transmission
well.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
FEATURES
One HDM input distribute and extend to found Display by four cat6/7 cable. The extend
distance can be up to 60m.
Support 3D
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
LED Status Light：the related led light will go bright.
The extend distance can be up to 60m.
Support signal retiming
No loss of quality
nstalls in minutes
TX uses the DC5V/3A power adaptor.
Four RX: each one uses 5V/1A power adaptor














 
 

 
 

 



                        

 












Operating and Connecting：
1. To use one piece of HDM Cable to connect the HD Source with the HDM input port of the
extender, the HDM Cable up to 15m.
2. To use one pieces of cat6/7 for each distributed HDM Signal to connect the sender and
receive, the distance between the sender and receiver most up to 60m.

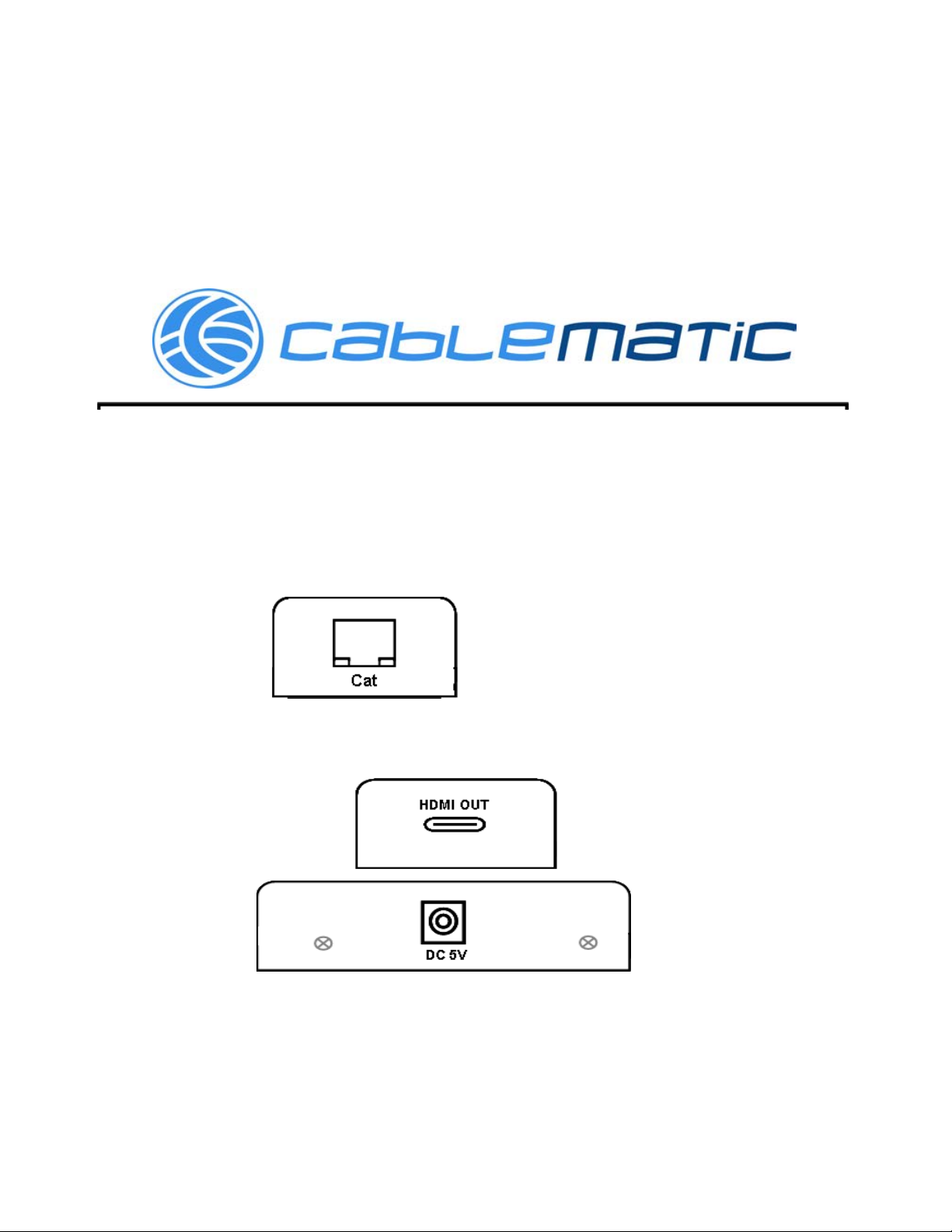

3. To use one HDM cable to connect the RX with the Display, The HDM Cable length can be
up to 20m.
4. To connect the attached powers at the receiver and sender.
SPECIFICATIONS: HDEX004M1
Length of CAT-6 cable between Rx and TX…..…………….……….…….…….. up to 60m
HDM nput…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDM Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output...……. …………………………LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………….…………………………………225MHz
Max baud rate……………….…….………………….….……….………………………6.75Gbps
nput Video signal ………….…………………………...…………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)
nput HDM cable distance..…... …………………....….…≤15m AWG26 HDM standard cable
Output HDM cable distance…………………..…..….…...≤20m AWG26 HDM standard cable
Max working current(TX)…………………………………………………………………...2000mA
Max working current(RX)………………………………………………..…………………...600mA
Power adapter format(TX)………….… nput:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Power adapter format(RX)…………… nput:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…..………….……………..…………………… (0 to +40 )℃
Operating Humidity range………………………….….…..…….5 to 90%RH (No Condensation)
Dimension (TX) …………………………….…………….……………..………..205x74x26(mm)
Dimension (RX) …………………………….………………..……...…(82X44X22) (mm) X4pcs
Weight…..…………………………………………………..……..….……………………..……750g
.
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty,
Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the
socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.

Before power on, pls check the connection line carefully. And make sure that all interfaces
are normally connected. The common trouble shooting way shows below:
Serial NO
Trouble
Description
Cause and Ways to deal with
1
Non-Power-
Connected
1、Check if the power adaptor head is truly and
correctly inserted the power socket.
2、Check the power switch if it is in on status.
2 No Picture
1、Pls to make sure that the TV is on and has been
connected with the machine.
2、To check if the signal source is on and well
connected.
3、Check the system connection quality.
4、Check if the line is all good quality.
5、Check the cable quality
3 Obscure Picture
1、To try again to connect the cable to be free from the
unsuccessful connection.
2、Check the cable quality
