Cables to Go 39554 User manual

USER MANUAL for USB 2.0 PCI Card
1
Features
 Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
 Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
 Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
 PCI multi-function device consists of two OHCI Host Controller cores for full/low-speed signaling
and one EHCI Host Controller cores for high-speed signaling
 32-bit 33 MHz host interface compliant to PCI Specification release 2.2
 Supports PCI-Bus Power Management Interface Specification release 1.1
 All downstream facing ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and
low-speed (1.5 Mbps) transaction
 Plug & Play and Hot Swapping functions
System Requirements
 Windows 98/98SE/2000/ME/XP
 Mac OS X 10.1
Hardware Installation for USB 2.0 PCI Card
1. Turn off the power to your computer and any other connected peripheral devices. Follow the
precautions for static electricity discharge.
2. Unplug the power cord from the back of the computer
3. Remove the computer’s cover.
4. Select an available 32-bit PCI slot for the new board.
5. Remove the selected slot bracket by unscrewing the holding screw and slide it out. Save this screw
for securing the USB 2.0 PCI card after it’s installed.
6. To install the USB 2.0 PCI card, carefully align the board’s bus connector with the selected
expansion slot on the motherboard. Push the board down firmly, but gently, until it is well seated.
7. Replace the slot bracket’s holding screw to secure the board to the rear slot panel.
8. Put back the computer’s cover.
9. Reconnect the power cord and make new connections to the ports.
Driver Installation for USB 2.0 PCI Card
 Under Win 98 / 98SE – page 2~5
 Under Win 2000 / ME / XP – page 6~13
Driver note: If you are installing from the included CD, the file you need to run is called
“U2v2_062.exe”. If you are installing from a download, the file is called “U2v2_1_5.exe”.
Windows XP users: please install Service Pack 1 before you install this card and software!

USER MANUAL for USB 2.0 PCI Card
2
Driver Installation Under Win 98 / 98SE
1. Windows will detect new hardware and start
the “NEC USB Open Host Controller” driver
search program. As Figure 1. Click Next.
2. Select “Search for the best driver for your
device” in Figure 2. Click Next.
3. Put your operating system CD in the
CD-ROM. Click Next.
4. Don’t select any location and click Next. As
Figure 3
5. Select “The updated driver (Recommended)
NEC USB Open Host Controller”. As Figure
4. Click Next.
Figure 1
Figure 2
Figure 3

USER MANUAL for USB 2.0 PCI Card
3

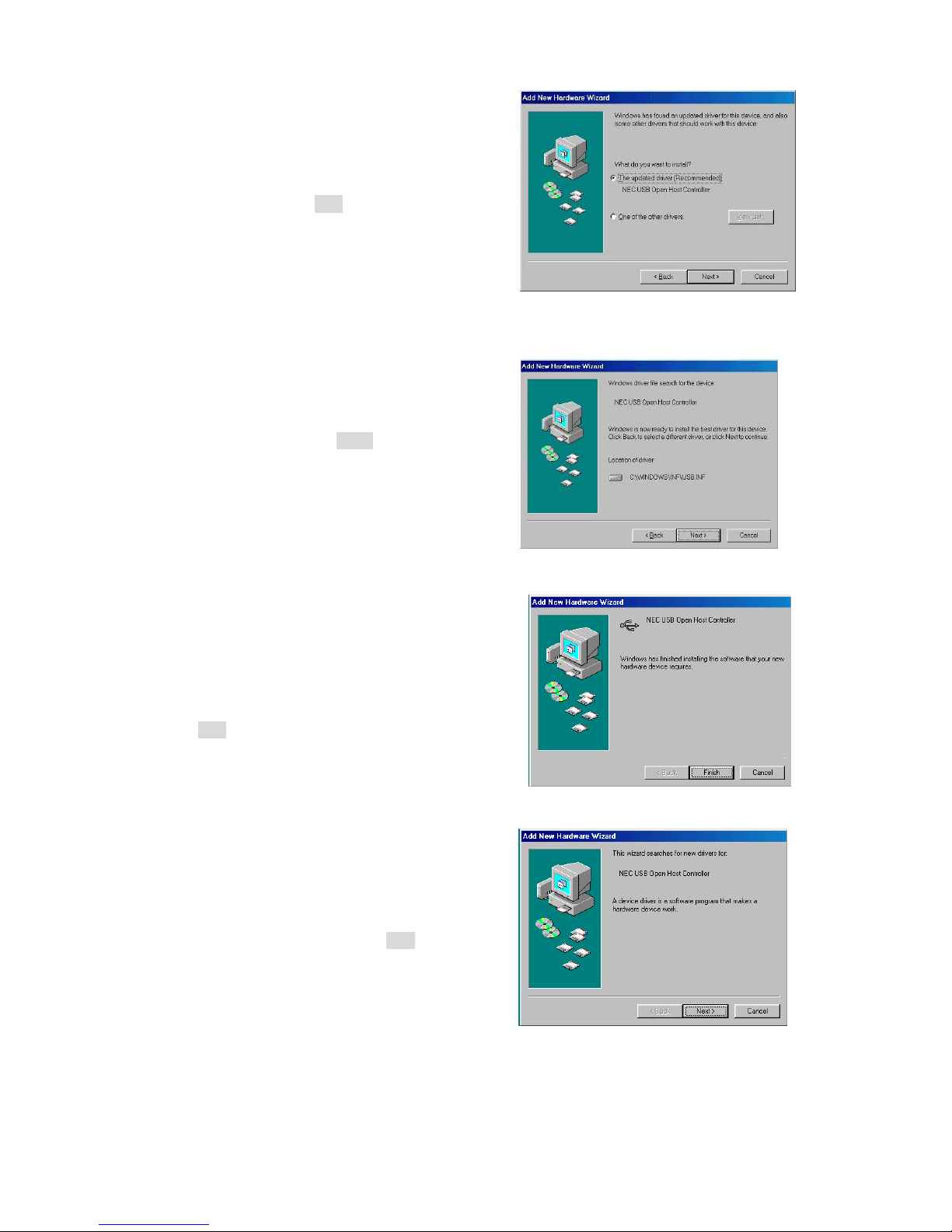

6. See Figure 5. Click Next again.
7. After installation, click Finish. As Figure 6.
8. As “NEC USB Open Host Controller” driver
search program shows up. See Figure 7. Click
Next.
9. Select “Search for the best driver for your
device (Recommended)”. Click Next. As
Figure 8 (The dialog is the same as Figure 2)
Figure 4
Figure 5
Figure 6
Figure 7

USER MANUAL for USB 2.0 PCI Card
4
10. Don’t select any location, Click Next. See
Figure 9.
11. Select “The updated driver (Recommended)
NEC USB Open Host Controller”. As Figure
10. Click Next.
12. After installation, click Finish. As Figure 11.
13. As “PCI Universal Serial Bus” driver search
program shows up. See Figure 12. Click
Cancel.
Figure 9
Figure 10
Figure 11
Figure 8

USER MANUAL for USB 2.0 PCI Card
5
Figure 12

USER MANUAL for USB 2.0 PCI Card
6
14. Double click the “Explore” under “My
Computer” as Figure13
15. Find the file located in “G:\NEC_USB2.0 PCI
Card\PC\U2v2_062” and double click. As
Figure 14
16. Select “Yes, I want to restart my computer”
and click Close. As Figure 15
17. Check if the “NEC PCI to USB Enhanced
Host Controller” is installed. As Figure 16
Figure 13
Figure 14
Figure 15
Figure 16

USER MANUAL for USB 2.0 PCI Card
7
Driver Installation Under Win 2000
1. See the welcome page,as Figure 1.Click Next
2. Select “Search for a suitable driver for my
device (recommended), as Figure 2.Click Next
3. Don’t select any location and click Next, as
Figure 3.
Figure 1
Figure 2
Figure 3

USER MANUAL for USB 2.0 PCI Card
8

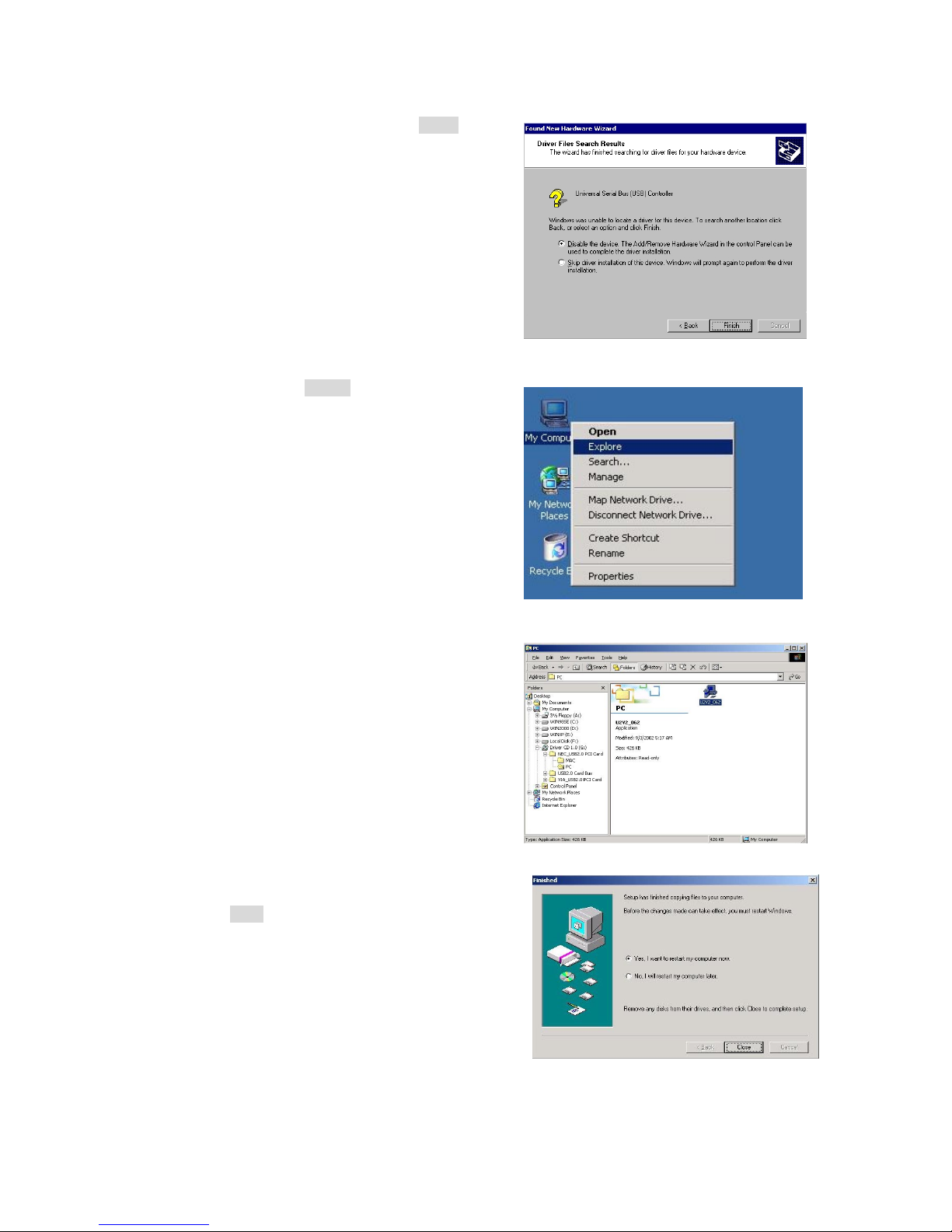

4. Select “Disable the device” and click Finish. As
Figure 4
5. Double click the “Explore” under “My
Computer” as Figure 5
6. Find the file located in “G:\NEC_USB2.0 PCI
Card\PC\U2v2_062” and double click. As
Figure 6
7. Select “Yes, I want to restart my computer” and
click Close. As Figure 7
Figure4
Figure 5
Figure 6
Figure 7

USER MANUAL for USB 2.0 PCI Card
9
8. See Figure 8. Check if the “NEC PCI to USB
Enhanced Host Controller” is installed.
Figure 8

USER MANUAL for USB 2.0 PCI Card
10
Driver Installation Under Win ME

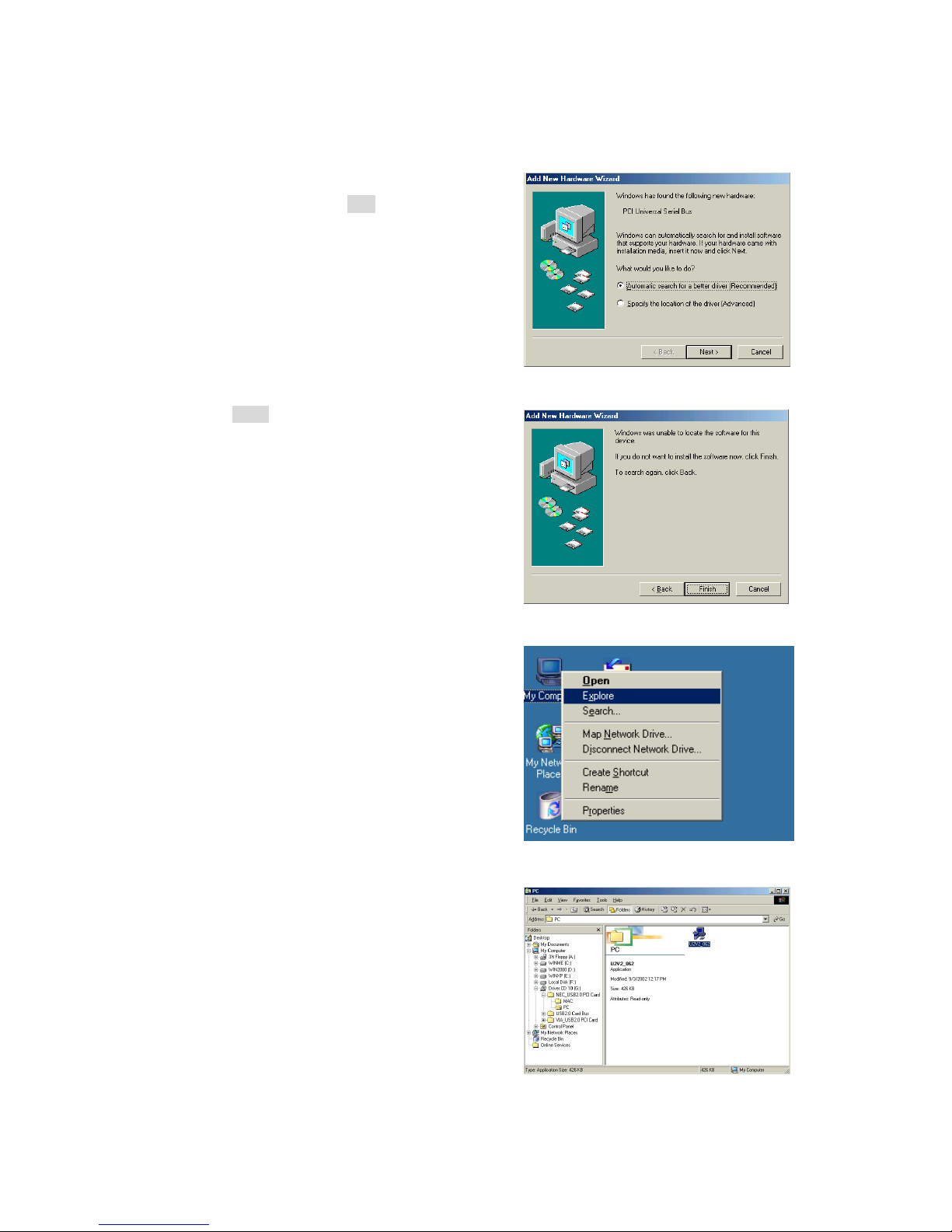

1. Select “Automatically search for a better driver
(Recommended)”. Click Next. As Figure 1
2. Click Finish As Figure 2
3. Double click the “Explore” under “My
Computer” As Figure 3
4. Find the file located in “G:\NEC_USB2.0 PCI
Card\PC\U2v2_062” and double click. As
Figure 4
Figure 1
Figure 2
Figure 3
Figure 4

USER MANUAL for USB 2.0 PCI Card
11
5. Select “Yes, I want to restart my computer” and
click Close. As Figure 5
6. See Figure 6. Check if the “NEC PCI to USB
Enhanced Host Controller” is installed.
.
Figure 5
Figure 6

USER MANUAL for USB 2.0 PCI Card
12
Driver Installation Under Win XP

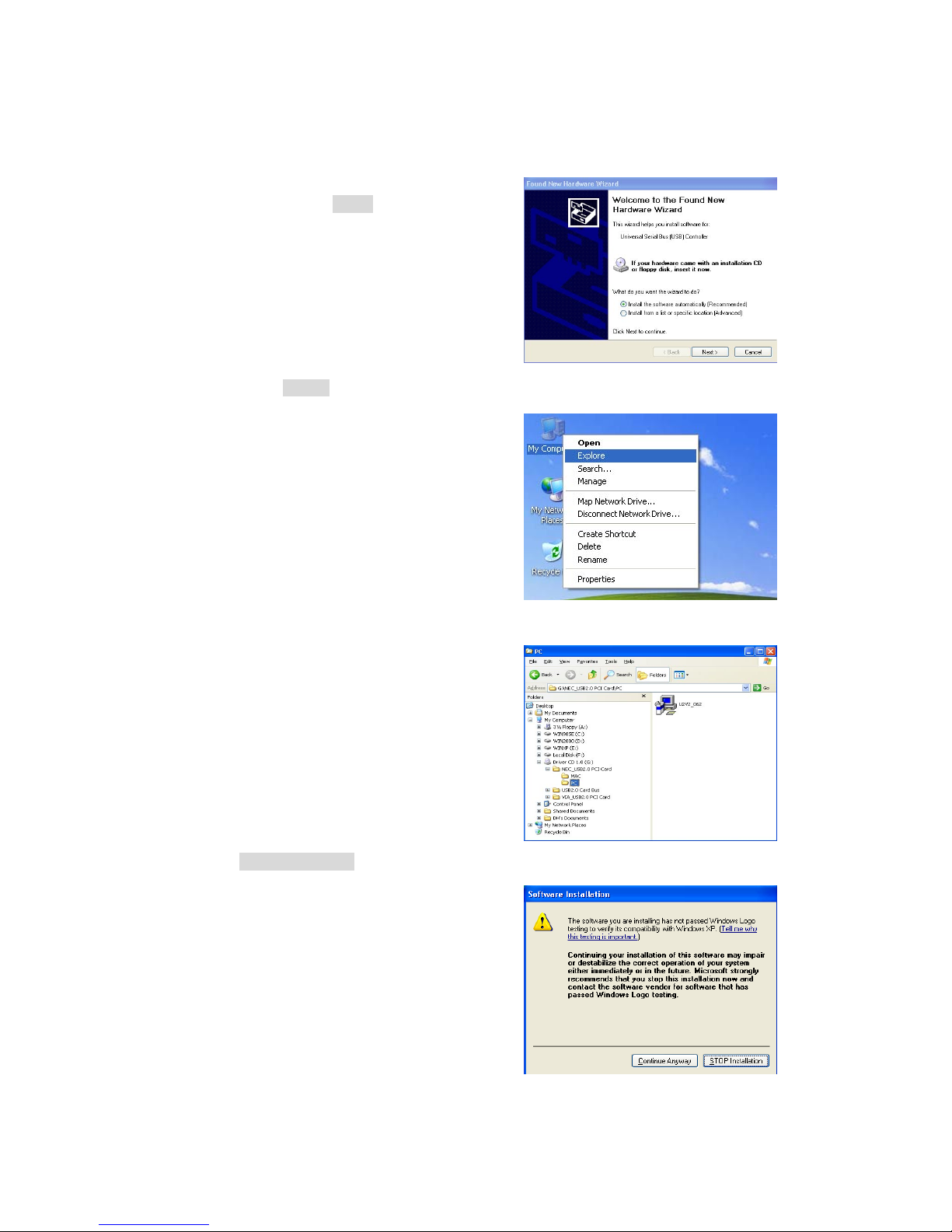

1. Select “install the software automatically
(Recommended)”. Click Cancel. As Figure 1
2. Double click “Explore” under “My Computer”
As Figure 2.
3. Find the file located in “G:\NEC_USB2.0 PCI
Card\PC\U2V2_064” As Figure 3
4. Click “Continue Anyway” As Figure 4
Figure 1
Figure 2
Figure 3
Figure 4

USER MANUAL for USB 2.0 PCI Card
13
5. Select “Yes, I want to restart my computer” and
click Close. As Figure 5
6. Select “install the software automatically
(Recommended)”. Click Next. As Figure 6
7. Click Continue Anyway. As Figure 7
8. “USB2.0 Root Hub Device” has been installed.
Click Finish, as Figure 8
Figure5
Figure6
Figure7
Figure8

USER MANUAL for USB 2.0 PCI Card
14

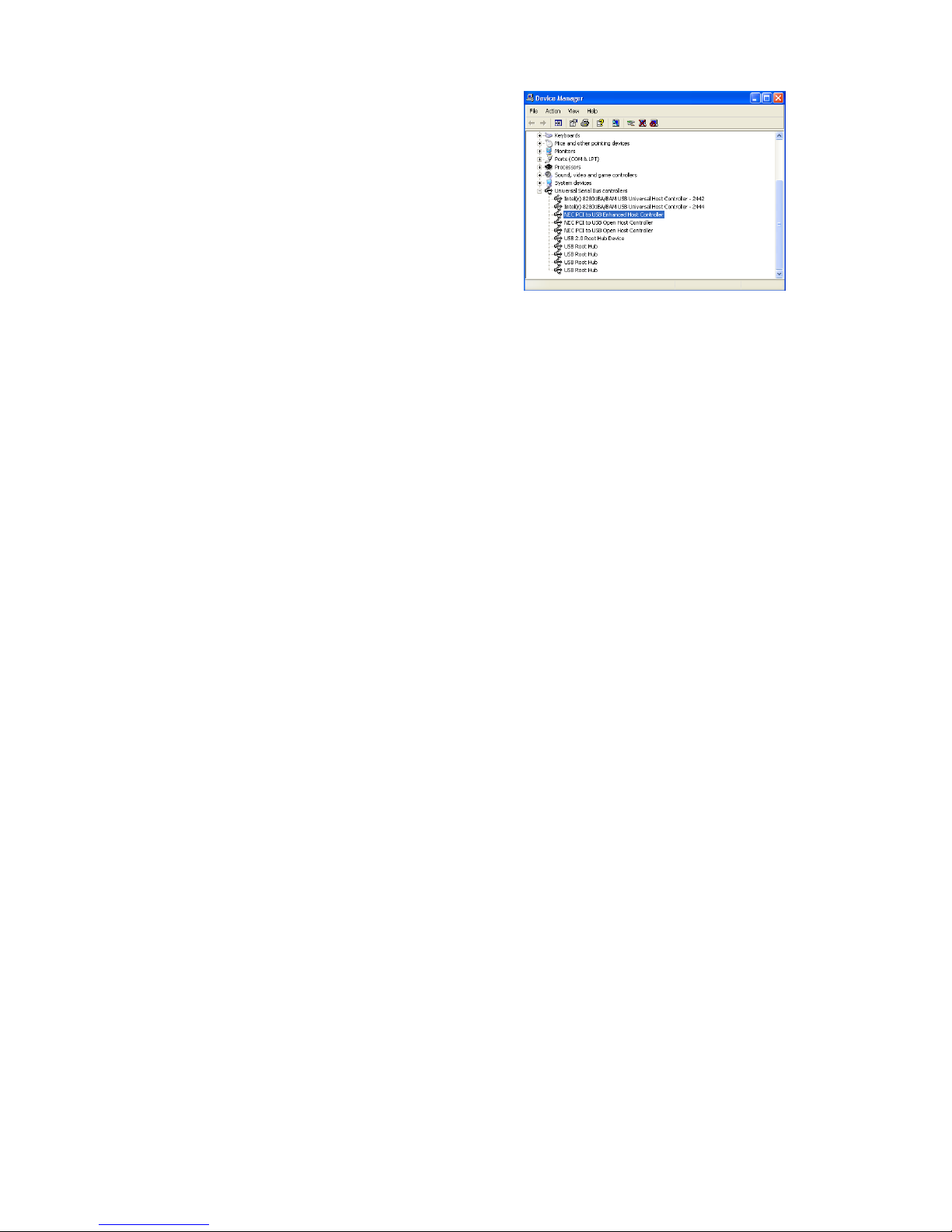

9 See Figure 9. Check if the “NEC PCI to USB
Enhanced Host Controller” is installed.
Figure9
