1-1
CHAPTER 1
INTRODUCTION
Welcome to the TRMM ™ /TRMMIM ™ Token Ring Management
Modules Installation Guide
. This manual describes module capabilities,
specifications, and setup and installation instructions. It is intended for all
users of the TRMM and TRMMIM.
The Token Ring Management Module (TRMM™) and Token Ring
Management Media Interface Module (TRMMIM™) are designed for use
in Cabletron’s Multi Media Access Center (MMAC™) models,
MMAC-M3FNB, MMAC-M5FNB, MMAC-M8FNB. The modules are
802.5 compliant, IBM compatible, and support Simple Network
Management Protocol (SNMP) management. They also provide Local
Management application tools, which can be accessed via management
terminal, modem, or Telnet connection.
1.1 USING THIS MANUAL
Please read this manual to gain an understanding of product features prior
to installing and operating the TRMM and TRMMIM. Having a working
knowledge of Token Ring (IEEE 802.5) networks will prove helpful
during the installation.
The manual is organized into the following chapters:
Chapter 1,
Introduction , describes the manuals structure and module
features and capabilities. It also lists product reference, help, and support
sources.
Chapter 2,
Installation Requirements and Specifications , describes
module and peripheral device operational requirements and specifications.
Chapter 3,
Module Configuration and Installation , describes
configuration, installation, and cabling procedures for the modules and
peripheral devices.
TRMMBook2 Page 1 Tuesday, March 5, 1996 1:13 PM

INTRODUCTION
1-2
Chapter 4, Testing and Troubleshooting , describes checks to perform if
operational problems are encountered after installation. It also describes
LANVIEWLEDs,CabletronSystemsbuilt-in,visualdiagnosticandstatus
monitoring system, and POWER UP DIAGNOSTIC tests.
1.2 TRMM AND TRMMIM OVERVIEW
The TRMM and TRMMIM (Figure 1-1) can be used together for
managing and monitoring multiple Token Rings in the same MMAC hub.
Both modules are controlled by Intel’s™ i960 CPU running at 24 MHz.

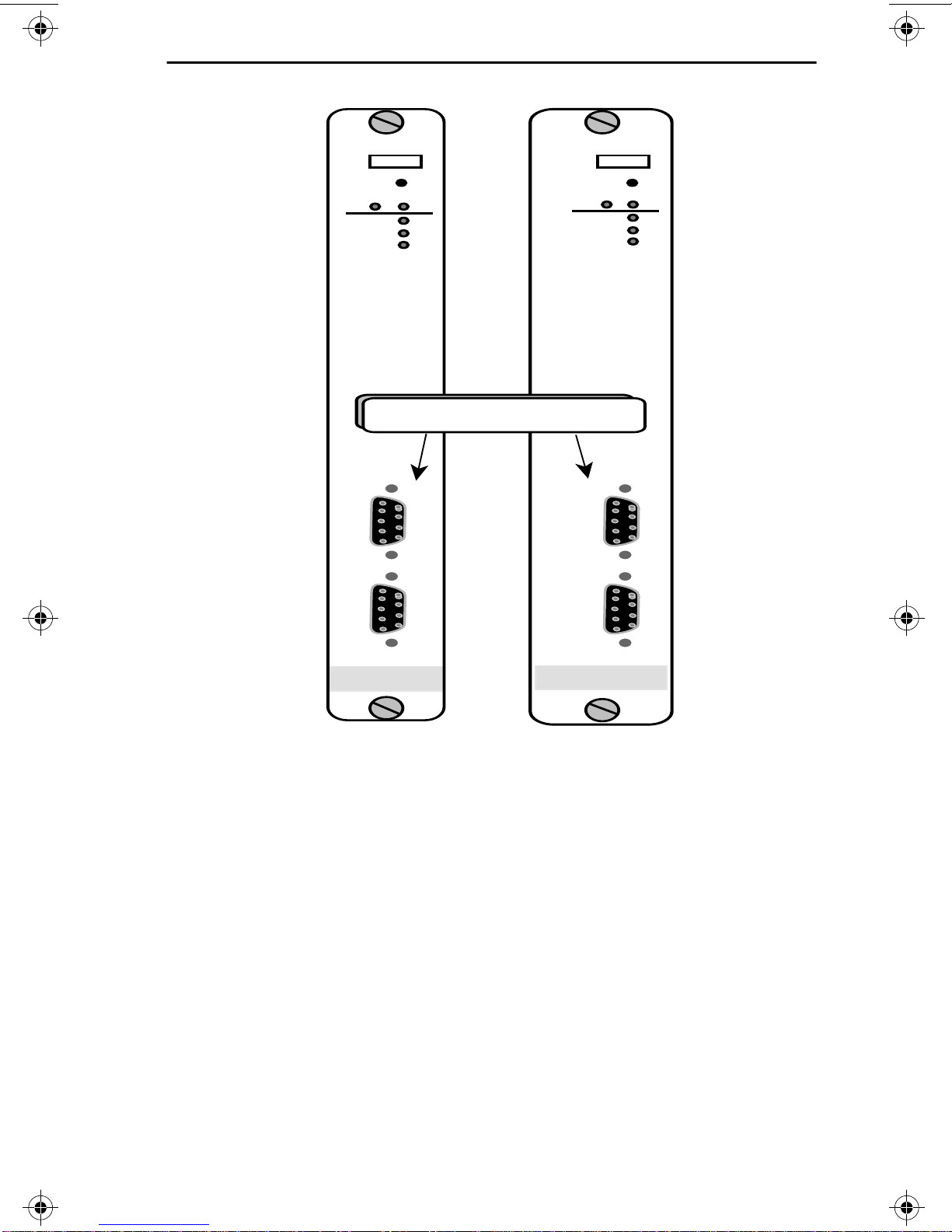

Figure 1-1. The TRMM and TRMMIM
TRMM
TOKEN RING
SN
16 Mb
NSRT
LWRP
BOK ERR
RESET
F
N
B
C
O
M
1
C
O
M
2
16 Mb
NSRT
LWRP
BOK ERR
F
N
B
C
O
M
1
C
O
M
2
TRMMIM
TOKEN RING
SN
RESET
TRMMBook2 Page 2 Tuesday, March 5, 1996 1:13 PM

INTRODUCTION
1-3
Both are also functionally identical, providing:
• Token Ring support on the MMAC Flexible Network Bus (FNB)
• Selectable Token Ring speeds of 4Mbps and 16Mbps
• In-band (SNMP) and out-of-band (RS232) management
• Flash EPROM firmware enhancements via Trivial File Transfer
Protocol (TFTP)
• LANVIEW LED monitoring and diagnostics system
• Data and system configuration (Non-Volatile Random Access
Memory, NVRAM) protection
NOTE: Although some earlier version modules’ COM ports are labeled
Modem and Console respectively, they also provide the same functionality
as modules with COM ports labeled COM 1 and COM 2
.
1.2.1 Module Configuration in the MMAC
The TRMM provides management for single or interconnected Token
Ring networks via the backplane from the MMAC
right-most
management slot (lower-most on the MMAC-3) . When used in
conjunction with the TRMM (or also, for example, when use with a
EMME), the TRMMIM provides the same management functions as the
TRMM for all boards inserted to its left from any MMAC
Media
Interface Module (MIM) slot
.
TheTRMM and TRMMIM can also be used with other Cabletron modules
to support a range of Token Ring and mixed Token Ring and Ethernet
configurations in the same MMAC hub. Contact Cabletron’s Networking
Services Department for information on configuration options.
TRMMBook2 Page 3 Tuesday, March 5, 1996 1:13 PM

INTRODUCTION
1-4
1.2.2 Management Access
Local Management (LM) is a firmware image embedded in both the
TRMM and TRMMIM that provides a management application interface
for monitoring and managing the modules. Access to Local Management
isprovided by the RS232 COM 2, or Console, communication port located
on the front panel of each module and via in-band Telnet connection.
COM 2 port
The COM 2 port supports out-of-band LM access via a management
terminal and modem connections (see Section 3.4 for terminal and modem
connection procedures).
NOTE: Remote Management access to the SNMP compliant TRMM and
TRMMIMis providedby theremote networkmanagementtools,Cabletron
Systems’ Remote LANVIEW/Windows and SPECTRUM.
1.2.3 Testing and Troubleshooting Systems
LANVIEW LEDs, located on each module’s front panel, provide an
at-a-glance means of monitoring the operational status of a module. LEDs
indicate whether a module is operating correctly, the ring speed, and
whether a module is actively managing other modules in the MMAC.
POWER UP DIAGNOSTIC test results appears on your management
terminal screen whenever the modules are powered on or reset. The tests
provideadditional system-level informationaboutthe operational statusof
a module. Your terminal must be connected to the COM 2 port to view the
tests. See Chapter 4,
Testing and Troubleshooting , for more information
about monitoring systems.
1.2.4 System Safeguards
The TRMM and TRMMIM both support UPS device monitoring (from
LANVIEW or SPECTRUM) via connection to the COM 1 port. The UPS
device provides a regulated and constant power source in the event of
power-supply faults. Contact your Cabletron Sales Representative to order
the necessary port connectors.
TRMMBook2 Page 4 Tuesday, March 5, 1996 1:13 PM

INTRODUCTION
1-5
The modules are also equipped with a back-up battery that provides power
to Non-Volatile Random Access Memory (NVRAM), preserving crucial
system level data and configuration settings. Thermal sensors included in
both modules set off an alarm warning of overheating before the
temperature becomes critical.
1.3 RELATED MANUALS
The manuals listed below can be used to supplement procedures and other
technical data provided in this manual. Procedures in related manuals are
referenced where appropriate, but not repeated.
Cabletron Systems’
Multi-Media Access Center Overview and Set Up
Guide
Cabletron Systems’ TRMM/TRMMIM Local Management User’s Guide .
1.4 RECOMMENDED READING
The following publications are recommended if more information is
required on implementing a token ring network.
Local Area Networks, Token Ring Access Method, IEEE Standard 802.5
LAN Troubleshooting Handbook, Mark Miller (1989, M&T Publishing,
Inc.)
1.5 GETTING HELP
If you need additional support related to the TRMM and TRMMIM, or if
you have any questions, comments, or suggestions concerning this
manual, please contact Cabletron Systems’Technical Support
Department:
By phone: [phone]
Monday-Friday; 8am - 8pm EST
By CompuServe
®
: GO CTRON from any ! prompt
TRMMBook2 Page 5 Tuesday, March 5, 1996 1:13 PM

INTRODUCTION
1-6
By Internet mail: [email protected]
By Fax: [phone]
By BBS: [phone]
By mail: Cabletron Systems, Inc.
P.O. Box 5005
Rochester, NH 03866-5005
TRMMBook2 Page 6 Tuesday, March 5, 1996 1:13 PM

2-1
CHAPTER 2
INSTALLATION REQUIREMENTS AND
SPECIFICATIONS
Before installing either module, review the requirements and operating
specifications outlined in this chapter. It describes network requirements
for the TRMM and TRMMIM and also setup requirements for a
management terminal and a modem. Failure to follow these guidelines
could result in poor network performance.
2.1 MMAC REQUIREMENTS
Both the TRMM and TRMMIM must be installed in an MMAC
(MMAC-3FNB, MMAC-5, or MMAC-8FNB) equipped with a flexible
Network Bus (FNB). No link exists between the module and other token
ring boards in the MMAC without the FNB.
N OTE : The FNB is a full-height, full-width backplane that links
Cabletron Systems token ring products. MMAC-3s and MMAC-8s
(without an FNB) can be upgraded with an FNB to provide greater
flexibility to the network. Contact Cabletron Systems Technical Support
for more information.
A Power Supply Module (PSM) is required in the MMAC’s power supply
slot when installing the TRMM or TRMMIM in an MMAC without an
internal power source. One PSM is required for every two Management
Modules.
2.1.1 Terminal Setup Requirements
The COM 2, or Console, port supports a Digital Equipment Corporation
VT200™ or VT300™ series terminal or a PC emulation of one of these
terminals. The maximum console cable length is 50 feet.
Table 2-1 lists setup requirements for the Local Management terminal. On
VT200 or VT300 series terminal, press
F3 to access the Setup Directory.
TRMMBook2 Page 1 Tuesday, March 5, 1996 1:13 PM

INSTALLATION REQUIREMENTS AND SPECIFICATIONS
2-2
On VT series emulators, refer to the equipment user manual for setup
procedures that correspond to the selections in Table 2-1.
Table 2-1. Terminal Setup Requirements
Menu Function Selection
Display Setup: Columns 80 Columns
Controls Interpret Controls
Auto Wrap No Auto Wrap
Text Cursor Cursor
General Setup: Mode VT 100,
7 bit control
Cursor Keys Normal Cursor Keys
Communications
Setup: Transmit Transmit = 9600
Receive Receive = Transmit
Bits, Parity 8 Bits, No Parity
Stop Bit 1 Stop Bit
Local Echo No Local Echo
Port Data Leads Only
Auto
Answerback No Auto Answerback
Keyboard Setup: Keys Typewriter Keys
Margin Bell Margin Bell
Warning Bell Warning Bell
Auto
Answerback No Auto Answerback
TRMMBook2 Page 2 Tuesday, March 5, 1996 1:13 PM

INSTALLATION REQUIREMENTS AND SPECIFICATIONS
2-3
2.1.2 Modem Setup Requirements
The modules’ DB-9 COM 2, or Console, port supports LM access from a
remote PC or workstation via modem connection. The physical modem
connection configuration is illustrated as follows:
[PC or workstation]
<<>>
[modem]
<<<<>>>>
[modem]
<<>>
[TRMM or TRMMIM]
To establish a modem connection to access either module’s LM
application, you must have all of the required components and also
configure communication parameters for the PC or workstation and both
modems.
The remainder of this section describes requirements and setup
procedures.
Component requirement specifications
The following components are required for establishing a modem
connection between a station and the management module:
• Modems: two asynchronous modems that are Hayes AT command set
compatible
NOTE : The modem used to connect to either Management Module
must support a Data Terminal Equipment (DTE) baud rate of 9600
Mb/p.
• Cabling:DB9 toRJ45 cable(P/N 9372093)providedwiththemodules
for connecting the modem to the TRMM or TRMMIM and a
straight-through RS232 cable for station-to-modem connection
• Connector: DB25 male connector provided with the modules for the
module-to-modem connection
NOTE : Figure 2-1 shows cable connector pinout for
module-to-modem connection.
• Setup Directory: any modem setup directory application that allows
you to establish communication parameters between and for modems.
TRMMBook2 Page 3 Tuesday, March 5, 1996 1:13 PM

INSTALLATION REQUIREMENTS AND SPECIFICATIONS
2-4
Figure 2-1. Module-to-Modem Cable /Connector Pinout
Configuring the modems
Table 2-2 lists modem configuration setup selections and instructions for
the terminal modem and the Management Module modem.
NOTE : Table 2-2’s setup categories are based on the Windows®
Terminal application.
Table 2-2. Modem Configuration Setup Requirements (Sheet 1 of 3)
Menu Function Selection
Communications: Baud Rate 300 (or greater)
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Parity Check Blank
Carrier Detect Blank
Terminal
Preferences: Terminal Modes Line Wrap & Sound
CR-› CR/LF Blank
Columns 80
Translation None
2
3
8
5
2
3
8
4
7
DB9 MALE DB25 MALE
NOTE: DB9 PIN 8 CONNECTS TO BOTH DB25 PINS 4 & 8
Transmit
Receive
Clear to Send
Data Terminal Ready
Request to Send
Transmit
Receive
Clear to Send
Signal Ground
TRMMBook2 Page 4 Tuesday, March 5, 1996 1:13 PM

INSTALLATION REQUIREMENTS AND SPECIFICATIONS
2-5
Menu Function Selection
Terminal Font Fixedsys
Show Scroll Bars Blank
Buffer Lines 100
Terminal Settings: Terminal
Emulation DEC® VT 100
Modem Commands: Dial Prefix ATDT
Hangup Prefix +++
Hangup Suffix ATH
Originate ATQ0V1E1S0=0
Modem Default Hayes
To configure the PC’s modem, enter the following commands at
the setup application cursor while the modem is connected to the
PC.
Command Line Function
KEY : <CR> = Press Return key
1. ATL1 <CR> Sets volume low
2. ATM1 <CR> Speaker on until signal active
3. AT&W0 <CR> Saves changes to modem’s NVRAM profile 0
4. AT&W1 <CR> Saves changes to modem’s NVRAM profile 1
To configure the management module’s modem, connect the
modem to a PC or workstation with a straight-through cable.
Access a communications setup application from the PC or
workstation. Enter the following commands at the setup
application cursor.
Command Line Function
1. ATS0=1 <CR> Set for auto answer on first ring
2. ATL1 <CR> Set volume low
Table 2-2. Modem Configuration Setup Requirements (Sheet 2 of 3)
TRMMBook2 Page 5 Tuesday, March 5, 1996 1:13 PM

INSTALLATION REQUIREMENTS AND SPECIFICATIONS
2-6
2.2 OPERATING SPECIFICATIONS
This section contains the operating specifications for the TRMM and
TRMMIM. Cabletron Systems reserves the right to change these
specifications at any time without notice.
2.2.1 Connector Ports
Both modules are equipped with two female DB-9 connector ports
(Figure 2-2). The COM 1 port supports UPS device monitoring, and the
COM 2 port supports terminal and modem access to Local Management.
NOTE : Although some earlier version modules’ COM ports are labeled
Modem and Console respectively, they also provide the same functionality
as modules with COM ports labeled COM 1 and COM 2
.
Command Line Function
3. AT&D0 <CR> Ignore DTR signal
4. AT&R0 <CR> Follow standard RS232 RTS operation
4. ATM1 <CR> Speaker until signal active
5. ATQ1 <CR> Disable result codes
6. AT&W0 <CR> Save changes to NVRAM, profile 0
7. AT&W1
<CR>
Save changes to NVRAM, profile 1
Connect the modem that you just configured to the module.You
can now access a management module’s Local Management
application via modem connection. See Section 3.4.2 for
instructions on connecting a modem cable to a module.
Table 2-2. Modem Configuration Setup Requirements (Sheet 3 of 3)
TRMMBook2 Page 6 Tuesday, March 5, 1996 1:13 PM

INSTALLATION REQUIREMENTS AND SPECIFICATIONS
2-7
Figure 2-2. Front Panel Connectors
COM 2 port
The COM 2, or console, port on the front of each module provides for an
RS-232C connection (female DB-9) to a Local Management console and
also to a modem. The COM 2 port supports a Digital Equipment
Corporation VT200 or VT300 series terminal, or a PC emulation of either
terminal. Modem specifications are described in Section 2.1.2.
Figure 2-3 shows the pinout diagram for the COM 2 port.
TRMM
SN
16 Mb
NSRT
LWRP
BOK ERR
F
N
B
C
O
M
1
C
O
M
2
TOKEN RING
RESET
SN
F
N
B
TRMMIM
RESET
16 Mb
NSRT
LWRP
BOK ERR
TOKEN RING
C
O
M
1
C
O
M
2
CONNECTOR PORTS
TRMMBook2 Page 7 Tuesday, March 5, 1996 1:13 PM

INSTALLATION REQUIREMENTS AND SPECIFICATIONS
2-8
Figure 2-3. COM 2/Console Port Pinout
Figure shows a cable wiring diagram for a DB-9 to DB-25 and DB-9 to
DB-9 crossover cable.
Figure 2-4. Management Terminal Cabling
COM 1 port
A female DB-9 COM 1 port on each module supports connection to the
Uninterruptible Power Supply (UPS) device. The device transmits
DATA TERMINAL READY
SIGNAL GROUND
NOT USED
REQUEST TO SEND
CLEAR TO SEND
RECEIVE CLOCK
FEMALE DB-9 RECEPTACLE
6
7
8
9
1
2
3
4
5
CARRIER DETECT
TRANSMIT
RECEIVE
MALE DB-9
(9-PIN Connector) FEMALE 25-PIN (D Shell Connector)
9 PIN TO 25 PIN
CABLE
2
3
5
7
8
2
3
5
7
8
2
3
7
20
5
2
3
5
8
7
9 PIN TO 9 PIN
CABLE
MALE DB-9
(9-PIN Connector) FEMALE DB-9
(9-Pin Connector)
LOCAL MANAGEMENT
CONSOLE
COM 2 PORT
TRANSMIT
RECEIVE
SIGNAL GROUND
DATA TERMINAL READY
CLEAR TO SEND
TRANSMIT
RECEIVE
SIGNAL GROUND
DATA TERMINAL READY
CLEAR TO SEND
TRANSMIT
RECEIVE
SIGNAL GROUND
DATA TERMINAL READY
CLEAR TO SEND
TRANSMIT
RECEIVE
SIGNAL GROUND
CLEAR TO SEND
REQUEST TO SEND
TRMMBook2 Page 8 Tuesday, March 5, 1996 1:13 PM
