Welcome to the Cabletron Systems CRBRIM-W/E User’s Guide. This manual
describes features, explains installation procedures, and provides specifications for
the Cabletron Systems CRBRIM-W/E. The CRBRIM-W/E is designed to reside
in, and provide additional connectivity/functionality to, various Cabletron MIMs
and hubs (e.g., the EMM-E6, ESXMIM, NBR-420/620 or MicroMMAC).

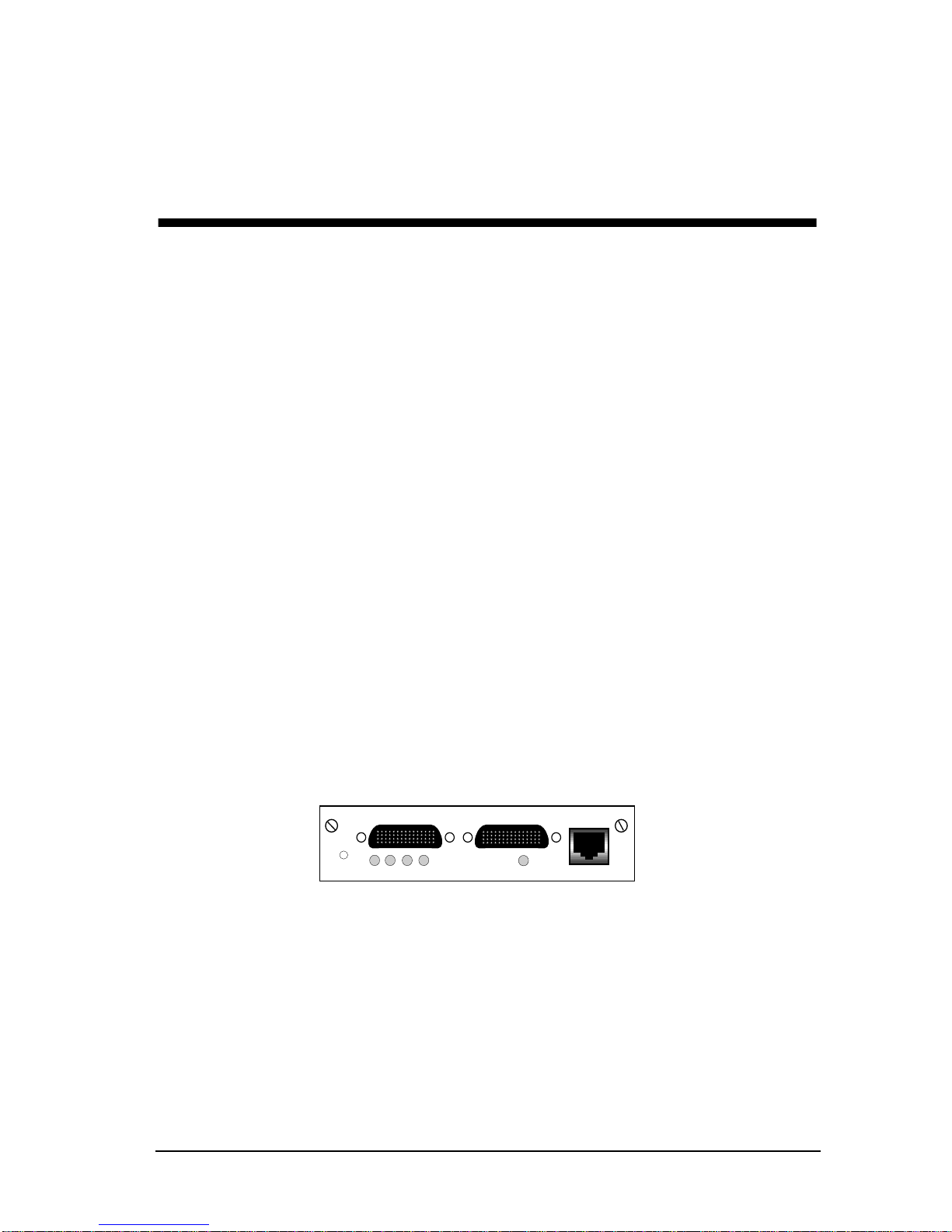

Figure 1-1. CRBRIM-W/E
TP
RESET
S1 S0 CONSOLE
S0
LANPWR SYS S1

1-2 CRBRIM-W/E
CHAPTER 1: Introduction
1.1 UsingThis Manual
Read through this manual completely to familiarize yourself with its content and
to gain an understanding of the features and capabilities of the CRBRIM-W/E. A
general working knowledge of data communications networks and their physical
layer components is helpful when using the CRBRIM-W/E.
1.2 Document Objectives
This publication will step you through initial site preparation, installation, and
troubleshooting. It also covers selected maintenance procedures.
1.3 Document Organization
The major sections of this publication follow:
• Chapter 1, “Introduction” outlines the contents, and describes the objectives
and conventions of the CRBRIM-W/E Hardware Installation Guide . This
chapter also provides a list of related manuals and GETTING HELP
information.
• Chapter 2, “Product Overview,” contains an overview of the router feature set
and physical specifications.
• Chapter 3, “Preparing for Installation,” includes safety recommendations, site
requirements, an installation checklist, console and auxiliary port cable
connection considerations, network connection considerations, and
instructions for inspecting the new system.
• Chapter 4, “Installation,” provides a list of tools and parts required,
procedures for making external connections, and information about what to
do after installing the hardware.
• Chapter 5, “Troubleshooting the Hardware Configuration,” briefly discusses
troubleshooting, problem solving, and reading LED indicators.
• Chapter 6, “Maintenance,” includes procedures for upgrading system code
SIMMs, replacing DRAM SIMMs, and recovering from a lost password.

Document Conventions
3
Hardware Installation Guide
1-3
Hardware User’s Guide
• Appendix A, “Cabling Specifications,” provides cable illustrations and
pinouts for the console port and serial cables.
• Appendix B, “Virtual Configuration Register,” discusses the settings for and
functions of the virtual configuration register.
• Appendix C, “Bootstrap Program,” contains procedures for testing system
memory and the central processor unit (CPU) by using the bootstrap
diagnostic tests and command options.
1.4 Document Conventions
This publication uses the following conventions to convey instructions and
information:
Command descriptions use these conventions:
• Commands and keywords are in boldface font.
• Variables for which you supply values are in italic font.
• Elements in square brackets ([ ]) are optional.
• Alternative but required keywords are grouped in braces ({ }) and are
separated by a vertical bar ( | ).
Examples use these conventions:
• Terminal sessions are in
screen
font.
• Information you enter is in
boldface screen
font.
• Nonprinting characters are shown in angle brackets (< >).
• Information the system displays is in
screen
font, with default responses in
square brackets ([ ]).

1-4 CRBRIM-W/E
CHAPTER 1: Introduction
Means reader take note. Notes contain helpful suggestions or
references to materials not contained in this manual.
NOTE
TIP
Means the described action saves time. You can save time by
performing the action described in the paragraph.
Means reader be careful. You are capable of doing something that
might result in equipment damage or loss of data.
!
CAUTION
Means danger. You are in a situation that could cause bodily
injury. Before you work on any equipment, be aware of the hazards
involved with electrical circuitry and standard practices for
preventing accidents.
WARNING

Related Manuals
5
Hardware Installation Guide
1-5
Hardware User’s Guide
1.5 Related Manuals
Use the following manuals to supplement the procedures and data provided in this
manual. This manual references procedures in these manuals, when appropriate,
but does not repeat them.
Cabletron Systems’ EMM-E6 Installation Guide
Cabletron Systems’ EMM-E6 Local Management Guide
Cabletron Systems’ ESXMIM User’s Guide
Cabletron Systems’ ESXMIM Local Management Guide
Cabletron Systems’ MicroMMAC User’s Guide
Cabletron Systems’ NBR-620/420/220 User’s Guide
Cabletron Systems’ NBR-620/420/220 Local Management Guide
Cabletron System’s CRM-DOC Set
(A compilation of Cisco Systems
®
Router Products Configuration
and Reference Guides)
1.6 Getting Help
If you need additional support related to the Cabletron Systems CRBRIM-W/E, or
if you have any questions or comments related to this manual, contact Cabletron
Systems Technical Support by:
Mail: Cabletron Systems, Inc.,
P.O. Box 5005
Rochester, NH 03866-5005
Phone: [phone], Mon-Fri 8AM to 8PM EST
CompuServe
®
: GO CTRON from any ! prompt
Internet Mail: [email protected]

2-1
Hardware Installation Guide
2-1
Hardware User’s Guide
Chapter 2
Product Overview
Bridge/Router Interface Modules (BRIMs) reside in, and provide additional
connectivity/functionality to, various Cabletron MIMs and hubs (e.g. the EMM-
E6 or MicroMMAC). Cabletron’s CRBRIM-W/E remote access router provides
multi-protocol router capability for Cabletron MMAC (Multi-Media Access
Center) modules with BRIM and EPIM (Ethernet Port Interface Module) slots.
The CRBRIM-W/E utilizes a fixed configuration of two WAN ports, and one
internal Ethernet port. The two high density WAN ports support V.35, X.21,
RS449, RS422, RS530, and RS232 interfaces. The CRBRIM-W/E uses Cisco
Systems
®
routing software and is capable of supporting Frame Relay, X.25, DDN
X.25, SMDS, T1/E1, and DDS circuit connections.
The CRBRIM-W/E uses a FLASH EEPROM and is shipped with system code
operating from Flash memory by default. (For more information on system-code
operation, see Chapter 3, section 3.2 “System Operation Prerequisites.”)

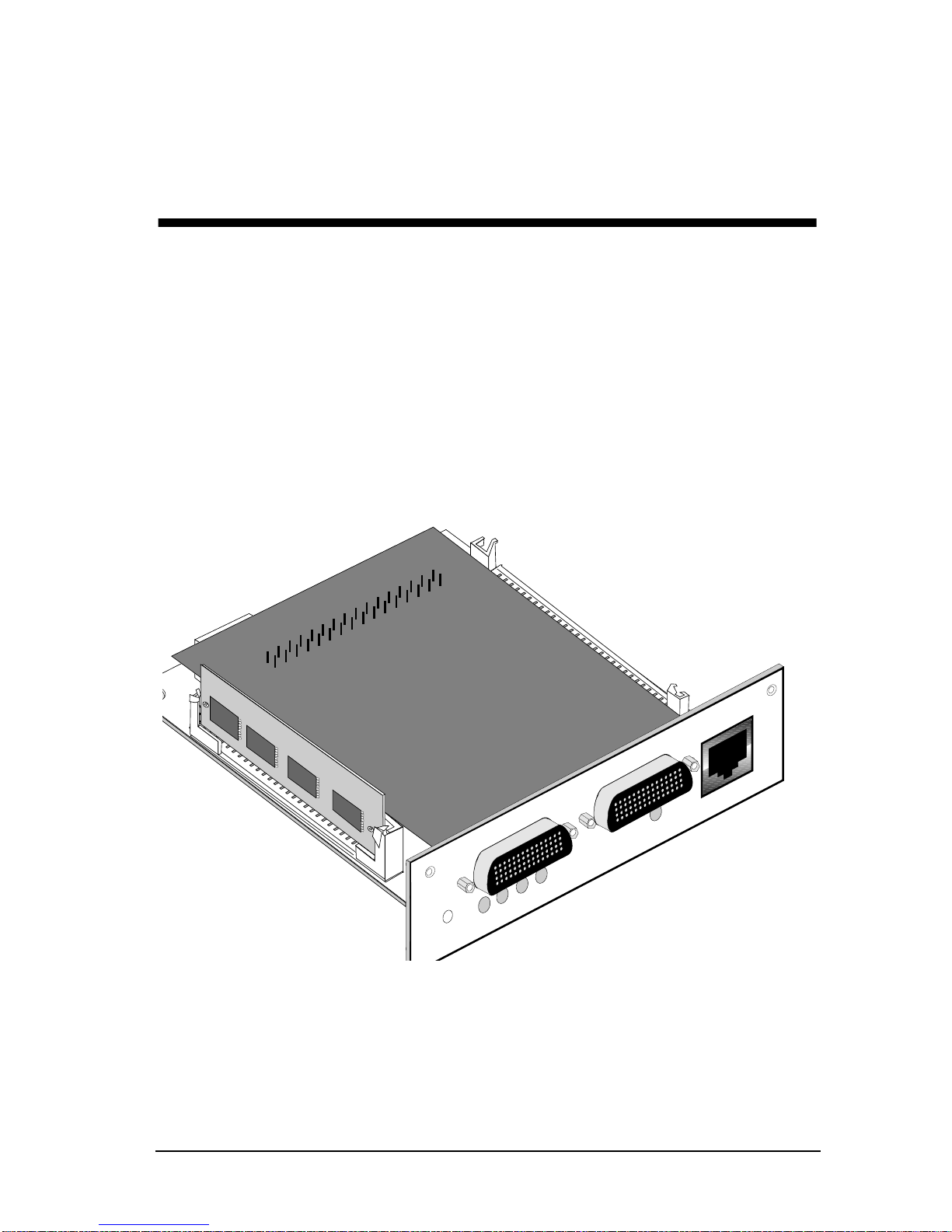

Figure 2-1 shows a front view of the CRBRIM-W/E.
Figure 2-1. CRBRIM-W/E
Sections of this chapter follow:
• System Specifications
• Memory Configurations
• Protocol Support
LANPWR SYS
RESET
S1 S0 CONSOLE
S1 S0

2-2 CRBRIM-W/E
CHAPTER 2: Product Overview
2.1 System Specifications
System specifications of the CRBRIM-W/E are listed in Table 2-1.
1. NRZ = Nonreturn to zero. NRZI = Nonreturn to zero inverted.
2. DTE = Data terminal equipment. DCE = Data communications equipment.
Table 2-1. System Specifications
Description Design Specification
Dimensions H x W x D 3x12.5x15.5cm
Current
Power dissipation 1.0 to 0.5 amps (A) 40W (max.), 135.5 British thermal units (Btu)/hr
Processor 20-MHz Motorola 68EC030
Network interface 1 Ethernet and 2 synchronous serial (2501)
Ethernet interface (internal) IEEE 802.3 (CRBRIM to EPIM-3PS)
Synchronous serial
interfaces RS-232, RS-449, V.35, X.21 (NRZ/NRZI1and
DTE/DCE2mode)
EIA-530 (NRZ/NRZI and DTE mode)
All serial interfaces use the DB-60 connector at
the chassis.
Console ports Asynchronous serial (RJ-45)
Operating environment 32 through 104°F (0 through 40°C)
Nonoperating temperature –40 through 185°F (–40 through 85°C)
Operating humidity 5 through 95%, noncondensing
Noise level 34 dBa @ 3' (0.914 m)
This publication takes you through the initial hardware installation
and selected maintenance procedures. Refer to your specific MIM
or Management Module Installation Guides and Local
Management Guides for software configuration and operating
information.
NOTE

Memory Configurations
3
Hardware Installation Guide
2-3
Hardware User’s Guide
2.2 Memory Configurations
The CRBRIM-W/E has the following memory systems:
• Primary memory (main memory)—Dynamic random-access memory
(DRAM) that stores the running configuration and routing tables; mounted on
the system card.
• Shared memory—Shared DRAM that is used for packet buffering by the
router network interfaces.
• System-code memory—Flash or programmable read-only memory (PROM);
stores the operating system software image.
• Boot ROM memory—Stores a subset of the operating system software image
that is called the system bootstrap image or the bootstrap program (or ROM
monitor). The system bootstrap image allows you to boot the router when
Flash memory does not contain a valid system image.
The boot ROM prompt follows: Router(boot)>.The bootstrap program (ROM
monitor) prompt is the greater than sign (>), which differs from the user-level
operating-system prompt of gateway >. (For more information, see Appendix
B, “Virtual Configuration Register,” and Appendix C, “Bootstrap Program.”
• Nonvolatile random-access memory (NVRAM)—Stores the system
configuration file and the virtual configuration register.

2-4 CRBRIM-W/E
CHAPTER 2: Product Overview
Table 2-2 shows possible memory configurations for the CRBRIM-W/E.
2.3 Protocol Support
The CRBRIM-W/E is hardware encoded at the factory to operate with one of three
router software sets. This provides users with the option of selecting IP,
DESKTOP, or ENTERPRISE routing software at the time of purchase.
1. The router has 2 MB of permanent (fixed) DRAM memory and a DRAM SIMM
socket for upgrading the memory. 1 MB of this permanent memory is used by the
CPU and is called
primary memory. The other 1 MB of memory is used by the net-
work interface ports to store packets and is called
shared or packet memory. When
a DRAM SIMM is installed in the DRAM SIMM socket, all of the DRAM memory on
this SIMM becomes primary memory for the CPU, and the 2 MB of DRAM that is
permanent on the board becomes shared memory.
Table 2-2. Memory Configurations
Memory Type Memory Capacity
Primary memory (DRAM SIMMs) 1 MB (expandable to 4 or 16 MB)
Shared (packet) memory 1 MB (DRAM on board)1
System-code memory (Flash or
PROMs) 4 MB (expandable)
Boot ROM 1 MB
Nonvolatile RAM (NVRAM) 32 KB
The CRBRIM-W/E is factory configured for either IP, DESKTOP
or ENTERPRISE Routing Software. The factory hardware settings
are permanent and cannot be changed to operate a different router
software set.
NOTE

Protocol Support
5
Hardware Installation Guide
2-5
Hardware User’s Guide
The ENTERPRISE router software set provides all Cisco-supported LAN, WAN,
and routing protocols as well as IBM features and protocol translator functionality.
Supported LAN protocols include IP, Novell, IPX, DECnet IV,AppleTalk Phase 1
and 2, bridging, DECnet V, XNS, BanyonVINES, OSI, Apollo Domain, PUP, and
CHAOSnet.
The DESKTOP software set supports IP, Novell, IPX, DECnet IV,AppleTalk
Phase 1 and 2, and bridging.
The IP software set supports IP, and bridging protocols.
All CRBRIM-W/E models are shipped with Frame Relay and X.25 software that
offers efficient remote site access to packet switched networks.
CRBRIM-W/E models configured for either DESKTOP or
ENTERPRISE Routing Software are shipped with a user
installable 4 megabyte primary memory DRAM SIMM. See
Chapter 6, section 6.1.4 DRAM SIMM Installation for installation
procedures.
NOTE

3-1
Hardware Installation Guide
3-1
Hardware User’s Guide
Chapter 3
Preparing for Installation
This chapter describes the tasks you must perform before starting actual system
installation.
Sections of this chapter follow:
• Preventing Electrostatic Discharge Damage
• System Operation Prerequisites
• Distance Limitations
• Interference Considerations
• Console Considerations
• Network Connection Considerations
• Inspecting the System
3.1 Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) damages equipment and impairs electrical circuitry.
It occurs when electronic components are improperly handled and causes
complete or intermittent failures.
Follow ESD-prevention procedures when handling electronic components. Ensure
that the chassis is electrically connected to earth ground. Wear an ESD wrist strap,
ensuring that it makes good skin contact. Connect the clip to an unpainted chassis
frame surface to safely channel unwanted ESD voltages to ground. To properly
guard against ESD damage and shocks, the wrist strap and cord must operate
effectively. If no wrist strap is available, ground yourself by touching the metal
part of the chassis.

3-2 CRBRIM-W/E
CHAPTER 3: Preparing for Installation
3.2 System Operation Prerequisites
The CRBRIM-W/E is designed to run system code from Flash memory single in-
line memory modules (SIMMs). With the proper system code image, the router
also can be run from dynamic random-access memory (DRAM); however, this
operation requires a 4-MB memory upgrade (installation of a 4 MB x 72 pin
DRAM SIMM). Further, operating system code from DRAM can result in a 25-
percent decrease in system performance.
Operating the system code from Flash is the default and is recommended for
optimum performance of the router.
3.3 Distance Limitations
When setting up your router, consider distance limitations and potential
electromagnetic interference (EMI) as defined by the Electronic Industries
Association (EIA). Following are the distance limitation specifications for serial
interfaces.
3.3.1 Serial Connections
As with all signaling systems, RS-232 signals travel a limited distance at any
given bit rate; generally, the slower the data rate, the greater the distance.
Table 3-1 shows the standard relationship between baud rate and maximum
distance.
For safety, periodically check the resistance value of the antistatic
strap, which should be within the range of 1 and 10 M Ω .
!
CAUTION
