Cabletron Systems 9F122-12 User manual

SmartSwitch 9000
9F120-08, 9F122-12 & 9F125-08
User’s Guide
9031174-02

i
Notice
Notice
Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALLCABLETRON SYSTEMS BE LIABLE FOR ANYINCIDENTAL, INDIRECT,
SPECIAL, OR CONSEQUENTIALDAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED
TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUALOR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITYOF SUCH DAMAGES.
© Copyright April 1998 by:
Cabletron Systems, Inc.
35 Industrial Way
Rochester, NH 03867-5005
All Rights Reserved
Printed in the United States of America
Order Number:9031174-02
LANVIEW is a registered trademark, and SmartSwitch is a trademark of Cabletron Systems, Inc.
CompuServe is a registered trademark of CompuServe, Inc.
i960 microprocessor is a registered trademark of Intel Corp.
Ethernet is a trademark of Xerox Corporation.

Notice
ii
FCC Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class Adigital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
VCCI Notice
This is a Class Aproduct based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.
DOC Notice
This digital apparatus does not exceed the Class Alimits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class Aprescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

iii
Notice
DECLARATION OF CONFORMITY
ADDENDUM
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Cabletron Systems, Inc.
Manufacturer’s Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name: Mr. J. Solari
European RepresentativeAddress: Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Equipment Type/Environment: Networking Equipment, for use in a
Commercial or Light
Industrial Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with
this notice conforms to the above directives.
Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari
____________________________________________________ ______________________________________________________
Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.
____________________________________________________ ______________________________________________________
Title Title
Rochester, NH, USA Newbury, Berkshire, England
____________________________________________________ ______________________________________________________
Location Location

Notice
iv
Safety Information
CLASS 1 LASERTRANSCEIVERS
The 9F120-08,9F122-12 and 9F125-08 are Class 1 Laser Products
The 9F120-08,9F122-12 and 9F125-08 use Class 1 Laser transceivers.
Read the following safety information before installing or operating these
adapters.
The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation
limits. This control loop eliminates the need for maintenance checks or adjustments. The
output is factory set, and does not allow any user adjustment. Class 1 Laser transceivers
comply with the following safety standards:
•21 CFR 1040.10 and 1040.11 U.S. Department of Health and
Human Services (FDA).
•IEC Publication 825 (International Electrotechnical Commission).
•CENELEC EN 60825 (European Committee for Electrotechnical
Standardization).
When operating within their performance limitations, laser transceiver output meets the
Class 1 accessible emission limit of all three standards. Class 1 levels of laser radiation are not
considered hazardous.
CLASS 1
LASER PRODUCT

v
Contents
Chapter 1 Introduction
Features...........................................................................................................................1-1
Related Manuals............................................................................................................1-4
Getting Help .................................................................................................................. 1-4
Chapter 2 Installing the MicroLAN Modules

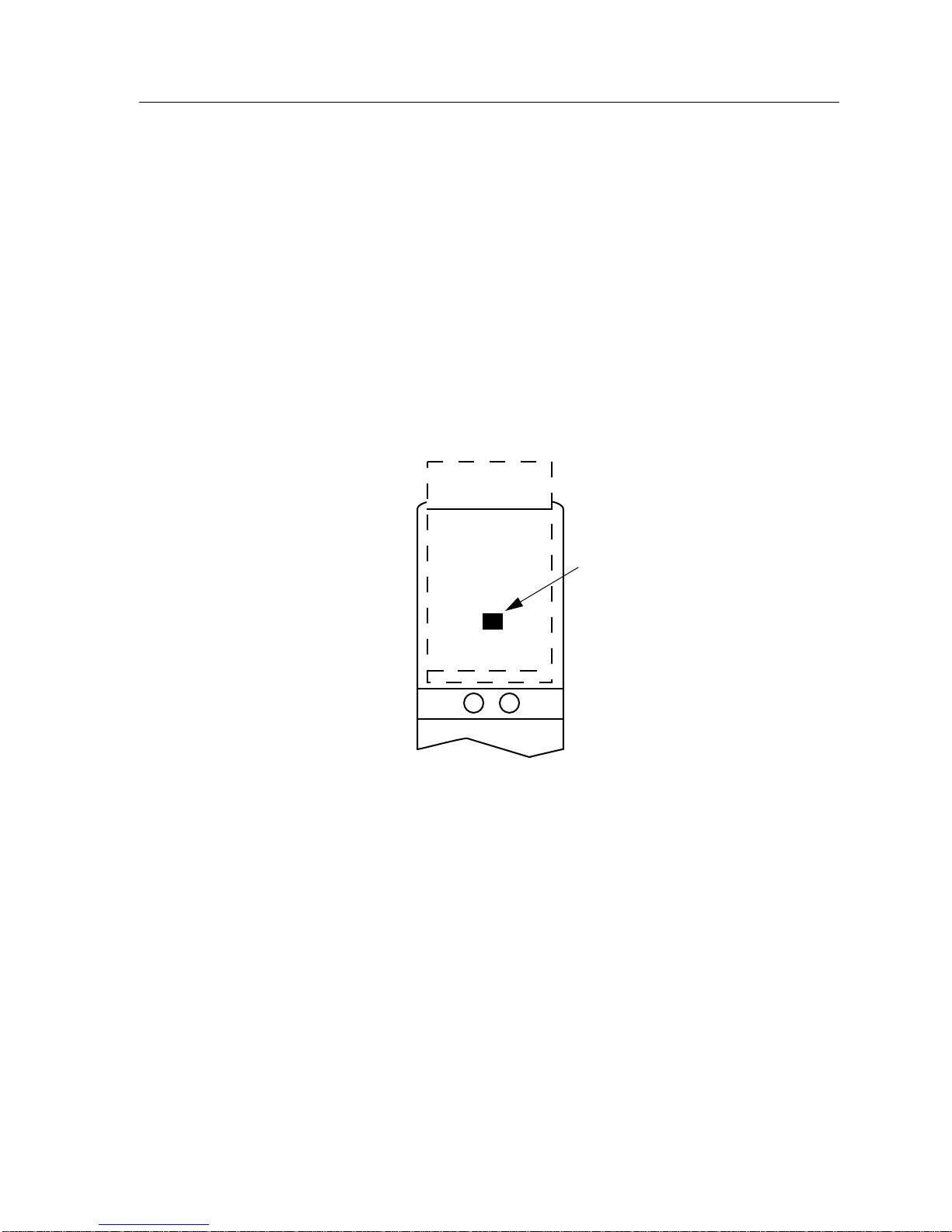

The Reset Switch ...........................................................................................................2-3

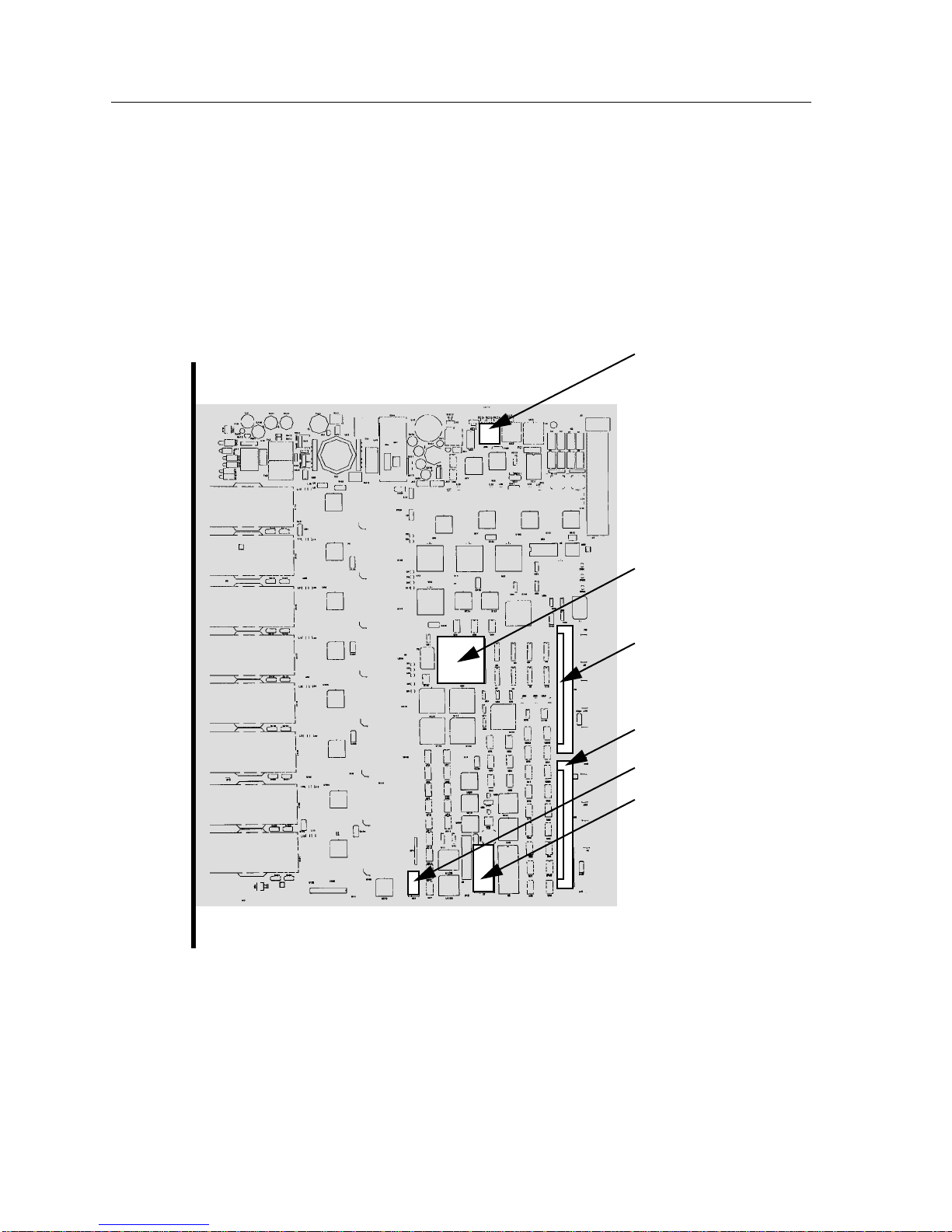

User-Accessible Components......................................................................................2-4
Setting the Module Card DIP Switch......................................................................... 2-5
Chapter 3 Operation
Flexible Network Bus (FNB)........................................................................................3-1
System Management Buses .........................................................................................3-2
SMB-1 Bus...............................................................................................................3-2
SMB-10 Bus.............................................................................................................3-2
System Diagnostic Controller...................................................................................... 3-3
DC/DC Converter ........................................................................................................3-3
FNB Interface.................................................................................................................3-3
i960 Core.........................................................................................................................3-3
Chapter 4 LANVIEW LEDs
Chapter 5 Specifications
Safety...............................................................................................................................5-1
Service............................................................................................................................. 5-1
Physical...........................................................................................................................5-2
Dimensions:............................................................................................................ 5-2
Weight:.....................................................................................................................5-2
Link Distance.................................................................................................................5-2

Contents
vi

1-1
Chapter 1
Introduction
The 9F120-08, 9F122-12 and 9F125-08 MicroLAN™ Modules are Dual Attached
Concentrator modules for the SmartSwitch 9000 (see Figure 1-1). The 9F120-08
provides eight multi-mode fiber Master ports, the 9F122-12 provides twelve
unshielded twisted pair Master ports, and the 9F125-08 provides eight single
mode fiber Master ports. All allow connections of Single or Dual Attached
Stations. The 9F120-08, 9F122-12 and 9F125-08 are ANSI FDDI-compliant with
SMT (version 7.3), MAC, PHY, and PMD. These modules attach directly to the
SmartSwitch 9000 FNB backplane, delivering up to 400 Mbps of bandwidth. The
modules use the Intel i960 microprocessor for all SMT and local/remote SNMP
management functions.
Features
Processor
The concentrator modules are equipped with an advanced Intel i960
microprocessor. This microprocessor provides a platform for all management
functions within a scalable RISC-based architecture.
Management
Management features include the following:
• Module insert/bypass control
• MAC placement
• MAC level and network level statistics
• An FDDI station list
• Individual Master port assignments

Introduction
1-2
Connectivity
The front panel Master port connections are via standard fiber FDDI MIC
connectors or RJ-45 Unshielded Twisted Pair ports. Multiple modules can
combine to provide connections for up to 168 FDDI stations. All FDDI stations
connected to the Master ports are directly attached to the FNB backplane. These
ports are not bridged or routed to the FNB backplane.
Management Information Base (MIB) Support
Both concentrator modules provide MIB support including the following:
• IETF FDDI MIB
• IETF MIB II
• a host of Cabletron Enterprise MIBs.
LANVIEW LEDs
The concentrator modules use LANVIEW: the Cabletron Systems built-in visual
diagnostic and status monitoring system. With LANVIEW LEDs, you can quickly
identify the device, port, and physical layer status at a glance.
Hot Swapping
The concentrator modules can be installed or removed from the chassis while the
SmartSwitch 9000 is powered up, without affecting the operation of the rest of the
network.
For a complete list of supported MIBs, refer to the release notes provided in the
concentrator modules package.
NOTE

1-3
Introduction

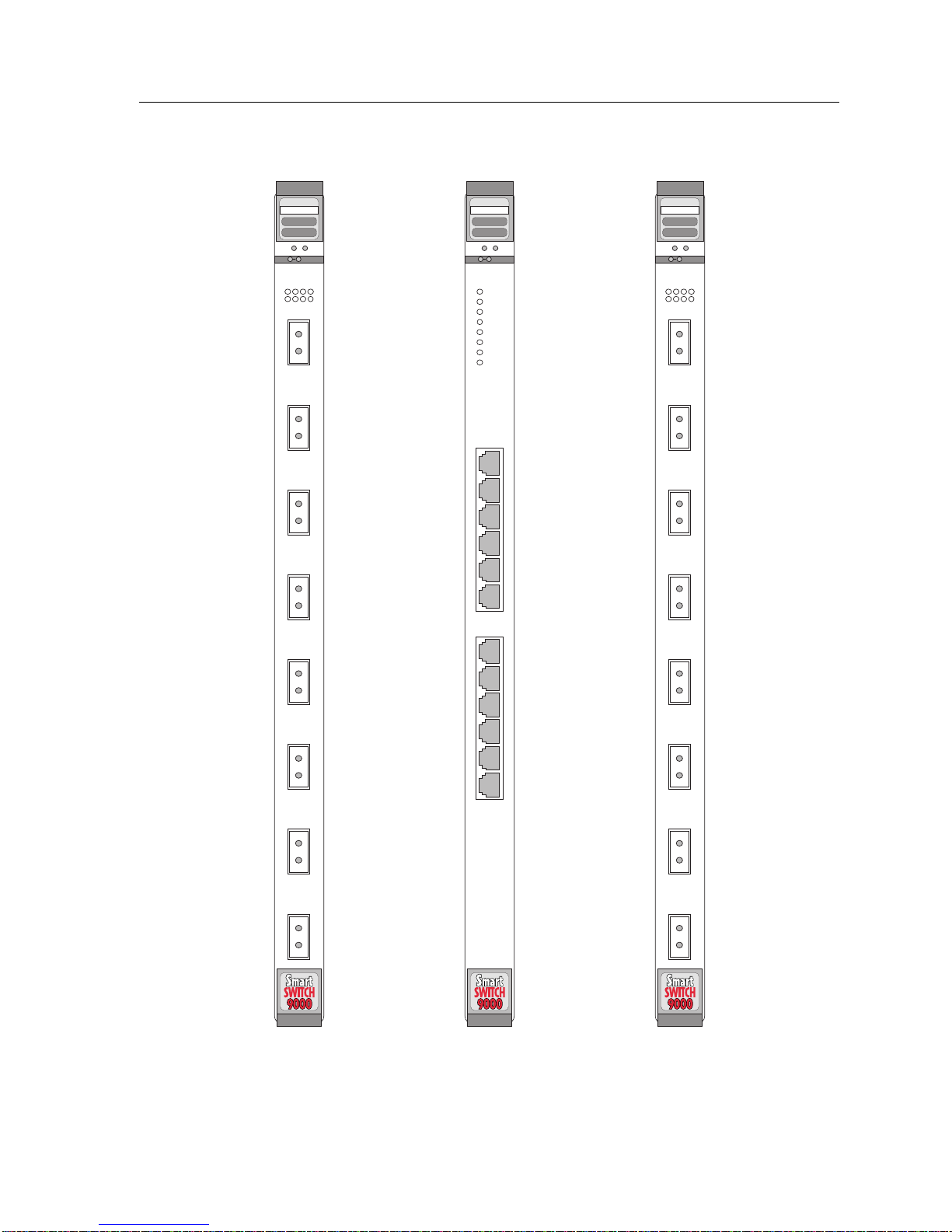

Figure 1-1. The Concentrator Modules
M
1
M
2
M
3
M
4
M
5
M
6
M
7
M
8
1
56
4
8
23
7
F
D
D
I
SMB CPU
FNB
9F120-08
FDDI
SMB CPU
FNB
9F122-12
FDDI
1
4
2
3
5
6
8
7
M
1
M
2
M
3
M
4
M
5
M
6
M
7
M
8
1
56
4
8
23
7
F
D
D
I
SMB CPU
FNB
9F125-08
FDDI

Introduction
1-4
Related Manuals
The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.
SmartSwitch 9000 Installation Guide
SmartSwitch 9000 Operations Guide
SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide
SmartSwitch 9000 Module Local Management User’s Guide
Getting Help
For additional support related to this device or document, contact the Cabletron Systems Global Call
Center:
Before calling the Cabletron Systems Global Call Center, have the following information ready:
• Your Cabletron Systems service contract number
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g., changing mode switches,
rebooting the unit, etc.)
• The serial and revision numbers of all involved Cabletron Systems products in the network
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)
• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
Phone [phone]
Internet mail suppor[email protected]
FTP ctron.com (134.141.197.25)
Login anonymous
Password your email address
BBS [phone]
Modem setting 8N1: 8 data bits, No parity, 1 stop bit
For additional information about Cabletron Systems or its products, visit the
World Wide Web site: http://www.cabletron.com/
For technical support, select Service and Support .
To send comments or suggestions concerning this document, contact the
Cabletron SystemsTechnical Writing Department via the following
email address: [email protected]
Make sure to include the document Part Number in the email message.

2-1
Chapter 2
Installing the MicroLAN Modules

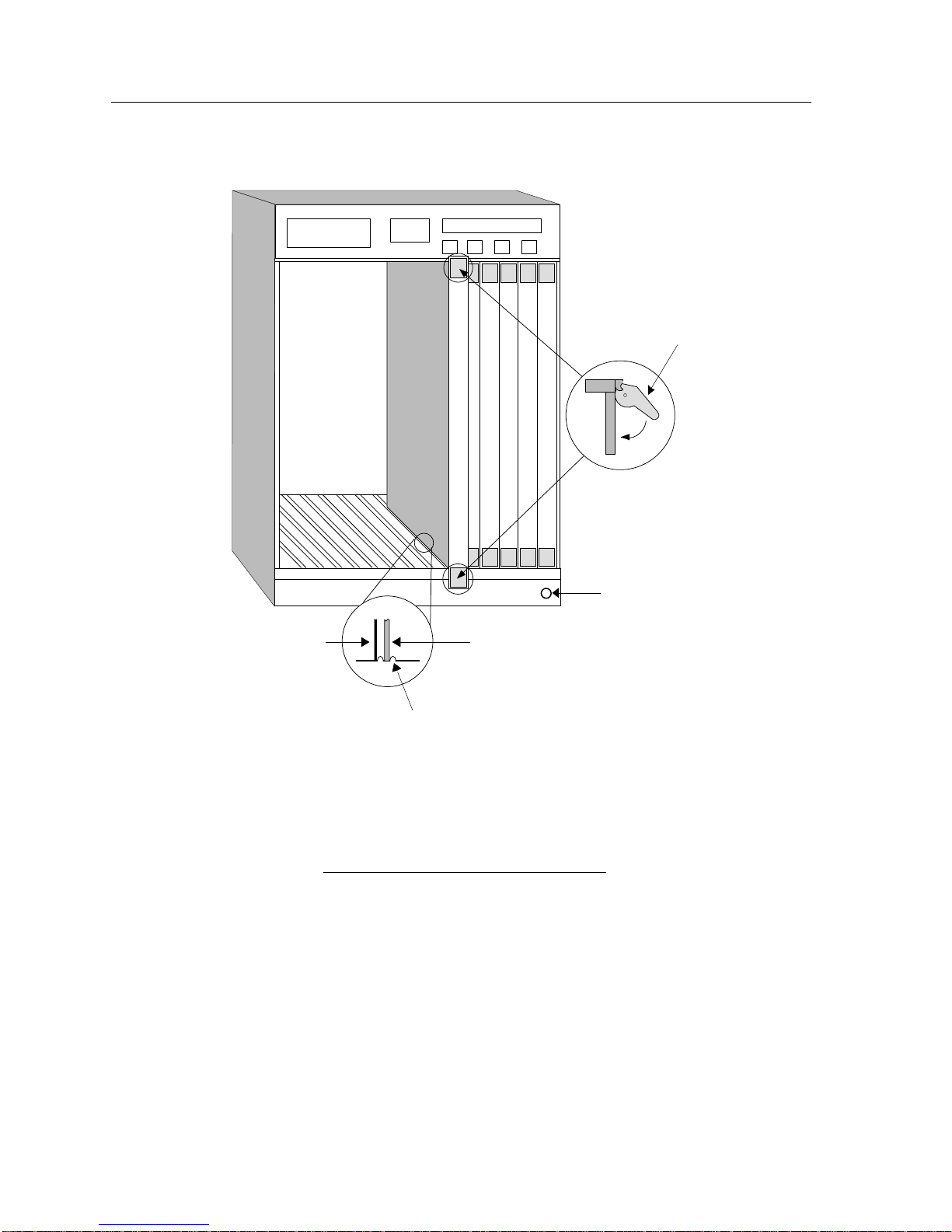

SmartSwitch 9000 MicroLAN Modules can be installed in any of the 14 slots that
are available. To install, follow the steps below:
1. Remove the blank panel, covering the slot in which the MicroLAN Module
will be installed. All other slots must remain covered to ensure proper airflow
and cooling.
2. Unpack the MicroLAN Module by carefully removing it from the shipping
box. (Save the box and packing materials in the event the module must be
reshipped.)
3. Attach one end of the ESD wrist strap packaged with the SmartSwitch 9000
chassis to your wrist. Plug the other end into the ESD Wrist Strap Grounding
receptacle in the lower right corner of the SmartSwitch 9000 Chassis shown in
Figure 2-1.
4. Remove the MicroLAN Module from the plastic bag. (Save the bag in the
event the module must be reshipped.) Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).
5. Examine the MicroLAN Module, carefully checking for damage. If any
damage exists, DO NOT install the module. Immediately contact Cabletron
Systems Technical Support.
6. Install the MicroLAN Module in the chassis by sliding it in any available slot
and locking down the top and bottom plastic tabs, as shown in Figure 2-1.
Take care that each module slides in straight and properly engages the
backplane connectors. When installing a module, ensure that the circuit card
is between the card guides, as shown in Figure 2-1. Check both the upper and
lower tracks.

Installing the MicroLAN Modules
2-2
Figure 2-1. Installing the MicroLAN Module
Metal Back-Panel
Module Guides
Module
Jack for ESD
Wrist Strap
Plastic Tab
Warning:
Ensure that the circuit card is between the card
guides.
Lock down the top and bottom plastic tabs
at the same time, applying even pressure.

2-3
Installing the MicroLAN Modules
The Reset Switch
The Reset switch is located on the front panel, under the top plastic tab, as shown
in Figure 2-2. It serves two functions:
• Pressing the Reset switch twice within three seconds causes the processor
(i960) to reset.
• Pressing and holding the switch on for three or more seconds causes the
module to shutdown. Pressing and holding again for three seconds restarts the
module.
SNMP management may be used to disable this switch to enhance module
security.
Figure 2-2. The Reset Switch
SMB CPU
Reset Switch

Installing the MicroLAN Modules
2-4
User-Accessible Components
Figure 2-3 shows the various components that are accessible to the user. These
consist of an eight-position dip switch (explained in the next section), replaceable
PROMs and sockets for RAM. These will be used for future upgrades.
Instructions for installing the components will be supplied with the upgrade kit.
Figure 2-3. User-Accessible Components
SMB-1
PROM
i960
Processor
FlashSIMM
Socket
Boot PROM
DIP Switch
Local DRAM
Socket

2-5
Installing the MicroLAN Modules
Setting the Module Card DIP Switch
An eight-switch DIP switch is located on the module card, as shown in Figure 2-3
and Figure 2-4. The functions of the switches are listed in Table 2-1.
Figure 2-4. Location of Module DIP Switch
1
2
3
4
5
6
7
8

Installing the MicroLAN Modules
2-6
See the Cautions at the end of this table.
Table 2-1. Function of DIP Switch
Switch Function Description
8Clear
Password
1
When toggled, this switch clears user-entered
passwords stored in NVRAM, and restores the
default passwords. Once reset you can use the
defaults or enter new passwords.
7Clear
NVRAM
2
The module uses NVRAM to store user-
entered parameters such as IP addresses,
device name, etc. To reset these parameters to
the factory defaults, toggle this switch. Once
reset you can use the defaults or enter new
parameters, which are stored in NVRAM
when the module is powered down, and
remain there until the switch is toggled again.
6Force BootP
Download
Toggling this switch after pulling the board out
of the SmartSwitch 9000 clears download
information from NVRAM and forces image
files to be downloaded from the station
configured to act as that module’s BootP
server.
5 Reserved For Factory Use Only
4 Reserved For Factory Use Only
3 Reserved For Factory Use Only
2 Reserved For Factory Use Only
1 Reserved For Factory Use Only
1
Caution: Do not toggle Switch 8 unless you intend to reset the user-configured
passwords to their factory default settings.
2Caution: Do not toggle Switch 7 unless you intend to reset the user parameters
to the factory default settings.
!
CAUTION

3-1
Chapter 3
Operation
The MicroLAN Modules, as shown in Figure 3-1, provide concentrator ports that
connect directly to the FNB bus. Each port can connect to either ring (FNB-1 or
FNB-2). This is software configurable via local or remote management.

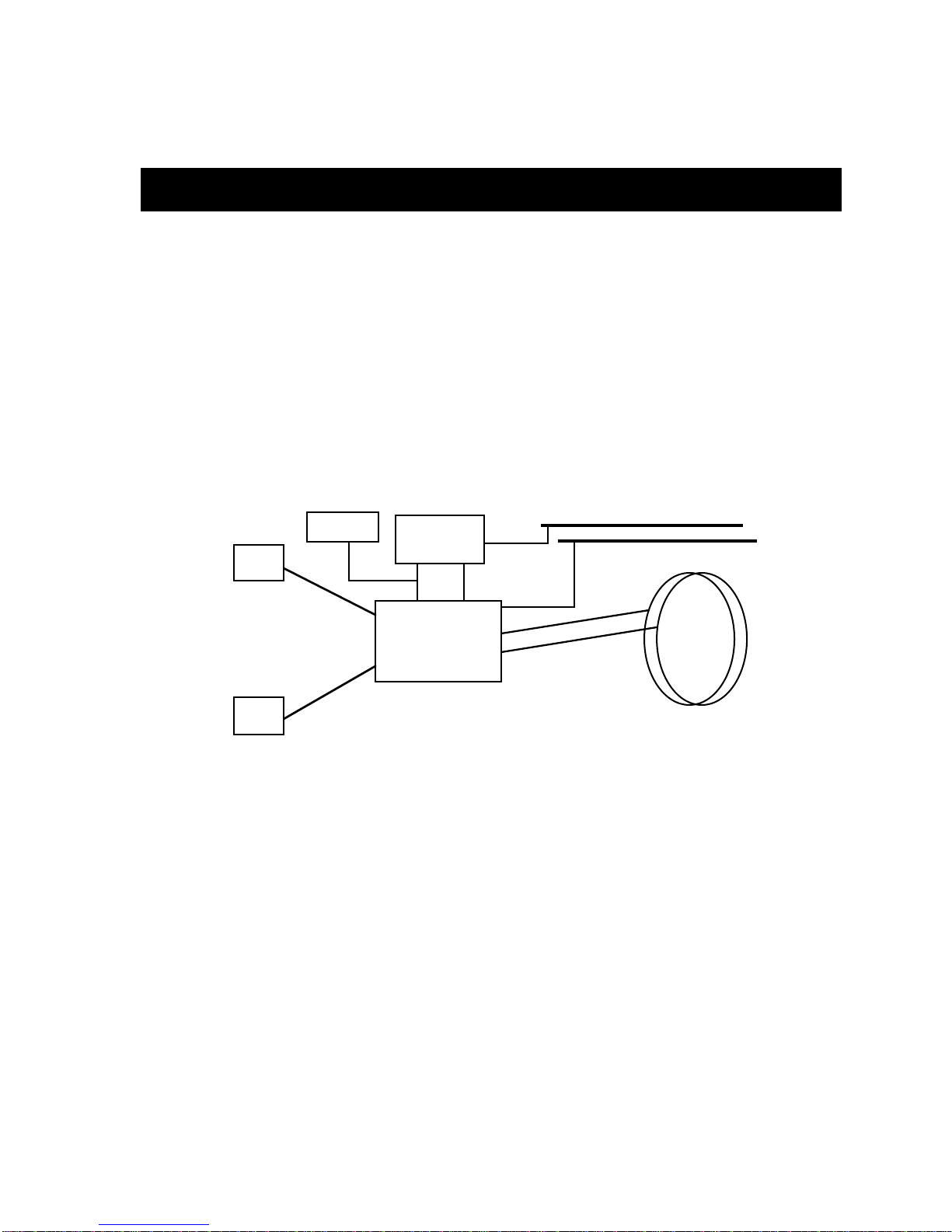

Figure 3-1. Block Diagram
Flexible Network Bus (FNB)
The FNB consists of two dual FDDI networks, FNB-1 and FNB-2, providing up to
400 Mbps of data bandwidth. These FDDI networks are 100% ANSI FDDI-
compliant supporting SMT (version 7.3), MAC, PHY, and PMD standards. This
allows the FNB to traverse multiple SmartSwitch 9000 hubs, or connect to any
ANSI FDDI-compliant device, through standard A/B port connections.
i960 PLUS Core
Fiber
port
Fiber
port
FNB-1 or
FNB-2
System
Diagnostic
Controller SMB-10
SMB-1
DC/DC
Converter
.
.
.
.
.
.
.

Operation
3-2
System Management Buses
There are two management channels within the SmartSwitch 9000 system: the
SMB-1 and the SMB-10. These buses provide out-of-band management and inter-
module management communication.
SMB-1 Bus
The SMB-1 is a 1 Mbps management bus located within the SmartSwitch 9000.
This bus is utilized by all diagnostic controllers in the system including
connectivity modules, power supply modules and the environmental module.
The SMB-1 transports inter-chassis information between system components,
such as power and environmental information, as well as diagnostic messages.
Periodic
loop-back tests are performed by all modules that share this bus to ensure the
validity of SMB-1. In the event a failure is detected on SMB-1, the SMB-10 may be
used as an alternate communication channel.
SMB-10 Bus
The SMB-10 is a 10 Mbps management bus located within the SmartSwitch 9000,
which is also used for inter-chassis communication of modules as well as serving
as an out-of-band management channel into the SmartSwitch 9000. The SMB-10 is
externalized from the chassis via an optional Ethernet Port Interface Module
(EPIM) located on the front of the Environmental Module. Through an EPIM
connection, full SNMP management of the SmartSwitch 9000 is available out-of-
band from user data. Modules that share the SMB-10 bus periodically send out
loop-back packets to ensure the validity of SMB-10. In the event a fault is detected
on the SMB-10, the SMB-1 can be used as an alternate communication channel by
the modules.
