Gas Supply Sources An approved hose and regulator connected to a rellable gas container not exceeding 9kg and
complying with local regulation in force
Country Name and Abbreviations
AE = United Arab Emirates AL = Albania AT = Austria BE = Belgium CH = Switzerland
CZ = Czech Republic DE = Germany DK = Denmark ES = Spain FI = Finland
FR = France GB = United Kingdom GR = Greece HR = Croatia IT = Italy
JP = Japan KR = Korea NL = Netherlands NO = Norway PL = Poland
PT = Portugal RO = Romania RU = Russia RS = Serbia SI = Slovenia
SK = Slovakia SE = Sweden TR = Turkey
98700-31, 98700-33, 98700-41, 98700-43
Country of Use
BE, CH, CY, CZ, ES,
FR, GB, GR, IE, IT, LT,
LU, LV, PT, SK & SI
PL
BE, CY, DK, EE, FR,
FI, HU, IT, LT, NL,
NO, SE, SI, SK, RO,
HR, TR, BG, IS,LU,
MT, & ZA
AT, CH, DE & SK
Appliance Catagories I3+(28-30/37) I3B/P (37) I3B/P (30) I3B/P (50)
Allowable gasses Butane Propane Butane, Propane or their mixture
Gas Pressure 28-
30mBar 37mBar 37mBar
28-30mBar
(2.8kPa for South
Africa)
50mBar
Main BBQ Unit - 3 Burner (98700-31 & 98700-33)
Jet Number 0.92 0.81
Nominal Usage (Butane) 255g/hr per burner 277g/hr per burner 255g/hr per burner 255g/hr per burner
Gross nom. heat input 3.5kw Per Burner
(3.5kW x 3 = 10.5kW)
3.8kw Per Burner
(3.8kW x 3 = 11.4kW)
3.5kw Per Burner
(3.5kW x 3 = 10.5kW)
3.5kw Per Burner
(3.5kW x 3 = 10.5kW)
Main BBQ Unit - 4 Burner (98700-41 & 98700-43)
Jet Number 0.92 0.81
Nominal Usage (Butane) 255g/hr per burner 277g/hr per burner 255g/hr per burner 255g/hr per burner
Gross nom. heat input 3.5kw Per Burner
(3.5kW x 4 = 14kW)
3.8kw Per Burner
(3.8kW x 4 = 15.2kW)
3.5kw Per Burner
(3.5kW x 4 = 14kW)
3.5kw Per Burner
(3.5kW x 4 = 14kW)
Side Burner (98700-33 & 98700-43)
Jet Number 0.88 0.75
Nominal Usage (Butane) 218g/hr 255g/hr 218g/hr 218g/hr
Gross nom. heat input 3.0kW 3.5kW 3.0kW 3.0kW

22

33

44
Description Part No.
Jet No. 0.92 (28/37mBar) / (2.8kPa - SA Only) 0.92
Jet No. 0.81 (50mBar) 0.81
Jet N0. 0.88 (Side Burner) (28/37mBar) / (2.8kPa - SA Only) 0.88
Jet N0. 0.75 (Side Burner) (50mBar) 0.75
Stratos 3B Cover 98700-30-CVR
Stratos 4B Cover 98700-40-CVR
Stratos Warmer Pan 98700-50
Stratos Reversible Grill Plate 98700-51

55

66

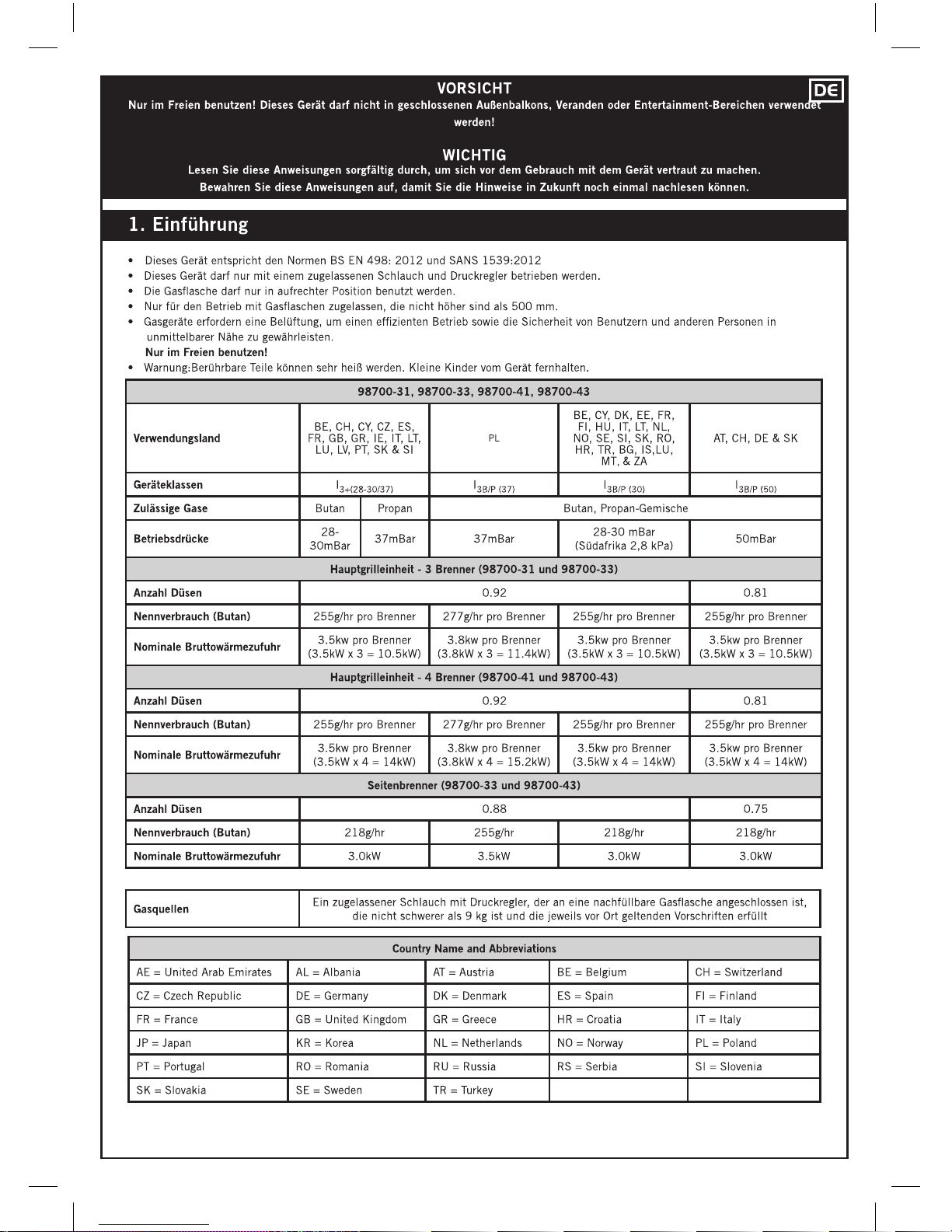

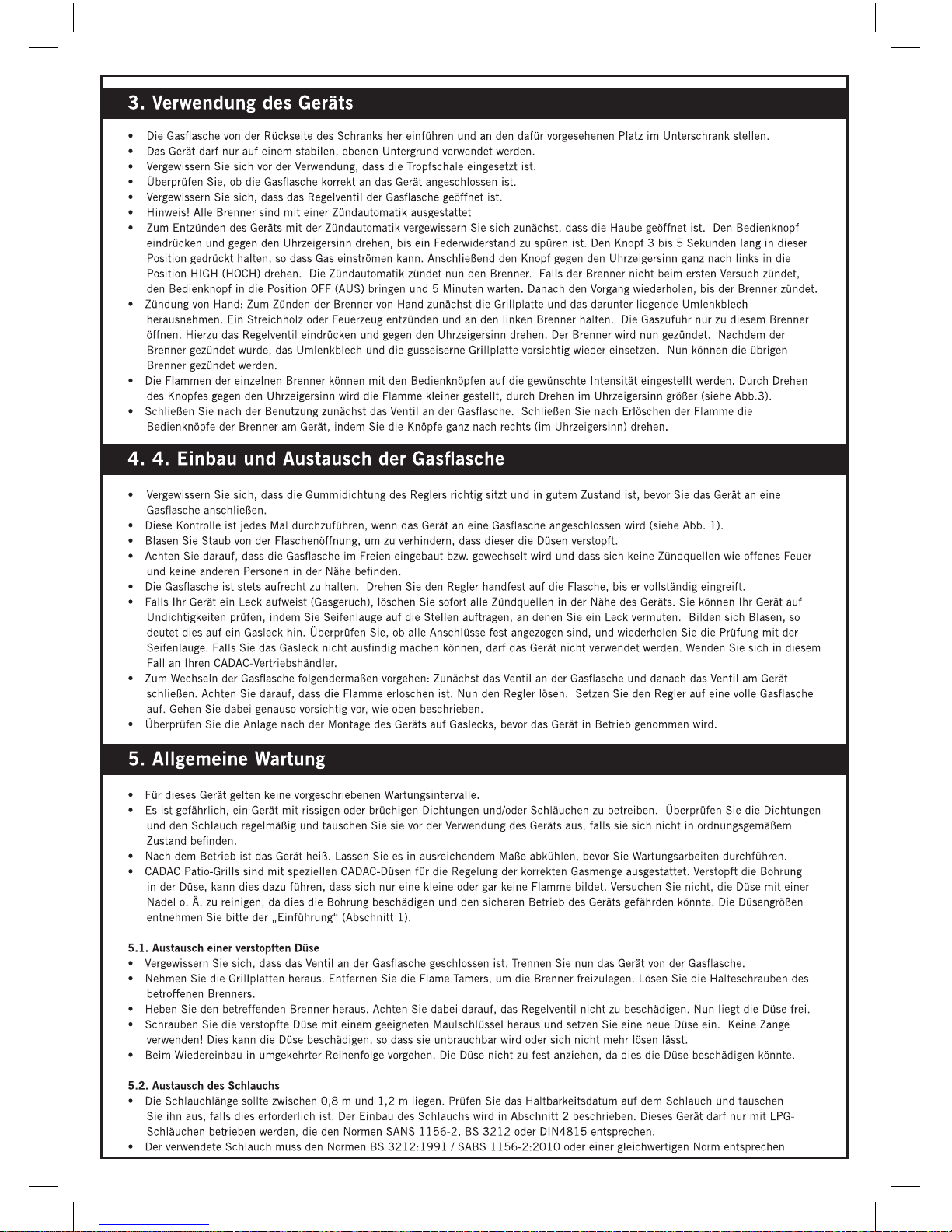

Gasquellen Ein zugelassener Schlauch mit Druckregler, der an eine nachfüllbare Gasasche angeschlossen ist,
die nicht schwerer als 9 kg ist und die jeweils vor Ort geltenden Vorschriften erfüllt
Country Name and Abbreviations
AE = United Arab Emirates AL = Albania AT = Austria BE = Belgium CH = Switzerland
CZ = Czech Republic DE = Germany DK = Denmark ES = Spain FI = Finland
FR = France GB = United Kingdom GR = Greece HR = Croatia IT = Italy
JP = Japan KR = Korea NL = Netherlands NO = Norway PL = Poland
PT = Portugal RO = Romania RU = Russia RS = Serbia SI = Slovenia
SK = Slovakia SE = Sweden TR = Turkey
98700-31, 98700-33, 98700-41, 98700-43
Verwendungsland
BE, CH, CY, CZ, ES,
FR, GB, GR, IE, IT, LT,
LU, LV, PT, SK & SI
PL
BE, CY, DK, EE, FR,
FI, HU, IT, LT, NL,
NO, SE, SI, SK, RO,
HR, TR, BG, IS,LU,
MT, & ZA
AT, CH, DE & SK
Geräteklassen I3+(28-30/37) I3B/P (37) I3B/P (30) I3B/P (50)
Zulässige Gase Butan Propan Butan, Propan-Gemische
Betriebsdrücke 28-
30mBar 37mBar 37mBar 28-30 mBar (Südafrika 2,8 kPa) 50mBar
Hauptgrilleinheit - 3 Brenner (98700-31 und 98700-33)
Anzahl Düsen 0.92 0.81
Nennverbrauch (Butan) 255g/hr pro Brenner 277g/hr pro Brenner 255g/hr pro Brenner 255g/hr pro Brenner
Nominale Bruttowärmezufuhr 3.5kw pro Brenner
(3.5kW x 3 = 10.5kW)
3.8kw pro Brenner
(3.8kW x 3 = 11.4kW)
3.5kw pro Brenner
(3.5kW x 3 = 10.5kW)
3.5kw pro Brenner
(3.5kW x 3 = 10.5kW)
Hauptgrilleinheit - 4 Brenner (98700-41 und 98700-43)
Anzahl Düsen 0.92 0.81
Nennverbrauch (Butan) 255g/hr pro Brenner 277g/hr pro Brenner 255g/hr pro Brenner 255g/hr pro Brenner
Nominale Bruttowärmezufuhr 3.5kw pro Brenner
(3.5kW x 4 = 14kW)
3.8kw pro Brenner
(3.8kW x 4 = 15.2kW)
3.5kw pro Brenner
(3.5kW x 4 = 14kW)
3.5kw pro Brenner
(3.5kW x 4 = 14kW)
Seitenbrenner (98700-33 und 98700-43)
Anzahl Düsen 0.88 0.75
Nennverbrauch (Butan) 218g/hr 255g/hr 218g/hr 218g/hr
Nominale Bruttowärmezufuhr 3.0kW 3.5kW 3.0kW 3.0kW

77
Gasquellen Ein zugelassener Schlauch mit Druckregler, der an eine nachfüllbare Gasasche angeschlossen ist,
die nicht schwerer als 9 kg ist und die jeweils vor Ort geltenden Vorschriften erfüllt

88
