CAH U-3650D II User manual

操作说明书
U-3650D IIU-3650D II
UHF 专业无线话筒系统

2 2
SAFETY PRECAUTIONS 安全注意事项 :
“闪电”符号提醒用户本机内存在“危险高压”，足以产生触电危险。
“!”号表示重要的使用（维修）说明，用户务必遵守。
警告：为避免发生触电或火灾，不要将其暴露于潮湿的环境中，另外，机箱内存在危险高压，
请勿打开顶盖。
注意：为保证安全使用，请仔细阅读使用说明书，并妥善保存供以后查询。如需维修，请与
销售商或维修点联系。
违反本说明书进行任何控制、调节或其他任何操作都有可能发生危险。
重要安全说明
1. 阅读说明书：使用前必须阅读所有安全和使用说明。
2. 保存说明书：说明书必须妥善保存，供以后查阅。
3. 警告：必须遵守本产品和使用说明中的所有警告。
4. 清洁：先将插头从电源插座中拔出，不要使用液体清洁剂和喷雾剂，用湿抹布擦拭。
5. 防水防潮：不要在水源附近或潮湿的地方使用本机。
6. 电源：本机必须使用标签上规定型号的电源。
7. 闪电：出现暴雨天气或长时间不用本机时，请将插头从插座中拔掉，并与天线或电缆系统
断开，以防止因闪电和电线短路对产品造成损害。
8. 维修：请不要擅自进行维修，因为打开或拆开机盖后，您将面临高压或其它危险。所有维
修事宜必须由专业人员进行。
9. 损坏维修：出现以下情况时，将插头从插座中拔掉，请专业维修人员进行维修。
电源线或插头损坏；
液体溅入或异物掉入本机
产品被雨水淋湿；
如果未按使用说明正确操作本机，必须严格遵照使用说明调节本机，违反说明
擅自操作，将导致产品损坏，需要专业人员仔细检修才能恢复正常操作。
如本产品性能明显变化，需要进行修理。
10. 替换部件：置换部件须采用厂家指定部件，或那些与原部件特性相同的部件，否则可能
引起触电或其他危险发生。
11. 安全检查：完成产品维修后，请维修人员进行安全检查，判断产品是否能进行正常操作。
UHF
U-3650D II
UHF 专业无线话筒系统
Professional Wireless Microphone System
UHF
U-3650D II
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert to user to the
presence of uninsulated dangerous voltage within the product’s enclosure that may be of sucient
magnitude to constitute a risk of electric shock to persons.
Warning:
To ensure the proper use of the unit, read this manual carefully and keep it for future reference. If the unit
requires servicing, contact the seller or our service centre.
READ INSTRUCTIONS - All the safety and operating instructions should be read before the product is operated.
RETAIN INSTRUCTIONS – The safety and operating instructions should be retained for future reference.
HEED WARNINGS – All warnings on the product and in the operating instructions should be adhered to.
CLEANING – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
WATER AND MOISTURE – Do not use this product near water – for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
POWER SOURCES – This product should be operated only from the type of power source indicated on the
marking label.
LIGHTNING – For added protection for this product during a lighting storm, or when it is left unattended and
unused for a long period of time, unplug it from the wall outlet and disconnect the antenna or cable system. This
will present damage to the product due to lightning and power-line surges.
SERVICING – Do not attempt to service this product by yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing to qualied service personnel.
DAMAGES REQUIRING SERVICE – Unplug this product from the wall outlet and refer servicing to qualied
service personnel under the following conditions.
REPLACEMENT PARTS – When replacement parts are required, be sure the service technician las used
replacement parts specied by the manufacturer or have the same characteristics as the original part. Unauthor-
ized substitutions may result in re, electric shock or other hazards.
SAFETY CHECK – Upon completion of any service or repair to this product, ask the service technician to perform
safety checks to determine that the product is in proper operating condition.
Caution:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
IMPORTANT SAFETY INSTRUCTIONS
When the power cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualied technician to restore the product to its normal
operation.
When the product exhibits a distinct change in performance – this indicates a need for service.

Professional Wireless Microphone System
UHF
3 3
TABLE OF CONTENTS
Title Page
SAFETY PRECAUTIONS
TABLE OF CONTENTS
FOREWORD
RECEIVER
HANDHELD TRANSMITTER
BODYPACK TRANSMITTER
SYSTEM TECHNICAL SPECIFICATIONS
CAUTION
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
UHF 专业无线话筒系统
UHF
目录
标题 页
安全注意事项
目录
前言
接收机
各部份名称及功能
正面板
背面板
接收机安装说明
大屏幕液晶显示屏（LCD）面板操作说明
转换频率
灵敏度调节菜单
系统锁定功能菜单
自动扫频
信号监听
手持发射器
各部份名称及功能
手持发射器设置
更换手持发射器的电池
腰包发射器
各部份名称及功能
操作面板
腰包发射器的安装说明
对频操作
系统技术规格
注意事项
中 、港、澳总代理 :
专业音响有限公司
香港九龙新蒲岗六合街八号六合工业大厦
21 楼 E - F 室
电话 : [phone] 传真 : [phone]
网址 : www.cah.com.hk 电邮 : [email protected]
2
3
4
5~8
5
5
5
6
7
7
8
8
9
9
10~13
10
11~12
13
14~16
14
15
15
15~16
17
18
2
3
4
5~8
5
5
5
6
7
7
8
8
9
9
10~13
10
11~12
13
14~16
14
15
15
15~16
17
18
U-3650D IIU-3650D II
CAH PROFESSIONAL SOUND CO., LTD.
Unit E - F, 21 / F., Luk Hop Industrial Building,
8 Luk Hop Street, San Po Kong, Kln., Hong Kong
Tel : [phone]
Fax : [phone]
Website: www.cah.com.hk E-mail: [email protected]
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
FEATURES AND CONTROLS
Front Panel
Rear Panel
INSTALLATION
LCD PANEL OPERATION
CHANGING FREQUENCY
SENSITIVITY ADJUSTMENT MENU
SYSTEM LOCKING MENU
AUTOMATIC FREQUENCY SEARCH
SIGNAL MONITORING
FEATURES AND CONTROLS
SETUP OF HANDHELD TRANSMITTER
TRANSMITTER’S BATTERIES INSTALLATION
FEATURES AND CONTROLS
OPERATING PANEL
BODYPACKTRANSMITTERINSTALLATION
FREQUENCY PAIRING OPERATION

UHF
4 4
FOREWORD
Thank you for purchasing CAH UHF Professional Wireless Microphone System.
Before operating, please read this instruction manual carefully and thoroughly in order
to attain the correct operating procedures and achieve the best results.
PERFORMANCE CHARACTERISTICS:
1. Frequency Range Group : 650MHz(640.000MHz ~ 689.750MHz).
2. There are 2 preset groups, the available range of 100 selectable frequencies
depends on the relevant channel..
3. Auto Scan function allows quick search for an interference-free working channel.
World’s rst ACT™ function provides precise and rapid frequency sync to the
transmitters.
4. CPU control: CPU controlled antenna diversity circuitry for increased RF gain,
improved reception, and exceptional freedom from dropouts.
5. LCD (Liquid Crystal Display) screen.
6. System features with high
- pass, low - pass and band - pass advanced ltering
technology to eliminate interference noise for better sound quality.
7. The maximum operating range for the system is normally 100 meter;
however, conditions at the installation site will ultimately determine a
system’s limits.
Professional Wireless Microphone System
THIS SYSTEM INCLUDES THE FOLLOWING:
Receiver x 1
Handheld Transmitter x 2
(U-365H-II)
Antenna for Receiver x 2
Audio Connecting Cable x 1
AC Adapter x 1
Operating Manual x 1
前言
感谢您购买 CAH UHF专业无线话筒系统。
在操作前，请仔细阅读本说明书，以了解正确的操作程序以获得最佳效果。
本系统性质特点：
1. 工作频率范围: 650兆赫（640.000MHz ~ 689.750MHz）。
2. 接收机内置两个无线接收通道，各有100个频点可调。
3. 具有世界先进的ACT(自动频道锁定)功能，能快速精确的自动锁定接收机的工作
频率。
4. CPU 控制：天线自动选讯式接收系统由中央处理器提升射频增益、预知衰落功
能及控制左右讯道接收。
5.
LCD 大屏幕液晶显示。
6. 发射和接收音频系统采用多重高通、低通及带通滤波技术，杜绝干扰声，达到
音色纯净效果。
7. 最佳的工作距离: 正常是100米，最终仍需视乎系统安装地点的环境而定。
出厂包装箱内包括以下内容：
接收机：1台
手持发射器：2只（U-365H-II）
天线：2支（用于接收机）
连机线：1条
直流供电器：1只
操作说明书：1本
UHF
U-3650D II
UHF 专业无线话筒系统
U-3650D II

5 5
接收机 U-3650D II-R RECEIVER U-3650D II-R
A. FEATURES AND CONTROLS
Front Panel
UHF
U-3650D II
UHF 专业无线话筒系统
UHF
U-3650D II
Professional Wireless Microphone System
A. 各部份名称及功能
正面板
正面板 Front Panel
背面板 Rear Panel
耳机插孔
电源开关
音量控制
LCD显示
上、下键用于选择不同
频率或模式设置
设置确认
红外对频窗口
Headphone Jack
Power On/O Switch
Volume Control
LCD Screen
Up and Down Buttons for
frequency selection or other
menu settings
SET Button
IR Port
Antenna Sockets (A , B)
Power Input
Sensitivity Adjustments Knob
(A , B)
Balanced Output Connector
Unbalanced Output Connector
天线插口(A、B)
电源插座
灵敏度调节旋钮(A、B)
平衡输出插座
非平衡输出插座
背面板 Rear Panel
PLL
U-3650D II-R PLL U-3650D II-R

1. 把接收机放置在合适的操作位置上：可平放在平坦的表面上或镶嵌在机架
内（用户可向邻近的经销商选购有关托盘）。
2. 将两支天线分别连接在背面板的A、B天线插口 上，两支天线方向必须指
向上。
3. 把厂商提供的直流供电器连接在背面板的电源输入插座
。
4. 将平衡式 或非平衡式 的音频输出插座连接到混音器或卡拉OK扩音
机。
5. 先把 音量控制调到最小，然后按住 电源开关制1~2秒，直到大屏幕
液晶显示屏（LCD）有显示为止。
6. 跟据设置说明把接收机调校到最好的效果（参考本操作手册
5~9 页进行正
确设置）。
7. 要切断电源，只需按住 电源开关制
1~2 秒，直到大屏幕液晶显示屏（LCD）
显示“OFF”（如右图）后，接收机便会
自动关机。
1. Place the receiver in its operating location, either on a horizotal surface or in a
rack panel (optional rack panel mounting bracket may be purchased from your
nearest dealer).
2. Attach the supplied antennas to the antenna sockets A , B at the rear panel.
Make sure the antennas are pointed upward.
3. Connect the supplied DC power adapter to the POWER input jack on the
rear panel.
4. Connect the audio output for balanced connection or for unbalanced
connection to a mixer or karaoke amplier.
5. Turn the volume control to minimum, then press and hold the power
switch for 1~2 seconds until the LCD screen is on.
6. Adjust the receiver according to the setting instruction for optimal results
(Refer to pages 5~7 for proper settings).
7. To turn o the power, press and hold the
power button for 1~2 seconds. The LCD
screen will display “OFF”as shown and the
receiver will automatically shut o.
6 6
B. INSTALLATION
Professional Wireless Microphone System
UHF UHF
B. 接收机安装说明
接收机 U-3650D II-R
RECEIVER U-3650D II-R
U-3650D II
UHF 专业无线话筒系统
U-3650D II

7 7
After turn on the power, LCD screen will display as below:
D. CHANGING FREQUENCY
RF (Radio Frequency) Indicator
AF (Audio Frequency) Indicator
Current Frequency Display: It shows the frequency that your receiver and
transmitter are on.
If no sound is coming out of your speakers, it may be caused by a
frequency interruption from another system. Then, you may change the
frequency.
Channel A Signal Receiving Indicator: When “I” is shown as above, this means
that Antenna A is receiving a signal.
Channel B Signal Receiving Indicator: When “II” is shown as above, this means
that Antenna B is receiving a signal.
Mute Indicator: When “MUTE” is shown as above, this means that the system
is currently not receiving any audio signal.
Current Channel Display
Press the “ ▲” or “ ▼” button to switch to diferent channel and the LCD screen
will show the selected frequency. The LCD screen will ash to remind you to
conrm your change. Press “SET” again to conrm your change and the LCD screen
will stop ashing.
UHFUHF
Professional Wireless Microphone System
D. 转换频率
按“▲”或“▼”键来选择不同的讯道，LCD屏幕会显示所选择的频率。当选
择未确认时，LCD屏幕会闪动以提醒确认。按“SET”键确认，LCD屏幕停止
闪动。
U-3650D II
UHF 专业无线话筒系统
U-3650D II
接收机 U-3650D II-R RECEIVER U-3650D II-R
C. LCD PANEL OPERATION
C. 大屏幕液晶显示屏（LCD）面板操作说明
打开电源,LCD全亮时画面:
射频强度指示
音频强度指示
当前频率显示：显示当前接收机和发射器的频率。
若音箱没有声音，可能是受到另一台机的干扰。发生此状况，
再调换频率。
讯道
A 信号接收指示：当“Ⅰ”显示如上图，这意味着天线 A 收到信号。
讯道
B 信号接收指示：当“Ⅱ”显示如上图，这表示天线 B 收到信号。
静音指示：当“MUTE”显示如上图，这表示当前使用的接收机没收到声
音信
号。
当前频道显示
PLL
U-3650D II-R PLL U-3650D II-R

UHF
E. 灵敏度调节菜单:
F. 系统锁定功能菜单：
锁定和非锁定的系统状态如下图：
在背面板的 SQL-A、SQL-B 灵敏度调节旋钮 (见本操作手册第5页背面板图 ) 分
别用来调节A、B讯道的灵敏度。把调节旋钮向“MAX”顺时针方向扭动, 则灵敏度
较高, 接收距离也较远. 反之, 向“MIN”逆时针方向扭动, 则灵敏度较低, 接收距离
也较近。
按“SET”键三次，屏幕显示“LOCK”，1 ~ 2 秒后屏幕会显示“LOC ON”
锁定状态）或“LOCOFF”（非锁定状态）如上图（“LOC ON”表示系统被
锁定，若为锁定状态，则不能改变当前的各种已设定的工作状态；若非锁定状
态，则可对所有菜单功能进行改变）。按“▲”切换到“LOC ON”锁定系统
当前设置；按“▼”切换到“LOCOFF”使系统可调节工作状态。最后再按
“SET” 键确认选择。
E. SENSITIVITY ADJUSTMENT MENU:
F. SYSTEM LOCKING MENU:
System locking and unlocking modes are shown as below:
If the system is locked, the lock indicator will be displaying “ ”.
Pressing the “SET” button 3 times, the LCD screen will displays “LOCK”. After 1 ~ 2
seconds, LCD screen will display “LOC ON” or “LOCOFF” as shown above (“LOC ON”
means that system is locked). When system is on a “LOC ON” mode, all system
settings will be locked on the current settings and other further adjustment will be
blocked. Only when the system is on a “LOCOFF” mode (“LOCOFF” means system
is unlocked that adjustments to the system settings are allowed). You can press
“▲” button to switch the current system settings to a “LOC ON” mode or press the
“▼” button to switch the system to a “LOCOFF” mode.
Press “SET” again to
conrm your setting.
Knobs SQL-A and SQL-B at the rear panel of the receiver (see on the rear panel
in Page 5) can be used to adjust the receiving signals of Channels A & B between
the transmitters and receiver respectively. By turning the knobs towards "MAX"
clockwise, the sensitivity level for receiving signal from a longer distance will
increase. By turning the knobs backwards counterclockwise to "MIN", the contrary
will apply.
Professional Wireless Microphone System
UHF
U-3650D II
UHF 专业无线话筒系统
U-3650D II
接收机 U-3650D II-R
RECEIVER U-3650D II-R
8 8
若系统处于锁定状态，会出现锁定指示“ ”。

9 9
UHFUHF
Professional Wireless Microphone System
U-3650D II
UHF 专业无线话筒系统
U-3650D II
接收机 U-3650D II-R RECEIVER U-3650D II-R
G. AUTOMATIC FREQUENCY SEARCH
G. 自动扫频
U-3650D II-R
MUTE
按两下 “SET” 键，进入自动扫频状态，LCD屏幕显示“SCAN”。此时按一
下“▲” 键，接收机开始搜索。搜索到下一个无干扰频率时，屏幕会显示该频
率并且闪动。按“SET” 键确认选择，LCD屏幕停止闪动。
Press “SET” button twice to enter auto search status. The LCD screen will show
“SCAN”. Then, press “ ▲” button, the receiver starts searching. The LCS screen
will show the selected interference-free frequency and ash. Press “SET” again to
conrm your change and the LCD screen will stop ashing.
H. SIGNAL MONITORING
H. 信号监听
可在面板上的耳机孔插上立体声耳机，通过耳机监听声音。 You can plug a Stereo Headphone into the headphone jack on the front panel of
your receiver to monitor your audio signal
U-3650D II-R
MUTE
PLL
U-3650D II-R PLL U-3650D II-R

10 10
Professional Wireless Microphone System
UHF UHF
U-3650D II
UHF 专业无线话筒系统
U-3650D II
BAT
BAT
BAT
U-365H
II
U-365H II
BAT
BAT
BAT
U-365H
II
U-365H II
FEATURES AND CONTROLS:
Power Switch:
To turn on, keep pressing the “POWER” button at the bottom cap of the transmit-
ter for 2
~ 3 seconds until the LCD screen light is on.
To turn o, keep pressing the “POWER” button for about 2
~ 3 seconds until LCD
screen light is o.
Built
- in Transmitter Antenna
Microphone Capsule and Grille
Battery Compartment: Open the battery cover and insert two “AA” batteries into
the battery slot. Putting battery
’ s polarity on wrong ends may damage the system
and such damage may void your product warranty.
Battery Power Indicator: If light is ashing, this means battery power is low that
battery must be replaced; otherwise, battery is still at normal power.
IR Port
HANDHELD TRANSMITTER U-365H II
各部份名称及功能：
电源开关：
开电源：按住发射器底部开关键
2 ~ 3 秒，直到 LCD 灯开启。
关电源：按住发射器底部开关键
2 ~ 3 秒，直到 LCD 灯关闭。
内置发射天线
音头和网头
电池盒：打开电池槽装入2颗
AA 电池。注意电池正负极不可接反，因错装电
池而造成机的损坏，不予保修。
电源指示灯：若指示灯闪动，表示低电需换电池；反之电源正常。
红外对频窗口
手持发射器 U-365H II

11 11
UHFUHF
Professional Wireless Microphone System
U-3650D II
UHF 专业无线话筒系统
U-3650D II
手持发射器设置
对频操作
若是人为（故意或意外）造成手持网头损坏，不予保修。
2. 下压尾盖扣并推出尾盖。
1. 按住手持发射器尾盖的电源开关1~2秒，开机。
SETTING OF HANDHELD TRANSMITTER
1. Press and hold the power button on the bottom for 1~2 seconds, turn on the
transmitter.
We have the right to void your warranty for any damage on the transmitter
（microphone）head
’ s grille contrivedly.
FREQUENCY PAIRING OPERATION
2. Press release button to remove bottom cap.
手持发射器 U-365H II HANDHELD TRANSMITTER U-365H II

12 12
Professional Wireless Microphone System
UHF UHF
U-3650D II
UHF 专业无线话筒系统
U-3650D II
HANDHELD TRANSMITTER U-365H II
4. Put the transmitter’s IR port ⑥close to the receiver’s IR port ⑦ .
a. If this operating succeed, the transmitter’s frequency will auto locks and the
selected frequency will display on the LCD screen. The RF signal indication will
appear on the LCD screen of the receiiver at the same time.
b. if this operating failed, the LCD screen will displays “IR END”. Press “SET” button
twice, the LCD screen will resume to normal. Repeat step 3 and 4 till operating
succeed.
3. After the receiver selects the channel (for related operations, please refer to the
description of "D. CHANGING FREQUENCY" on page 7), press "SET" button of the
receiver. The receiver enters the frequency pairing mode and the LCD screen will
display the status.
FREQUENCY PAIRING OPERATION
MUTE
3. 接收机选定频道(相关操作请查阅第7页中"D. 转换频率"说明)后，按一下接收机
的"SET"键。接收机进入对频模式，屏幕会显示对频状态。
4. 把手持发射器的红外对频窗口⑥靠近并对准接收机的红外对频窗口⑦。
A. 如果操作成功，发射器的工作频点自动设定在接收机选定的频点，其显示屏
上会显示设定的频率。同时接收机的显示屏会出现RF信号指示。
B. 如果操作失败，接收机显示屏会出现 “IR END” 字符，按两次 “SET”键
以恢复正常显示。排除问题后可重做第3及4步操作，直到操作成功。
对频操作
手持发射器设置 U-365H II
MUTE
手持发射器设置
SETTING OF HANDHELD TRANSMITTER
BAT
U-365H II
BAT
U-365H II
In order to prevent misuse, please follow the instructions on page 8
"F. SYSTEM LOCKING MEMU".
如需要锁定系统防止误操作，请按第8页中"F. 系统锁定功能菜单"的
说明进行设置。

13 13
UHFUHF
Professional Wireless Microphone System
U-3650D II
UHF 专业无线话筒系统
U-3650D II
HANDHELD TRANSMITTER’S BATTERIES INSTALLATION
1. Keep pressing the “POWER” button at the bottom of the cap for 1~2 seconds until
the handheld transmitter is o.
3. Hold fast the top of the handheld transmitter with one hand and unscrew the
transmitter housing with another hand.
4. Put two “double-A” (AA) batteries into the battery slot of the handheld transmitter.
2. Press the release button at the bottom of the handheld transmitter
’ s cap to
unloose the grip between the cap and the handle and pull out the cap.
更换手持发射器的电池
1. 按住手持发射器尾盖的电源开关 1~2 秒，关机。
2. 下压尾盖扣并推出尾盖。
3. 一只手抓住发射器的顶部，另一只手慢慢拧开手柄。
4. 装入2节AA碱性电池。
手持发射器 U-365H II HANDHELD TRANSMITTER U-365H II

14 14
Professional Wireless Microphone System
UHF UHF
U-3650D II
UHF 专业无线话筒系统
U-3650D II

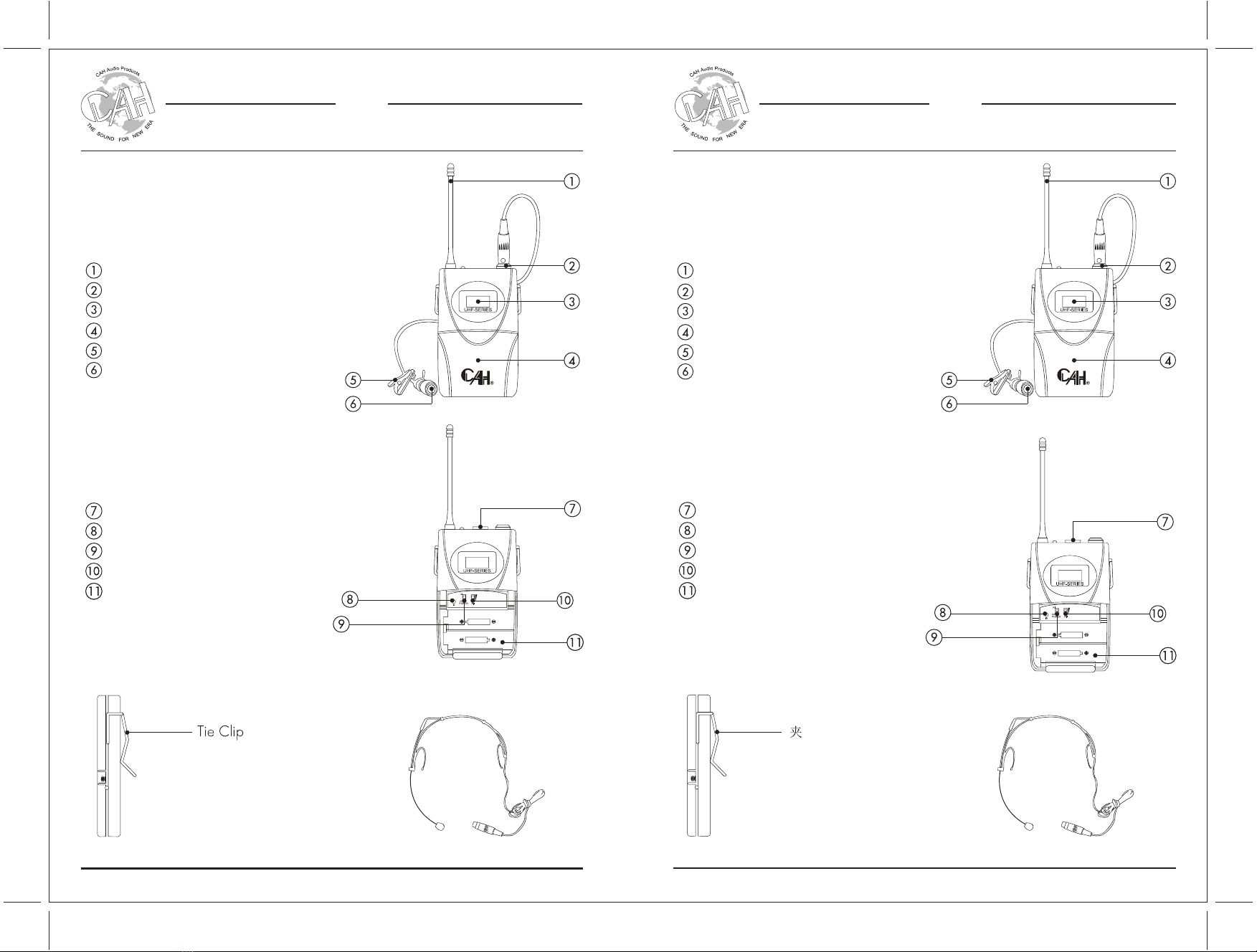

BODYPACK TRANSMITTER BT-365 II
FEATURES AND CONTROLS
Side View
Exterior:
Antenna
Microphone Jack
LCD Screen
Battery Cover
Tie-Clip C-L65
Microphone Capsule
Interior:
Power Switch
IR Port
RF Transmitting Power
Volume Control
Battery Slot
Headset Microphone C-H65
(Optional)
腰包发射器 BT-365 II
各部份名称及功能
侧面图
外观图
天线
麦克风插孔
LCD显示器
电池盖
领夹 C-L65
音头
内部图
电源开关
红外对频窗口
功率设置
音量控制
电池盒
头戴麦克风 C-H65（配件）
BT-365 II UHFBT-365 II UHF
AF
AF

15 15
UHFUHF
Professional Wireless Microphone System
U-3650D II
UHF 专业无线话筒系统
U-3650D II
OPERATING PANEL
APICAL PANEL
Antenna
Power Indicator
Power Switch
Microphone Jack
BODYPACK TRNASMITTER INSTALLATION
1. Connect microphone to the microphone jack on the apical panel.
2. Put two “double-A” (AA) alkaline batteries into the battery slot.
FREQUENCY PAIRING OPERATION
1. Switch “POWER” to the “ON” position on the apical panel, then the LCD screen will
display as below:
BODYPACK TRANSMITTER BT-365 II
操作面板
顶面图
天线
电源指示灯
电源开关
麦克风插口
腰包发射器的安装说明
1. 装上所配的麦克风接在顶面板的麦克风插口上。
2. 装上2节
AA 碱性电池。
对频操作
1. 在顶面板上， 把电源开关③拨到“ON”（开启）处，屏幕会显示当前使用的频
率和电池电量。
腰包发射器 BT-365 II
BAT
BAT

16 16
Professional Wireless Microphone System
UHF UHF
U-3650D II
UHF 专业无线话筒系统
U-3650D II
BODYPACK TRANSMITTER BT-365 II 腰包发射器 BT-365 II
对频操作：FREQUENCY PAIRING OPERATION:
2. After the receiver selects the channel (for related operations, please refer to the
description of "D. CHANGING FREQUENCY" on page 7), press "SET" button of the
receiver. The receiver enters the frequency pairing mode and the LCD screen will
display the status.
3. Put the bodypack’s IR port close to the receiver’s IR port .
a. If this operating succeed, the transmitter’s frequency will auto locks and the
selected frequency will display on the LCD screen. The RF signal indication will
appear on the LCD screen of the receiiver at the same time.
b. if this operating failed, the LCD screen will displays “IR END”. Press “SET” button
twice, the LCD screen will resume to normal. Repeat step 2 and 3 till operating
succeed.
3. 把腰包发射器的红外对频窗口 靠近并对准接收机的红外对频窗口 。
a. 如果操作成功，发射器的工作频点自动设定在接收机选定的频点，其显示屏上
会显示设定的频率。同时接收机的显示屏会出现RF信号指示。
b. 如果操作失败，接收机显示屏会出现 “IR END” 字符，按两次 “SET” 键
以恢复正常显示。排除问题后可重做2、3步操作，直到操作成功。
MUTE
MUTE
AF
AF
2. 接收机选定频道(相关操作请查阅第7页中"D. 转换频率"说明)后，按一
下接收机的"SET"键。接收机进入对频模式，屏幕会显示对频状态。

17 17
UHFUHF
Professional Wireless Microphone System
U-3650D II
UHF 专业无线话筒系统
U-3650D II
SYSTEM TECHNICAL SPECIFICATIONS
系统技术规格
A. OVERALL SYSTEM
1. OSD Mode: PLL LOCK
2. Operating Frequency: 650MHz (640.000MHz ~ 689.750MHz; selectable)
3. Modulation Mode: FM (PLL)
4. Deviation: ±25KHz ~ ±48KHz
5. Frequency Response: 60Hz
~ 18KHz
6. THD (at nominal deviation and 1KHz): ≤1%
7. Operating Temperature: -10℃~ +55℃
8. Shipping Weight: 4Kg
B. HANDHELD TRANSMITTER
1. Output Power （50Ω）: 8 ~ 30mW
2. Harmonic Suppression: >50dB
3. Battery: 2 pieces of “AA” alkaline battery
4. Microphone Capsule: Supercardioid dynamic microphone
C. BODYPACK TRANSMITTER
1. Output Power: 4
~ 6mW (Minimum); 20 ~ 30mW (Maximum)
2. Harmonic Suppression: >50dB
3. Battery: 2 pieces of “AA” alkaline battery
4. Microphone Capsule: Unidirectional condenser microphone
D. RECEIVER
1. Sensitivity: 3uV (52dB S/N)
2. Sensitivity Range: 12 ~ 32dBuV
3. Harmonic Suppression: >75dB
4. Audio Output:
Balanced: +10dB (XLR)
Unbalanced:+4dB (1/4”, 6
. 3mm jack socket)
5. Power Supply: DC 13 ~ 15V
6. Operating Current: 300 ~ 500mA
A. 全系统技术参数
1. 设置频率方式：相位锁定频率
2. 工作频率范围：650MHz（640.000MHz~ 689.750MHz; 100个可调频点）
3. 调制方式：调频(FM)（相位锁定频率）
4. 频偏：±25KHz ~ ±48KHz
5. 频率响应：60Hz
~ 18KHz
6. 总谐波失真：≤1%
7. 工作温度：摄氏
-10度 ~ +55 度
8. 毛重：4公斤
B. 手持发射器技术参数
1. 输出功率（50Ω）：8
~ 30mW
2. 谐波抑制：>50dB
3. 电池：2节AA碱性电池
4. 音头：超心型动圈式麦克风
C. 腰包发射器技术参数
1. 输出功率：4 ~ 6mW (最小) ; 20 ~ 30mW (最大)
2. 谐波抑制：>50dB
3. 电池：2节AA碱性电池
4. 音头：单指向性电容麦克风
D. 接收机技术参数
1. 灵敏度：3uV（52dB S/N）
2. 灵敏度调节范围：12
~ 32分贝微伏
3. 谐波抑制：>75dB
4. 音频输出电平：
平衡输出：+10dB(XLR)
非平衡输出：+4dB (1/4”,6
. 3mm接口)
5. 电源：外接13
~ 15V直流电
6. 工作电流：300
~ 500mA

18 18
Professional Wireless Microphone System
UHF UHF
U-3650D II
UHF 专业无线话筒系统
U-3650D II
CAUTION
1. When the receiver is on and LCD screen displays “UN LOC”, or when the
transmitter is on and its red light ashes continously, it means that the
receiver or the transmitter malfunctions, please contact CAH for service.
2. If you are using several sets of this system simultaneously, please select
the operating frequency (or channel) carefully to prevent any signal
interference.
3. Receiver
’ s operating power voltage is 220V (±10%); power voltage outside
this range may cause malfunction to the receiver.
4. Battery must be inserted into the battery compartment of the transmitter
at the right polarity. Wrong polarity may cause damage. (Damage caused
by such negligence will void your warranty.)
5. The sensitivity value of the receiver should not be lower than 15dB;
otherwise, the signal will be weakened due to the increase of signal noise
ratio at a distant point.
注意事项
1. 当接收机开机后显示“UN LOC”，或发射器开机后红灯持续闪动
时，表示接收机或发射器出现故障，请发回厂家检修。
2. 若需要同时使用多套本系统时，请仔细选择工作频率（或讯道），以
免干扰。
3. 接收机外接电源的工作输入电源220伏（±10%），若过低或过高可能
会影响本机的工作状态。
4. 发射器在装入电池时，切勿将电池极性装反，否则可能损坏本机。
5. 使用接收灵敏度选择功能时，所选择的数值最小应在15分贝，否则在
距离较远时信噪比会恶化。
