CAHORS Digital STM 26 HD User manual

CAHORS Digital – CS 60022 – 46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
STM 26 HD
DVB-S2+T2/C Compact meter
User Manual
Ref 0145225R13

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
1
Preface
Please read this manual carefullybefore using yourDigital Sat meter for the first time.
This operating manual will help you in the Appropriate, Safe & Favorable
The technical specifications and operating methods included in this manual are subject to changes withoutnotice.In case of anyinquires after a
period ofusage,please contact the manufacturer.
Safety Precaution
Please read the safety instructions carefullybefore operating the device.
Please follow all warnings and instructionson the equipment and in the operating manual.
 Safety of persons
Ensure thatnobodycan be hurtby falling tools or parts ofthe sate antenna during the adjustment and installation ofthe antenna. For own security,
use a rope on sloping roofs.
 Attention for adapter The devise should only be operated with the suppliedACadapter at the mains. Do not open the meter or the
includedAC adapter. There is dangerof life through electric shock! Wrong usage of the ports can lead to the destruction of the measuring device.
 Proceed carefully with the measuring device:
• Avoid low temperatures (below 0 °C) or to high humidity.
• The TFTdisplay can be damaged bymechanical impacts.
• Avoid excessive input voltages. Please refer to the technical data
 Do not operate with the device:
• If it has visible damage, • Ifthere are loose parts in the device,• If the device waslocated outdoors orin damp rooms a extended period oftime.
 Main Supply: Before operating, please check the units operating voltage is 90~240VAC50/60Hz.
 Overload: Do not overload a wall outlet,extension cord or adapter, neither use damaged power cord or touch it with wet hand asthis
may result in electric shock.
 Liquid: The receiver shall not be exposed to dripping orsplashing water, and that no objectsfilled with liquids, such as base,shall be
placed on the apparatus.
 Ventilation: Keep the slotson top ofthe receiver uncover to allow sufficientairflow to the unit. Do notput the receiver on soft
furnishings or carpets. Do notexpose there receiverto direct light or do notplace itnear a heater or in humid conditions. Do notstack other
electronic equipments on top of the receiver.
 Cleaning: Plug out the receiver from the wall outlet before cleaning.Clean the receiver by a soft cloth or mild solution of washing-up
liquid (no solvents).
 Location: Put the receiver indoor in order to avoid lightening,raining or sunlight.
 Uncover: Do not remove the cover, to reduce the risk ofelectric shock. Contact qualified and licensed service personnel to repair the
receiver, or contact your dealer.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
2
I. REFERENCE..................................................................................................................................4
1.1 GENERAL FEATURES............................................................................................................4
1.2 BRILLIANT ON SCREEN GRAPHIC...........................................................................................4
II. PRODUCT OVERVIEW...............................................................................................................4
III. DETAILED OPERATION GUIDE.................................................................................................5
3.1 POWERING ON.....................................................................................................................5
3.2 SATELLITE ..........................................................................................................................6
3.2.1 TP Search..........................................................................................................................6
3.2.2 Satellite IDE.......................................................................................................................7
3.2.3 Packet Control...................................................................................................................7
3.2.4 DiSEqC Search..................................................................................................................8
3.2.5 Motor .................................................................................................................................8
3.2.6 Spectrum...........................................................................................................................8
3.3 TERRESTRIAL ......................................................................................................................9
3.3.1 TP Search..........................................................................................................................9
3.3.2 TP IDE..............................................................................................................................10
3.3.3 Packet Control.................................................................................................................11
3.3.4 Spectrum.........................................................................................................................11
3.4 CABLE..............................................................................................................................12
3.4.1 TP Search........................................................................................................................12
3.4.2 TP IDE..............................................................................................................................13
3.4.3 Packet Control.................................................................................................................13
3.4.4 Spectrum.........................................................................................................................13
3.5 WATCH TV........................................................................................................................14

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
3
3.6 SETTINGS..........................................................................................................................14
3.6.1 System Settings..............................................................................................................15
3.6.2 OSD Setup.......................................................................................................................15
3.6.3 Times...............................................................................................................................15
3.6.4 Factory Default................................................................................................................16
3.6.5 Color Settings .................................................................................................................16
3.6.6 Screen Settings...............................................................................................................16
3.6.7 System info .....................................................................................................................16
3.7 EXPANSION .......................................................................................................................16
3.7.1 USB..................................................................................................................................17
3.7.2 IP Setting.........................................................................................................................18
3.7.3 FTP Download.................................................................................................................18
3.7.4 PING.................................................................................................................................18
3.8 BASIC OPERATION.............................................................................................................18
3.8.1 PVR..................................................................................................................................18
3.8.2 TP PVR ............................................................................................................................19
3.8.3 Auto Timeshift.................................................................................................................19
3.8.4 Find..................................................................................................................................19
3.8.5 Scan.................................................................................................................................20
IV. ADDITIONAL INFORMATION...................................................................................................21

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
4
I. Reference
1.1 General Features
DVB-S/S2 Compliant, DVB-T/T2 Compliant, DVB-C.
MPEG-1, MPEG-2 MP@ML, H.264, VC1, DV, MPEG-4, H.265 (1080p@60fps)
1.2 Brilliant on Screen Graphic
User Friendly OSD Menu with Full Function
Storing 8000 Channels
USB 2.0 Host Controller
Software Upgrade via USB
Satellite Identify
II. Product Overview
DVB-S2+T2/C HEVC
-POWER: Turn the product on/off.
-
LCD Screen: Shows Menus and Programs clearly.
-
Power light : Indicates the power status
Red: the product is power on..
Green: the product is charging.
-LOCK light: This light will be on when signal is locked
-13V/18V light : Indicate the 13V/18V
DiSEqC Search
Spectrum
Packet Control
Constellation

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
5
-
AV IN: Use this product as a television
-
FIND: Enter the menu of measurement signal, you can measure the signal about transponder quickly.
-
SCAN: In the S2 model, it is blind scan, in the T and C model, it is auto search.
-
MENU: Enter the main menu.
-
Function: Made of 4 keys, F1 - F4.
-
EXIT: Exit from the present menu and back to the previous menu.
-
Arrow key and OK: Press the Arrow key to select the right item then press OK key to confirm.
-NUMERIC KEY (0~9):Enter a TV/radio channel number or menu option number.
-HDMI Port: Use HDMI line connect to TV.
-USB Port: One USB Host Port.
-ON/OFF: Switch the battery on/off.
-DC 12V:Connect to the power adaptor.
-Tuner: Connect to the satellite antenna cable signal or the Terrestrial or Cable signal.
-LAN: Connect to the internet using an Ethernet cable.
-AV/DC OUT:Use AV line connect to TV or connect to other equipment as a television.
III. Detailed Operation Guide
3.1 Powering On
Power on by pressing the POWER button on the panel.
Note: In this menu, you can press F1/F2 button to set brightness and press F3/F4 button to set contrast.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
6
3.2 Satellite
Main Menu-> Satellite
Press OK button to enter the satellite menu.
3.2.1 TP Search
Main Menu-> Satellite->TP Search
Highlight the TP Search and press the OK button to enter Select Satellite. In this menu, you can Select, Add, Delete,
Rename, and Move to satellite.
Select satellite and press the ok button to enter TP Search. This menu
allows you to configure the antenna setting parameters. You can select
satellite, transponder, LNB TYPE,LNB
Power,22KHz,DiSEqC1.0,DiSEqC1.1.
-Delete: If you highlight the Satellite, press F1 button to delete
satellite. If you highlight the Transponder, press F1 button to
delete transponder.
-Start Search: After configure the antenna setting, press the F2
button to TP search.
-Constellate: Press the F3 button to display constellation.
-Explorer:Press the F4 button to explorer the signal information.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
7
-
Satellite: Press the ◄/► to select satellite or press the ok button to enter
satellite list, then select satellite. When you highlight the satellite and press
ok button, you also can execute Delete, Add, and Move to and Rename
satellite.
Transponder: Press the ◄/► to select transponder or press the ok button to
enter transponder list, then select transponder. When you highlight the
transponder and press ok button, you also can execute Delete, Add, Delete,
and Edit transponder and Edit PID.
Note:If you change the satellite, the transponder will be changed
automatically.
3.2.2 Satellite IDE.
Main Menu-> Satellite->Satellite IDE.
If you don’t know the signal information of some usual sat, in this menu, please wait a moment, it will find the satellite
identify.
3.2.3 Packet Control
Main Menu-> Satellite -> Packet Control
In this menu, the TP will be displayed round. And you can know the strength and quality of each transponder.
Note: a) The satellite showed in this menu is what you select in TP Search menu.
b) The transponders are found by auto scan.
c) When you are saving the TP, please don’t exit this menu. Otherwise, it will be stopped.
-Left/Right: Press left/right button to select DiSEqC Port and LNB
Type
-Refresh: Press F1 button to lock the first TP again.
-Save:Press F2 button to star for saving, and press it again to stop.
-1 Hour: Press F3 button to save it during one hour.
-1 Day:Press F3 button to save it during one day.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
8
3.2.4 DiSEqC Search
Main Menu-> Satellite -> DiSEqC Search
If you connect to the DiSEqC 1.0 or DiSEqC 1.1, it will search the satellite which it is connected, then you can press
F1 button to the port which you searched .You also can press the F2 button to change DiSEqC type, press F4 button
to change LNB Type,
3.2.5 Motor
Main Menu-> Satellite -> Motor
Highlight the Motor and press ok button to enter the motor search. In this menu, you also can Delete, Add, and Move to
and Rename satellite and Delete, Add, Delete, and Edit transponder and Edit PID.
-West/East: Press F1 button to turn Motor to west and press F2
button to turn Motor to east.
-Start Search: After configure the antenna setting, press the F3
button to TP search.
-Setup: If you set the motor mode to USALS, you need press F4
button to set the longitude and latitude.
-Motor mode: Highlight the Motor and press the ◄/► button to
select DiSEqC1.2 or USALS.
Note: After enter setup menu, you should turn your machine until it is show the compass.

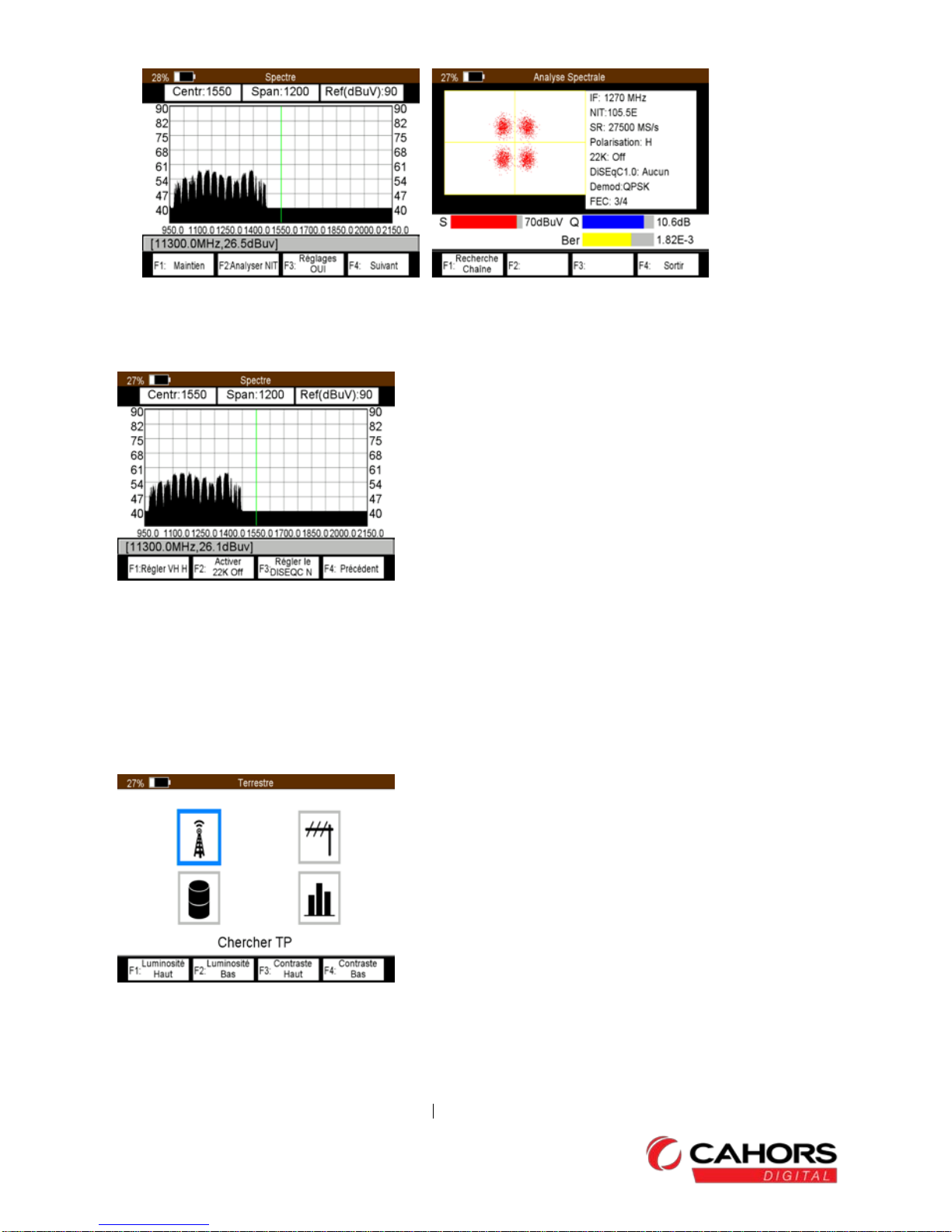

3.2.6 Spectrum
Main Menu-> Satellite -> Spectrum
In this menu, you can know the strength of all transponders.
Press the F1 button to keep the spectrum, and press the F2 button to analyze spectrum, and press the F3 button to mark
spectrum, and press F4 button to next page.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
9
In the next page, you can press the F1 button to change Polarization control Hor / Ver, press F2 button to switch 22KHz
signal on or off, and Press the F3 button to switch DiSEqC, and press F4 button to previous page.
3.3 Terrestrial
Main Menu-> Terrestrial
Press OK button to enter the Terrestrial menu.
Note: In this menu, you can press F1/F2 button to set brightness and press F3/F4 button to set contrast.

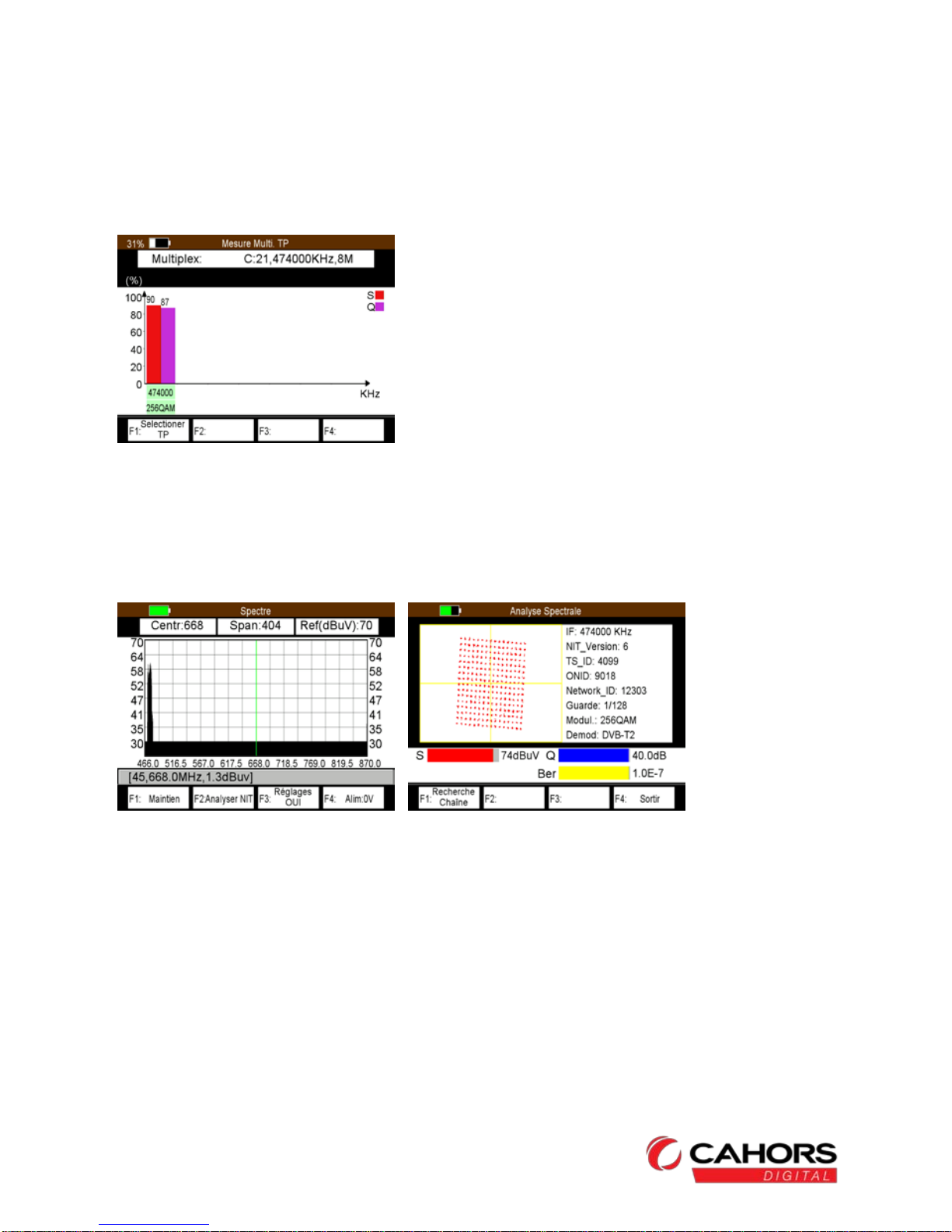

3.3.1 TP Search
Main Menu-> Terrestrial ->TP Search
In this menu, you can Delete, Add, Search Channels.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
10
-TP: Highlight the TP, press the ◄/► button to switch TP or press the ok button to enter TP list, then select TP. In
the TP list, you can press the ◄/► button to switch TP one by one, and press ▲/▼button to Page up/down TP list.
You also can enter channel number to select TP.
-Band: Press the ◄/► button to change band to 6M/7M/8M.
-Search Channel: Press the ◄/► button to change search type,
you can select manual search, auto search.
-Delete: Highlight the TP and select the TP, then press F1
button to delete TP
-Add: Press F2 button to add TP.
-Manual Search: Press F1 button to search channels from the selected TP. You will be asked to confirm whether
only search FTA channels or not, if you select “Yes”, you will only search FTA channels. You also will be asked to
confirm whether network search or not, if you select “Yes”, it will go to search automatically and save the found
channels when the search is completed.
-Auto Search: Press F4 button to search channels of all TP. You will be asked to confirm whether network
search or not, if you select “Yes”, it will go to search automatically and save the found channels when the search is
completed.
3.3.2 TP IDE.
Main Menu-> Terrestrial ->TP IDE.
In this menu, you can know the exact information about the
transponder which you selected. You also can execute Delete and
Add transponder, Manual Search and Auto Search.
-MER:Modulation error rate.
-SNR: It will show the carrier to noise ratio of the transponder
which you selected.
-Pre BER: Forward error correction.
-Post BER: Afterward error correction.
-Modulate: Modulation efficiency.
-FFT Mode: Fast Fourier Transform

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
11
3.3.3 Packet Control
Main Menu-> Terrestrial ->Packet Control
In this menu, you can know the strength and quality of each transponder. And the transponders are found by auto scan.
3.3.4 Spectrum
Main Menu-> Terrestrial ->Spectrum
In this menu, you can know the strength of all transponders.
-Span: Modulation efficiency.
-◄/►:Press F1/F2 button to change the transponder
-▲/▼: Change the range of the Y-axis.
-Span: Press the F3 button to set transponder of span.
-Save Spectrum: Insert USB, press F4 button to save the picture of spectrum.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
12
3.4 Cable
Main Menu-> Cable
Press OK button to enter the Cable menu.
Note: In this menu, you can press F1/F2 button to set brightness and
press F3/F4 button to set contrast.
3.4.1 TP Search
Main Menu-> Cable ->TP Search
In this menu, you can Delete, Add, Search Channels.
-TP: Highlight the TP, press the ◄/► button to switch TP or
press the ok button to enter TP list, then select TP. In the TP list,
you can press the ◄/► button to switch TP one by one, and
press ▲/▼button to Page up/down TP list. You also can enter
channel number to select TP.
-Search Channel: Press the ◄/► button to change search type,
you can select manual search, network search, auto search, blind search.
-Delete:Highlight the TP and select the TP, then press F1 button to delete TP
-Add:Press F2 button to add TP.
-Manual Search: Press F1 button to search channels from the selected TP.
-Auto Search: Press F4 button to search channels of all TP.
-Network Search: It will go to search automatically from the selected TP.
-Blind Search: A slow scanning, but may get more transponders.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
13
3.4.2 TP IDE.
Main Menu-> Cable ->TP IDE.
In this menu, you can know the exact information about the transponder which you selected. You also can Delete and
Add transponder, Manual Search and Network Search.
-MER:Modulation error rate.
-Pre BER: Forward error correction.
-Post BER: Afterward error correction.
-Power: It will show you the strength of the transponder what you
selected.
-Modulate: Modulation efficiency.
3.4.3 Packet Control
Main Menu-> Cable ->Packet Control
In this menu, you can know the strength and quality of each transponder.
3.4.4 Spectrum
Main Menu-> Cable ->Spectrum
In this menu, you can know the strength of all transponders.
-Span: Modulation efficiency.
-◄/►:Press F1/F2 button to change the transponder
-▲/▼: Change the range of the Y-axis.
-Span: Press the F3 button to set transponder of span.
-Save Spectrum: Insert USB, press F4 button to save the
picture of spectrum.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
14
3.5 Watch TV
Main Menu-> Watch TV
In this menu, you can watch TV and edit channels.
-Select satellite: Press F1 button to select Satellite or DVBT or
DVBC.
-Channel: Press F2 button to enter Channel menu. In this
menu, you can Press F1 button to selectDVB-S2, DVB-T2 or
DVB-C, and press F2 button to switch between TV and RADIO,
and press F3 button to switch channel type (FTA/CAS/HD), and
press F4 button to enter Channel Manger menu. In this menu,
you can press F1 button to delete channels, press F2 button to move channels, and press F4 button or press EIXT
button to exit channel manage menu.
-Full Screen: Press F3 button to watch TV by full screen.
-Program Analyze: Press F4 button to know more information
about program.
3.6 Settings
Main Menu->Settings
In this menu, you can set System settings, OSD settings, Screen settings, and times. You also can do factory default, and
view system information about instrument.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
15
3.6.1 System Settings
Main Menu->Settings->System Settings
In this menu, you can set all system settings by press ◄/► button.
-Menu Language: Set the menu language.
-Audio 1: Set the preferred audio language.
-Audio 2: Set the sub-prime audio language.
-Digital Audio: Select PCM / RAW as default output.
-DVBT Power: If you set it on, it will provide voltage for T tuner.
-Signal Audio: If you set “ON”, in the TP Search menu when you
highlight a transponder with signal, it will sound automatically. If
you set “OFF”, in the TP Search menu when you highlight a transponder with signal, it will not sound.
-Power Unit: Change the power unit..
-OSD Type: Change the OSD Type.
3.6.2 OSD Setup
Main Menu->Settings->OSD Setup
-Display Mode: Set the HD format between 1080p, 1080i, 720p, 480i, 480p.
-TV Type: Set the TV Type on PAL/NTSC/Auto state.
-Screen Mode: Set the display format according to the screen ratio. Select TV screen mode either 4:3 or 16:9
according to the TV type, or press the MODE button of RCU directly.
3.6.3 Times
Main Menu->Settings->Times
a) Time Settings :
In this menu, you will set the time mode, time zone and summer time
b) Sleep Timer
You can set the time to make receiver sleep automatically.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
16
3.6.4 Factory Default
Main Menu->Factory Default
In this menu, you can restore the product to the factory default.
-ALL: All data and settings will be deleted.
-Channel List Only: All channels data will be deleted.
-Radio Channel Only: All radio channels data will be deleted.
-Scramble Channel Only: All scramble channels data will be deleted.
3.6.5 Color Settings
Main Menu-> Settings-> Color Settings
You can set the Brightness/Contrast/Saturation in this menu.
3.6.6 Screen Settings
Main Menu-> Settings-> Screen Settings
In this menu, you can set up Sharpness/Brightness /Contrast/Saturation/LCD Backlight/LED Backlight.
3.6.7 System info
Main Menu-> Settings-> System Info
In this menu, you can get the information about the STB, such as Model ID, Hardware & Software version, Load version
and Date. When you need service from the dealer you need to submit this information in order to get the correct and fast
after sales service.
3.7 Expansion
Main Menu-> Expansion

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
17
3.7.1 USB
Main Menu-> Expansion -> USB
In this menu, you can press the ◄/► button to select the category that you like to play. The media files are partitioned
into all, Stream, Movie, Music, Picture, Software and other.
a) Upload
-Press F1 button to upload software, data, channel list. You also can upload software to FTP.
b) PVR Setting
-Press F2 button to set Record partition/type/time, Time shift Buffer size and Time shift need save, play start POS.
c) Tool
-Press F3 button to edit USB. You can Rename, Delete, Move to, Copy to files, create new folder, sort and Format disk.
d) Play Mode/Play list
-If you highlight All/Software/Other, the F4 will display play mode, else the F4 will play list.
e) Movie
-It supports*.3GP,*.AVI,*.DAT,*.DIVX,*.FLV,*.MKV,*.MOV,*.MP4,*.MPG,*.TS,*.VOB format movie files.
f) Music
-It supports *.mp3,*. Flac,*.mp2,*.wav,*.ogg format music files.
g) Picture
-It supports *.bmp, *.jpg,*.gif format photos.
h) Software
-Insert USB to your PC, copy the update file to the USB.
-Insert the USB to STB when it is starting up.
-In main Menu>Expansion>USB, find and select the upgrade file, then press ok button, it will upgrade the file.
-After upgrade, the STB will restart automatically. And after restart you can search channel and test it.
Note: During the process of upgrading the S/W, please don’t power off.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
18
3.7.2 IP Setting
Main Menu-> Expansion -> IP Setting
If you connect the internet by using Ethernet cable it will display the connected IP address.
3.7.3 FTP Download
Main Menu-> Expansion -> FTP Download
If the network is connected, enter correct Server, IP, User Name,
Password, and highlight Connect Net, press OK button,
if the connection is successful, you can download software, music,
photo and other media files from FTP menu. You also can upload
software, music, photo and other media files to FTP.
3.7.4 PING
Main Menu-> Expansion -> PING
In this menu, you can through PING function to test the network.
3.8 Basic Operation
3.8.1 PVR
When you watch a program, you can press the F4 button and select PVR item to begin recording.
-Mute: Mute audio.
-Info: You can press F3 button to view information about
recording.
-Stop: You can press F4 button to stop recording.
Note: a) Before recording, you should insert USB to STB.
b) You can watch the other program from the same TP while
recording.

CAHORS Digital – CS 60022
46003 Cahors Cedex 9 – FRANCE
www.groupe-cahors.com
USER MANUAL
19
3.8.2 TP PVR
When you watch a program, you can press the F4 button and select TP PVR item to begin TP PVR. It allows record all
program under the same TP. At the same time, you can only watch the program from the same TP.
3.8.3 Auto Timeshift
When you watch a program, you can press the F4 button and select Auto Timeshift item to begin Timeshift.
Auto Timeshift allows you to pause a live broadcast and return to it later and continue where you left off.
While it is in timeshift
mode, press the F1
button to display the
playing menu, press
F2 button to stop
Timeshift.
In this menu you can press F1 button to fast backward the program, press F2 button to play or pause the program,
press F3 button to display recording information, and press F4 button to stop playing recording.
3.8.4 Find
Press the FIND button to display the signal finding menu, jump to Satellite/Terrestrial/Cable identify menu, rest
operation same as above. If you select Satellite, you can configure the antenna setting parameters, and press F1 button
to lock signal. Then you can view the information about this Sat-IF, you also can view constellate and spectrum.
If you select Terrestrial or Cable, you can enter the TP, and press F1
button to lock signal. Then you can view the information about this TP, you also can view constellate.
