Calflame FRP-906-3 User manual

© 2022 LMS
LTR50001006, Rev. Q
10/10/22

Copyright 2021 LMS. All rights reserved.
Duplication without written consent is
strictly prohibited.
Cal Flame ® is a registered trademark.
Due to continuous improvement programs,
are subject to change without prior notice.
Save these instructions!
Read this before installing
or operating your
WARNING! Proposition 65 Warning:
Handling the brass material on this
product exposes you to lead, a chemi-
cal known to the State of California to
cause cancer, birth defects or other
reproductive harm. (Wash hands after
handling this product.)
This product and the fuels used to op-
erate this product (propane or natural
gas), and the products of combus-
tion of such fuels, can expose you to
chemicals including Benzene, which
is known to the state of California to
cause cancer and birth defects or re-
productive harm.
For more information go to www.
P65Warnings.ca.gov.
Installation / Assembly.......................................................5
Placement and Location ..................................................................6
Leak Testing Procedure ...................................................................7
Liquid Propane ................................................................................8

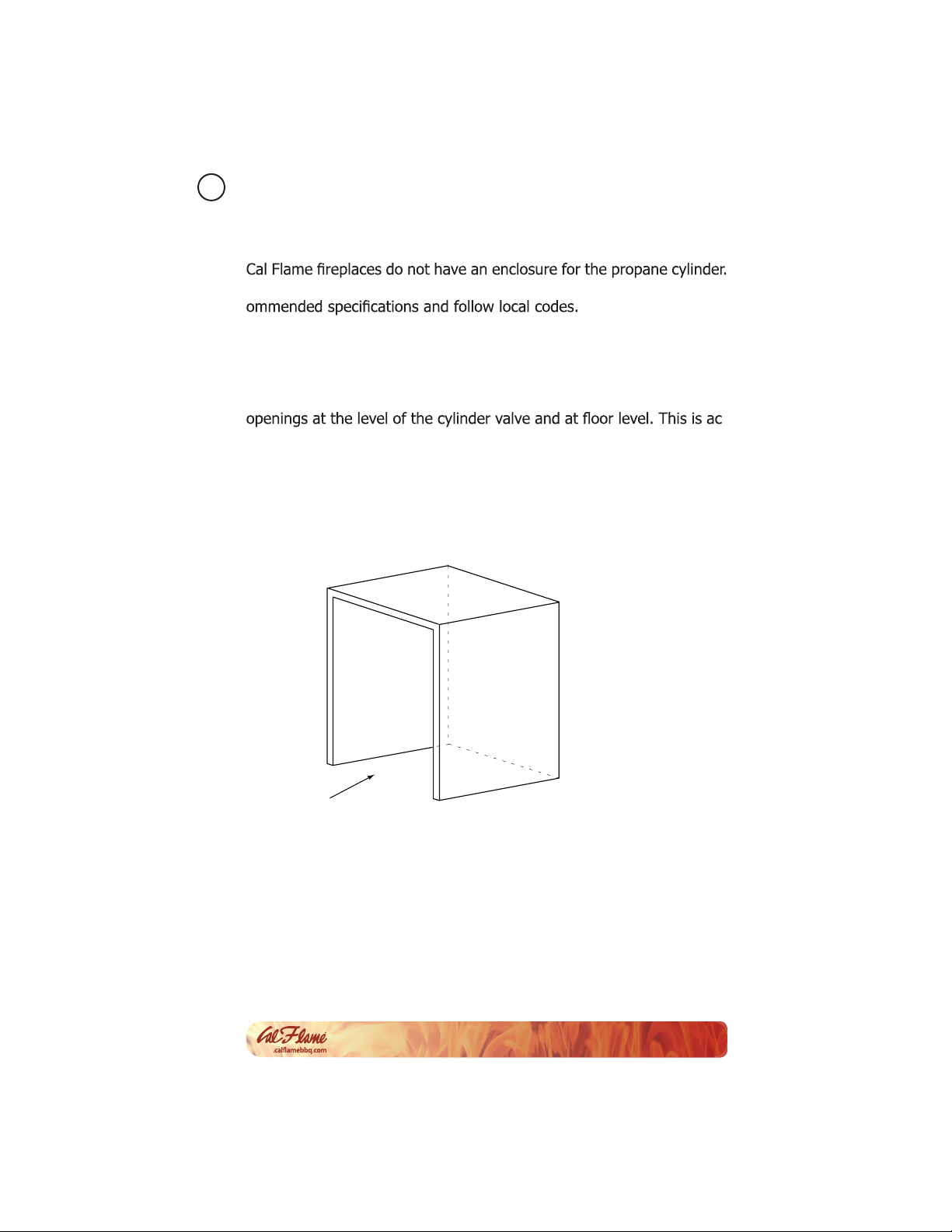

Propane Cyclinder Enclosure.........................................................10
Natural Gas ...................................................................................12

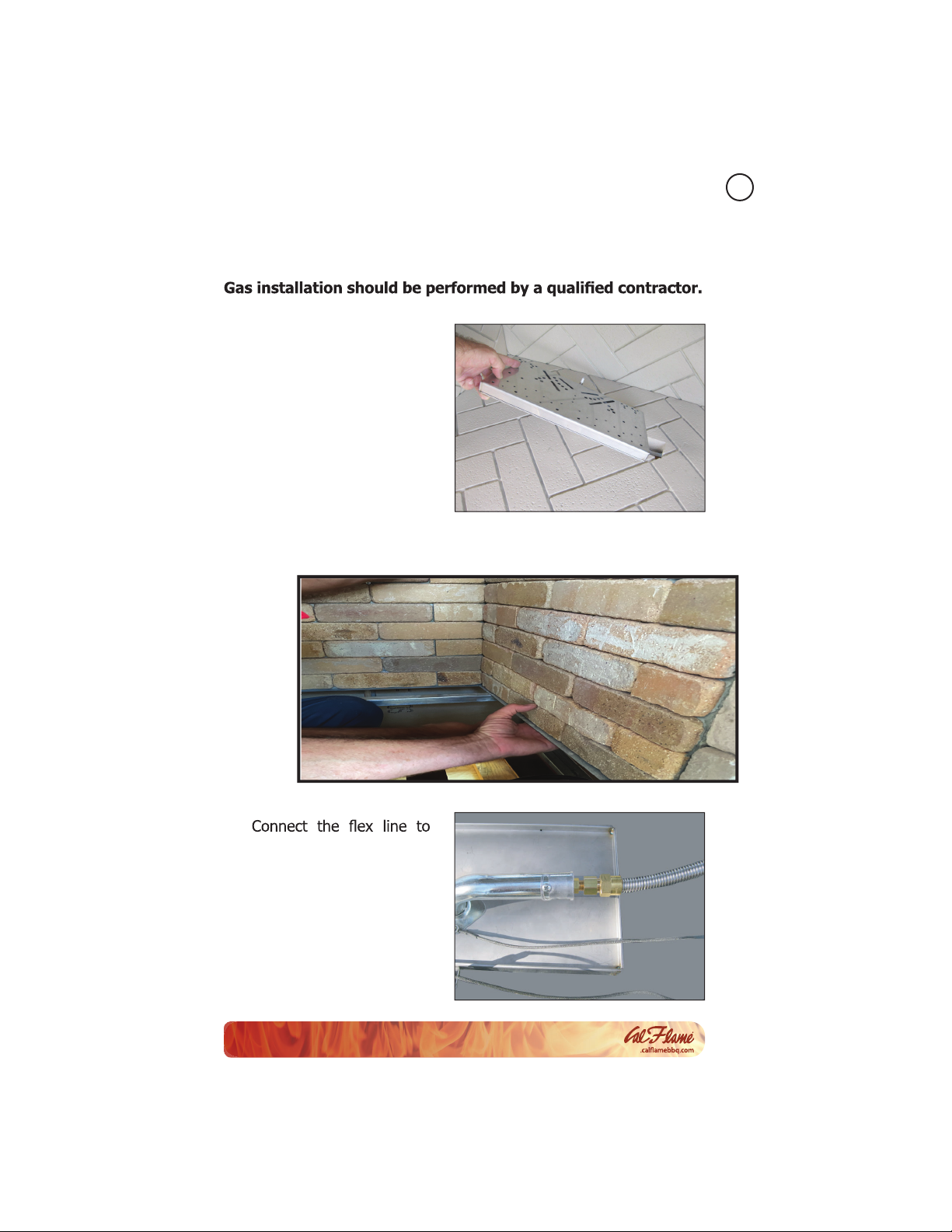

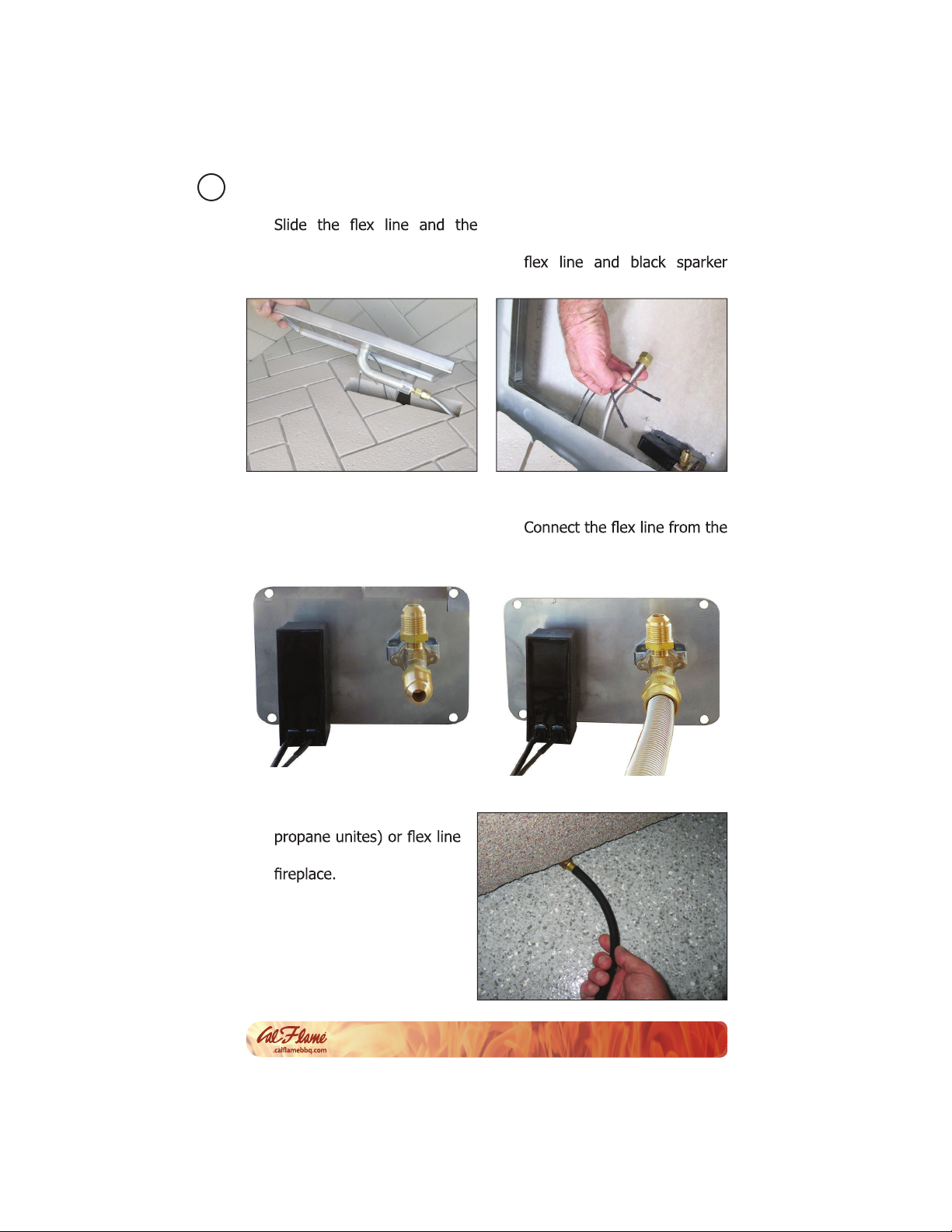

Fireplace Burner Installation..........................................................13
Locating Refracter Wall Screws ................................................ 16-18
Fireplace Log Set Placement .........................................................19
High Elevation Conversion .............................................................20
Natural Gas Conversion .................................................................20
Operation ........................................................................22
Cleaning and Maintenance ..............................................25
Replacement Parts ..........................................................26
Specifications .................................................................27
Troubleshooting Fireplace and Fire Pit Igniter.................................27
Limited Warranty .............................................................30
Table of Contents
LTR50001006, Rev. Q
10/10/22

Safety Instructions
1
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Safety Instructions

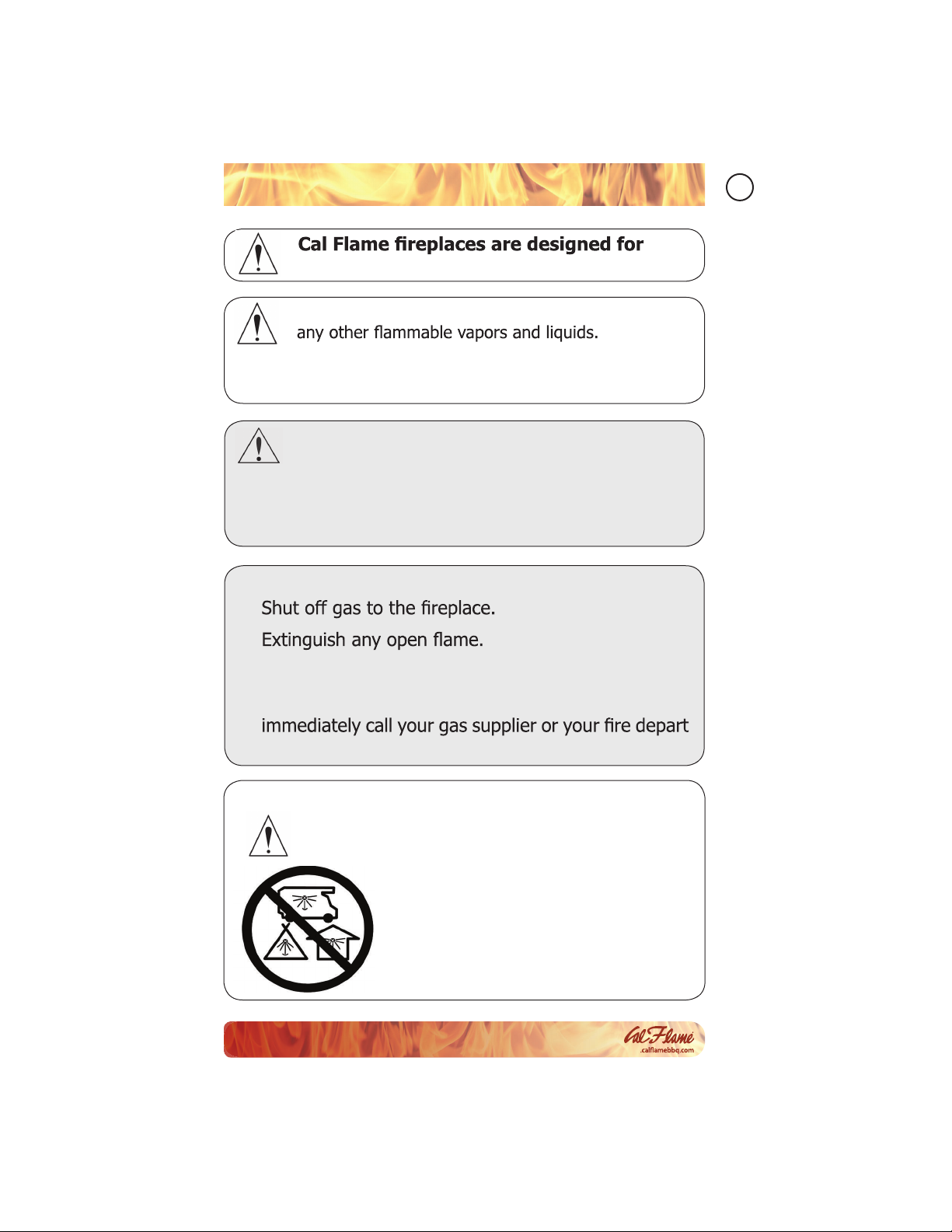

What To Do If You Smell Gas
•
•
• Do not try to light the appliance.
• If odor continues, keep away from the appliance and
-
ment.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause in-
jury or property damage. Read the installation,
operating and maintenance instructions thoroughly be-
fore installing or servicing this equipment.
outdoor use only.
Do not store combustible materials, gasoline and
A propane gas cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
Carbon Monoxide Hazard
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an en-
closed space such as a camper, tent,
car, or home.

2
Safety Instructions
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Operation
• Do not use charcoal or other solid fuel in a gas burning
• -
•
• In the event that a burner goes out, turn burner knobs to the full
until the gas has had time to dissipate.
• Keep all electrical supply cords away from the heated areas of the
• -
tently windy area a windbreak will be required. Always adhere to
• When handling propane gas line and connectors, do not allow
them to come in contact with any metal surfaces. Do not drop
propane connectors.
•
operate if regulator has been removed. Fire or explosion can occur.
•
•
-
ignite and result in personal injury.
•
appliance, or placed on or near the appliance.
• -
mediate surroundings, as these areas become extremely hot and
could cause burns.
• Do not heat any unopened glass or metal container of food in the
-
place.
•

Safety Instructions
3
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Maintenance and Repair
• Spiders and other insects can nest in the burners and block the gas
-
and clean the burners periodically and follow the guidelines in the
maintenance section of this manual.
• The appliance should be inspected before use and at least annually
• More frequent cleaning may be required as necessary. It is impera-
tive the control compartment, burner and circulation air passage-
ways of the appliance be kept clean and free.
• Any guard or other protective device removed for servicing the ap-
pliance must be replaced prior to operating the appliance.
• If it is evident there is excessive abrasion or wear of any of the
components, if the fuel supply hose is cut or cracked, it must be
replaced prior to the appliance being put into operation.
• Inspect the fuel supply connection for signs of leakage (including
the hose for propane models) before each use of the appliance.
•
-
form all service. Any repairs made by a non-LMS approved dealer
technician will void your warranty.

4
Safety Instructions
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Storage
•
• Do not store the propane cylinder in the vicinity of this or any other
appliance when it is not being used.
• This appliance can be store indoors only if it has been discon-
nected from its fuel supply.
• Store propane cylinders outdoors in a well-ventilated area out
of reach of children. Disconnected cylinders must have threaded
valve plugs tightly installed and must not be stored in a building,
garage, or any other enclosed area.
•
elements when not in use. Ensure the appliance has ample time
to cool off after use and prior to installing storage cover. Damage
caused to storage cover due to heat or burns are not covered by
warranty.
Precautions Regarding Children
•
being used. Close supervision of children is necessary when any
appliance is used near children.
• Do not store items of interest to children around or below the
•

Installation / Assembly
5
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Set-Up
You are responsible for ensuring that a natural gas line (if required)
is installed and safe for use. We recommend that a licensed contrac-
in the absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1 / NFPA54, Natural Gas and Propane Installa-
tion Code, CSA B149.1, or Propane Storage and Handling Code,
B149.2), as applicable.
-
Installation / Assembly
Installation and service must be performed by a quali-
propane gas provider.
Most cities and counties require permits for exterior construction and
electrical circuits. In addition, some communities have codes requiring
residential barriers such as fencing and/or self-closing gates on prop-
erty to prevent unsupervised access to the property by children under
the age of 5. Your dealer can provide information on which permits
may be required and how to obtain them prior to the delivery of your
equipment.
WARNING! Proposition 65 Warning: Handling the brass
material on this product exposes you to lead, a chemical
known to the State of California to cause cancer, birth
defects or other reproductive harm. (Wash hands after
handling this product.)
This product and the fuels used to operate this product
(propane or natural gas), and the products of combus-
tion of such fuels, can expose you to chemicals includ-
ing Benzene, which is known to the state of California
to cause cancer and birth defects or reproductive harm.
For more information go to www.P65Warnings.ca.gov.

6
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Placement and Location
outdoor use only.
• Never locate this appliance in a building, garage, or any other en-
closed room or under a sealed overhead structure, or in any type
of enclosed area such as a garage, shed, or breezeway. Keep clear
of trees and shrubs.
•
opened into your home.
• -
bustible material such as a patio cover.
•
gasoline.
•
gas may build up in case of leak and cause serious damage.
•
cross ventilation openings are blocked. Fresh air must be able to
pass though installed vents to safeguard against residual gas ac-
explosion.
• Do not locate appliance where it can get excessively wet. Do not
use this appliance if any part has been underwater. Immediately
any part of the control system and any gas control which has been
underwater.
•-
tion such as a patio deck.
• -
pane or NG), preferably with the shortest gas line run possible.
• Maintain the following clearances to combustible materials on all
Sides and back 48 inches (122 cm) (measured from side)
Top 120 inches (305 cm) (measured from hearth)

Installation / Assembly
7
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Leak Testing Procedure
Perform a leak test at least once a year whether the gas supply cylinder
has been disconnected or not. In addition, whenever the gas cylinder
is connected to the regulator or whenever any part of the gas system
is disconnected or replaced, perform a leak test.
outdoors in a well-ventilated area. Never smoke or permit sources of
a lighted match to test for leaks. Use a solution of soapy water.
1. Prepare a leak testing solution of soapy water by mixing in a spray
bottle one part liquid soap to one part water.
2. Make sure all the control knobs are in the OFF position.
3. Turn on the gas.
On natural gas systems, turn the main feed valve to the burner.
On propane systems, turn the cylinder valve knob counter clock-
wise one turn to open.
4. Apply the leak-testing solution by spraying it on joints of the gas
delivery system. Blowing bubbles in the soap solution indicates
that a leak is present.
5. Stop a leak by tightening the loose joint or by replacing the faulty
part with a replacement part recommended by the manufacturer.
Do not attempt to repair the cylinder valve if it is damaged. The
cylinder must be replaced.
6. Turn the control knob back to the full OFF position.
If you are unable to stop a leak:
1. Turn the control knob back to the full OFF position.
2.
hose and manifold by turning the control valve one quarter turn
counter-clockwise.
3.
4. Call an authorized gas appliance service technician or an liquid
propane gas dealer.
Do not use the appliance until the leak is corrected.

8
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Liquid Propane

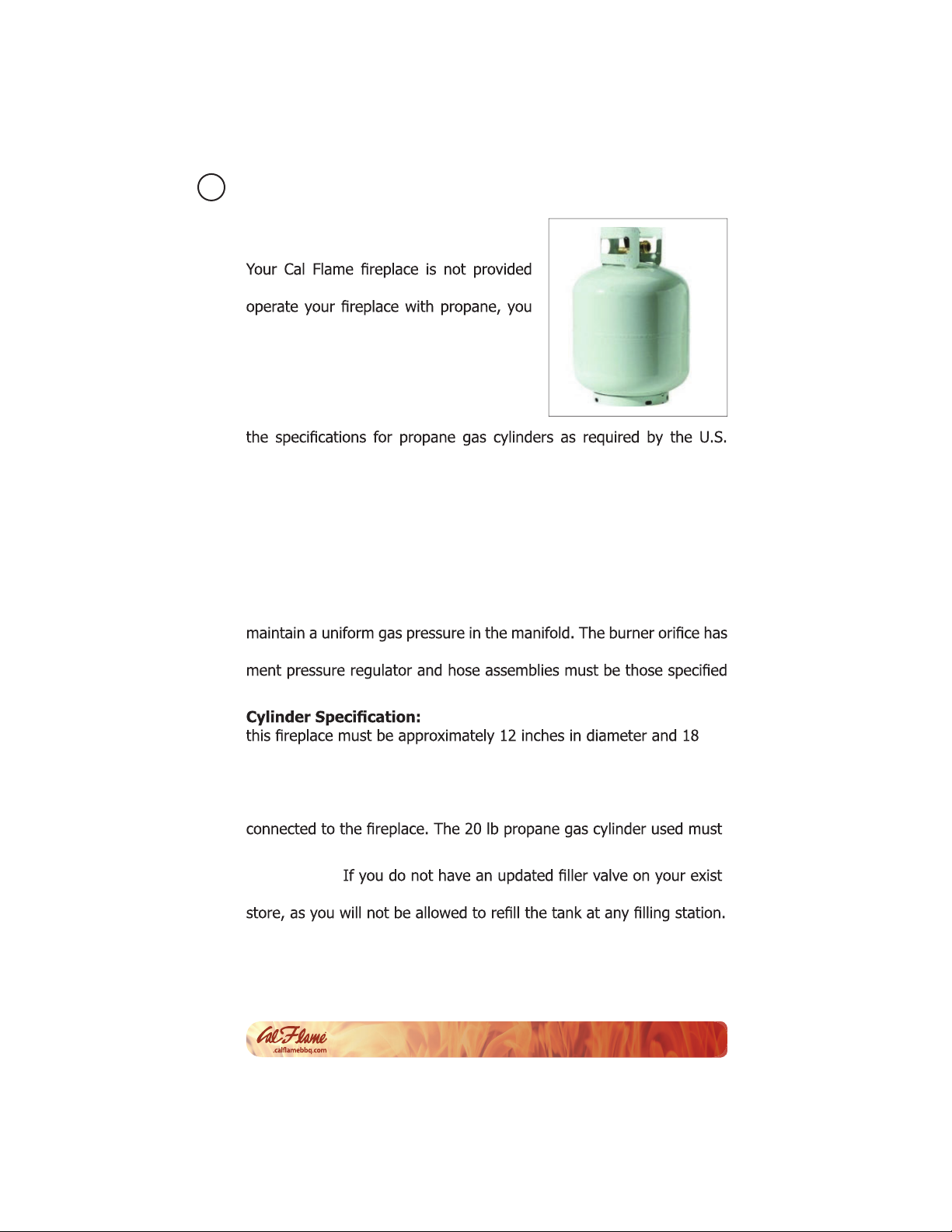

with a propane cylinder. If you choose to
must supply your own cylinder.
Requirements
The 20 lb propane gas supply cylinder
used with propane models must be con-
structed and marked in accordance with
Department of Transportation (DOT) or the CAN/CSA B339, Cylinders,
Spheres and Tubes for the Transportation of Dangerous Goods.
Manifold Pressure: For plumbed-in liquid propane installation, use
a regulator.
Supply Pressure: Maximum line pressure for plumbed-in propane is
14” W.C psi (3.5 kPa). Minimum line pressure for propane is 11” W.C.
Pressure Regulator: The unit must be used with the supplied gas
pressure regulator and hose assembly. The regulator will control and
been sized for the gas pressure delivered by the regulator. Replace-
in this manual.
Any propane gas supply cylinder used with
inches high. The maximum fuel capacity is 20 lbs. of propane, or 5
gallons. Full cylinder weight should be approximately 38 lbs. (43.7
lbs. nominal water capacity.) Always use the cylinder dust cap on the
cylinder valve outlet during transport and when the cylinder is not
include a collar to protect the cylinder valve.
Filler Valve: -
ing propane tank, you will need to purchase one at your local hardware
Transporting Gas Cylinder: Only one cylinder should be transported
at a time. Transport cylinder in an upright and secure manner with
control valve turned off and the dust cap in place.

Installation / Assembly
9
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Connection
Check the rating plate to make sure the gas supply you are hooking up
Inspect the hose shipped with the unit for damage. Never attempt to
use damaged or plugged equipment. See your local liquid propane gas
dealer for repairs. After inspecting the propane hose shipped with the
using two wrenches.

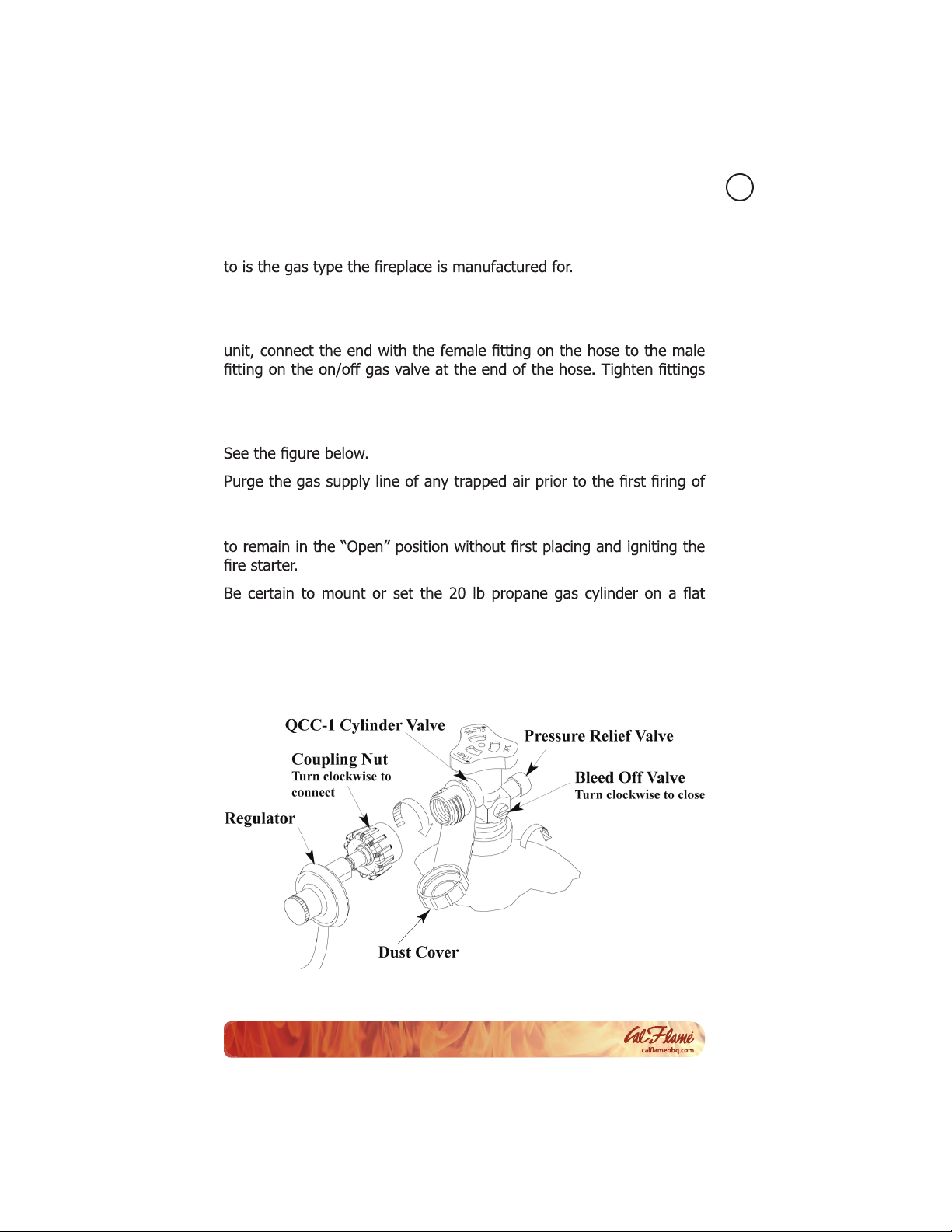

When connecting the regulator assembly to the tank valve, hand tight-
en the black QCC-1 nut clockwise. DO NOT use a wrench to tighten.
the unit.
During the initial purging and subsequent lightings, NEVER allow gas
surface and restrain it to prevent it from tipping.
Locate the hose out of the pathways where people may trip over it or in
areas where the hose may be subjected to accidental damage.

10
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Propane Cylinder Enclosure
If you build an enclosure for a propane gas cylinder, follow these rec-
Ensure cylinder valves are always readily accessible. A door on the en-
closure to gain access to the cylinder valve is acceptable, provided it is
non-locking and can be opened without the use of tools.
Enclosures for propane gas supply cylinders need to be ventilated by
-
complished by one of the following ways:
One side open
1) One side of the enclosure is completely open.
This method has no special ventilation requirements.

Installation / Assembly
11
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
2) All sides are completely enclosed.
This method requires at least two ventilation openings at cylinder valve
level in the side wall, equally sized, spaced at 180 degrees (3.14 rad),
and unobstructed.
Make sure each opening has a
total free area of not less then
½ square inch per pound (3.2
sq. cm/kg) of stored fuel capac-
ity and not less then a total free
area of 10 square inches (64.5
sq. cm).
Ventilation openings need to
a total free area of ½ inch per
pound (3.2 sq. cm/k) of stored
fuel capacity and not less than
a total free area of 10 square
inches if the ventilation open-
wall, make sure there are at
least two openings. The bottom
sized, spaced at 180 degrees (3014 rad) and unobstructed.
Make sure every opening has minimum dimensions to permit the en-
trance of a 1/8 inch (3.2mm) diameter rod.
There shall be a minimum clearance of 2 inches (40.8mm) between the
-
sure and the ground.
Screen vents

12
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Natural Gas
-
niently positioned shut off valve with easy access. The shut off valve
MUST NOT be inside the appliance!
Requirements
Always check the rating plate to make sure the gas supply you are
The installation of this appliance must conform with local codes or,
in the absence of local codes, to the national fuel gas code, ANSI
Z223.1a-1998. Natural gas connection must be performed by a li-
censed contractor or local gas company representative.
-
niently positioned shut off valve with easy access.
Installation
Connect the incoming gas supply line to the on/off gas valve of the
appliance. Make certain ALL gas connections are tight, turn the on/
off valve at the unit to the ‘on’ position and use soap and water to
test for leaks. Gas will be released at the burner for this duration. DO
NOT USE AN OPEN FLAME AND REMOVE BATTERY FROM IGNITER
BEFORE PERFORMING THIS TEST. An authorized gas appliance
installer must provide this installation service. Note that the

Installation / Assembly
13
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Fireplace Burner Installation
This procedure describes how to access the gas lines for installation.
2.
1. Remove the burner from
the hearth. It is not con-
nected and will lift out
easily.
3.
the burner.

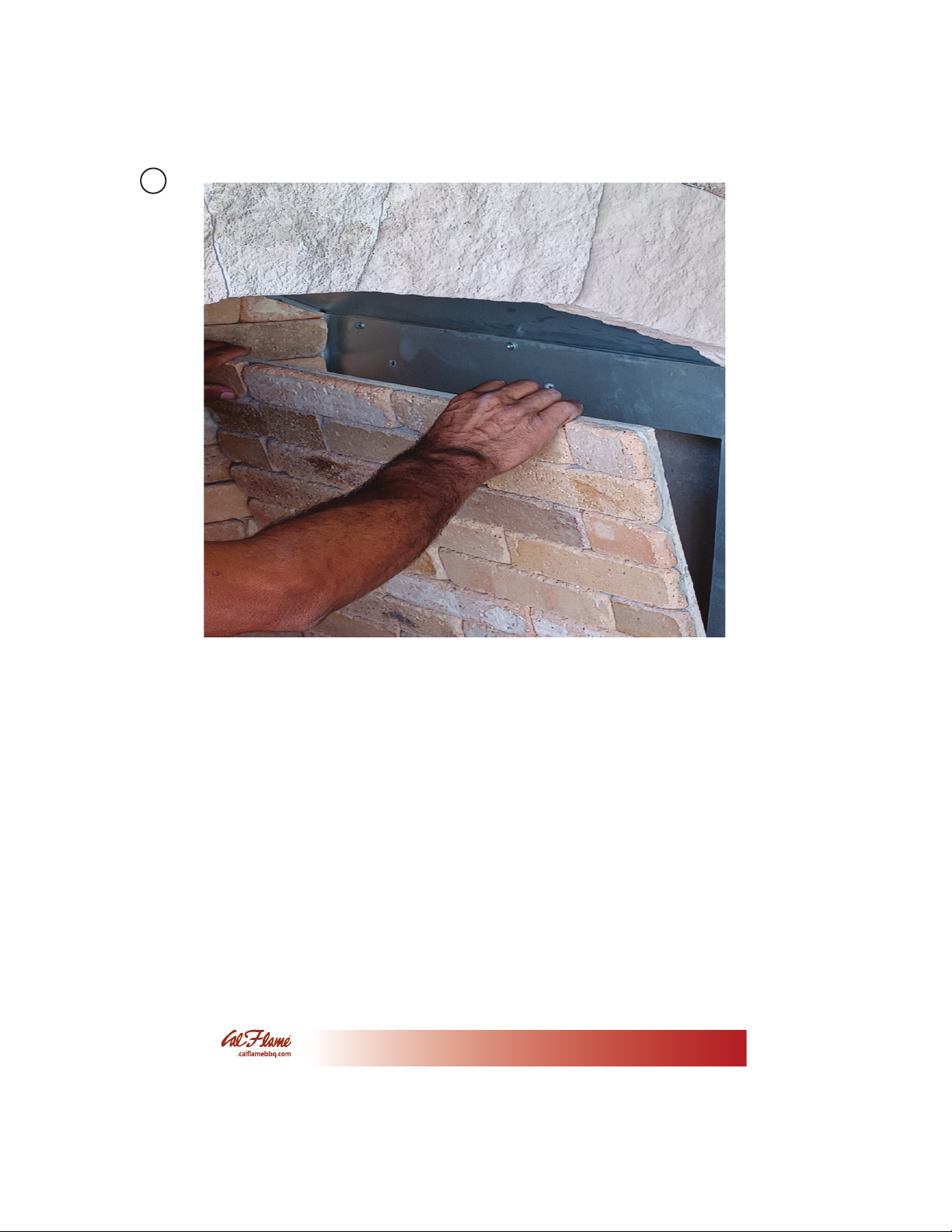

Remove the right side refractory wall from the replace by
removing the 4 screws.
See Page 17.

14
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
4.
black sparker wires into the
gap in the hearth base.
6. Connect the black sparker
wires to the valve as shown
below.
5. Reach through the gap in the
open right side and pull the
wires.
7.
burner to the gas valve as
shown below.
8. Push the black gas line (for
(for NG units) under the
Make sure the burner has been
converted for use with NG be-
fore connecting to a NG source!

Installation / Assembly
15
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Caution! Never place or store the propane tank under
the hearth base!
9. Connect the LP or NG gas
source gas line to the gas
valve as shown below.
10. Replace the right side refrac-
tory wall.
11. Unscrew the push button
switch and insert the battery
in the starter.

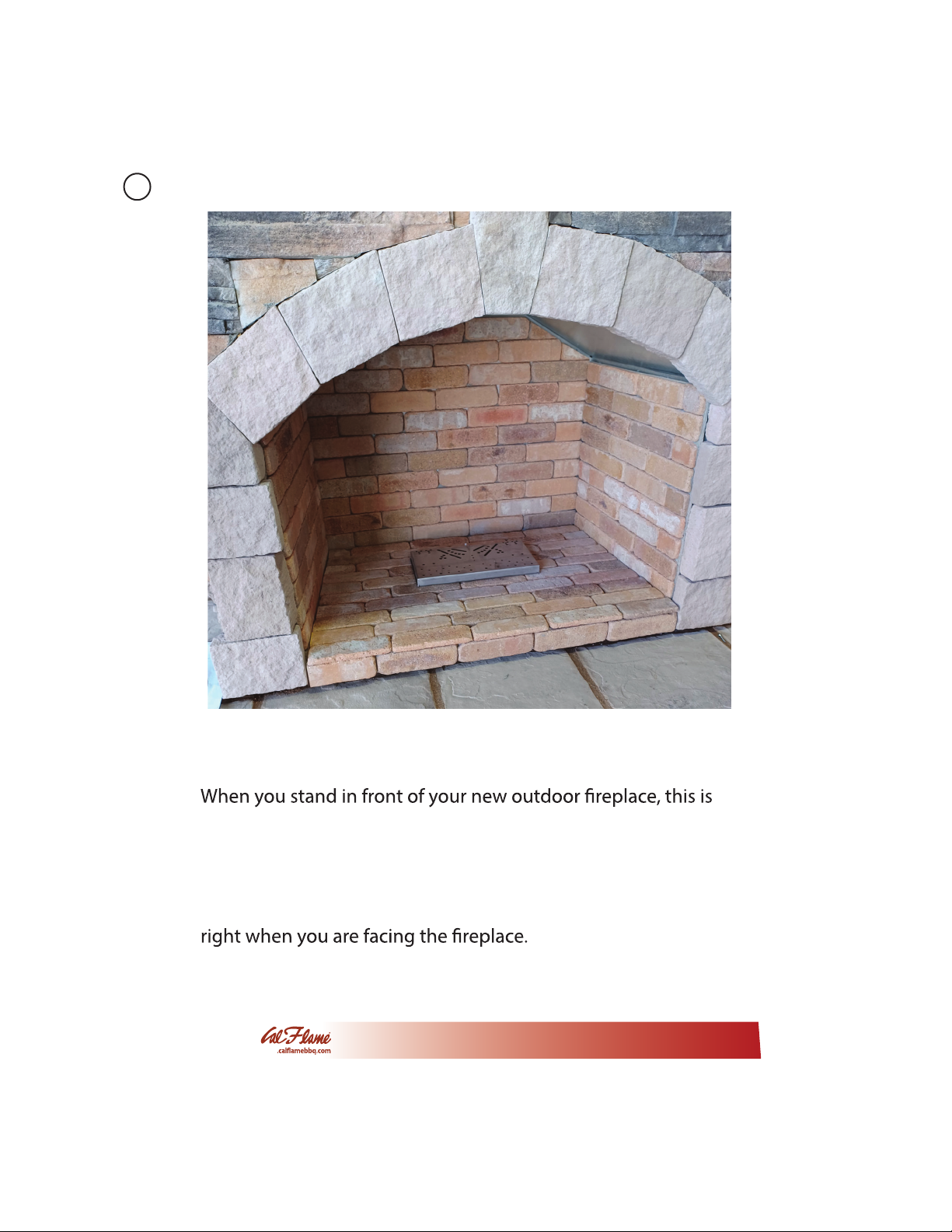

what you will see. While the unit appears solid, both the bottom
and side panels are removable to allow propane tank connection
access.
The removable side panel (side refractory wall )is located to the
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
Locating the screws that secure the refractor wall
16
Installation / Assembly

There are 4-6 Phillips head screws that hold the side panel
up. You will need to remove these screws to access the gas
The picture below shows the location of the screws along
with white plastic bushings provided to make the screws
easier to locate prior to the side refractory wall removal. The
screws are located in the top left/ top right/ bottom left/
bottom right on the panel.
The picture to the left
shows one of the screws
without the plastic bush-
ing.
After you remove the
plastic bushings you can
remove the screws. The
bushings are for shipping
only. Do not put them
set up. Once you have
removed all the screws in
the side wall, you will be
able to tilt the panel
forward allowing you
fuel line connections.
LTR50001006, Rev. P Fireplace Owner’s Manual
LTR50001006, Rev. P
Fireplace Owner’s Manual
LTR50001006, Rev. Q
www
17
Installation / Assembly

Once you successfully remove the screws, you will be
able to carefully tilt the side panel forward.
Please refer to instructions on pages 12 - 15 for gas line
hookup.
Gas installation should be performed by a qualified
contractor.
www
Fireplace Owner’s Manual
LTR50001006, Rev. Q
Installation / Assembly
18
