Callpod ONYX User manual

User Manual (English)

General Safety Information...........................................................................................3
Warning - Volume Levels: Always Protect Your Hearing..........................................4
About Bluetooth®Technology......................................................................................5
Headset Components..................................................................................................6
MicAlignment................................................................................................................7
Charging.....................................................................................................................8
Turning the Headset On and Off................................................................................10
Pairing the Headset & Auto Pairing.............................................................................11
Disconnecting the Headset........................................................................................12
Reconnecting the Headset.........................................................................................13
Operation.....................................................................................................................14
Adjusting The Earwrap.........................................................................................14
Placing/Answering a Call...................................................................................15
Muting The Microphone....................................................................................15
Ending/Rejecting a Call.......................................................................................15
Adjusting The Speaker Volume..........................................................................15
Advanced Features.....................................................................................................16
Walkie-Talkie Two-Way Communications...............................................................17
Table of Contents
Copyright © 2009. Patents & Trademarks Issued & Pending
callpod®1

Copyright © 2009. Patents & Trademarks Issued & Pending
callpod®2
Technical Specications.............................................................................................18
Care and Maintenance..............................................................................................19
Battery Information......................................................................................................20
Callpod®Limited Warranty..........................................................................................21
Exclusions...............................................................................................................21
Who Is Covered?.................................................................................................23
What Will Callpod Do?......................................................................................23
What Other Limitations Are There?.....................................................................25
Export Law Assurances...............................................................................................26
Approved Accessories................................................................................................26
Notice to International Users.......................................................................................27
Copyright Notice..........................................................................................................27
Product Registration....................................................................................................28
Certication...................................................................................................................29
Table of Contents

FOR THE SAFE AND SUCCESSFUL OPERATION AND USE OF THIS PRODUCT, PLEASE
READ AND FOLLOW THE INFORMATION CONTAINED IN THIS USER MANUAL BEFORE
USE.
General Safety Information
callpod®3
Copyright © 2009. Patents & Trademarks Issued & Pending
Do not open the Onyx headset as contents may cause electric shock.
Only use approved Callpod®- branded accessories and components
as well as specied compatible electronic devices to ensure proper
operation.
Please use the Onyx headset responsibly while traveling.

The successive and long-term use of any headset or speakers at high volumes
can potentially affect a user’s hearing capacity. This can result in Noise Induced
Hearing Loss (“NIHL”). NIHL may occur if a headset is used at maximum or high
volumes for more than ve (5) minutes per day and if medium volumes are used
for more than one (1) hour per day. The human ear will typically adapt to a
constant volume level set on a headset speaker. If this volume is changed to
a higher level, it may, over time, result in damage to the ear even though no
discomfort is felt. Exposure to sound at a close range, even at lower levels, could
potentially result in hearing loss. The Onyx headset can reach a maximum volume
of approximately 100 decibels. This volume is controlled by the user through both
the headset volume control as well as via the mobile device that it is paired to
(e.g. cell phone).
Like stereos and other sound emitting products that use speakers, please exercise
personal care to select a comfortable volume. Please do not use this product at
high volume levels.
WARNING - Volume Levels: Always Protect Your Hearing
callpod®4
Copyright © 2009. Patents & Trademarks Issued & Pending

Bluetooth®technology allows devices to communicate without wires over a short range. The Onyx
is compliant with Bluetooth® Specication 2.0, which supports the Headset Prole 1.1 and Hands-
free Prole 1.5.
To learn more about Bluetooth®and the applications of the technology, please visit,
www.bluetooth.com
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
About Bluetooth® Technology
callpod®5
Copyright © 2009. Patents & Trademarks Issued & Pending

Headset Components
a Power & volume control button
b Dual microphones
cMultifunction button
d Red & ice blue LED
eCharging port
Ear bud
gSpeaker
f
g
f
e
a
d
c
b
callpod®6
Copyright © 2009. Patents & Trademarks Issued & Pending

Mic Alignment
callpod®7
Copyright © 2009. Patents & Trademarks Issued & Pending

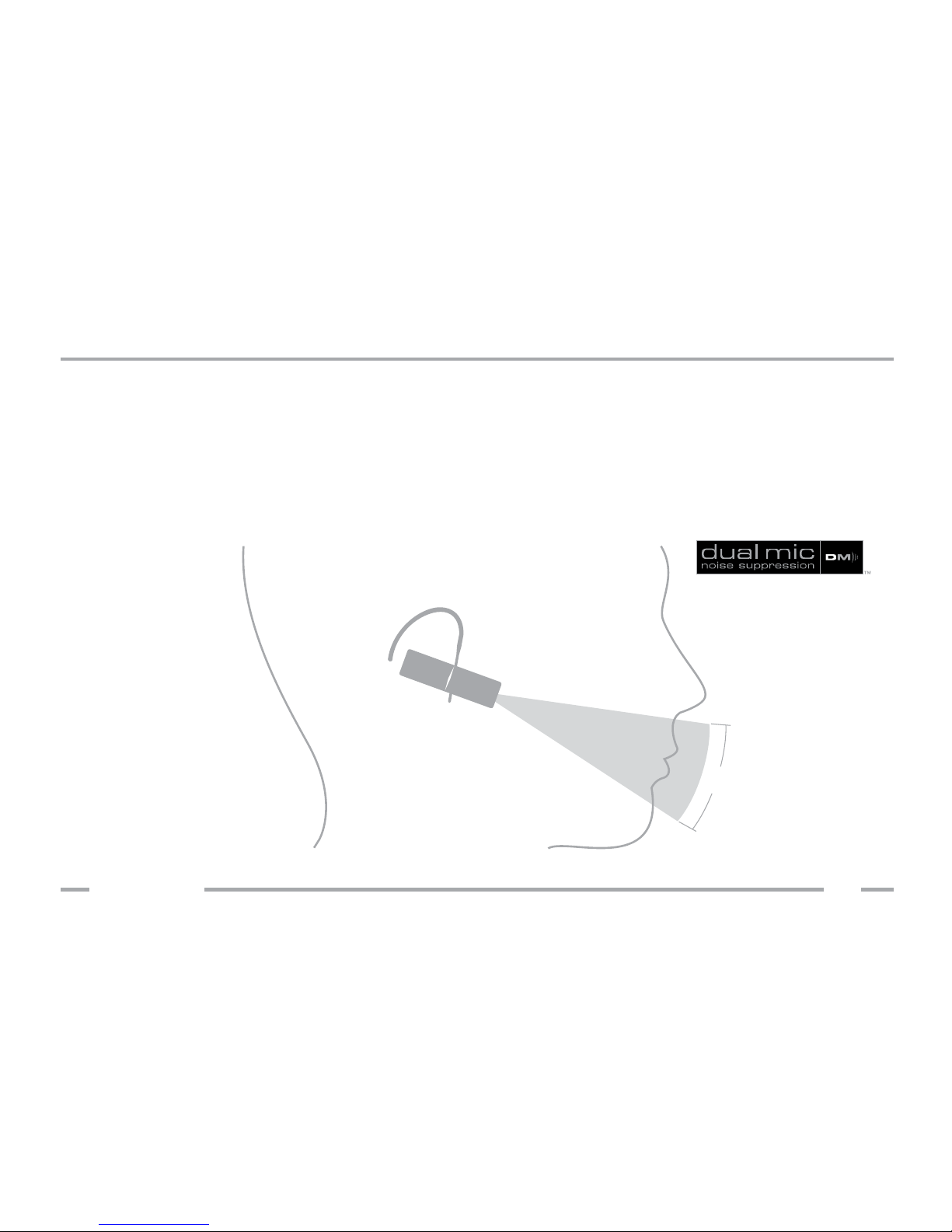

The Onyx uses advanced Dual-mic Noise Suppression™that is always “ON.” In order
for the headset to function properly, the two microphones must be positioned
towards your mouth. This is easy to do. Once the headset is put on your ear,
simply rotate the headset towards your mouth until the ear bud is compressed
comfortably against your ear. The microphones will align automatically towards
your mouth as shown below:
30°

Before using your Callpod®Onyx headset, you must fully charge the headset.
Charge the Onyx using the included wall adapter, car charger (sold separately),
USB cable or with the Chargepod®(sold separately). The Onyx is powered by
an internal lithium-ion rechargeable battery. Please do not attempt to remove
the battery from the case, as damage will occur to the headset and void your
warranty.
The red indicator light will turn on during charging. It may take a moment before
charging starts, and it may take up to 2 hours to fully charge the battery. When
charging is complete, the red LED will turn off.
If the battery becomes low on power while the headset is in use, you will hear a
short beep every 20 seconds.
Charging
callpod®8
Copyright © 2009. Patents & Trademarks Issued & Pending

Charging
callpod®9
The charging components that are included with the Onyx allow you to charge
via USB port on your computer, AC/DC wall adapter or car charger (sold
separately).
Copyright © 2009. Patents & Trademarks Issued & Pending
car charger
AC/DC
wall adapter
computer

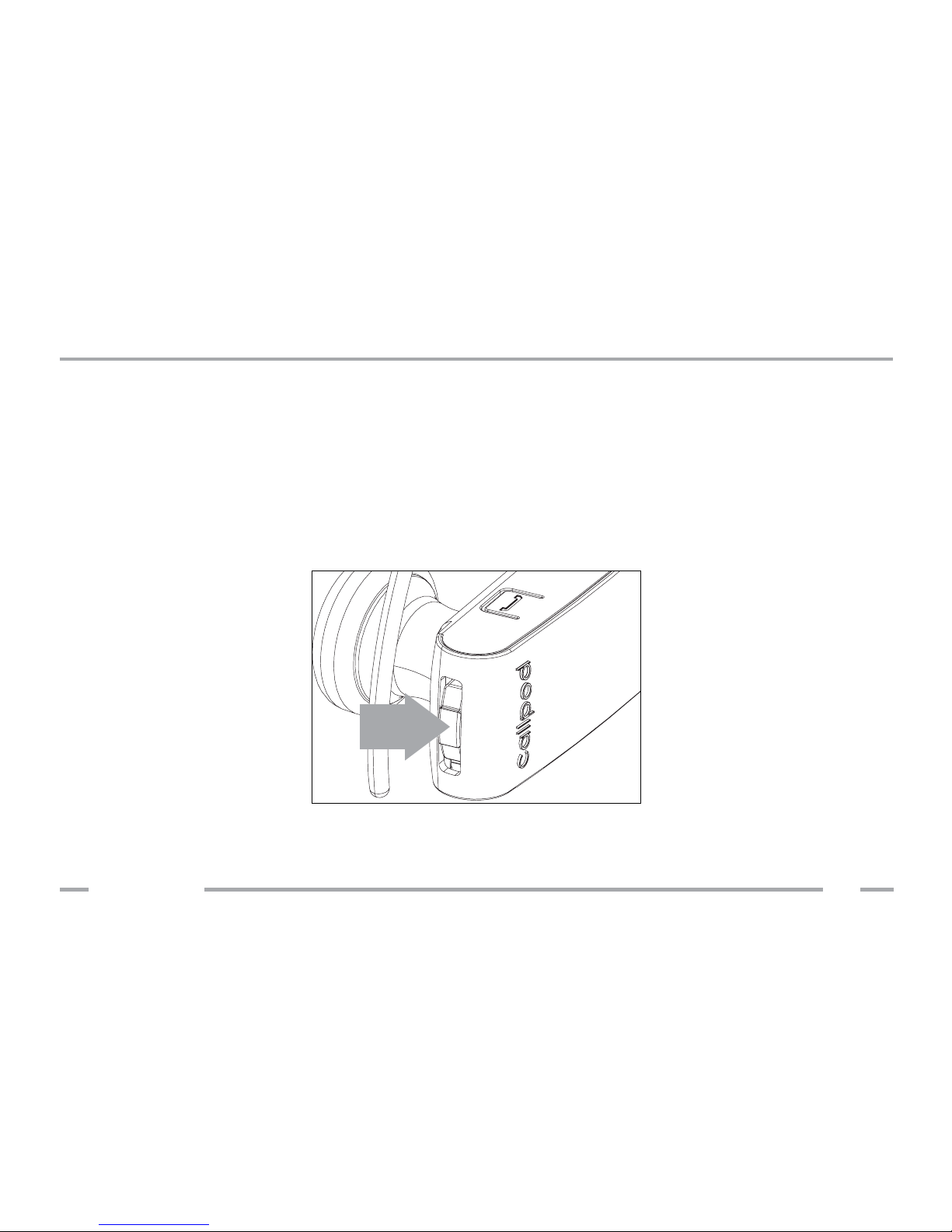

To turn the headset on, press the power & volume control button until the red LED
illuminates. The headset will play an ascending tone and the LED will ash red and
ice blue indicating that it is ready to pair.
To turn the headset off, press and hold the power & volume control button until
the red LED turns off. The headset will play a descending tone and then shut off.
Turning the Headset On and Off
power & volume control button
callpod®10
Copyright © 2009. Patents & Trademarks Issued & Pending

When the Onyx is powered on, it will rst attempt to reconnect to the last
phone used (if any). If the phone is out of range or not available, the Onyx
will automatically enter a discoverable state. You have 100 seconds to pair
the Onyx to your cell phone or PC before it enters a low power sleep mode. If
the headset is not paired within 100 seconds, simply push the power & volume
control button and it will enter discoverable mode for another 100 seconds.
Search for available Bluetooth®devices from your phone or computer.
Select the “CALLPOD Onyx” headset and enter the pass code “0000” when
prompted.
If necessary, instruct your phone or computer to complete the connection
with the Onyx.
You only need to pair the Onyx with your phone and/or computer once;
simply select the Onyx from the menu when you wish to use it.
Pairing the Headset & Auto Pairing
callpod®11
Copyright © 2009. Patents & Trademarks Issued & Pending

Pairing a second device. Onyx supports real time switching between two
connected devices. If you are currently connected to a phone, in order to pair
another device you will have to put your Onyx in discoverable mode. To do this,
simply push the power & volume control button once. The ice blue and red LEDs
will ash and you may now begin pairing the Onyx to your second device.
Switching between devices. Onyx will automatically switch between two
connected devices based on which device has requested an active audio
channel.
To disconnect your headset from your current device, you can:
Shut the Onyx off. To turn off the headset, press and hold the power & volume
control button until the red LED turns off.
Clear the pairing memory. To clear the pairing memory of the Onyx, press and
hold the multifunction button until the LED lights ice blue and red at the same
time. The Onyx will then enter a discoverable state.
Pairing and Disconnecting the Headset
callpod®12
Copyright © 2009. Patents & Trademarks Issued & Pending

When powered on, the Onyx headset will automatically reconnect to the last
connected phone. If the headset is on but not connected to any devices,
pressing the multifunction button will establish a connection to the last connected
phone.
You may have to re-establish the connection from the Bluetooth®menu on your
phone or computer.
If you encounter problems reconnecting:
• Ensure your phone or Computer’s Bluetooth®functionality is enabled.
• Ensure that your Onyx headset is fully charged.
• Clear the pairing memory and re-pair to the device.
• Contact customer service for other inquiries not addressed here.
www.callpod.com/contact
Reconnecting the Headset
callpod®13
Copyright © 2009. Patents & Trademarks Issued & Pending

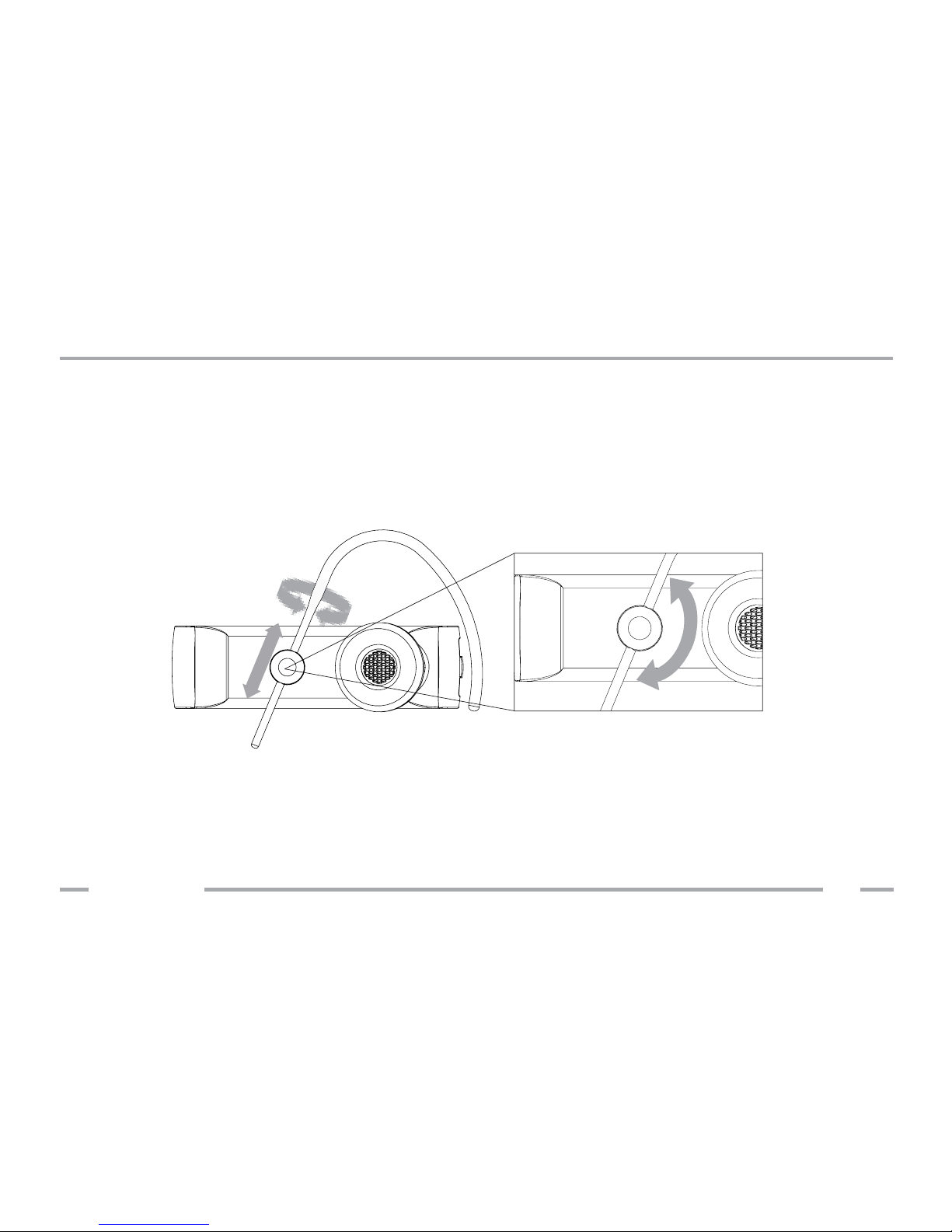

Adjusting the ear wrap. The ear wrap is fully adjustable in that it can slide up or
down, left or right as well as rotate 180 degrees to t most ear sizes on both the
left or right ear. To adjust the headset for a comfortable t, simply slide the ear
wrap up or down and position the body of the headset so that the ear bud ts
comfortably in your ear (as shown below).
Alignment. The two microphone holes on the headset should make a line that
points to your mouth when the Onyx is in use.
Operation
callpod®14
Copyright © 2009. Patents & Trademarks Issued & Pending

Placing a call with voice dialing (if supported by phone). With no call present,
press the multifunction button and speak the name of the person you want to
call. For the best results, record the voice tags for voice dialing using the Onyx
headset.
Answering/Ending a call. When the headset rings, press the multifunction button
to accept an incoming call. If a call is already present, the rst call will be placed
on hold. The calls can then be swapped by pressing the multifunction button.
While on a single or conference call, press the multifunction button to end the
call.
Muting the microphone. While on a single call, press and hold the multifunction
button to mute your microphone. Press and hold the multifunction button again
to unmute.
Rejecting a call. Pressing and holding the multifunction button on an incoming
call will reject the call. If on a call with a call on hold, pressing and holding the
multifunction button will hang up the active call.
Adjusting the speaker volume. To increase or decrease the speaker volume, press
the power & volume control button up or down. Note: Volume control directions
are opposite when the headset is in the left ear.
Operation
callpod®15
Copyright © 2009. Patents & Trademarks Issued & Pending

Conference calling. While on a call with a call on hold, tap the power &
volume control button to join the two calls in a conference. Press and hold the
multifunction button to hang up the conference call.
Connecting to a phone and computer (or two phones) simultaneously
The Onyx headset can store pairing information with eight devices without
having to re-pair. Two of those devices may be connected simultaneously to the
headset. For instance, you can connect to your cell phone and to your computer
for accepting Skype™calls.
When connected to two devices, the Onyx headset is able to control call
handling through the multifunction button. If you are on your cell phone and a
call comes in from your Skype™account, you can answer the call by pressing
the multifunction button. After the Skype™call has ended, the headset will
automatically return you to the mobile phone call.
Advanced Features
callpod®16
Copyright © 2009. Patents & Trademarks Issued & Pending

Connecting Two Callpod®Headsets Together (2-way Communication Mode)
If you have two Callpod Bluetooth headsets, you can communicate headset-
to-headset in full duplex up to of 84,000 sq. ft. [7,800 sq. meters] area (in open
spaces). To connect two headsets together:
1. Make sure Headset A is in a discoverable state (ashing red and ice blue LED)
2. Power off Headset B
3. Power on Headset Bwhile holding the multifunction button. The ice blue LED
will ash repeatedly.
After a few moments, Headset Bwill seek out the other Callpod headset and
automatically establish the connection. When the two Callpod Headsets are
connected, either party can speak in full duplex (at the same time with no voice
cancellation). To open or close the audio channel, press the multifunction button
once (do not hold the button down). By using the multifunction button to open
and close the channel, you will signicantly increase talk time versus having the
audio channel open continuously. Either user can open or close the channel.
Walkie-Talkie 2-Way Communications
callpod®17
Copyright © 2009. Patents & Trademarks Issued & Pending

Technical Specications
callpod®18
Copyright © 2009. Patents & Trademarks Issued & Pending
Bluetooth®2.0/AFH
Hands-free & Headset
2.4 - 2.4835 GHz
Class 1
<50m [164 ft.]
3.7 VDC Built-in Lithium-ion Battery
5VDC (via USB port for charging)
0° C to 50° C
<5 hours talk time & <120 hours of standby
0.96” W [24.38mm] × 2.17” L [54.86mm] × 0.63” H
[16mm]
0.3oz [8.51g]
Connectivity
Prole Support
Frequency Band
RF Output
Working Range
Input Power
Operating Temperature
Operating Time
Dimensions
Weight

Please keep the headset and all accessories out of the reach of small
children.
Do not to use other manufacturer’s power supplies or adapters with the
headset.
Do not attempt to open the outer casing of the headset.
Do not clean the headset with harsh chemicals, and keep it away from
liquids.
Do not expose the headset to extreme temperatures.
Do not paint or apply coatings or stickers to the headset, as you might
affect moving parts, damage internal components, or block or impede
the microphones.
Care and Maintenance
•
•
•
•
•
•
callpod®19
Copyright © 2009. Patents & Trademarks Issued & Pending
