Cambridge Sound Works SoundWorks Radio 745i User manual

WARNING
RISK OF ELECTRIC
SHOCK
CAUTION
The lightning ash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufcient magnitude to constitute a
risk of electric shock to persons.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTS
INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within an
equilateral triangle, is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
USE WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
IMPORTANT SAFETY INSTRUCTIONS
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
Do not defeat the safety purpose polarized or grounding type
plug. A polarized plug has two blades with one wider than
the other. A grounding plug-type plug has two blades and a
third grounding prong. The wide blade or or the third prong
are provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and at the point
where they exit from the apparatus.
Only use attachments / accessories specied by the
manufacturer.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as when the power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
The appliance shall not be exposed to dripping or splashing
water and that no object lled with liquid such as vases shall
be placed on the apparatus
The AC wall plug is used as the disconnect device. It should
remain readily accessible at all times..
8.
9.
10.
11.
12.
13.
14.
15.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
1.
2.
3.
4.
5.
6.
7.
810-00000S-190

Page Index
Product Carton Contents ................................................ 2
Introduction ..................................................................... 4
Getting Started ............................................................ 5-6
Setting the Clock ............................................................ 7
Tone Alarm Backup Battery Installation .......................... 7
Standby and On .............................................................. 8
AM/FM Operation ...................................................... 8-10
CD Operation ........................................................... 11-13
Connecting an External Audio Source .......................... 14
Convenience Features ............................................. 15-16
Quick Reference Guide ......................................... 17-21
Radio and Disc Text Displays ....................................... 22
JOG Function .......................................................... 23-24
Wakeup Function ..................................................... 25-28
CD-ROM Operation ................................................. 29-32
PLAYER DOCK - Made for iPod (Optional) ............. 33-35
Specications ................................................................ 36

- 2-
Product Carton Contents
1) SoundWorks Radio CD 745
2) External AM Loop Antenna
3) Infrared Remote Control
4) (Optional) Made for iPod Dock
Not Pictured:
5) External FM Wire Antenna
6) SoundWorks Radio CD 745 User Manual
ALARM
STEREO
CDIN
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
TRACK/TUNE/ADJ
CDMODEREPEAT-FOLDER+
CDINFOFOLDER
PRESETS
POWER
PLAYER
AUX
FM/AM
JOG
CDSEEK
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
1
23
4

- 3-

- 4-
INTRODUCTION
The people at Cambridge SoundWorks hope you enjoy
your new high-performance SoundWorks Radio CD 745.
Your new radio has great FM stereo sound and plays
useful AM band stations. It stores 16 FM station presets
along with 8 AM station presets. An integral, slot-load disc
player plays audio CDs and MP3/WMA les on CD-ROM.
The large 32-character display and full-function remote
makes radio operation easy from across the room.
The SoundWorks Radio CD 745 displays three types of
supplementary text:
Radio Data Service (RDS) FM station text
CD-text
“ID3” text stored in most MP3 and WMA les.
An automatic dimmer function reduces display brightness
in dark rooms while maintaining good legibility in bright
light. An internal long-life power cell maintains the current
time accurately for many years. By inserting a 9V battery
(not supplied), a user ensures that an activated wakeup
function will work even during a power outage.
•
•
•
A front input jack allows easy connection of audio program
sources (like portable digital music and cassette players).
A convenient JOG button lets you select from a variety of
secondary adjustments (Bass and Treble, Snooze time
and Text display modes, among others).

- 5-
PLAYER
POWER
OUTPUT INPUT
AM
ANTENNA
FM ANTENNA
EXT
INT
INPUT
75 OHMS
PLAYER
INPUT
GETTING STARTED
Remove the SoundWorks Radio CD (See A) from its
protective polybag and place it in your preferred location.
The Radio CD’s Tone alarm sound and bass output will
be reduced if the Radio is placed on a compliant, soft
surface.
Connect the AM antenna (See B): To prepare the an-
tenna (1), fold the base (2) and snap it into place (3).
Position the AM antenna (4) in any out-of-the-way site,
preferably at least 8 inches apart from the Radio CD.
Insert the AM Antenna’s miniplug into the Radio CD’s rear
panel minijack marked AM ANTENNA (5).
Rotate the AM antenna to achieve the best signal for
individual AM stations.
A
B1 2
3 4
5
ALARM
STEREO
CDIN
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
TRACK/TUNE/ADJ
CDMODEREPEAT-FOLDER+
CDINFOFOLDER
PRESETS
POWER
PLAYER
AUX
FM/AM
JOG
CDSEEK

- 6-
Connect the cord by inserting the SoundWorks Radio
CD’s AC plug into a convenient outlet.
The AC cord is also the Radio CD’s primary FM antenna.
It will function better if at least 50% or more of its length
follows a straight line (See C). Check to make sure
the FM antenna switch on the rear panel of the Radio
enclosure is in the INT (internal) position (factory default).
If desired, the external FM antenna can be connected and
used instead of the internal antenna (See D). Connect
the external antenna to the “F”-type connector of the rear
panel. Set the FM antenna switch to EXT (external).
C
D
ALARM
STEREO
CDIN
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
TRACK/TUNE/ADJ
CDMODEREPEAT-FOLDER+
CDINFOFOLDER
PRESETS
POWER
PLAYER
AUX
FM/AM
JOG
CDSEEK
PLAYER
POWER
OUTPUT INPUT
AM
ANTENNA
FM ANTENNA
EXT
INT
INPUT
75 OHMS
PLAYER
INPUT
GETTING STARTED (Continued)

- 7-
GETTING STARTED (Continued)
Setting the Clock
You can adjust the current time whether the radio is in
Standby or On.
Just press the TIME ADJUST BUTTONS (next to the symbol)
on the right hand side of the display (see E).
Note: The current time can only be adjusted from the
radio CD faceplate. The remote control can adjust the
wakeup time setting, but not the current time.
Tone Alarm Backup Battery
For 48 hours of alarm function backup during an AC
power failure, obtain and install a 9 volt battery in the
radio’s battery compartment. Release the battery cover,
attach the battery and restore the cover.
If either alarm is set to activate (music or tone wake-up)
and the power fails, the battery sounds the tone alarm
at the appropriate time. Press POWER on the radio to
silence the alarm. Remove the battery if the unit is un-
plugged for more than 24 hours. Replace the battery after
30 minutes of emergency tone alarm operation (see F).
CDIN
1 2 3 4
5 6 7 8
TIME SET
9:43 AM
E
F

- 8-
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
CDIN
1 2 3 4
5 6 7 8
GETTING STARTED (Continued)
Standby and On
Pushing the POWER button chooses Standby or On
operation (see G).
The faceplate POWER button can also be used to engage
Sleep Delay operation (see page 16).
Selecting the Radio Bands
Pressing the FM/AM button cycles through two banks
of FM station presets, and one bank of AM station
presets. You can store eight FM stations in the Preset
bank FM1, eight different FM stations in Preset bank
FM2, and eight AM stations in the Preset bank AM
(see H).
If you switch from another mode to FM/AM, the radio
will return to the last Preset bank used (from Standby,
CD, PLAYER or from the AUX input). Pressing the
FM/AM button during FM/AM operation selects the
next present bank (FM1, FM2, or AM).
1.
2.
9:43 AM
CDIN
1 2 3 4
5 6 7 8
2AM
ALARMS
TAPTO S ET
PRESS & HOLD TO ADJ UST
CD TIM E
FM2 P1
88.1 9:43AM
H
G

- 9-
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
GETTING STARTED (Continued)
Tuning Stations
Autotune Method 1: Press the SEEK button (remote
or radio face) to automatically nd the next station or
higher frequency (see I).
Autotune Method 2: Press and hold either TRACK/
TUNE/ADJ button to seek the next station (the
button seeks down, the button seeks up) (see J).
Manual Tune: To nd a specic frequency, tap the
appropriate TRACK/TUNE/ADJ button ( or ).
Storing Stations in PRESET Banks
Press the FM/AM button to choose the desired Preset
bank (FM1, FM2, AM) radio band. Tune to the desired
station. Press and hold the desired PRESET button until a
short tone is heard. The station is stored (see K).
When an FM frequency is stored on a Preset, the current Stereo/
Wide/Mono and RDS Text setting is also stored. When the Preset is
tapped, the stored setting will override the JOG menu setting. Storing
a weak FM stereo station in MONO will insure cleaner reproduction
under varying reception conditions. You can also elect to store FM
stations with RDS text you do not wish to see in STATIC or NO TEXT
mode.
•
•
•
CDIN
1 2 3 4
5 6 7 8
AUX POWER
FM2 P1
88.1 9:43AM
CDIN
1 2 3 4
5 6 7 8
FM2 P1
88.1 9:43AM
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
X
I
J

- 10 -
CDIN
1 2 3 4
5 6 7 8
FM2 P1
88.1 9:43AM
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
K

- 11 -
ALARM
PRESETS
STERE O
CDIN
CD INFO
CDMODE
JOGFM1/2
CDSEEK
AMAUXPOWER
REPEAT
–FOLDER+
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
WIDE
STEREO MONO
CDIN
CD IN
Light
SELECTING CD PLAY
Important: Use only standard 12cm (4 ¾") compact
discs. Smaller discs will not work in the slot load
mechanism.
Insert a CD disc into the slot to automatically select
CD play. The CD IN light indicates if there is a disc
inside the radio CD (see L).
If there is a CD disc inside the radio CD, tapping the
CD button will start disc play (see M).
Choosing Selections
Track selection: Tap the appropriate TRACK/TUNE/
ADJ button ( or ) (see N).
CD-ROM folder selection: To move from the current
folder (directory), tap either or . See pages 29-
32 for an explanation of folder (directory) navigation.
Forward scan and reverse scan: Press and hold
TRACK/TUNE/ADJ button ( or ).
Disc Stop
Press the STOP button once ( ) to stop disc play with
“resume from same location” feature. Press the STOP
button twice to stop disc play and return to the start of the
disc.
1.
2.
•
•
•
TRACK/TUNE/ADJ
CDIN
1 2 3 4
5 6 7 8
CD ► T1 1m 23s
L
M
CD Insertion
CD Play/Pause
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU

- 12 -
During Audio CD Play
Press STOP
1 time ................................ Resumes from Same Location
2 times ...................................... Start at beginning of Disc
During CD-ROM Play
Press STOP Disc Position
1 time ................................. Resume from Same Location
2 times ................................... Start at beginning of Folder
3 times ...................................... Start at beginning of Disc
CD Play and the Power button: Pressing the POWER
button during disc play causes the Radio CD to enter
STANDBY track resume mode. Pressing the POWER
button again resumes play at exactly the same location on
the disc (audio CD or CD-ROM).
Preset 4 “FOLDER” feature:
The SoundWorks Radio CD recognizes folders at the Top
Level of a CD-ROM. Pressing Preset 4 “FOLDER” during
CD-ROM Play will show the rst 16 letters of the name
of the folder containing the active MP3/WMA track. TOP
LEVEL is displayed if the le is not inside a folder.
SELECTING CD PLAY (Continued)

- 13 -
WIDE
STEREO MONO
1 2 3 4
5 6 7 8
AUX
HEADPHONES
CD IN
FM2 P1
88.1 9:43AM
Q
SELECTING CD PLAY (Continued)
Disc Eject
Press the disc EJECT button (see O).
CD Info
The CD INFO button (preset 1) displays disc playing time
readouts, as follows:
Audio CD – Track time elapsed • Track time remaining
• CD time elapsed • CD time remaining
CD-ROM – File time elapsed
CD Mode
The CD MODE button (preset 5) selects the following
other disc play modes:
Audio CD - Random play • Play one track
CD-ROM - Random play • Play folder • Random play
folder • Play one le
Repeat
The REPEAT button (present 6) will repeat the current
play mode until the disc is ejected or the POWER button
is pressed. The repeat mode is maintained until the disc is
ejected or the POWER button is pressed.
•
•CDIN
1 2 3 4
5 6 7 8
CDIN
1 2 3 4
5 6 7 8
CD ► T2 3m 16s
FM2 P1
88.1 9:43AM
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
X
N
O
TRACK/TUNE
Disk Eject

- 14 -
WIDE
STEREO MONO
1 2 3 4
5 6 7 8
AUX
HEADPHONES
CD IN
FM2 P1
88.1 9:43AM
Q
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
CDIN
1 2 3 4
5 6 7 8

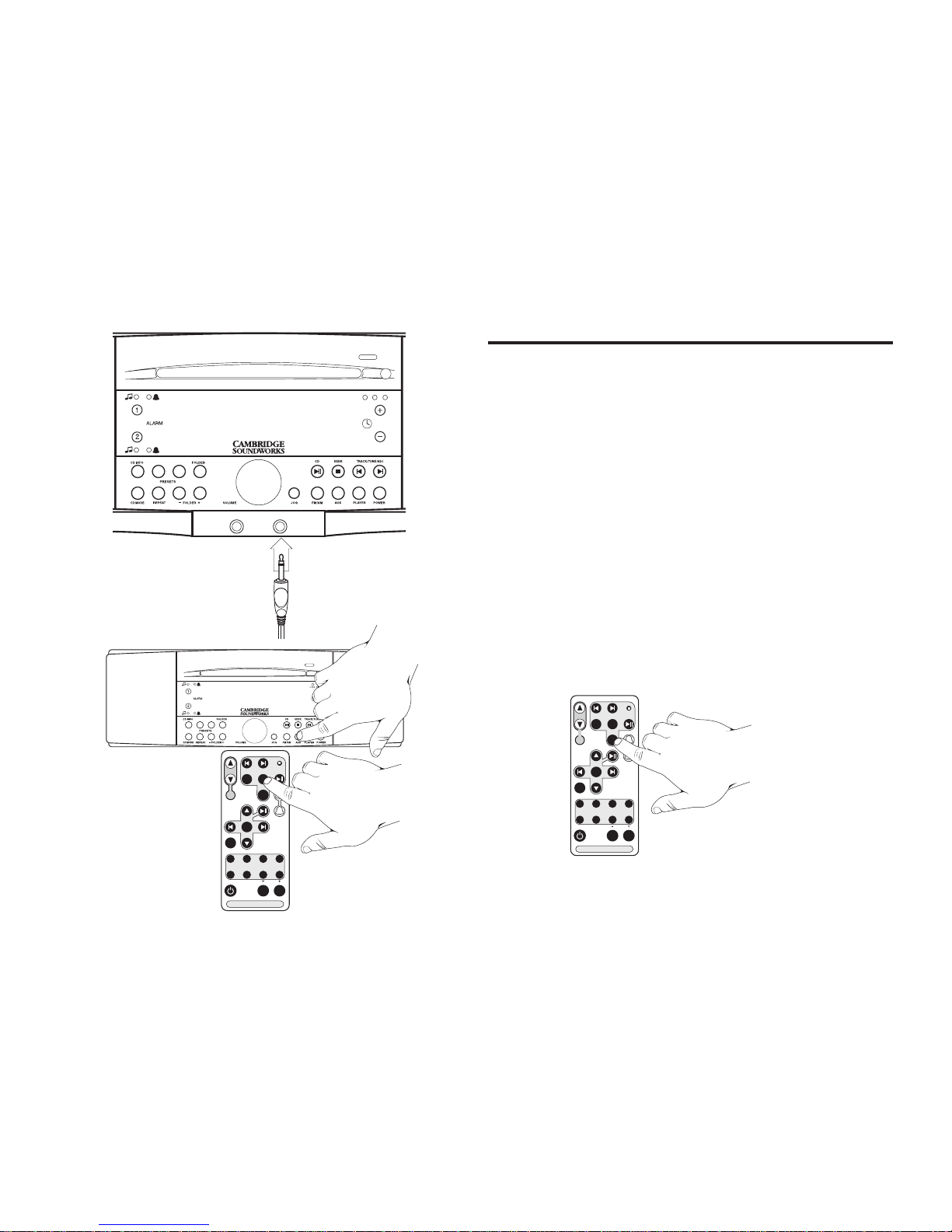

Listening to External Sound Sources
If you have an external audio program source you want
to connect to the radio CD, like a portable MP3 player,
connect it to the AUX input on the front panel (see Q). The
AUX button on the front panel or remote control selects
this input (see R).
Using the PLAYER input with optional PLAYER DOCK
The PLAYER button on the front panel or remote control
selects this input.
Connection of a PLAYER DOCK and Dock Use
instructions are detailed on page 33.
CONNECTING AN EXTERNAL AUDIO SOURCE
FM2 P1
88.1 9:43AM
R
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU

- 15 -
ALARM
STEREO
CDIN
WIDE
MONO
1
1
2
234
5
678
SNOOZE/MUTE
Mute
To mute the SoundWorks Radio CD: Press the
SNOOZE/MUTE bar (located on top of the radio) or the
SNOOZE/MUTE button on the remote control (see T).
Mute is cancelled if the POWER button is pressed, if a
disc is inserted or the volume is adjusted.
CONVENIENCE FEATURES
TRACK/TUNE/ADJ
CDMODEREPEAT-FOLDER+
CDINFOFOLDER
PRESETS
POWER
PLAYER
AUX
FM/AM
JOG
CDSEEK
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
T

- 16 -
CDIN
1 2 3 4
5 6 7 8
SLEEP DELAY
45 MIN

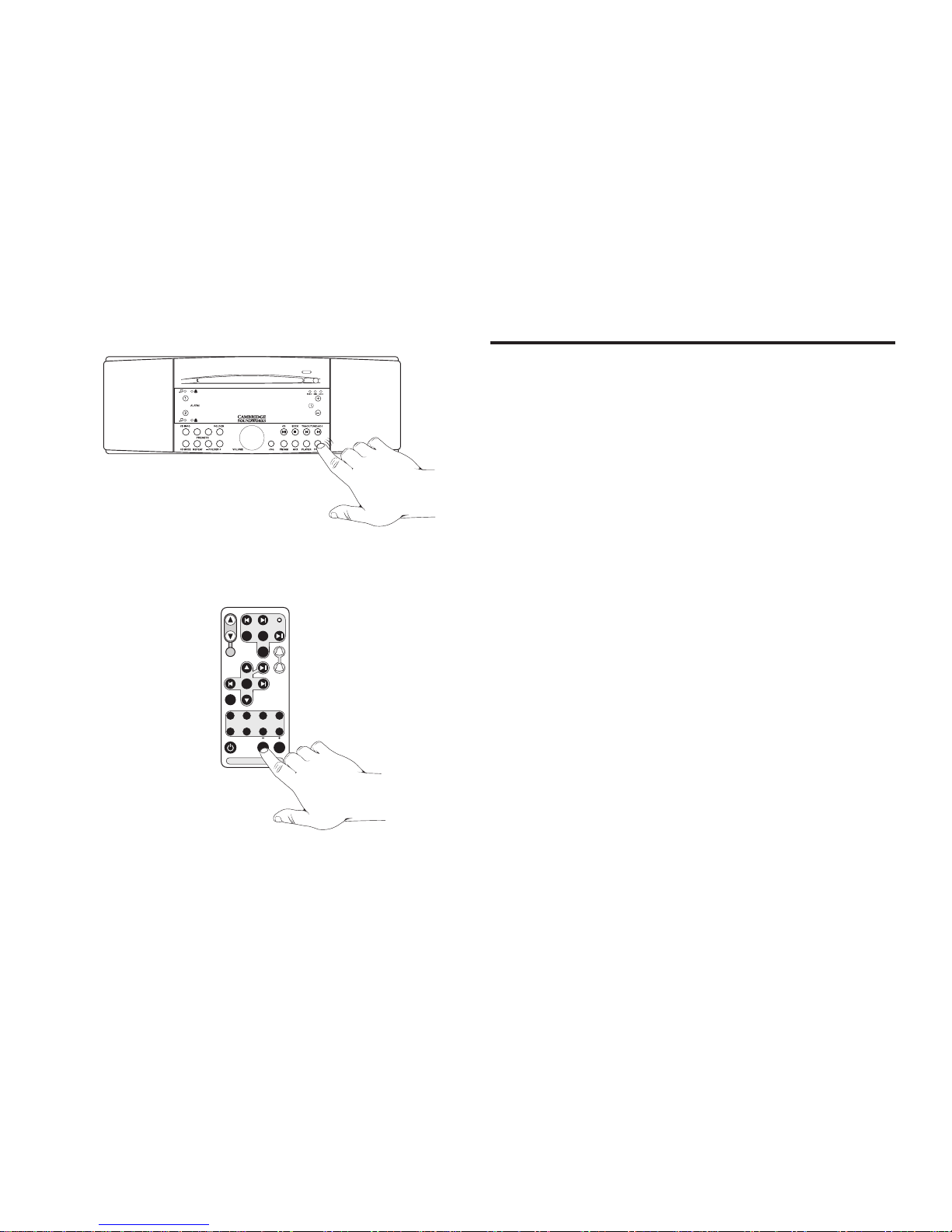

Sleep Delay
To make the radio CD automatically turn off after a
specic period of time:
With the radio CD in standby, rapidly tap the POWER
button until the desired amount of play time is
reached (see U).
OR
Press the SLEEP button on the remote control until
the desired amount of play time is reached (see V).
Sleep delay is available for 15, 20, 30, 45, 60, 90 and 120
minute lengths. Sleep delay is cancelled if the POWER
button is pressed or if a disc is inserted. If you wish
to use the sleep function during disc play, insert a disc
before choosing the sleep function.
•
•
CONVENIENCE FEATURES (Continued)
TRAC K/ TUN E/A DJ
FOLDERREPEAT
JOG
SLEEP
SNOOZE
MUTE
1 2 34
5 6 7 8
CD MODE
CD TIME
ALARMS
SEEK
DISC
STO P
AUX
PRE SE TS
VOLUME
FM
AM
HOLD
TO
ADJUST
1
2
SOUNDWORKS RADIO CD
ENTER
PLAYER
MENU
U
V

- 17 -
AUX
HEADPHONES
1 2 3 4
5 6 7 8
2:11AM
INDICATES ALARM STATUS
= MUSIC WAKEUP
= TONE WAKEUP
DURING DISC PLAY, TAP THIS BUTTON FOR:
AUDIO CD: TRACK TIME ELAPSED, TRACK TIME REMAINING
TOTAL TIME ELAPSED,TOTAL TIME REMAINING
CD-ROM: TRACK TIME ELAPSED
DURING DISC PLAY, TAP THIS BUTTON FOR:
AUDIO CD: RANDOM PLAY, PLAY ONE TRACK
CD-ROM: RANDOM PLAY OF DISC, PLAY ONE FOLDER
RANDOM PLAY OF ONE FOLDER, PLAY ONE TRACK
RADIO STATION PRESET BUTTONS:
PRESS AND HOLD TO STORE CURRENT STATION
TAP TO ACTIVATE ALARM
PRESS AND HOLD TO ADJUST ALARM
QUICK REFERENCE GUIDE - SOUNDWORKS RADIO CD FACEPLATE
DURING DISC PLAY, TAP THIS BUTTON FOR
REPEAT PLAY OF CURRENT CD MODE
TAP THESE BUTTONS TO MOVE BETWEEN
DIFFERENT DIRECTORIES ON A CD-ROM DISC
INSERT HEADPHONES WITH 3.5mm STEREO MINIPLUG HERE FOR PRIVATE LISTENING
NORMAL OPERATION: PRESS TO MUTE SOUND.
DURING WAKEUP: PRESS TO ACTIVATE SNOOZE FEATURE.
