Cambridge Sound Works Oontz Angle 3 Plus User manual

Ultra-Portable Bluetooth Speaker
Quick Start Guide
Designed and Engineered By
TheOontZ.com

Table of Contents Pages
In the Package
Play Controls
LED Lights and Connectors
Charging the Battery
Turning On and Off
Pairing & Connecting
Pairing & Connecting -- From Your Mobile Device
Pairing & Connecting -- From Your Apple Mac or Windows Computer
Playing From Your Chromebook, Laptop, Computer & Non-Bluetooth Devices Using the 3.5mm Audio Cable
IPX5 Water Resistant
Wireless Hands Free Personal Speakerphone
Troubleshooting & Customer Support
Resetting Your OontZ Angle 3 Plus
Safety and Precautions
1
2
3
4 - 5
6
7
8
8
9
10
11
12 - 14
15
16

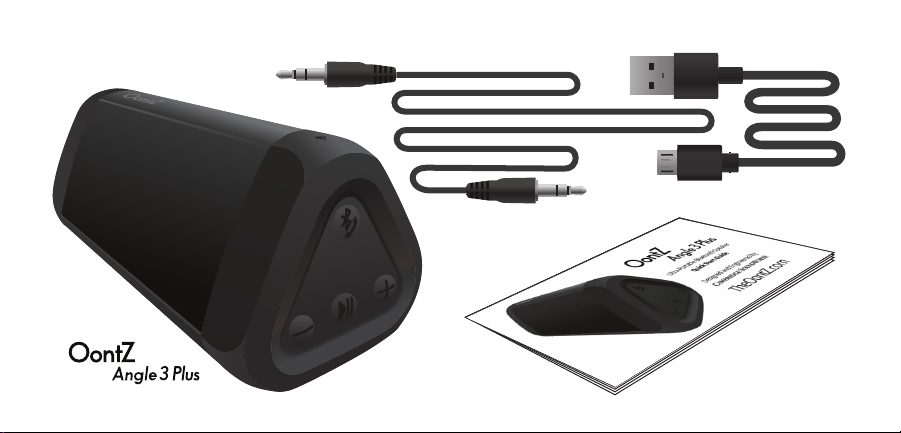

In the Package
Micro USB Charging Cable
The
3.5mm Audio Cable
Quick Start Guide
Page 1

Button (Dual Function) Button (Dual Function)
Power Button
Note: The volume on the OontZ Angle 3 Plus and your source device both need to be set to the highest level for the loudest volume.
The volume controls on your source device and speaker work independently of each other.
Note: Holding the button down will result in track back
Button
Play Controls
Page 2
Bluetooth Button (Dual Function)
Press and Release to Pause/Play
Track Back
Press and Hold Down for 2 Seconds Track Advance
Press and Hold Down for 2 Seconds
Volume Down
Press and Release to decrease volume
one level; continue to press and release
until volume lowers to desired level
Note: Holding the button down will result in track advance
Volume Up
Press and Release to increase volume one
level; continue to press and release until
volume raises to desired level

LED Lights and Connectors
AUX IN Jack
(located under rubber flap)
Micro USB Charging Connector
(located under rubber flap)
Rubber Flap
(lifts up from top)
Charging LED Light (Red)
(LED visible when connected to a
charging source and when
battery charge is low)
Built-in Mic for Speakerphone
Page 3
Note: The rubber flap needs to be closed to
keep the speaker water resistant.
You can use the small end of the micro USB
Charging Cable to make it easier for you to
open the rubber flap from the top. It is a
tight fit to keep the speaker water resistant.
Bluetooth LED Light (Blue)
(LED is only visible when
speaker is turned on)

Charging the Battery
Step 2: Insert the smaller end of the Micro
USB Charging Cable into the Micro USB
Charging Connector as shown.
Step 3: Insert the larger end of the Micro USB
Charging Cable into either a USB wall charger
(5V/1.0A up to max 5V/2.0A) for a Smartphone or
iPhone, or a USB port on your laptop to charge
the battery. We recommend using a UL approved
USB Wall adapter, and no adapter should ever be
used that has been damaged or is defective.
Step 1: Pull down the rubber flap from the top
to access the Micro USB Charging Connector.
To charge the battery:
The lithium ion rechargeable battery
comes with a partial charge and is
ready to play. For maximum
playtime, fully charge the
battery. You can play
while charging.
Charging LED Light (Red)
Slowly flashing Red when charging
Solid Red when fully charged
Page 4
Note: Close the rubber flap when not charging. The rubber
flap needs to be closed to keep the speaker water resistant.

Charging the Battery (continued)
Low Charge Remaining
When the battery charge is
down to about 15% the
Charging LED Light (Red) will
begin flashing Red and will
remain flashing until the
speaker is turned off. The
volume will decrease to
preserve the remaining
battery charge.
Charging Time
It will take about 8 hours to
fully charge a completely
drained battery, when charging
with a USB wall charger.
Power Saving Feature
- When playing from battery power the
OontZ Angle 3 Plus will turn off after
15 minutes of not playing audio to
conserve the battery charge.
- When plugged into a charging
source the OontZ Angle 3 Plus will
remain on until you turn the power
off. You can continue to keep the
speaker plugged into a charging
source even when it is fully charged.
Play While Charging
You can play the OontZ Angle 3 Plus
while it is charging.
Page 5

Turning On and Off
Flashing Blue the speaker is in pairing mode and
ready to connect, or
Solid Blue the speaker is connected to a source device
and ready to play
Press and Release the Power Button
- The Blue light will come on and will either be:
Press and Hold Down the Power Button for 2 Seconds
- The Blue light will go out
Turn ON
Turn OFF
Page 6
Bluetooth LED Light (Blue)
(LED is only visible when speaker is turned on)
Power Button

Pairing & Connecting
- Your source device needs to be within 30 unobstructed feet of the OontZ Angle 3 Plus
- Make sure your OontZ Angle 3 Plus battery has a sufficient charge
Turn ON your OontZ Angle 3 Plus,
and check the Blue light to see if it is flashing or solid
If it is flashing Blue the speaker is in pairing mode and you can pair and connect from your
source device; instructions are on page 8.
If it is solid Blue the speaker has automatically reconnected to the last source device the
speaker was connected to and is ready to play. The OontZ Angle 3 Plus can only be connected
to one source device at a time.
If you want to pair and connect to a different source device, you will need to first disconnect
the one that is currently connected. To disconnect it, press and hold down the Bluetooth button
for 2 seconds. The Blue light will begin flashing and the speaker is in pairing mode and you can pair
and connect from your source device; instructions are on page 8.
Note: The OontZ Angle 3 Plus will automatically try to connect to the last source device it was connected to each time it is
turned on and that source device is within range.
Page 7

Pairing & Connecting -- From Your Mobile Device
- Go to Settings > Bluetooth, check Bluetooth is on
- Select ‘OontZ Angle 3 Plus’ when it appears
under DEVICES
- The speaker will connect in a few seconds
- The Bluetooth LED Light (Blue) will turn solid blue
- You can now play your audio wirelessly to your
OontZ Angle 3 Plus
Note: Your Smartphone or Tablet instructions may vary
- Go to Settings > Bluetooth, check Bluetooth is on
- Scan or Search and select ‘OontZ Angle 3 Plus’ when it appears
under AVAILABLE DEVICES
- The speaker will connect in a few seconds
- The Bluetooth LED Light (Blue) will turn solid blue
- You can now play your audio wirelessly to your OontZ Angle 3 Plus
To pair and connect from an
iPhone, iPad, or iPod:
To pair and connect from a
Smartphone or Tablet:
Pairing & Connecting -- From Your Apple Mac or Windows Computer
Note: Some older Windows computers and operating systems may have difficulty pairing and connecting over Bluetooth.
If this occurs it is recommended to connect using the 3.5mm audio cable. Please go to page 9: ‘Playing from Your Laptop, Computer
and Non-Bluetooth Devices Using the 3.5mm Audio Cable’.
For the pairing and connecting guide for your Apple Mac or Windows computer, please visit: TheOontZ.com/pairing
Page 8

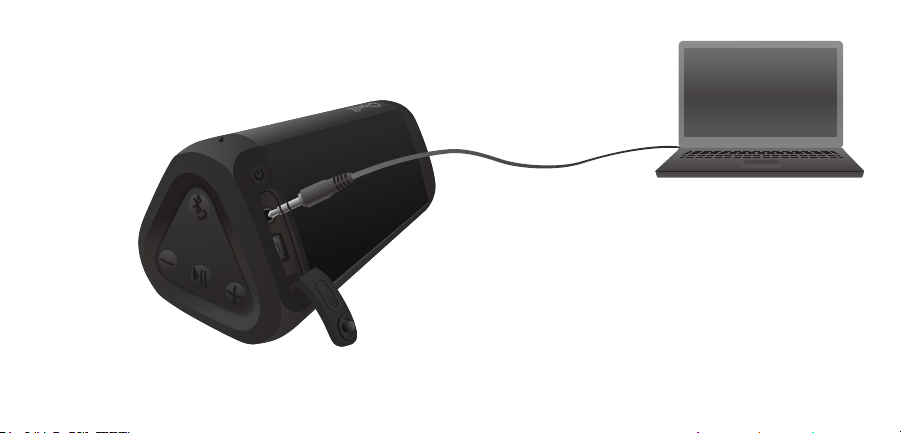

Playing From Your Chromebook, Laptop, Computer and
Non-Bluetooth Devices Using the 3.5mm Audio Cable
Step 1: Pull down the rubber flap from the top to access the
Micro USB Charging Connector.
Step 2: Plug one end of the included 3.5mm audio cable into
the AUX IN Jack as shown.
Step 3: Plug the other end of the 3.5mm audio cable into the
headphone jack on your source device.
You are now ready to play.
- Make sure your
OontZ Angle 3 Plus
battery has a
sufficient charge
- Note: The Bluetooth on the OontZ Angle 3 Plus is disabled when the 3.5mm audio cable is connected to the speaker.
You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth source device.
Page 9
- Note: Close the rubber flap when not charging. The rubber flap needs to be closed to keep the speaker water resistant

No more worries about the
rain or getting splashed
Listen to music in the shower
Perfect for taking to the
beach or by the pool
IPX5 rating - The OontZ Angle 3 Plus can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet
environment for an extended period of time, any of which could cause unrepairable damage to the speaker
IPX5 Water Resistant
DO NOT allow speaker
to sit in water
DO NOT allow speaker
to submerge fully or
partially in water
Gentle Water Spray
or Splash is okay
Page 10
- Note: The rubber flap needs to be closed to keep the speaker water resistant. When charging or using the 3.5mm audio cable, please keep the
speaker away from water as it can be damaged by water entering the connectors.

Wireless Hands Free Personal Speakerphone
The Wireless Hands Free Personal Speakerphone feature
works over Bluetooth with Smartphones and iPhones for
cell phone calls only.
Please keep the speaker close in front of you so you may
be heard clearly by the listener.
You can use your Smartphone or iPhone to switch between
using Hands Free Speakerphone and your phone.
To answer an Incoming Call / To End a Call
Press and Release the Bluetooth Button
To Reject an Incoming Call
Press and Hold Down the Bluetooth Button for 3 Seconds
Bluetooth Button
(Dual Function)
Page 11

Troubleshooting & Customer Support
OontZ Angle 3 Plus will not turn on
For assistance with questions or any issue with your OontZ Angle 3 Plus that is not answered in the troubleshooting
tips below, please contact us by visiting: TheOontZ.com/support and fill out our customer service form.
• The battery may have become fully drained. Charge the OontZ Angle 3 Plus using a USB wall charger from a Smartphone/iPhone or tablet for at least
15 minutes, then press the power button to turn the speaker on. Then continue charging the battery.
• Reset the OontZ Angle 3 Plus, follow the reset instructions on page 15.
Cannot pair or connect to the OontZ Angle 3 Plus
• Check that your OontZ Angle 3 Plus has a sufficient battery charge, the speaker may not connect when the battery has a low charge. Connect the
speaker to a charging source and try again to pair and connect.
• Your source device may be out of range. Move it closer to within 30 unobstructed feet of your speaker.
• Check the Bluetooth LED light (Blue) to make sure it is flashing. If it is solid blue the OontZ Angle 3 Plus is already connected to another source
device. The OontZ Angle 3 Plus can be connected to one source device at a time. You need to disconnect the connected source device then you can
connect to the next source device. Please see instructions on page 8.
• Your source device may have a temporary Bluetooth connection issue please try the following steps which can resolve this: (continued next page)
Page 12

For iPhone, iPad, iPod
• Turn off the OontZ Angle 3 Plus speaker, go to the Bluetooth device list on your iPhone, iPad or iPod and check if the OontZ Angle 3 Plus is listed. If it
listed press the icon next to the OontZ Angle 3 Plus and then forget this device, twice.
With the OontZ Angle 3 Plus removed from the list or if it was not listed, do a soft reset on your iPhone, iPad or iPod by pressing and holding down
the Home and sleep buttons at the same time for about 10 seconds until the Apple icon appears and it restarts. When it restarts turn on the OontZ
Angle 3 Plus and then try again to pair and connect. Please see instructions on page 8.
Cannot pair or connect to the OontZ Angle 3 Plus (continued)
For Smartphones and Tablets
• Turn off the OontZ Angle 3 Plus speaker, go to the Bluetooth device list on your Smartphone or Tablet and check if the OontZ Angle 3 Plus is listed.
If it listed press the icon next to the OontZ Angle 3 Plus and then press Unpair this device. With the OontZ Angle 3 Plus unpaired or if it was not
listed, restart your Smartphone or Tablet. When it restarts turn on the OontZ Angle 3 Plus and then try again to pair and connect. Please see
instructions on page 8.
For Apple Mac
• Please go to the Bluetooth device list and if the OontZ Angle 3 Plus is listed please remove it. With the OontZ Angle 3 Plus removed or if was not listed,
restart your Apple Mac and then try again to pair and connect. For pairing and connecting Guide for your Apple Mac visit TheOontZ.com/Pairing.
For Windows systems
• Please go to the Bluetooth device list and if the OontZ Angle 3 Plus is listed please remove it. With the OontZ Angle 3 Plus removed or if was not listed,
restart your Computer and then try again to pair and connect. For pairing and connecting Guide for your Windows system go to TheOontZ.com/Pairing.
• If your Windows system displays an error message requesting a driver, you need to update your computer's Bluetooth driver. The OontZ Angle 3 Plus
does not require a special driver itself and there is no driver for it. Go to the support site for your system manufacturer and specific model and select the
Bluetooth driver. Download and install the Bluetooth driver, restart your system and try again to pair and connect to your OontZ Angle 3 speaker.
For pairing and connecting Guide for your Windows system visit TheOontZ.com/Pairing.
Page 13

Page 14
No audio playing from the OontZ Angle 3 Plus when connected over Bluetooth
• Reset the OontZ Angle 3 Plus, follow the reset instructions on page 15.
• Remove the OontZ Angle 3 Plus from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect to the speaker.
• Make sure the volume is up on your OontZ Angle 3 Plus and your source device.
• Make sure your Bluetooth device is playing audio, and is not paused and volume is up.
• Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.
• Turn your OontZ Angle 3 Plus off and back on.
• Some apps have their own volume setting. Please check the app to make sure the volume is not on mute and the volume is up.
Poor sound quality when connected over Bluetooth
• Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.
• Remove the OontZ Angle 3 Plus from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect to the speaker.
• Turn your OontZ Angle 3 Plus off and back on.
• Some devices need to have their WIFI turned off to improve audio quality over Bluetooth.
No audio playing from the OontZ Angle 3 when connected with the 3.5mm audio cable
• Make sure the 3.5mm audio cable is fully inserted into the OontZ Angle 3 Plus and Device. Some devices have cases that prevent a proper fit
and need to be removed to connect. Make sure your device is on and playing and music.
• Increase the volume level on the OontZ Angle 3 Plus and the device.
Poor sound quality when connected with the 3.5mm audio cable
• Reduce the volume level on the AUX source.
• Remove the charging cable while playing.
No response when pressing any button or speaker will not turn off
• Reset the OontZ Angle 3 Plus, follow the reset instructions on page 15.

Resetting Your OontZ Angle 3 Plus
Step 1: Remove the Micro USB charging cable
and 3.5mm Audio cable, if connected
Step 2: Turn on your OontZ Angle 3 Plus
Step 3: Insert either a toothpick or straightened
paper clip into the AUX IN jack until it makes
contact with the micro switch. Gently push and
release the switch and the speaker will reset.
Page 15

Safety and Precautions
1. Follow all instructions – All operating and use instructions should be followed.
2. Do not use this speaker near water while plugged in for charging, due to risk of electric shock.
3. Do not charge when wet.
4. Protect the Micro USB charging cable from pinched particularly at the connectors.
5. We recommend using a UL approved USB Wall adapter, and no adapter should ever be used that has been damaged
or is defective.
6. Unplug the Micro USB charging cable during lightning storms or when unused for long periods of time.
Page 16
