Cambridge Sound Works Oontz Angle 3 PRO Soundbar User manual

The Speaker for Television
Incredible Sound, Powerful Volume, Connect other OontZ Speakers
OontZ App for the OontZ Angle 3 Pro Soundbar
Control the OontZ Angle 3 Pro Soundbar Advanced Features
from your iPhone or Smartphone
User Guide
3

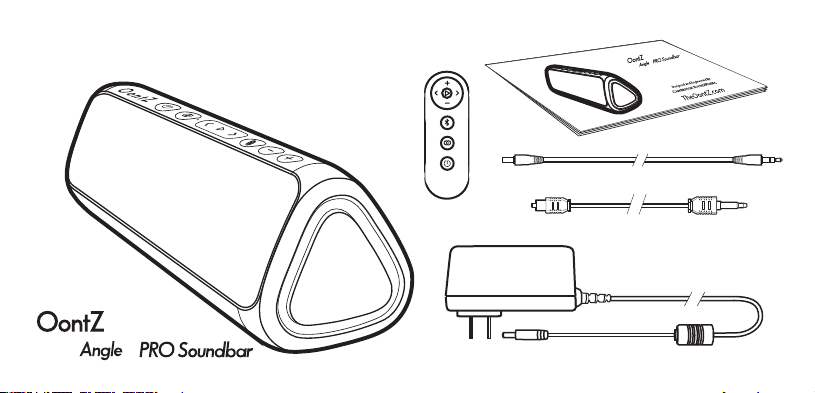

In the Package
User Guide
3.5mm Stereo Audio Cable
User Guide
The Speaker forTelevision
IncredibleSound, Powerful Volume,Connect other OontZ Speakers
OontZ App for the OontZ Angle 3 ProSoundbar
Controlthe OontZ Angle 3 Pro Soundbar Advanced Features
fromyour iPhone or Smartphone
3
3
Power Adapter (Dual Voltage)
Digital Audio Optical Cable
Remote Control

Buttons, Lights, and Connectors
Turning On and Off
Connecting with Television Using the Digital Audio Optical Cable
Connecting with a Television Using the 3.5mm Audio Cable
Connecting with Your Device Using Bluetooth
Using the OontZ Remote Control
Connecting OontZ Speakers Together
Dual Mode - Connect Two OontZ Angle 3 Pro Soundbar Speakers Together
Surround Mode - Connect 2, 3, or 4 Supported OontZ Speakers Together
The OontZ App
Contacting Customer Support
Safety and Precautions
Table of Contents Pages
1 - 3
4
5
6
7 - 9
10 -11
12
13 - 16
17 - 19
20 - 31
32
33 - 35

Buttons
Page 1
Important - Some apps may not support track back, track forward, or play/pause
Power Play/Pause Multi-Function
Volume Down
Volume Up
Track
Back
Track
Forward
Source
Switch between Aux In,
Optical In and Bluetooth Sources
Switch between
Music and Movie Mode

Lights
Page 2
Power Button Light
Lit Red when OontZ Angle 3 Pro
Soundbar is turned off and plugged in
Lit Blue when Bluetooth Source is selected:
- Flashing in Bluetooth pairing mode
- Solid connected to Bluetooth Device
Source Button Light
Lit Green when Aux In is the selected the
audio source
Lit Red when Optical In is the selected the
audio source
Play/Pause Button Light - Two, Three or Four Speakers
Lit White when speakers are in Dual Mode
- With a second OontZ Angle 3 Pro Soundbar (sold separately) you can wirelessly
connect both speakers together to play in Dual Mode .
- For Dual Mode instructions please see page 13.
Lit Orange when speakers are in Surround Mode
- With 2, 3 or 4 OontZ Angle 3 Pro speakers (sold separately) you can wirelessly
connect the speakers together to play with Surround Mode.
- For Surround Mode instructions please see page 17.
Multi-Function Button
- Lit Blue when connected to OontZ app
on iPhone or Smartphone

Connectors
AUX IN Jack
Power Adapter
Charging
Connector
Page 3
- Use for keeping your iPhone or
Smartphone charged while playing.
- Use to power your Echo Input.
- Output 5V - 1A
USB Power Bank
OPTICAL INAUX INDC IN 15V
Optical IN
Jack

Page 4
Turning On and Off
- Press and Release the Power Button
- Power Button Light will turn turn off
- Source Button Light will turn Blue, Green or Red
depending on the last setting before the speaker was
turned off
- Press and Hold Down the Power Button for 2 Seconds
- Power Button Light will turn Red
Turn ON
Turn OFF
Step 2: Insert the small end of the
Power Adapter into the DC IN Jack as
shown
Step 1: Connect the wall plug end of
the Power Adapter into a power
outlet.
OPTICAL INAUX INDC IN 15V

Page 5
Connecting with a Television Using the Digital Audio Optical Cable
- Plug the longer end of the Digital Audio Optical Cable into the Optical In Connector on the OontZ Angle 3 Pro Soundbar as shown
below.
- Plug the shorter end of the Digital Audio Optical Cable into the Optical - Digital Audio Out on your TV as shown below.
- Make sure both ends of the cable are fully inserted.
- Press the Source Button until the light is lit Red. The speaker will respond with ‘Optical In’
We recommend to connect to your TV using the Digital Audio Optical Out Connector. If the TV does not have a Digital Audio Optical
Out Connector, use the 3.5mm Audio Connection as described on Page 6.
Digital Audio Optical Cable is included
ANALOG
AUDIO OUT
L R
DIGITAL
AUDIO OUT
OPTICAL
AUDIO
OUT
OPTICAL INAUX INDC IN 15V

Page 6
Connecting with a Television Using the 3.5mm Audio Cable
- Plug one end of the 3.5mm Audio Cable into the AUX In Connector on the OontZ Angle 3 Pro Soundbar.
- Plug the other end of that 3.5mm Audio Cable into the Headphone or Audio-Out Connector on your television.
- Make sure both ends of the cable are fully inserted.
-If your TV does not have a Headphone Connector or Audio-Out Connector but does have Left Right Analog Audio Out you will need a
3.5mm to RCA cable as shown below.
- Press the Source Button until the light is lit Green. The speaker will respond with
‘Aux In Source’
ANALOG
AUDIO OUT
L R
3.5mm to 3.5mm Audio Cable (included)
OR
3.5mm to RCA audio cable is not included
AUDIO OUT
HEADPHONE
OUT
- or -
DIGITAL
AUDIO OUT
OPTICAL
L
R
OPTICAL INAUX INDC IN 15V

Press the Source Button until the light is lit Blue
Source Button Light is Flashing Blue
- The OontZ Angle 3 Pro Soundbar is ready to pair and connect.
Source Button Light is Solid Blue
- Your device has connected to the OontZ Angle 3 Pro Soundbar and is ready to play.
- The OontZ Angle 3 Pro Soundbar allows the last device it was connected with to automatically
reconnect with the speaker each time the speaker is turned on and that device is within range.*
The OontZ Angle 3 Pro Soundbar can only be connected to one Bluetooth device at a time.
- To pair and connect to a different device, you need to first disconnect the currently paired device.
- To disconnect the current device, press and hold down the Multi-Function button for 3 seconds.
- The Source Light will begin flashing and the OontZ Angle 3 Pro Soundbar is ready for the next device to pair and
connect.
Connecting with Your Device Using Bluetooth -- Step 1 --
Page 7
- Your device needs to be within 100 unobstructed feet of the OontZ Angle 3 Pro Soundbar to pair and connect.
If there is an issue when connecting please move your device closer to the speaker, then pair and connect.
*Exception: certain devices may not automatically reconnect. When connected to an Amazon Echo device it will not automatically
reconnect. You will need to say to your Amazon Echo device, "Alexa, connect my speaker".

Connecting with Your Device Using Bluetooth -- Step 2 --
Page 8
- Go to Settings > Bluetooth, check Bluetooth is on
- Select 'OontZ Angle 3P SB xxx' when it appears under DEVICES (xxx: 3 characters which are unique to your speaker)
- Your device will connect in a few seconds
- The Source Button Light will turn solid blue and there will be a quiet chime
- You can now play your audio wirelessly to your OontZ Angle 3 Pro Soundbar
Note: Your Smartphone or Tablet instructions may vary
-- With Your iPhone, iPad, iPod, Smartphone, Tablet & Mobile Devices
-- With Your Apple Mac or Windows Laptop/Computer
For the pairing and connecting guide for your Apple Mac or Windows laptop/computer, please visit: TheOontZ.com/pairing.
Important - The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest
volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.

Page 9
Connecting with Your Device Using Bluetooth -- Step 2 --
-- With Your Amazon Echo, Amazon Echo Dot or Amazon Echo Input
For assistance with the Alexa app, contact Amazon's Customer Service. Open the Alexa app and select Help & Feedback > Email
Customer Service
- Open the Alexa app
- Select 'Devices' in the lower right corner of the screen.
- Press 'Echo & Alexa'
- Select your Amazon Echo device by pressing it
- Press 'Bluetooth Devices'
- Press 'Pair a New Device'
- Select the 'OontZ Angle 3P SB xxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available
Speakers'
- Alexa will announce: "Connected to OontZ Angle 3P SB xxx"
To connect the next time, turn on the OontZ Angle 3 Pro Soundbar, press the Source Button until the light is Blue and say
"Alexa, connect my speaker" or "Alexa, pair"
To pair and connect with the Amazon Echo, Amazon Echo Dot or Amazon Echo Input for the first time use the Alexa app.
For other Amazon Alexa devices please refer to their pairing and connecting instructions.

Page 10
Using the OontZ Remote with the OontZ Angle 3 Pro Soundbar
(The OontZ app can also be used to control the OontZ Angle 3 Pro Soundbar, refer to Page 20)
PULL
To use the OontZ Remote first remove the insulation strip on the back side of the OontZ Remote as shown.
Once the insulation strip is remove, the OontZ Remote must be paired with the OontZ Angle 3 Pro Soundbar.
– Plug in the OontZ Angle 3 Pro Soundbar (Do not turn on), the Power Light should be lit Red.
– Press and hold the Play/Pause Button for more than two seconds on the OontZ Angle 3 Pro Soundbar.
- The Power Button Light on the OontZ Angle 3 Pro Soundbar will flash indicating the OontZ Angle 3 Pro Soundbar
is ready to pair with the Remote.
- Hold the remote within 3 feet (1 meter) of the OontZ Angle 3 Pro Soundbar.
– At the same time Press and hold the Bluetooth Button and the Power Button on the remote for more than two seconds.
– Once the remote has connected with the OontZ Angle 3 Pro Soundbar the Source Button Light will flash Green 6 times.
Note: To verify if your remote is paired with the OontZ Angle 3 Pro Soundbar press and hold the Bluetooth Button and the
Power Button on the remote for more than two seconds at any time when the OontZ Angle 3 Pro Soundbar is powered on.
The Source Button Light on the OontZ Angle 3 Pro Soundbar will flash 6 times when the remote and the OontZ Angle 3 Pro Soundbar
are paired.

Page 11
Using the OontZ Remote with the OontZ Angle 3 Pro Soundbar
Volume Up
- Press one time to increase the volume of
your OontZ Angle 3 Pro Soundbar one
level.
- Press and hold to increase the volume of
your OontZ Angle 3 Pro Soundbar until the
desired volume is reached.
Source set to Bluetooth - Track Back Function
- Press and release to go to the beginning of the
track or the previous track depending on the
connected device’s media player.
Volume Down
- Press one time to decrease the volume of your
OontZ Angle 3 Pro Soundbar one level.
- Press and hold to decrease the volume of your
OontZ Angle 3 Pro Soundbar until the desired
volume is reached.
Source set to Bluetooth
- Press one time to Pause and again to Play.
Source set to Aux In or Optical In
- Press one time to mute and again to unmute.
Source and Mode
- Press and release to change between Aux In,
Optical In and Bluetooth sources.
- Press and hold to change between Music and
Movie Mode.
Source set to Bluetooth - Track Forward Function
- Press and release to go to the next track.
Power
- Press and hold for 3 seconds to turn on and
off the OontZ Angle 3 Pro Soundbar.
Bluetooth Button
- With the Source set to Bluetooth, Press and release
to enable the OontZ Angle 3 Pro Soundbar to
connect with your Bluetooth enabled device.
- Press and hold for 3 seconds to disconnect your
connected Bluetooth device from the OontZ Angle
Pro 3 Soundbar.
- When already connected to your Bluetooth device
or when Aux In or Optical In sources are selected,
press and release once to enter or exit Surround
Mode.

Page 12
Bluetooth
for playing music Audio or Optical Cable
for playing the audio from a
video
or

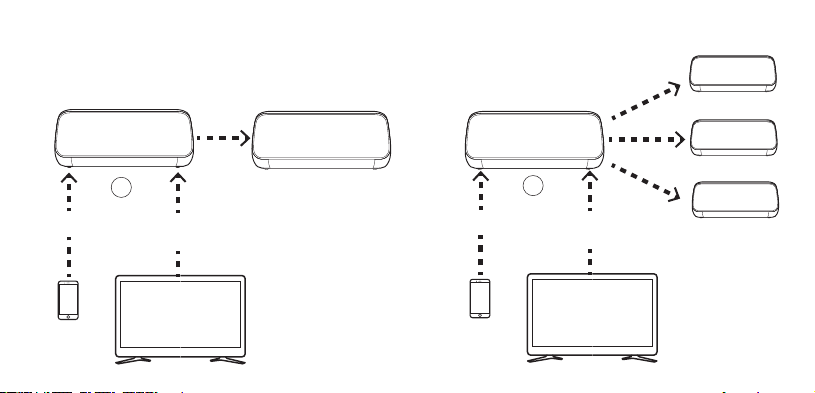

Connecting OontZ Speakers together
Dual Mode (See Page 13) Surround Mode (See Page 17)
Bluetooth
for playing music Audio or Optical Cable
for playing the audio from a
video
or
Left Channel
or
Stereo
Right Channel
or
Stereo Stereo
Stereo
Stereo
Stereo
Connect two OontZ Angle 3 Pro Soundbar speakers
together to play Left Channel - Right Channel or Full
Stereo in separate areas
Connect the OontZ Angle 3 Pro Soundbar
with up to 3 other OontZ Supported
speakers

Page 13
– Turn on both OontZ Angle 3 Pro Soundbar speakers.
– Connect one of the speakers with your device. This speaker will serve as the Master Speaker.
– On the second speaker press and release the Source Button until lit Blue. The Source Button light needs to be flashing. If the
second speaker has a solid Blue Light it is connected to a device and you need to disconnect it by pressing and holding down the
Multi-Function Button for 3 seconds until the Sourece Button light begins flashing.
- On the Master Speaker (speaker connected to your device) press and hold down the Play/Pause button for 3 seconds until the
Play/Pause Button is flashing with a White Light and the speaker says “Dual Pairing”.
- After a few seconds both speakers Play/Pause Button will be lit with a solid White light. The Master speaker will say “Left Channel”
and the second speaker will say “Right Channel”. The speakers will be connected together for Left Channel - Right Channel and you are
ready to play.
Connecting two OontZ Angle 3 Pro Soundbar speakers together for
Left Channel - Right Channel
You can also us the OontZ app to connect two OontZ Angle 3 Pro Soundbar speakers together - See page 20 for instructions on using the
OontZ app

Page 14
– Use the buttons on the Master Speaker for volume, play/pause, track back, and track forward. These controls are disabled on the
second speaker when paired together.
– Use the Master Speaker for connecting to different audio devices via Bluetooth, Optical IN or AUX IN. The Bluetooth, Optical IN
and AUX IN are disabled on the second speaker when paired together.
Master Speaker Second Speaker
Two OontZ Angle 3 Pro Speakers connected for Left Channel - Right Channel
Lit Blue if
connected to
the OontZ app
Lit White Light OFF
Lit White
Left Channel -
Right Channel
Light OFF
Lit Blue,
Green,
or Red

Page 15
Changing to Dual Stereo from Left Channel - Right Channel
Changing back to Left Channel - Right Channel from Dual Stereo
– To change back to Left Channel - Right Channel, press and hold down the Track Forward button on the Master Speaker for 3
seconds. The Master
Speaker will say “Left Channel” and the second speaker will say “Right Channel”. You are ready to play.
Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo.
– To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 13).
– With the speakers connected together for Left Channel - Right Channel, you can change the speakers to Dual Stereo.
–
To change to Dual Stereo, press and hold down the Track Forward button on the Master Speaker for 3 seconds until both speakers
say “Dual Stereo”. You are ready to play.

Page 16
Turning the speakers off
– Turning the Master Speaker off will turn both speakers off.
– Turning the second speaker off first will only turn that speaker off and the Master Speaker will play as a single speaker.
Turning the speakers back on
– Turn both speakers on and they will automatically try to connect to each other again.
– Turn one of the speakers on and a device can connect with it, and play as a single speaker.
Disconnecting the two speakers from each other
– Both speakers need to be turned on.
– On the Master Speaker press and hold down the Play/Pause button for 3 seconds. The White Lights will turn off and the
speakers will be disconnected from each other.
Playing the audio from a video in Dual Mode
–To play the audio from a video or TV in Dual Mode you will need to connect the Master Speaker to your device or TV using a the
3.5mm Stereo Audio Cable or Optical IN Cable, allowing the audio and video to play in sync with each other. If the Master Speaker
is connected over Bluetooth to your device or TV there will be a delay in the audio playback from a video.
OontZ Dual Mode - Important Notes

Page 17
– Turn on one of OontZ Angle 3 Pro Soundbar speaker.
– Connect the speaker to your device with Bluetooth, 3.5mm audio cable or Optical Digital Audio Cable. This speaker will serve as the
Master Speaker.
– Turn on the other supported OontZ speakers. These speakers will be the Slave Speakers.
– The Slave Speakers must not be connected to any device, their Source Button Light must be flashing with a Blue light. If a speaker
has a solid Blue Light it is connected to a device and you need to disconnect it by pressing and holding down the Multi-Function
Button for 3 seconds until the Source Button Light begins flashing with a Blue light.
– On the OontZ Angle 3 Pro Soundbar (Master Speaker) press and release the Multi-Function Button . The Play/Pause Button Light
will turn solid Orange and the speaker will say “Surround Mode Transmit”.
– On the Slave Speakers with a flashing Blue Light, press and release the Multi-Function Button . The Play/Pause Button Light will
flash Orange and the speaker will say “Surround Mode Receive”.
– After a few seconds each speaker will connect with the Master Speaker and will have the Play/Pause Button Light lit with a solid Orange
light.
Surround Mode - Connecting 2, 3 or 4 Supported OontZ speakers to OontZ Angle 3 Pro Soundbar
You can also us the OontZ app to connect the supported OontZ speakers together - See page 20 for instructions on using the OontZ app
Note: The OontZ Angle 3 Pro Soundbar is compatible with the OontZ Angle 3 ULTRA (4th Gen) and OontZ Angle 3
Pro (2nd Gen) speakers. It is NOT compatible with other OontZ Speakers or previous generations of the OontZ
Angle 3 ULTRA or OontZ Angle 3 Pro speakers
