Aura™ CM-54i
Surface Mount Illuminated Enclosure
INSTALLATION INSTRUCTIONS
Door Activation Devices
1. GENERAL DESCRIPTION
Camden Aura™, Model CM-54i provides the Industry’s 1st
“Changing State” illuminated switch enclosures.
It offers eld selectable red/green/blue illumination, activated
directly by the switch or remotely by a relay* such as our CX-33
or EMF-2, a time-clock or access control system. User selectable
features include a 3 Amp Form ‘C’ relay, and piezo speaker for
audible annunciation, as well as control over the idle and active
LED colors. Another exclusive is the ability to plug in a TX-9 RF
transmitter, thereby requiring only 2 conductors be run for
power (no batteries required).
The box is made of impact and ame resistant black ABS, and
compatible with any Camden CM-41, CM-45, or CM-46 series
switch. The illumination is provided by an array of super-bright
and energy ecient LED’s, which can be powered by 12 or 24
volts AC/DC.
2. SPECIFICATIONS
Input Voltage 12 or 24V AC/DC
Output Voltage 3 Volts DC for TX-9 (only)
Current draw 250 mA @ 12 VDC / 110 mA @ 24VDC
Contact Rating 3A @ 30 VDC
Lumina Red 14.8 lumens, 1600 mW
Lumina Green 3.8 lumens, 330 mW
Sounder 3200 ± 300 Hz @ 85 dB
Relay Contact 1 x Form C
Mounting 4 x #12 wood screws with anchors
Construction Flame-resistant black ABS
(Insert–translucent ABS)
Finish Attractive pebble nish
Dimensions 6-1/2” H x 6-1/2” W x 2” D
(165mm x 165mm x 51mm)
3. SETUP
Switch SW1 contains a bank of 3 dipswitches.
Dipswitch # 3 turns the speaker on or off. Dipswitch # 2 toggles
operation of the relay, and # 1 allows you to choose whether
the color will be changed locally via the push switch or remotely.
* NOTE: The CX-12 Plus Multi-Function Relay may be used
with the Aura™, however an isolating relay must be wired in
parallel with the lock, and the relay’s dry contact output wired
into the CM-54i.
Switch Position Description
SW1
1
REMOTE / LOCAL On to enable
LED color change from idle to Active
with press of the push button.
2RELAY On to enable operation of the
relay with activation of the push button.
3
SPEAKER On to enable operation of
the speaker with activation of the
push button.
Color selection is made with Switches SW2 and SW3. SW2
determines the Active color and SW3 determines the Idle color.
Setting the IDLE Color (SW2)
Switch Position Description
SW2
1ON = Red LED when IDLE
2ON = Green LED when IDLE
3ON = Blue LED when IDLE
Setting the Active Color (SW3)
Switch Position Description
SW3
1ON = Red LED when Active
2ON = Green LED when Active
3ON = Blue LED when Active
NOTE: If all DIP switches are in the OFF position, there will
be no color illuminated. This allows for no Idle color or no
Active color.
Once all DIP switches are set, proceed to Section 4 – Installation.
1- CM-54i 1- Red / Green / Blue Aura PCB 2- #6 x 3/8 Screws
THIS PACKAGE INCLUDES:

Page 2 of 5
CM-54iSURFACE MOUNT ILLUMINATED ENCLOSURE
INSTALLATION INSTRUCTIONS
4. INSTALLATION
NOTE: If you will be including the optional Aura™ signage,
follow that product’s installation instructions before
installing Aura™
1. Determine the wire access location and drill hole of sucient
size, or use center knock-out plug. Drill the four required
mounting holes. (11/64” min.) There are four indents
provided on 3” centers for your convenience. (See Diagram 1)
2. Pull wiring through access hole, and mount the box to wall
using 4 screws.
3. Remove circuit board from package and locate into the box.
Pull the wire through the hole in centre of circuit board, and
then secure with the two small self-tapping screws (provided).
4a. Wire as per diagram 2 (typical installation). Route the switch
wiring through opaque diffuser panel, and install diffuser
panel into box. It should t snuggly.
4b. If using a TX-9 transmitter to send the signal to an
RX-91 or RX-92 Receiver, attach the transmitter and wire it
before installing circuit board into the enclosure and tting
diffuser. See Diagram 3.
5. Screw in two #6-32 Allen-head screws (provided with switch)
into the threaded center inserts, then attach wires to switch
and install switch over screws. Using the Allen key (provided),
locate the screws and tighten (by hand only).
6. Connect power and test for proper operation.
5. WARRANTY
Camden Door Controls guarantees the Aura™ (CM-54i series)
to be free from manufacturing defects for 3 years from date
of sale.
If, during the rst 3 years, the Aura™ fails to perform correctly,
it may be returned to our factory where it will be repaired or
replaced (at our discretion) without charge. Except as stated
herein, Camden extends no warranties expressed or implied
regarding function, performance or service.

Page 3 of 5
CM-54iSURFACE MOUNT ILLUMINATED ENCLOSURE
INSTALLATION INSTRUCTIONS
CM-54i Dimensional & Assembly Diagram
CAMDEN DOOR CONTROLS
SCALE: NONE
DRAWING No: DRG-CM-54i_01 FILE NAME: CM-54i diagram 1.vsd
DRAWN BY: DGW DATE: 04/26/17 REVISED:
5502 Timberlea Blvd. Mississauga, Ontario L4W 2T7
CM-54i Dimensional & Assembly Diagram
PUSH
TO OPEN
CM-55i Box
Aura
TM
PCB
Diffuser
2 x 6-32 x 1-1/2”
Allen Screws to mount the
switch to box assembly
2 x #6 x 3/8”
Pan head Phillips Screws
for mounting PCB to box
CM-45 Push Plate

Page 4 of 5
CM-54iSURFACE MOUNT ILLUMINATED ENCLOSURE
INSTALLATION INSTRUCTIONS

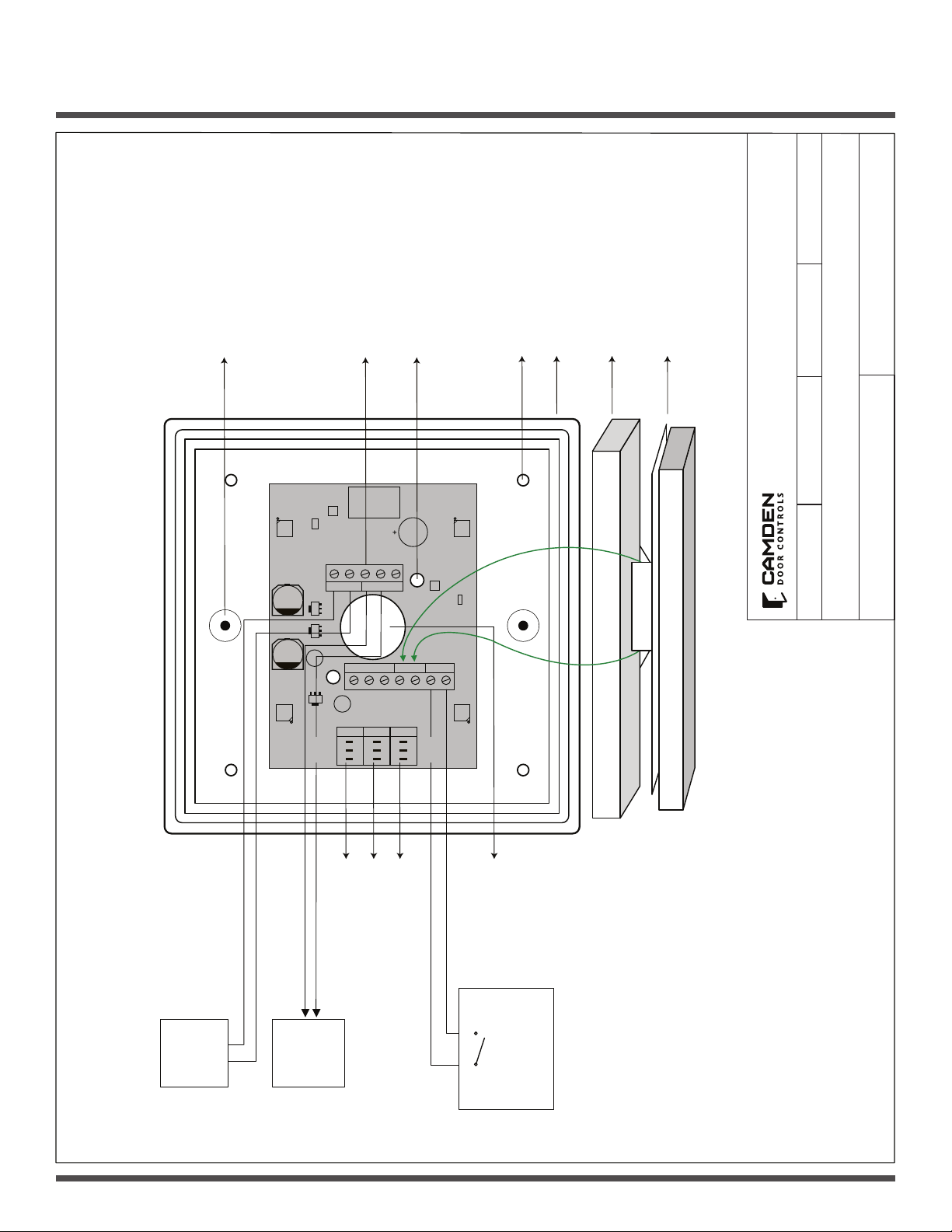

CM-54i Wiring Diagram (Typical)
CAMDEN DOOR CONTROLS
SCALE: NONE
DRAWING No: DRG-CM-54i_02 FILE NAME: CM_54i Diagram2.vsd
DRAWN BY: DGW DATE: 04/26/17 REVISED:
5502 Timberlea Blvd. Mississauga, Ontario L4W 2T7
CM-54i Wiring Diagram (Typical)
ACTIVE
NC COM NO PWR AC/DC
IDLECOL ENABLE
1 2 3
ON DP
1 2 3
ON DP
1 2 3
ON DP
-REM + -PBTN + EN RF/TX- PWR +
Switch mounting holes (x2)
All-Active Switch (sold separately)
Diffuser Ring CM-54 Enclosure Box mounting screw locations Circuit Board Mount (x2) Power and Relay Terminal Strip
Enable SW1 Dipswitch Idle Col SW2 Dipswitch Active SW3 Dipswitch
Wire Access Hole
Door
Operator
or Locking
Device
Remote Switch
or Relay
(ie. CX-33 or EMF-2)
NOTES: 1. Power terminals are not polarity sensitive 2. Typical installation shown, where remote device changes LED color. If it is desired to have switch activation change LED color, set REMote/LOCal dip on SW1 to LOCAL and do not wire to the REMOTE terminals.
RED
GREEN
BLUE
12 / 24 V
AC/DC
Power
REM/LOC
RELAY
SPEAKER

Call: 1.877.226.3369 / 905.366.3377
Visit: www.camdencontrols.com
Opening New Doors to
Innovation, Quality and Support!
Page 5 of 5
CM-54iSURFACE MOUNT ILLUMINATED ENCLOSURE
INSTALLATION INSTRUCTIONS
File: CM-54i Manual_R3.indd
Rev.: 01/14/21
Part No.: #40-82B208
Wiring Diagram for CM-54i & TX-9
CAMDEN DOOR CONTROLS
SCALE: NONE
DRAWING No: DRG-CM-54i_03 FILE NAME: CM_54i Diagram3.vsd
DRAWN BY: DGW DATE: 04/26/17 REVISED:
5502 Timberlea Blvd. Mississauga, Ontario L4W 2T7
CM-54i & TX-9
ACTIVE
NC COM NO PWR AC/DC
IDLECOL ENABLE
1 2 3
ON DP
1 2 3
ON DP
1 2 3
ON DP
-REM + -PBTN + EN RF/TX- PWR +
Switch
Diffuser
NOTES: 1. 12/24 Power terminals are not polarity sensitive. 2. This installation is intended for 2-wire retrofit applications.
RED
GREEN
BLUE
12 / 24 V
AC/DC
Power
REM/LOC
RELAY
SPEAKER
+
-+
-
+-
LAZERPOINT
CAMDEN CM-TX-9
2”

TX-9
<< Cut this lead to ¼”
STEP 1: Cut the middle red lead to 1/4” as it is not used. Cut both battery leads and the remaining switch lead to approximately 2” long. Strip the insulation back on the 3 long ends to approximately 1/4”. STEP 2: Turn over and remove release paper from double-sided tape. Line up and carefully install TX-9 on back surface of mounting box.
STEP 3: Connect the 3 wires from the TX-9 to the circuit board exactly as shown. The middle red wire that was cut short is not used.
STEP 4: Install circuit board in box and connect the 2 power wires as shown. Set dipswitches for desired operation. Install diffuser and connect push switch wires to terminal strip then install switch. Test for proper operation.
LAZERPOINT
CAMDEN
CM-TX-9
