Cameo LUXIS FC CLLUXISFC User manual

USER‘S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D‘UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘USO
LUXIS®FC
FULL COLOUR LED PAR 200 W RGBALC
CLLUXISFC

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO
ENGLISH
INFORMATION ON THIS USER MANUAL 6
INTENDED USE 6
DEFINITIONS AND SYMBOL EXPLANATIONS 6
SAFETY INSTRUCTIONS 7
NOTES FOR MOBILE INDOOR DEVICES 10
INCLUDED 10
INTRODUCTION 10
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 11
OPERATION 13
OPTIONAL ACCESSORIES 25
INSTALLING/REMOVING THE INTERCHANGEABLE LENS 25
MOUNTING THE FILTER FRAME OR BARNDOOR 26
SETUP AND INSTALLATION 28
SPIN16 TV SPIGOT 29
CARE, MAINTENANCE AND REPAIR 29
DIMENSIONS 30
TECHNICAL DATA 31
MINIMUM DISTANCE TO ILLUMINATED SURFACE 32
MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 32
DISPOSAL 32
MANUFACTURER’S DECLARATIONS 33
DEUTSCH
INFORMATIONEN ZU DIESER BEDIENUNGSANLEITUNG 34
BESTIMMUNGSGEMÄSSER GEBRAUCH 34
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 34
SICHERHEITSHINWEISE 35
HINWEISE FÜR ORTSVERÄNDERLICHE INDOOR-GERÄTE 39
LIEFERUMFANG 39
EINFÜHRUNG 39
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 40
BEDIENUNG 42
OPTIONALES ZUBEHÖR 55
WECHSELLINSE MONTIEREN BZW. DEMONTIEREN 56
FILTERRAHMEN BZW. FLÜGELBEGRENZER MONTIEREN 57
AUFSTELLUNG UND MONTAGE 58
SPIN16 TV-ZAPFEN 59
PFLEGE, WARTUNG UND REPARATUR 59
ABMESSUNGEN 60
TECHNISCHE DATEN 61
MINDESTABSTAND ZUR BELEUCHTETEN FLÄCHE 62
MINDESTABSTAND ZU NORMAL ENTFLAMMBAREN MATERIALIEN 62
ENTSORGUNG 63
HERSTELLERERKLÄRUNGEN 64

FRANÇAIS
INFORMATIONS CONCERNANT CE MANUEL D’UTILISATION 65
UTILISATION CONFORME 65
EXPLICATIONS DES TERMES ET DES SYMBOLES 65
CONSIGNES DE SÉCURITÉ 66
REMARQUES CONCERNANT LES APPAREILS D’INTÉRIEUR MOBILES 70
CONTENU DE LA LIVRAISON 70
INTRODUCTION 70
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET D’AFFICHAGE 71
UTILISATION 73
ACCESSOIRES EN OPTION 87
MONTAGE OU DÉMONTAGE DE LA LENTILLE DE RECHANGE 87
MONTAGE DU CADRE DE FILTRE OU DES VOLETS COUPE-FLUX 88
INSTALLATION ET MONTAGE 90
PIVOT TV SPIN16 91
ENTRETIEN, MAINTENANCE ET RÉPARATION 91
DIMENSIONS 92
CARACTÉRISTIQUES TECHNIQUES 93
DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 94
DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX NORMALEMENT INFLAMMABLES 94
ÉLIMINATION 94
DÉCLARATIONS DU FABRICANT 95
ESPAÑOL
INFORMACIÓN SOBRE ESTE MANUAL DE INSTRUCCIONES 97
USO PREVISTO 97
TÉRMINOS Y SÍMBOLOS 97
INSTRUCCIONES DE SEGURIDAD 98
INDICACIONES PARA EQUIPOS PORTÁTILES DE INTERIOR 102
VOLUMEN DE SUMINISTRO 102
INTRODUCCIÓN 102
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS DE VISUALIZACIÓN 103
FUNCIONAMIENTO 105
ACCESORIOS OPCIONALES 119
MONTAJE O DESMONTAJE DE LA LENTE INTERCAMBIABLE 119
MONTAR PORTAFILTROS O VISERA 120
INSTALACIÓN Y MONTAJE 122
ADAPTADOR DE ESPIGA SPIN16 123
CUIDADO, MANTENIMIENTO Y REPARACIÓN 123
MEDIDAS 124
DATOS TÉCNICOS 125
DISTANCIA MÍNIMA CON RESPECTO A LA SUPERFICIE ILUMINADA 126
DISTANCIA MÍNIMA CON RESPECTO A MATERIALES NORMALMENTE INFLAMABLES 126
ELIMINACIÓN 126
DECLARACIONES DEL FABRICANTE 127
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

POLSKI
INFORMACJE DOTYCZĄCE NINIEJSZEJ INSTRUKCJI OBSŁUGI 129
UŻYTKOWANIE ZGODNE Z PRZEZNACZENIEM 129
OBJAŚNIENIA TERMINÓW I SYMBOLI 129
ZASADY BEZPIECZEŃSTWA 130
UWAGI DOTYCZĄCE PRZENOŚNEGO SPRZĘTU DO STOSOWANIA W POMIESZCZENIACH 133
ZAKRES DOSTAWY 133
WPROWADZENIE 133
PRZYŁĄCZA, ELEMENTY OBSŁUGI I WSKAŹNIKI 135
OBSŁUGA 137
AKCESORIA DODATKOWE 150
MONTAŻ I DEMONTAŻ WYMIENNEJ SOCZEWKI 150
MONTAŻ RAMY FILTRA LUB SKRZYDEŁEK KADRUJĄCYCH 151
USTAWIANIE I MONTAŻ 153
ADAPTER TV SPIN16 154
CZYSZCZENIE, KONSERWACJA I NAPRAWY 154
WYMIARY 155
DANE TECHNICZNE 156
MINIMALNA ODLEGŁOŚĆ OD POWIERZCHNI OŚWIETLONEJ 157
MINIMALNA ODLEGŁOŚĆ OD NORMALNIE ŁATWOPALNYCH MATERIAŁÓW 157
UTYLIZACJA 157
OŚWIADCZENIA PRODUCENTA 158
ITALIANO
INFORMAZIONI SUL PRESENTE MANUALE D'USO 159
UTILIZZO CONFORME 159
SPIEGAZIONE DI CONCETTI E SIMBOLI 159
INDICAZIONI SULLA SICUREZZA 160
AVVERTENZE PER DISPOSITIVI INDUSTRIALI PORTATILI 163
FORNITURA 163
INTRODUZIONE 163
CONNETTORI, ELEMENTI DI COMANDO E VISUALIZZAZIONE 164
UTILIZZO 166
ACCESSORI OPZIONALI 180
MONTAGGIO /SMONTAGGIO DELLA LENTE INTERCAMBIABILE 180
MONTARE TELAIO PORTAFILTRO O DEFLETTORE CON ALETTE 181
INSTALLAZIONE E MONTAGGIO 183
CODOLO TV SPIN16 184
PULIZIA, MANUTENZIONE E RIPARAZIONE 184
INGOMBRO 185
DATI TECNICI 186
DISTANZA MINIMA DALLA SUPERFICIE ILLUMINATA 187
DISTANZA MINIMA DAI MATERIALI NORMALMENTE INFIAMMABILI 187
SMALTIMENTO 187
DICHIARAZIONI DEL PRODUTTORE 188
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

DMX
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX /
STEROWANIE DMX / CONTROLLO DMX 189
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ /
CONTENUTO

6
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
ENGLISH
YOU HAVE MADE THE RIGHT CHOICE!
This device has been developed and manufactured to the highest quality standards to ensure
many years of problem-free operation. Please read this user manual carefully to be able to use
your new Cameo product quickly and optimally. Further information about Cameo Light is availab-
le on our website CAMEOLIGHT.COM.
INFORMATION ON THIS USER MANUAL
• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
• Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is
an integral part of the product.
INTENDED USE
The product is a device for event technology!
This product has been developed for professional use in the field of event technology and is not
suitable for use as domestic lighting!
Furthermore, this product is only intended for qualified users with specialist knowledge of event
technology!
Use of the product outside the specified technical data and operating conditions is considered
inappropriate!
Liability for damage and third-party damage to persons and property due to inappropriate use is
excluded!
The product is not suitable for:
• Use by persons (including children) with limited physical, sensory or mental abilities or lack of
experience and knowledge.
• Children (children must be instructed not to play with the device).
DEFINITIONS AND SYMBOL EXPLANATIONS
1. HAZARD: The word HAZARD, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates situations in
which there is an immediate danger or risk of potentially fatal injury.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or
conditions that could result in injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations
or conditions that could result in damage to property and/or the environment.

7
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
This symbol identifies hazards that can cause electric shock.
This symbol identifies hazardous areas or hazardous situations.
This symbol indicates hazards caused by hot surfaces.
This symbol indicates hazards caused by intense light sources.
This symbol indicates a device in which there are no
user-replaceable parts.
This symbol indicates additional information on the operation
of the product.
SAFETY INSTRUCTIONS
HAZARD:
1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it
has been damaged in any other way, switch it off immediately and unplug it from
the power source. The device may be repaired only by authorised repair technici-
ans.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never disconnect the protective conductor. Devices of protection class 2
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected power cables may only be replaced by a qualified person.

8
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
CAUTION:
1. Do not switch on the device if it has been exposed to extreme temperature fluctu-
ations (for example, following transport). Moisture and condensation can damage
the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values spe-
cified on the device. If the device has a voltage selector switch, do not connect the
device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the
on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning
strikes).
6. Observe the specified maximum output current on devices with a Power Out
connection. Ensure that the total current consumption of all connected devices
does not exceed the specified value.
7. Replace plug-in power cables with original cables only.
HAZARD:
1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons
(including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall
down. Only use suitable stands or mounts (particularly for fixed installations).
Ensure that accessories are properly installed and secured. Ensure that applicable
safety regulations are observed.
WARNING:
1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied
by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid dama-
ge or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials!
Unless explicitly stated, the minimum distance is 0.3 m.

9
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
CAUTION:
1. Moving components such as mounting brackets may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due
to the movement of the device. Sudden movement of the device can cause shock
reactions.
3. The housing surface of the device can become very hot during regular operation.
Ensure that accidental touching of the housing is not possible. Always allow the
device to cool sufficiently before removal, maintenance work and charging etc.
CAUTION:
1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or
other heat sources. Ensure that the device is always installed in such a way that it
is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufactu-
rer.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidi-
ty according to the specifications.
7. Devices can be continuously further developed. In the event of deviating informa-
tion on operating conditions, performance or other device properties between the
user manual and the device labelling, the information on the device always has
priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000 m
above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine
conditions.
PLEASE NOTE:
For conversion or retrofit sets or accessories provided by the manufacturer, it is
essential to observe the instructions included.
CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!
1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

10
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
4. Permanently installed lamps are built into these lighting units. These may not be
replaced by the user. The lamps contained in this lighting unit may only be replaced
by the manufacturer, its service partner, or a similarly qualified person.
NOTES FOR MOBILE INDOOR DEVICES
1. Temporary operation! Event equipment is generally only designed for temporary
operation.
2. Continuous operation or permanent installation can impair the functioning of the
device and cause premature ageing.
INCLUDED
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
Product includes:
X1x LUXIS FC spotlight
X1x interchangeable lens 9° (pre-assembled)
X1x interchangeable lens 21°
X1x interchangeable lens 51°
X1x filter frame (pre-assembled)
X1x SPIN16 16 mm TV spigot (pre-assembled)
X1x power cable
XUser manual
INTRODUCTION
LED PAR with 200 W RGBALC COB LED
CLLUXISFC
CONTROL FUNCTIONS:
1 CH DIM UC1, 3 CH Presets+D, 3 CH RGB, 5 CH RGB+D, 6 CH Direct, 9 CH Direct Control, 9 CH
Direct+D, 7 CH RGB-CTC, 9 CH RGB-CCT, 10 CH HSI-CTC, 12 CH 16Bit, 16 CH 16Bit Direct, 20 CH
Full Access DMX Control
Master/slave operation
Standalone functions
W-DMX™ optional

11
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
FEATURES:
200W 6in1 RGBALC COB LED. DMX512. W-DMX™ optional. 5- and 3-pin DMX connections.
Spin16 folding TV spigot included. Quicklight via rotary-push encoder. Operating voltage:
100–240 V AC.
The spotlight features the RDM standard (Remote Device Management). Remote device
management allows the user to view the status and configuration of RDM terminals via an RDM-
capable controller.

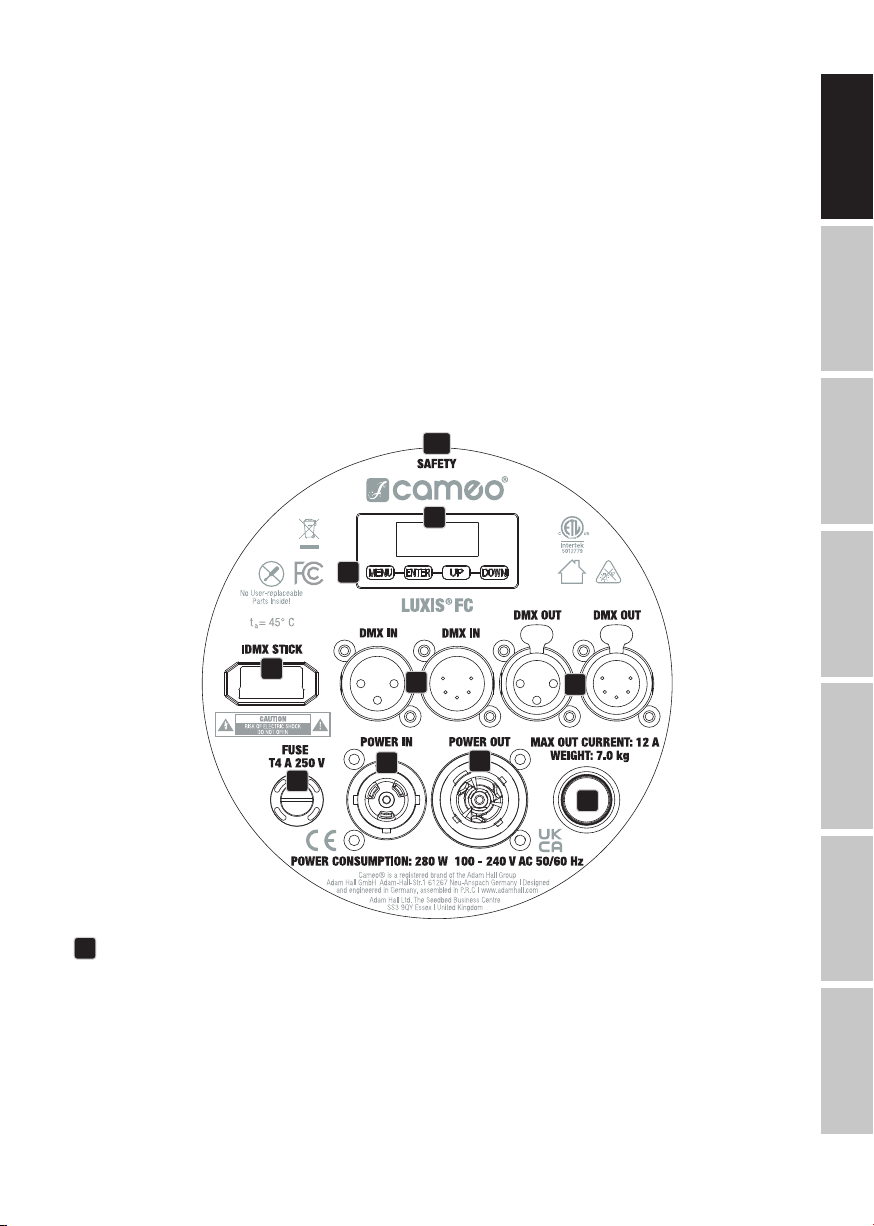

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
Flowing Text Letters
FONT: Helvetica Neue Lt Pro 47 Light Condensed
Letters Height in Scale1:1 = 2.469 mm (7pt)
Print Color PANTONE 429 C GREY
LUXIS FC SILKSCREEN PRINT DESCRIPTION 20220218
CMYK COLOR SCHEME FONTS CONVERTED INTO PATHS - SCALE 1:1
HEADLINE LETTERS
FONT: HELVETICA NEUE LT PRO 97 BLACK CONDENSED
LETTERS HEIGHT IN SCALE 1:1 = 3.880 MM (11pt)
PRINT COLOR PANTONE WHITE
CAMEO LOGOS + SYMBOLS PANTONE 429 C GREY
10
7
8
645
312
9
1POWER IN
TRUE1-compatible mains input socket. Operating voltage 100–240 V AC/50–60 Hz. A suitable
mains cable with TRUE1 compatible plug is included.

12
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
2POWER OUT
TRUE1-compatible mains output socket. Facilitates power supply to other CAMEO lights. Ensure
that the total power consumption of all devices connected to the device does not exceed the given
ampere (A) value.
3FUSE
Fuse holder for 5 x 20 mm fuses. IMPORTANT: Replace the fuse only with a fuse of the same type
and value. In the event of repeated fuse failure, please contact an authorised service centre.
4DMX IN
Male 3-pin and 5-pin XLR sockets for connection of a DMX control device (e.g. DMX console).
Only use the ports alternatively.
5DMX OUT
Female 3-pin or 5-pin XLR sockets for sending the DMX control signal. Only use the ports
alternatively.
6IDMX STICK
Connection for the optional iDMX stick for W-DMX™ connection (plug in the iDMX stick with the
antenna facing upwards). When the spotlight is controlled via an iDMX stick, the control signal is
transmitted via DMX OUT. The iDMX stick and DMX IN are only to be used alternatively.
7OLED DISPLAY
The OLED display shows the currently activated mode (main display), the menu items in the menu
and the numerical value or operating mode in certain menu items. If there is no input for approx.
30 seconds, the display automatically returns to the main display. Note regarding the main
display in operating modes with external control: As soon as the control signal is interrupted, the
characters in the display begin to flash. When there is a control signal again, the flashing stops.
Briefly pressing UP when in the main display rotates the display by 180°.
8CONTROL BUTTONS
MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main
display. Pressing MENU without confirming a value or status change with ENTER restores the
previously confirmed value or status.
ENTER – Press ENTER to access the menu levels to make value changes and use ENTER to
access the submenus. Confirm value or status changes by pressing ENTER.
UP and DOWN – Select individual menu items in the main menu (DMX start address, DMX
operating mode etc.) and in the submenus. Change the status or a value in a menu item, such as
the DMX start address.

13
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
9ROTARY-PUSH ENCODER
Four different spotlight modes are available as direct access for quick and easy adjustment of the
spotlight without an external controller. These can be selected in the Encoder Mode menu item
(Dimmer UC1, CCT, HSI, Direct LED).
If one of the DMX modes is activated and there is no DMX signal on the device, the default mode
can be used with the encoder. Rotate or press the encoder to activate the mode. Change a
numerical value (e.g. dimmer) by turning the encoder. If the preset mode has multiple channels,
press the encoder to go to the next channel, etc.
If “Disabled” is selected in the Encoder Mode menu item, none of the four spotlight modes are
available for direct access and the encoder is used to navigate in the menu.
10 SAFETY
Securing lug for attaching the spotlight.
OPERATION
PLEASE NOTE
As soon as the spotlight is correctly connected to the power supply, the following are displayed in
succession: “Update wait ...” (for service purposes only), “Welcome to Cameo”, the model name
and the software version. After this process, the spotlight is ready for operation and the previously
activated operating mode is launched.
The main display is activated automatically if no input is made within approximately 30 seconds.
To navigate one level up in the submenus, briefly press MENU.
• If one of the DMX operating modes is activated and there is no DMX signal to the DMX input or
the iDMX stick, the characters on the display begin to flash.
• Briefly pressing UP when in the main display rotates the display by 180°.
• To quickly change a value, such as the DMX start address, press and hold UP or DOWN.

14
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
SET DMX START ADDRESS (DMX Address)
Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to
select the menu item DMX Address and confirm with ENTER. Using the UP and DOWN buttons,
configure the desired DMX start address and press ENTER to confirm (highest value dependent
upon activated DMX mode).
CONFIGURING DMX MODE (DMX Mode)
Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to
select the menu item DMX Mode and confirm with ENTER. Use UP and DOWN again to select
the desired DMX operating mode and confirm with ENTER (DMX operating modes with DMX
delay channel are identified with 'D'). Tables with the channel assignments can be found in these
instructions under DMX CONTROL.

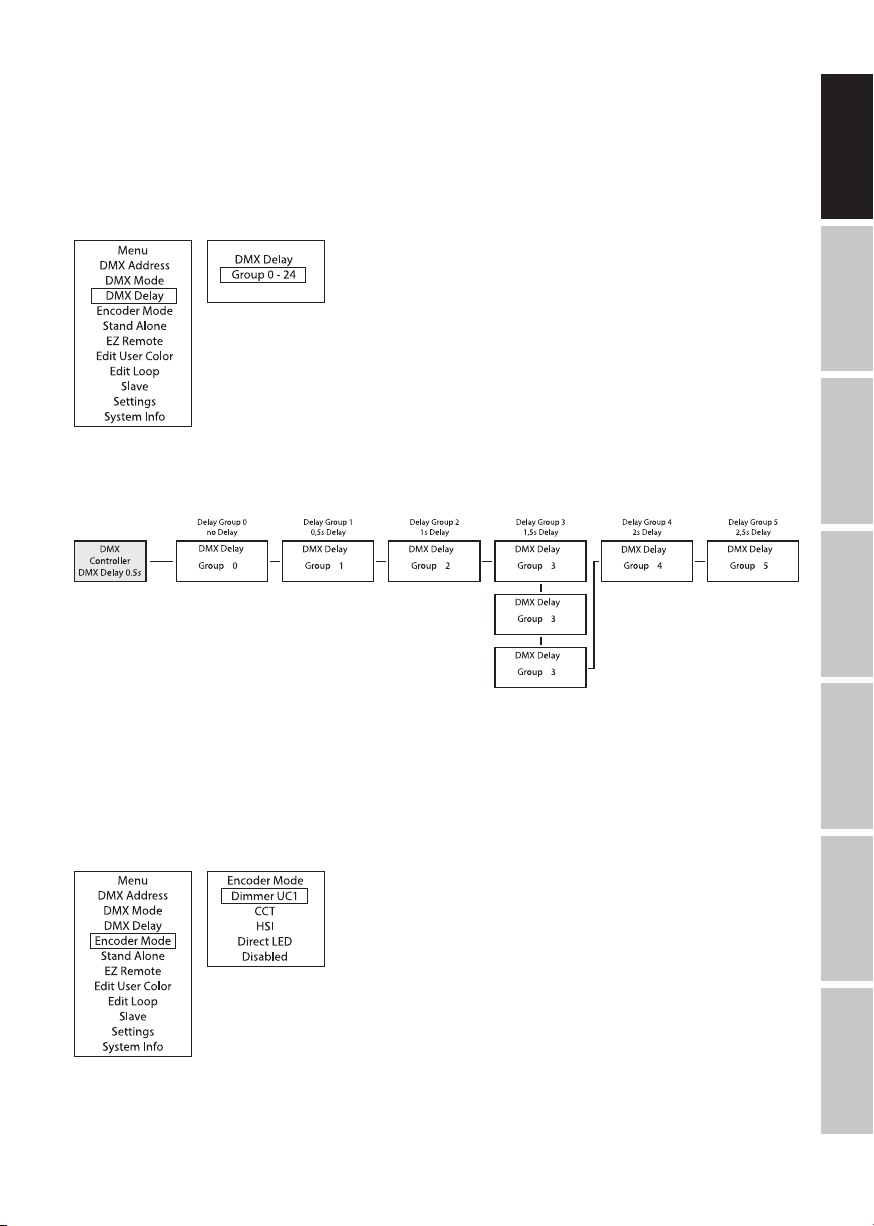

DMX DELAY
The DMX Delay function is a simple way to create a running light effect with a large number of
spotlights that are all the same model and that are all running the same software version. This
is otherwise only achievable with a suitable DMX controller and time-consuming programming.
All the spotlights used (same models, same software version) are set to the same DMX operating
mode with DMX delay channel and controlled via the same DMX start address.

15
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
Setting the DMX delay:
Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to
select the menu item DMX Delay and confirm 2x with ENTER.
Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby
several spotlights can be assigned to one group. The group number is also the factor by which the
set delay time set in the DMX controller is multiplied. Confirm each entry by pressing ENTER.
The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate
DMX delay channel of the corresponding DMX mode (0.0s to 2.0s in 0.1s increments).
ENCODER MODE (Encoder Mode)
Four different modes are available as direct access (control element no. 9) for quick and easy
adjustment of the spotlight without a remote controller.
Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to
select the menu item Encoder Mode and confirm with ENTER. Then select the desired Encoder
Mode using UP and DOWN and confirm with ENTER.

16
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
Refer to the table below for encoder modes.
Rotate encoder = change value, press encoder = confirm and next menu item
Dimmer UC1 User Colour 1 Dimmer
CCT Dimmer CCT = Colour Temperature Tint = tint
HSI Dimmer Hue = colour shade Saturation = saturation
Direct LED Dimmer Strobe Red Green Blue Amber Lime Cyan
Disabled Menu navigation
AUTO STANDALONE MODE
The 6 available auto programs partly comprise non-editable colour change sequences and partly
random scenes. Brightness, running speed and delay (delay for slave units) can be set separately
for each program.
Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select
the menu item Stand Alone, confirm with ENTER, then select the submenu item Auto and
confirm again with ENTER.
This will take you to the submenu for setting the submenu items (see table, select with UP and
DOWN, confirm with ENTER, change value with UP and DOWN, confirm with ENTER). The settings
for each programme are made separately and are retained even after restarting the device.
Program Selects programs Program 1 – 6
Dimmer Sets brightness 0–100
Speed Sets running speed 0–100
Delay Sets the delay for slave units 0.0 – 2.0s

17
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
STATIC STANDALONE MODE
The Static standalone mode allows the Dimmer, Strobe, R, G, B, A, L and C values to be set
directly on the device with values in a similar way to with a DMX controller. In this way, an
individual scene can be created without an additional DMX controller.
Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select
the menu item Stand Alone and confirm with ENTER, then select Static and confirm once again
with ENTER. Using UP and DOWN, now select the menu item that you wish to edit and confirm
with ENTER. Use UP and DOWN to set the desired value. The strobe effect values correspond to
those in channel 3 of the DMX table 16 CH 16 Bit Direct. Confirm all entries with ENTER.
COLOUR PRESET STANDALONE MODE
49 different colour presets plus 8 individually adjustable user presets (Edit User Colour) are
available. The brightness and a strobe effect can be set at a higher level.
Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select
the menu item Stand Alone and confirm with ENTER, then select Colour Preset and confirm
once again with ENTER. Now use UP and DOWN to select GEL and confirm with ENTER. The
desired preset can now be selected with UP and DOWN; confirm the selection with ENTER. Use
UP and DOWN to set the desired brightness (Dimmer) and the strobe (Strobe) and confirm with
ENTER. The strobe effect values correspond to those in channel 3 of the DMX table 16 CH 16 Bit
Direct. Confirm all entries with ENTER.
GEL Dark Magenta
|
Rose Pink
User Colour 1
|
User Colour 8
Dimmer 000–100
Strobe 000–255

18
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH

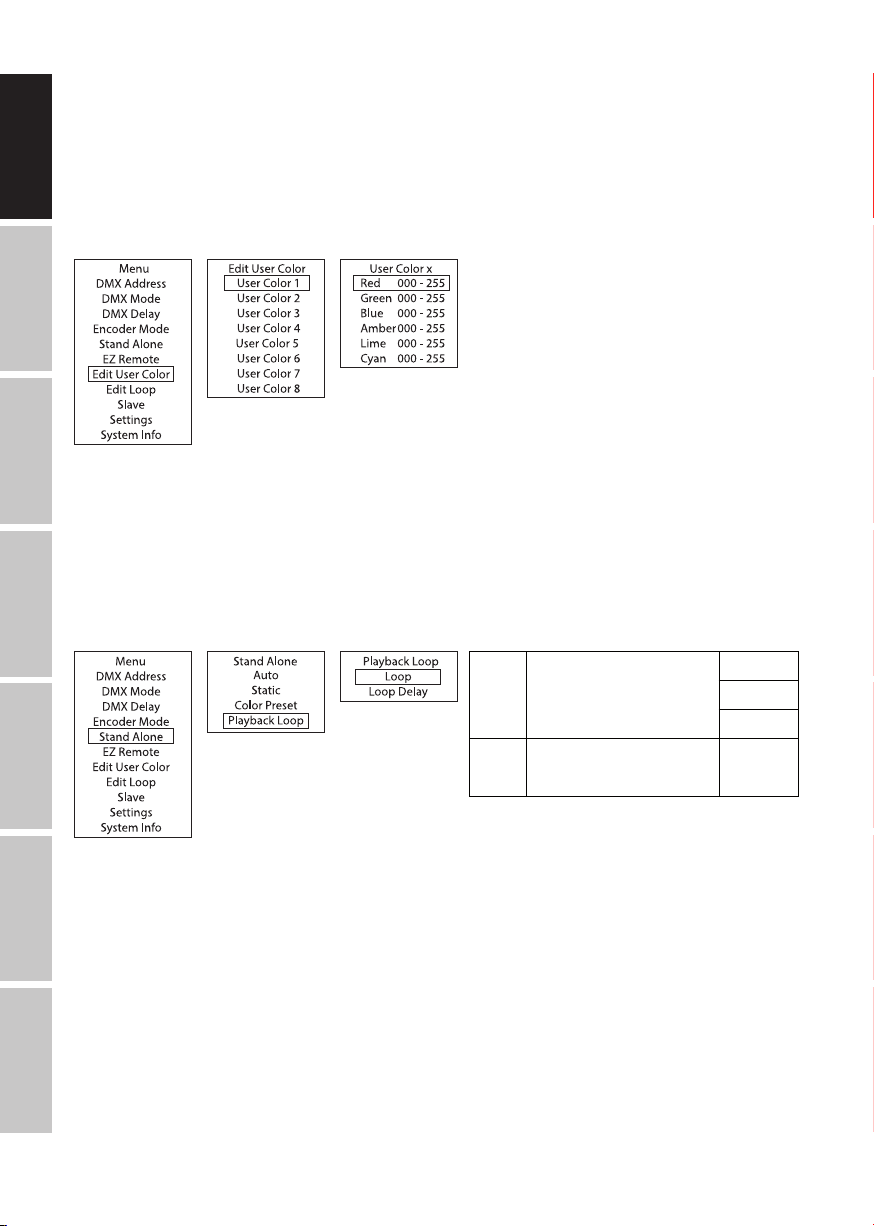

EDITING USER PRESETS (Edit User Colour)
The eight user presets available in the standalone mode Colour Preset can be edited individually.
Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select
Edit User Colour and confirm with ENTER. Now use UP and DOWN to select the desired preset
and confirm with ENTER. You can now create an individual colour mix of red, green, blue, amber,
lime and cyan with values ranging from 0 to 255 each (select colour with UP and DOWN, confirm
with ENTER, change value with UP and DOWN, confirm with ENTER).
PLAYBACK LOOP STANDALONE MODE
Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select
the menu item Stand Alone, confirm with ENTER, then select Playback Loop and confirm
again with ENTER. Now use UP and DOWN to select one of the eight available loops (colour
change programs) for playback and confirm with ENTER. All eight loops can be edited individually
(Main menu -> Edit Loop).
Loop Selection of colour
change programs
Loop 1
|
Loop 8
Loop
Delay
Sets the delay for slave
units
0.0 –
2.0s

19
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI

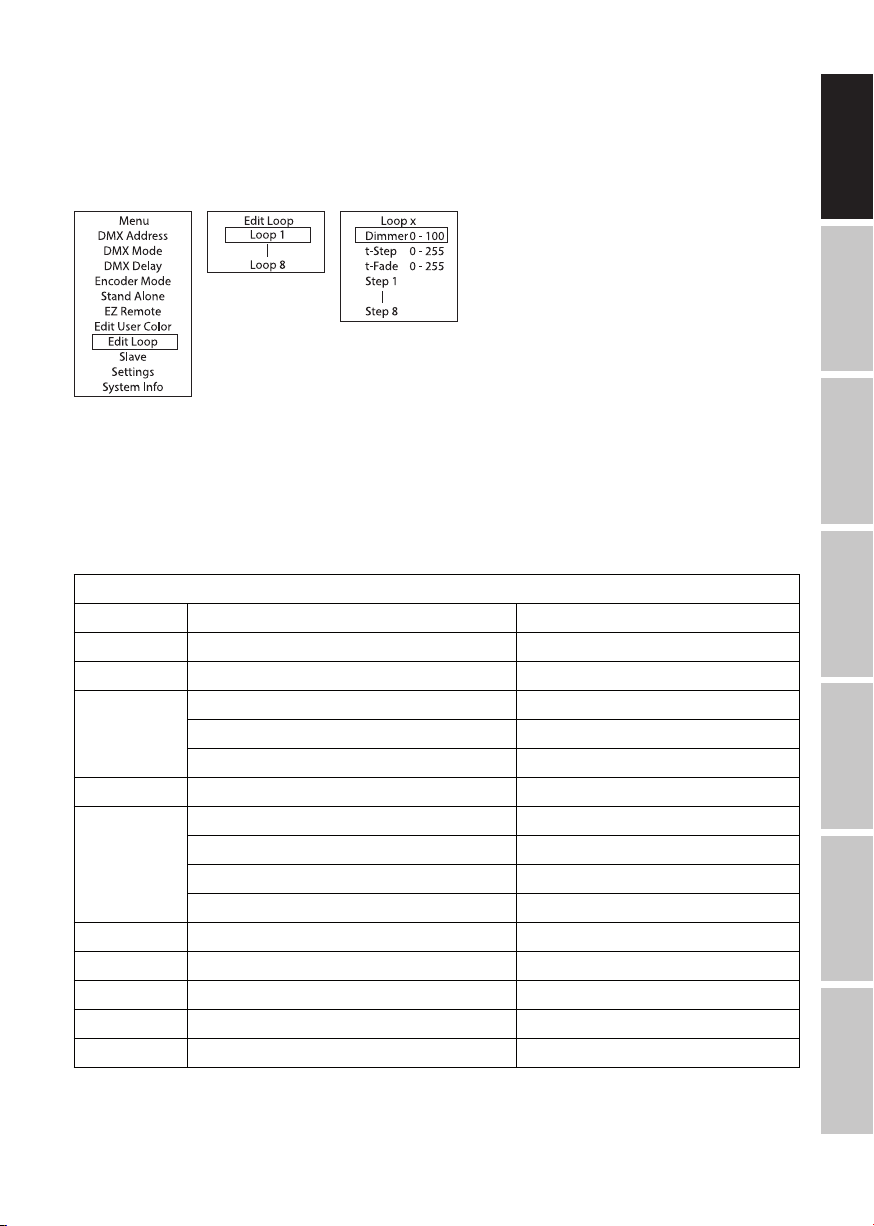

EDIT LOOP (Edit LOOP)
Brightness, step duration and fade time can be set separately for all eight loops. Starting from the
main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item
Settings and confirm with ENTER. Using UP and DOWN, now select the desired loop for editing
and confirm with ENTER.
This will take you to the submenu for setting the submenu items (see table, select with UP and
DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER). The
settings for each loop are made separately and are retained even after restarting the device.
EDIT LOOP (Loop 1 – Loop 8)
Dimmer Sets brightness 0–100
Step time Sets step time 0–255
Fade time Sets fade time 0–255
Step 1 49 colours from Colour Preset Dark Magenta – Rose Pink
8 user colours from Colour Preset User Colour 1– User Colour 8
Blackout Black
Step 2 “ “
Step 3 49 colours from Colour Preset Dark Magenta – Rose Pink
8 user colours from Colour Preset User Colour 1– User Colour 8
Blackout Black
Skip step Skip Step
Step 4 “ “
Step 5 “ “
Step 6 “ “
Step 7 “ “
Step 8 “ “

20
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
EZ REMOTE CONTROL VIA CAMEO UNICON (optionally available)
Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to
select the menu item EZ Remote and confirm with ENTER. Now set the desired device ID (Fixture
ID 1– 8) using UP and DOWN and confirm with ENTER.
Connect the spotlight and UNICON using a DMX cable, select DMX Control in the UNICON menu,
then EZ Remote, and enter the same unit ID. Now control the spotlight using RGB, GEL, CCT or
HSI. By assigning different unit IDs, up to eight spotlights (or spotlight groups) can be controlled
separately via UNICON. Alternatively, the control signals can be output to all eight IDs in parallel.
SLAVE MODE
Standard slave mode: Starting from the main display, press MENU to enter the main menu.
Now use UP and DOWN to select the menu item Slave, confirm with ENTER, select Slave Group
0 (Slave Group 0) and again confirm with ENTER. Connect the slave and the master units (same
model, same software version) using a DMX cable, and enable one of the standalone modes on
the master unit (Auto, Static, Colour Preset, Play Loop). The slave unit will now follow the master
unit.
