Cameo DROP P4 User manual

USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO
DROP P4
OUTDOOR UPLIGHT RGBWA+UV WITH W-DMX™
CLDROPP4

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO
ENGLISH
SAFETY INFORMATION 3
INTRODUCTION 5
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 5
OPERATION 7
IR REMOTE CONTROL (optional) 14
DIFFUSERS 15
SET-UP AND INSTALLATION 16
DMX TECHNOLOGY 17
TECHNICAL DATA 18
MANUFACTURER´S DECLARATIONS 19
DEUTSCH
SICHERHEITSHINWEISE 20
EINFÜHRUNG 22
ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 22
BEDIENUNG 24
IR FERNBEDIENUNG (optional) 31
STREUSCHEIBEN 32
AUFSTELLUNG UND MONTAGE 33
DMX TECHNIK 34
TECHNISCHE DATEN 35
HERSTELLERERKLÄRUNGEN 36
FRANCAIS
MESURES PRÉVENTIVES 37
INTRODUCTION 39
RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET
D’AFFICHAGE 39
MODE D’EMPLOI 41
TÉLÉCOMMANDE INFRAROUGE (en option) 48
DIFFUSEURS 49
INSTALLATION ET MONTAGE 50
TECHNIQUE DMX 51
CARACTÉRISTIQUES TECHNIQUES 52
DECLARATIONS 53
ESPAÑOL
MEDIDAS DE SEGURIDAD 54
INTRODUCCIÓN 56
CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS
DE VISUALIZACIÓN 56
MANEJO 58
MANDO A DISTANCIA POR INFRARROJOS (opcional) 65
DIFUSORES 66
INSTALACIÓN Y MONTAJE 67
TECNOLOGÍA DMX 68
DATOS TÉCNICOS 69
DECLARACIÓN DEL FABRICANTE 70
POLSKI
ŚRODKI OSTROŻNOŚCI 71
WPROWADZENIE 73
PRZYŁĄCZA, ELEMENTY STERUJĄCE I WSKAŹNIKI 73
OBSŁUGA 75
PILOT ZDALNEGO STEROWANIA (opcjonalny) 82
DYFUZORY 83
USTAWIANIE I MONTAŻ 84
TECHNIKA DMX 85
DANE TECHNICZNE 86
DEKLARACJE PRODUCENTA 87
ITALIANO
MISURE PRECAUZIONALI 88
INTRODUZIONE 90
CONNESSIONI, ELEMENTI DI COMANDO E DI
VISUALIZZAZIONE 90
UTILIZZO 92
TELECOMANDO A INFRAROSSI (opzionale): 99
DIFFUSORI 100
INSTALLAZIONE E MONTAGGIO 101
TECNOLOGIA DMX 102
DATI TECNICI 103
DICHIARAZIONI DEL PRODUTTORE 104
DMX
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX /
CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX 105

3
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
ENGLISH
YOU HAVE MADE THE RIGHT CHOICE!
This device was developed and produced under the highest standards of quality in order to ensure smooth operation for many years. Please
read these operating instructions carefully so that you can use your new Cameo Light product quickly and optimally. You can find more
information on Cameo Light on our website WWW.CAMEOLIGHT.COM.
SAFETY INFORMATION
1. Please read through these instructions carefully.
2. Store all information and instructions in a secure location.
3. Follow the instructions.
4. Heed all warnings. Do not remove any safety warnings or other information from the device.
5. Use the device only in the intended manner.
6. Use only stable and suitable stands and/or mounts (for fixed installations). Make sure that wall mounts are properly installed and
secured. Make sure that the device is securely installed and will not fall.
7. During installation, heed all safety provisions that apply in your country.
8. Do not install and operate the device in the vicinity of heaters, heat reservoirs, ovens, or other heat sources. Make sure that the device is
installed in such a way that it is sufficiently cooled and will not overheat.
9. Do not place any ignition sources, e.g. candles, on the device.
10. Do not block the ventilation slits.
11. The device was designed to be used only in interior spaces, do not operate the device in the direct vicinity of water (this does not apply
to specialty outdoor devices - in this case, please note the special instructions given in the following). Do not bring the device into
contact with combustible materials, fluids, or gases.
12. Make sure that no water can drop or splash into the device. Do not place any containers filled with fluids, such as vases or drinking
vessels, onto the device.
13. Ensure that no objects can fall into the device.
14. Operative the device using only those accessories recommended and specified by the manufacturer.
15. Do not open the device, and do not modify it.
16. After connecting the device, inspect all cable paths in order to avoid damage or accidents, such as those caused by tripping over said cables.
17. During transport, ensure that the device will not fall and potentially cause material damage and personal harm.
18. If your device no longer functions properly, fluids or objects have made their way into the device interior, or the device is otherwise
damaged, switch it off immediately and remove it from the power outlet (provided the device is active).
This device is to be repaired only by authorized specialists.
19. Use a dry towel to clean the device.
20. Follow all laws on disposal applicable in your country. Please separate plastic and paper or cardboard when disposing of the packaging.
21. Plastic bags must be kept out of reach of children.
FOR DEVICES CONNECTED TO A POWER SUPPLY:
22. ATTENTION: If the device power cable is equipped with a ground pin, it must be inserted into an outlet with a grounding conductor. Never
disable the grounding conductor of a power cable.
23. Do not immediately switch on the device when it has been exposed to stark temperature deviations (for example after transport).
Humidity and condensation could damage the device. Switch on the device only when it has reached room temperature.
24. Before you connect the device to the outlet, first ensure that voltage and frequency of the power supply complies with the values given
on the device. If the device has a voltage selector switch, connect the device to the outlet only if the device values comply with the
values of the power supply. If the provided power cable or power adapter does not fit your power outlet, contact an electrician.
25. Do not step on the power cable. Make sure that live cables, in particular those at the power socket or at the power adapter and the
device socket, are not bent.
26. With regard to the device cables, always make sure that the power cable or power adapter is always freely accessible. Always separate
the device from the power supply when the device is not in use or when you would like to clean the device. Always unplug the power
cable and power adapter from the power outlet using the plug or adapter, not the cord. Never touch the power cable and power adapter
with wet hands.
27. If possible, do not switch the device on and off quickly because this may impair the service life of the device.
28. IMPORTANT INFO: Replace fuses only with fuses of the same type and value. If a fuse trips repeatedly, please contact an authorized
service center.
29. In order to completely separate the device from the power supply, remove the power cable or power adapter from the outlet.
30. If your device is equipped with a Volex power cord, release the correct Volex device connector before removing the cord. However, this
also means that the device may slide and fall when removing the power cord, which may cause personal harm and/or material damage.
Therefore, always lay cables carefully.
31. Remove the power cable and power adapter from the outlet when there is a risk of lighting or when you no longer want to use the device.
32. The device may only be installed when it carries no voltage (separate the power plug from the power supply).
33. Dust and other debris within the device may damage it. The device should be serviced or cleaned regularly by qualified specialists
depending on the environmental conditions (dust, nicotine, smoke, etc.) in order to avoid overheating.
34. The distance to combustible materials must be at least 0.5 m.
35. Power cables for powering multiple devices must have a core cross-section of at least 1.5 mm². In the EU, lines must be H05VV-F or
similar. Adam Hall provides suitable cables. Using these cables, you can connect multiple devices via the Power Out connection with the
Power In connection of another device. Ensure that the total power consumption of all connected devices does not exceed the specified
value (printed on the device). Be sure to keep power lines as short as possible.

4
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
36. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge.
37. Children must be instructed not to play with the device.
38. If the power cord of the device is damaged, do not use the device. The power cord must be replaced by an adequate cable or assembly
from an authorized service center.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back).There are no user serviceable
parts inside. Maintenance and repairs should be exclusively carried out by qualified service
personnel.
The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an
electrical shock.
The warning triangle with exclamation mark indicates important operating and maintenance instructions.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait
for a cool-down period of at least 10 minutes before handling or transporting the device.
Warning! This device is designed for use below 2000 metres in altitude.
Warning! This product is not intended for use in tropical climates.
Caution! Intense LED light source! Risk of eye damage. Do not look into the light source.
CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS!
1. The product has been developed for professional use in the field of event technology and is not suitable as household lighting.
2. Do not stare, even temporarily, directly into the light beam.
3. Do not look at the beam directly with optical instruments such as magnifiers.
4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely avoid places where
strobes are used.

5
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
INTRODUCTION
OUTDOOR UPLIGHT SPOTLIGHT WITH 4 X 15 W RGBWA+UV LEDS AND W-DMX™
CLDROPP4
CONTROL FUNCTIONS
• 3-channel, 4-channel, 6-channel 7-channel, 13-channel 1, 13-channel 2 and 20-channel DMX functions
• W-DMX™
• Standalone functions
• Control via IR remote control (remote control optionally available)
FEATURES
• 4 x 15 W RGBWA+UV LEDs
• Outdoor housing with IP65 protection class.
• 3-pin XLR connections. W-DMX receiver integrated
• OLED display
• Convection cooling
• Removable stand and mounting bracket for discreet uplight function
• Tilt adjustment screw
• 2 diffusers included.
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
1POWER IN
TRUE 1 compatible power input socket. Operating voltage 100–240 V AC/50–60 Hz. A suitable mains cable with IP65 plug is included. When
not in use, always close with the appropriate rubber sealing cap.
2POWER OUT
TRUE 1 compatible mains output socket for supplying power to additional Cameo headlights (for maximum output current, see label on back
of housing). When not in use, always close with the appropriate rubber sealing cap.
3DMX IN
Male IP65 3-pin XLR socket for connection to a DMX control device (e.g. DMX console) When not in use, always close with the appropriate
rubber sealing cap.
4DMX OUT
Female IP65 3-pin XLR socket for sending the DMX control signal. When not in use, always close with the appropriate rubber sealing cap.
PLEASE NOTE: To protect the input and output sockets from splash water in accordance with IP65 protection class, they
must be correctly closed using the appropriate IP65 plugs or the rubber sealing caps must be used to close them.
1 2 4 3

6
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
5OLED DISPLAY
The OLED display shows the currently activated mode (main display 1), the spotlight status (main display 2 = W-DMX status), the menu
items in the editing menu and the numerical value or operating mode in certain menu items. Switch between both main displays by briefly
pressing ENTER and DOWN at the same time. The editing menu is accessible only from main display 1. If there is no input for approx. one
minute, the display automatically returns to the main display. Note on the main display in DMX operating mode: As soon as the control signal
is interrupted, the characters in the display begin to flash. When there is a control signal again, the flashing stops. Briefly pressing UP on the
control panel when in the main display rotates the display by 180°.
6TOUCH-SENSITIVE CONTROLS
MENU – Press MENU to access the editing menu. Press repeatedly to go back to the main display. Pressing MENU without confirming a
value or status change with ENTER restores the previously confirmed value or status.
ENTER – Press ENTER to access the menu levels to make value changes and use the ENTER control field to access the submenus. Confirm
value or status changes by pressing ENTER.
UP and DOWN – select individual menu items in the selection menu (DMX address, operating mode etc.) and in the submenus. Allow chan-
ges to the value in a menu item, such as the DMX address, as required.
Before changing device settings, ensure that the control panel is dry and clean, in order not to impair its functionality.
7TILT
Knurled screw for the TILT feature for uplighting. Turn the screw outwards from the housing until you achieve the desired beam direction.
The screw features a mechanical stop mechanism to prevent it from being completely removed from the housing. To be able to use the tilt
function effectively and achieve a more discreet look, remove the mounting bracket by loosening the four screws Awith a suitable tool.
8RUBBER FEET
Four rubber feet on the underside of the spotlight ensure that it can be securely placed on suitable surfaces when used in uplight applica-
tions, while at the same time protecting the surface from scratches.
9SECURING LUG
Securing lug for attaching the spotlight on truss installations. When installing on a truss, make sure that the mounting bracket is securely
attached to the spotlight housing using the four fixing screws A.
5
9
6
7
8
8
8
8
12
10
11
10 A A

7
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
10 GRIP SCREWS
The two grip screws are used for adjusting and fixing the stand and/or mounting bracket.
11 STAND OR MOUNTING BRACKET
The stand or mounting bracket can be removed to achieve a more inconspicuous look when using the spotlight as an uplight.
12 PRESSURE EQUALISATION ELEMENT
Pressure equalisation element to prevent condensation inside the housing. In order to ensure its proper function, the element must be
protected from contamination.
INFRARED SENSOR
The infrared sensor for control via IR remote control (optionally available) is found on the front of the spotlight.
OPERATION
PLEASE NOTE
• As soon as the spotlight is switched on, the following are displayed in succession: “Software Update Please Wait..." (for service purposes
only), “Welcome to Cameo”, the model name and the software version. After this process, the spotlight is ready for operation and the
previously activated operating mode is launched.
• The main display 1 is activated automatically if there is no input in the space of approximately one minute. Press MENU briefly to go up
one level in the submenus.
• Briefly pressing UP on the control panel when in the main display rotates the display by 180°.
• To quickly change a value (e.g. DMX start address), press and hold UP or DOWN.
• To reset the W-DMX module directly from main display 1 and put it in pairing standby, press and hold DOWN for about 3 seconds.
MAIN DISPLAY 1 DMX OPERATING MODE
The display shows the DMX address and current DMX start address (in the example: 001).
MAIN DISPLAY 1 STANDALONE MODE
The display shows the currently activated stand-alone mode.
MAIN DISPLAY SLAVE MODE
The display shows Mode Slave.
MAIN DISPLAY 2 FIXTURE STATUS
The display shows the W-DMX status. Switch between both main displays by briefly pressing ENTER and DOWN at the same time. Main
display 1 automatically appears again after approximately one second.
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------

8
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
W-DMX™
To pair the W-DMX receiver with a W-DMX compatible transmitter, W-DMX must be activated (W-DMX On) in the receiver's menu under
Wireless Settings. The Reset command must be also executed under the same menu item (select Reset and confirm with ENTER). The
receiver is now in pairing standby and waiting for a pairing request from a transmitter. Start the pairing by selecting Link in the menu of the
transmitter and then confirm; the pairing now takes place automatically. In the same way, several receivers can be paired to a transmitter
either simultaneously or one after the other. A W-DMX connection is always maintained until the connection is disconnected by means of the
Reset command in the receiver or the Unlink command in the transmitter, regardless of whether a device has been disconnected from the
power supply in the meantime.
W-DMX™ STATUS RF SIGNAL STRENGTH
W-DMX
deactivated
W-DMX
activated,
not paired
W-DMX
activated
and paired,
transmitter
is switched
off or out of
range
W-DMX
activated
and paired,
no DMX
signal
W-DMX
activated
and paired,
DMX signal
available
CONFIGURE DMX START ADDRESS
Starting from main display 1, press MENU to enter the main menu. Now use the controls UP and DOWN to select the menu item DMX
address and confirm with ENTER. You can now configure the DMX start address with UP and DOWN (hold for rapid value change; highest
value depends on activated DMX mode). Confirm by pressing ENTER.
CONFIGURE DMX MODE
Starting from main display 1, press MENU to enter the main menu. Now use the controls UP and DOWN to select the menu item DMX mode
and confirm with ENTER. Again use UP and DOWN to select the desired DMX mode and confirm with ENTER. Tables with the channel
assignment of the different DMX modes can be found in these instructions under DMX CONTROL.
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------

9
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
DMX DELAY
The DMX Delay function is a simple way to create a running light effect with a large number of spotlights that are all the same model
and that are all running the same software version. This is otherwise only achievable with a suitable DMX controller and time-consuming
programming. All the spotlights used in this are set to the same DMX operating mode and controlled via the same DMX start address.
The delay time (DMX signal delay) can be manually set on each spotlight with different delay times (DMX Delay by DMX? No) or with the
same delay time for all spotlights via a connected DMX controller on a specially reserved DMX channel (DMX Delay by DMX? Yes).
Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the menu item DMX Delay and
confirm with ENTER. Again use UP and DOWN to select the desired submenu item, confirm with ENTER and set the value or status
accordingly. Confirm all entries with ENTER.
Assign the spotlights to the desired groups (maximum number of groups 6), whereby several spotlights can be assigned to one group. The
group number is also the factor by which the set delay time is multiplied (see setup example).
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 1
by DMX? No
Delay 1.5s
DMX Delay
Group 2
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 4
by DMX? No
Delay 1.5s
DMX Delay
Group 5
by DMX? No
Delay 1.5s
DMX
Controller
DMX Delay
Group 0
by DMX? Yes
DMX Delay
Group 1
by DMX? Yes
DMX Delay
Group 2
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 4
by DMX? Yes
DMX Delay
Group 5
by DMX? Yes
Scheinwerfer(gruppe) 0
kein Delay
Scheinwerfer(gruppe) 1
0,5s Delay
Scheinwerfer(gruppe) 2
1s Delay
Scheinwerfer(gruppe) 3
1,5s Delay
Scheinwerfer(gruppe) 4
2s Delay
Scheinwerfer(gruppe) 5
2,5s Delay
DMX
Controller
DMX Delay
0.5s
Mode
Slave
Mode
Slave
Slave Group 0
kein Delay
Master-Einheit
Loop
Delay 0.5s
Slave Group 1
0,5s Delay
Mode
Slave
Slave Group 2
1s Delay
Mode
Slave
Slave Group 3
1,5s Delay
Mode
Slave
Slave Group 4
2s Delay
Mode
Slave
Slave Group 5
2,5s Delay
Mode
Slave
Mode
Slave
Spotlight
(group) 0
No delay
Spotlight
(group) 1
1.5 s delay
Spotlight
(group) 2
3 s delay
Spotlight
(group) 3
4.5 s delay
Spotlight
(group) 4
6 s delay
Spotlight
(group) 5
7.5 s delay
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 1
by DMX? No
Delay 1.5s
DMX Delay
Group 2
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 4
by DMX? No
Delay 1.5s
DMX Delay
Group 5
by DMX? No
Delay 1.5s
DMX
Controller
DMX Delay
Group 0
by DMX? Yes
DMX Delay
Group 1
by DMX? Yes
DMX Delay
Group 2
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 4
by DMX? Yes
DMX Delay
Group 5
by DMX? Yes
Scheinwerfer(gruppe) 0
kein Delay
Scheinwerfer(gruppe) 1
0,5s Delay
Scheinwerfer(gruppe) 2
1s Delay
Scheinwerfer(gruppe) 3
1,5s Delay
Scheinwerfer(gruppe) 4
2s Delay
Scheinwerfer(gruppe) 5
2,5s Delay
DMX
Controller
DMX Delay
0.5s
Mode
Slave
Mode
Slave
Slave Group 0
kein Delay
Master-Einheit
Loop
Delay 0.5s
Slave Group 1
0,5s Delay
Mode
Slave
Slave Group 2
1s Delay
Mode
Slave
Slave Group 3
1,5s Delay
Mode
Slave
Slave Group 4
2s Delay
Mode
Slave
Slave Group 5
2,5s Delay
Mode
Slave
Mode
Slave
Spotlight
(group) 0
No delay
Spotlight
(group) 1
0.5 s delay
Spotlight
(group) 2
1 s delay
Spotlight
(group) 3
1.5 s delay
Spotlight
(group) 4
2 s delay
Spotlight
(group) 5
2.5 s delay

10
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
STANDALONE MODE STATIC
The standalone mode Static allows the Dimmer, Strobe, R, G, B, W, A and UV values to be set directly on the device with values between 000
and 255, in a similar way to with a DMX controller. In this way, an individual scene can be created without an additional DMX controller.
Starting from main display 1, press MENU to enter the main menu. Now use the controls UP and DOWN to select the menu item Stand
Alone and confirm with ENTER. Again use UP and DOWN to select the standalone mode Static and confirm with ENTER. Use UP and DOWN
to select the menu item you wish to edit and confirm with ENTER. You can now use UP and DOWN to configure the desired setting from 000
to 255. Confirm all entries with ENTER. The strobe effect values correspond to those in channel 2 of the DMX table 4CH and channel 3 of
tables 13CH1 and 20CH.
STANDALONE MODE COLOR MACRO
15 different color macros are available as presets. The brightness can be separately set for each preset.
Starting from main display 1, press MENU to enter the main menu. Now use the controls UP and DOWN to select the menu item Stand
Alone and confirm with ENTER. Again use UP and DOWN to select the standalone mode Color Macro and confirm with ENTER. Using the
UP and DOWN controls, select the desired color preset and confirm with ENTER (Color Off = blackout). You can now set the desired
brightness from 000 to 100 using UP and DOWN; confirm with ENTER.
STANDALONE MODE AUTO
The 6 available auto programmes each consist of pre-programmed color change sequences, brightness (Dimmer), running speed (Speed)
and the delay time for slave groups (Delay) can be configured separately for each programme.
Starting from main display 1, press MENU to enter the main menu. Now use the controls UP and DOWN to select the menu item Stand
Alone and confirm with ENTER. Again use UP and DOWN to select the standalone mode Auto and confirm with ENTER. Now use the UP and
DOWN to select the desired programme (programme 1 to 6) and confirm with ENTER. Now use UP and Down to select Dimmer, Speed or
Auto Delay, confirm with ENTER and adjust brightness or running speed from 000 to 100 as desired. The delay time can be set from 0 to 2
seconds in 0.1 second steps. Confirm all entries with ENTER.
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------

11
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
STANDALONE MODE LOOP
The standalone mode Loop allows you to individually configure, store and access up to four different color changing programmes. Bright-
ness, step time, fade time and delay (signal delay) are also separately configurable.
Starting from the main display, press MODE to enter the main menu. Using UP and DOWN, select the menu item Standalone and confirm
with ENTER. Using the UP and DOWN buttons, select the stand-alone mode Loop and confirm with ENTER. Now use UP and DOWN to select
the desired loop (Loop 1 – Loop 4) and confirm with ENTER.
This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or
status with UP and DOWN, confirm with ENTER).The settings for each loop are made separately and are retained even after restarting the
device.
STANDALONE MODE LOOP (Loop 1 – Loop 4)
Dimmer Sets brightness 0–100
Step time Sets step time 0.1 s to 10.0 s
Fade time Sets fade time in percent 0% to 100%
Delay Delay time for slave groups 0.0 s to 2.0 s
Step 1 15 colors from Color Macro Red to CW (Cold White)
4 colors from User Color Color 1 to Color 4
UV light UV
Blackout Blackout
Step 2 „ „
Step 3 15 colors from Color Preset Red to CW (Cold White)
4 colors from User Color Color 1 to Color 4
UV light UV
Blackout Blackout
------ Skip step
Step 4 „ „
STANDALONE MODE USER COLOR
The standalone mode User Color allows you to store eight individual color presets for overall brightness, stroboscope (strobe) and a color
mix of R, G, B, W, A and UV directly in the device.
Starting from main display 1, press MENU to enter the main menu. Now use the controls UP and DOWN to select the menu item Stand
Alone and confirm with ENTER. Again use UP and DOWN to select the standalone mode User Color and confirm with ENTER. Using UP and
DOWN, now select the desired preset (color 1 to 8) and confirm with ENTER. Use UP and DOWN to select the menu item you wish to edit and
confirm with ENTER. You can now use UP and DOWN to configure the desired setting from 000 to 255. The strobe effect values correspond
to those in channel 2 of the DMX table 4CH and channel 3 of tables 13CH1 and 20CH. Confirm all entries with ENTER.
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------

12
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
SLAVE MODE
Standard slave mode: Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item
Slave, confirm with ENTER, then select Slave Group 0 (Slave Group 00) and confirm again with ENTER. Connect the slave and the master
unit (same model, same software version) with a DMX cable and enable one of the standalone modes on the master unit (Static, Color
Macro, Auto, Loop, User Color). The slave unit will now follow the master unit.
Advanced slave mode: If you wish to control the slave units in master/slave mode using one of the standalone modes Auto or Loop, the
control signal can be reproduced with a time delay of up to 6 steps. The delay is set in the submenu item Delay in the relevant standalone
mode, the delay factor is set in the slave menu of the corresponding spotlight. This is a simple way to create a running light effect with a
large number of spotlights that are all the same model and have the same software version. This is otherwise only possible using a suitable
DMX controller and time-consuming programming.
Assign the spotlights to one of up to six groups according to preference, whereby several spotlights can be assigned to one group. The
group number is also the factor by which the delay time set in the master unit is multiplied (see setup example).
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 1
by DMX? No
Delay 1.5s
DMX Delay
Group 2
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 3
by DMX? No
Delay 1.5s
DMX Delay
Group 4
by DMX? No
Delay 1.5s
DMX Delay
Group 5
by DMX? No
Delay 1.5s
DMX
Controller
DMX Delay
Group 0
by DMX? Yes
DMX Delay
Group 1
by DMX? Yes
DMX Delay
Group 2
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 3
by DMX? Yes
DMX Delay
Group 4
by DMX? Yes
DMX Delay
Group 5
by DMX? Yes
Scheinwerfer(gruppe) 0
kein Delay
Scheinwerfer(gruppe) 1
0,5s Delay
Scheinwerfer(gruppe) 2
1s Delay
Scheinwerfer(gruppe) 3
1,5s Delay
Scheinwerfer(gruppe) 4
2s Delay
Scheinwerfer(gruppe) 5
2,5s Delay
DMX
Controller
DMX Delay
0.5s
Mode
Slave
Mode
Slave
Slave Group 0
kein Delay
Master-Einheit
Loop
Delay 0.5s
Slave Group 1
0,5s Delay
Mode
Slave
Slave Group 2
1s Delay
Mode
Slave
Slave Group 3
1,5s Delay
Mode
Slave
Slave Group 4
2s Delay
Mode
Slave
Slave Group 5
2,5s Delay
Mode
Slave
Mode
Slave
Slave Group 0
No delay
Slave Group 1
0.5 s delay
Slave Group 2
1 s delay
Slave Group 3
1.5 s delay
Slave Group 4
2 s delay
Slave Group 5
2.5 s delay

13
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
SYSTEM SETTINGS (Settings)
Starting from main display 1, press MENU to enter the main menu. Using UP and DOWN, select the menu item Settings and confirm
with ENTER.
This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or
status with UP and DOWN, confirm with ENTER).
Settings
Wireless
Settings
= W-DMX settings W-DMX On/Off On = W-DMX enabled
Off = W-DMX disabled
Reset Press ENTER = Reset pairing with a transmitter and ready
for new pairing
Display Reverse = Rotate display On Display is rotated through 180° (e.g. for overhead instal-
lation)
Off No display rotation
Display = Display lighting On Permanently on
Off Deactivation after approximately 1 minute of inactivity
DMX Fail = Operating status with DMX
signal fault
Hold Last command is retained
Blackout Activates blackout
White All the LEDs have 100% output
Dimmer Curve = Dimmer curve Linear Light intensity increases linearly with DMX value
Exponential Light intensity can be finely adjusted at lower DMX values
and broadly adjusted at higher DMX values
Logarithmic Light intensity can be broadly adjusted at lower DMX values
and finely adjusted at higher DMX values
S-Curve Light intensity can be finely adjusted at lower and higher
DMX values and broadly adjusted at medium DMX values
DimResp. = Dimmer response LED Lamp responds abruptly to changes in DMX value
Halogen Spotlight behaves like a halogen spotlight with soft bright-
ness changes
LED Calibration = Color calibration Red, Green, Blue,
White, Amber, UV
Individual color calibration. Cross-mode brightness setting
of the 6 LED groups RGBWA+UV with values from 000–255
Auto Lock = Automatic locking of the
controls
On Automatic locking of the controls after approximately 1
minute of inactivity. Display shows: “LOCKED” To unlock:
press and hold UP and DOWN simultaneously for approx.
5 seconds
Off Automatic locking of the controls is disabled
IR Remote = Activate or deactivate con-
trol by IR remote control
On IR remote control activated
Off IR remote control deactivated
Factory Reset = Reset to factory settings Reset Now? Resetting to factory settings:
Perform reset with ENTER, cancel with MENU
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------

14
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
SYSTEM INFORMATION (System Info)
Starting from main display 1, press MENU to enter the main menu. Using UP and DOWN, select the menu item System Info and confirm
with ENTER.
This will take you to the submenu for accessing the system information (see table, selection with UP and DOWN, confirm with ENTER,
change status with UP and DOWN, confirm with ENTER).
System Info
Firmware = Displays device firmware Firmware
V1.xx
Temperature = Displays temperature of
LED unit
LED xxx°C / xxx°F
C/F Unit Celsius (= display in degrees Celsius)
Unit Fahrenheit (= display in degrees Fahrenheit)
Operation Hours = Displays operating time Total
xxxx:xxh
Displays total operating time in hours and minutes
MANUAL LOCKING FUNCTION
In addition to the ability to automatically protect the lamp from accidental and unauthorised operation (see “Settings” – “Auto Lock”), the
controls can also be locked manually. Press and hold the UP and DOWN controls simultaneously for approximately 5 seconds. "LOCKED"
is now displayed and it is no longer possible to change the spotlight’s settings via the controls. After approx. eight minutes, the current
operating mode is displayed again. To unlock, press and hold the UP and DOWN controls simultaneously for approximately 5 seconds. The
display will show the previously displayed information.

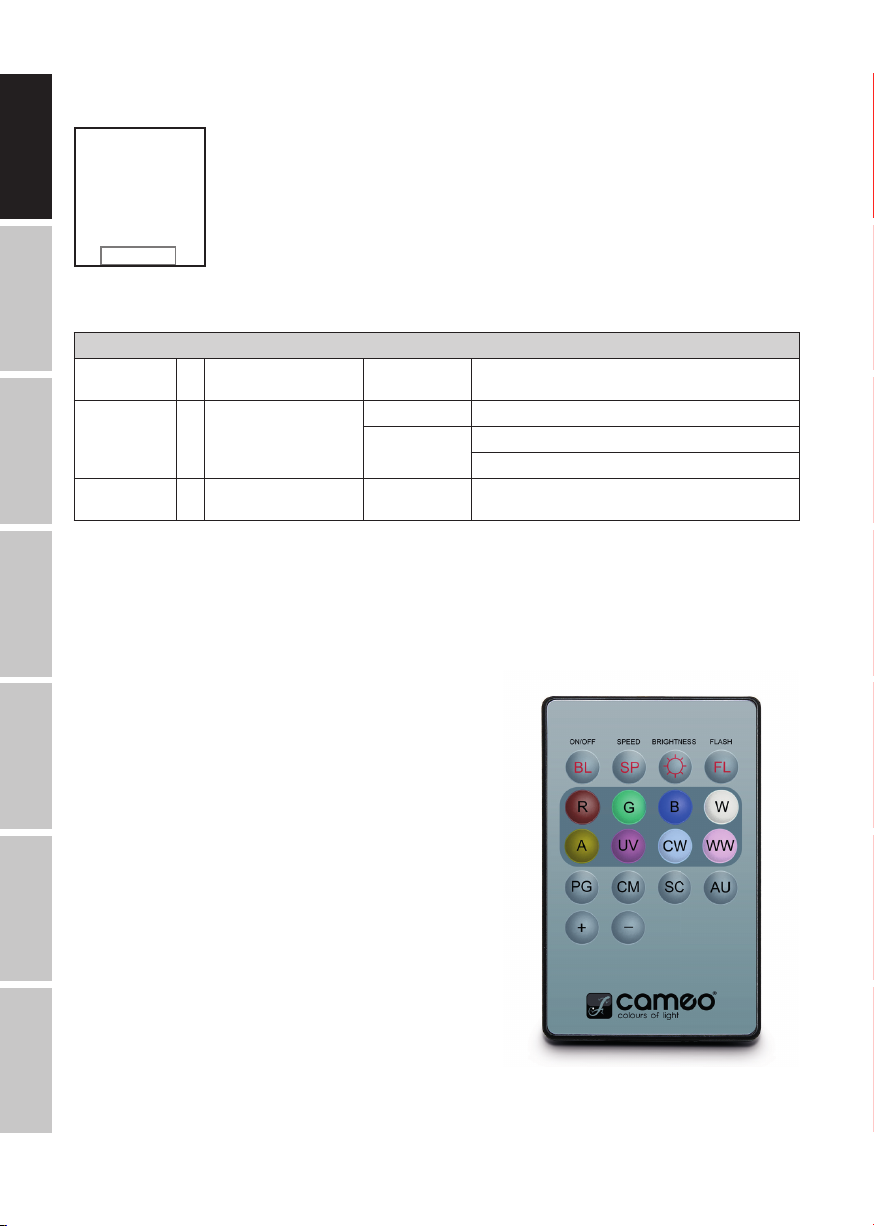

IR REMOTE CONTROL (optional)
Activate the infrared remote control in the system settings (Settings) under “IR
Remote” (IR Remote On). Aim the infrared remote control directly at the infrared
sensor built into the front of the spotlight. The maximum range is approximately
8 metres. Deactivate control via the infrared remote control (IR Remote Off) when
you wish to control the spotlight via DMX cable and W-DMX.
BL (ON/OFF / Blackout)
Press the BL button to switch off all LEDs (blackout), regardless of the operating
mode enabled via remote control. Press the BL button again to reactivate the
previously selected mode.
SP (Speed)
Speed setting for the color change programme in Auto Program (PG) operating
mode. Select a color change program, press the SP button and then use the + and
- buttons to set the desired speed from 000 to 100.
☼☼(Brightness)
Pressing the button for setting brightness immediately activates the Static opera-
ting mode. The overall brightness can now be set using the + and - buttons
(set value is show in display).
DMX Address
001
Mode
Auto
Mode
Static
Mode
Slave
Mode
Slave
Mode
Color Macro
Mode
Loop
Mode
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Mode
3 CH
4 CH
6 CH
7 CH
13CH01
13CH02
20 CH
Static
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
Color x
Dimmer
Strobe
Red
Green
Blue
White
Amber
UV
DMX Address
001 - 510
Fixture Status
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Color Macro
Color O
Red
Amber
Yellow W
Yellow
Green
Turquoise
Cyan
Blue
Lavender
Mauve
Magenta
Pink
Warm White
White
Cold White
User Color
Color 1
|
Color 8
Slave Group
00
Program x
Dimmer
Speed
Auto Delay
Auto
Program 1
|
Program 6
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? No/Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s
DMX Delay
Group 0
by DMX? No
Delay 0.0s - 2.0s
By DMX?
Warning! Delay
is controllable
by DMX now!
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
DMX Delay
Group 0
by DMX? Yes
Delay 0.0s
DMX Delay
Group 0
by DMX? Yes
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Stand Alone
Static
Color Macro
Auto
Loop
User Color
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Mode
Slave
Slave Group
01 - 06
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Menu
DMX Address
DMX Mode
DMX Delay
Stand Alone
Slave
Settings
System Info
Loop
Loop 1
|
Loop 4
Loop x
Dimmer
Steptime
Fadetime
Delay
1.Step
2.Step
3.Step
4.Step
0 - 100
0.1s-10.0s
0%-100%
0.0s - 2.0s
Red
Color 1
Blackout
-------

15
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
FL (Flash/Stroboscope)
Pressing the button for setting the strobe immediately activates the Static operating mode. The strobe effect can now be set using the +
and - buttons. The values for the stroboscope effect correspond to the values in channel 2 of the DMX table 4CH and channel 3 of the tables
13CH1 and 20CH (the set value is shown in the display).
R, G, B, W, A and UV (CW and WW without function)
Individual color mixtures can be created with the 6 buttons R, G, B, W, A and UV (static mode – static). Press the button for the desired LED
color and use the + and - buttons to set the brightness from 000 to 255 (the value is shown in the display).
Example: Set red and blue at maximum brightness, and green, white, amber and UV at minimum (i.e. off) to achieve a bright magenta
color blend.
PG (color change programme)
Select the desired color change programme 1–6 by repeatedly pressing PG and then set the brightness using the + and - buttons. Press the
SP (Speed) button and then use the + and - buttons to set the programme speed (the programme, brightness and running speed are shown
in the display).
CM (color presets)
Select the desired color preset by repeatedly pressing the CM button and then set the brightness using the + and - buttons (the color preset
and brightness are shown in the display).
SC (no function)
AU (no function)
DIFFUSERS
Two diffusers are supplied with the spotlight, each with a different beam angle (32°, 45°). The beam angle of the spotlight can be set at
22° (without diffuser), 32°, or 45°. Place the desired diffuser in front of the light-emitting lenses and turn it anticlockwise according to the
principle of a bayonet connection until the four outer lugs on the edge of the diffuser engage in their holders in the anti-glare ring. The four
magnets in the diffuser and the four opposing magnets set into the lens hood are now directly over each other and the diffuser is securely
held in place. Ensure that the side of the diffuser with the magnets set into it is facing the spotlight and that the recess in the edge of the
diffuser is in the flat area of the lens hood.

16
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
SET-UP AND INSTALLATION
Thanks to the wide stand and mounting bracket, the spotlight can be positioned in a suitable location on a level surface. Installation on a
truss is possible with a suitable truss clamp, which is attached to the mounting bracket A. Suitable truss clamps are optionally available.
Ensure firm connections and secure the spotlight by attaching a suitable safety cable to the securing lug on the mounting bracket. When
installing on a truss, make sure that the mounting bracket is securely attached to the spotlight housing using the four fixing screws B.
Important safety notice: Overhead mounting, especially above persons, requires extensive experience, including the
calculation of the load limit values of the installation material and regular safety inspection of all installation materials and
spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a
qualified professional.
In order effectively use the tilt screw for uplight applications and for a more discreet appearance, the mounting bracket must be removed by
loosening the four fixing screws Bholding the mounting bracket to the spotlight housing with a suitable tool.
A
B B

17
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
DMX TECHNOLOGY
DMX-512
DMX (Digital Multiplex) is the designation for a universal transmission protocol for
communications between corresponding devices and controllers. A DMX controller sends DMX
data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream
that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT"
connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the
maximum number of devices does not exceed 32 units. The last device in the chain needs to be
equipped with a terminator (terminating resistor).
DMX CONNECTION
DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be
connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible.
For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible.
The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address
1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is
assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the
DMX network.
SERIAL CONNECTION OF MULTIPLE LIGHTS
1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device
(e.g. DMX-Controller).
2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of
the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all
devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared
without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units.
The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables.
DMX CABLES
When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground
contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding
is connected to the ground, this can lead to short-circuiting and system malfunctions.
PIN ASSIGNMENT
DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used):
Shield
2
3
1
2
3
1
123
4
5
1
2
345
Shield
DMX TERMINATORS (TERMINATING RESISTORS)
To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt).
3-pin XLR connector with a terminating resistor: K3DMXT3
5-pin XLR connector with a terminating resistor: K3DMXT5
PIN ASSIGNMENT
3-pin XLR connector: 5-pin XLR connector:
2
3
1
1
2
345
DMX ADAPTER
The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible
with suitable adapters.
PIN ASSIGNMENT
DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020
Pins 4 and 5 are not used.
PIN ASSIGNMENT
DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020
Pins 4 and 5 are not used.

18
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
TECHNICAL DATA
Product number: CLDROPP4
Product type: LED wash light
Type: Outdoor spotlight
Color spectrum LED: RGBWA+UV
Number of LEDs: 4
LED type: 15 W
PWM frequency: 800 Hz
Beam angle: Beam Angle 22° / Field Angle 38°
1. Filter Medium BA 32°
2. Filter Wide BA 45°
DMX input: 3-pin
DMX output: 3-pin
DMX mode: 20-channel / 13-channel 2/ 13-channel 1 / 7-channel / 6-channel / 4-channel / 3-channel
DMX functions: Dimmer, Dimmer Fine, RGBWA+UV, RGBWA+UV Fine, Stroboscope, Color Macros, Color Change, Color
Blending, System Settings
Standalone functions: Color Mixing, Color Macros, Auto Programmes, Loop Function, User Color, Master/Slave Mode
Control: DMX, W-DMX, RDM
Operating controls: Menu, Enter, Up, Down
Display elements: OLED display
Operating voltage: 100–240 V AC / 50–60 Hz
Power consumption: 45 W
Light intensity
(@ 1 m/3 m):
6750 lx / 755 lx
Luminous flux: 1100 lm
CRI: White LED > 79
Power supply connection: TRUE1 compatible input (output max 11 A)
Ambient temperature
(in operation):
0 – 40 °C
Protection class: IP65
Power supply certificate: CE, RoHS, ETL, FCC
Housing material: Metal
Housing color: Black
Housing cooling: Convection cooling
Dimensions (W x H x D,
without bracket):
186 mm x 170 mm x 170 mm
Weight: 2.8 kg
Additional features: 1x True1 compatible power cable, 2x filters and 1x mounting bracket included

19
DMX DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
MANUFACTURER´S DECLARATIONS
MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY
You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-
DECLARATIONS_CAMEO.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1,
61267 Neu Anspach / Email: [email protected] / +49 (0)6081 / 9419-0.
CORRECT DISPOSAL OF THIS PRODUCT
(valid in the European Union and other European countries with a differentiated waste collection system)
This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid
environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste
and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased
this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed
with other commercial waste for disposal.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation
CE COMPLIANCE
Adam Hall GmbH states that this product meets the following guidelines (where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017
Low voltage directive (2014/35/EU)
EMV directive (2014/30/EU)
RoHS (2011/65/EU)
The complete declaration of conformity can be found at www.adamhall.com.
Furthermore, you may also direct your enquiry to [email protected].

20
DMX
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
DEUTSCH
SIE HABEN DIE RICHTIGE WAHL GETROFFEN!
Dieses Gerät wurde unter hohen Qualitätsanforderungen entwickelt und gefertigt, um viele Jahre einen reibungslosen Betrieb zu gewähr-
leisten. Bitte lesen Sie diese Bedienungsanleitung sorgfältig, damit Sie Ihr neues Produkt von Cameo Light schnell und optimal einsetzen
können. Weitere Informationen über Cameo Light erhalten Sie auf unserer Website WWW.CAMEOLIGHT.COM.
SICHERHEITSHINWEISE
1. Lesen Sie diese Anleitung bitte sorgfältig durch.
2. Bewahren Sie alle Informationen und Anleitungen an einem sicheren Ort auf.
3. Befolgen Sie die Anweisungen.
4. Beachten Sie alle Warnhinweise. Entfernen Sie keine Sicherheitshinweise oder andere Informationen vom Gerät.
5. Verwenden Sie das Gerät nur in der vorgesehenen Art und Weise.
6. Verwenden Sie ausschließlich stabile und passende Stative bzw. Befestigungen (bei Festinstallationen). Stellen Sie sicher,
dass Wandhalterungen ordnungsgemäß installiert und gesichert sind. Stellen Sie sicher, dass das Gerät sicher installiert ist und nicht
herunterfallen kann.
7. Beachten Sie bei der Installation die für Ihr Land geltenden Sicherheitsvorschriften.
8. Installieren und betreiben Sie das Gerät nicht in der Nähe von Heizkörpern, Wärmespeichern, Öfen oder sonstigen Wärmequellen. Sorgen
Sie dafür, dass das Gerät immer so installiert ist, dass es ausreichend gekühlt wird und nicht überhitzen kann.
9. Platzieren Sie keine Zündquellen wie z.B. brennende Kerzen auf dem Gerät.
10. Lüftungsschlitze dürfen nicht blockiert werden.
11. Das Gerät wurde ausschließlich für die Verwendung in Innenräumen entwickelt, betreiben Sie das Gerät nicht in unmittelbarer Nähe von
Wasser (gilt nicht für spezielle Outdoor Geräte - beachten Sie in diesem Fall bitte die im Folgenden vermerkten Sonderhinweise). Bringen
Sie das Gerät nicht mit brennbaren Materialien, Flüssigkeiten oder Gasen in Berührung.
12. Sorgen Sie dafür, dass kein Tropf- oder Spritzwasser in das Gerät eindringen kann. Stellen Sie keine mit Flüssigkeit gefüllten Behältnisse
wie Vasen oder Trinkgefäße auf das Gerät.
13. Sorgen Sie dafür, dass keine Gegenstände in das Gerät fallen können.
14. Betreiben Sie das Gerät nur mit dem vom Hersteller empfohlenen und vorgesehenen Zubehör.
15. Öffnen Sie das Gerät nicht und verändern Sie es nicht.
16. Überprüfen Sie nach dem Anschluss des Geräts alle Kabelwege, um Schäden oder Unfälle, z. B. durch Stolperfallen zu vermeiden.
17. Achten Sie beim Transport darauf, dass das Gerät nicht herunterfallen und dabei möglicherweise Sach- und Personenschäden
verursachen kann.
18. Wenn Ihr Gerät nicht mehr ordnungsgemäß funktioniert, Flüssigkeiten oder Gegenstände in das Geräteinnere gelangt sind, oder das Gerät
anderweitig beschädigt wurde, schalten Sie es sofort aus und trennen es von der Netzsteckdose (sofern es sich um ein aktives Gerät handelt).
Dieses Gerät darf nur von autorisiertem Fachpersonal repariert werden.
19. Verwenden Sie zur Reinigung des Geräts ein trockenes Tuch.
20. Beachten Sie alle in Ihrem Land geltenden Entsorgungsgesetze. Trennen Sie bei der Entsorgung der Verpackung bitte Kunststoff und
Papier bzw. Kartonagen voneinander.
21. Kunststoffbeutel müssen außer Reichweite von Kindern aufbewahrt werden.
BEI GERÄTEN MIT NETZANSCHLUSS:
22. ACHTUNG: Wenn das Netzkabel des Geräts mit einem Schutzkontakt ausgestattet ist, muss es an einer Steckdose mit Schutzleiter
angeschlossen werden. Deaktivieren Sie niemals den Schutzleiter eines Netzkabels.
23. Schalten Sie das Gerät nicht sofort ein, wenn es starken Temperaturschwankungen ausgesetzt war (beispielsweise nach dem Transport).
Feuchtigkeit und Kondensat könnten das Gerät beschädigen. Schalten Sie das Gerät erst ein, wenn es Zimmertemperatur erreicht hat.
24. Bevor Sie das Gerät an die Steckdose anschließen, prüfen Sie zuerst, ob die Spannung und die Frequenz des Stromnetzes mit den auf
dem Gerät angegebenen Werten übereinstimmen. Verfügt das Gerät über einen Spannungswahlschalter, schließen Sie das Gerät nur an
die Steckdose an, wenn die Gerätewerte mit den Werten des Stromnetzes übereinstimmen. Wenn das mitgelieferte Netzkabel bzw. der
mitgelieferte Netzadapter nicht in Ihre Netzsteckdose passt, wenden Sie sich an Ihren Elektriker.
25. Treten Sie nicht auf das Netzkabel. Sorgen Sie dafür, dass spannungsführende Kabel speziell an der Netzbuchse bzw. am Netzadapter
und der Gerätebuchse nicht geknickt werden.
26. Achten Sie bei der Verkabelung des Geräts immer darauf, dass das Netzkabel bzw. der Netzadapter stets frei zugänglich ist. Trennen Sie
das Gerät stets von der Stromzuführung, wenn das Gerät nicht benutzt wird, oder Sie das Gerät reinigen möchten. Ziehen Sie Netzkabel
und Netzadapter immer am Stecker bzw. am Adapter und nicht am Kabel aus der Steckdose. Berühren Sie Netzkabel und Netzadapter
niemals mit nassen Händen.
27. Schalten Sie das Gerät möglichst nicht schnell hintereinander ein und aus, da sonst die Lebensdauer des Geräts beeinträchtigt werden könnte.
28. WICHTIGER HINWEIS: Ersetzen Sie Sicherungen ausschließlich durch Sicherungen des gleichen Typs und Wertes. Sollte eine Sicherung
wiederholt auslösen, wenden Sie sich bitte an ein autorisiertes Servicezentrum.
29. Um das Gerät vollständig vom Stromnetz zu trennen, entfernen Sie das Netzkabel bzw. den Netzadapter aus der Steckdose.
30. Wenn Ihr Gerät mit einem Volex-Netzanschluss bestückt ist, muss der passende Volex-Gerätestecker entsperrt werden, bevor er entfernt
werden kann. Das bedeutet aber auch, dass das Gerät durch ein Ziehen am Netzkabel verrutschen und herunterfallen kann, wodurch
Personen verletzt werden und/oder andere Schäden auftreten können. Verlegen Sie Ihre Kabel daher immer sorgfältig.
31. Entfernen Sie Netzkabel und Netzadapter aus der Steckdose bei Gefahr eines Blitzschlags oder wenn Sie das Gerät länger nicht verwenden.
32. Das Gerät darf nur im spannungsfreien Zustand (Trennung des Netzsteckers vom Stromnetz) installiert werden.
33. Staub und andere Ablagerungen im Inneren des Geräts können es beschädigen. Das Gerät sollte je nach Umgebungsbedingungen
