Camos CD-2004MT User manual

PRINTED IN KOREA
ver. 1.2
4CH HD
Driving Video Recorder
INSTRUCTION MANUAL
Thank you for purchasing this product.
For correct application and usage instructions, please read this instruction manual thoroughly.
* When using an SD card over 64GB, be sure to format the SD card using
PC viewer manager before use.

2
CONTENTS
.................................................. 3
.............................................................................. 5
.................................................................... 5
............................. 6
....................................................................... 7
........................................................................... 9
...................................................... 15
................................................................... 23
PRECAUTION BEFORE USE
FEATURES
BOX CONTENTS
NAME AND FUNCTION OF EACH PART
INSTALLATION
OPERATION
PC VIEWER MANAGER
SPECIFICATION

3
PRECAUTION BEFORE USE
Do not place within the effective deployed area of an air bag.
- Doing so may cause a malfunction with the air bag, an accident and/or injury.
Ensure the power socket is kept clean and free from dust at all times.
- Failure to do so may cause an electronic shock and/or fire.
Do not insert foreign objects into a hole or crack in the body of the product.
- Doing so may cause an electric shock, fire and/or malfunction.
Do not use should you suspect a problem with the device (e.g. smoke or a burning smell coming from the product).
- Immediately discontinue use and make enquiries with the supplier.
Always install with the power disconnected. Only connect power after the install is completed.
- It may cause an electric shock or malfunction.
Do not operate the product while driving.
- Doing so may cause an accident. Stop in a safe place to operate.
Do not install the product where a sudden temperature increase may occur. Only use within the opti-
mum voltage, temperature and humidity range. - It may cause a malfunction or explosion.
Do not pull on any cords or wiring. Do not use with damaged wiring.
- It may cause a malfunction, electric shock and/or fire.
Do not clean the exterior with alcohol, volatile chemicals or solvents.
- Such chemicals may cause damage to the surface and/or paint, or a malfunction and/or fire.
Do not install the product where it cannot be mounted securely, or is exposed to excess vibrations.
- It may cause an accident or injury if the product comes loose from its mounting while driving.
Avoid wiring the product to a voltage higher than the maximum specified.
- Excess voltage may cause an electric shock and/or fire.
Observe all air bag safety precautions when installing the product.
- Failure to do so may cause a malfunction with the air bag if the product is installed and/or wired incorrectly.
Please prevent the loss of power during an update.
If power is lost during an update, the product may no longer function.
Do not place near a magnet.
- It may cause a malfunction.
Do not allow any object to come into contact with the product.
- An impact to the device may cause damage or a malfunction.
Keep the internal GPS antenna free from any obstructions.
- Obstructions may cause a problem with GPS signal reception.
The GPS function has a loading time when first powered on.
- The GPS needs from a few seconds to a few minutes depending on signal reception strength.

4
To prevent excess vehicle battery drain, disconnect power to the product if you will not drive for an ex-
tended time (over three days). We recommend disconnecting even though this cable contains a feature
to prevent battery drain.
When using a non-supplied power cable (e.g. if needing a longer cable), contact a specialty store. (The fuse
box location will vary depending on each car manufacturer. Check the car manual before installation.)
Do not attempt to disassemble, repair or modify the product.
- Doing so may cause a malfunction and/or injury. The warranty will be void. Make enquiries with the
supplier for inspection and repair.
When driving in low light conditions, turning on the vehicle’s headlights will improve the recording
quality.
The recording quality may be affected in areas with a sudden change in light, such as entering or exiting
a tunnel.
A vehicle with metallic tinting on the front window could cause poor GPS signal reception.
After installation, ensure the vehicle’s brakes, lights, horn, etc. all operate correctly.
- An accident, electric shock and/or fire may be caused if any of the above functions are impeded by the
installation of this product.
Ensure the wiring will not contact moving parts (such as a seat rail), fasteners or the car frame.
- It may cause a short circuit resulting in an electric shock and/or fire.
After installation, ensure all wiring is secured and out of the way so as not to interfere with the actions
of driving.
- It may cause an electric shock or fire if exposed wiring comes into contact with the car frame.
- It may cause an accident if any vehicle controls are restricted due to interference by the wiring.
Use only the specified components.
- If non-specified components are used, it may cause an accident or malfunction of the product.
Do not interfere with any wiring when the product is installed in an area with other wiring.
- It may cause a malfunction or fire from a‘bundle’of electric wiring.
Ensure the product is installed level, with a memory card inserted.
- No recordings can be saved without a memory card installed.
Use SD cards only for DVR recording.
- The SD card used for recording must use the FAT32 file system. If the SD card is shared for both general
usage and recording, the recorded video may become corrupt or cause serious errors to the SD card. In
such cases, no warranty or compensation can be given. It is recommended to format the SD card using
the PC viewer manager software.
The viewer does not run properly when the sound driver is not installed on the user’s PC or if the sound
device is disabled.
- If the message ‘Sound device open error’ is displayed twice, please re-run the viewer installation after
confirming that the sound device is working properly.

5
BOX CONTENTS
2
※ If the body and parts mentioned below are not included when you purchase this product, contact the
shop where you purchased the product.
FEATURES
1
• HD / CVBS resolution
• TVI / AHD / CVBS camera compatible
• IP69K (waterproof/dustproof) / aluminium die-cast case
• Output: HD VIDEO OUT x1 / CVBS VIDEO OUT x1
• H-264
• Automatic recording when power is on (in the case of an external impact or if an accident
occurs while driving)
• Exclusive PC Viewer Manager software
• SD card lock system
• Various audible alerts (memory card issue, events, firmware update etc.)
• External GPS antenna
• 3G shock sensor
• Free Voltage (DC 12V~24V, Max.32V)
• Supports triggers (connected to rear camera)
• Wi-Fi dongle for long distance Wi-Fi transfer (optional)
• Supports voice recording via external microphone (MIC) (optional)
• External emergency recording button (optional)
SD CARD
Instruction
manual
Wi-fi dongle
(Optional)
DVR & Keys GPS antenna Microphone
Screw set
Extension emergency
button
The images of each item shown above are for illustrative purposes only and may differ from
the actual items supplied. Each item is subject to change without notice.

6
4CH Digital DVR
Cable Connection
CAM1
CAM2
CAM3
CAM4
RED (DC 12-24V)
BLACK (GROUND)
GPS
MIC
Emergency record button
TRIGGER
VIDEO OUT (CVBS)
VIDEO OUT (HD)
Wifi (Optional)
Camera(Optional)
MDM-201A
MDM-202A
DCC-108A
Monitor(Optional)
Emergency record button (optional)
MIC / GPS can be used with cable connection
Insulation Tape
1
2 4
3
CVBS
HD
3
NAME AND FUNCTION OF EACH PART
1. LED lights
2. Forced power switch
3. SD card slot
4. Memory key lock
Microphone (optional)
* Trigger : If the DVR detects a trigger signal (input), the image of the assigned
camera is displayed on the optional monitor (if connected).

7
INSTALLATION
4
Please read the following points prior to installation.
- Turn off the product before installation, and ensure the vehicle key is not inserted and turned on at
any time during the installation.
- Only use the cables supplied. Do not use any other unverified cable.
- Any vehicle with dark or metallic tinting may have a negative influence on the GPS signal strength.
- Be sure to eliminate potential wave interferences around the GPS antenna and completely separate
from other devices and cabling, such as a hi-pass filter, navigation equipment etc.
GPS antenna connection
Connect the DVR to a GPS antenna to collect data including driving route, speed, time, direction
and location information.
* Recommended GPS antenna installation position
* Receiving a GPS signal could be impaired by tinting or a coating material on the window. It is not a product fault,
but a situation caused by metallic tinting or a metal component in the glass such as heat/demister wires. In this
case, relocate the antenna to a place where there are no obstructions.
* Before att aching the GP S antenna, c lean the surface and then secure firmly with double-sided tape, making sure the
“GPS” engraved side is facing upward. The attached double-sided tape will reach maximum strength after 24 hours.
Install with the “GPS” engraved
side facing upward.
Tinting section
GPS antenna
Ensure GPS antenna does not overlap
the tinted section of the window.

8
Buzzer & LED Operation
LED lights on the DVR
Camera Connection Status(1-4)
MIC Connection Status
GPS Connection Status
Wi-Fi Connection Status
* Only the LEDs with a good connection to the external device are indicated. All camera LEDs will
flash when an event occurs.
Status Feature
CAM1
LED
CAM2
LED
CAM3
LED
CAM4
LED
MIC
LED
GPS
LED
Wi-Fi
LED
Buzzer
Booting
Normal Booting
Blinking after turning on Blinking after turning on Blinking after turning on Blinking after turning on
Turn on Turn on Turn on O
Booting Error
Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on
O
Turn Off
Normal Turn Off
Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on
O
Recording
Mode
Driving(Normal) Blinking Blinking Blinking Blinking - - - -
Shock(Event) Blinking Blinking Blinking Blinking - - - O
External(Trigger) ------- -
Firmware
UP DATE Blinking Blinking Blinking Blinking Blinking Blinking Blinking O
Camera
Normal Blinking Blinking Blinking Blinking - - - -
Error
Turn off after turning on Turn off after turning on Turn off after turning on Turn off after turning on
--- O
MIC
(AUDIO)
Connect - - - - Turn on - - -
No Connection ------- -
GPS
Connect - Receiving - - - - - Turn on - -
Connect - Not Receiving - - - - - Blinking - -
No Connection ------- -
ETC
SD CARD FORMAT Blinking Blinking Blinking Blinking Blinking Blinking Blinking -

9
OPERATION
5
Lock Open
Please note the following before operating the product.
- Do not touch the device while driving.
- Connect the GPS, VIDEO OUT and MIC before turning on the vehicle.
- After powering on the device, it may reboot. This is not a device fault.
- Recording is only possible when the SD card is inserted.
- If the SD card is removed while in operation, some or all of the data may be lost.
-
Always remove the SD card by using the “Safe Hardware Removal” option on a PC.
Please insert the SD/micro SD card with the chip/contacts facing upward.
Damage to the SD card slot may occur if the
SD card is forcibly inserted the wrong way.
This may result in recording issues or failures.
Powering On/Off & Removing the SD Card
1. After inserting the SD card, the cover must
be closed to turn the device on. If not, the
device will not turn on.
2.
Always lock the device with the key lock in
order to prevent the ejection of the SD card
due to an accident or shock. (SD card key lock)
3. Unlock using the enclosed key, then open the
cover and wait a minimum of two seconds
before removing the SD card

10

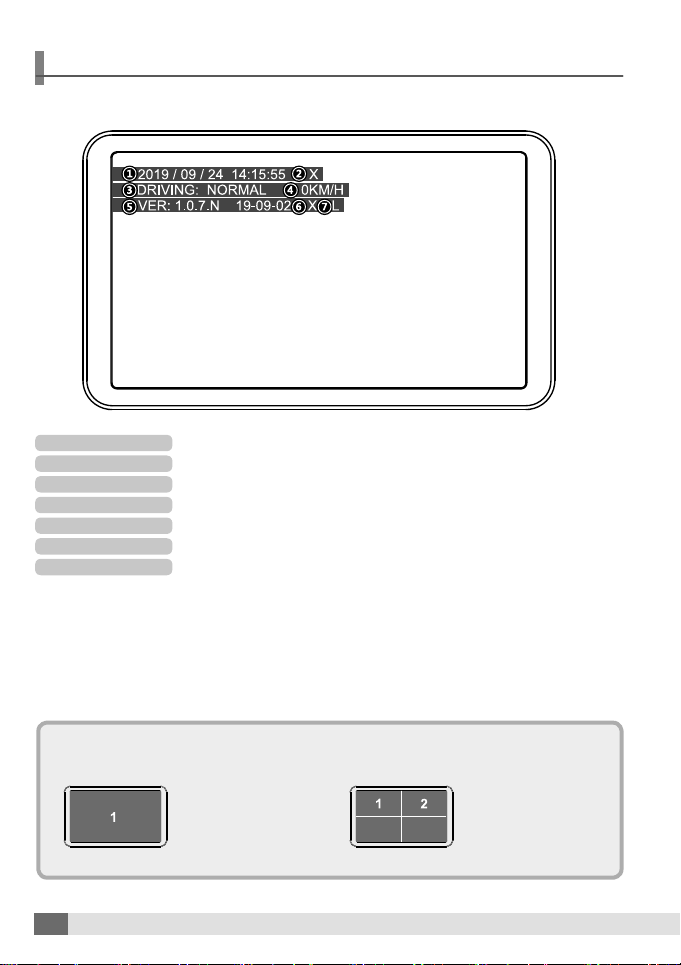

Recording Status and LED Confirmation
CAM 1,2,3,4
1. If the camera is connected, the corresponding LED light will
flash every second. (E.g. when only CAM 1 is connected, the
light for CAM 1 only will be on.)
2. CAM LED lights will not turn on if there is an issue with the
corresponding camera’s connection.
Booting
1. All LED lights turn on for 12 seconds after successfully booting. Then,
CAM 1 to 4 lights turn on for four seconds. CAM 1 to 4 lights will then
flash every second for five seconds, after which drive recording will start.
* Please check the power or SD card connection status if the device
does not boot within 30 seconds.
Recording Mode
1. CAM 1 to 4 LEDs will flash every second after recording starts.
2. If a shock (EVENT) occurs, the LEDs on CAM 1 to 4 flash
five times within a second from the start to the end of the
event.
Wi-Fi
1. The Wi-Fi LED will turn on when the Wi-Fi is connected (E.g. when
configuring FTP settings).
2. The Wi-Fi LED is turned off when the Wi-Fi is not connected.
3. The Wi-Fi LED flashes after connecting and when transmitting data.
MIC
1. The MIC LED will turn on when a microphone is connected.
2. The MIC LED will be off when a microphone is not connected.
GPS
1. When a GPS antenna is connected, it begins searching for a signal.
The GPS LED will turn on when the signal is received. The LED light
flashes every second when the signal reception is poor.
2. The GPS LED will be off when a GPS antenna is not connected.

11
Firmware update
Error Check
Please carefully read the below information if using an SD card over 64GB.
- The CAMOS DVR supports automatic formatting (FAT32) when a memory card larger than
64GB is first used.
- Only format memory cards using the PC Viewer Manager software.
- Proceed with the firmware update only after formatting the SD card via the PC Viewer
Manager. (The firmware update might not proceed after formatting on a PC, depending on
the file system selected (e.g. exfat). In this case, reformat using the PC Viewer Manager only,
which will use the correct format (FAT32). The firmware update will now proceed as normal.)
Firmware update
1. The previous version of firmware will be updated automatically if a
new update file is found during initial booting.
2. All LEDs flash every two seconds until the firmware update finishes.
* Please make sure the power stays on while updating.
Error Check
1. All LEDs flash every second when an error occurs or the SD card is
removed with power being connected. There will be a continuous
audible beep until the SD card is re-inserted or the power is turned off.
* The device turns on/off when the cover is opened and closed. Please
insert or remove the SD card by opening and closing the cover with the
engine off in order to prevent damage to recorded data stored on the
SD card.
Finished Recording
1. All LEDs turn off and then turn back on at the end of a normal,
successful recording.

12
RECORDING MODE & TIME
1. Continuous Recording (NORMAL)
2. Event Recording (EVENT)
2min 2min 2min 2min 2min ㆍㆍㆍ
*Event recording videos are saved in the EVENT folder.
*Normal recording videos are saved in the NORMAL folder.
Continuous Recording : DVR will record in two-minute files.
Continuous Recording
(two minutes)
Saved as file.
Event recording for 30 seconds total
Event Recording for 30 seconds total
E.g. 1: In the event of an accident
Records 10 seconds before and 20 seconds after the event with an audible beep (30 seconds overall).
E.g. 2: In the event of an accident within 15 seconds after recording started
Continuous recording file (15-second video) / event recording file. (30 seconds)
E.g. 3: Consecutive events
The additional event video is generated after the first event video.
Accident
Accident
2min 2min
15s
10s
10s
20s
20s
2min
2min
2min
2min 2min
Continuous
Recording
Continuous recording
(two minutes)
Saved as file.
Event recording for 30 seconds total
Accident
Additional
accident
2min 2min
10s 20s
30-second additional event video
10s 20s
2min
ㆍㆍㆍ
ㆍㆍㆍ
ㆍㆍㆍ
Continuous Recording Section Event
Recording Section
Duplicated
Recording Video
Duplicated
Recording Video
Continuous
Recording
Continuous
Recording
Continuous
Recording
Continuous
Recording Continuous Recording
Duplicated
Recording Video
* An additional event video is not generated in the middle of an event.

13
3. Forced Recording (MANUAL)
*Forced recording videos are saved in the MANUAL folder.
※ VIDEO RESOLUTION
HIGH HD(TVI, AHD) / CVBS
1920
1080
960
540
NORMAL HD(TVI, AHD) / CVBS
960
480
480 240
Event
Manual
Normal
Snapshot
1) Extension Emergency Button (optional)
Install the emergency recording button within easy reach of the driver to
start a forced recording when necessary.
* This button is connected to the remote control receiver input.
Continuous recording
(two minutes)
Saved as file.
Forced recording video for 30 seconds total
2min 2min
10s 20s
2min 2min ㆍㆍㆍ
E button on the remote control or
optional emergency recording button
Click
Duplicated
Recording Video
Continuous
Recording Continuous Recording
※ Folder structure on
the SD card
When using a 512GB SD card with either of the 960H video resolutions, the
default two-minute file recording time is increased to four minutes.
The time to save the recorded video can vary and depends on the used capacity of
the SD card, amount of cameras used, configured settings and recording quality.
In some cases, videos have one to two seconds of duplicated footage with the next video,
which helps to prevent image loss. This is not a fault. E.g. Normal video time of 2 min. and 2s.

14
SCREEN FEATURES / SCREEN LAYOUT
1. Current Time
2. GPS Connection
3. Recording Status
4. Speed
5. Version Information
6. MIC Connection
7. Image Quality
Displays the current date and time.
Displays the GPS connection status (connected = O, not connected = X).
Displays the recording status (NORMAL / GSENSOR / MANUAL).
Displays the speed when the GPS is connected (Km/h, MPH).
Displays the firmware version.
Displays the microphone (MIC) connection status (connected = M, not connected = X).
Displays the recording quality (normal image quality = L / high image quality = H).
Example of screen onfiguration
with four cameras camera
connected.
※ Screen Configuration with Single/Multiple Cameras Connected.
Example of screen configuration
with only one connected.
34

15
PC VIEWER MANAGER
6
Recommended Specifications for Running PC VIEWER MANAGER
CPU : Pentium Series or higher
OS : WINDOWS 7/ 8/ 10
Memory : 2GB RAM
HDD : 1GB Free Space
Authorized User : Administrator
* If videos saved in the SD card are more than a week older than the current PC
time, when you open a file in the PC VIEWER, a message is displayed that states
the SD card needs to be formatted.
* Please format the SD card regularly to prevent errors.
* If the recording list does not show up in PC VIEWER, check the drive letter selected
to ensure you are looking on the SD card.
Recorded File Naming Convention
The file naming convention is “Channel_Numbering_Date_Time_N/A_N/A_Recording Mode”.
For the end letter (recording mode): “N” stands for normal recording, “G” stands for event
recording by an impact, and “S” stands for Wi-Fi setting (saving images during an impact).
E.g. ch1_0183_20200128_180426_753_56991_N.avi
The file was recorded on 28th Jan 2020 18:04:26 using ch1, normal recorded file.
Confirm Cancel
* The channel selection window appears when a new SD
card is recognized or after the SD card is formatted
through the viewer. Please select the channel.
* Please install PC Viewer Manager onto your PC from the
“Viewer” folder in the SD card.
* Please remove the “Viewer” folder after the installation of PC Viewer Manager.
* After formatting the SD card, you can download the PC Viewer Manager setup file from
the Camos website: www.camos.co.kr.

16
PC VIEWER MANAGER INSTALLATION ISTRUCTION
※ Double-click setup.exe to start the installation.
1. Double click [setup.exe].
※
Viewer’s Software is subject to change without notice.
The latest viewer version is available for download from CAMOS website.
2. Click [Next] on the setup wizard.
4. Click [Next] at Confirm Installation step. 5. Click [Close] at Installation Complete
step.
◀
Installation Progress
Screen
3. Specify the installation location and
click [Next].

17
1. Play screen
2. 3G sensor
3. Volume control
4. Playback control
5. Play speed control
6. Minimize
7. 1:1 screen
8. Full screen
9. Maximization
10. Exit
11. Open file
12. File search
13. Map
14. GPS info.
15.
Output of Event Report
16. Send file
17. Configuration
Displays quad recorded video.
Displays 3G sensor information.
Adjusts sound (mute/volume +,-)
Previous file/Backward/Play(pause)/Forward/Next file
Adjusts playback speed (x1/4 ~ x4)
Minimizes the program window to the taskbar
Fit the recorded video to the viewer window size
Displays the recorded video in full screen (press ESC to return to normal playback screen).
Maximizes the program window to monitor screen size.
Ends the program.
Opens a recorded video file.
Searches the file list by date and time.
Displays driving route on the map.
Displays GPS information.
Displays report format data.
Saves the data in bmp or avi format.
Change setting values.
User Interface Instructions

18
Expanded file list screen
Recorded Video Playback Instructions
1. ④ The Viewer software can convert and display all
files, event recording files, and LOG data in the file list.
2. [ALL]: Show all files on the SD card.
3. [EVENT]: Display event files on the SD card.
4. [LOG]: Identifies the type of event recorded and dis-
plays a timestamped list.
File List Change
1. ① Click on the “Folder” button to display the
Disk Read screen.
2. ② On the Disk Read screen, select the connected
drive and press the OK button to display a list
of files.
3. If the connected drive cannot be verified, directly
browse and read the recorded file after clicking
on the “Open Another Folder” button.
Disk Read
1. ⑤ Double click on a specific time slot to continuously
play through the videos.
File Playback
Expand File List
1. ⑥ Click the “Expand list” button to open a
window to the right of the screen, showing
more files. Click ⑥ again to return to the
original file list.

19
EX 1 : 4 SPLIT
Mode Change
Map Information Instruction
Checking GPS information
EX 2 : CAM 1 CAM 3CAM 2 CAM 4
1. Four images are displayed after running the viewer and selecting a
file (refer to image EX1)
2. The selected part of the screen is zoomed-in when you double click
it during playback. Double click it again to return to the previous
screen (refer to image EX2).
Time/Date stamp
It is possible to view the vehicle’s speed, time, direction and location information at the time video
was recorded.
Vehicle speed
Location coordinates
Vehicle speed
Click the ① button to
expand the map screen.
Click the ① button again to
return to the main display.

20
Click the ② button to save an image of the currently playing video.
1. Backup Type : Click “AVI” to save as a video.
Click “BMP” to save as an image.
2. Select the save location on the PC
Additional Functions
Click the ① button to show the accident report.
Click the Add Memo button to comment on
the pin board of the accident report. This will
appear on the printed image. Click the print out
button to print.
