CAMPARK R10 User manual

Campark R10
Touch Screen Streaming
Video Rear View Mirror
190121

Important Notice:
This product is intended for using in motor vehicle only.
Do NOT install the device where it might block the driver’s
view of road (including the mirrors) or the deployment of
the airbag.
Before using this device, please insert the memory card
first, and then format the memory card in camera menu .
This device records video at high resolution. Be sure to
use high speed memory card, Class 10 or above is
recommended, 16GB or 32GB cards are recommended.
We do recommend doing a benchmark test and make sure
the unit is working perfectly before installing the unit on
your vehicle.
B e sure the lens is clean and there is nothing blocking the
lens.
Make sure to use the original power adapter (included) to
power the unit.
DO NOT leave the device in direct sunlight for a long
time or where the temperature could go above 170°F(75°C).
NOTICE : Due to the high power consumption of this
unit, it should always be connected to an external
power supply. This unit will not power on without
external power supply.
1

Installation Guide
1.B efore installation, please insert a high speed memory card in
the unit and format the memory card in the unit setting, also do
a simple test to make sure the unit is working perfectly.
2. Mount the mirror over the original rearview mirror and use the
included rubber ring to fix it(The front lens base is stretchable,
it can be pulled out sideways when necessary ). Make sure the
mirror is in the right place and secured.
3. Adjust the mirror angle according to your driving position, make
sure the mirror is right in place and the view is clear.
4. Adjust the angle of the lens.Make sure you get best coverage
over the hood and the road ahead, so you can record what
happens.
5. Connect the power adapter to the mirror and the cigarette
lighter, then route the power cable along the interior trim board,
you can route it as indicated below, and hide the excess cable in
the gaps for good looking.
2

6. The rearview camera should be installed at the rear end of the
car, normally the best place is above the number plate. The
camera can be fixed with the sticker or the screw. You can see
the diagram for reference.
7.T he excess RED lead near the rear view camera is used for
reverse status sensing. Connect the RED cable to the positive
lead of the reverse lamp power.
8. Mount the rear view camera behind the number plate, fix it with
screws or double-sided adhesive.There are 2 ways to mount the
camera:
a. Install the camera mount behind the number plate, you can
install it between the number plate and the car panel with the
double-sided adhesive.
Never Cover Any Information on the License Plate
3
W Y·6 6 7 W Y·6 6 7

b. Mount it directly on the car panel, if you are driving a truck or a
van and the number plate position is too low. You can mount the
camera directly on the car panel with double-sided adhesive and
screws, like an ordinary rear view camera.
4

9.R oute the camera cable to the front of the car and connect it
to the main unit. There are 2 pictures for reference.
(NOTICE: Holes might need to be drilled to pass the cable.)
10.A fter the installation is completed, please start the engine and
have a test run, make sure all functions are working.
The wiring and the installation requires certain NOTICE:
handwork and some professional electrician skills.If you are not
sure about it, please get some professional help.
5

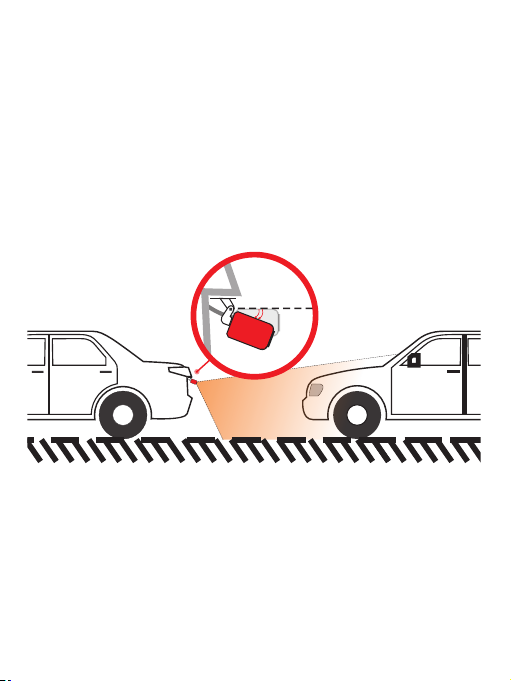

Adjust the reversing camera angle. The best angle is the
camera can cover the rear of the car and the ground surface
under the rear end.
Notice:
When the car is in reversing, the rear camera will automatically
display in full screen, and turn to the lowest angle, so you can
see the ground surface under the rear end while reversing.
Adjust the Reversing Camera
6

Interface and Button Functions
GPS interface (Optional)
Memory Card slot
Mini USB
Rear Camera
interface
Power
RESET
7

Power On/ Power Off
Power button
Long press the power button for 3 seconds to power on or power
off the unit
Turn off / Turn on Screen Display
When the unit is on, short press the power button to turn off the
screen display, enter the power saving mode(the recording is
still working with screen off);
Short press the power button or touch the screen to reactivate
screen display again.
Reset button
If the recorder somehow crashes or malfunctions, press the
[RESET] key to reset the unit and press the [POWER] button
again to restart the device.
NOTICE :
Due to the high power consumption of this unit, it should
always be connected to an external power supply. This unit
will not power on without external power supply
NOTICE :
When the external power supply cuts off (the engine turns off),
the camera will immediately dim the screen display, and power
off within 10 seconds (There will be a BEEP prompt when
powers off)
8

The main interface and Operations
If the unit is power properly, when you start the car engine,
the unit will automatically power on and start recording. If you
want to operate the recorder, touch the screen. The following
toolbar will show up on the screen.
Click to enter setup menu in standby.
Click to enter file playback in standby.
Click to start / stop video recording.
Click to switch front / rear camera display mode.
Click to turn on / off audio recording.
Click to manually lock / unlock current video file.
Sl ide ver tical ly to move
th e image u p and dow n. 20:05
08 /15
Da te & Time
NE XT
Mo n.
Pl aybac k
Se tup
St art / Sto p
Au dio Swi tch
Di splay M ode Swi tch
Ma nual Lo ck
START
START
Sl ide hor izont ally to adju st
sc reen br ightn ess.
9

Video playback
Click the Playback Icon in the toolbar to enter playback
mode. There are 3 folders in the playback mode
1. Front Camera Video
2. Locked Files
3. Rear Camera Video
1
2
3
FILE200211-003540F.MOV
FILE200211-003540F.MOV
FILE200211-003540F.MOV
FILE200211-003540F.MOV
FILE200211-003540F.MOV
001/143
10

Featured Function
The R10 mirror comes with dual channel lens, they can record
video in 1080P + 720P simultaneously, you can setup the front
or the rear camera record in 1080P , and the other one in 720P.
Or you can turn off the dual recording function, then only the
front camera will record video in 1080P or 720P, the resolution
is optional.
Dual Recording
This function allows you to set video file length to 1/2/3
minutes, Select a value to activate loop recording, so when
storage fills up, the camera will automatically loop back to
the earliest file and record over it.
Eg: If set the time 3 minutes, then the unit will keep recording
video in 3 minutes clips, When the card is full, the unit will keep
recording and overwrite the earliest unprotected 3 minutes
video file and so forth.
Loop Recording
This unit has a built-in Gravity sensor, In the event of a serious
vehicle collision or rapid acceleration / deceleration, the
G-sensor will be triggered and immediately lock current video
file so it will not be overwritten by loop recording.
G-Sensor
11

Set the time after which the unit will automatically turn off
screen. Used to save power and reduce distraction while driving.
For example, it is set to 2 minutes, if the unit is not operated in 2
minutes, the unit will automatically turn off screen while the
recording is still working, any button operation or touch the
screen will reactivate the screen display.
Screen Saver
The Parking Monitor is used to protect your car after parking,
with this function on, after you stop the car and the unit turns
off, it stays in standby, when unit detects significant shock, it
will automatically turn on and take a 15 seconds short video,
then shut down automatically.
Video recorded under parking monitor will be protected and will
not be overwritten by loop recording.
Parking Monitor
With Travelapse function on, you will record accelerated video
so you can concentrate a long journey in a relatively short video.
It works great when you are trying to make a log and do not need
that much content.
The setup option indicate the accelerating rate. For example,
at 3X, the video recorded will be 3 times faster, if the camera
works for 3 hours, you will get 1 hour of video.
Travelapse
NOTICE :
With this function on, you might miss certain frames, please
setup accordingly.
12

GPS Function
The GPS function is optional on the R10 camera, with the
optional GPS module plugged in, the R10 can display current
speed and heading direction on screen.
You can enter the setup menu and check the GPS signal status.
The speed unit KM/H and MPH optional.
Notice :
The speed displayed is an average speed calculated based on the
pined locations and time, it’s for reference only.
13

Setting Menu and Options
Resolution
Loop Recording
Auto Power OFF
Date & Time
Time Stamp
Language
Light Frequency
Screen Saver
Volume
Restore Settings
Format Memory Card
Firmware Version
1080P (F)+720P(R) /
720P (F)+1080P(R) /
Adjust video resolution, F for Front
Camera, R for rear camera.
When dual recording is off, only the
front camera will record video in
1080P or 720P.
Setup
OFF / 1 Min/
2 Min / 3 Min
Adjust Loop Recording video
clip length.
Option How it works
Audio Record OFF / ON
Never / 1 min / 5min
OFF/Date/Logo/
Date&Logo
English / Japanese /
Chinese
50Hz / 60Hz
Adjustable
Turn ON /OFF audio recording.
Adjust the auto power OFF time
Setup current date and time.
Setup Time stamp format in video.
Setup Time stamp format in video.
Setup local light frequency
Off/10 Sec/30 Sec/
120 Sec/
Setup the screen saver activated
time.
Adjust prompt volume
Reset all setups to default
Format the memory card
Check device firmware version
14

Common Problem and Solution
Recorder shows memory full, unable to loop video, etc.
The device will automatically turn on or turn off.
1. Please check whether the parking monitoring function is on.
With parking monitor on, the device will automatically turn on
and record when it detects a collision or shaking.
2. Check the car charger connection status, if the connection is
loose, the power supply is not stable, the camera will
automatically turn on and off.
The rear camera does not display image
1. Please switch the camera display mode to double check the
rear camera status.
2. Please check if the AV plug is properly connected and the
cable is plugged in correctly.
3. Try to disconnect the camera and clean the connector with
some Medical alcohol and connect it again.
1. First, when a new memory card is used for the first time on
the machine. Please format the memory card in the camera first.
Or the memory card is previously used on another type of device,
it needs to be formatted when used on this camera.
2. Check the sensitivity of G-sensor, If the sensitivity is too high,
the bumping and shaking of the camera will trigger the G-sensor,
and the file will be locked. Locked files cannot be overwritten.
If the locked file is accumulated, there will be no memory card to
loop record. When parking monitoring is turned on, shaking will
also cause too many stray files, which will also affect the
reading and writing of cards.)
15

Screen operation or button reaction is slow during recording
1. Please check whether the memory card used is a high-speed
card（Class10), If you use a non-high-speed card, problems
such as missed seconds, video playback jams, screen display
Colorful stripes, and crashes may occur.
2. Reset the camera if necessary.
Change in the setting menus won’t save.
1. After change settings, please manually press the Power button
to shut down, and the device settings will be saved.
2. When the device is abnormally powered off, the unit might not
save the changes.
3. When the battery is too low, the customized settings might
be lost.
If You Have Any Questions or Problems.
Pease contact us by
USA& Canada [e-mail]
UK [e-mail]
Australia [e-mail]
Europe [e-mail]
More Safe Guarantee with campark.We will offer prompt and
authoritative reply within 24 hours and try our best to resolve your
problem ASAP.
16
