Candy CTPS64SCTTWIFI User manual

Instruction Manual For Induction Hob
ENGLISH
Manuel d'instruction pour plaque à induction
FRANÇAIS
Manuale di istruzioni per il piano cottura a induzione
ITALIANO
Návod k použití pro indukční varnou desku
ČEŠTINA
Руководство по эксплуатации индукционной варочной панели
РУССКИЙ
Návod na obsluhu indukčnej varnej dosky
SLOVENČINA
Bedienungsanleitung für Induktionskochfeld
DEUTSCH
MODEL: CTPS64SCTTWIFI
THANK YOU FOR PURCHASING THE CANDY INDUCTION HOB. PLEASE READ THIS
INSTRUCTION MANUAL CAREFULLY BEFORE USING THE HOB AND KEEP IT IN A SAFE
PLACE FOR FUTURE REFERENCE.

EN-1
By placing the mark on this product, we are
confirming compliance to all relevant European
safety, health and environmental requirements
which are applicable in legislation for this
product.
Hereby, Candy Hoover Group Srl declares that
the radio equipment is in compliance with
Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the
following internet address: www.candy-
group.com
Safety Warnings
Your safety is important to us. Please read this
information before using your cooktop.
Installation
Electrical Shock Hazard
•Disconnect the appliance from the mains
electricity supply before carrying out any work
or maintenance on it.
•Connection to a good earth wiring system is
essential and mandatory.
•Alterations to the domestic wiring system must
only be made by a qualified electrician.
•Failure to follow this advice may result in
electrical shock or death.

EN-2
Cut Hazard
•Take care - panel edges are sharp.
•Failure to use caution could result in injury or
cuts.
Important safety instructions
•Read these instructions carefully before
installing or using this appliance.
•No combustible material or products should
be placed on this appliance at any time.
•Please make this information available to the
person responsible for installing the appliance
as it could reduce your installation costs.
•In order to avoid a hazard, this appliance must
be installed according to these instructions for
installation.
•This appliance is to be properly installed and
earthed only by a suitably qualified person.
•This appliance should be connected to a circuit
which incorporates an isolating switch
providing full disconnection from the power
supply.
•Failure to install the appliance correctly could
invalidate any warranty or liability claims.
Operation and maintenance
Electrical Shock Hazard
•Do not cook on a broken or cracked cooktop. If
the cooktop surface should break or crack, switch
the appliance off immediately at the mains power

EN-3
supply (wall switch) and contact a qualified
technician.
•Switch the cooktop off at the wall before
cleaning or maintenance.
•Failure to follow this advice may result in
electrical shock or death.
Health Hazard
•This appliance complies with electromagnetic
safety standards.
•However, persons with cardiac pacemakers or
other electrical implants (such as insulin
pumps) must consult with their doctor or
implant manufacturer before using this
appliance to make sure that their implants will
not be affected by the electromagnetic field.
•Failure to follow this advice may result in death.
Hot Surface Hazard
•During use, accessible parts of this appliance
will become hot enough to cause burns.
•Do not let your body, clothing or any item other
than suitable cookware contact the Induction
glass until the surface is cool.
•Metallic objects such as knives, forks, spoons
and lids should not be placed on the hob surface
since they can get hot
•Keep children away.
•Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of
reach of children.
•Failure to follow this advice could result in
burns and scalds.

EN-4
Cut Hazard
•The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted. Use
with extreme care and always store safely and
out of reach of children.
•Failure to use caution could result in injury or
cuts.
Important safety instructions
•Never leave the appliance unattended when in
use. Boilover causes smoking and greasy
spillovers that may ignite.
•Never use your appliance as a work or storage
surface.
•Never leave any objects or utensils on the
appliance.
•Do not place or leave any magnetisable objects
(e.g. credit cards, memory cards)or electronic
devices (e.g. computers, MP3 players) near the
appliance, as they may be affected by its
electromagnetic field.
•Never use your appliance for warming or
heating the room.
•After use, always turn off the cooking zones
and the cooktop as described in this manual (i.e.
by using the touch controls). Do not rely on the
pan detection feature to turn off the cooking
zones when you remove the pans.
•Do not allow children to play with the appliance
or sit, stand, or climb on it.

EN-5
•Do not store items of interest to children in
cabinets above the appliance. Children climbing
on the cooktop could be seriously injured.
•Do not leave children alone or unattended in
the area where the appliance is in use.
•Children or persons with a disability which
limits their ability to use the appliance should
have a responsible and competent person to
instruct them in its use. The instructor should be
satisfied that they can use the appliance without
danger to themselves or their surroundings.
•Do not repair or replace any part of the
appliance unless specifically recommended in the
manual. All other servicing should be done by a
qualified technician.
•Do not use a steam cleaner to clean your
cooktop.
•Do not place or drop heavy objects on your
cooktop.
•Do not stand on your cooktop.
•Do not use pans with jagged edges or drag pans
across the Induction glass surface as this can
scratch the glass.
•Do not use scourers or any other harsh
abrasive cleaning agents to clean your cooktop,
as these can scratch the Induction glass.
•If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
•This appliance is intended to be used in
household and similar applications such as:

EN-6
-staff kitchen areas in shops, offices and other
working environments; -farm houses; -by
clients in hotels, motels and other residential
type environments; -bed and breakfast type
environments.
•WARNING: The appliance and its accessible
parts become hot during use.
Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
•This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
•Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
•WARNING: Unattended cooking on a hob with
fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but
switch off the appliance and then cover flame e.g.
with a lid or a fire blanket.
•WARNING: Danger of fire: do not store items on
the cooking surfaces.
•Warning: If the surface is cracked, switch off
the appliance to avoid the possibility of electric

EN-7
shock, for hob surfaces of glass-ceramic or
similar material which protect live parts
•A steam cleaner is not to be used.
•The appliance is not intended to be operated by
means of an external timer or separate
remote-control system.
CAUTION: The cooking process has to be
supervised. A short term cooking process has to be
supervised continuously.
WARNING: In order to prevent tipping of the
appliance, this stabilizing means must be
installed. Refer to the instructions for
installation.
WARNING: Use only hob guards designed bythe
manufactuer of the cooking appliance or
indicated by the manufacture of the appliance in
the instruction for use as suitable or hob guards
incorporated in the appliance. The use of
inappropriate guards can cause accidents.
This appliance incorporates an earth connection
for functional purposes only.
Congratulations on the purchase of your new Induction Hob.
We recommend that you spend some time to read this Instruction / Installation
Manual in order to fully understand how to install correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instruction /
Installation Manual for future reference.

EN-8
1.2000 W zone, boost to 2600W
2.1500 W zone, boost to 2000W
3.2000 W zone, boost to 2600W
4.1500 W zone, boost to 2000W
5. Flex zone, 2800w boost to 3500w
6.Glass plate
7.Control panel
1. Heating zone selection controls
2. Timer control
3. Timer regulating key
4. keylock control
5. ON/OFF control
6. Boost function control
7. Pause function
8. Direct cook button
9. WiFi button
10. Power regulating key
11. Keep warm function control
12. Flex zone

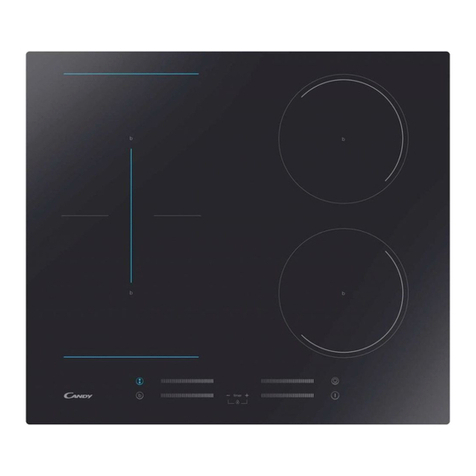

Product Overview
Top View
Control Panel

EN-9
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
A Word on Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly in the
pan, rather than indirectly through heating the glass surface. The glass becomes
hot only because the pan eventually warms it up.
Before using your New Induction Hob
•Read this guide, taking special note of the ‘Safety Warnings’ section.
•Remove any protective film that may still be on your Induction hob.
Using the Touch Controls
•The controls respond to touch, so you don’t need to apply any pressure.
•Use the ball of your finger, not its tip.
•You will hear a beep each time a touch is registered.
•Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.

EN-10
Choosing the right Cookware
•Only use cookware with a base suitable for induction
cooking. Look for the induction symbol on the
packaging or on the bottom of the pan.
•You can check whether your cookware is suitable by carrying out
a magnet test. Move a magnet towards the base of the pan. If it
is attracted, the pan is suitable for induction.
•If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
•Cookware made from the following materials is not suitable: pure stainless steel, aluminium or
copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Use pans whose diameter is as large as the
graphic of the zone selected. Using a pot a slightly wider energy will be used at its
maximum efficiency. If you use smaller pot efficiency could be less than expected.
Always centre your pan on the cooking zone.
Always lift pans off the Induction hob –do not slide, or they may scratch the glass.

EN-11
Pan dimensions
The cooking zones are up to a limit, automatically adapted to the diameter of the
pan. However the bottom of this pan must have a minimum of diameter according
to the corresponding cooking zone. To obtain the best efficiency of your hob,
please place the pan in the centre of the cooking zone.
The base diameter of induction cookware
Cooking zone
Minimum (mm)
1,2,3,4 (180mm)
120
Flex zone
240 or 160*270
The above may vary according to the quality of the pan used.
Using your Induction Hob
To start cooking
1. Touch the ON/OFF control.
After power on, the buzzer beeps once, all displays show
“ –“ or “ – –“, indicating that the induction hob has entered
the state of standby mode.
2. Place a suitable pan on the cooking zone that
you wish to use.
•Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
3. Touching the heating zone selection control, and
a indicator next to the key will flash.
4. Select one heating zone and set a power level by touching the slider, or slide
along the “—”control, or just touch any point of the “—”.,

EN-12
Or
a.If you don’t select a heat zone within 1 minute, the ceramic hob will
automatically switch off. You will need to start again at step 1.
b. You can modify the heat setting at any time during cooking.
c.If slide along the “—”, power will vary from stage 2 to stage 8.
Press “-”, power will decrease by one stage each time till stage 0.
Press “+”, power will increase by one stage each time till stage 9.
If the display flashes alternately with the heat
setting
This means that:
•you have not placed a pan on the correct cooking zone or,
•the pan you’re using is not suitable for induction cooking or,
•the pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minutes if no suitable pan is placed
on it.
When you have finished cooking
1. Touching the heating zone selection control that you wish to
switch off.
2. Turn the cooking zone off by slide along the “—” to the left point, and then hold
for 1 second.
Make sure the power display shows “0”, then shows “H”.
and then

EN-13
3. Turn the whole cooktop off by touching the
ON/OFF control.
4. Beware of hot surfaces
‘H’ will show which cooking zone is hot to touch. It will disappear when the
surface has cooled down to a safe temperature. It can also be used as an
energy saving function if you want to heat further pans, use the hotplate
that is still hot.
Using the Power Management
Using power managerment you can set the total power to 2.5kW/ 3.0kW/ 4.5kW/
6.5kW and 7.4kW. The default total power setting is the maximum power level.
Setting the total power level to fit your requirement
1. Make sure the cooktop is turned off.
Note: you can only set power management when the cooktop is turned off.
2. Touch the button “pause function” and hold for 5 seconds. You can
hear the buzzer beeps one time.
3. After you hear the beep, touch “+” and “-” button at the same time
and hold for 3 second, the timer indicator will show flashing previous total power
level, e.g. ‘2.5’. Touch and hold ”+” and ”-”for 1 second again to switch to other
power level, for example 3.0. When the power that you want is flashing, touch the
button “pause function” and hold for 5 seconds. The buzzer will beep 10 times. It
means you have finished the
setting.
Note:
1. After step 2, you must touch the “+” and “-”within 3 seconds after you hear
the beep. Otherwise you will need to start again from step 2.
2. Once finish setting, wait till the end of 10 beeps. Do not touch any button during
this period. Otherwise the setting will be invalid.

EN-14
Power management Rules
If total power exceeds the limitation of 2.5kw, 3.0kw, 4.5kw, 6.5kw (depending
on which level you’ve set), you are not able to increase power stage of any zone.
If you increase it by touching ‘+’, the cooktop will beep 3 times and indicator will
show a flashing ‘Pn’. Thus you need to decrease power stage of other zones before
increasing the power of objective zone.
Direct Cook
First, download the hOn App and install to your portable device. Then enroll your
induction hob.
Switch on the hob, touch the WiFi button and hold for 3 seconds, the hob will
display ‘rr’, and the WiFi indicator light will flash, then you can start the enrollment.
Once the WIFI module connects the router successfully, the WiFi indicator light
will be on all the time. Otherwise the WiFi indicator light will keep flashing.
How to set
Set the direct cook procedure on hOn App, and send the command to the hob, you
will hear two beeps and the dot of the timer display will flash. Then touch the
Direct cook button, you will hear one beep and the dot of the timer display will be
fixed. The hob will work following the setting on App and the selected zones will
show “A.”. On the App you will have access to 15 assisted cooking recipes,
together with some special functions: Keep warm, Melting, Boiling, Simmering
and Frying.
Attention:
There is a special case. If all the zone indicator lights went out when you’ve set
cooking recipes on App, you’ll need to touch On/off button before touching Direct
cook button. Once all indicator lights went out, within 10 minutes you need to
finish the cooking recipe setting. Otherwise you will need to connect the router
and set the recipe again.

EN-15
a. WIRELESS PARAMETERS
Technology
Wi-Fi
BLE
Standard
802.11 b/g/n
v4.2 BR/EDR &BLE
Frequency Band(s) [MHz]
2400 ~ 2500
2400 ~ 2500
Maximum Power [mW]
100
8
b. PRODUCT INFORMATION FOR NETWORKED EQUIPMENT
Product information for networked equipment
power consumption of the product in networked
standby if all wired network ports are connected
and all wireless network ports are activated:
N/A
How to activate wireless network port:
For WiFi activation, press 3 seconds
the WiFi button
How to deactivate wireless network port:
For WiFi de-activation, press 3
seconds the WIFI button

EN-16
Using the Boost
Boost is the function that one zone rising to a larger power in one second and
lasting for 5 minutes. Thus you can get a more powerful and faster cooking.
Using the Boost to get larger power
1. Touch the heating zone selection button that you wish to
boost, an indicator next to the key will flash.
2. Touch the “b” button and hold 3 second, the heating zone will begin to work at
Boost mode. The power display will show “P” to indicate that the zone is
boosting.
3. The Boost power will last for 5 minutes and then the zone will go back to the
power stage 9.
4. If you want to cancel the Boost during this 5 minutes, touch the “B” button for
twice. The heating zone will go back to “9” power stage. Or slide along the “—” to
the left point, the heating zone will go back to the power stage in which you
touched.
Or
Restrictions when using
The four zones were divided into two groups. In one group, if use boost on one
zone, first make sure that the other zone is working on/below power level 5.

EN-17
Using the Keep warm
Keep warm function is suitable for keeping food warm.
Using the Keep warm to get stable temperature
1. Touch the heating zone selection button that you wish to
use keep warm, an indicator next to the key will flash.
2. Touch the button , then hold 3 second, the cooking zone indicator will
display “A”.
3. If you want to cancel the keep warm, touch the heating zone selection
button, and then touch the button for 3 second. The heating zone
will go back to “0” power stage.
Using the Pause function
Pause function can be used at any time during cooking. It allows to stop the
induction cooktop and come back to it.
1. Make sure the cook zone is working.
2. Touch the button pause function, the cooking zone indicator will show “ll”.
And then the operation of the induction cooktop will be deactivate within the scope
of all cooking zones, except the pause function, on/off and lock keys.

EN-18
3. To cancel the pause status, touch the button pause function, then thecooking
zone will go back to the power stage which you set before.
Flexible area
•This area can be used as a single zone or as two different zones, accordingly to
the cooking needs anytime.
•Flexible area is made of two independent inductors that can be controlled
separately.
•Important: Make sure to place the cookwares centered on the single cooking
zone. In case of big pot, oval, rectangular and elongated pans make sure to place
the pans centered on the cooking zone covering both cross.
Examples for good and bad pot placements:
As big zone
1. Touch the flex zone selection button to activate the flexible area as a single big
zone, the indicator will show .

EN-19
2. Touch one of the heating zone selection button, then slide along the “—”control,
or just touch any point of the “—” to adjust the power level.
As two independent zones
1. If you want to cancel the flex zone, just touch the button of the flex zone, the
indicator next to the flex zone button will disappear.
Locking the Controls
•You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
•When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
Touch the keylock control. The timer indicator will show “ Lo “
To unlock the controls
1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while
3. You can now start using your Induction hob.
When the hob is in the lock mode, all the controls are disable except the ON/OFF,
you can always turn the induction hob off with the ON/OFF control in an emergency,
but you shall unlock the hob first in the next operation.
Over-Temperature Protection
A temperature sensor equipped can monitor the temperature inside the Induction
hob. When an excessive temperature is monitored, the Induction hob will stop
operation automatically.
Over-spillage Protection
Over-spillage protection is a safety protection function. It switch off the hob
automatically within 10s if the water flow to the control panel, while buzzer will
beep 1 second.
Detection of Small Articles
When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other
