Cannon CAMBERLEY Mk3 Technical manual

CAMBERLEY Mk3
Use and Installation Instructions
The cooker must be installed in accordance with the regulations in force
and only used in a well ventilated space.
Read these instructions prior to using the cooker and retain them for
future reference.
The Data Badge is located below the oven door.
Part no. 4466200009-02

PAGE
INTRODUCTION 3
FOR YOUR SAFETY 4
USER’S INSTRUCTIONS 6
Automatic Cooking 7
Electronic Clock Operation 8
Hotplate 14
Top Oven 16
Top Oven Cooking Chart 17
Grill 19
Main Oven 21
Main Oven cooking chart 24
Care and Cleaning 26
Something Wrong With Your Cooker 28
INSTALLATION INSTRUCTIONS 30
SERVICE INFORMATION Back Cover
2
CONTENTS

To help you make the best use of your cooker, PLEASE READ THIS BOOKLET
CAREFULLY.
Your new cooker is guaranteed and will give lasting service. The guarantee is only
applicable if the cooker has been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use and responsibility will not be
accepted for use in any other installation.
When first using the cooker ensure that the room is well ventilated (e.g. open a
window or use an extractor fan) and that persons who may be sensitive to the odour
avoid any fumes. It is suggested that any pets be removed from the room until the
smell has ceased. This odour is due to any temporary finish and also any moisture
absorbed by the insulation.
3
INTRODUCTION
Our policy is one of continual improvement in design and development,
therefore strict accuracy of illustrations and descriptions cannot be
guaranteed.
This appliance conforms to the following EEC Directive:
Gas Appliances
90/396/EEC
Low Voltage Equipment
72/23/EEC
93/68/EEC
Electromagnetic Compatibility
89/336/EEC
92/31/EEC
93/68/EEC

Please read the precautions below before using your cooker.
ALWAYS make sure you understand the controls before using the cooker.
ALWAYS check that all controls on the cooker are turned off after use.
ALWAYS stand back when opening an oven door to allow heat to disperse.
ALWAYS use dry, good quality oven gloves when removing items from the ovens.
ALWAYS take care when removing items from the top oven/grill when the main
oven is on, as the contents may be hot.
ALWAYS keep the oven and grill doors closed when the cooker is not in use.
ALWAYS place pans centrally over the hotplate burners and position them so that
the handles cannot accidentally be caught or knocked or become heated
by other burners.
ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can cause
a fire.
ALWAYS allow the cooker to cool before cleaning.
ALWAYS follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
ALWAYS keep ventilation slots clear of obstructions.
ALWAYS turn off the electricity supply before cleaning or replacing the oven lamp.
ALWAYS refer servicing to CORGI registered appliance service engineers.
4
FOR YOUR SAFETY

NEVER leave children unsupervised where the cooker is installed as all surfaces
will get hot during and after use.
NEVER allow anyone to sit or stand on any part of the cooker.
NEVER store items that children may attempt to reach above the cooker.
NEVER heat up unopened food containers as pressure can build up causing the
container to burst.
NEVER store chemicals, food stuffs, pressurised containers in or on the cooker, or in
cabinet immediately above or next to the cooker.
NEVER fill a deep fat frying pan more than 1/3 full of oil, and never use a lid. DO NOT
LEAVE UNATTENDED WHILE COOKING.
NEVER place flammable or plastic items on or near the hotplate.
NEVER use proprietary spillage collectors on the hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other items over or near to the hotplate or oven/grill
doors.
NEVER wear garments with long flowing sleeves whilst cooking.
NOTE: The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Always ensure that the kitchen is well
ventilated; keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood).
In particular when using the grill or more than one hotplate burner, open a window if
a mechanical ventilation device is not operating.
5
FOR YOUR SAFETY

Camberley double oven
Cannon
GLASS LID
FLUE GRILLE
PAN SUPPORTS
IGNITION BUTTON
CONTROL PANEL
TIMER
MAIN OVEN LIGHT
SWITCH
DATA BADGE
HOTPLATE BURNER
SIDE PANELS
6
USER’S INSTRUCTIONS

AUTOMATIC COOKING
Only the main oven can be controlled automatically.
GUIDANCE ON AUTOMATIC COOKING
1. When planning your meal remember that the oven control setting refers to the
temperature on the middle shelf; above this shelf it is hotter and below it is cooler.
Therefore foods which require different temperatures can be cooked automatically
at the same time.
2. Set the oven timer so that the food has just finished or about to finish cooking on
your return to the oven. This will ensure the food has not cooled down and does
not require reheating before serving.
3. Food should be as cold as possible when it goes into the oven ideally straight
from the refrigerator. Frozen meat and poultry should be thawed thoroughly
before it is put in the oven.
4. We advise that warm food should never be placed in the oven if there is to be a
delay period. Stews prepared by frying the meat and vegetables should be cooked
as soon as possible.
5. We advise dishes containing left-over cooked poultry or meat, for example
Shepherds Pie, should not be cooked automatically
if there is to be a delay period.
6
. Stews and joints should be cooked by the long slow method, so that the delay
period is kept to a minimum.
7. On warm days, to prevent harmful bacterial growth in certain foods (ie poultry,
joints, etc) the delayed start should be kept to a minimum.
8. Wine or beer may ferment and cream may curdle during the delay period, so it is
best to add these ingredients just before serving.
9. Foods which discolour should be protected by coating in fat or tossing in water to
which lemon juice has been added, prior to placing food in the oven.
10. Dishes containing liquid should not be filled too full to prevent boiling over.
11. Foods should be well sealed (but not airtight) in a container to prevent the loss of
liquid during cooking. Aluminium foil gives a good seal.
12. Ensure food is cooked thoroughly before serving.
7
AUTOMATIC COOKING

Minute
Minder Cook
Period End Time Manual
A
U
T
O
A
U
T
O
Minute
Minder Cook Period End Time Manual
8
KNOW YOUR TIMER
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure the correct time of day is always set, before using you cooker.
SYMBOLS
Will light up when you select a Minute Minder Period and will remain
lit for the period set.
This “Cookpot” symbol will light up either:–
_When the cooker is in "Manual Mode"
– When you press the Cook Period Button and set a length of time for an
Auto Cooking Programme. ( symbol will light up during Auto Cooking)
"A" will light up:–
– When the timer is first turned on it will flash. (It will go out when a time
of day is set.
– When an Auto Cooking Programme has been set.
The Auto symbol "A" will flash at the end of an Auto Cooking programme to
indicate that the programme has finished.
(When the "A " symbol is flashing, to return the oven to Manual
operation, turn the oven controls off, ensure that the correct time of
day is set, and press the "Cook Period & End Time" buttons together– The "A"
symbol will go out.)
Here you can set a time period of up to 23 hours 59 minutes, that will count down.
When it reaches zero, the timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.
Cook Period is the actual length of time for which, the timer will switch the oven(s) on
as part of an "Auto Cooking" programme.
(e.g. If you set 2 hours, the food will be cooked for 2 hours).
The time of day at which you want an “Auto Cooking” programme to end.
For Example: If you set a "Cook Period" for 2 hours, and "End Time" of 11:00. The
timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear
a audible tone at 11:00, to indicate that the Auto
Cooking Programme has finished.
Notes:
– When setting an Auto Cooking programme you will need to set the oven
controls(s) to the required temperature(s) when you set the timer.
– If an Auto Cooking programme has been set the oven(s) will only operate
during the pre-programmed time.
Used to adjust the various timer function settings.
Used to adjust pitch of audible tone (see other notes on timer operation).
Minute Minder
Button
Cook Period Button
End Time Button
"+" and "–" Buttons
TIMER FUNCTION BUTTONS
AUTO COOKING PROGRAMME
Minute
Minder
Cook
Period
End
Time
Minute
Minder
Cook
Period
End
Time
Minute
Minder
Cook
Period
End
Time
A
Minute
Minder
Cook
Period
End
Time

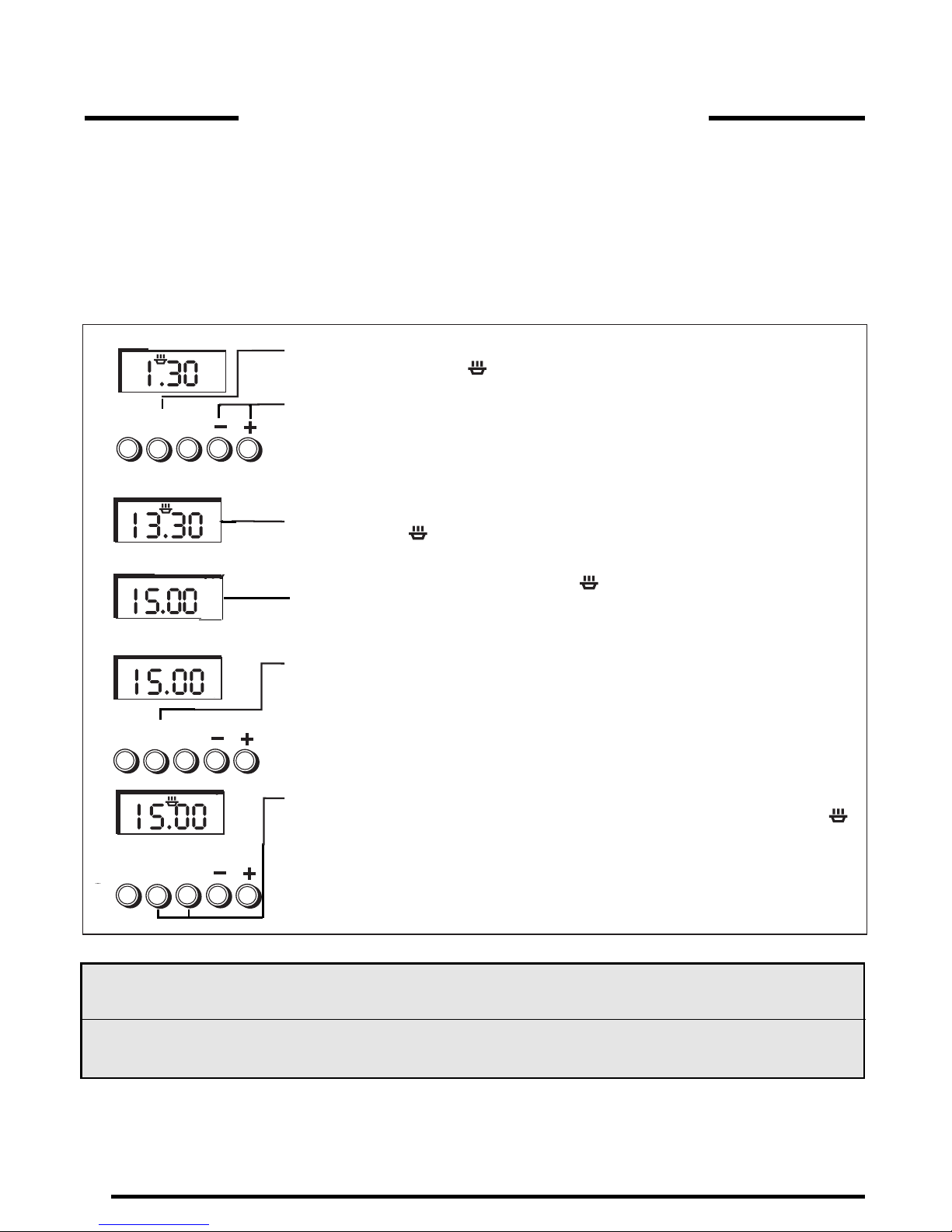

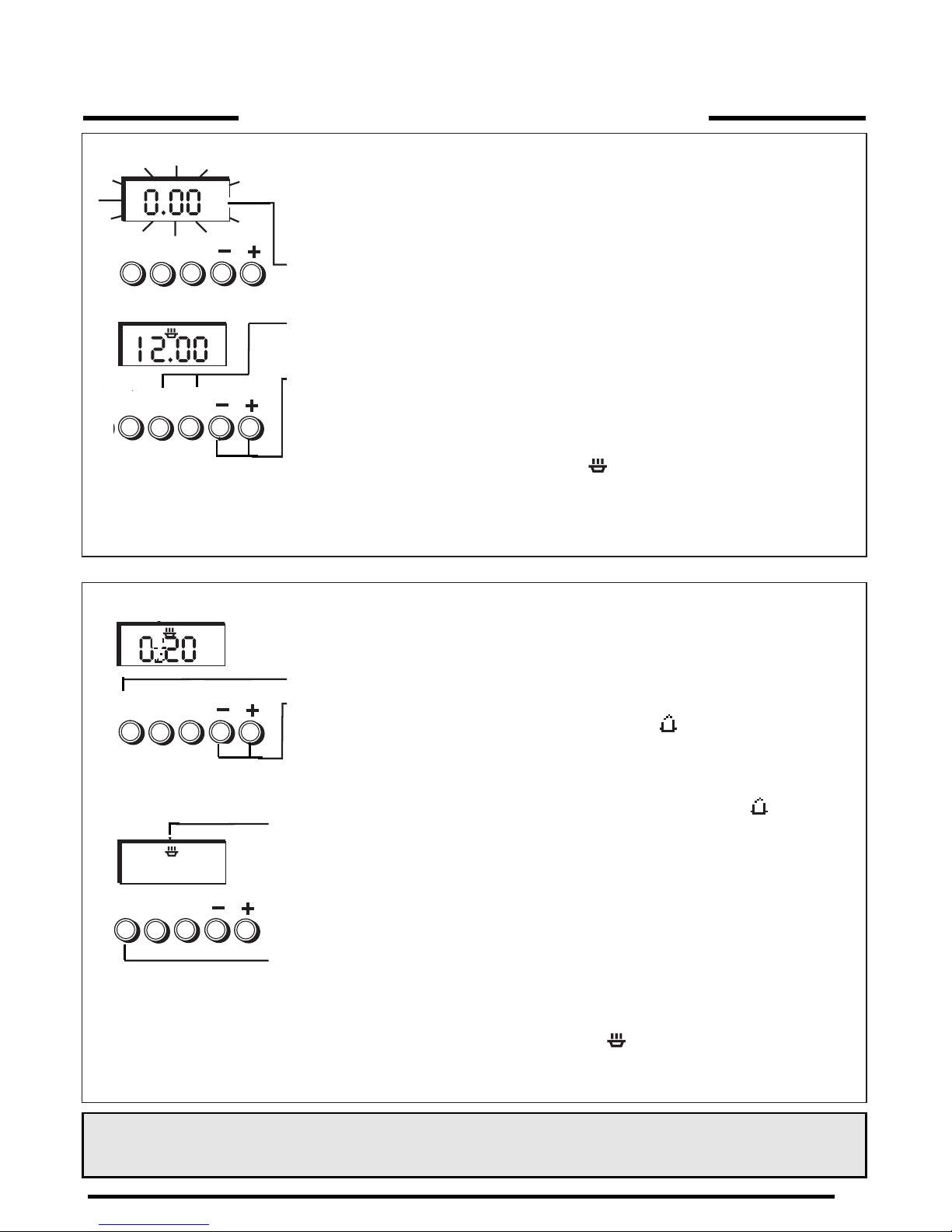

SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned Off.
Step 2 Check the electricity supply to the cooker is turned on.
When switched on the display will show 0.00 and "A" symbol, both will
be flashing intermittently.
Step 3 Press & hold in both the "Cook Period & End Time" buttons
together.
Step 4 With the "Cook Period & End Time" buttons still held in,
press either the "+" or "–" buttons to set the correct time of day.
Step 5 Release all the buttons simultaneously.
The time of day is now set and the symbol will light up to show
that the timer is in "Manual Mode"
To change the time of day repeat Steps 3, 4 & 5 above.
Note: You cannot adjust the time of day if the timer has been set for
an Auto Cooking Programme.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and hold the Minute Minder Button.
Step 3 With the "Minute Minder" button held in, set the required Minute
Minder time using the "+" and "–" buttons, a symbol will light up.
Release all buttons and the timer display will revert back to the time of day. Bell
symbol will remain lit to signify that a Minute Minder period has been set.
At the end of the set time a bleeping sound will be heard, and the symbol
will go out.
The bleeping sound will continue for several minutes unless cancelled (see step 4)
Step 4 To cancel the bleeping sound press the Minute Minder button, timer
display will revert back to the time of day after the buttons are
released.
To cancel Minute Minder before the Minute Minder period has finished.
Step 1 Press the minute minder button.
Step 2 Press the "_" button until 0.00 and the symbol appear in the
display window.
Step 3 To cancel the bleeping sound press Minute Minder button.
Minute
Minder Cook Period End Time Manual
A
U
T
O
Minute
Minder Cook Period End Time Manual
Minute
Minder Cook Period End Time Manual
9
OVEN TIMER OPERATION
Bell Symbol
Minute
Minder Cook Period End Time Manual
Note 1 When the Minute Minder has been set, the time remaining can be checked
at any time by simply pressing the Minute Minder button
A
Minute
Minder
Cook
Period
End
Time
12 . 20
Minute
Minder
Cook
Period
End
Time
Minute
Minder
Cook
Period
End
Time
End
Time
Minute
Minder
Cook
Period

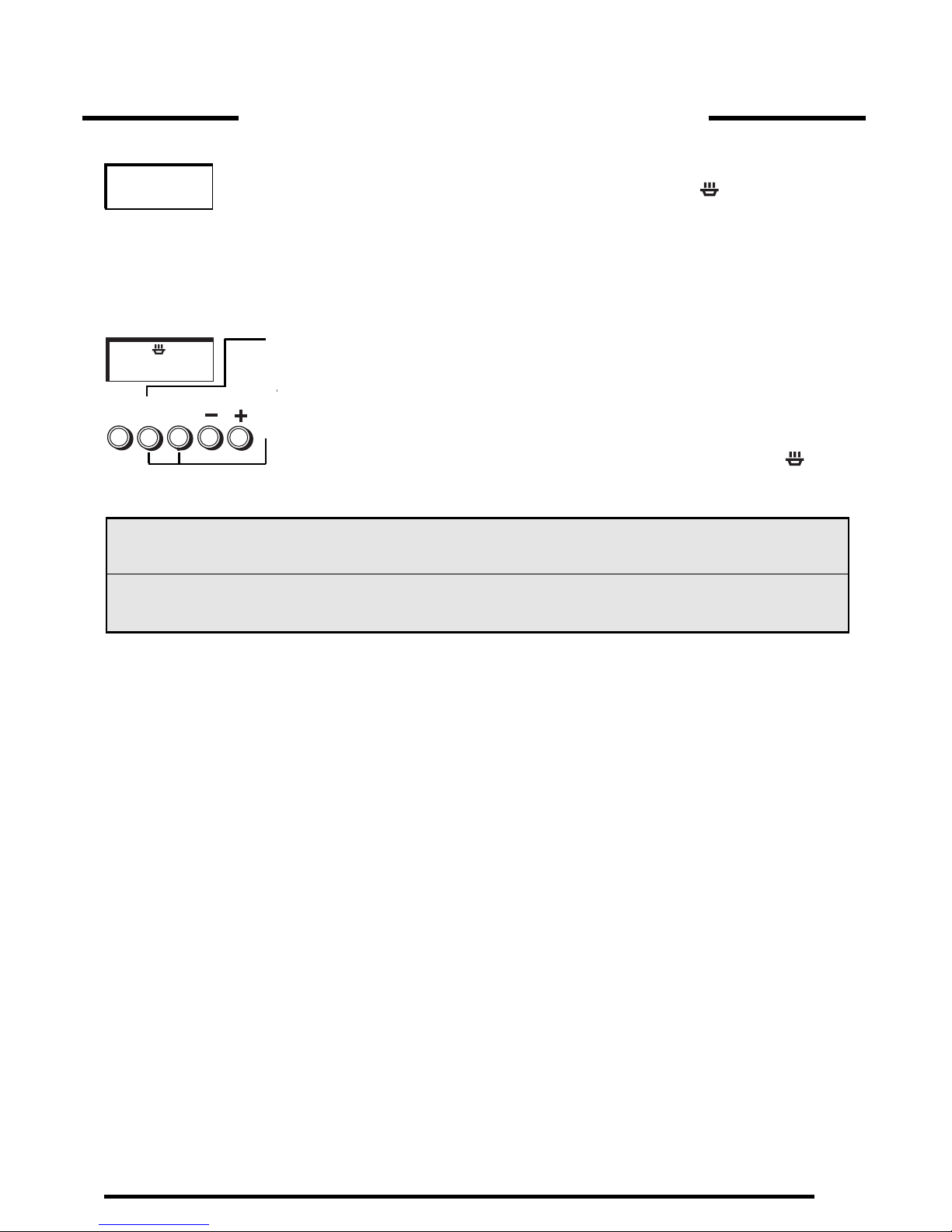

Step 3 Press & hold in the “Cook Period” button, the display will read 0.00
with the cookpot symbol lit up.
Step 4 With the Cook Period button still held set the required Cook Period
using the “+” and “–” buttons.
Release the buttons and the timer display will revert to the time of day with the
Auto symbol "A" & Cookpot symbol remaining lit.
Step 5 Press and hold the" End Time" button.
The display will read the earliest possible end time for the cook period that you
have set above.
Step 6 With the End Time button still held in, use the "+" and "-" buttons to
set the "End Time". i.e. The time you require the oven to switch off.
Release all the buttons and the timer will revert back to the time of day.
The "A" symbol will remain lit to signify that an Auto Cooking Programme has
been set. The symbol will go out. When the Auto Cook Programme starts the
will then light up again.
Step 7 Turn the oven control(s) to the required temperature, and if
necessary select the appropriate oven.
A
U
T
O
Minute
Minder Cook Period End Time Manual
16 .20
A
U
T
O
10
OVEN TIMER OPERATION
A
U
T
O
Minute
Minder Cook Period End Time Manual
Cookpot Symbol
A
U
T
O
Minute
Minder Cook Period End Time Manual
0 .00
Minute
Minder
Cook
Period
End
Time
14 .20
A
A
A
Minute
Minder
Cook
Period
End
Time
14 .20
There are two Auto Cooking programmes that can be selected using your timer:-
a) To set the timer to switch the oven(s) On and Off automatically.
b) To set the timer to switch On immediately and OFF automatically after a set cook period.
a) TO SET TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY.
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time
of day.
Step 2Place food onto the correct shelf position in the oven and close the oven door(s).

Minute
Minder Cook Period End Time Manual
16 .20
At the end of the Automatic Cook Period the Auto Symbol "A" will flash
and an intermittent bleeping sound will be heard. The symbol will go
out.
The bleeping sound will continue for several minutes unless
cancelled. (see step 8) The "A" symbol will continue to flash until the timer
is returned to Manual operation (see below).
Step 8
Press the Cook Period button to cancel the bleeping sound.
Step 9
Turn the oven control(s) to the OFF position.
Step 10
Press the Cook Period and End Time buttons together to return the
oven(s) to Manual Operation. The "A" symbol will go out and the
Cookpot symbol will light up
11
OVEN TIMER OPERATION
16 .20
A
A
Minute
Minder
Cook
Period
End
Time
Note 1 When cooking automatically the Cook Period can be checked at any time
by simply pressing the Cook Period button.
Note 2 When cooking automatically the End Time can be checked at any time by
simply pressing the End Time button.

Step 4 Press & hold in the "Cook Period" button, the display will read 0.00
and the cookpot symbol will light up.
With the Cook Period button still held set the required Cook Period using the "+"
and "–" buttons, the "A" symbol will light up. Example: 1hr 30 minutes).
Note: Cook Period is the length of time the food requires to cook.
Step 5 Release all buttons.
The timer display will revert to the time of day with the Auto symbol "A" lit &
Cookpot symbol remaining lit.
At the end of the Cook Period the"A" symbol will flash and an intermittent bleeping
sound will be heard. The cookpot symbol will go out.
The bleeping sound will continue for several minutes unless cancelled. (see step 6)
The "A" symbol will continue to flash until the timer is returned to Manual operation
(see below).
Step 6 Press the "Cook Period" button to cancel the bleeping.
Step 7 Turn the oven control(s) to the OFF position.
Step 8 Press the "Cook Period" and "End Time" buttons together to return
the cooker to Manual operation. (The "A" symbol will go out, and the
Cookpot symbol will light up).
A
U
T
O
A
U
T
O
Minute
Minder Cook Period End Time Manual
12
OVEN TIMER OPERATION
b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY
AFTER A SET COOK PERIOD
Step 1Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3Turn the oven control(s) to the required temperature, and if necessary select the appropriate
oven function.
A
U
T
O
Minute
Minder Cook Period End Time Manual
Cookpot Symbol
A
U
T
O
Minute
Minder Cook Period End Time Manual
Note 1 When cooking automatically the Cook Period can be checked at any time
by simply pressing the Cook Period button.
Note 2 When cooking automatically the End Time can be checked at any time by
simply pressing the End Time button.
Minute
Minder
Cook
Period
End
Time
A
A
A
Minute
Minder
Cook
Period
End
Time
Minute
Minder
Cook
Period
End
Time

OTHER NOTES ON TIMER OPERATION
1. To cancel the Auto Cooking programme before or after auto cooking starts, press the "Cook Period"
and "End Time" buttons together, this will return the cooker to the manual operation.
2. When cooking Automatically the "Cook Period" can be checked at any time by simply pressing the
"Cook Period" button.
3. When cooking Automatically the "End Time" can be checked at any time by simply pressing the
"End Time" button
4. Having set a Cook Period and End Time an electronic device stores the information. The device
within the timer will switch the oven(s) on and off at the required time.
5. When setting an Auto Cooking Programme and a mistake is made, to clear:–
(a) Press and hold in the "Cook Period" and "End Time" buttons together to return the cooker to
manual operation.
(b) Start the sequence again.
6. If at any time the display shows three flashing zero’s 0.00. It is likely that the electricity supply to
the oven has been interrupted. Reset the timer to the correct time of day.
Food in the oven may, therefore, not have been cooked, before serving check food is
thoroughly heated and completely cooked.
7. To set each function always press and hold the required function button and at the
same time press "+" or "–" buttons.
8. To adjust the pitch of the audible tone, simply press the "–" button while the audible tone is
sounding. For example:-
(a) Press and hold the minute minder button.
(b) With the minute minder button still held in, press the "+"button and set one minute.
(c) When the audible tone sounds after one minute, press and release the "–" button, until
preferred pitch is set.
(d) Press and release the Minute Minder button to cancel the bleeping.
13
OVEN TIMER OPERATION

14
HOTPLATE
The hotplate lid is fitted with a safety device which cuts off the gas supply to the
hotplate burners unless the lid is fully open. Do not use the safety device as a means of
controlling the hotplate burners.
All spillages must be removed from the surface of the lid before opening.
The hotplate has two high speed burners and two simmering burners which will
accommodate pans between 100mm (4”) and 230mm (9”) diameter. All pans should
be positioned centrally over the burners.
TO USE THE HOTPLATE
1. Raise the lid to its fully open position.
2. Press the ignition button and then push in and turn the control knob of the
chosen burner anti-clockwise to the large flame symbol. Continue to press
the ignition button until the sparks light the gas.
3. Turn the control knob anti-clockwise to the desired setting.
Only turn the control knob between the large flame symbol and the small
flame symbol for adjusting the setting.
4. To turn off, turn the control knob fully clockwise to the symbol ●
DO NOT operate the burners without pan supports.
DO NOT use mis-shapen pans which may be unstable.
DO NOT use round base woks directly on the pan supports.
DO NOT use the glass lid as a working surface.
Each burner is fitted with a spark ignitor for lighting the gas. To ensure rapid lighting of
the burners every time they are used, the ignitors must be kept clean and dry. Remove
any food spillage or cleaning materials from the ignitor using a small nylon brush such
as a tooth brush. Access to the ignitor can be achieved by lifting off the loose burner
parts carefully when the burners are cool.
When the hotplate burner bodies and caps are removed for cleaning, be careful not to
drop any food particles or cleaning materials into the burner bases, to avoid the possi-
bility of blocking the gas jets.
If aluminium based pans are used, a silvery deposit may appear on the top edge of the
pan support fingers. See ‘Care and Cleaning’ section for cleaning information.
When the hotplate burners are turned down, a slight ‘popping’ noise may be heard. This
is perfectly normal.

15
HOTPLATE
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
1. Never fill chip pans more than one third full with oil or fat.
2. Never leave oil or fat unattended during the heating or cooling period.
3. Never heat fat or fry with a lid on the pan.
4. Always dry food thoroughly before frying, and lower it slowly into the
hot oil or fat. Frozen foods in particular will cause frothing and spitting if
added too quickly.
5. Always keep the outside of the pan clean and free from streaks of oil or fat.
HOW TO DEAL WITH A FAT FIRE
1. Do not move the pan.
2. Turn off the hotplate burners.
3. Smother the flames with a fire blanket or damp cloth to extinguish the fire.
Do not use water or a fire extinguisher as the force of it may spread the
burning fat or oil over the edge of the pan.
4. Leave the pan for at least 60 minutes before moving it.

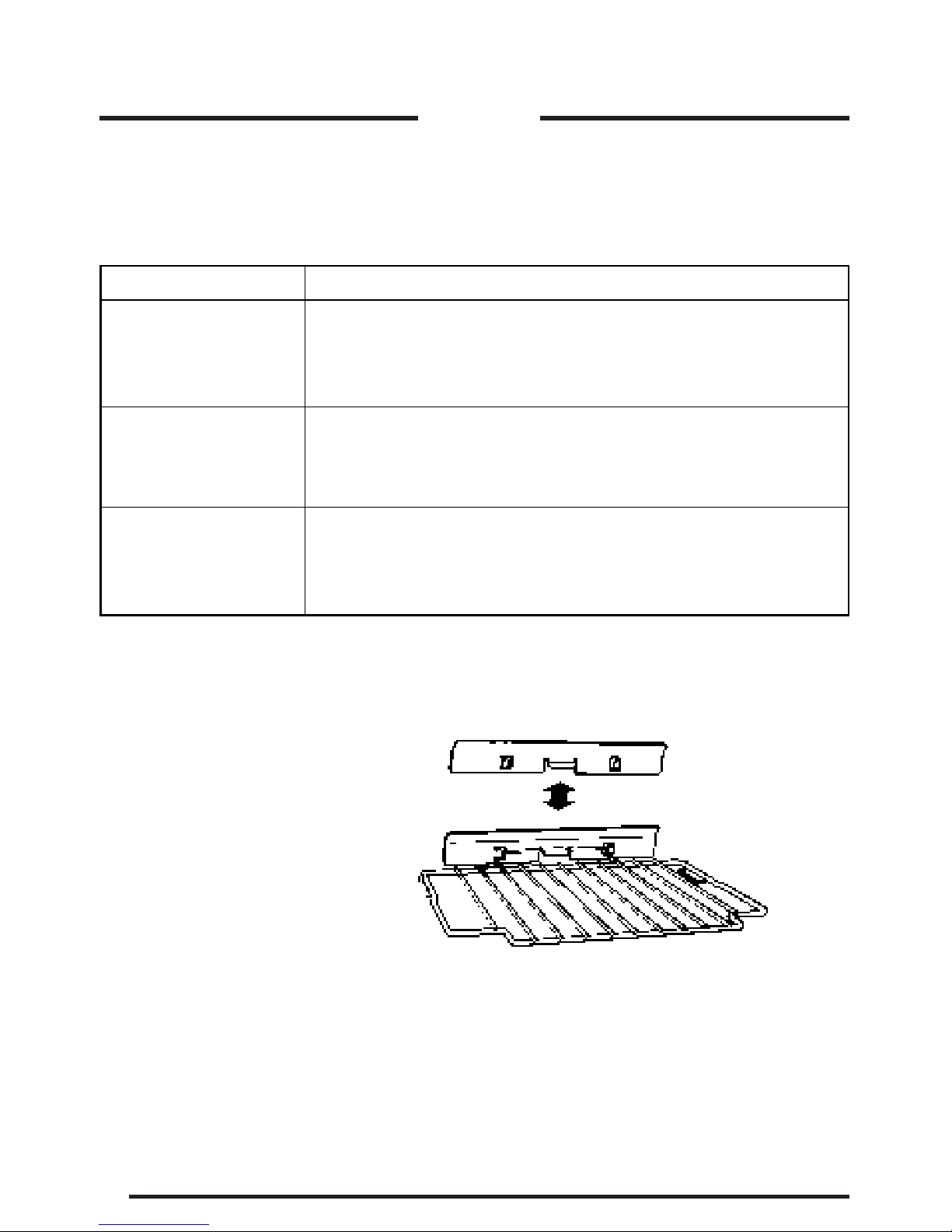

The top oven can be used to cook small quantities of food or used in conjunction with
the main oven to provide additional cooking space.
The shelf in the top oven has a heat shield fitted at the rear. The shield can be removed
for cleaning and grilling, but must be replaced when using the oven. The shelf can be
used in three different positions. It has a safety stop to prevent it from being pulled
out too far when attending to food. The shelf is removed from the oven by pulling it
out to the stop and then lifting at the front to withdraw.
The baking dish and grill pan without the handle can be used in the oven. The
maximum size of baking tray that should be used is 300mm x 350mm (12” x 14”).
TO USE THE TOP OVEN
1. Check that the electricity is switched on.
2. Check that the heat shield is fitted to the shelf.
3. Place the top oven shelf in the chosen position. (refer to cooking chart).
4. Push in and turn the top oven/grill control knob fully anti-clockwise. Sparking
will continue until the burner has lit.
5. Turn the control knob clockwise to the required setting. (refer to cooking chart).
6. There is a delay of about one minute whilst the safety device operates before the
burner comes on full.
7. To turn off, turn the control knob clockwise to the symbol ●.
NOTE: It is normal for a slight resistance to be felt to be felt when turning the con-
trol knob to the oven settings.
GUIDANCE ON USING THE TOP OVEN
1. Best results are obtained by pre-heating the oven for about 15 minutes.
2. The tray or dish on which the food is to be cooked, should be pushed to the
back of the shelf.
3. Food which is higher than or will rise above 125mm (5”) cannot be cooked
in the top oven.
Never place dishes on the oven base over the burner.
An odour may be noticed when first using the oven – this should cease after a short
period of use.
16
TOP OVEN

The following times and setting are for guidance only. You may wish to alter the setting to give a
result more to your satisfaction. When a different setting to that shown below is given in a recipe, the
recipe instructions should be followed. Allow 15 minutes preheat for best results. Always turn the
thermostat knob to Mark 1 before selecting the appropriate gas Mark. Shelf position 1 is the highest.
17
TOP OVEN COOKING CHART
Gas Shelf
Food Mark Position Approx. Cooking Time and Comments
FISH
Oily and white fish 5 2 20-30 mins.
MEAT AND POULTRY
Beef (medium) 4 or 5 3 25-30 mins per lb + 25-30 mins
Ham (covered in foil) 5 3 40 mins per lb + 40 mins
Lamb 5 3 30-35 mins per lb + 30 mins
Pork 5 3 40 mins per lb + 40 mins
Chicken 5 3 25 mins per lb + 25 mins
Duckling & Goose 5 3 25 mins per lb + 25 mins
Turkey 4 3 or baseplate 15-20 mins per lb + 15-20 mins
Casseroles 3 3 2-4 hrs. depending on meat used.
VEGETABLES
Baked jacket potatoes 5 2 11/2 - 2 hrs.
PUDDINGS
Milk Puddings (500ml/1pt) 3 2 11/2 - 2 hrs.
Baked Custard (500ml/1pt) 3 2 45 mins - 1 hr. in bain-marie of cold water.
Baked Sponge Puddings 4 2 30 - 45 mins
Baked Apples 3 3 45 mins - 1 hr. depending on size
Meringue Topped Puddings 1 3 25 mins until tinged with brown
Apple Tart (1 x 205mm/8”) 6 2 60 mins
Fruit Crumble 5 3 45 - 50 mins
If using aluminium foil:
1. Remember it is important to increase the cooking time by one third.
2. Do not allow the foil to touch the sides of the oven.
3. Do not cover the oven interior with foil.
4. Do not cover the oven shelves with foil.
Push dish right to
back of oven.

18
TOP OVEN COOKING CHART
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
CAKES, PASTRIES AND BISCUITS
Small Cakes (16 per tray) 5 2 20 - 25 mins.
Victoria sandwich (2 x 180mm / 7”) 4 2 25 - 30 mins.
Swiss Roll (3 egg quantity) 6 2 10 - 12 mins.
Christmas cake (1 x 205mm / 8”) 2 3 4 - 5 hrs depending on recipe
Madeira cake (1 x 180mm / 7”) 4 3 1 hr.
Rich Fruit cake (1 x 180mm / 7”) 2 2 21/4- 21/2hrs.
Gingerbread 3 2 11/2- 13/4hrs.
Scones - 16 per tray 7 2 12 - 15 mins.
Shortbread (1 x 180mm / 7”) 2 2 45 mins. – 1 hr. depending on thickness
Biscuits 4-6 2 15 - 25 mins.
Shortcrust Pastry 6 2 15 mins. – 1 hr. depending on recipe
Rich Short Crust 5 2 20 - 30 mins.
Flaky/Puff Pastry 7 2 10 - 30 mins. depending on recipe
Choux Pastry 6 2 25 - 35 mins.
YEAST MIXTURES
Bread - rolls, plait 7 2 or 3 25 - 35 mins
Tea breads etc. 5 2 25 - 30 mins
MISCELLANEOUS
Yorkshire Pudding - small 7 2 20 - 25 mins
- large 7 2 30 - 40 mins
Meringues 1 3 21/2- 4 hrs. turn when necessary
Soft Margarine – Use the oven settings recommended by the margarine manufacturer and not those
indicated on the cooking chart.

TO USE THE GRILL
1. Check that the electricity supply is switched on.
2. Open the top oven/grill door and remove the grill pan.
3. Remove the heat shield from the rear of the shelf for maximum grilling area.
4. Place shelf in chosen position. Refer to grilling chart.
5. Push in and turn the control knob clockwise to the large flame symbol.
Press the ignition button until the spark lights the gas.
6. Slide the grill pan along the shelf towards the rear of the grill compartment
until it stops.
7. Turn the control knob clockwise to the desired setting. Only turn the
control knob between the large flame symbol and the small flame symbol when
adjusting the setting.
8. To turn off, turn the control knob anti-clockwise to the symbol ●.
The grill cannot be used at the same time as the top oven.
An odour may be noticed when first using the grill – this should cease after a short period
of use.
DO NOT use the grill with the door closed.
DO NOT cover the grill pan or grid with aluminium foil as this can hold fat,
intensify the heat and create a fire hazard.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
19
GRILL
ABC
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS USED. YOUNG
CHILDREN SHOULD BE KEPT AWAY.
GRILL PAN AND HANDLE
The grill pan handle is detachable from the pan to facilitate cleaning and storage. The
handle can be fixed as follows :
1. Remove the screw and washer from the grill pan bracket.
2. Tilt the handle over the recess. (A)
3. Slide the handle towards the centre of the pan. (B)
4. Locate the handle over the bracket. (C)
For a fixed handle, replace the screw and washer and ensure they are fully tightened. If a
detachable handle is required, do not replace the screw and washer.
Warning : Ensure when using the grill pan handle in the detachable manner it is centralised
and secure.
The grill pan can be stored in the top compartment with the handle attached by placing
the shelf in the middle or lower position and tilting the grill pan over the rear edge of the
shelf.

The following chart is a guide. Grilling can be started from cold but for best results
preheat for approximately two minutes. Most cooking is done with the heat on full,
but it may be desirable to reduce it for thicker pieces of meat or for keeping food
warm.
For au gratin dishes eg. Macaroni Cheese and meringue toppings eg. Baked Alaska,
place the dish on the floor of the grill compartment. The base of the grill pan can be
used for warming fruit garnishes on the reduced setting.
NOTE: Strong detergents used in dishwashers may damage the grill pan grid finish;
clean in soapy water as described in CARE AND CLEANING section.
Always ensure that the grill pan handle is correctly fitted to the grill pan. If necessary
tighten any loose screws with a screwdriver.
20
GRILL
Shelf Position Food
Toast, pikelets/crumpets, bacon, thin sausages,
beefburgers, tomato halves, steak (rare and medium),
kippers, gammon, kidneys and toasted snacks.
Toast, toasted snacks, thick sausages, beefburgers,
fish fingers, steak (well done) and gammon, chops (with heat
turned down for part of cooking time).
Whole fish, fish fillets and fish steaks (on base of pan).
Chicken portions (with heat turned down for part of
cooking time).
HIGH POSITION
CENTRE POSITION
LOW POSITION
REMOVE HEAT SHIELD
FROM SHELF WHEN
GRILLING FOR MAXIMUM
GRILLING AREA.
