Getting Started
for Mac Users
office all-in-one
series
QT10851V01

Contents
Getting Started Overview | 4
Prepare Your MX860 | 4
Before Starting | 4
Unpack and Set Up | 5
Set Up the Hardware | 8
Install the Print Head | 8
Install the Ink Tanks | 10
Load Paper | 11
Align the Print Head | 12
Set Up to Receive Faxes | 14
Set Up Your Fax Sender Information | 15
Set Up the Software | 15
Install the Software | 15
Connect to Your Network (optional) | 18
Choose Your Network Type | 18
Wireless Networks with a Single Access Point | 19
Wireless Networks with Multiple Airport Access Points | 23
Wired Networks | 28
Connecting Additional Computers | 33
Start Using Your MX860! | 37
Solution Menu | 37
On-Screen Manual | 37

4
Getting Started Overview
prepare your MX860
set up the hardware
set up the software
connect to your network (optional)
start using your MX860
Prepare Your MX860
Congratulations on your new MX860. This Getting Started guide will
help you through a fast, simple setup.
There will be decision points in fax and network setup where you will
make choices. Following the steps will make these choices easy.
Before Starting
If you do not have a wireless network, skip this step.
If you are installing your MX860 to a wireless network, locate your
network name (also called SSID or Service Set Identier) and network
password (if applicable).
You can locate the wireless network name by clicking the icon in the
menu bar.
Network Name (also called SSID): ____________________________
Network Password (if applicable): ____________________________
You can also retrieve your network name and password by using the
Canon PIXMA Wireless Setup Assistant, or by following the
procedures available for download from the Canon support webpage
(www.usa.canon.com/downloadlibrary).
If you are unable to retrieve the network password or other settings,
refer to the manual of your access point or router, or contact the
manufacturer.

5
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare

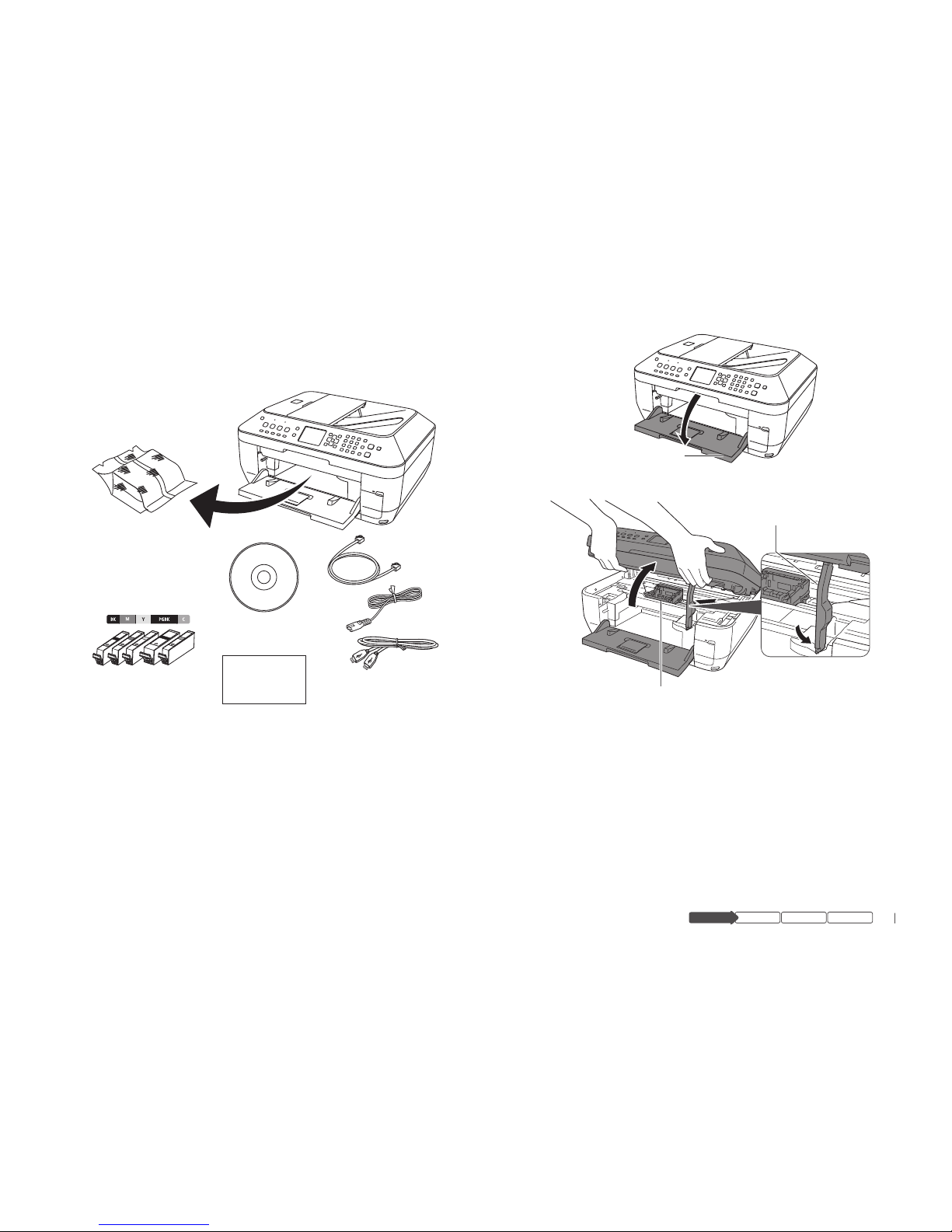

Unpack and Set Up
Check your box contents1
MX860
printer/copier/scanner/fax
print head
(sealed package
is packed in the
paper output tray—
open tray to remove
package)
phone cord
power cord
ink tanks USB cable
(needed for initial
network setup
or USB connection)
setup CD
NOT SHOWN:
documentation
If any parts are missing, contact Canon (see back cover for contact
data).
Remove all packing materials2
Remove all tape from the outside of the MX860.a
Open the paper output tray.b
paper output tray
Lift the scanning unit until the support slides into place.c
scanning unit support
print head holder
Remove all tape and packing material from inside the MX860.d
Lift the scanning unit slightly to release the support and close.e

6

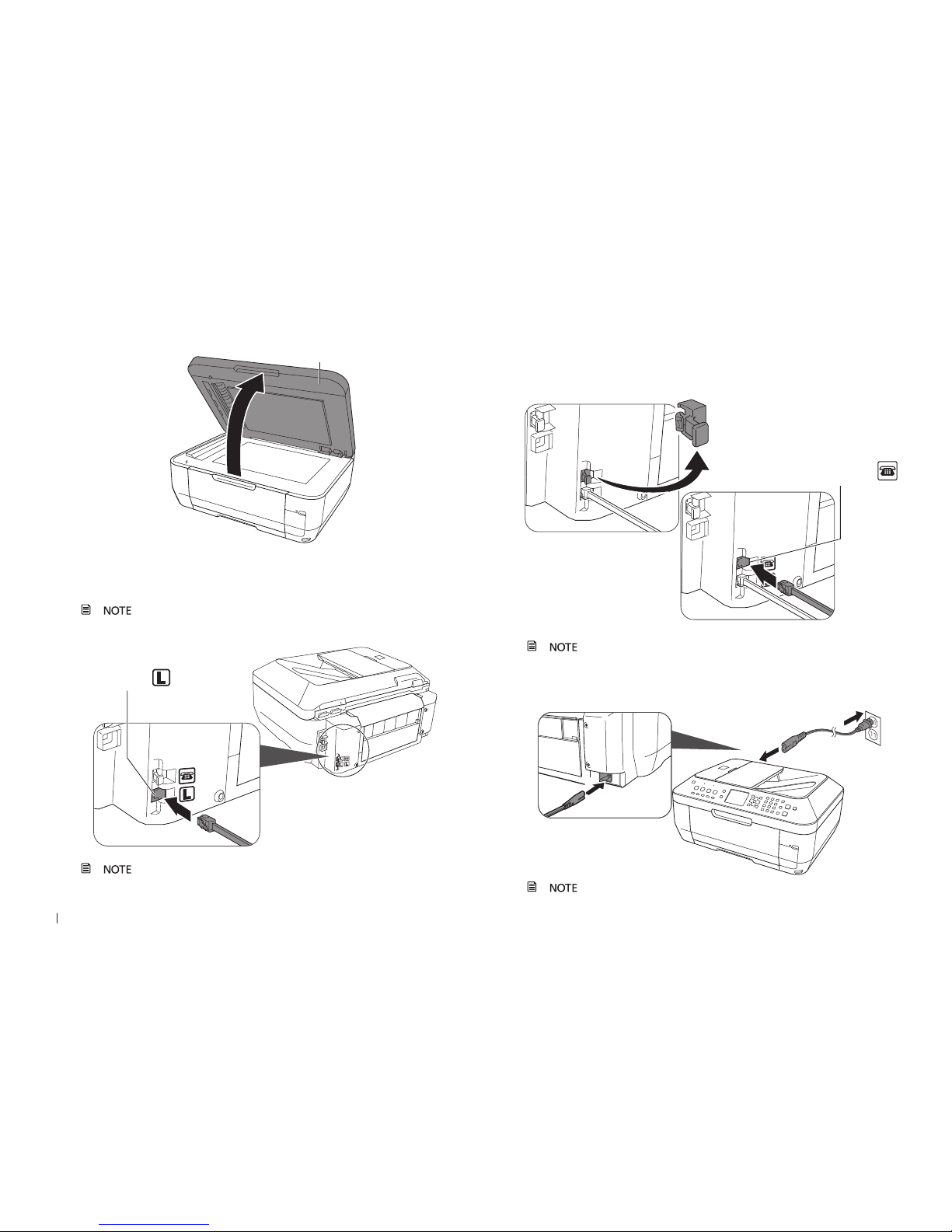

Lift the document cover and remove any packing material.f
document cover
Close the document cover.g
Connect the phone line for fax setup3
If you do not plan to fax from your MX860, proceed to step 5.
Connect the phone cord from the MX860 to the wall.
in from
wall jack
Make sure you connect the phone cable into the port
shown above.
Connect a phone or answering machine for fax setup4
To use a phone or answering machine on the same line, remove the cap
on the top phone jack and connect the phone or answering machine to
the MX860.
to phone or
answering machine
Make sure you connect the phone cable into the port
shown above.
5 Connect the power cord
Connect the power cord rst to the MX860, then to a wall socket.
DO NOT connect the USB cable yet.

7
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare

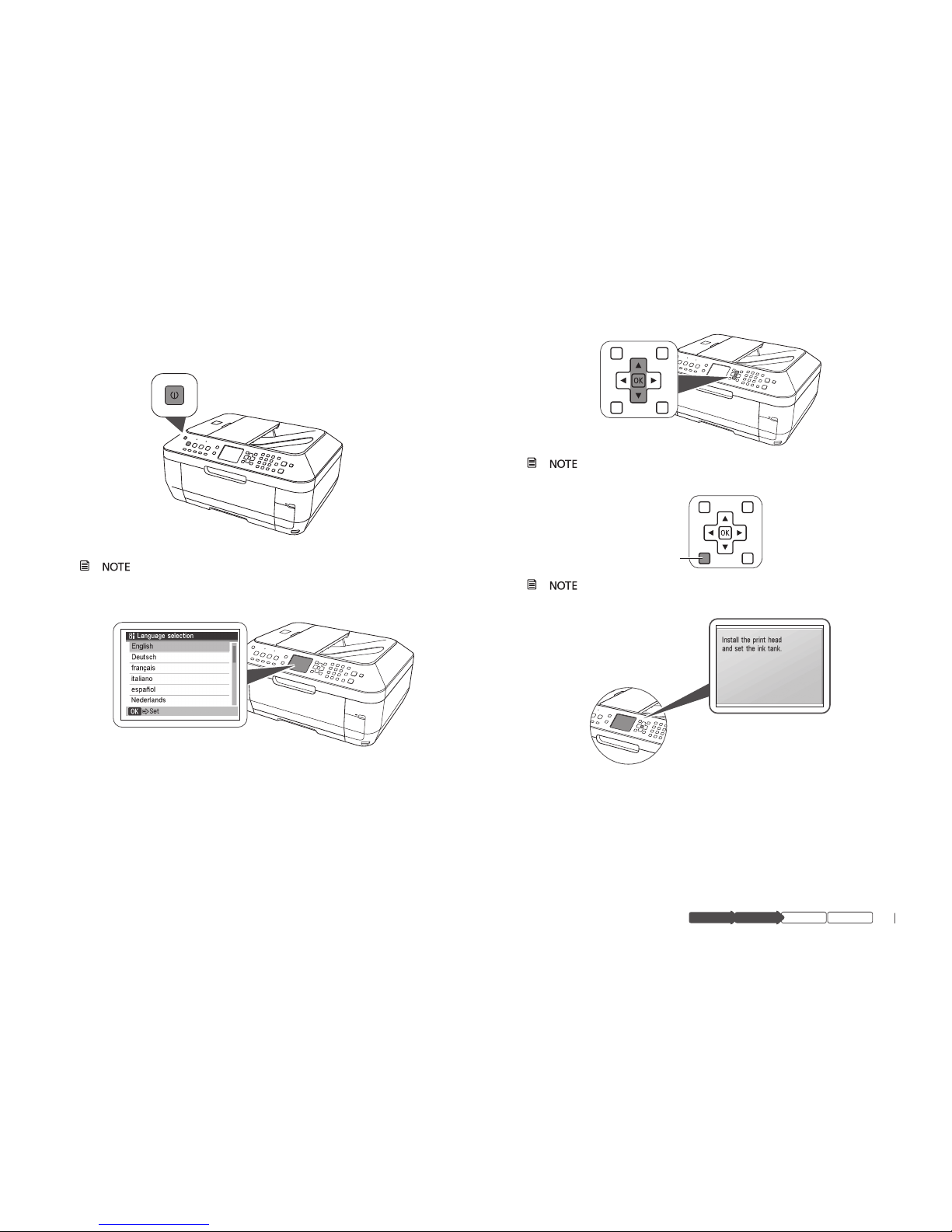

Power up6
Press the ON button to turn on the MX860.
Your MX860 will make sounds as it powers up. This is
normal.
Select language7
Use the ▲ and ▼ button on the operation panel to select a language for
the display, then press OK.
If you select a wrong language, press Back to return to
Language selection options.
back
Once your langage is selected, the display will prompt to
install the print head and ink tanks.

8
Set Up the Hardware
Install the Print Head
With the power on, open the paper output tray1
paper output tray
Lift the scanning unit until the support slides into place2
scanning unit support
print head holder
Raise the print head lock lever3
print head lock lever
Avoid touching the contact points in the print head holder.
print head lock lever

9
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare
Unpackage the print head4
When handling the print head, hold it only on the sides. Do
not touch the tank seats or contact points.
Remove the protective orange cap5
Insert the print head into the print head holder6
Tilt the print head forward and place it gently into position. Do not try to
force it.
Lower the print head lever until it locks into place7
Once the print head is in place, do not remove it
unnecessarily.

10
Install the Ink Tanks
Unwrap the first ink tank1
Pull the orange tape off to remove the protective wrap.
Remove protective cap2
Hold the ink tank as shown, and twist the cap off.
Do not grip the tank with force or hold the tank on the
sides to avoid squeezing ink from the tank.
Insert the ink tank into the print head3
Slide the ink tank into the matching color slot.a
Press the PUSH mark until it clicks into place.b
ink light will turn red
Take care to match the inks with the labels in the print
head.
Repeat steps 1–3 until all remaining ink tanks are in place and all4
ink lights are red.

11
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare

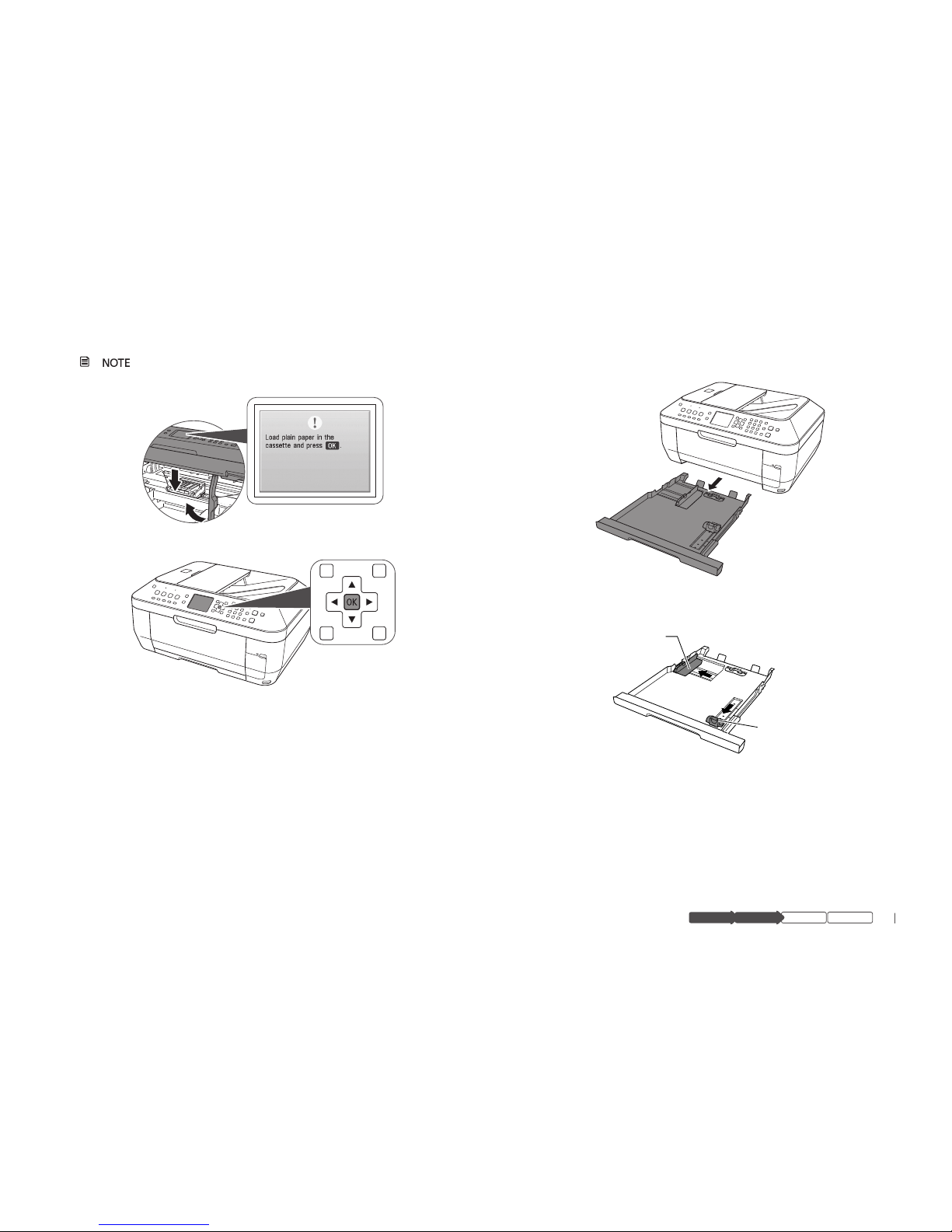

Close the cover5
The printer will perform initial start up maintenance. Wait
until the “Load plain paper” screen displays before continuing setup.
Press the6 OK button
Load Paper
Remove the cassette1
Load plain paper with the printing side down2
Paper should fit between the adjustable paper guides.a
paper guide
paper guide

12
Insert at least 3 sheets of plain paper (the minimum needed for theb
next action).
The cassette is for plain paper only.
Slide the guides to match the paper size3
(A slight space between the paper guide and the paper stack is
acceptable.)
Confirm paper stack does not exceed the limit4
paper stack
limit line
Slide the cassette back in until it clicks into place5
Align the Print Head
Start alignment1
Use thea ▲and ▼button to select Perform head align.

13
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare

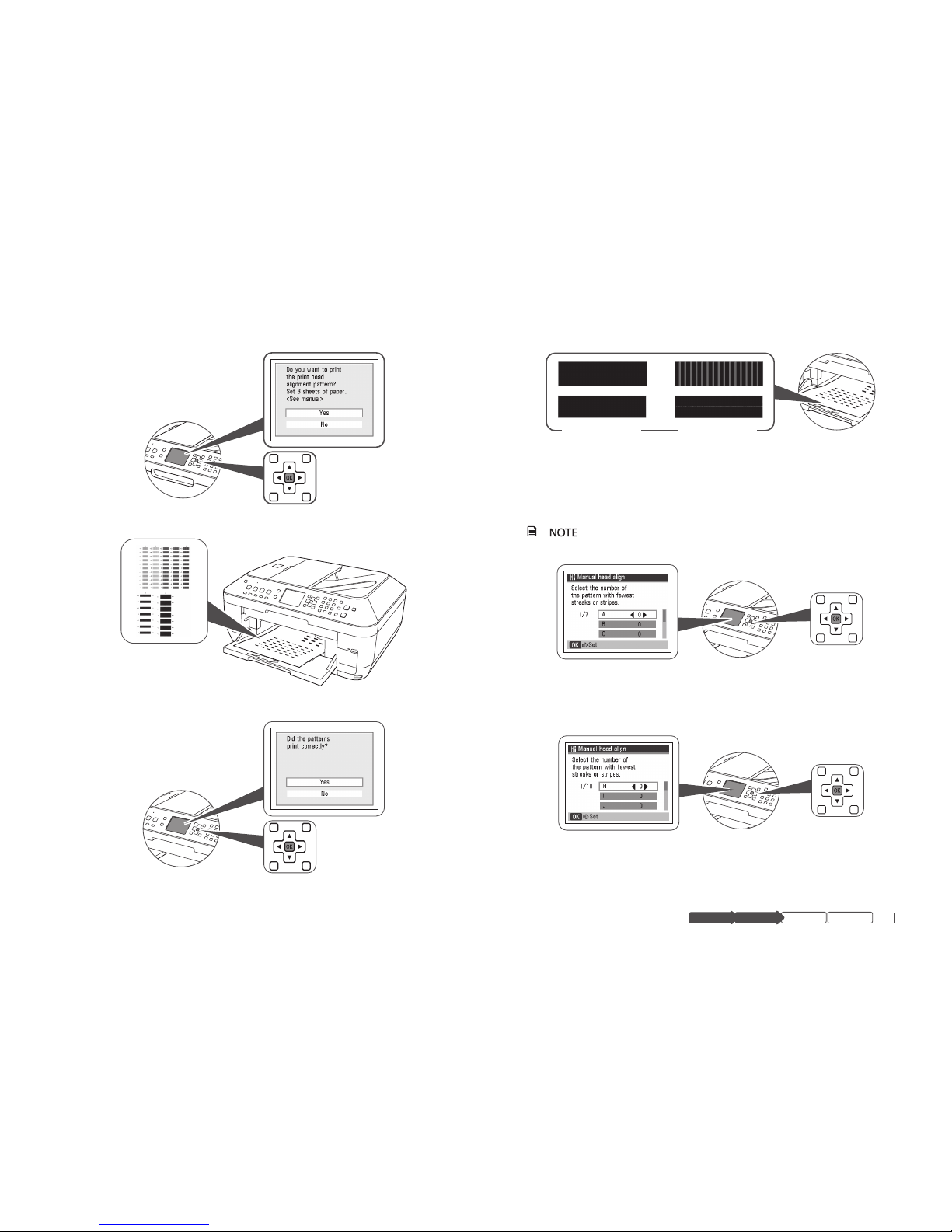

Look at the first printout2
less noticeable more noticeable
Select best pattern3
Use the ◄►▲▼ buttons to enter the number of the pattern that has the
least noticeable vertical or horizontal streaks for columns Ato G, then
press the OK button.
If you are not sure which is the best pattern, pick the
setting that produces the least noticeable white streaks.
Press4 OK again to print the second pattern
Look at the second printout5
Repeat step 3 for columns Hto Q.
Press6 OK again to print the third pattern
Selectb Yes to print the first alignment pattern, then press OK.
Selectc Yes again, then OK.

14
Select3 Receive mode settings
Use the ◄ or ►button to select Receive mode settings, then press OK
Select the receive mode4
Use the ▲ or ▼ button to select a receive mode, then press the OK
button.
Select a receive mode according to your needs.
When you receive mainly faxes and sometimes voice●
calls: Select FAX priority mode.
When you have a dedicated telephone line for fax use●
only: Select FAX only mode.
When you receive mainly voice calls and sometimes●
faxes: Select TEL priority mode.
When you subscribe to a ring pattern detection service provided●
by your telephone company, and you want to receive a fax
only if the machine detects the pattern for fax: Select DRPD
(Dictinctive Ring Pattern Detection).
When the FAX menu returns, press the5 Back button
For details on fax settings and how to change them, refer
to the on-screen manual: Basic Guide.
Look at the third printout7
Repeat step 3 for columns ato j.
Press8 OK to complete print head alignment
The Standby screen will display when print head alignment
is complete.
Set Up to Receive Faxes
If you are not using your MX860 as a fax, go to "Set Up the Software"
on page 15.
Press the1 FAX button
Press the
2 Menu button
FAX button Menu button

15
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare
Set Up the Software
Install the Software
Connect the USB cable to your computer1
Connect the other end to your MX8602
Set Up Your Fax Sender Information
For details on sender information, refer to "Specifying the Basic Settings
for the Machine" in the on-screen manual: Basic Guide.
Go to "Set Up the Software" on page 15.

16

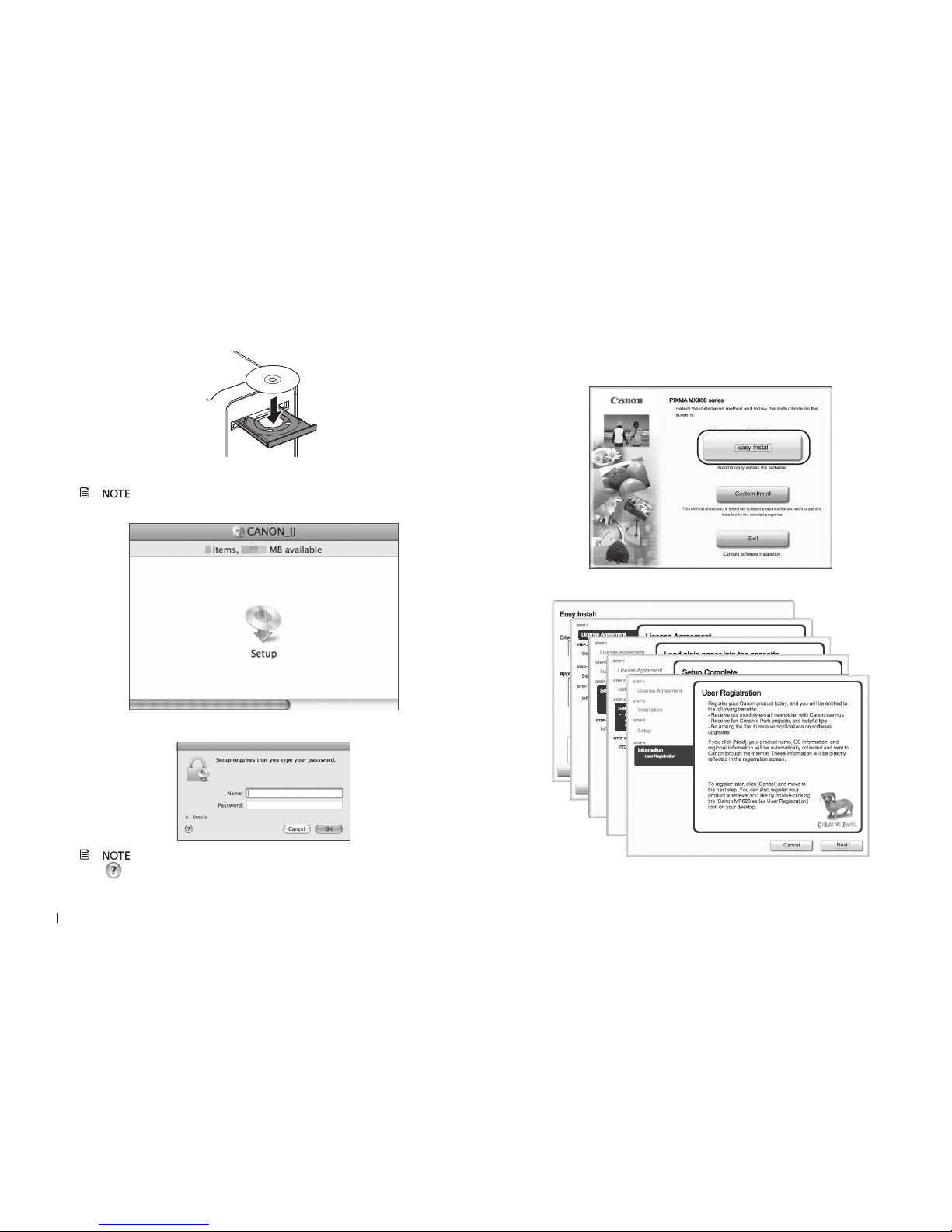

Insert the Setup disc3
Double-click the4 Setup icon on your screen
If the CD-ROM folder does not open automatically, double-
click the CANON_IJ icon on the desktop.
Enter your administrator password5
If you do not know your administrator name or password,
click , then follow the on-screen instructions.
Click6 Easy Install
The drivers, application software and on-screen manuals will install
automatically.
Follow the on-screen instructions7

17
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare
If your computer is connected to the internet you will be
prompted to register your product. The serial number is required for
product registration. The serial number is located on the product
packaging and on the inside of the product.
Click Restart8
After restarting, remove the Setup CD-ROM and keep it in a safe place.
Decide how you want to connect to your MX860.
Connecting to a Network
Go to "Connect to Your Network (optional)" on page 18
If you plan to connect to a network but select USB
connection by mistake you will need to reinstall the software.
Connecting with a USB Cable
After your computer restarts, the Canon IJ Network Tool dialog appears.
Select1 USB connection
Only select USB connection if you plan to connect the
MX860 directly to a single computer and not to a network.
if you plan
to connect directly
to one computer only
by USB, leave the
default option as is
Click2 OK
Congratulations! You are nished with the setup.
Go to "Start Using Your MX860!" on page 37.

18
Connect to Your Network
(optional)
Choose Your Network Type
The MX860 can not be used over a wireless network and a wired network at the same time.
To connect additional computers to the MX860, go to "Connecting Additional Computers" on page 33.
wired network connecting
with an Ethernet cable
wireless network with
multiple access points
(example: Airport Extreme and Airport Express)
wireless network with
a single access point
Wi-Fi router
Wi-Fi
router
Wi-Fi router
router
Go to page 19. Go to page 23. Go to page 28.

19
hardware software network
hardware software network
prepare
prepare
hardware software network
prepare
hardware software network
prepare
Wireless Networks with a Single Access Point
wired network connecting
with an Ethernet cable
wireless network with
multiple access points
(example: Airport Extreme and Airport Express)
wireless network with
a single access point
Wi-Fi router
Wi-Fi
router
Wi-Fi router
router
If your network has more than one wireless access point,
go to page 23.
Locate the name and password (if applicable) of your wireless1
network
Click the icon in the menu bar and write down the network name
with the checkmark next to it.
Make sure the MX860 is ready2
Ensure the MX860 is connected to your computer
with the USB cable and is powered on.
You will need the USB cable only for the initial network
setup. Once your MX860 is connected to your network, the USB
cable is no longer needed.
The MX860 is set at the factory to connect to a wireless
(Wi-Fi) network. If your MX860 was previously set for a wired
network, set the connection type now for a wireless network. See
"Set the Network Connection Type" on page 28 for details.
Select3 LAN connection
On the Canon IJ Network Tool dialog, select LAN connection, then
click OK.
Select printer to use4
Selecta Setup in the pop-up menu.
Select
b MX860 series in the Printers pane, then click OK.

20
Select your wireless network5
Select the network name you wrote down in step 1.a
If your network requires a password, enter it.b
Clickc Connect.
The network password is case sensitive.
Complete the network setup6
When the Setup Completion dialog appears:
Disconnect the USB cable and place the MX860 where it will be used.
a
On your computer, clickb Next.
If the MX860 does not connect, see section 5.6 of the
printed manual "Network Setup Troubleshooting."
Measuring Wireless Connection Performance
Click1 Next.
The connection measurement results will display.
