Canon MVX200 E User manual

No. D17-8216, 8233
D17-8236
Digital Video Camera
CANON INC. 2004
Canon Inc.
Digital Imaging Products Service Dept.
First Edition : Mar. 2004
First Print : Mar. 2004
Video Product
c
MVX250i E
MVX200i E
MVX200 E
MVX250i E
MVX200i E
MVX200 E
iPAL

GENERAL DESCRIPTION OF PRODUCT
CONTENTS
1. Product Overview -------------------------------------------------------------------------------------------------------------------------------- 1
1-1 Main Features ----------------------------------------------------------------------------------------------------------------------------- 1
1-1-1 Easy Direct Button ------------------------------------------------------------------------------------------------------------ 1
1-1-2 DV Messenger 2 --------------------------------------------------------------------------------------------------------------- 2
1-2 Product Specifications Comparison Chart -------------------------------------------------------------------------------------------- 3
1-3 Function and Performance List --------------------------------------------------------------------------------------------------------- 4
2. Technical Explanation ------------------------------------------------------------------------------------------------------------------------- 10
2-1 Design ----------------------------------------------------------------------------------------------------------------------------------- 10
2-1-1 Design Concept-1 ----------------------------------------------------------------------------------------------------------- 10
2-1-2 Design Concept-2 ----------------------------------------------------------------------------------------------------------- 10
2-1-3 Differences in Appearance of Overseas Models MVX250i E, MVX200i E, MVX200 E ------------------------ 11
2-2 18×zoom lens -------------------------------------------------------------------------------------------------------------------------- 12
2-2-1 Features of 18×lens -------------------------------------------------------------------------------------------------------- 12
2-2-2 New technologies and new functions ------------------------------------------------------------------------------------- 12
2-3 Easy Direct Button ([ ] Print/Share button) ------------------------------------------------------------------------------ 13
2-3-1 Direct Print function -------------------------------------------------------------------------------------------------------- 13
2-3-2 Direct Transfer --------------------------------------------------------------------------------------------------------------- 14
2-3-2-1 Startup ------------------------------------------------------------------------------------------------------------ 15
2-3-2-2 ALL IMAGES ---------------------------------------------------------------------------------------------- 16
2-3-2-3 NEW IMAGES --------------------------------------------------------------------------------------------- 17
2-3-2-4 TRANSFER ORDERS------------------------------------------------------------------------------------ 18
2-3-2-5 SELECT & TRANSFER --------------------------------------------------------------------------------- 19
2-3-2-6 WALL PAPER ---------------------------------------------------------------------------------------------- 20
3. Performance ------------------------------------------------------------------------------------------------------------------------------------- 21
4. System Diagram (Common to all Models) -------------------------------------------------------------------------------------------------- 35
5. Overview of viewfinder / LCD panel displays --------------------------------------------------------------------------------------------- 36
5-1 Camera mode --------------------------------------------------------------------------------------------------------------------------- 36
5-2 VCR mode ------------------------------------------------------------------------------------------------------------------------------ 43
5-3 Card / Camera mode ------------------------------------------------------------------------------------------------------------------- 47
5-4 Card Playback mode ------------------------------------------------------------------------------------------------------------------- 50
5-4-1 Still image Playback -------------------------------------------------------------------------------------------------------- 50
5-4-2 Motion video (Motion JPEG) Playback ---------------------------------------------------------------------------------- 51
5-4-3 Direct printing --------------------------------------------------------------------------------------------------------------- 52
5-5 Menu Display --------------------------------------------------------------------------------------------------------------------------- 53
5-6 Card-related screen displays ---------------------------------------------------------------------------------------------------------- 64
5-7 Direct print setting screen ------------------------------------------------------------------------------------------------------------- 71
5-8 Print designations ---------------------------------------------------------------------------------------------------------------------- 76
5-9 Warning displays ----------------------------------------------------------------------------------------------------------------------- 77

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
1
1. Product Overview
1-1 Main Features
1-1-1 Easy Direct Button
Easy Direct Button
(Print/Share Button)
Enables Easy Printing and PC File Transfer
The button turns on when the camcorder is connected to a printer or PC
The light turns on to indicate the button to press next for easy operation
Printer
PC
Connection to
Printer / PC
Lights up!
Visually check that
the camcorder is con-
nected correctly
Print setup information is
displayed for 6 seconds
Pressing the Direct button
starts printing
Pressing the Direct button
starts file transfer to PC
The Transfer menu is
displayed

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
2

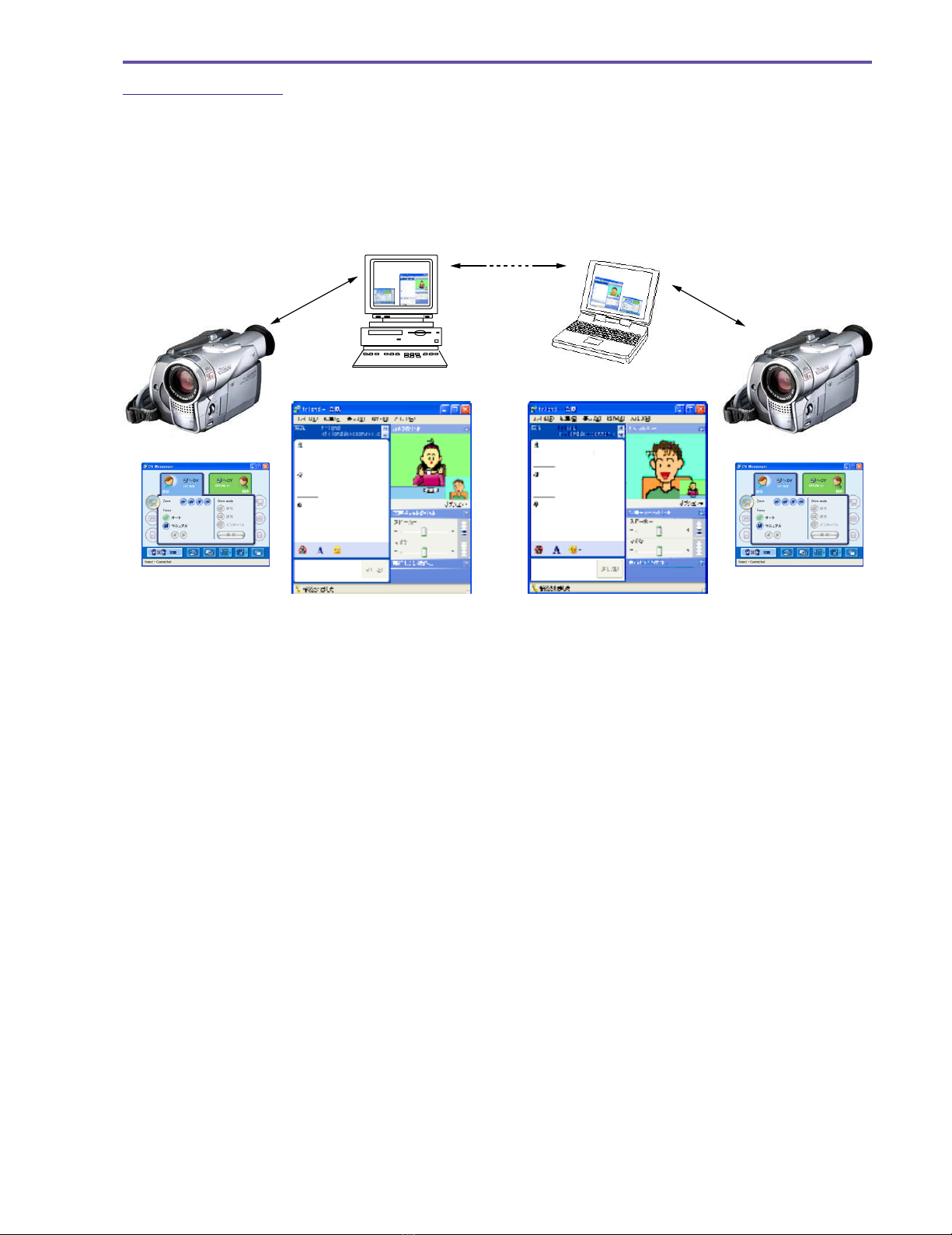

1-1-2 DV Messenger 2
A peer-to-peer (P2P) type bidirectional communications software using DV (Digital Video Camcorder)
◆Allows bidirectional sending of audio/video content and messages (text/images) via the Internet.
◆Basic specifications are compatible with Windows Messenger.
◆Allows control (camera zoom and focus, VCR playback and stop, access to the memory card) of the digital video camcorder
from a remote PC.
◆Remote home monitoring camera using the web camera function (enables monitoring of your home from a remote location)
IEEE1394 IEEE1394
Internet

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
3
1-2 Product Specifications Comparison Chart
*1 : Not applicable to MVX200 E
Specifications MVX250i E MVX200i E, MVX200 E
Zoom mag. Tape optical 18× / digital 360×optical 14× / digital 280×
Card optical 18× / digital 72×optical 14× / digital 56×
CCD 1/4.5-inch interlaced CCD (Total pixels : Approx. 1.33 megapixels)
(Effective pixels Tape motion video : Approx. 860,000 pixels
Card still image: Approx. 1,230,000 pixels)
Image stabilizer Electronic image stabilizer (during tape mode only)
Monitor 2.5-inch 123,000 pixel LCD monitor
EVF 0.33-inch 113,000 pixel color viewfinder
Memory card function ●(SD memory card, MultiMediaCard)
Card Still images Progressive Photo
recording (1024×768, 640×480)
Card motion video AVI (Video data: Motion JPEG / Audio data: WAVE (monaural))
recording
USB file transfer ●
Direct print ●(Support for Direct Print, Bubble Jet Direct, and PictBridge)
File transfer IEEE1394 / USB
Streaming IEEE1394
USB compatibility ●(USB 2.0 Full Speed class with PTP support)
Accessory shoe ●(Advanced accessory shoe not supported) ●
Auxiliary illumination White LED (Night+ : always on)
function ●(Super Night : Lights in accordance ×
with brightness)
Night mode ●(Night, Night+, Super Night) ●(Night)
High-resolution 16:9 ●(Letterbox display)
END search ●
S-Video terminal ●
DV, analog line inputs ●
Microphone terminal ●× *1
Wide attachment lens ×
supplied
Remote controller ●
supplied battery NB-2LH (MVX250i E only is supplied with BP-2L14)

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
4
1-3 Function and Performance List
Item MVX250i E, MVX200i E, MVX200 E
Camera
Image sensing Image size 1/4.5-inch CCD
device System (filter) Interlacing (color correction filter)
Total pixels Approx. 1.33 megapixels
Effective pixels Tape Approx. 860,000 pixels
Card Approx. 1,230,000 pixels
Lens Optical zoom magnification, Tape MVX250i E : 18× 3.5 to 63 mm (Approx. 45.4 to 817.2 mm)
focal length MVX200i E, MVX200 E : 14× 3.5 to 49 mm (Approx. 45.4 to 635.6 mm)
(35mm equivalent) Card MVX250i E : 18× 3.5 to 63 mm (Approx. 37.9 to 682.2 mm)
MVX200i E, MVX200 E : 14×3.5 to 49 mm (Approx. 37.9 to 530.6 mm)
Digital zoom
Magnification Tape MVX250i E : 72×/ 360×252 mm / 1,260 mm
magnification (Approx. 3,269 mm / 16,344 mm equivalent)
focal length MVX200i E, MVX200 E : 56×/ 280×196 mm / 980 mm
(35mm equivalent) (Approx. 2,542 mm / 12,712 mm equivalent)
Card MVX250i E : 72×Approx. 252 mm (Approx. 2,728.8 mm equivalent)
MVX200i E, MVX200 E : 56×Approx. 196 mm
(Approx. 2,122.4 mm equivalent)
System Tape CCD readout
Card CCD readout
F number Tape MVX250i E : F1.8 to 3.4
MVX200i E, MVX200 E : F1.8 to 3.1
Card MVX250i E : F1.8 to 3.4
MVX200i E, MVX200 E : F1.8 to 3.1
Aperture leaves (Number of leaves) 2 leaves
Zoom speed Variable
Filter diameter 34mm P0.5
Noise reduction Camera Tape Either CCD-NR or Y/C-NR
Card None
Chroma-only, median filter
Recorder C-NR system
Minimum Night mode 1.5 lx
illumination Low Light mode 3.0 lx
Auto mode(when auto slow shutter is selected) 6.0 lx
Image Image stabilization system Tape Electronic system
stabilization Card None
Sensing method Angular velocity sensing
Motion
video
Still

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
5
Item MVX250i E, MVX200i E, MVX200 E
Shooting functions
AE mode Program AE Tape (Full Auto)
(Auto, Sports, Portrait, Spotlight, Surf & Snow, Low Light, Night,
Night+*, Super Night * (* : MVX250i E only))
Card (Full Auto)
(Auto, Sports, Portrait, Spotlight, Surf & Snow, Low Light, Night,
Night+*, Super Night * (* : MVX250i E only))
Photometric Center-bottom-weighted average Tape Full Auto, Auto, Sports, Portrait, Low Light, Night, Night+*, Super Night*
system (* : MVX250i E only)
Evaluation photometry (128- Tape 128 segments (Spotlight mode, Surf & Snow (Sand & Snow mode))
segments) + All area photometry Card
Evaluative photometry (128- Card Full Auto, Auto, Sports, Portrait, Low Light, Night, Night+*, Super Night*
segments) (* : MVX250i E only)
Exposure AE lock ●(Except Green mode)
adjustment AE shift ×
Exposure correction ●±11 steps
(Disabled in Green mode, Spotlight mode, and Surf & Snow mode)
Manual gain setting ×
Back light correction ×
Shutter speed Auto mode Tape 1/25 to 1/500 sec (with auto slow shutter ON), 1/50 to 1/500 sec
(with auto slow shutter OFF)
Card 1/12.5 to 1/250 sec (with auto slow shutter ON), 1/25 to 1/250 sec
(with auto slow shutter OFF)
Auto Tape 6 levels (1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec)
(Shutter speed setting) Card 3 levels (1/50, 1/120, 1/250 sec)
Low Light 1/12.5 sec (Low Light mode)
Night, Night+*, Super Night* Tape 1/6 to 1/500 sec
(* MVX250i E only) Card 1/2 to 1/250 sec
Iris control Auto iris
Auxiliary light Flash ×
Video light ×
White LED ●(MVX250i E only)
Image quality Color gain adjustment ×
adjustment Hue adjustment ×
(Custom preset) Sharpness adjustment ×
Setup adjustment ×
White balance Auto ●
Preset Outdoor, Indoor
Systems TTL, 128 segments
Focus Mode AF/MF, forced infinity
Manual focus SET button operation
16:9 Recording system Tape High image ●
quality 16:9
Card ×
Area marker display ×
&

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
6
Item MVX250i E, MVX200i E, MVX200 E
Shooting functions
Digital fade Tape Motion video Auto Fade, Wipe, Corner Wipe, Jump, Flip, Puzzle, Zigzag, Beam, Tide
(Activated by pressing Start/Stop button)
Still image ×
Card Motion video ×
Still image ×
Digital effect Tape Motion video/still image Art, Black & White, Sepia, Mosaic, Ball, Cube, Wave, Color Mask, Mirror
Card
Motion video/still image Black & White
Card mix Tape
Motion video/still image Card Lumi key, Card Chroma key, Camera Chroma key, Animation
Card Motion video/still image ×
Multi-screen Tape
Motion video/still image Supported (Disabled in Night mode, Night+ mode, and Super Night mode)
Card
Motion video/still image ×
Capture speed
Shutter speed
≥
1/25sec Manual, Fast (4 fields), Normal (6 fields), Slow (8 fields)
Shutter speed < 1/25sec Manual, Fast (4 fields), Normal (8 fields), Slow (12 fields)
Screen segments 4 (2 ×2) / 9 (3 ×3) / 16 (4 ×4)
Motion video Tape miniDV (SP, LP)
shooting Card Image size 320 ×240, 160 ×120 dots
(MVX250i E) Shooting SDC-8M 320 ×240 dots (continuous, approx. 20 sec)
time 160 ×120 dots (continuous, approx. 50 sec)
MMC-8M 320 ×240 dots (continuous, approx. 10 sec)
160 ×120 dots (continuous, approx. 30 sec) per shot
Still image Tape ×
recording Card Recording system Progressive photo
Recording image Frame image
Single image ●
Continuous shooting ●(Fast, Normal)
AEB ●
Image size 1280 ×960, 640 ×480
Image quality Super Fine, Fine, Normal
Photo Form Dedicated still image button (in card mode only)
button Pressed
●(Only during recording standby)
halfway down
Card review ● (image setting menu obtained by pressing photo button + SET button)
Flash photography ● (with VFL-1 (sold separately) attached ( MVX250i E only )
Negative-positive reversal ×
Built-in Video light ×(MVX250i E only, equipped with white LED (lights in
Super Night mode, Night+ mode))
(VL-3 support in MVX250i E only (Advanced accessory shoe))
Zebra pattern ×
Color bar display ×
Self-timer 10 sec / Remote controller : 2 seconds
Interval timer ×
Clearscan ×
Recorded image size and file format VGA : 640(H) ×480 (V), SXGA : 1280(H) ×960(V) / JPEG
Memory card SD memory card, MultiMediaCard
REC Search ●
REC Review ●
Standby switch ×
Power save (After five minutes in Recording pause) Power shutoff

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
7
Item MVX250i E, MVX200i E, MVX200 E
Shooting functions
Displayed text recording ×
Audio 16-bit 2-ch (48KHz)
12-bit 4-ch (32 kHz) Simultaneous 4-channel recording not possible
Wind screen ●With AUTO/OFF switch (built-in microphone only)
EVF Size 0.33-inch (TFT color RGB delta arrangement)
Pixels 113,000 pixels
Brightness adjustment ×
Color adjustment ×
Movable ×
LCD monitor Screen size 2.5-inch
Pixels 123,000 pixels
Brightness adjustment ●
Movable ●mirror shooting supported
VCR
Playback Frame playback Forward / Reverse
system Slow playback Forward / Reverse
2X SP playback Forward / Reverse
1X SP playback Forward / Reverse
Cue / review 11.5×speed
Search Photo search ×
Date search ●
Index search ×
End search ●
Special playback Playback zoom (5×zoom) ●(In tape playback and card still image playback)
effects D. effects Tape Art, Black & White, Sepia, Mosaic, Ball, Cube, Wave, Color Mask, Mirror
Card Black & White
D. fade Tape Auto fade, Wipe, Corner wipe, Jump, Flip, Puzzle, Zig Zag, Beam, Tide
Card ×
Multi screen 4, 9 or 16 screens (Tape only)
Data code display Time and Date display
Card Slide show ●
Index playback ●
(6-screen playback)
Card fast forward / rewind Card jump
Audio dubbing ●(Model MVX200 E : built-in microphone only)
AV insert ×
Zero set memory ●
Editing functions Simple editing ×
Special effects ×

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
8
Item MVX250i E, MVX200i E, MVX200 E
System
Interface Microphone input ●(MVX250i E only)
(terminal) Headphone output ●(Also serves as AV terminal)
DV terminal Input / output. (However, output only on MVX200 E models.)
S-Video terminal Input / output. (However, output only on MVX200 E models.)
AV terminal Input/output, φ3.5mm jack (also serves as headphone terminal.
However, output only on MVX200 E models.)
Editing terminals (LANC terminal) ×
USB port ●
(mini-B Receptacle USB 2.0 Full Speed)
Memory card file transfer ●
Analog ⇒DV signal conversion ●(excluding model MVX200 E)
Direct printer Camera direct ●(CP-10, CP-100)
Photo direct ●(PIXUS 50i, PIXUS BJ 895PD, PIXUS BJ 535PD)
PictBridge ●(CP-200/PC-300, Pixus 990i and other PictBridge compatible bubble-
jet printers)
My Camera Startup screen creation ●
settings Startup screen selection ●
Startup sound ●
Shutter sound ●
Self-timer sound ●
World clock ●(Date display (Japanese, North American or European format can be
selected))
Text titles ×
Speaker ●
Confirmation beep ●
Tally lamp ×
Remote control cord Supports 1 and 2,
Accessory shoe ●(Advanced accessory shoe compatible MVX250i E model only)
Video ID ●(ID2 : NTSC only)
Recording media Tape miniDV, SP,LP
Card SD memory card, MultiMediaCard
Illuminated keys ×
Custom keys ×
Night mode key ●
DV control ×
Internal battery charging ●(CA-570 connection)
Backup power Lithium coin battery (CR1616)
Battery pack power NB-2L, NB-2LH, BP-2L12, and BP-2L14 lithium ion batteries

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
9
●External View
Fig. 1

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
10
2. Technical Explanation
2-1 Design
2-1-1 Design Concept-1
<Parallel Layout Design>
New concept design with short height Size about
40%
smaller than the MVX3i E
2-1-2 Design Concept-2
<Distinctive Body Design>
The design has a distinctive character line cross-
ing diagonally over the lens section.
In this design, a brilliant metallic coating cre-
ates remarkable highlights and shadows under
light for creating a stunning impression.
<Brilliant Metallic Color>
Metallic colors are used for the cassette cover
side. Metal and chrome parts are also used for
the lens ring and Megapixel badge to provide a
sense of refinement.
<Round Grip>
In addition to the round-shaped grip for enabling
a stronger grip, the finger grips use elastomer
for allowing a firm hold.
<Easy Direct Buttons>
This is the first DVC to use the Easy Direct
Buttons. This makes printing as easy as press-
ing a button.

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
11
2-1-3 Differences in Appearance of Overseas Models MVX250i E, MVX200i E, MVX200 E
Grip top/Front lens Side/Side connector
cover are molded
Gray color (finish is not used for cost reasons)
Bluish, high-brilliance metallic finish
Model MVX250i E
In comparison to the lens barrel section,
alow-contrast two-tone design is used with
alow-brightness, brilliant silver metallic finish.
Model MVX200i E, MVX200 E

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
12
2-2 18×zoom lens
2-2-1 Features of 18×lens
· Highest zoom ratio in a mechanical unit
· Extremely high cost-performance ratio
2-2-2 New technologies and new functions
A two-sided aspherical lens and high-refraction glass are arranged efficiently to minimize the size despite an increased number of
lenses.
The movement amount of the compensator near the tele end was also increased to reduce the load on the variator and achieve an
efficient zoom ratio over the entire short length.
Lens incorporated in MVX250i E, MVX200i E, MVX200 E
Lens incorporated in MVX3i E

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
13
2-3 Easy Direct Button ([ ] Print/Share button)
2-3-1 Direct Print function
The Easy Direct Button enables you to immediately start printing by simply connecting the video camera to a Camera Direct compatible
printer and pressing the button while it is lit.
(1)Connect the printer, and then turn on the printer.
(2)Set the video camera to Card Playback mode.
(3)Once the connection is made with the printer (
SETUP
SETUP
or other indicator is displayed), the button lights up blue. Press
the button to start printing.
Off
(1)
(2)
(3)
Off
On
Direct printer connection
(Press the MENU button)Press the SETUP button
Press the SETUP button
Button lights up : Indicates button operation is possible.
Button operation guide
Button turns off : Indicates button operation is not possible.
Button flashing : Indicates printing is in progress.
Press the button
Flashing
* When still images are displayed for the first time after
connection, the setting status appears over the screen (2)
for six seconds (figure at right).
The procedure for previous models is shown below.
(1)Connect the printer, and then turn on the printer.
(2)Set the video camera to Card Playback mode.
(3)Once the connection is made with the printer (
SETUP
SETUP
is displayed), press the SETUP button.
(4)This changes to the Print Setting screen. Check that you are ready to start printing, and then press the SETUP button to start
printing.
With the Easy Direct Button, step (3) is eliminated for even easier searching and printing of multiple images.

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
14
2-3-2 Direct Transfer
The Direct Transfer function uses the Easy Direct Button [ ] to easily transfer
images to a computer.
When the video camera is connected to a computer and set to Card Playback mode, the
Transfer menu is displayed on the video camera LCD screen. The user simply selects the
desired option from the menu and presses the Direct button to easily transfer the image to
the computer.
ZoomBrowser 4.6×, which supports Direct Transfer, must already be installed on the computer.
The supported OS are Windows XP, Windows 2000, Windows ME, and Windows 98 (Macintosh is not supported).
The transferred image is saved in a folder designated by ZoomBrowser.
The available files types for transfer are JPEG and Motion-JPEG (MPEG-4 is not supported).
(Note that only JPEG files can be transferred in the PC Wallpaper option.)
The Transfer menu has the following five options.
·ALL IMAGES... : This transfers all images recorded in the memory card
to the computer.
·NEW IMAGES... : This transfers images in the memory card that have
not been already transferred.
·TRANSFER ORDERS... : This uses the DPOF function to transfer only images
with a check mark. Note that the images need to be
designated for sending at the Send Designation Set-
ting screen beforehand.
·SELECT &TRANSFER... : The user checks the images one at a time before transferring.
·WALLPAPER... : This enables the user to check the image one at a time before transferring and setting as the
computer’s wallpaper in realtime.

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
15
2-3-2-1 Startup
Set the video camera to Card Playback mode, and then connect to a computer with a USB cable.
Direct Transfer does not start unless a memory card is loaded.
After Direct Transfer is started, the image that is displayed first is determined by the following conditions.
1. “No Image Warning” is displayed if there are no recorded images in the memory card.
2. The Menu screen is displayed when the option that was last executed is not recorded, such as when using for the first time.
3. If ALL IMAGES , NEW IMAGES or TRANSFER ORDERS is recorded as the last executed option, the Direct
Transfer menu screen is displayed.
4. If SELECT &TRANSFER or WALL PAPER is recorded as the last executed option, the SELECT &TRANSFER
screen is displayed.
Function Operation Description
Function Operation Description
Startup
The computer and
video camera are
connected by a
USB cable.
This proceeds to the Menu screen.
ALL IMAGES : See 2.3.2.2 .
NEW IMAGES : See 2.3.2.3 .
TRANSFER ORDERS : See 2.3.2.4 .
SELECT &TRANSFER : See 2.3.2.5 .
WALL PAPER : See 2.3.2.6
SELECT &TRANSFER : See 2.3.2.5
WALL PAPER : See 2.3.2.6
Menu screen
Select Image screen
Function Operation Description
Startup conditions 2 and 3
No Image Warning screen
Button lights up
Button turns off
Startup condition 4
Button lights up

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
16
2-3-2-2 ALL IMAGES
This transfers all images in the camera and saves them to the computer.
Function Operation Description
Cancel Press down the [SET]
or [MENU] button.
• This cancels the transfer and returns to the
Menu screen.
Button turns off
Function Operation Description
Transfer all
images
Move the [SET] button
up and down to select
images, and then press
down the [SET] button.
• This proceeds to the Confirm Transfer
screen.
Move the [SET] button
up and down to select
images, and then press
down the Easy Direct
button.
• The transfer confirmation is omitted, and
the Transfer in Progress screen is
displayed.
• The function executed last is recorded as
the selected function.
Menu screen
Confirm Transfer screen
Function Operation Description
Cancel Move the [SET] button
up and down to select
images, and then press
down the [SET] button.
• This cancels the selected function and
returns to the Menu screen.
OK • This performs the transfer and proceeds to
the Transfer in Progress screen.
Transfer in Progress screen (with progress bar)
• The transfer progress is based on the “ Number of images for which transfer was
completed/Total number of images to be transferred
” .
• If the number of images exceeds 9999, the value is fixed at 9999.
Return to Menu screen
Button lights up
Button turns off
Cancel OK
Finish Transfer or Cancel
[SET]
[ ]

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
17
2-3-2-3 NEW IMAGES
All untransferred images are transferred and saved to the computer.
Function Operation Description
Transfer
untransferred
images
Move the [SET] button
up and down to select
images, and then press
down the [SET] button.
• This proceeds to the Confirm Transfer
screen.
Move the [SET] button
up and down to select
images, and then press
down the Easy Direct
button.
• The transfer confirmation is omitted, and
the Transfer in Progress screen is
displayed.
• The function executed last is recorded as
the selected function.
Menu screen
Confirm Transfer screen
Function Operation Description
Cancel Move the [SET] button
up and down to select
images, and then press
down the [SET] button.
• This cancels the selected function and
returns to the Menu screen.
OK • This performs the transfer and proceeds to
the Transfer in Progress screen.
[SET]
Function Operation Description
Cancel Press down the [SET]
or [MENU] button.
• This cancels the transfer and returns to the
Menu screen.
Transfer in Progress screen (with progress bar)
• The transfer progress is based on the “ Number of images for which transfer was
completed/Total number of images to be transferred
” .
• If the number of images exceeds 9999, the value is fixed at 9999.
Return to Menu screen
OK
Cancel
Finish Transfer or Cancel
Button lights up
Button lights up
Button lights up
[]

MVX250i E, MVX200i E, MVX200 E
GENERAL DESCRIPTION OF PRODUCT
18
2-3-2-4 TRANSFER ORDERS
All images designated for sending are transferred and saved to the computer.
Function Operation Description
Cancel Press down the [SET]
or [MENU] button.
• This cancels the transfer and returns to the
Menu screen.
Function Operation Description
Transfer
send-
designated
images
Move the [SET] button
up and down to select
images, and then press
down the [SET] button.
• This proceeds to the Confirm Transfer
screen.
Move the [SET] button
up and down to select
images, and then press
down the Easy Direct
button.
• The transfer confirmation is omitted, and
the Transfer in Progress screen is
displayed.
• The function executed last is recorded as
the selected function.
Menu screen
Confirm Transfer screen
Function Operation Description
Cancel Move the [SET] button
up and down to select
images, and then press
down the [SET] button.
• This cancels the selected function and
returns to the Menu screen.
OK • This performs the transfer and proceeds to
the Transfer in Progress screen.
[SET]
Function Operation Description
• After analysis of the send-designated
images is complete, this proceeds to the
Transfer in Progress screen (with progress
bar).
Transfer in Progress screen (with progress bar)
• The transfer progress is based on the “ Number of images for which transfer was
completed/Total number of images to be transferred
” .
• If the number of images exceeds 9999, the value is fixed at 9999.
Return to Menu screen
Button lights up
Button turns off
Button turns off
Button turns off
Analyzing Send-designated Images screen
OK
Analysis Complete
Cancel
Finish Transfer or Cancel
[]
