Thank you for purchasing a Canon product.
The Canon Macro Ring Lite MR-14EX and Macro Twin Lite MT-24EX
are macro flash units compatible with E-TTL II/E-TTL/TTL autoflash
systems.
Read this instruction manual while also referring to your
camera’s instruction manual.
Before using the MR-14EX/MT-24EX, read this instruction manual and your
camera’s instruction manual to familiarize yourself with macro flash operations.
The basic operation is as easy as with normal AE shooting.
When the MR-14EX or MT-24EX is attached to an EOS camera, almost all
automatic exposure control for flash photography is handled by the
camera.
Although the MR-14EX/MT-24EX is an external flash unit, it works
automatically and seamlessly like the camera’s built-in flash.
It is automatically compatible with the camera’s flash metering
mode (E-TTL ll, E-TTL, or TTL).
The camera controls the MR-14EX/MT-24EX automatically in the following
flash metering modes:
1. E-TTL II autoflash (evaluative flash metering with preflash reading/lens
distance information)
2. E-TTL autoflash (evaluative flash metering with preflash reading)
3. TTL autoflash (off-the-film metering for real-time flash metering)
Regarding the camera’s available flash metering modes, refer to the
“External Speedlite” specification in the “Specifications” of your
camera’s instruction manual.
The camera instruction manual’s chapter on flash photography will refer
to cameras having 1 and 2 above as a Type-A camera (compatible
with E-TTL II or E-TTL). And cameras having 3(compatible with only
with TTL) are called Type-B cameras.
* This instruction manual assume that you are using the MR-14EX/MT-
24EX with a Type-A camera.
For Type-B cameras, see page 41.
MR14_MT24_00.fm Page 3 Tuesday, December 20, 2005 4:35 PM
COPY

4
This manual covers both the MR-14EX and MT-24EX. The
instructions basically apply to the MR-14EX. If you have the
MT-24EX, read the parts.
The operation procedures in this instruction manual assume that both
the camera and MR-14EX/MT-24EX’s power switches are ON.
Icons are used in the text to indicate the respective buttons, dials,
and settings. They match the same icons found on the camera and
MR-14EX/MT-24EX.
The (1) / (3) icons indicate that the respective function remains
in effect for 8 sec. or 16 sec.
Reference page numbers are indicated by (p.**).
This instruction manual uses the following alert symbols:
: The Caution symbol indicates a warning to prevent shooting
problems.
: The Note symbol gives supplemental information.
Contents
Conventions Used in this Manual
1Before You Start .................................................................. 9
2Flash Photography............................................................ 17
3Wireless Multiple Flash Photography ............................. 31
4Reference........................................................................... 35
MR14_MT24_00.fm Page 4 Monday, February 8, 2010 8:25 PM
COPY

5
Nomenclature

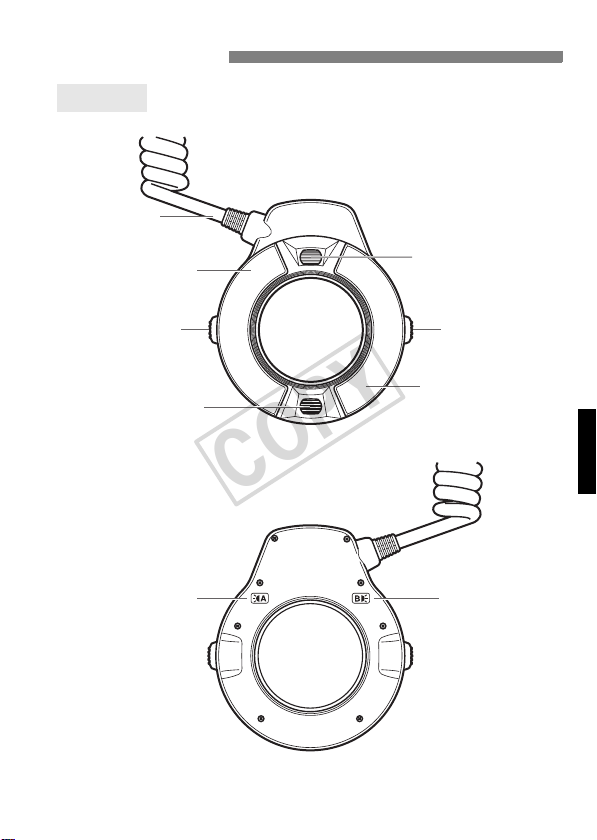

MR-14EX

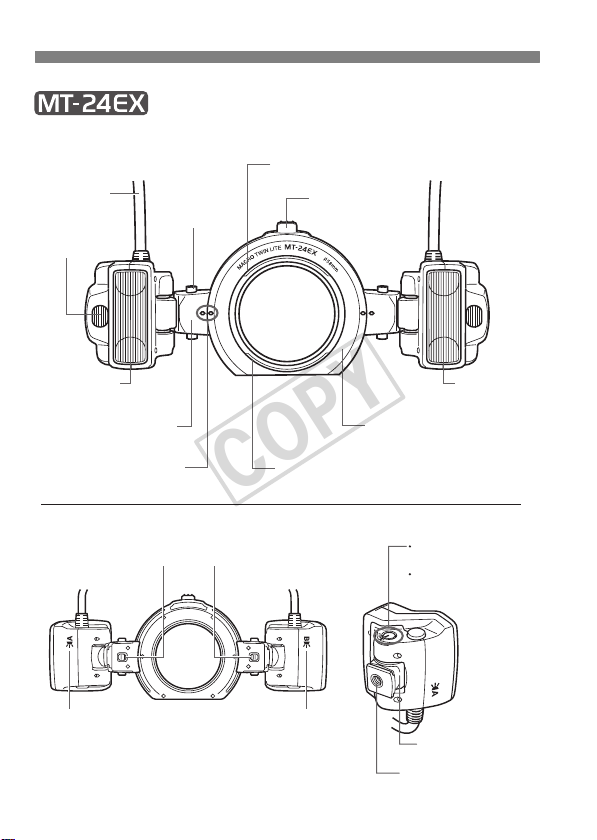

Connecting
cord
Flash tube B (p.21)
Release button
(p.12)
Flash tube A (p.21)
Release button
(p.12)
Flash Unit Rear
Flash unit
Focusing lamp (p.8)
Focusing lamp (p.8)
<i> Indicator
(p.21)
<h> Indicator
(p.21)
MR14_MT24_00.fm Page 5 Tuesday, December 20, 2005 4:35 PM
COPY

6
Connecting
cord
Flash head B
(p.21)
Flash head A
(p.21)
Release button
(p.12, 13)
Focusing
lamp (p.8)
Release levers
<k> Indicator
(p.21)
<j> Indicator
(p.21)
Standard position index
(Horizontal angle)
Angle setting
scale (p.13, 14)
Mounting foot (p.12)
Tripod socket
Hood mount (p.16)
Flash Unit
Flash head mount
(p.12, 13)
Standard position index
(p.13) (Vertical angle)
Rotate button
(p.13)
Filter mounting thread (p.15)
(58mm dia.)
Mount ring (p.12, 13)
Flash Unit Rear
Flash Unit Side & Bottom
MR14_MT24_00.fm Page 6 Tuesday, February 9, 2010 5:02 PM
COPY

7

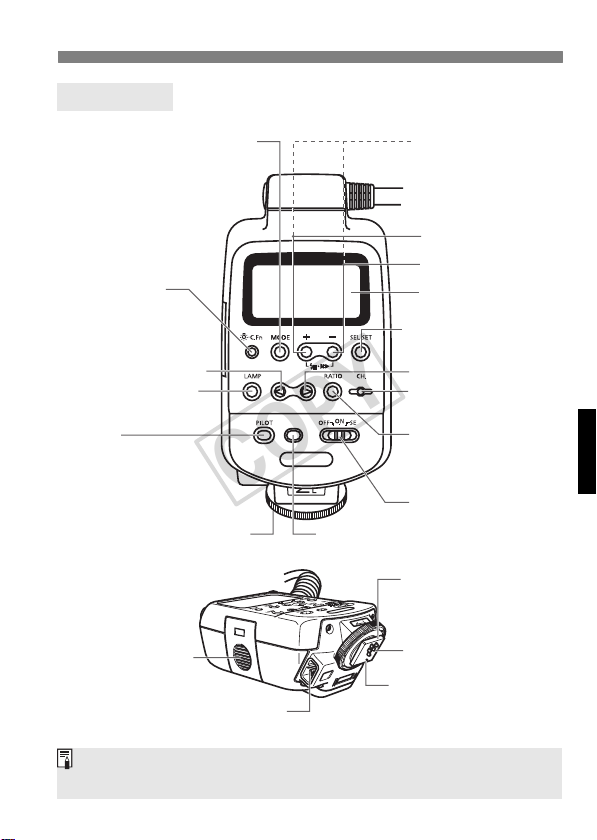

Control Unit
Mounting foot (p.11)
Contacts
Battery compartment
cover (p.10)
External power source socket
Locking pin (p.11)
<D> Flash mode button
(p.18, 27, 33)
*<B>
LCD panel
illumination button (p.8)
<C> Custom Function
setting button (p.28)
<b> button
<d> Focusing
lamp button (p.8)
<J>
Pilot lamp (p.18)
Test firing button (p.18)
Locking ring (p.11)
Flash exposure confirmation lamp (p.18)
<F> High-speed sync
(FP flash) button (p.26)
<r> Shutter curtain
synchronization button
(p.26)
*<h> Plus button
*<i> Minus button
LCD panel (p.8)
*<a> Select/Set
button
<c> button
<e> Channel button
(p.33)
Power switch (p.18)
<f> Flash ratio/
Flash tube/head select
button (p.21, 27, 33)
Asterisked buttons have functions which remain active for 8 sec. after you
press and let go of the button. The <B> illumination lasts for 12 sec.
MR14_MT24_00.fm Page 7 Friday, February 3, 2006 2:41 PM
COPY

8
To illuminate the LCD panel, press the <B> button.
The items actually displayed depend on the current settings.
Pressing the < d > button turns on the
focusing lamp for about 20 sec. to assist focusing
in low light. Press the <
d > button again to
turn off the focusing lamp. Note that if you take the
picture while the focusing lamp is lit,
underexposure may result.
LCD Panel
Focusing Lamp
Flash exposure compensation amount
FEB compensation amount
Manual flash output level
<f> Flash exposure
compensation
*<a/b>
E-TTL (II)/TTL
autoflash
<q> Manual Flash
Flash tube/head ID
(A, B)/Slave ID (C)
<y>
Flash ratio
<m> Flash tube/head
A firing
Flash ratio scale
Manual flash output scale
for A, B, and C
Flash ratio
<g> FEB
<r> Second-curtain sync
<c> High-speed sync
(FP flash)
<w>
Channel
<l>
Custom Function
<n> Flash tube/head
B firing
FEB status
Slave C flash exposure
compensation amount
Manual flash output for A, B, and C
Custom Function No.
* <a> will be displayed on the LCD panel even if the camera is
compatible with E-TTL II.
MR14_MT24_00.fm Page 8 Tuesday, December 20, 2005 4:35 PM
COPY

9
Before You Start
Installing the Batteries .......................................... 10
Attaching the Control Unit...................................... 11
Attaching the Flash Unit ....................................... 12
Setting the Flash Unit............................ 13
To prevent the flash tube/head from deteriorating due to
excessive heat, do not fire the flash continuously more than 20
times. After firing the flash continuously for 20 times, let the MR-
14EX/MT-24EX rest for 10 min. or longer. During continuous
manual flash firing, allow the MR-14EX/MT-24EX to rest after the
firing times indicated below.
Flash output 1/1 1/2 1/4 1/8 1/16 1/32 1/64
Firing times 15 20 40
MR14_MT24_01.fm Page 9 Saturday, January 23, 2010 10:44 AM
COPY

10

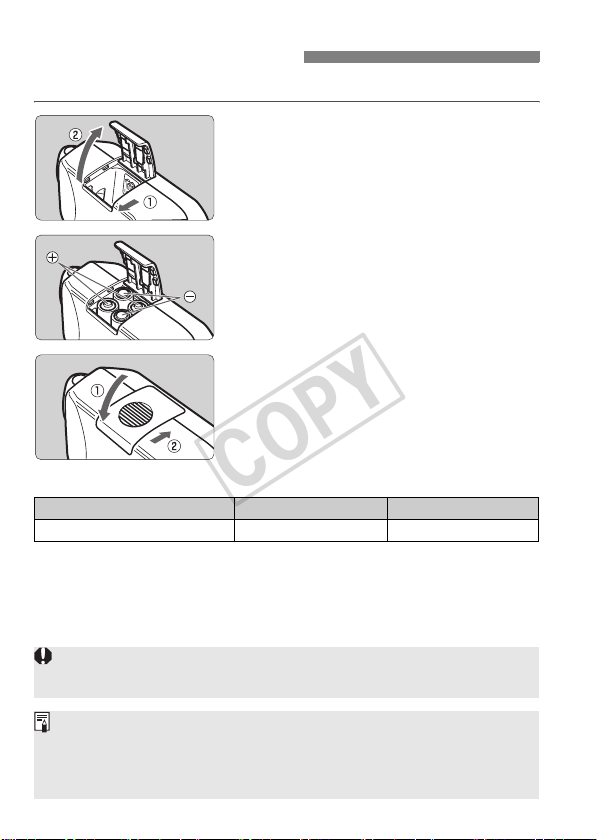

Use four size-AA/LR6 batteries.
1Open the cover.
Slide the battery compartment cover
as shown by the arrow, then flip up
the edge.
2Insert the batteries.
Make sure the + and - battery
contacts are properly oriented as
shown in the compartment.
3Close the cover.
Push down the cover and slide it
back.
Recycling Time and Flash Count
Based on a new set of batteries and Canon’s testing standards.
The figures are the same for both flash tubes/heads firing or single tube/head
firing.
This applies to both the MR-14EX and MT-24EX.
Installing the Batteries
Battery Type Recycling Time Flash Count
Size-AA/LR6 alkaline batteries Approx. 0.1 - 7 sec. Approx. 120 - 800
Use a new set of four batteries of the same brand. When replacing the
batteries, replace all four at one time.
Using size-AA batteries other than the alkaline type (LR6) may cause
improper battery contact due to the irregular shape of the battery
contacts.
Size-AA Ni-MH (HR6) or lithium (FR6) batteries can also be used.
MR14_MT24_01.fm Page 10 Saturday, January 23, 2010 10:44 AM
COPY

11

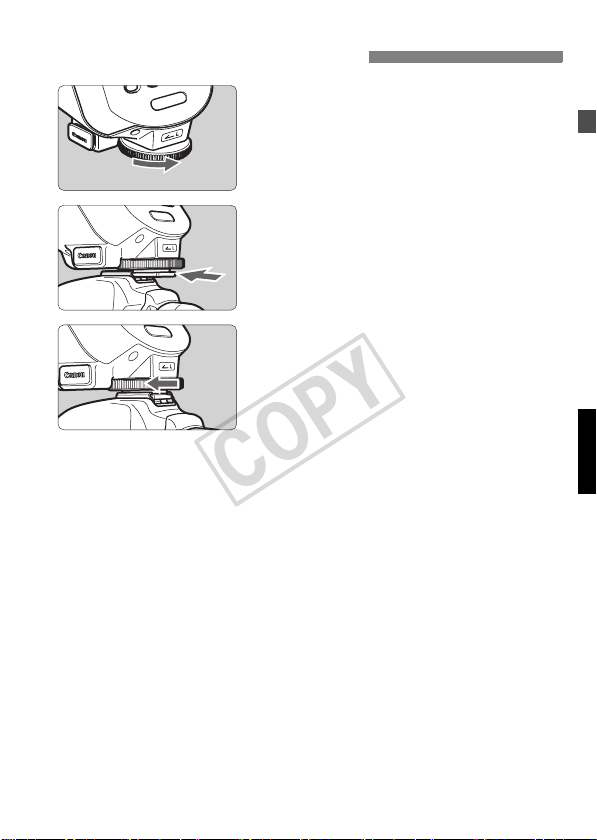

1Loosen the locking ring.
Turn the locking ring as shown by the
arrow to loosen it.
2Attach the control unit.
Slip the control unit’s mounting foot
into the camera’s hot shoe all the
way.
3Tighten the locking ring.
Turn the locking ring as shown by the
arrow. The locking pin will then
protrude from the mounting foot.
To detach the control unit, loosen the
locking ring until the locking pin
retracts, then detach the control unit.
Attaching the Control Unit
MR14_MT24_01.fm Page 11 Tuesday, December 20, 2005 4:35 PM
COPY

12
Hold down the release buttons
and attach the flash unit to the
front of the lens.
Make sure the flash unit is securely
attached.
The flash unit can be rotated.
To detach the flash unit, follow the
above procedure in reverse.
1Hold down the release button and
attach the mount ring to the front
of the lens.
Position the release button toward the top.
Make sure the mount ring is securely
attached.
2Attach flash heads A and B to
flash head mounts.
Push it in until it clicks in place.
To detach the flash heads, press the
release lever (p.6).
Attaching the Flash Unit
MR-14EX
To EF100mm f/2.8L Macro IS USM Users
Macro Lite Adapter 67 (optional) is required. Screw on the adapter onto
the lens filter thread, then attach the flash unit.
To EF180mm f/3.5L Macro USM Users
Macro Lite Adapter 72C (optional) is required. Screw on the adapter onto
the lens filter thread, then attach the flash unit.
To rotate the mount ring, be sure to first hold down the release button.
If the Macro Lite Adapter 72C screwed onto the EF180mm f/3.5L Macro
USM lens filter thread becomes stuck and cannot be unscrewed, without
pressing the release button, turn the ring against the lens in the direction
you would to detach the Adapter.
MR14_MT24_01.fm Page 12 Saturday, January 23, 2010 10:45 AM
COPY

13
The MT-24EX’s flash unit can be adjusted within the range shown
below to match the lens and subject.
1This can be rotated. Be sure to hold down the release button when
rotating the mount ring. After rotating it to the desired position,
release the release button.
2Hold down the rotate button and turn the flash head mount.
The flash head can be moved directly at 3and 4.
Setting the Flash Unit
Adjustable Range of Flash Unit
Standard position index
(Vertical angle)
Standard position index
(Horizontal angle)
Angle setting scale
Do not adjust the flash head angle beyond the adjustable range. Doing
so may cause the flash head to detach and fall from the flash head
mount.
The adjustable range may be further limited depending on the camera
and lens.
MR14_MT24_01.fm Page 13 Tuesday, December 20, 2005 4:35 PM
COPY

14
This is a general guide to setting the flash angle for various magnifications
with a macro lens. Refer to the angle scale (15° increments) on the side of
the flash head and set the same angle for both flash heads A and B. The
angle specifications in the table below indicate the inner angle relative to
the flash head’s standard position index (horizontal).
Flash Setting Guide
Lens Magnification Flash Head Inner Angle
60°45°30°15°0°
EF50mm f/2.5 Compact
Macro
1:2 zz
1:2.5 - 1:3 z
1:4 zz
1:5 - 1:6 z
1:8 zz
1:10 z
EF50mm f/2.5 Compact
Macro
+
Life-Size Converter EF
1:1 z
1:1.2 zz
1:1.5 - 1:2 z
1:4 z
EF100mm f/2.8L Macro IS
USM
EF100mm f/2.8 Macro USM
1:1 - 1:1.5 z
1:2 zz
1:3 z
1:5 z
EF100mm f/2.8 Macro
1:1 z
1:1.5 z
1:2 zz
1:2.5 - 1:3 z
1:4 z
EF180mm f/3.5L Macro
USM
1:1 zz
1:1.2 - 1:1.5 z
1:2 - 1:10 z
MP-E65mm f/2.8 1-5x Macro
5x - 2x z
1x z
EF-S60mm f/2.8 Macro
USM
1:1 - 1:1.5 z
1:2 z
1:3 zz
1:5 z
MR14_MT24_01.fm Page 14 Monday, January 18, 2010 6:36 PM
COPY

15
MR-14EX
Filter Compatibility
EF50mm f/2.5 Compact Macro
EF100mm f/2.8 Macro
EF-S60mm f/2.8 Macro USM
A filter can be attached directly to the lens.
EF100mm f/2.8 Macro USM
MP-E65mm f/2.8 1-5x Macro Photo
A filter cannot be attached.
EF100mm f/2.8L Macro IS USM
EF180mm f/3.5L Macro USM
Cannot be used with a filter.
EF50mm f/2.5 Compact Macro
A filter can be attached directly to the lens.
Note: Do not attach a 58mm filter to the
mount ring’s filter mounting thread. It
would obstruct the front of the lens.
EF100mm f/2.8L Macro IS USM
EF100mm f/2.8 Macro USM
EF100mm f/2.8 Macro
EF180mm f/3.5L Macro USM
EF-S60mm f/2.8 Macro USM
MP-E65mm f/2.8 1-5x Macro Photo
A 58mm filter can be attached to the
mount ring’s filter mounting thread.
MR14_MT24_01.fm Page 15 Monday, January 18, 2010 6:36 PM
COPY

16
MR-14EX
• If you want to use the dedicated hood (optional) with the MP-E65mm f/2.8
1-5x Macro Photo, first attach the hood, then attach the flash unit.
• A hood cannot be attached to any other lens.
• If you want to use the dedicated hood (optional) with the MP-E65mm f/2.8
1-5x Macro Photo, first attach the hood, then attach the mount ring. If a hood
is attached, a 58mm filter cannot be attached to the filter mounting thread.
• With an EF100mm f/2.8 Macro USM, the ET-67 hood can be attached to the
mount ring’s hood mount. Use ambient light for the picture. Using flash will
result in darkened edges.
Hood Compatibility
MR14_MT24_01.fm Page 16 Monday, January 18, 2010 6:36 PM
COPY

17
2
Flash Photography
Turning on the Power Switch................................ 18
Fully Automatic Flash Shooting............................ 18
Automatic Flash in Each Shooting Mode.............. 19
Flash Range ......................................................... 20
mn Setting the Flash Ratio............................. 21
7FE Lock ........................................................ 23
fFlash Exposure Compensation ...................... 24
gFEB ................................................................ 25
cHigh-speed sync ............................................. 26
rSecond-curtain sync ..................................... 26
qManual Exposure ............................................ 27
CSetting Custom Functions .......................... 28
Custom Function Settings .................................... 29
Setting the correct exposure for closeup shots largely depends on
the subject. It is best to bracket the exposure for the same
subject. (p.24)
If the EOS camera has a initialize function for camera settings,
initializing the camera settings will also initialize the flash settings
(excluding Custom Function settings).
MR14_MT24_02.fm Page 17 Friday, February 3, 2006 2:44 PM
COPY

18
1Turn on the power switch.
Set the power switch to <K> or
<g>.
XThe flash recycling starts.
2Check that the flash is ready.
The pilot lamp will light in red (fully
charged) when the flash is ready.
XPressing the pilot lamp will fire a test
flash.
Turning on the Power Switch
To save battery power, the < g > Save Energy feature automatically turns off
the MR-14EX/MT-24EX after 90 sec. of non-operation. To turn on the MR-
14EX/MT-24EX again, press the camera’s shutter button halfway.
A test firing cannot be fired while the camera’s operation timer 4or 0
is active.
The MR-14EX/MT-24EX’s settings will be retained in memory even after
the power is turned off. To retain the MR-14EX/MT-24EX’s settings when
you replace the batteries, replace the batteries within 1 minute after
turning off the power.
When the camera’s shooting mode is set to < V > (Program AE) or < U > (Full
A
uto), E-TTL II/E-TTL fully automatic flash photography will be enabled, making
it as easy as normal AE shooting in the < V > or < U > mode.
1
Set the MR-14EX/MT-24EX to < ETTL >.
Press the <D> button to
display <a>.
2Take the picture.
Focus the picture and check that the
<Q> icon is lit in the viewfinder.
X If a standard flash exposure was
obtained, the flash exposure confirmation
lamp will light for about 3 sec.
Fully Automatic Flash Shooting
MR14_MT24_02.fm Page 18 Saturday, January 23, 2010 10:45 AM
COPY
