Thank you for purchasing a Canon product.
The Canon Speedlite 270EX II is a compact flash unit for Canon EOS cameras, and works
with the E-TTL II and E-TTL autoflash systems. All control is performed on the camera side,
letting you easily enjoy flash shooting in the same manner as a built-in flash.
Use with an EOS DIGITAL camera
• The 270EX II is designed for optimum use with an EOS DIGITAL camera.
Use with an EOS film camera
• When used with an E-TTL II or E-TTL autoflash EOS film camera, autoflash shooting can
be performed in the same manner as when used with an EOS DIGITAL camera.
• The 270EX II cannot be used with TTL autoflash EOS film cameras.
Be sure to also read the description of flash shooting in the camera’s instruction
manual. For convenience, a camera compatible with E-TTL II/E-TTL autoflash systems is
indicated as Type-A camera in camera’s instruction manuals.
COPY

3
Nomenclature ............................................................................................................. 4
Installing the Batteries .............................................................................................. 5
Attaching the Flash ................................................................................................... 7
Fully Automatic Flash Shooting............................................................................... 8
Flash Shooting in Each Camera Mode .................................................................... 9
Switching Flash Coverage ...................................................................................... 11
Bounce Flash Shooting........................................................................................... 12
Other Functions ....................................................................................................... 13
Setting the Flash Functions by Camera Operation ..............................................14
Wireless Flash Shooting ......................................................................................... 17
Remote Control Shooting ....................................................................................... 21
Troubleshooting Guide ........................................................................................... 22
Specifications .......................................................................................................... 24
Contents
COPY

4
Nomenclature
"Flash head/AF-assist beam emitter (p.13)
#Wireless sensor
$Locking pin
%Contacts
&Mounting foot (p.7)
'Battery compartment cover (p.5)
(Remote control transmitter (p.19)
)Bounce angle index (p.12)
*270EX II mini stand (p.17)
+<Q> lamp (p.8)
,Mounting foot lock lever (p.7)
-Power switch (p.8, 17)
<
ON > : Turns on power
<
SLAVE > : For wireless flash shooting
<
OFF > : Turns off power
.Remote release button (p.19)
+
,
-
.
"
%$
#
&
'
(
)
*
COPY

5
1Slide the battery compartment cover
and open it as shown by the arrows.
2Install two batteries.
Make sure the + and - battery contacts are correctly
oriented.
Return the cover to its original position.
Recycling Time and Flash Count
Recycling Time: Approx. 0.1 - 3.9 sec.
Flash Count: Approx. 100 - 680 flashes
Based on new size-AA/LR6 alkaline batteries and Canon’s testing standards.
Installing the Batteries
COPY

6
Be sure to use a new set of two batteries of the same brand. When replacing the
batteries, replace both batteries at once.
Do not fire more than 20 continuous flashes in a short time.
If you fire more than 20 continuous flashes in a short time, the overheating prevention
function may be activated and make the recycling time about 8 to 20 sec. If this occurs,
allow a rest time of about 15 min. and the functioning of the flash will then return to
normal.
If you change the batteries after firing flashes continuously, be aware that the batteries
might be hot.
Using size-AA/LR6 batteries other than the alkaline type may cause improper battery
contact due to the irregular shape of the battery contacts.
Size-AA/LR6 Ni-MH or lithium batteries can also be used.
COPY

7
Be sure to turn off the Speedlite before attaching or detaching it.
1Slide the lock lever to the left and
attach the Speedlite to the camera.
Slip the Speedlite’s mounting foot firmly all the way
into the camera’s hot shoe.
2Secure the Speedlite.
Slide the lock lever to the right.
To remove the Speedlite, slide the lock lever to the
left and detach it from the camera.
Attaching the Flash
COPY

8
When you set the camera shooting mode to <V> or Full Auto, you can shoot in fully
automatic flash mode.
1Set the power switch to < ON >.
BThe flash recycling starts.
2Check that the <Q> lamp is lit.
When the <Q> lamp lights, you can shoot with the
flash.
See p.26 for guidelines about the flash shooting range.
Shooting is also possible when the lamp is blinking (Quick Flash), but the flash
output level will be 1/2 to 1/3 the normal flash.
3Take the picture.
Fully Automatic Flash Shooting
When the resulting picture is dark, move closer to the subject or increase the ISO speed
and try shooting again.
Quick Flash cannot be used when the flash mode is set to M: Manual Flash (p.14).
Quick Flash cannot be used during continuous shooting. (To enable flash, see p.16)
Set the power switch to < SLAVE > for wireless flash shooting (p.17).
COPY

9
In this mode, the camera will automatically adjust the flash output level to achieve standard
exposure for the automatically set aperture.
• If the aperture display blinks, it means that the background exposure will be underexposed
or overexposed. Adjust the shutter speed until the aperture display stops blinking.
In this mode, the camera will automatically adjust the flash output level to achieve standard
exposure for the set aperture.
If the background is dark, like a night scene, a slow sync speed will be used to obtain a
standard exposure of both the main subject and background. Standard exposure of the main
subject is obtained with the flash, while a standard exposure of the background is obtained
with a slow shutter speed.
• Since a slow shutter speed will be used for low-light scenes, using a tripod is
recommended.
• If the shutter speed display blinks, it means that the background exposure will be
underexposed or overexposed. Adjust the aperture until the shutter speed display stops
blinking.
Flash Shooting in Each Camera Mode
X: Shutter Priority AE
W: Aperture Priority AE
COPY

10
Select this mode if you want to set both the shutter speed and aperture manually.
As the camera will automatically adjust the flash output level according to the aperture you
set, the exposure of the main subject will be standard. The exposure of the background is
obtained with the shutter speed and aperture combination you set.
1/X sec. is the camera’s maximum flash sync speed.
q: Manual Exposure
Flash Sync Speeds and Apertures Used
Shutter Speed Setting Aperture Setting
VSet automatically (1/X sec. - 1/60 sec.) Automatic
XSet manually (1/X sec. - 30 sec.) Automatic
WSet automatically (1/X sec. - 30 sec.) Manual
qSet manually (1/X sec. - 30 sec., Bulb) Manual
If you use the <Z> or <Y> shooting mode, the result will be the same as flash shooting
with <V> (Program AE) mode.
COPY

11
Flash head (normal position)
The Guide No. is 22/72 (ISO 100 in meters/feet). The
maximum flash coverage matches an EF 28mm wide
angle lens (EF-S 18mm).
Flash head (pulled forward)
The Guide No. is 27/89 (ISO 100 in meters/feet). The flash
coverage matches an EF 50mm (EF-S 32mm) or lenses
with longer focal length.
Switching Flash Coverage
When shooting with a lens wider than EF 50mm (EF-S
32mm), the periphery of the picture may become dark.
See p.26 for guidelines about the flash shooting range.
COPY

12
By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface
before illuminating the subject. This can soften shadows behind the subject for more natural-
looking shots.
Bounce Flash Shooting
When the resulting picture is dark, set a smaller F
number (open the aperture) or increase the ISO
speed and try shooting again. The resulting
picture may also be dark if the wall or ceiling is too
far away.
The wall or ceiling should be plain white or nearly
white for high reflectance. If the bounce surface is
colored, this may produce a color cast in the
resulting picture.
After shooting with bounce flash, be sure to
return the flash head to the forward-facing
position and push the flash head back into its
original position.

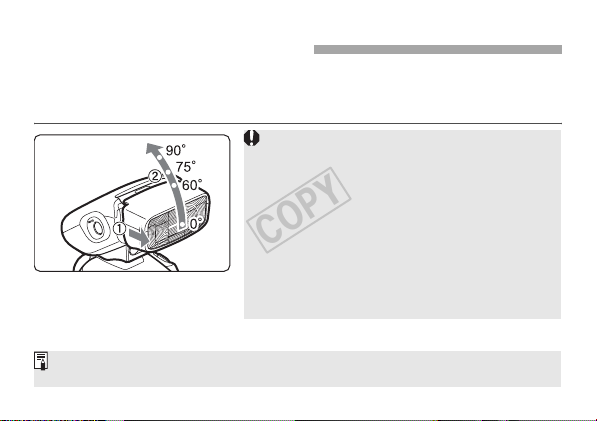

Pull the flash head forward and
then tilt it upward to determine
the flash head angle.
Determine the best angle for bounce flash by taking test shots and checking the resulting
pictures on the camera LCD monitor.
COPY

13
To save battery power, power will be turned off automatically after 90 sec. of idle use. Press
the camera’s shutter button to turn on the Speedlite again.
* Canceling the auto power off function is possible. (p.16)
When you press the camera’s shutter button halfway, the flash may fire repeatedly. This is
the AF-assist beam function that facilitates autofocus for dark scenes. Its effective range is
approximately 4 m/13.1 ft.
This function is available when using the Speedlite with an EOS DIGITAL camera that has an
external flash control function. Depending on the camera model, note that the firmware may
need to be updated.
Pressing the camera’s depth-of-field button will fire the flash continuously for 1 sec. This
enables you to see the shadow effects on the subject before flash shooting.
Other Functions
Auto Power Off
AF-Assist Beam
Modeling Flash
Do not fire the modeling flash more than 10 consecutive times. If you fire the modeling flash
10 consecutive times, allow the Speedlite to rest for at least 10 min. to avoid overheating and
deteriorating the flash head.
COPY

14
When the 270EX II is attached to an EOS DIGITAL
camera with an external flash control function, the
following settings are available through camera menu
operations. See the camera’s instruction manual for the
setting method and functions.
[Flash firing] (Enable*/Disable)
Set to [Disable] when you wish to use only the AF-assist beam.
[External flash func. setting]
•Flash mode (E-TTL II*/Manual flash)
Normally, use [E-TTL II]. [Manual flash] can also be set when not using autoflash.
Default settings are indicated by *.
Setting the Flash Functions by Camera Operation
COPY

15
•Shutter sync. (1st curtain*/2nd curtain/High-speed)
-1st curtain: This is the normal flash shooting mode in which the flash fires at the
timing when the shutter is fully open.
-2nd curtain: The flash fires right before the shutter closes.
-High-speed: This mode enables flash shooting at all shutter speeds. This is
effective when you want to use aperture priority for fill-flash
portraits.
•Flash exp. comp
You can adjust the flash output level in the same way as normal exposure
compensation.
•E-TTL II (Evaluative*/Average)
-Evaluative: Fully automatic flash shooting can be performed, from dark scenes
to fill-flash shooting.
-Average: Metering is averaged for the entire scene.
COPY

16
[External flash C.Fn setting]
C.Fn-01: Auto power off (Enabled*/Disabled)
C.Fn-06: Quick flash w/continuous shot (Disabled*/Enabled)
C.Fn-10: Slave auto power off timer (60 minutes*/10 minutes)
During normal auto power off (C.Fn-01), the power turns off if no operations are
made within 90 seconds, but in slave mode, the power turns off if no operations
are made within 60 or 10 minutes.
C.Fn-11: Slave auto power off cancel (Within 8 hours*/Within 1 hour)
When the master unit has a function to cancel the auto power off on the slave
unit, the master unit can cancel the auto power off on the slave unit within eight
hours or one hour after the slave unit enters the auto power off mode.
COPY

17
To perform wireless flash shooting, the camera or the Speedlite attached to the camera must
have a master function. The 270EX II fires as a slave flash when controlled from a master
unit. For the detailed shooting method, refer to the instruction manual of the camera or the
Speedlite with a master function.
1Set the camera or Speedlite as the
master unit.
2Set the 270EX II as the slave unit.

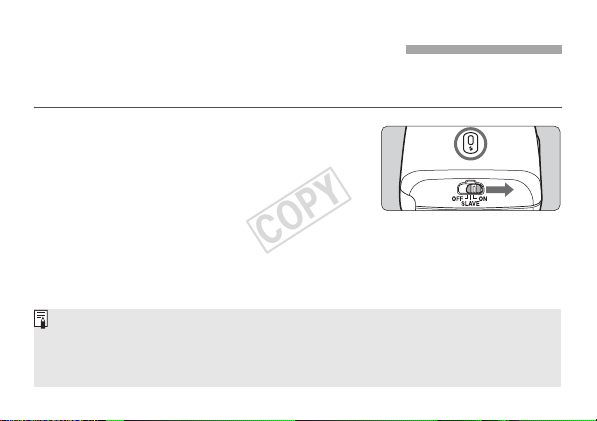

Set the power switch of the 270EX II to < SLAVE >.
3Attach the 270EX II to the supplied
mini stand and position the flash.
Indoors, you can perform wireless flash shooting
using the reflection of the surrounding walls without
having to point the wireless sensor of the 270EX II
toward the camera. Position the 270EX II while
checking that it can fire.
Wireless Flash Shooting
COPY

18
Transmission channel
You can use the flash regardless of the transmission channel (1 to 4) on the master unit.
Slave ID (firing group)
The slave ID is set (fixed) to group A. This cannot be changed to group B or C.
When the power switch of the 270EX II is set to <
SLAVE >, the power of the flash turns off
automatically if no operations are made within 60 or 10 minutes (p.16 C.Fn-10).
If the master unit does not have a function for canceling the auto power off (p.16 C.Fn-11) on
the 270EX II, set the power switch of the 270EX II to <
OFF > and then to < SLAVE > again.
Auto power off on the slave unit
The supplied mini stand is for use only with the 270EX II. Use with another flash may cause
the attached flash to fall.
COPY
