Canon EF LENS TS-E24MM F/3.5L User manual

TS-E24mm F3.5L
TS-E45mm F2.8
TS-E90mm F2.8
Instructions

ENG-1
Canon’s TS-E lenses are tilt-shift lenses
designed for EOS cameras. The tilt-shift
mechanism enables photographers to control
the depth of field and the area photographed
and to correct image distortion, making it
possible to take sophisticated pictures that
cannot be shot using a conventional lens.
●To ensure that you make the most of the TS-E lens
functionality, it is recommended that you use it with
an EOS camera with 100% viewfinder visibility
(EOS-1, EOS-1D or EOS-1Ds series) and use the
laser matte with grid focusing screen Ec-D and a
tripod.
●On EOS cameras with a built-in flash, some partial
restrictions may apply to the shift and rotation
functions.
●On EOS cameras equipped with a grip for vertical
shooting, some partial restrictions may apply to the
shift and rotation functions.
Features
1. The lens can be tilted up to ±8° and shifted up
to ±11mm.
2. The tilt and shift functions can be used singly
or in combination.
3. The lens can be rotated to change the tilt or
shift direction.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
Thank you for purchasing this Canon product.

ENG-2
aSafety Precautions
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for
help.
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled “Digital
Apparatus”, ICES-003 of the Industry Canada.
aSafety Precautions
1. Do not look at the sun or a bright light source
through the lens or camera. Doing so could result in
loss of vision. Looking at the sun directly through the
lens is especially hazardous.
2. Whether it is attached to the camera or not, do not
leave the lens under the sun without the lens cap
attached. This is to prevent the lens from concentrating
the sun’s rays, which could cause a fire.
aHandling Cautions
If the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation in
this case, first put the lens into an airtight plastic bag
before taking it from a cold to warm environment. Then
take out the lens after it has warmed gradually. Do the
same when taking the lens from a warm environment into
a cold one.

ENG-3

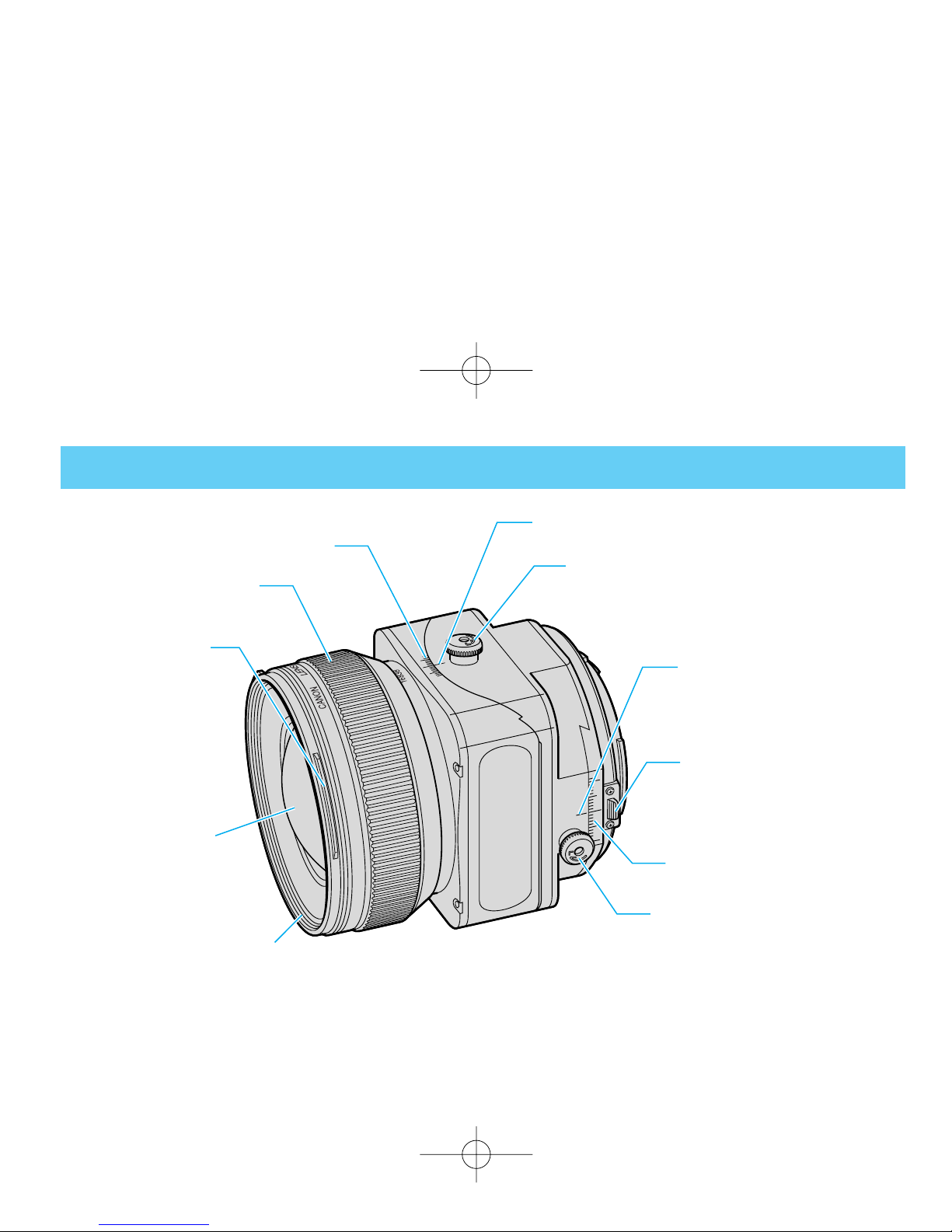

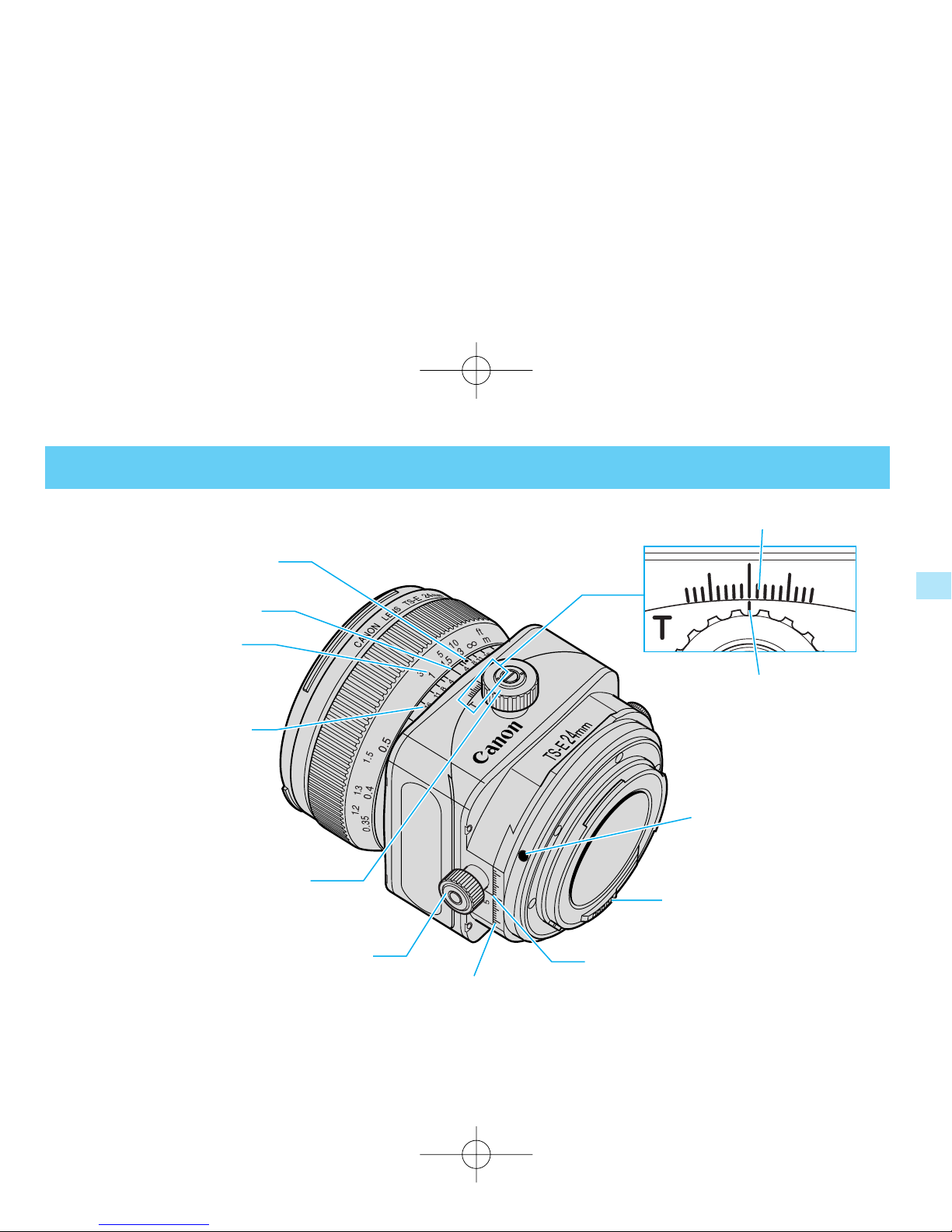

Nomenclature
For detailed information, reference page numbers are provided in parentheses (→**).
Tilt knob (→7)
Lens mount index (→5)
Contacts
Shift index
Shift scale (→9)
Shift knob (→9)
Depth-of-Field scale (→11)
Distance scale (→5,11)
Distance index
Infrared index (→11)
Tilt scale (→7)
Tilt index

ENG-4
Nomenclature
For detailed information, reference page numbers are provided in parentheses (→**).
Tilt lock knob (→7)
Rotation lock release button
(→10)
Shift lock knob (→9)
Filter mounting thread
(→14)
Lens
Hood mount (→13)
Focusing ring (→5)
Tilt index
Tilt scale (→7)
Shift index
Shift scale (→9)

ENG-5
1. Mounting and Detaching the Lens
Focus a TS-E lens by turning the focusing ring.
(Shots cannot be taken using the auto focus.)
See your camera’s instructions for details on
mounting and detaching the lens.
2. Focusing
●When mounting or detaching the lens, always
ensure that the tilt and shift scales are set to the
“0” position.
●After detaching the lens, place the lens with the
rear end up to prevent the lens surface and
contacts from getting scratched.
●If the contacts get soiled, scratched, or have
fingerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
●If the contacts get soiled or have fingerprints on
them, clean them with a soft cloth.
●If you remove the lens, cover it with the dust
cap. To attach it properly, align the lens mount
index and the index of the dust cap, and turn
clockwise. To remove it, reverse the order.
●After using tilt or shift, readjust the focus.
●The distance scale is only valid when the tilt
scale is set to the “0” position.

ENG-6
3. Tilt Function
Tilting inclines the lens relative to the image plane. When the tilt scale is set to the “0” position, the
focusing and imaging planes are parallel. However, tilting puts the focusing plane at an angle to the
imaging plane.
●Example 1 ●Example 2
To shoot so that all of an extensive subject is in focus, you must normally use a small aperture to
obtain a large depth of field. But tilting allows you to keep all of the subject in focus even when there
is insufficient depth of field (Example 1). Or, by tilting in the opposite direction, you can focus on a
specific part of the subject (Example 2).

ENG-7
Turn the tilt lock knob in the
direction of the arrow to lock
the amount of tilt for the
shot.
Loosen the tilt lock knob by
turning it in the direction of
the arrow.
Turn the tilt knob to adjust
the amount of tilt. Focus the
shot by turning the focusing
ring.
Using Tilt
●When you tilt the lens, sharp portions of the tilt mechanism are exposed and care should be taken to avoid
touching these portions.
●If you use the tilt and shift functions on the TS-E24mm f/3.5L at the same time, only use them within the
area of the light-gray tilt scale settings. Tilting the lens to other settings may cause vignetting.
However, if the tilt function is used alone, none of the tilt scale settings cause vignetting.

ENG-8
4. Shift Function
Shifting moves the optical axis of the lens in parallel off the center of the imaging plane.
Shift can be used to good effect in the situations shown below.
●If you photograph a subject such as a
building with a normal lens, the top of
the building tapers away. But by placing
the camera parallel to the building and
shifting the lens, you can correct this
tapering effect.
●When you are shooting a reflective
subject, you can move the camera to a
position where the camera does not
appear in the shot and then use shift to
take the picture. This lets you keep the
camera out of the shot without having
to change the shot composition.

ENG-9
Using Shift
Turn the shift lock knob in
the direction of the arrow to
lock the amount of shift for
the shot.
Loosen the shift lock knob
by turning it in the direction
of the arrow.
Turn the shift knob to adjust
the amount of shift. Focus
the shot by turning the
focusing ring.
●When you shift the lens, sharp portions of the shift mechanism are exposed and care should be taken to
avoid touching these portions.
●If you use the tilt and shift functions on the TS-E24mm f/3.5L at the same time, only use them within the
area of the light-gray shift scale settings. Shifting the lens to other settings may cause vignetting.
With large amounts of shift, the amounts of peripheral light at the top and bottom or left and right sides of the
screen may differ, so shooting with a small aperture is recommended.

ENG-10
5. Rotation
The rotation function enables you to change the direction of tilt or
shift by rotating the tilt-shift mechanism.

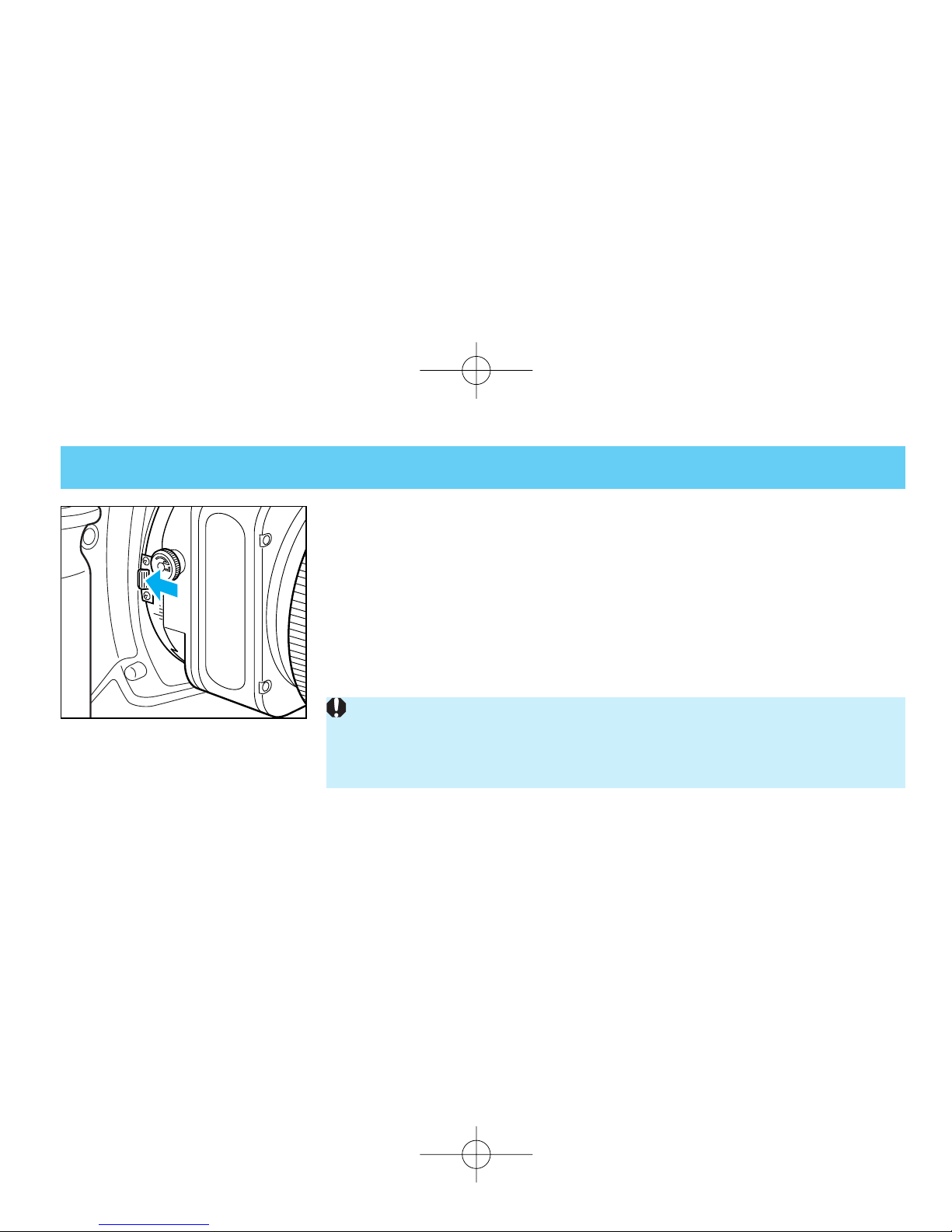

With the lens mounted on the camera, push the rotation lock release
button towards the mount and then turn the tilt-shift mechanism.
●The mechanism can be rotated through ±90°. The lens clicks every 30° and
locks in place in the 90° position.
●When rotating the lens, set the tilt and shift scales to the “0” position.
●Note that rotating the tilt-shift mechanism quickly while pressing on the
rotation lock release button may cause the shift lock knob to strike your
fingers.

ENG-11

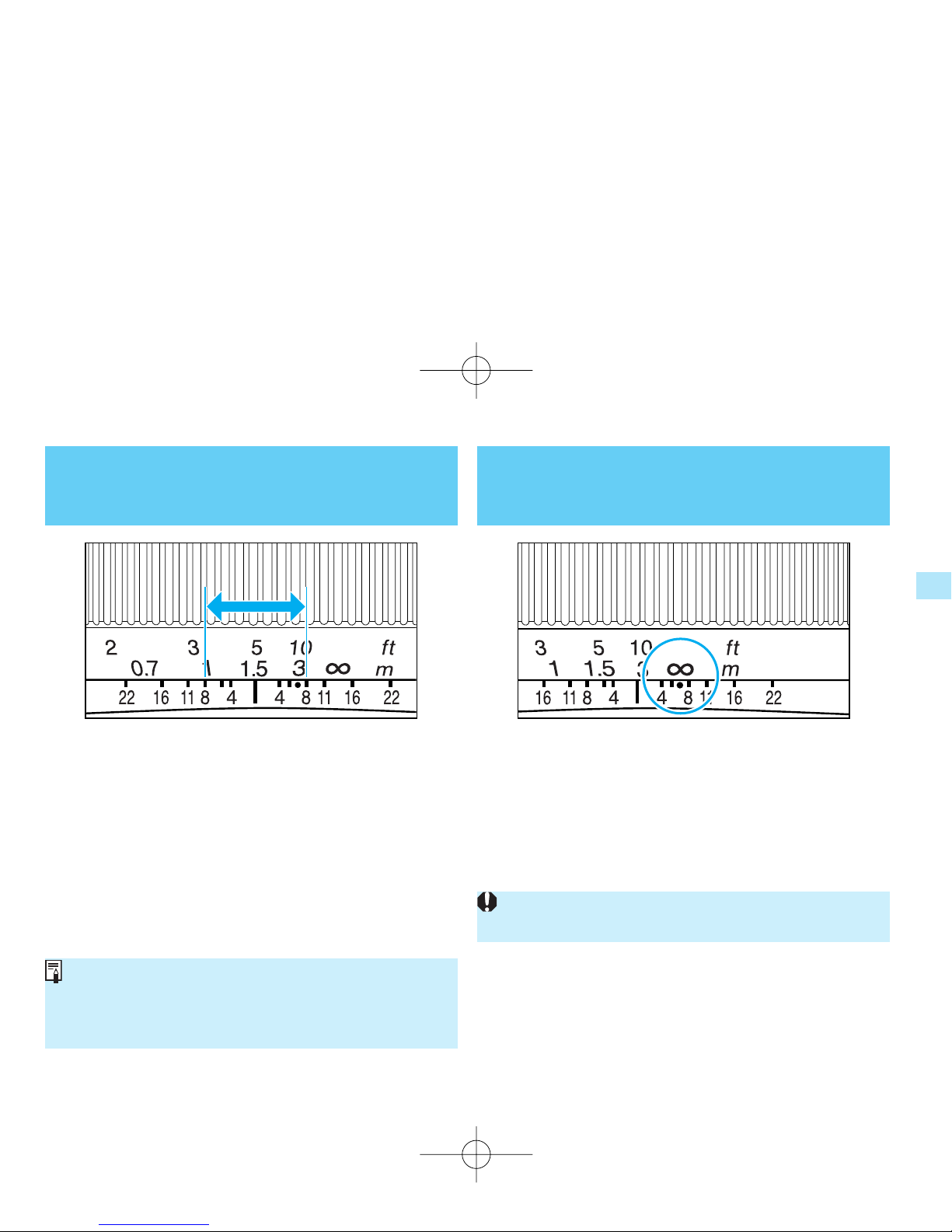

The depth of field is the distance in front of and
behind the plane of focus on the subject that
appears sharp. The depth of field is indicated by
the area between the depth-of-field scale lines
below the distance scale. Numbers in the scale
are in F values, and for example, if the shooting
distance is 1.5m and the aperture is f/8, the
sharp area will extend from about 1m to 3m.
The infrared index corrects the focus setting
when using monochrome infrared film. Focus on
the subject, then adjust the distance setting by
moving the focusing ring to the corresponding
infrared index mark.
6. Depth-of-Field Scale
(TS-E24mm f/3.5L)
7. Infrared Index
(TS-E24mm f/3.5L)
Some EOS cameras cannot use infrared film. See
the instructions for your EOS camera.
●The depth-of-field scale is only valid when the
tilt scale is set to the “0” position.
●The depth-of-field scale is an approximate
indicator.

ENG-12

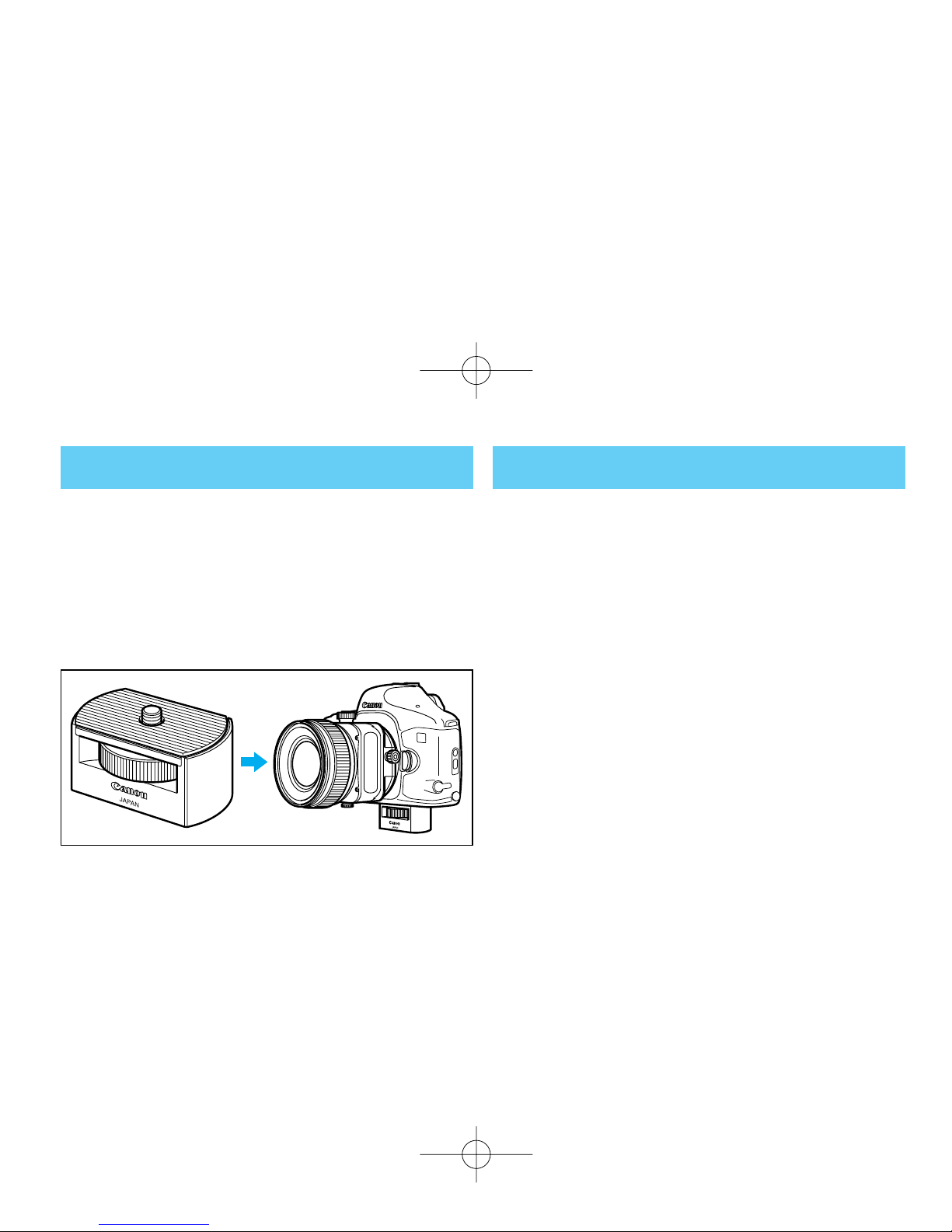

8. TS-E Tripod Adapter (Sold Separately) 9. Exposure
With some camera models, the tilt, shift and
rotation functions can no longer be used when
the camera is mounted directly on a tripod.
When this happens, fit the optional TS-E tripod
adapter into the tripod mount socket on the
camera before mounting the camera on the
tripod.
Shots can be taken using AE (automatic
exposure) as long as the tilt and shift scales are
set to the “0” position.
The use of AE is not recommended when the
lens is tilted or shifted as exposure errors may
result. It is recommended that you use the
exposure values when the tilt and shift scales
are set to the “0” position as a guide and then
take the shot with as many exposure settings as
possible.

ENG-13
10. Hoods
The EW-75BII, EW-79BII and EW-65III hoods can keep unwanted light out of the lens, and also
protect the lens from rain, snow, and dust.

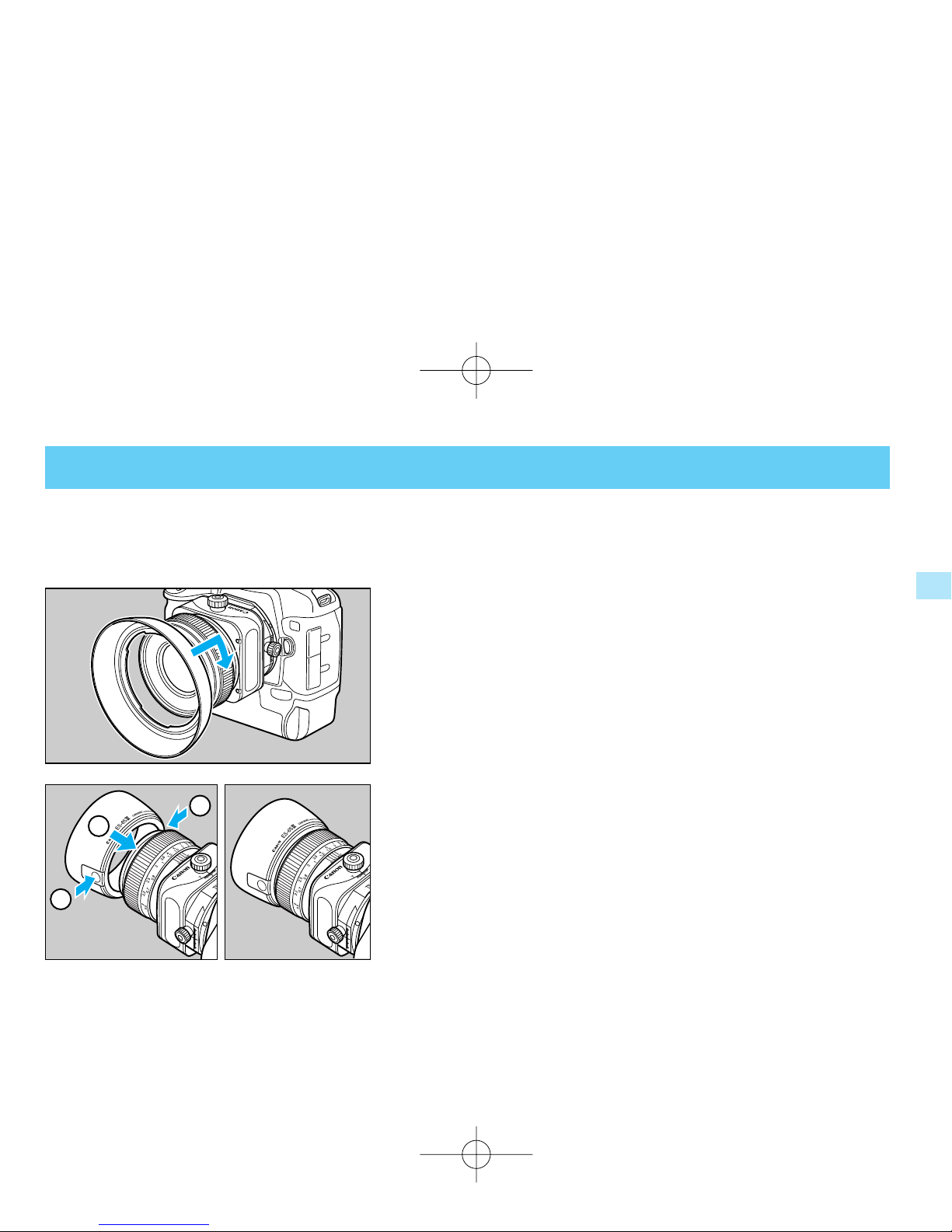

Attach the hood using the following procedure.
1
2
1
TS-E24mm f/3.5L
Align the hood with the hood mount and then turn the hood
clockwise to securely lock it in place.
TS-E45mm f/2.8 • TS-E90mm f/2.8
1) Pressing the buttons on the base of the hood inwards,
push the hood onto the hood mount on the lens.
2) Release the buttons so that the catches on the hood fit
into the grooves on the mount.

ENG-14
You can attach filters to the filter mounting
thread on the front of the lens.
●One filter can be attached.
●Use only Canon’s filters.
●If you need a polarizing filter, use Canon’s polarizing
filter.
●When the Canon’s polarizing filter is attached, the
lens cap cannot be attached.
11. Filters (Sold Separately)
Hoods
●Part of the picture may be blocked if the hood is
not attached properly.
●When attaching or detaching the hood, grasp
the base of the hood to turn it. To prevent
deformation, do not grasp the rim of the hood to
turn it.

ENG-15
Specifications
TS-E24mm f/3.5L TS-E45mm f/2.8 TS-E90mm f/2.8
Image Size 24 ×36mm
Focal Length/Aperture 24mm f/3.5 45mm f/2.8 90mm f/2.8
Lens Construction 9 groups, 11 elements 9 groups, 10 elements 5 groups, 6 elements
Minimum Aperture f/22 f/22 f/32
Angle of View
Diagonal/Vertical/Horizontal
84°/53°/74° 51°/30°/44° 27°/15°11’/22°37’
Min. Focusing Distance 0.3m (1.0ft.) 0.4m (1.3ft.) 0.5m (1.6 ft.)
Max. Magnification 0.14×/173 ×262.5mm 0.16×/150 ×226mm 0.29×/81.9 ×122.8mm
/Field of View (6.8 ×10.3inch) (5.9 ×8.9inch) (3.2 ×4.8inch)
Tilt amount ±8°
Shift amount ±11mm
Tilt scale display Each degree from 0 to ±8° (light gray)
Shift scale display Each mm from 0 to ±11mm (light gray)
Rotation mechanism Locks at -90°, 0° and +90°, clicks every 30°
Each degree from 0 to
±6° (light gray),
±7° and ±8° (red)
Each mm from 0 to
±7mm (light gray),
±8 to ±11mm (red)

ENG-16
Specifications
●The lens length is measured from the mount surface to the front end of the lens. Add 21.5mm
when including the lens cap and dust cap.
●The size and weight listed are for the lens only, except as indicated.
●Aperture settings are specified on the camera.
●This lens cannot be used with the EF1.4×II or EF2×II extenders.
●All data listed is measured according to Canon standards.
●Product specifications and appearance are subject to change without notice.
TS-E24mm f/3.5L TS-E45mm f/2.8 TS-E90mm f/2.8
Filter Diameter 72mm 58mm
Max. Diameter and Length 78 ×86.7mm (3.1 ×3.4inch) 81 ×90.1mm (3.2 ×3.5inch) 73.6 ×88mm (2.9 ×3.5inch)
Weight 570g (18.4oz) 645g (20.8oz) 565g (18.2oz)
Hood EW-75BII EW-79BII ES-65III
Lens Cap E-72 E-58
Case LP1216 LP1016

MEMO

キヤノン株式会社 http://canon.jp
キヤノンマーケティングジャパン株式会社
〒108-8011 東京都港区港南2-16-6
canon.jp/ef
100％再生紙を使用しています。揮発性有機化合物（VOC）ゼロのインキを使用しています。
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A.
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
For all inquires concerning this product, call toll free in the U.S.
1-800-OK-CANON
CANADA
CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T 1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this product, call toll free in Canada
1-800-OK-CANON
EUROPE, AFRICA & MIDDLE EAST
CANON EUROPA N.V.
Bovenkerkerweg 59-61, P.O. Box 2262, 1180 EG Amstelveen, The Netherlands
CANON COMMUNICATION & IMAGE FRANCE S.A.S.
12 Rue de l’Industrie 92414 Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8 I-20097 San Donato Milanese, Milano, Italy
CANON Schweiz AG
Geschäftsbereich Wiederverkauf, Industriestrasse 12, CH-8305 Dietlikon,
Switzerland
Canon GMBH
Zetschegasse 11, A-1230 Wien, Austria
CANON España, S.A.
C/Joaquín Costa, 41, 28002 Madrid, Spain
SEQUE Soc. Nac. de Equip., Lda.,
Praça da Alegria, 58, 2°, 1269-149 Lisboa, Portugal
CANON Belgium N.V./S.A.
Bessenveldstraat 7, B-1831 Diegem, Belgium
CANON Netherland NV
Neptunusstraat 1, 2132 JA Hoofddorp, The Netherlands
CANON LUXEMBOURG S.A.
Rue des Joncs 21, L-1818 Howald, Luxembourg
CANON DANMARK A/S
Knud Hoejgaards Vej 1 DK-2860 Soeborg, Danmark
CANON OY
Huopalahdentie 24 PL 1 00351 Helsinki, Finland
CANON SVENSKA AB
Gustav III:s Boulevard 26 169 88 Solna, Sweden
CANON NORGE as
Hallagerbakken 110, Postboks 33, Holmlia, 1201 Oslo, Norway
CENTRAL & SOUTH AMERICA
CANON LATIN AMERICA, INC.
703 Waterford Way, Ste. 400 Miami, FL 33126, U.S.A.
ASIA
CANON (China) Co., Ltd.
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005,
China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Startower Bldg.17F, 737, Yeoksam-Dong, Kangnam-Ku, Seoul, 135-984, Korea
OCEANIA
CANON AUSTRALIA PTY.LTD.
1 Thomas Holt Drive, North Ryde, N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN
CANON MARKETING JAPAN INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
2007.1.1
CT1-8522-000 0906SZ1 © CANON INC. 2006 PRINTED IN JAPAN
