Canon EF-M User manual

EF-M28mm f/3.5 MACRO IS STM
Instructions
ENG

ENG-1
Thank you for purchasing a Canon product.
The Canon EF-M28mm f/3.5 MACRO IS STM
is a macro lens for use on Canon EOS M
Series cameras. It is equipped with an Image
Stabilizer capable of shooting portraits,
scenery and other normal shots, as well as
close-up (macro) shots with a magnication
ratio of 1.2x.
 “IS” stands for Image Stabilizer.
 “STM” stands for stepping motor.
Camera Firmware
 When using this lens, please check the Canon website
for the latest camera rmware. If the camera’s rmware
is not the latest version, be sure to update to the latest
rmware.
 For details on updating rmware, please check the
Canon website.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.

ENG-2
Precautions to ensure that the camera is used
safely. Read these precautions thoroughly. Make
sure all details are observed in order to prevent
risks and injury to the user and other people.
Warning Details pertaining to risks that may
result in death or serious injury.
 Do not look at the sun or a bright light source
through the lens. Doing so could result in vision loss
or blindness.
 Whether it is attached to the camera or not, do
not leave the lens under the sun without the
lens cap attached. This is to prevent the lens from
concentrating the sun’s rays, which could cause a re.
Caution Details pertaining to risks that may
result in injury.
 Do not hold the Macro Lites located on the front
of the lens close to the eyes or stare at them when
they are illuminated. Doing so may result in eye
damage.
 Do not leave the camera in locations subject to
high or low temperatures. This may result in the
camera becoming excessively hot or cold, which may
cause burns or other injuries when touched.
Caution Details pertaining to risks that may
result in damage to property.
 Do not leave the lens in excessive heat such as in a
car in direct sunlight. High temperatures can cause the
lens to malfunction.
Safety Precautions

ENG-3
General Precautions
Handling Precautions
 If the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation in
this case, rst put the lens into an airtight plastic bag
before taking it from a cold to warm environment. Then
take out the lens after it has warmed gradually. Do the
same when taking the lens from a warm environment
into a cold one.
 Please also read any lens related handling precautions
listed in your camera’s instruction manual.
Shooting Precautions
 Note that there are cases in which the white ring on
the front of the lens may be reected into photographs
if the lens is held close to reective objects (glass
surface on wristwatches, for example), even if the
Macro Lites are not illuminated. This can be avoided by
attaching the hood when taking photographs.

ENG-4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes or modications to the equipment
unless otherwise specied in the instructions. If such
changes or modications should be made, you could be
required to stop operation of the equipment.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAN ICES-3 (B) / NMB-3 (B)

ENG-5

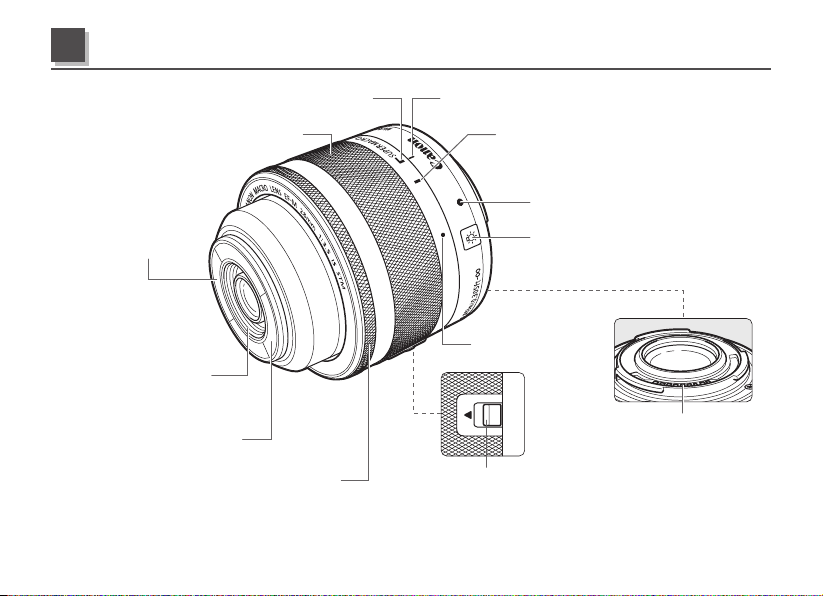

Super macro mode index (→ 7)
Mode selection ring (→ 7)
Macro Lite B (→ 15)
Contacts (→ 6)
Hood mount (→ 17)
Focusing ring (→ 9)
Macro Lite A (→ 15)
Mode selection index (→ 7)
Normal mode index (→ 7)
Lens mount index (→ 6)

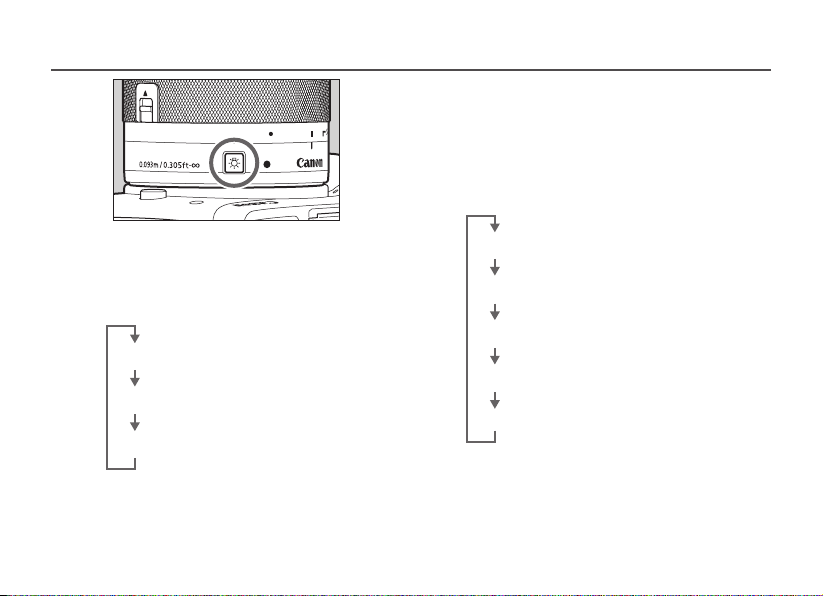

Macro Lite ON button (→ 16)
Retraction location
index (→ 8)
Lock release switch (→ 7)
 For detailed information, reference page numbers are provided in parentheses (→ **).
Nomenclature

ENG-6
See your camera’s instructions for details on
mounting and detaching the lens.

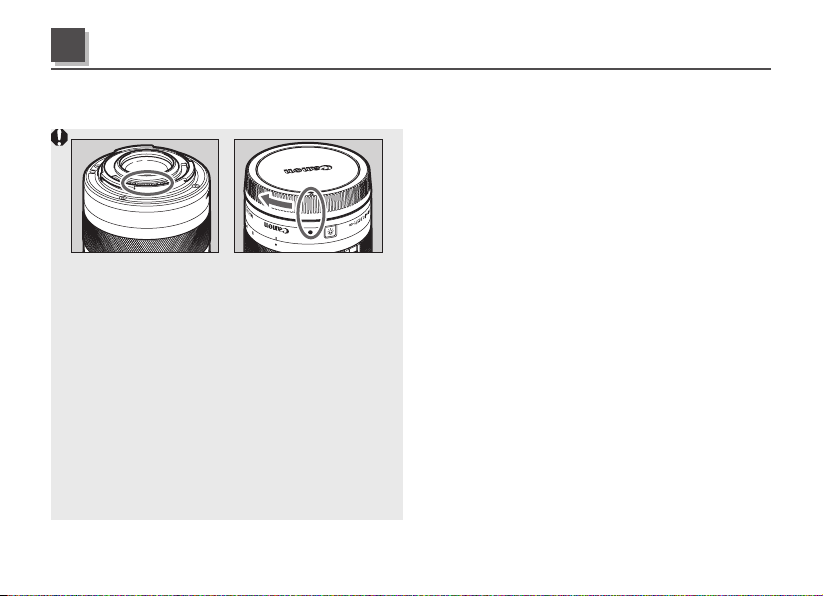

 After detaching the lens, place the lens with
the rear end up to prevent the lens surface and
contacts from getting scratched.
 If the contacts get soiled, scratched, or have
ngerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
 If the contacts get soiled or have ngerprints on
them, clean them with a soft cloth.

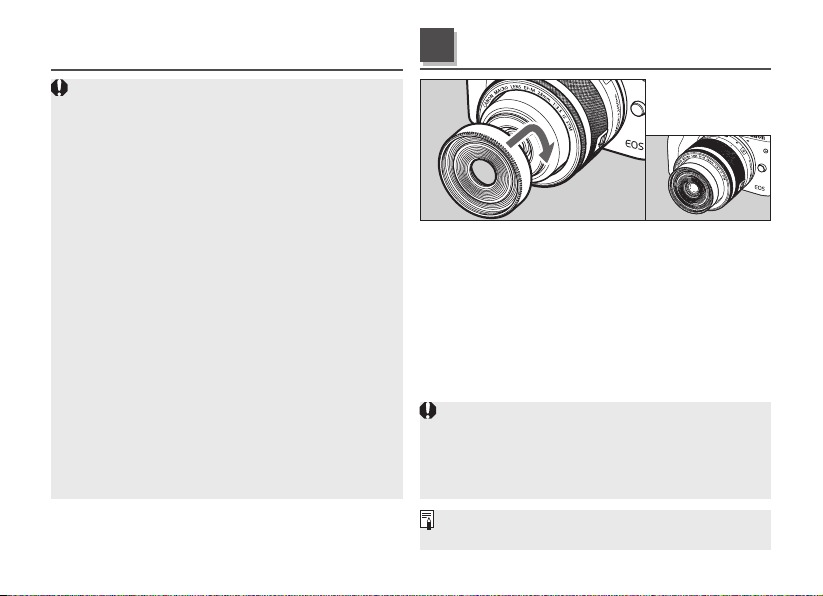

 Attach the lens cap and dust cap when
disconnecting the lens. When attaching the
dust cap, align the lens mount index with the 
index of the dust cap and rotate in a clockwise
direction as shown in the illustration. Follow the
reverse procedure to detach it.
Mounting and Detaching the Lens
1

ENG-7
<Shooting Preparations>
Set the mode selection ring to the normal mode or the super macro mode when taking photographs.
Shooting Preparations and Retracting Lens
2
Normal Mode
The normal mode enables innite distance
photography through to close-up (macro)
photography.
To prepare for this, press the lock release switch
in the ▲ direction with the lens retracted, rotate
the mode selection ring and align the normal
mode index with the mode selection index.
Super Macro Mode
The super macro mode is only used for close-up
(macro) photography at a distance of between
11cm and 9.3cm and with a magnication ratio of
between 0.7x and 1.2x.
To prepare for this, press the lock release switch
in the ▲ direction, rotate the mode selection ring
and align the super macro mode index with the
mode selection index.

ENG-8
<Retracting Lens>
The lens can be retracted.
To retract the lens, press the lock release switch
in the ▲ direction, rotate the mode selection ring
and align the retraction location index with the
mode selection index.
Shooting Preparations and Retracting Lens
 It is only possible to start shooting videos or
shoot still photographs if the mode selection ring
is set at the normal mode or super macro mode.
 Video lming will be terminated once the mode
selection ring is rotated from the normal mode
towards the retracted position during lming.
 A warning will be displayed on the camera’s
LCD monitor if lming is not possible due to the
position of the mode selection ring.
 Do not attempt to forcibly rotate the mode
selection ring when it is locked. Doing so may
result in damage to the lock release mechanism.

ENG-9
 The magnication ratio represents the ratio
between the actual size of the subject and the
size of the image.
 The distance range represents the distance
between the mark (image mark) on the
camera and the subject.
 The minimum distance range from the front of
the lens to the subject (working distance) is
1.8cm in the normal mode and 1.3cm in the
super macro mode. When the camera’s focus mode is set to [MF],
focus manually by turning the focusing ring.
Quickly rotating the focusing ring may result in
delayed focus.
 Focus mode is set using the camera. Please
refer to the camera’s instructions.
 After autofocusing in [AF+MF] mode, focus
manually by pressing the shutter button halfway
and turning the focusing ring (full-time manual
focusing).
Shooting Preparations and Retracting Lens Manual Focus
3

ENG-10
This lens is equipped with an Image Stabilizer.
This function corrects camera shake, allowing
users to capture sharp images. Also, the Image
Stabilizer automatically provides optimal image
stabilization depending on shooting conditions
(such as shooting still subjects and following
shots). Please set the Image Stabilizer ON
or OFF using the camera settings. See your
camera’s instructions for details.

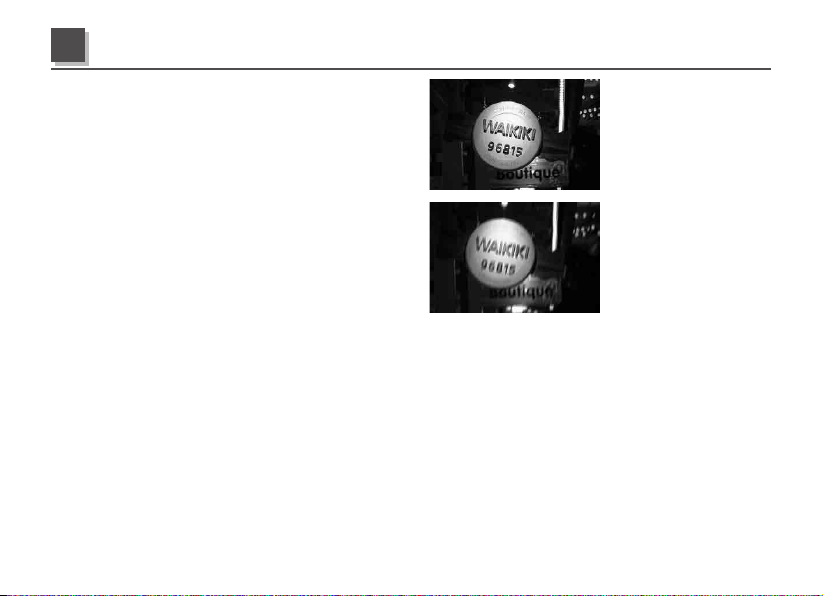

Image Stabilizer [On]
Image Stabilizer [Off]
The image stabilizer in this lens is effective for
hand-held shots under the following conditions.
 Hand-held close-ups (macro)
 In semi-darkened areas such as indoors or outdoors
at night.
 In locations where ash photography is prohibited,
such as art museums and theater stages.
 In situations where your footing is uncertain.
 In situations where fast shutter settings cannot be
used.
 When panning subjects in motion.
Image Stabilizer
4

ENG-11
Image Stabilizer
 The shorter the subject distance from the
camera, the lesser the Image Stabilizer effect
will be.
 The Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
 Set the Image Stabilizer to OFF when you are
taking pictures using the Bulb setting (long
exposures). If the Image Stabilizer is set to ON,
the image stabilizer function may introduce
errors.
 The Image Stabilizer may not be fully effective
if you shoot from a violently shaking vehicle or
other transportation.
 The Image Stabilizer consumes more power
than normal shooting, resulting in fewer shots
and a shorter movie shooting time.
 When shooting a still subject, it compensates for
camera shake in all directions.
 It compensates for vertical camera shake during
following shots in a horizontal direction, and
compensates for horizontal camera shake during
following shots in a vertical direction.
 When you use a tripod, the Image Stabilizer
should be turned off to save battery power.
 Even with a monopod, the Image Stabilizer will
be as effective as during hand-held shooting.
However, depending on the shooting conditions,
there are cases in which the Image Stabilizer
effect may be less effective.

ENG-12
Hold the camera rmly
Hold the camera rmly as shown in the
illustration on the right when taking hand-held
close-ups (macro), and take the shots carefully
to minimize camera shake and prevent focus
blurring.
Taking Photographs with the Servo AF
It is recommended that the camera is set at
Servo AF when taking close-up (macro) shots.
See the camera’s instruction manual for further
details.
It is necessary to be careful of the following during
close-up (macro) shooting.
• There is a tendency for camera shake to affect
close-up (macro) shots more than normal shots,
and the effects of the image stabilizing function
are reduced.
• Depth of eld becomes extremely shallow when
taking close-up (macros) shots, and the focus
may blur if the camera is moved forward and
backward.
Taking Hand-held Close-ups (Macro)
5
Place both elbows on a steady surface such as a table.
Use your knee to support
an arm holding the camera.
Lean against a steady
object like a wall.

ENG-13
Setting the Exposure
When taking photographs using TTL metering,
no exposure compensation is necessary to
meter the light coming through the lens.
With TTL metering, AE (autoexposure) is
possible at all focusing distances. Just set the
desired picture-taking mode, then check the
shutter speed and aperture before taking the
picture.
Magnification and Effective f-number
The aperture displayed by the camera assumes
that the focus is set to infinity. The actual
aperture (effective f-number) becomes darker
(effective f-number increases) at closer focusing
distances (magnification increases). This does
not cause exposure problems for normal picture-
taking. However, for closeup photography, you
cannot ignore the change in the effective
f-number.
 Conditions prevalent with the subject are very
important when deciding on the correct level
of exposure for close-up (macro) shots. It is
therefore recommended that exposure levels are
amended as much as possible during shooting,
or that the image of the subject is checked on
the camera’s LCD monitor.
 Using either the aperture-priority AE (Av) mode
or manual exposure (M) mode is recommended
for close-up (macro) photography, as these
make it easier to adjust the depth of eld and
exposure.
Exposure When Taking Close-up (Macro) Shots
6

ENG-14
When you use a handheld exposure meter to set the exposure, you must take into account the
exposure factor shown in the following table.
Normal Mode
Magnification 0.5 0.7 1.0 1.2
Focusing Distance
(cm/ft.)
12.4/
0.41
10.9/
0.36
9.7/
0.32 –
Effective f/No. 3.9 4.0 4.1 –
Exposure Factor (stops)*
+1/3 +1/3 +1/3 –
0 +1/2 +1/2 –
* Upper values: 1/3 stops. Lower values: 1/2 stops.
–: Photograph cannot be taken.
Super Macro Mode
Magnification 0.5 0.7 1.0 1.2
Focusing Distance
(cm/ft.) –11.0/
0.36
9.7/
0.32
9.3/
0.31
Effective f/No. – 5.9 5.8 5.8
Exposure Factor (stops)*
– 1+1/3 1+1/3 1+1/3
– 1+1/2 1+1/2 1+1/2
Exposure When Taking Close-up (Macro) Shots

ENG-15
Macro Lite A
Macro Lite B
The Macro Lites on the front of the lens shine
light on the subject during close-up (macro)
photography to facilitate shooting. There are two
light-emitting Macro Lites located on both sides
of the lens, and it is possible to illuminate both
simultaneously or either of them independently.
1. Set the mode selection ring to either the
normal mode or the super macro mode.
2. Press the Macro Lite ON button to illuminate
the Macro Lites.
Macro Lites
7
 The Macro Lites can only be illuminated when
the power to the camera is switched on.
 Remove the hood when using the Macro Lites.
The use of a single Macro Lite will add shadow to
the subject and add a sense of three-dimensionality
to photographs.

ENG-16
Macro Lites
■ Both Macro Lites Illuminated
Briey pressing the Macro Lite ON button will
alternate between ON and OFF for both lights,
and between Bright and Dim.
OFF
[Both lights illuminated: Bright]
[Both lights illuminated: Dim]
■ Macro Lites A and B Illuminated
Independently
 Hold down the Macro Lite ON button with the
light switch off to illuminate one of the lights.
 Briey pressing the Macro Lite ON button when
one light is illuminated will alternate the ON
status to the other light.
OFF
[Macro Lite A illuminated: Bright]
[Macro Lite A illuminated: Dim]
[Macro Lite B illuminated: Bright]
[Macro Lite B illuminated: Dim]
■ Switching Between Both Macro Lites
and a Single Macro Lite
 Hold down the Macro Lite ON button with the
light illuminated to alternate between both
lights and a single light.

ENG-17
Macro Lites
 The Macro Lites cast shadows from the camera
and lens onto the subject during close-up
(macro) photography to facilitate shooting and
improve the end result. They are not designed to
shine sufcient light on subjects when shooting
in dark locations.
 The Macro Lites are extinguished when the
camera’s power-saving function (Auto Power Off)
turns off the power.
 T
he illumination status will not be saved once the Macro
Lites have been extinguished when the power to the
camera has been switched off and the lens retracted.
 More battery power is consumed when the
Macro Lites are in use than when they are
not in use, which will reduce the number of
photographs that can be taken and the amount
of time that videos can be lmed.
 T
he Macro Lites will be concealed when the hood
is attached, so don’t forget to switch them off.
 A fter pressing the shutter button halfway, don’t
change the Macro Lite status when shooting.
Since pressing the shutter button halfway locks the
exposure*, it may not be possible to shoot in standard
exposure if the Macro Lite status has changed.
* Differs according to the camera’s photometry and
AF settings. For details, please check your camera’s
instruction manual.
Hood
8
The ES-22 lens hood plays the following roles:
 I
n addition to blocking out damaging light, it also protects
the lens from rain, snow, dust and other elements.
 It prevents the white ring on the front of the
lens from being reected back into images.
 It acts as an adapter when lters are being used.
Screw the hood rmly and correctly onto the
front of the lens.
 Attaching the hood at an angle may damage the
outside of the lens.
 I
f the hood is not attached properly, vignetting
(darkening of the perimeter of the picture) may occur.
 Remove the hood when using the Macro Lites.
It is possible to attach the lens cap to the front of
the hood when it is attached to the lens.

ENG-18
Hood
You can attach lters (which are 43 mm in
diameter) to the lter mounting thread on the
front of the hood.
1. Attach the hood.
2. Attach the lter to the front of the hood.
 Filters cannot be used unless the hood is
attached.
 Only one lter may be attached.
Filters (sold separately)
9

ENG-19
Focal Length/Aperture 28mm f/3.5
Lens Construction 10 groups, 11 elements
Minimum Aperture f/22
Angle of View Diagonal: 51°55′, Vertical: 30°10′, Horizontal: 44°10′
Min. Focusing Distance
0.097 m/0.318 ft. (When in the normal mode),
0.093 m/0.305 ft. (When in the super macro mode)
Max. Magnification 1x (When in the normal mode), 1.2x (When in the super macro mode)
Field of View
Approx. 15.0 x 22.4 mm/0.59 x 0.88 inch (When 0.097m/0.318 ft. in the normal mode),
Approx. 12.5 x 18.7 mm/0.49 x 0.74 inch (When 0.093m/0.305 ft. in the super macro mode)
Filter Diameter 43 mm (when lens hood ES-22 is attached)
Max. Diameter and Length 60.9 x 45.5 mm/2.40 x 1.79 inch (When the lens is retracted)
Weight Approx. 130 g/4.6 oz
Hood ES-22
Lens Cap EF-M28
Dust Cap Lens Dust Cap EB
Case LP811 (Sold Separately)
 Equivalent to 45 mm in the 35 mm lm format.
 T
he lens length is measured from the mount surface to the front of the lens. When the lens cap and dust
cap supplied are attached, add 25.8 mm if the hood is attached and 20.0 mm if the hood is not attached.
 The size and weight listed are for the lens only, except as indicated.
 Extenders and extension tubes cannot be used with this lens.
 Aperture settings are specied on the camera.
 All data listed is measured according to Canon standards.
 Product specications and appearance are subject to change without notice.
Specications
