Canon EF100 User manual

EF100mm f/2.8 MACRO USM
Instruction
ENG
COPY

The Canon EF100mm f/2.8 MACRO USM is a
macro lens that can be used for normal
photography as well as macro photography
up to 1x magnification. It is dedicated to
Canon EOS cameras.
• "USM" stands for Ultrasonic Motor.
Features
1. The three-group floating system results in
excellent delineation at all focusing distances
from life-size to infinity.
2. Ultrasonic motor (USM) for quick and quiet
autofocusing.
3. A Canon macro flash makes it easy to take
close-up pictures with a flash. The inner
focusing mechanism enables AF photography
while the macro flash is attached.
ENG-1
Thank you for purchasing a Canon product.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
COPY

ENG-2
aSafety Precautions
aSafety Precautions
•Do not look at the sun or a bright light source
through the lens or camera. Doing so could result
in loss of vision. Looking at the sun directly through
the lens is especially hazardous.
•Whether it is attached to the camera or not, do
not leave the lens under the sun without the
lens cap attached. This is to prevent the lens from
concentrating the sun’s rays, which could cause a
fire.
Handling Cautions
•If the lens is taken from a cold environment into
a warm one, condensation may develop on the
lens surface and internal parts. To prevent
condensation in this case, first put the lens into an
airtight plastic bag before taking it from a cold to
warm environment. Then take out the lens after it
has warmed gradually. Do the same when taking
the lens from a warm environment into a cold one.
•Do not leave the lens in excessive heat such as in
a car in direct sunlight. High temperatures can
cause the lens to malfunction.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult the dealer or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian ICES-003.
COPY

ENG-3
Nomenclature
For detailed information, reference page numbers are provided in parentheses (→**).
Hood and Macro Ring Lite mount (→5, 11)
Filter mounting thread
(→10)
Focusing ring (→4)
Focus mode switch (→4)
Distance scale (→8)
Tr ipod mounting location (→8)
Lens mount index (→4)
Tr ipod mount adapter groove (→8)
Focusing distance range selection switch (→5)
Contacts (→4)
COPY

ENG-4
See your camera’s instructions for details on
mounting and detaching the lens.
To shoot in autofocus (AF) mode, set the focus
mode switch to AF.
To use only manual focusing (MF), set the focus
mode switch to MF, and focus by turning the
focusing ring. The focusing ring always works,
regardless of the focus mode.
2. Setting the Focus
Mode
•After detaching the lens, place the lens with the
rear end up to prevent the lens surface and
electrical contacts from getting scratched.
•If the contacts get soiled, scratched, or have
fingerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
•If the contacts get soiled or have fingerprints on
them, clean them with a soft cloth.
•If you remove the lens, cover it with the dust
cap. To attach it properly, align the lens mount
index and the
K index of the dust cap as shown
in the diagram, and turn clockwise. To remove it,
reverse the order.
1. Mounting and
Detaching the Lens
After autofocusing in ONE SHOT AF mode, focus
manually by pressing the shutter button halfway
and turning the focusing ring. (Full-time manual
focus)
COPY

You can set the focusing distance range to
0.31 m/1.0 ft. to infinity or 0.48 m/1.6 ft. to infinity.
By setting the suitable focusing distance range,
the actual autofocusing time can be shorter.
ENG-5
If you autofocus outside the set focusing distance
range, the lens may stop focusing at the start of
the focusing range; however, this is not a
malfunction. Press the shutter release button
halfway again.

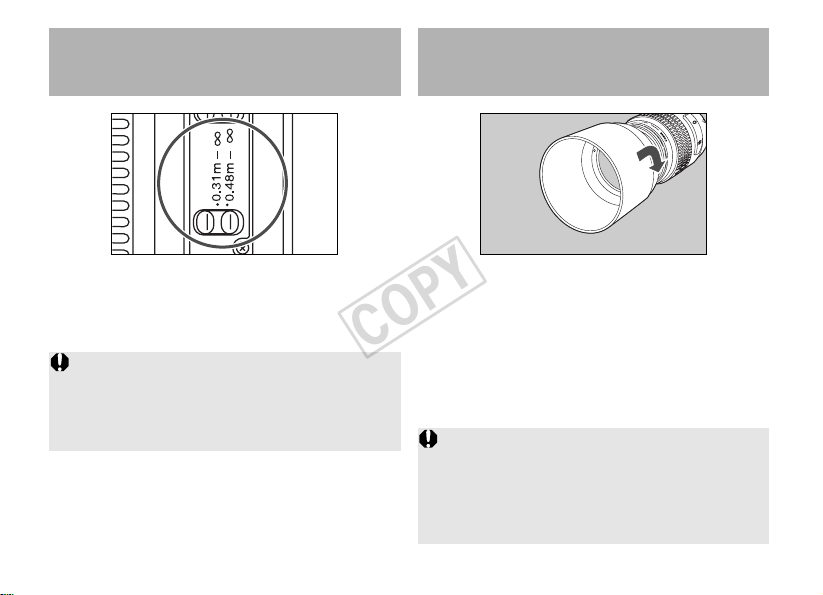

3. Switching the Focusing
Distance Range
4. Hood (Sold Separately)
The ET-67 hood can keep unwanted light out of
the lens, and also protects the front of the lens
from rain, snow, and dust.
Attach and align the hood to the hood mount on
the front of the lens, and turn the hood as shown
by the arrow to secure it.
The hood can be reverse-mounted on the lens
for storage.
•Part of the picture may be blocked if the hood is
not attached properly.
•
When attaching or detaching the hood, grasp the
base of the hood to turn it. To prevent deformation,
do not grasp the rim of the hood to turn it.
•Remove the hood when using the macro flash.
COPY

5. Picture Taking
ENG-6
Normal Photography
The lens can be used as a medium-telephoto
lens for normal photography such as portraits.
Closeup Photography
Close-up photos up to 1x (life-size) magnification
are possible. The minimum focusing distance of
31 cm is the distance from the subject to the
focal plane. The working distance from the front
of the lens to the subject is about 15 cm.
When focusing, you can give priority to framing
or to magnification.
[Framing Priority]
While looking through the viewfinder and framing
the subject, focus with the AF or MF mode.
[Magnification Priority]
1. Set the lens' focus mode switch to MF.
2. Set the magnification.
While referring to the magnification scale on
the lens, turn the focusing ring to the desired
magnification.
3. Focus the subject.
While looking through the viewfinder, move the
camera forward or back to find the point of
focus.
4. Touch up the focus.
Turn the focusing ring for fine focusing.
Since macro shots have a very shallow depth of
field, focus carefully to obtain proper sharpness.
•The magnification refers to the ratio between the
subject’s size and the corresponding image size
on the focal plane. On the distance index, it is
indicated as 1:x.
•To prevent camera shake, using a Remote
Switch (both sold separately) and tripod is
recommended.
•To check the depth of field, press the camera's
depth-of-field preview button.
COPY

ENG-7
6. About Exposure
Setting the Exposure
When taking photographs using TTL metering,
no exposure compensation is necessary to meter
the light coming through the lens.
With TTL metering, AE (autoexposure) is
possible at all focusing distances. Just set the
desired picture-taking mode, then check the
shutter speed and aperture before taking the
picture.
Magnification and Effective f-
number
The aperture displayed by the camera assumes
that the focus is set to infinity. The actual
aperture (effective f-number) becomes darker
(effective f-number increases) at closer focusing
distances (magnification increases). This does
not cause exposure problems for normal picture-
taking. However, for closeup photography, you
cannot ignore the change in the effective f-
number.
•The correct exposure for a close-up shot largely
depends on the subject. Therefore, try to bracket
the exposure for the same subject.
•Using aperture-priority AE (Av) or Manual (M)
picture-taking modes are recommended for
macro photography as it is easy to adjust depth
of field and exposure in these modes.
If your eye will not be covering the eyepiece when
the picture is taken (with remote control operation,
etc.), use the eyepiece shutter or eyepiece cover.
This prevents stray light from entering the
eyepiece and throwing off the proper exposure.
Magnification 1 : 5 1 : 3 1 : 2 1 : 1.5 1 : 1
Effective f/No. 3.6 4.1 4.6 5.0 5.9
Exposure Factor + +1 +1 +1 +2
(stops)* + +1 +1 +2
1
2
1
2
2
3
1
3
2
3
*Upper values: 1/3 stops. Lower values: 1/2 stops.
When you use a handheld exposure meter to set
the exposure, you must take into account the
exposure factor shown in the following table.
COPY

ENG-8

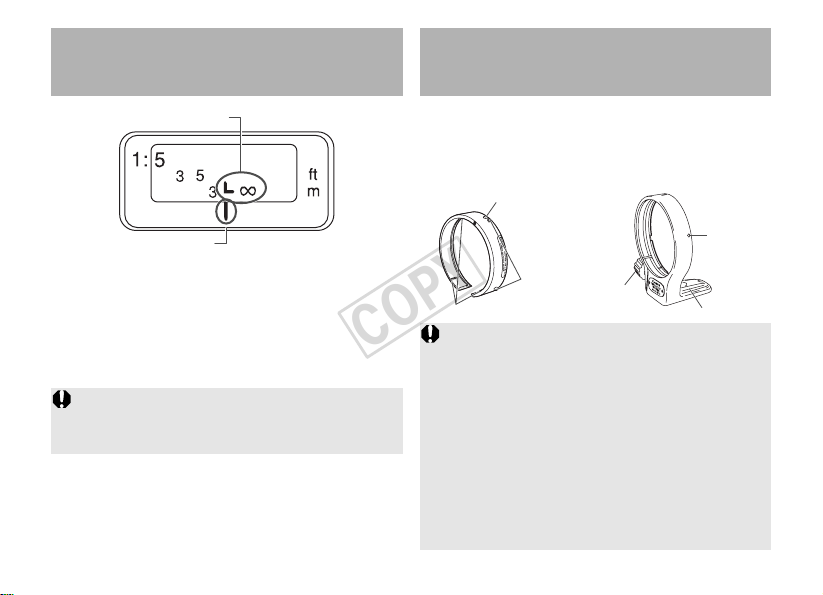

7. Infinity Compensation
Mark
To mount the lens on a tripod, Tripod mount ring B
(B) and the tripod mount adapter (sold separately) for
the EF100mm f/2.8 Macro USM will be necessary.
Attachment
index
Tripod mount
base
Locking
tab
Mounting index
Tripod mount
attachment
lugs
Mounting lugs
8. Using the Tripod
Mount (Sold separately)
Tr ipod mount adapter Tripod mount ring B (B)
•When switching to vertical shooting, rotate the
camera so that the grip is at the top. Rotating
the camera in the opposite direction will have
the grip bump into the tripod mount.
•Before attaching or detaching the lens, set the
tripod mount back to its normal position
(horizontal shooting position). Otherwise, the
tripod mount may bump into the camera grip or
pentaprism and prevent the lens from being
attached to or detached from the camera.
•If the EOS camera has a built-in flash, the
pentaprism may prevent the tripod mount from
being rotated to the top of the lens.
Infinity compensation mark
Distance index
To compensate for shifting of the infinity focus
point that results from changes in temperature.
The infinity position at normal temperature is the
point at which the vertical line of the L mark is
aligned with the distance indicator on the
distance scale.
For accurate manual focusing on subjects at
infinity distance, look through the viewfinder while
rotating the focusing ring.
COPY

ENG-9
Using the Tripod Mount (Sold separately)
Attaching and Detaching the Tripod Mount
To attach the tripod mount, follow the illustrated procedure below. To remove the tripod mount, follow
the procedure in reverse.
Align the tripod mount
adapter's index with the
lens mount index. Push in
the adapter onto the back of
the lens.
•The tripod mount adapter's
inner lugs should slide into the
grooves on the lens barrel.
The adapter should not be
able to rotate around the lens
barrel.
Loosen the tripod mount’s
lock knob. Align the lens
mount index and the tripod
mount’s index, and slip on
the tripod mount.
Rotate the tripod mount to
the desired position and
tighten the lock knob.
•You can loosen the orientation
lock-knob on the tripod mount
to allow it to rotate as needed
to fit a particular camera
model for switching between
vertical and horizontal
positions.
Depending on the EOS camera model, if a battery pack or vertical grip is attached, the tripod mount may
bump into it. If that is the case, remove the battery pack/vertical grip or the tripod mount.
COPY

ENG-10
You can attach filters to the filter mounting thread
on the front of the lens.
9. Filters (Sold Separately)
•Filters and the macro flash cannot be used on
this lens at the same time.
•If you need a polarizing filter, use the Canon
Circular Polarizing Filter (58mm).
•To adjust the polarizing filter, first remove the
lens hood.
You can attach Extension Tube EF12 II or EF25
II for magnified shots. The shooting distance and
magnification are shown below.
10. Extension Tubes (Sold Separately)
Camera-to-Subject Magnification
Distance (mm)
Near Far Near Far
EF12 II 314 1002 1.19×0.12×
EF25 II 319 606 1.39×0.26×
Manual focusing is recommended for accurate
focusing.
COPY

ENG-11
Attaching a 250D or 500D (58mm) Close-up
Lens enables close-up photography.
The magnification will be as follows.
•Close-up Lens 250D: 1.44x - 0.40x
•Close-up Lens 500D: 1.28x - 0.20x
11. Close-up Lenses (Sold Separately)
The Canon Macro Ring Lite MR-14EX or the
Macro Twin Lite MT-24EX enables fully automatic
macro flash photography up to 1x magnification
in E-TTL autoflash mode.
12. Macro Flash (Sold Separately)
•For information on operating the Canon Macro
Ring Lite MR-14EX or the Macro Twin Lite MT-
24EX, refer to the individual instruction booklets.
•Using aperture-priority AE (Av) or Manual (M)
picture-taking modes are recommended for
macro photography as it is easy to adjust depth
of field and exposure in these modes.
Manual focusing is recommended for accurate
focusing.
COPY

ENG-12
Specifications
Focal Length/Aperture 100 mm f/2.8
Lens Construction 8 groups, 12 elements
Minimum Aperture f/32
Angle of View Diagonal: 24° Vertical: 14° Horizontal: 20°
Min. Focusing Distance 0.31 m/1.0 ft.
Max. Magnification 1 ×
Field of View 24 ×36 mm/0.9 ×1.4 in. (at 0.31 m)
Filter Diameter 58 mm
Max. Diameter and Length 78.6 ×118.6 mm/3.1 ×4.7 in.
Weight 580 g/20.5 oz
Hood (Sold Separately) ET-67
Lens Cap E-58U
Case (Sold Separately) LP1219
Tripod Collar (Sold separately) Ring-type tripod mounting socket B (B)
(comes with the EF100mm f/2.8 MACRO USM adapter)
•The lens length is measured from the mount surface to the front end of the lens. Add 21.5 mm when including the
lens cap and dust cap.
•The size and weight listed are for the lens only, except as indicated.
•The EF1.4X II/EF2X II extenders cannot be used with this lens.
•Aperture settings are specified on the camera.
•All data listed is measured according to Canon standards.
•Product specifications and appearance are subject to change without notice.
COPY

©CANON INC. 2002 2009.7CT1-7529-011
COPY
