Canon EF17-40LU User manual

Thank you for purchasing aCanon USM'lens.
The Canon EF17 ~40mm f/4L USM is ahigh-
performance wide-angle zoom lens.
"USM" stands for Ultrasonic Motor.
Features
1. Two aspherical elements and aSuper UD
element result in sharp pictures and
outstanding image delineation.
2. Ultrasonic Motor (USM) for silent and high-
speed
AF operation.
3. Manual focusing enabled even in the
AF mode.
4. Circular diaphragm for better background blur.
5. Sealed construction for higher dust- and water-
resistance compared to previous lenses. (For
maximum protection, afilter must also be
attached to the front
of the lens.)
~ Handling Cautions
If the lens is taken from acold environment into a
warm
one, condensation may develop on the lens
surface
and internal parts. To prevent condensation in
this case, lirst put the lens into an airtight plastic bag
before taking it from acold to warm environment.
Then take out the lens after it has warmed gradually.
Do the same when taking the.Iens from awarm
environment into acold one.
Although the lens
is dust- and water-resistant, afilter
must also
be attached to the front of the lens for
complete protection. (The front of the lens moves
during zooming.)
Conventions used in this instruction
.-. Warning to prevent lens or camera malfunction
~ or damage.
~ Supplementary notes on using the lens and
LjJ taking pictures.
1i1-1

•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Consult the dealer or an experienced radiofTV
technician for help.
This digital apparatus does not exceed the Class B
limits for radio noise emissions from digital apparatus as
set out
in the interference-causing equipment standard
entitled "Digital Apparatus", ICES-003 of the Industry
Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Do not make any changes or modifications to the
equipment unless otherwise specified
in the
instructions. If such changes or modifications should be
made, you could be required to stop operation of the
equipment.
This equipment has been tested and found to comply
with the limits for aclass Bdigital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference
in aresidential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used
in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur
in aparticular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
m-2
(E:
The (E: Mark is aDirective conformity mark
of the European Community (EC)

Focus mode switch (---7 5)
Hood
mount (---7 7)
1---------
Filter mounting
thread (---78)
Focusing ring
(---7 5)
Distance scale
(---7 6,7)
Zoom ring (---7 6)
Gelatin filter holder
(---7 8)
Contacts
(---7 4)
Lens mounting index (---74)
C') Numbers in parentheses indicate reference page numbers.
1E1-3

See your camera's instructions for instructions on
mounting and detaching the lens.
•After detaching the lens, attach the dust cap to
the rear of the lens to prevent the contacts and
lens from getting scratched.
•If the contacts are dirty, scratched, or soiled with
fingerprints, etc., corrosion
ora faulty
connection or operation may result.
•Always attach the
dust cap to the lens when the
lens is not mounted on the camera.
To attach
the dust cap, align the mark on the dust cap
with the mark on the lens and turn the dust cap
clockwise.
To remove the dust cap, turn it
counter-clockwise.
11-4
oThe lens mount has arubber ring for enhanced
water- and dust-resistance. The rubber ring may
cause slight abrasions around the camera's lens
mount, but this will not cause any problems. If the
rubber ring becomes worn, it is replaceable by a
Canon Service Center
at cost.

~
~~
To shoot in autofocus mode, set the focus mode
switch to AF.
To use only manual focusing, set the focus mode
switch to MF , and focus by turning the focusing
ring.
The manual focus ring always works, regardless
of the focus mode.
•After autofocusing in ONE SHOT AF mode, focus
manually by pressing the shutter button halfway and
turning the focusing ring.
61-5

To zoom, turn the zoom ring.
ft
m
4) •Be sure to finish zooming before focusing.
Changing the zoom ring after focusing can affect
the focus.
•This lens can partially obstruct the light from the
built-in flash units.
To avoid this, use an external
flash.
11-6
To compensate for shifting of the infinity focus
point that results from changes
in temperature,
you can rotate the distance scale slightly past
the normal infinity focus mark.
•The infinity position at normal temperature is the point
at which the vertical line of the
L- mark is aligned
with the distance indicator on the distance scale.
•For accurate manual focusing
on subjects at infinity
distance, look through the viewfinder while rotating the
focusing ring.

ft
m
The infrared index corrects the focus setting when using
monochrome infrared film. Focus on the subject
manually, then adjust the distance setting by moving the
focusing ring to the corresponding infrared index mark.
• The compensation amount differs depending on the
focal length. Use the indicated focal length as a
guide when setting the compensation amount.
oSome EOS cameras cannot use infrared film. See
the instructions for your EOS camera.
[l] •The infrared index position is based on a
wavelength of 800 nm.
•Be sure to observe the manufacturer's
instructions when using infrared film.
•Use ared filter also when you take the picture.
The EW-83E hood can keep unwanted light out of the
lens, and also protects the front of the lens from rain,
snow, and dust.
To attach the hood, align the hood's attachment
position mark with the red dot on the front of the lens,
then turn the hood clockwise until the lens's red dot is
aligned with the hood's stop position mark.
The hood can be reverse-mounted on the lens for storage.
o ·Part of the picture may be blocked if the hood is
not attached properly.
•
To attach (remove) the hood, grasp the base of
the hood and turn it clockwise
(counterclockwise). Do not hold the hood by the
outer rim as this could result
in the hood being
distorted if too much pressure is applied.
[51-7

You can attach filters to the filter mounting thread
on the front of the lens.
•If you need apolarizing filter, use Canon's 77 mm
PL-CII polarizing filter.
[ll Only one filter may be attached.
11-8
There is agelatin filter holder at the rear of the
lens. Cut the gelatin filter to fit within the white
frames. Then insert the gelatin filter into the filter
holder.
oWhen you use agelatin filter, ghosting or flare
spots may appear
in the image.

With Extension Tube EF 12 or EF 25, the
camera-to-subject distance and image
magnification will be as follows:
Camera-to-Subject Magnification
Distance (mm)
Near Far Near IFar
EF12 17mm 155 159 0.83x I0.70x
40mm 206
271 0.59x I0.32x
EF25 17mm Incompatible Incompatible
40mm 196 218 1.02x I0.70x
GI-9

Image Size 24 x36
mm
Focal Length/Aperture 17 -40
mm f/4
Lens Construction 9groups, 12 elements
Minimum Aperture f/22
Angle of View Diagonal: 104° -57° 30'
Vertical: 70° 30' -34°
Horizontal: 93° -49° 20'
Min. Focusing Distance 0.28 m/0.92
ft.
Max. Magnification and 0.24x,
Field of View approx. 234 x 365 mm - 100 x 150 mm 1 9.2 x14.4 inch -3.9 x 5.9 inch
Filter Diameter
¢77mm
Hood EW-83E
Case LP1319
Max. Diameter and Length ¢83.5 x96.8
mml ¢3.3 x3.8 inch
Weight 475 g/16.8 oz
•The lens length is measured from the mount surface to the front end of the lens. Add 17
mm when
including the lens cap and dust cap.
•The size and weight listed are for the lens
only, except as indicated.
•Aperture settings are specified
on the camera.
•All data listed is measured according to Canon standards.
•Product specifications and appearance are subject to change without notice.
[51-10

Canon
=\=-i" .I ::J~it~tl http://canon.jp/
=\=-i" .I'::JP&~~it~tl T 108-80 1 1 **W~~~m2- 1 6-6
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A.
CANON U.S.A. INC.
For all inquiries concerning this lens, call toll free in the U.S.
1-800-0K-CANON or write to: Customer Relations, Canon U.S.A., Inc.
One Canon Plaza, Lake Success, N.Y. 11042-1198
CANADA
CANON
CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, C6te-de-Liesse, Montreal Quebec H4T 1V7, Canada
CANON
CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this lens, call toll free in Canada
1-800-0K-CANON
EUROPE, AFRICA &MIDDLE EAST
CANON EUROPA N.V.
Bovenkerkerweg 59-61, P.O. Box 2262, 1180
EG Amstelveen, The Netherlands
CANON COMMUNICATION & IMAGE FRANCE S.A.
102, Avenue du General de Gaulle 92257 La Garenne-Colombes Cedex, France
CANON UK LTD.
Woodhatch Reigate Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 81-20097 San Donato Milanese (MI) Italy
CANON
Schweiz AG
Geschaftsbereich Wiederverkauf, Industriestrasse 12, CH-8305 Dietlikon,
Switzerland
CANON G.
m. b. H.
Oberlaaerstrasse 233, 4th floor, 1100Wien, Austria
CANON Espana, S.A.
C/Joaqufn Costa, 41, 28002 Madrid, Spain
SEQUE
Soc. Nac. de Equip., Lda.,
Pra<;a da Alegria, 58,20,1269-149 Lisboa, Portugal
CENTRAL &SOUTH AMERICA
CANON
LATIN AMERICA, INC. DEPTO DE VENT AS
703 Waterford Way Suite 400 Miami, FL 33126 U.S.A.
CANON
LATIN AMERICA, INC. CENTRO DE SERVICIO YREPARACION
Apartado 2019, Zona Libre
de Colon, Republica de Panama
ASIA
CANON CHINA CO. LTD.
15F North Tower, Beijing Kerry Centre, 1Guang Hua Road,
Chao Yang District, China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon,
Hong Kong
CANON SINGAPORE PTE. LTD.
1HarbourFront Avenue #04-01 Keppel Bay Tower Singapore 098632
OCEANIA
CANON AUSTRALIA PTY. LTD.
1Thomas Holt Drive, North Ryde, N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN
CANON SALES CO., INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
<:0)1seffl~8J3~lct 1 00%~~~aEH'Jtl~t11H~\Ht"8'~ilJ (VOC) iiO
O)-{ ::;:f-~fseffl G"Ll )*9 0
CT1-7546-000 1005Ni6.0 ©CANON INC. 2003

PRESENT OWNERSHIP AND PRODUCTS INTERESTED IN
Articles deja en possession ou juges dignes d'inten3t OWNS INTERESTED
IN
En possession Interesse par
(Camera) (Lens)
(Appareil) (Objectif)
INTERCHANGEABLE LENS OWNS INTERESTED IN
Objectif interchangeable En possession Interesse par
CAMERAS
APPAREILS
-PHOTO
MODEL
Modele
(Camera) (Lens)
(Appareil) (Objectif)
EcF It -4I1LU
OTHER r\\J'J .... u'u\,J.
Autres acc:essjoirE~s
SERIAL NO.
No. deserie
INTERESTED IN
En ~)ossessilon Interesse par
CUSTOMER
Client
NAME ADDRESS
Nom
-------'---------- Adresse
CITY/STATE ZIP PHONE
Ville/Province
----------------Code postal -------Telephone ------ __

NAME
NOM
ADDRESS
ADRESSE
CITY
VILLE PROVINCE POSTAL CODE
CODE POSTAL
THIS WARRANTY CARD AND YOUR BILL
OF SALE MUST BE
PRESENTED FOR
WARRANTY SERVICE.
CETTE CARTE DE GARANTIE
ET VOTRE PREUVE D'ACHAT
DOIVENT ETRE PRESENTES POUR RECEVOIR LE SERVICE
SOUS GARANTJE.
DEALER'S NAME &
ADDRESS
MARCHAND NOM & ADRESSE
MODEL EF17-40LU
MODELE
BODY NO.
BOITIER NO ",;;/"",,'>,;;
PURCHASE DATE
DATE D'ACHAT //
DO NOT MAIL, KEEP THIS WARRANTY CARD. IT IS YOUR PERMANENT RECORD OF WARRANTY. IF LOST IT WILL NOT BE RE-ISSUED.
VEUILLEZ NE PAS POSTER. CONSERVEZ CEnE CARTE DE GARANTIE. ELLE CONSTITUE VOTRE PREUVE PERMANENTE DE GARANTIE. SI LA CARTE EST PERDUE, ELLE NE SERA PAS RENOUVELEE.
CT5-1544-000

Canon USA
One Canon Plaza, Lake Success, N.Y. 11042-1198
Tel:
(1 )-800-828-4040
Canon Canada
6390 Dixie Road, Mississauga, Ontario L5T 1P7
Tel:
(1 )-800-828-4040

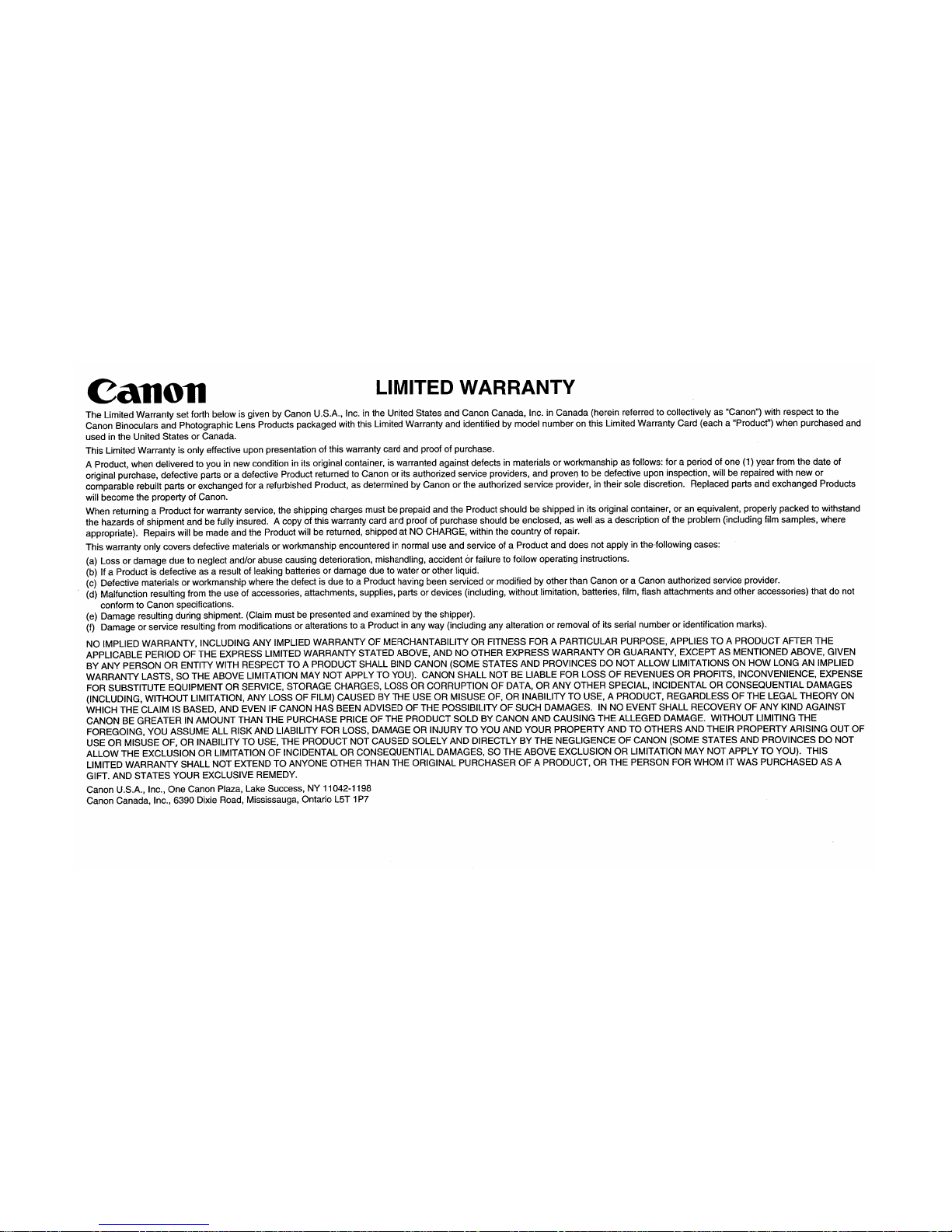

Call 011 LIMITED WARRANTY
The Limited Warranty set forth below is given by Canon U.S.A., Inc. in the United States and Canon Canada, Inc. in Canada (herein referred to collectively as "Canon") with respect to the
Canon Binoculars and Photographic Lens Products packaged with this Limited Warranty and identified by model number on this Limited Warranty Card (each a"Producf') when purchased and
used in the United States
or Canada.
This Limited Warranty is only effective upon presentation of this warranty card and proof of purchase.
AProduct, when delivered to you in new condition in its original container, is warranted against defects in materials
or workmanship as follows: for aperiod of one (1) year from the date of
original purchase, defective parts
or adefective Product returned to Canon or its authorized service providers, and prover) to be defective upon inspection, will be repaired with new or
comparable rebuilt parts or exchanged for arefurbished Product, as determined by Canon or the authorized service provider, in their sole discretion. Replaced parts and exchanged Products
will become the property of Canon.
When returning aProduct for warranty service, the shipping charges must be prepaid and the Product should be shipped in its original container,
or an equivalent, properly packed to withstand
the hazards of shipment and be fully insured. Acopy of this warranty card and proof of purchase should be enclosed, as well as adescription
of the problem (including film samples, where
appropriate). Repairs will be made and the Product will be returned, shipped at NO CHARGE, within the country of repair.
This warranty only covers defective materials
or workmanship encountered in normal use and service of aProduct and does not apply in the'following cases:
(a) Loss
or damage due to neglect and/or abuse causing deterioration, mishandling, accident or failure to follow operating instructions.
(b) If aProduct is defective as aresult of leaking batteries
or damage due to water or other liquid.
(c) Defective materials
or workmanship where the defect is due to aProduct having been serviced or modified by other than Canon or aCanon authorized service provider.
(d) Malfunction resulting from the use of accessories, attachments, supplies, parts
or devices (including, without limitation, batteries, film, flash attachments and other accessories) that do not
conform to Canon specifications.
(e) Damage resulting during shipment. (Claim must be presented and examined by the shipper).
(f) Damage
or service resulting from modifications or alterations to aProduct in any way (including any alteration or removal of its serial number or identification marks).
NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE, APPLIES TO APRODUCT AFTER THE
APPLICABLE PERIOD OF THE EXPRESS LIMITED WARRANTY STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN
BY ANY PERSON
OR ENTITY WITH RESPECT TO APRODUCT SHALL BIND CANON (SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU). CANON SHALL NOT BE LIABLE FOR LOSS
OF REVENUES OR PROFITS, INCONVENIENCE, EXPENSE
FOR SUBSTITUTE EQUIPMENT OR SERVICE, STORAGE CHARGES, LOSS OR CORRUPTION OF DATA, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSE:QUENTIAL DAMAGES
(INCLUDING, WITHOUT LIMITATION, ANY LOSS
OF FILM) CAUSED BY THE USE OR MISUSE OF, OR INABILITY TO USE, APRODUCT, REGARDLESS OF THE LEGAL THEORY ON
WHICH THE CLAIM IS BASED, AND EVEN IF CANON HAS BEEN ADVISED
OFTHE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL RECOVERY OF ANY KIND AGAINST
CANON BE GREATER
IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY CANON AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF
USE OR MISUSE OF, OR INABILITY TO USE, THE PRODUCT NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON (SOME STATES AND PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU). THIS
LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER
OF APRODUCT, OR THE PERSON FOR WHOM IT WAS PURCHASED AS A
GIFT. AND STATES YOUR EXCLUSIVE REMEDY.
Canon U.S.A., Inc., One Canon Plaza, Lake Success, NY 11042-1198
Canon Canada, Inc., 6390 Dixie Road, Mississauga, Ontario L5T 1
P7
