Canon EF28 User manual

LENS
EF28–135mm f/3.5–5.6 IS USM
Instruction
EENNGG
007594H1JEFSKFOR.qxd10.2.164:17PMページ2
COPY

-1
E
English Instructions
Thank you for purchasing a Canon product.
Canon EF28-135mm f/3.5-5.6 IS USM is a high-
performance lens developed for EOS cameras that
incorporates an Image Stabilizer function.
●“IS” stands for Image Stabilizer.
●“USM” stands for Ultrasonic Motor.
Features
1. The Image Stabilizer gives the equivalent effect of a
shutter speed two stops* faster.
2. High-magnification zoom from 28 mm wide-angle to
135 mm telephoto.
3. Ultrasonic motor (USM) for fast, quiet autofocus.
4. Manual focusing is available after the subject comes
into focus in autofocus mode (ONE SHOT AF).
5. Great close-ups at 0.5 m/1.6 ft at all focal lengths.
*Based on [1/focal length] second.
Generally, it requires a shutter speed [1/focal length]
second or faster to prevent camera shake.
Conventions used in this instruction
Warning to prevent lens or camera
malfunction or damage.
Supplementary notes on using the lens and
taking pictures.
aHandling Cautions
If the lens is taken from a cold environment into a warm
one, condensation may develop on the lens surface and
internal parts. To prevent condensation in this case, first put
the lens into an airtight plastic bag before taking it from a cold
to warm environment. Then take out the lens after it has
warmed gradually. Do the same when taking the lens from a
warm environment into a cold one.
02-7594_ENG 10.2.13 9:46 AM Page 1
COPY

-2
E
aSafety Precautions
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
aSafety Precautions
1. Do not look at the sun or a bright light source through
the lens or camera. Doing so could result in loss of vision.
Looking at the sun directly through the lens is especially
hazardous.
2. Whether it is attached to the camera or not, do not
leave the lens under the sun without the lens cap
attached. This is to prevent the lens from concentrating the
sun’s rays, which could cause a fire.
02-7594_ENG 10.2.13 9:46 AM Page 2
COPY

-3
E

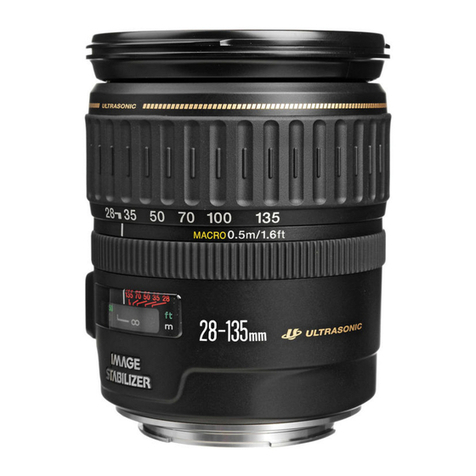

Nomenclature
Zoom ring(→ 5)
Focusing ring(→ 5)
Image stabilizer switch(→ 6)
Hood mount Focus mode switch(→ 5)
Distance scale(→ 8)
Contacts(→ 4)
Lens mount index(→ 4)
Zoom position index
For detailed information, reference page numbers are
provided in parentheses (→**).
02-7594_ENG 10.2.13 9:46 AM Page 3
COPY

-4
E
1. Mounting and Detaching the Lens
See your camera’s instructions for details on mounting and detaching the lens.
•After detaching the lens, place the lens with the rear end up to
prevent the lens surface and contacts from getting scratched.
•If the contacts get soiled, scratched, or have fingerprints on them,
corrosion or faulty connections can result. The camera and lens
may not operate properly.
•If the contacts get soiled or have fingerprints on them, clean them
with a soft cloth.
•If you remove the lens, cover it with the dust cap. To attach it properly, align the lens mount index and the index of the
dust cap, and turn clockwise. To remove it, reverse the order.
02-7594_ENG 10.2.13 9:46 AM Page 4
COPY

-5
E
3. Setting the Focus Mode
To shoot in autofocus (AF) mode, set the focus mode switch to AF.
To shoot in manual focus (MF) mode, set the focus mode switch to MF, and
focus by turning the focusing ring. The focusing ring always works,
regardless of the focus mode.
After autofocusing in ONE SHOT AF mode, focus manually by pressing the
shutter button halfway and turning the focusing ring. (Full-time manual focus)
2. Zooming
To zoom, turn the lens’ zoom ring.
Be sure to finish zooming before focusing. Changing the zoom ring after
focusing can affect the focus.
02-7594_ENG 10.2.13 9:46 AM Page 5
COPY

-6
E
4. Image Stabilizer
If you set the camera’s Custom Function to change the assigned button to
operate the AF, the Image Stabilizer will operate when you press the newly
assigned AF button.
1 2
➡
OFF ON
You can use the image stabilizer in AF or MF mode.
1. Set the STABILIZER switch to ON.
• If you are not going to use the image stabilizer function, set the switch
to OFF.
2. When you press the shutter button halfway, the Image Stabilizer will start
operating.
• Make sure the image in the viewfinder is stable, press the shutter
button the rest of the way down to take the picture.
02-7594_ENG 10.2.15 5:11 PM Page 6
COPY

-7
E
5. Tips on Using the Image Stabilizer
The image stabilizer in this lens is effective for hand-held shots under the following conditions.
•In semi-darkened areas such as indoors or outdoors at night.
•In locations where flash photography is prohibited, such as art museums and theater stages.
•In situations where your footing is uncertain.
•In situations where fast shutter settings cannot be used.
•The Image Stabilizer cannot compensate for a blurred shot caused by a subject that moved.
•Set the STABILIZER switch to OFF when using the camera on a tripod. If the switch is set to ON, the Image Stabilizer may
introduce errors.
•Set the STABILIZER switch to OFF when you are taking pictures using the Bulb setting (long exposures). If the
STABILIZER switch is set to ON, the image stabilizer function may introduce errors.
•The Image Stabilizer might not be fully effective in the following cases:
•You move the camera for a panned shot.
•You shoot while riding on a bumpy road.
•The Image Stabilizer consumes more power than normal shooting, so fewer shots can be taken if you use the function.
•The image stabilizer operates for about two seconds even when your finger is off the shutter button. Do not remove the
lens while the stabilizer is in operation. This will cause a malfunction.
•With the EOS-1V/HS, 3, ELAN 7E/ELAN 7/30/33, ELAN 7NE/ELAN 7N/30V/33V, ELAN II/ELAN II E/50/50E, REBEL
2000/300, IX, IX Lite/IX7, and D30, the Image Stabilizer will not work during self-timer operation.
•The stabilizer is equally effective for hand-held photography and photography with a monopod.
•The image stabilizer function also operates when the lens is used with an extension tube EF12 II or EF25 II.
•Depending on the camera there may be image shake, such as after releasing the shutter. However, this does not affect
shooting.
•If you set the camera’s Custom Function to change the assigned button to operate the AF, the Image Stabilizer will operate
when you press the newly assigned AF button.
02-7594_ENG 10.2.13 9:46 AM Page 7
COPY

-8
E
6. Infinity Compensation Mark
To compensate for shifting of the infinity focus point that results from changes in
temperature. The infinity position at normal temperature is the point at which the
vertical line of the L mark is aligned with the distance indicator on the distance
scale.
7. Infrared Index
The infrared index corrects the focus setting when using monochrome infrared
film.
Focus on the subject in MF, then adjust the distance setting by moving the
focusing ring to the corresponding infrared index mark.
For accurate focusing in MF on subjects at infinity distance, look through the
viewfinder while rotating the focusing ring.
•The infrared index position is based on a wavelength of 800 nm.
•Be sure to observe the manufacturer’s instructions when using infrared film.
•Use a red filter also when you take the picture.
Some EOS cameras cannot use infrared film. See the instructions for your EOS
camera.
Distance index
Infinity compensation mark
02-7594_ENG 10.2.15 5:11 PM Page 8
COPY

-9
E
8. Hood and Filters
Hood (Sold Separately) The EW-78B II lens hood can keep unwanted light out of the lens, and also
protects the lens from rain, snow, and dust. To attach the hood, align the
hood’s attachment position mark with the red dot on the front of the lens,
then turn the hood in the direction of the arrow until the lens’s red dot is
aligned with the hood’s stop position mark. The hood can be reverse-
mounted on the lens for storage.
•Part of the picture may be blocked if the hood is not attached properly.
•When attaching or detaching the hood, grasp the base of the hood to turn it.
To prevent deformation, do not grasp the rim of the hood to turn it.
02-7594_ENG 10.2.13 9:46 AM Page 9
COPY

-10
E
You can attach filters to the filter mounting thread on the front of the lens.
Filters (Sold Separately)
•Only one filter may be attached.
•Use a polarizing Canon filter (72mm).
•To adjust the polarizing filter, first remove the lens hood.
02-7594_ENG 10.2.13 9:46 AM Page 10
COPY

-11
E
Close distance Long distance Close distance Long distance
EF12 II 28mm 180 196 0.53 0.42
135mm 336 1624 0.37 0.09
EF25 II 28mm 169 174 1.09 0.94
135mm 280 876 0.58 0.21
Focusing Distance Range (mm) Magnification (×)
9. Extension Tubes (Sold Separately)
You can attach extension tube EF12 II or EF25 II for magnified shots. The shooting distance and magnification are
shown below.
MF mode is recommended for accurate focusing.
10. Close-up Lenses (Sold Separately)
Attaching a close-up lens 500D (72mm) enables close-up photography. Magnification is from 0.31 to 0.06 times.
•Close-up Lens 250D cannot be attached because there is no size that fits the lens.
•MF mode is recommended for accurate focusing.
02-7594_ENG 10.2.13 9:46 AM Page 11
COPY

-12
E
Specifications
Focal Length/Aperture: 28–135 mm f/3.5–5.6
Lens Construction: 12 groups, 16 elements
Minimum Aperture: f/22-36
Angle of View (Diagonal, vertical, horizontal extents):75–18°, 46–10°, 65–15°
Min. Focusing Distance: 0.5 m/19.7 in.
Max. Magnification: 0.19×
Field of View: 125 ×188 mm/4.9 ×7.4 in. (at 135 mm, 0.5 m/19.7 in.)
Filter Diameter: 72 mm
Max. Diameter and Length: 78.4 ×96.8 mm/3.1 ×3.8 in.
Weight: 540 g/19 oz
Hood: EW-78B II (Sold Separately)
Lens Cap: E-72U
Case: LP1116 (Sold Separately)
•The lens length is measured from the mount surface to the front end of the lens. Add 21.5 mm when including the lens cap and dust
cap.
•The size and weight listed are for the lens only, except as indicated.
•The EF1.4×II/EF2×II extenders cannot be used with this lens.
•Aperture settings are specified on the camera. The camera automatically compensates for variations in the aperture setting when
the camera is zoomed in or out.
•All data listed is measured according to Canon standards.
•Product specifications and appearance are subject to change without notice.
