PARTS
CATALOG

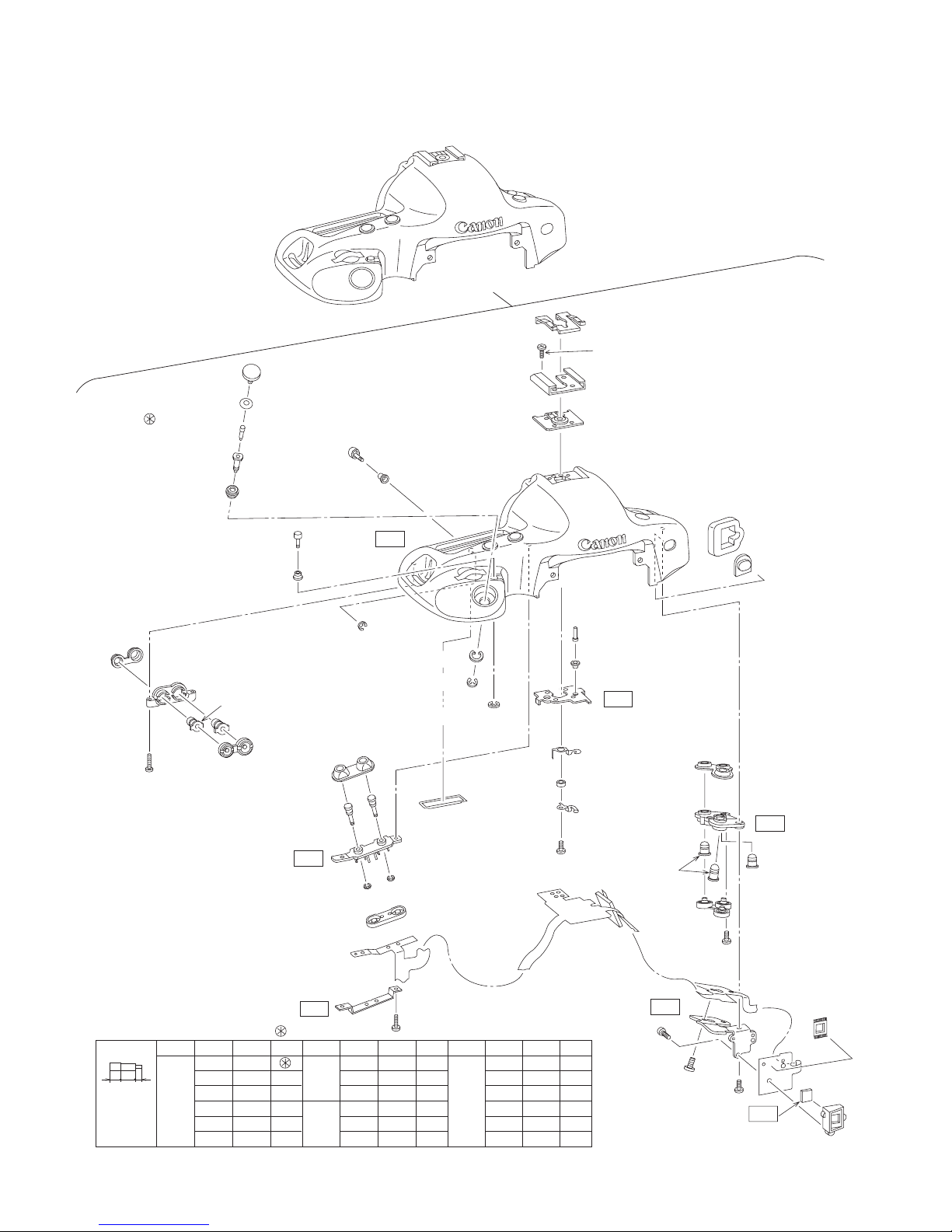

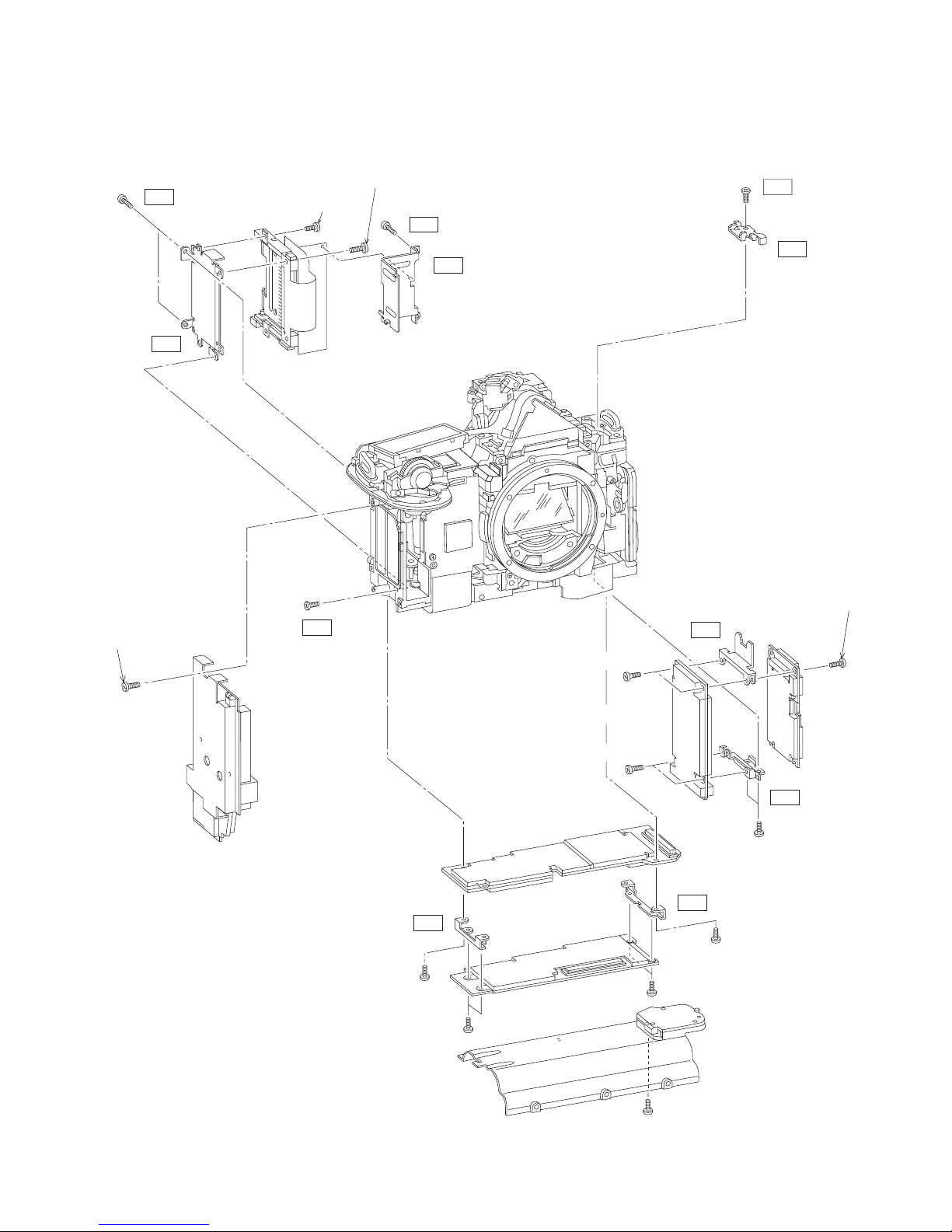

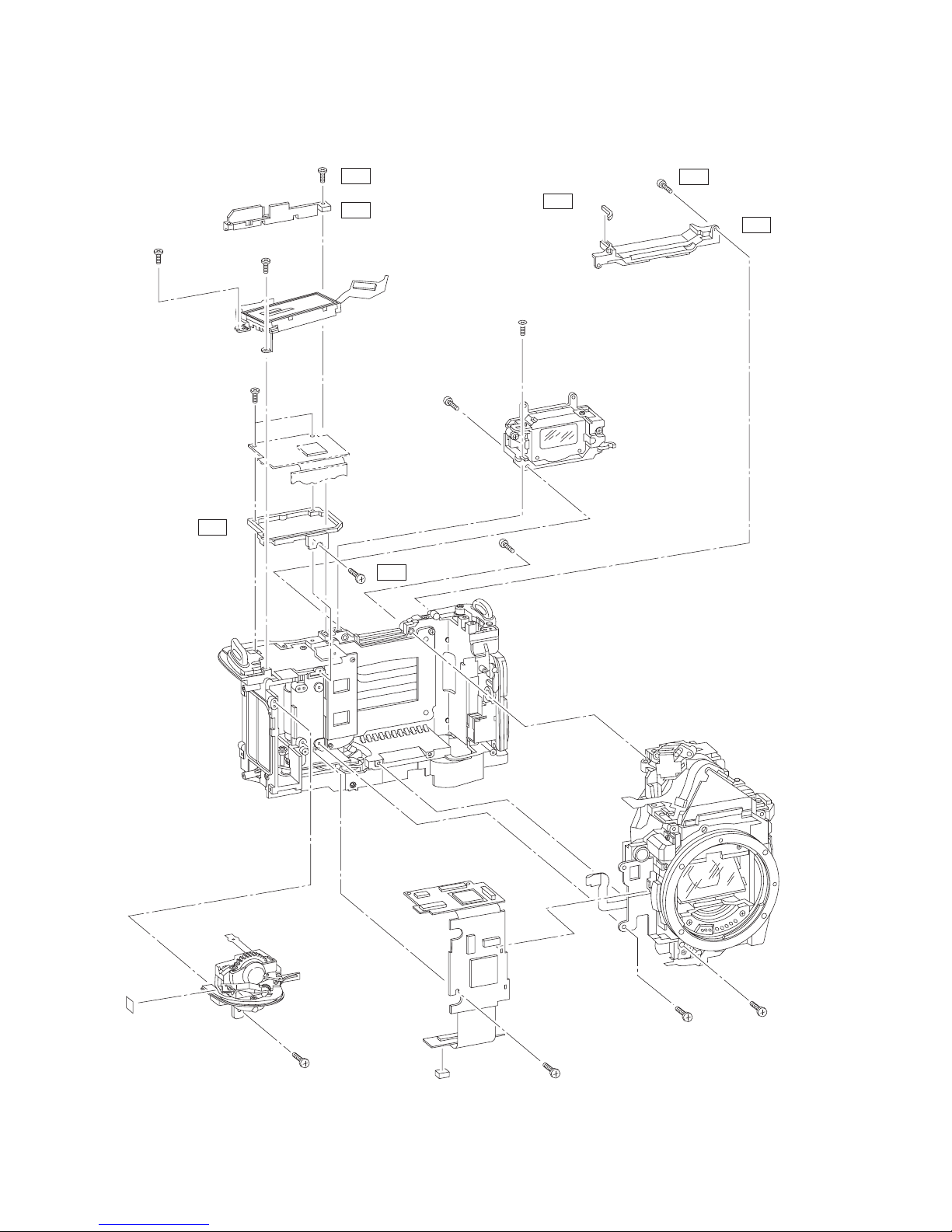

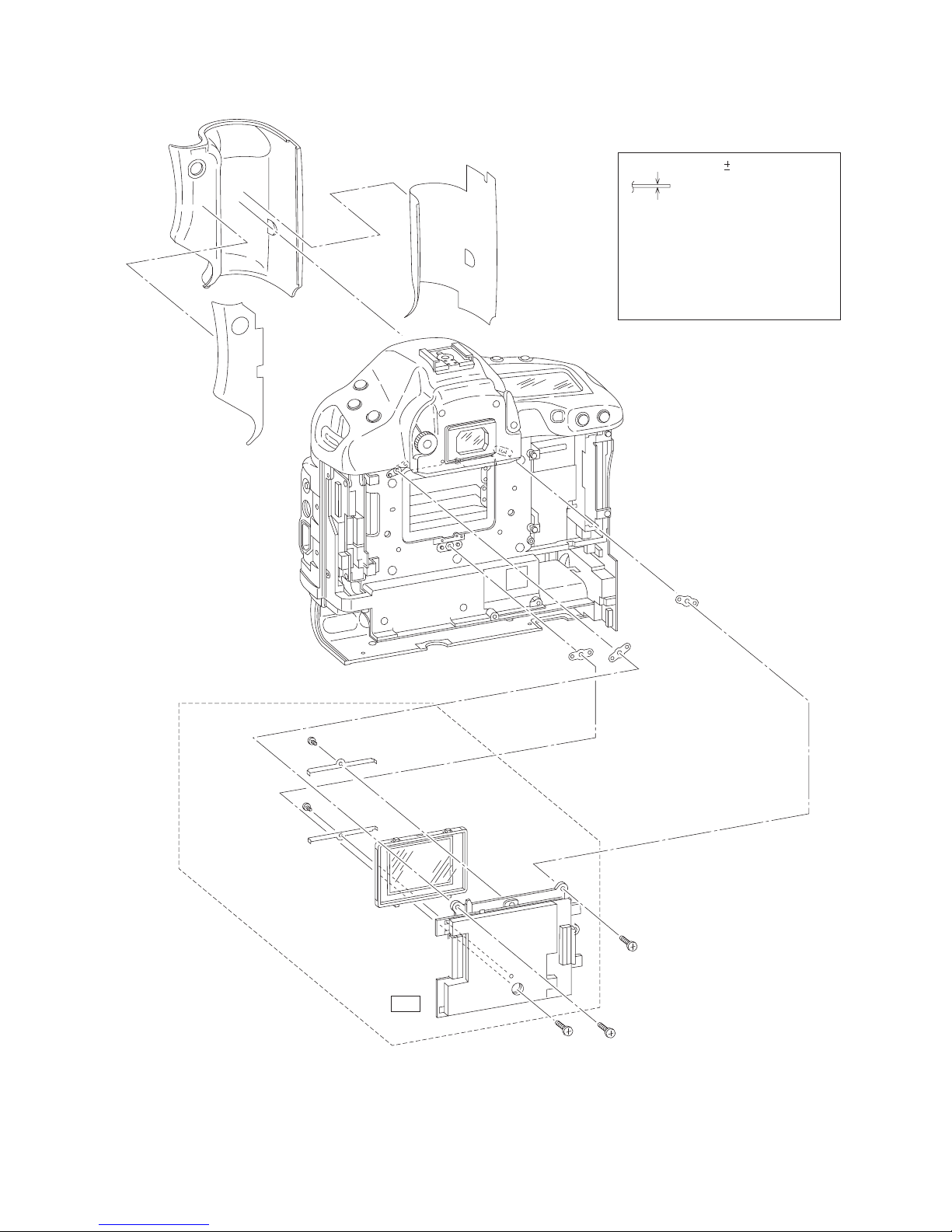

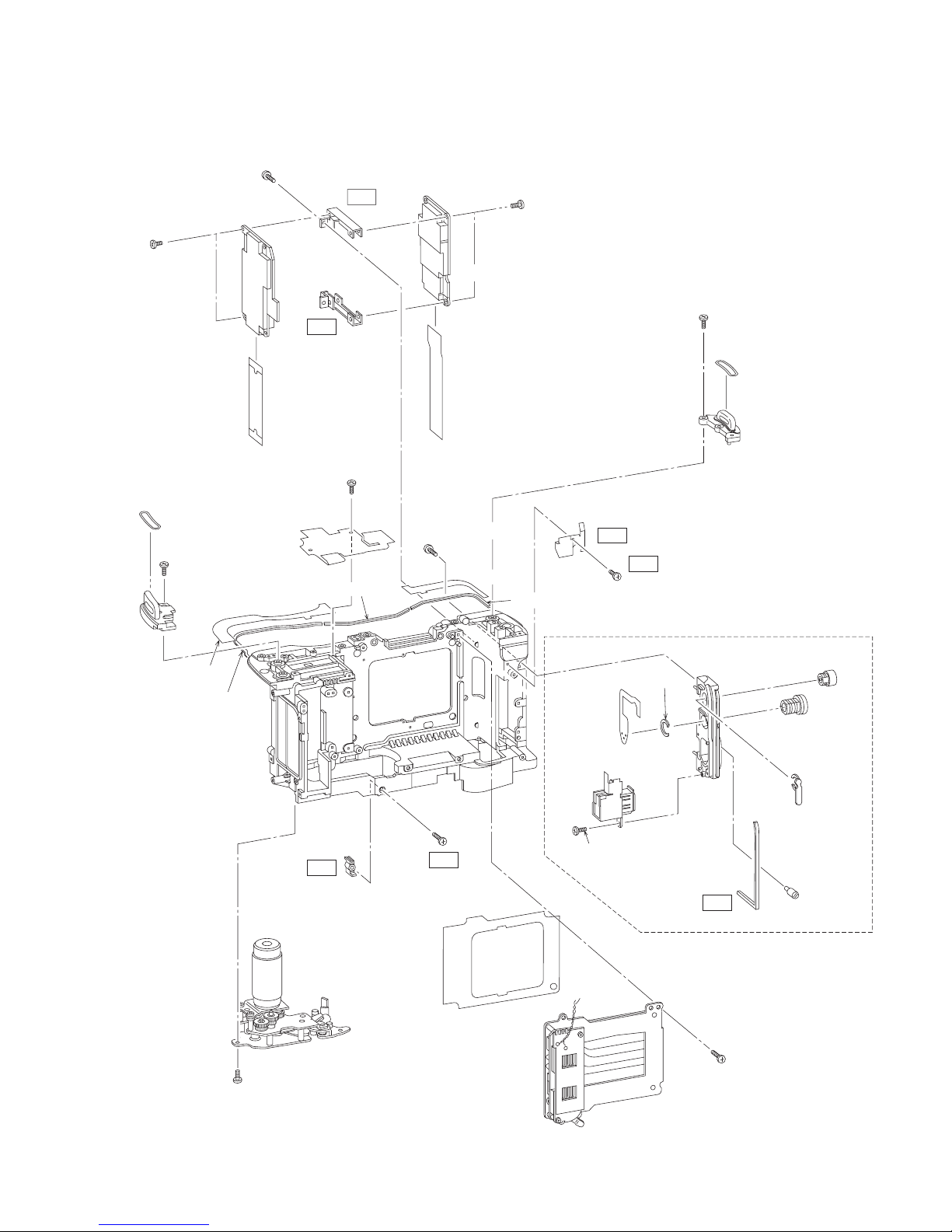

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
1
(See Pg. 7)
(See Pg. 2)
XA1-7170-207 x2
XA1-7170-207 x4
XA1-7170-707
CB4-0038 x4
XA1-7170-457 x2
XA1-7170-707
XA1-7170-457
XA1-7170-307
CB3-0108
CB3-0203
CY3-1425
CB3-0109
CB3-0184
CB3-0146
CB3-0168
CB3-0171
CB3-0172
CB3-0167
CB3-0147
CB3-0188
CB3-0210
CB3-0110
CB3-0102
CB3-0123
CG2-0732

REF.NO.C12-6021
PARTS LIST
PG1
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CB3-0102-000 B1 COVERING, BACK
CB3-0108-000 B1 TAPE, DOUBLE SIDED 1
(
BACK
)
CB3-0109-000 B1 TAPE, DOUBLE SIDED 2
(
BACK
)
CB3-0110-000
B1TAPE, DOUBLE SIDED 3 (BACK)
CB3-0123-000 B1
COVERING, CF
CB3-0146-000 A1 SEAL, BACK BOTTOM-TR
CB3-0147-000 A1 SEAL, BACK BOTTOM-GR
CB3-0167-000 B1
COVERING, FRONT
CB3-0168-000 B1 TAPE, DOUBLE SIDED
(
FRONT
)
CB3-0171-000 C1
CAP, TERMINAL
CB3-0172-000 C1 CAP, PC-REMOTE
CB3-0184-000 A1SEAL, O RING TRIPOD
CB3-0188-000 B1 COVERING, BOTTOM
CB3-0203-000 C 1 CAP, BATTERY
CB3-0210-000
C2TAPE, DOUBLE SIDED (TRIPOD)
CB4-0038-000 C4
SCREW, CROSS-RECESS, PH
CG2-0732-000 B1 B-CONT HOLDER UNIT
*CY3-1425-000
C1
NAME, PLATE
XA1-7170-207 F 6 SCREW, CROSS-RECESS, PH
XA1-7170-307
F1SCREW, CROSS-RECESS, PH
XA1-7170-457 F 3 SCREW, CROSS-RECESS, PH
XA1-7170-707 F 2 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
2
A
A 0.015 SIZE
0.03mm (003)
CB3-0060-000(XXX) detail
0.05mm (005)
0.08mm (008)
0.10mm (010)
0.12mm (012)
0.15mm (015)
0.18mm (018)
0.20mm (020)
(See detail)
(See Pg. 3)
CB3-0164 CB3-0165
CB3-0166
CB3-0073
CB3-0073
CB3-0677
CB3-0677
CY3-1426
CG2-0899
N.S
CB3-0060-000 x3
XA1-7170-357 x3

REF.NO.C12-6021
PARTS LIST
PG2
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CB3-0060-000
(
XXX
)
C3
WASHER, FLANGE BACK
CB3-0073-000 C 2 SCREW, CROSS-RECESS, PH
CB3-0164-000 B 1 COVERING, GRIP
CB3-0165-000
B1TAPE, DOUBLE SIDED1 GRIP
CB3-0166-000
B1TAPE, DOUBLE SIDED2 GRIP
*CB3-0677-000 C2
SPRING, LOW PASS FILTER
*CG2-0899-000 B 1 PCB ASS'Y, IMAGE
*CY3-1426-000 B 1 FILTER ASS'Y, LOW PASS
XA1-7170-357 F 3 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
3
(See Pg. 9)
(See Pg. 4)
(See Pg. 8)
CB1-9282
CB1-9367
CB1-9168
CB1-9367
CB1-9373
CB1-9195
CB1-9196
CB1-9373
CB3-0038
CB1-4255
CB3-0143
CB4-0038 x3
CB1-8581
CG2-0898
CA1-9402 x2
CB1-7982 x2
XA1-7170-507 x2
XA1-7170-507 x2
CB1-7982 x2
CB1-7982 x2
CB3-0130 x2

REF.NO.C12-6021
PARTS LIST
PG3
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CA1-9402-000 C2 SCREW, CROSS-RECESS, PH
CB1-4255-000 C1 SCREW, CROSS-RECESS, PH
CB1-7982-000 C6 SCREW, CROSS-RECESS, PH
CB1-8581-000 C 1 SCREW, CROSS-RECESS, PH
CB1-9168-000 C1 EYEPIECE SH LEVER
CB1-9195-000 C1 MASK, OLC
CB1-9196-000 C1
WINDOW, OLC
CB1-9282-000 C1 SCREW, CROSS-RECESS, PH
CB1-9367-000 B2 DIAL O-RING
CB1-9373-000 C2
EYEPIECE SLIDER
CB3-0038-000 C1
DIAL, EYEPIECE
A
DJUSTING
CB3-0130-000 B 2 SHIELD, LIGHT (OLC)
CB3-0143-000 A1 SEAL, TOP-CAP
CB4-0038-000 C 3 SCREW, CROSS-RECESS, PH
*CG2-0898-000 C 1 EYEPIECE COVER UNIT
XA1-7170-507 F 4 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
4
(See Pg. 5)
CB1-2678 x2
CB1-2678 x2
CB4-0038 x2
XA1-7170-257 x4
XA1-7170-257 x2
XA1-7170-407 x2
XA1-7170-407 x2
XA1-7170-407 x2
XA1-7170-407 x4
XA1-7170-257 x2
XA1-7170-357 x2
XA1-7170-167 x2
N.S
N.S
N.S
N.S
N.S
N.S
N.S
N.S
CG2-0748
CG2-0889
CG2-0891
CG2-0888
CG2-0890
CG2-0892
CG2-0725
N.S
N.S
N.S
D2
D1
D3
D4

REF.NO.C12-6021
PARTS LIST
PG4
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CB1-2678-000 C 4 SCREW, CROSS-RECESS, PH
CB3-0211-000 C 1 SEAL, INSULATING DC/DC
CB4-0038-000 C 2 SCREW, CROSS-RECESS, PH
CB4-0423-000 C 1 COVER, BATTERY
*CG2-0888-000 B1
PCB ASS'Y, D1
*CG2-0889-000 B1
PCB ASS'Y, D2
*CG2-0890-000 B 1 PCB ASS'Y, D3
*CG2-0891-000 B 1 PCB ASS'Y, D4
*CG2-0892-000 B1
PCB ASS'Y, DC/DC
CG2-0725-000 C1 BATTERY PLATE UNIT
CG2-0748-000 C1
PCB ASS'Y, ＣF
*CH1-8075-000 C 1 FPC, A-D2
XA1-7170-167 F 2 SCREW, CROSS-RECESS, PH
XA1-7170-257 F 8 SCREW, CROSS-RECESS, PH
XA1-7170-357 F 2 SCREW, CROSS-RECESS, PH
XA1-7170-407 F 10 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
5
CB3-0228 x2
CB1-8592
CB3-0223 x2
CA1-7531 x2
XA1-1200-959 x2
XA1-7170-507 XA1-7170-307
XA1-7170-507 x2
XA1-7170-357
XA1-7200-507 x2
XA1-7200-507 x2
XA1-7140-307 N.S
N.S
N.S
N.S
N.S
CG2-0878
CG2-0897
CG2-0872
CG2-0723
N.S
N.S
(See Pg. 6)
(MAIN PCB)
(See Pg. 12)
(See Pg. 10)
(See Pg. 11)

REF.NO.C12-6021
PARTS LIST
PG5
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CA1-7531-000 C 2 SCREW, CROSS-RECESS, PH
CB3-0223-000 C2 CUSHION, MAIN PCB
CB3-0228-000 C 2 SCREW, CROSS-RECESS, PH
CG2-0723-000 B1 DIAL UNIT
*CG2-0872-000 B1
PCB ASS'Y, MAIN
*CG2-0878-000 B1
LCD, EXTERNAL
*CG2-0897-000 B1
EYEPIECE UNIT
XA1-1200-959 F 2 SCREW, CROSS-RECESS, PH
XA1-7140-307 F 1 SCREW, CROSS-RECESS, PH
XA1-7170-307 Ｆ1 SCREW, CROSS-RECESS, PH
XA1-7170-357 F 1 SCREW, CROSS-RECESS, PH
XA1-7170-507 F 3 SCREW, CROSS-RECESS, PH
XA1-7200-507 F 4 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
6
CG2-0850
CG2-0750
CG2-0763
XA1-7170-407 x3
XA1-7200-507 x2
XA1-7170-307 x2
XA1-7170-307 x2
XA1-7170-257 x4
XA1-7170-607 x3
XA1-7170-257 x4
XA1-7200-507x2
XA1-7170-307 x3
XA1-7170-407 x2
CA1-9007
CB1-9353
CB1-7756
CB1-7707
CB1-7977
CB1-7706
CH1-8153 CH1-8154
CG2-0749
CB3-0659
CB3-0156
CB3-0149 CB3-0157
CB3-0142
CB1-9369
CB3-0141
CB3-0169 CG2-0788
CG2-0703
CG2-0976 CG2-0901
N.SN.S
N.SN.S
N.SN.S
N.SN.S
N.SN.S
N.SN.S
TFT
I/F
CB3-0679
CG2-0887
N.S CA1-5074

REF.NO.C12-6021
PARTS LIST
PG6
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CA1-5074-000 E 1 SCREW, STOPPER
CA1-9007-000 B 1 RING, PC RETAINER
CB1-7706-000 C1 STRAP RING L
CB1-7707-000 C 1 RING, STRAP (R)
CB1-7756-000 B1 3P-RECEPTACLE
CB1-7977-000 C 1 SEAL, STRAP R
CB1-9353-000 C1 STOPPER, RT SOCKET
CB1-9369-000 C 1 SEAL, STRAP L
CB3-0141-000 A1 SEAL, TOP-TR
CB3-0142-000 A1 SEAL, TOP-BACK
CB3-0149-000 A1 SEAL, BACK BODY
CB3-0156-000
A
1 SEAL, BACK BODY-GR
CB3-0157-000
A
1 SEAL, BACK BODY-TR
CB3-0169-000 B 1 HOLDER, TERMINAL
*CB3-0659-000
A
1 BODY
*CB3-0679-000 C 1 TAPE, DUST
CG2-0703-000 B 1 TERMINAL ASS'Y, INTERFACE
CG2-0749-000 B1 PCB ASS'Y, MOTOR DRIVE
CG2-0750-000 C1 PCB ASS'Y, REMOTE
CG2-0763-000 B 1 CONNECTOR ASS'Y, 1394
CG2-0788-000 B1 PC TERMINAL UNIT
*CG2-0850-000 B1
SHUTTER UNIT
*CG2-0887-000 B 1 CHARGE UNIT
*CG2-0901-000 B1
PCB ASS'Y, TFT
*CG2-0976-000 B 1 PCB ASS'Y, INTERFACE
*CH1-8153-000 B1
FPC, RELAY IF TO D4
*CH1-8154-000 B1
FPC, RELAY TFT TO D4
XA1-7170-257 F 8 SCREW, CROSS-RECESS, PH
XA1-7170-307 Ｆ7SCREW, CROSS-RECESS, PH
XA1-7170-407 Ｆ5SCREW, CROSS-RECESS, PH
XA1-7170-607 F 3 SCREW, CROSS-RECESS, PH
XA1-7200-507 F 4 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
7
XA4-5170-357 x3
CY3-1372-000
N.S
N.S
N.S
CG2-0712
CG2-0721
CB3-0219
CG2-0735
CB3-0084
x2
N.S
x2
N.S
CB3-0079
CG2-0753

REF.NO.C12-6021
PARTS LIST
PG7
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CB3-0079-000
C1TAPE, TFT DOUBLE SIDED
CB3-0084-000 B 1 WINDOW, TFT
CB3-0219-000 C1
TFT HOLDER
CG2-0712-000 C1 INVERTER ASS'Y
CG2-0721-000 B1 TFT LCD UNIT
CG2-0735-000 C1 LCD ASS'Y, BACK COVER
CG2-0753-000 C 1 FPC, BACK MODULE
CY3-1372-000 C 1 COVER ASS'Y, BACK
XA4-5170-357 Ｆ3 SCREW, CROSS-RECESS, PH

8CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
XA1-7170-307
XA4-9170-707
CB1-9379 x3
CB1-9183 x3
CB1-9182
CB3-0151
CB3-0152
CB1-9145
CB1-9360
CS3-5021
CB3-0145
N.S
N.S
N.S
CH2-5288
CG2-0729
CG2-0730
CA1-9418
(See Pg.13)
x2
N.S
CB3-0685
CB3-0686

REF.NO.C12-6021
PARTS LIST
PG8
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CA1-9418-000 B 1 SCREW, CROSS-RECESS, PH
CB1-9145-000 C 1 BUTTON, PV
CB1-9182-000 C 1 RING, MOUNT
CB1-9183-000 C 3 PLATE, MOUNT RING
CB1-9360-000 C 1 BUTTON, UNLOCK
CB1-9379-000 F 3 SCREW, CROSS-RECESS, PH
CB3-0145-000
A
1 SEAL, FRONT-GR
CB3-0151-000
A
1 SEAL, FRONT-MID
CB3-0152-000
A
1 SEAL, FRONT-TR
*CB3-0685-000 B1
PLATE, NAME 1Ds
*CB3-0686-000 B1
PLATE, NAME DIGITAL
CG2-0729-000 B1 FRONT COVER UNIT
CG2-0730-000 C1 DIAL ASS'Y, VERTICAL
CH2-5288-000 C 1 SWITCH, PV
CS3-5021-000 C 1 SPRING, UNLOCK BUTTON
XA1-7170-307 F 1 SCREW, CROSS-RECESS, PH
XA4-9170-707 F 1 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
9
XD2-1100-202
XD2-1100-132
XD2-1100-132
XA4-9170-507
CA1-6504-040
CB1-9199-000(020)
XA1-3170-457 x4
XA4-9170-707 x2
XA4-9170-357 x2
XA4-9170-357 x2
XA4-9170-507 x3
XA4-9170-457 x2
XD2-1100-132 x2 CB1-9184 x2
CB1-9207 x2
CH2-5287
CB3-0131
CB1-6761
CB1-9225 CB1-6762
CG2-0874
CB3-0111
CB3-0112
CA1-9328
CA1-9168
CA1-9422
CB1-9186
CB1-9206
CH2-5285
CH2-5286
CB1-9202
CB1-9201
CB1-9203
CB1-9204
CB1-9363
CB1-9194
CB1-9198
CB1-9211
CB1-9210
CB1-9215
CB1-9213
CB1-9209
CB1-9214
CB1-9212
CB1-9210
CB1-9349
CA1-9176
CY3-1240-000
N.S
N.S
N.S
N.S
N.S
N.S
CG2-0975
(Top Fpc)
(See detail)
CY3-1240-000(XXX) detail STANDARD
ABC
A(mm) A(mm) A(mm)B(mm) B(mm) B(mm)C(mm) C(mm) C(mm)SIZE SIZE SIZE
3.00 3.200.00 0.00(020) (040)0.002.80
3.00 3.201.35 1.35(021)(001) (041)1.352.80
3.00 3.201.25 1.25(022)(002) (042)1.252.80
3.20 2.800.00 0.00(030)(010) (050)0.003.00
3.20 2.801.35 1.35(031)(011) (051)1.353.00
3.20 2.801.25 1.25(032)(012) (052)1.253.00
2.502.00
2.00
2.50 N.S
WA4-6780

REF.NO.C12-6021
PARTS LIST
PG9
NEW PARTS No. CLAS
S
QTY DESCRIPTION
CA1-6504-040 C 1 SHOE, ACCESSORY
CA1-9168-000 C 1 SPACER, INSULATING
CA1-9176-000 C 1 BUTTON, RELEASE
CA1-9328-000 C 1 SPRING, PLATE
CA1-9422-000 C 1 SCREW, CROSS-RECESS, PH
CB1-6761-000 C 1 CONTACT, ACCESSORY
CB1-6762-000 C 1 CONTACT, ACCESSORY X
CB1-9184-000 C 2 BUTTON, MODE
CB1-9186-000 C 1 COVER, MODE SWITCH
CB1-9194-000 C 1 BUTTON, ADD
CB1-9198-000 C 1 COVER, ACCESSORY SHOE PIN
CB1-9199-000 (020) C 1 PIN, ACCESSORY SHOE
CB1-9201-000 C 1 COVER, BACK SWITCH
CB1-9202-000 C 1 BUTTON, AEL
CB1-9203-000 C 1 BUTTON, FPSEL
CB1-9204-000 C 1 BASE, BACK SWITCH
CB1-9206-000 C 1 COVER, EL-C SWITCH
CB1-9207-000 C 2 BUTTON, EL-C
CB1-9209-000 C 1 BUTTON, FEL
CB1-9210-000 C 2 COVER, FEL SWITCH
CB1-9211-000 C 1 COVER, RELEASE
CB1-9212-000 C 1 GUIDE, RELEASE SHAFT
CB1-9213-000 C 1 PIN, RELEASE
CB1-9214-000 C 1 SHAFT, RELEASE
CB1-9215-000 C 1 RING, RETAINING
CB1-9225-000 C 1 SEAL, DIAL
CB1-9349-000 C1 BASE, ACCESSORY SHOE
CB1-9363-000 C 1 BUTTON, AF MODE
CB3-0111-000 B 1 WINDOW, WHITE BALANCE
CB3-0112-000 B 1 HOLDER, WB IR
CB3-0131-000 B 1 CUSHION, WB
*CG2-0874-000 B 1 PCB ASS'Y, TOP
*CG2-0975-000 B 1 COVER ASS'Y, TOP
CH2-5285-000 C 1 SWITCH, BAC
K
CH2-5286-000 C 1 SWITCH, EL-C
CH2-5287-000 C 1 SWITCH, MODE
CY3-1240-000
(
XXX
)
C 1 SHAFT, ADJUSTING
WA4-6780-000 B 1 SENSOR, WHITE BALANCE
XA1-3170-457 F 4 SCREW, CROSS-RECESS, PH
XA4-9170-357 F 4 SCREW, CROSS-RECESS, PH
XA4-9170-457 F 2 SCREW, CROSS-RECESS, PH
XA4-9170-507 F 4 SCREW, CROSS-RECESS, PH
XA4-9170-707 F 2 SCREW, CROSS-RECESS, PH
XD2-1100-132 F 4 WASHER, RETAINING 1.3MM
XD2-1100-202 F 1 WASHER, RETAINING

CANON DIGITAL CAMERA EOS-1Ds
REF. NO. C12-6021
10
(See Pg. 14)
(See detail)
(See detail)
(See detail)
(See detail)
XA1-3140-189 x2
CB1-9285 x4
XA1-7170-359
XA1-3170-307
XA1-7170-357 x2
XD1-1102-120
XD1-1102-121
XD1-1102-122 x2
X99-0635 x4
CB1-9799 x2
CA1-9079-000(XXX)
CA1-5077-000(XXX)CA1-9078-000(XXX)
CA1-9079-000(XXX)
CY1-1280
CA1-7777
CS2-7205
CG2-0707-000 CF1-3063
CF1-2987
CB1-9309
CB1-9119-000(024)
CG2-0768
CB1-9308
CB1-4236
CG2-0893
CS2-5020
CS3-6036
CA1-9245
CG2-0706
CB1-9262
N.S
N.S
N.S
A
A SIZE 1 2 3
0.03mm (003)
0.05mm (005)
0.10mm (010)
0.15mm (015)
0.20mm (020)
0.25mm (025)
0.30mm (030)
0.35mm (035)
0.40mm (040)
0.45mm (045)
0.50mm (050)
0.55mm (055)
0.60mm (060)
1 CA1-5077-000 (XXX)
2 CA1-9078-000 (XXX)
3 CA1-9079-000 (XXX) NEW
N.S
