SAFETY PRECAUTIONS

The following precautions should be observed when servicing.

1. Since many parts in the unit have special safety-related characteristics, always use genuine CANON replacement parts.

Especially critical parts in the power circuit block should not be replaced with other makes.

Critical parts are marked with !in the schematic diagrams.

2. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged

by the short circuit.

3. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

4. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4-1 Leakage Current Cold Check

1) Unplug the AC cord and connect a jumper between the two prongs on the plug.

2) Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part

on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to

the chassis, the reading should be between 1MΩand 5.2MΩ. When the exposed metal does not have a return path to the

chassis, the reading must be ∞.

4-2 Leakage Current Hot Check

1) Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2) Connect a 1.5KΩ10 watt resistor, paralleled by 0.15µF capacitor, between each exposed metallic parts on the unit and a

good earth ground such as a water pipe, as shown in the figure below.

3) Use an AC voltmeter, with 1000Ω/volt or more sensitivity, to measure the potential across the resistor.

4) Check all exposed metallic parts of the cover (Cable connection, Handle bracket, metallic cabinet.

Screwheads, Metallic overlays, etc), and measure the voltage at each point.

5) Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6) The potential at any point should not exceed 0.75V RMS.

A leakage current tester (FLUKE MODEL : 8000A equivalent) may be used to make the hot checks.

Leakage current must not exceed 0.5 milliamp.

In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and corrective action must

be taken before returning the instrument to the customer.

Water pipe

(Earth Ground)

1.5KΩ

0.15µF

Test all

exposed

metal parts

Figure. 1 Leakage Current Hot Check

AC OUTLET

AC VOLTMETER

DEVICE

UNDER

TEST

1 Development Background

1-1 Development Objectives --------------------------------------------------------------------------------------------------- 1-1

1-2 Product Concept ------------------------------------------------------------------------------------------------------------- 1-1

1-3 Design Concepts ------------------------------------------------------------------------------------------------------------- 1-3

1-4 PS A200/A100 Spec.Comparison ---------------------------------------------------------------------------------------- 1-4

2 Full Features*

2-1 Full Features / Operation ease --------------------------------------------------------------------------------------------- 1-5

2-2 High Image Quality --------------------------------------------------------------------------------------------------------1-10

2-3 High Grade Design -------------------------------------------------------------------------------------------------------- 1-12

2-4 System Accessories and Software -------------------------------------------------------------------------------------- 1-13

3 Exterior

3-1 Camera -----------------------------------------------------------------------------------------------------------------------1-15

3-2 6-dimensional views -------------------------------------------------------------------------------------------------------1-17

3-3 Nomenclature ---------------------------------------------------------------------------------------------------------------1-18

3-4 User Interface display -----------------------------------------------------------------------------------------------------1-19

4 Specifications

4-1 Camera Specifications -----------------------------------------------------------------------------------------------------1-22

4-2 System Requirements ------------------------------------------------------------------------------------------------------1-28

4-3 Specifications of Major Accessories -------------------------------------------------------------------------------------1-29

5 System

5-1 Accessory compatibility ---------------------------------------------------------------------------------------------------1-31

5-2 System Diagram ------------------------------------------------------------------------------------------------------------1-33

CHAPTER 1. GENERAL DESCRIPTION

OF PRODUCT

CONTENTS

1-1

1 Development Background

1-1 Development Objectives

As of November 2001, Canon is responding to a wide range of customer demands with the six series in our line:

the single-lens-reflex EOS 1D and EOS D30, the PowerShot Pro90 IS with 10x zoom lens, the PowerShot G2

with high image quality and advanced features, the highly compact PowerShot S40/S30, the ultra compact IXY

DIGITAL 300/200 and the basic value PowerShot A20/A10.

However, as digital cameras are proliferating rapidly recently, we believe there are many potential consumers

who want to enjoy the convenience of digital photography, but who consider the $300 to $400 class such as the

PowerShot A20/A10 too expensive, and ‘toy’ cameras in the $100 and under class to be inadequate. We there-

fore believe that we can enhance our market share by providing a low-end Canon digital camera for these

consumers, and we are undertaking development of new digital cameras to respond to these demands.

This means that first-time users of digital cameras, and those who mainly want ease of use, are the main targets

for the low-end class (2-megapixel) PowerShot A200 and (1.3-megapixel) PowerShot A100, which will be

distinguished from other brands by a combination of high-end features such as primary filters plus a new image

engine, movie recording and Camera Direct features, and basic features such as a fixed-focus lens and simple

operation aimed at this class of users.

1-2 Product Concept

Because these models are aimed at users purchasing a digital camera for the first time, who want to enjoy

convenient digital photography economically, the PowerShot A200/A100 will be priced as low as possible, while

providing the same capabilities and features as higher-end models as much as possible. The product concept is

therefore “Excelling Classes of Advanced Features with Convenient Operation and High Image Quality with

High Grade Design.”

Also, despite the low price of the PowerShot A200/A100, we propose to foster a new culture of convenient

photo printing for the class of digital camera users who use a PC monitor or TV to display digital photographs, by

providing the Direct Print feature compatible with the CP-10 Card Photo Printer and the CP-100 Photo Printer,

to enable simple credit card or postcard size photo printing at home.

Beyond the Class

yFull Features/Operation Ease

yHigh Image Quality

yHigh Grade Design

For Digital Camera Beginners

For Casual Digital Camera Users

1-2

Full Features / Operation Ease

N

High Image Quality

- Photo Effect Modes (Vivid color, Neutral color, Low Sharpening, Sepia and Black & White) are

provided

- Direct Print Function for dedicated printers (CP-10 Card Photo Printer and CP-100 Photo Printer)

- Shutter speed is allowed from 1 to 1/2000 sec.

- Enabling for On/Off selection of AF-assist Beam

- Macro Function focuses down to 5 cm

- Use of widely available size AA battery (2) (primary: alkaline, secondary: NiCd/NiMH)

- One-click open/close lens cover (dual use for switching between still and movie)

- Inverted Galilean-type optical viewfinder

- Reset of all settings by one-touch operation

- Movie recording and playback (selectable pixel size from QVGA and Q2VGA )

- AF Frame (3-point) auto selection (AiAF) and center single-point selection (AF)

- Magnified playback for convenient image confirmation (from approx. 2x to 10x zoom)

- High continous shooting (approx. 3 images/sec. (PS A100) when LCD monitor is off)

- Eleven-language international GUI support

- Convenient operation using cross-configured buttons, with a new GUI

- Digital zoom function changes viewing angle continuously (4X:PS A200), (3.2X:PS 100)

- Stress free operation with 1.4 sec. interval shooting (OVF:PS A100)

- Built-in flash with four flashing modes

- Low-temperature, polysilicon 1.5-inch LCD monitor with power-saving backlight (approx.120k pixels)

- Total of nine image quality modes (3 recording pixels X 3 compression ratio)

- Rec.-review function (instant erase possible while reviewing)

- High-Speed image Transfer (during playback)

- High-Speed Image Transfer on USB Interface

- Self-Timer Photo Function

- Primary color filters and signal processing algorithms to get the most of these features

- High resolution 1/3.2-type 1.2 megapixel* CCD (PS A100), 1/3.2-type 2 megapixel* CCD (PS A200)

- High-resolution fixed-focus F2.8 lens (35 mm equivalent: 39 mm)

- AF maintains focus at any distance

- Intelligent AE determines optimum exposure in all photographic situations

- High-precision white balance (Auto, plus five preset positions)

- Wide range of ISO-equivalent speed settings (Auto, ISO 50(A200)-64(A100)/100/200/400 equivalent)

- Noise reduction feature for high S/N

-Super Fine mode image quality comparable to that of RAW mode

* Camera effective pixels

N

: New features equiped for new cameras which will be launched in spring 2002.(including improved existing features)

The explanations of some features shown in gray letters are omitted in section 2.

N

1-3

System Accessory / Application Software

- Waterproof case submersible to 30m

- Compact power adapter for power supply

- Full featured application softwares

Canon Image Gateway* compliance for image upload, album creation, on-line photo printing, etc*.

ZoomBrowser EX 3.3/3.4 (Win)/ImageBrowser 2.3 (Mac) featuring improved ease of operation

PhotoRecord 1.4 (Win) for easy layout and printing of pictures

PhotoStitch 3.1 for creating precise panoramic pictures

RemoteCapture 2.4/2.5 for transfering images to the PC and capture control from the PC

Twain Driver 4.3/4.5 / WIA Driver 4.3/4.5 (Win)

Plug-in module 4.3/4.5 / USB mounter 1.4/1.6 (Mac)

RAW Image Converter 2.0 for processing RAW images

Apple QuickTime 5.0

CP-10 PrinterDriver.

* for Japanese market only

High-grade Design

1-3 Design Concepts

zFreshness

A fresh and intimate appearance to suit an entry model that is easy for anyone to use

- “Bright Silver” color for a bright, cheerful appearance

- Exterior design using plastic skillfully for excellent handling

- Details utilizing different materials such as clear plastic, chrome and elastomer

zSincerity

Basic ease of use camera intended to distinguish itself from the cheap “Toy Cameras”

- Adhering to the “box and circle” design

- Use of circle motif and lens cover with ingenious operation

- The tripod mounting hole and lens light share the same axis to suit panoramic photography

- Cross-configured buttons and control buttons for separate functions, with just enough for necessity

- Sideways layout for easy holding and inserting/removing from pocket or bag

- 2:1 sideways layout

- Graphical symbols at the top of the screen show major functions at a glance

N

: New features equiped for new cameras which will be launched in spring 2002.

(including improved existing features)

N

1-4

zPowerShot A200 & PowerShot A100

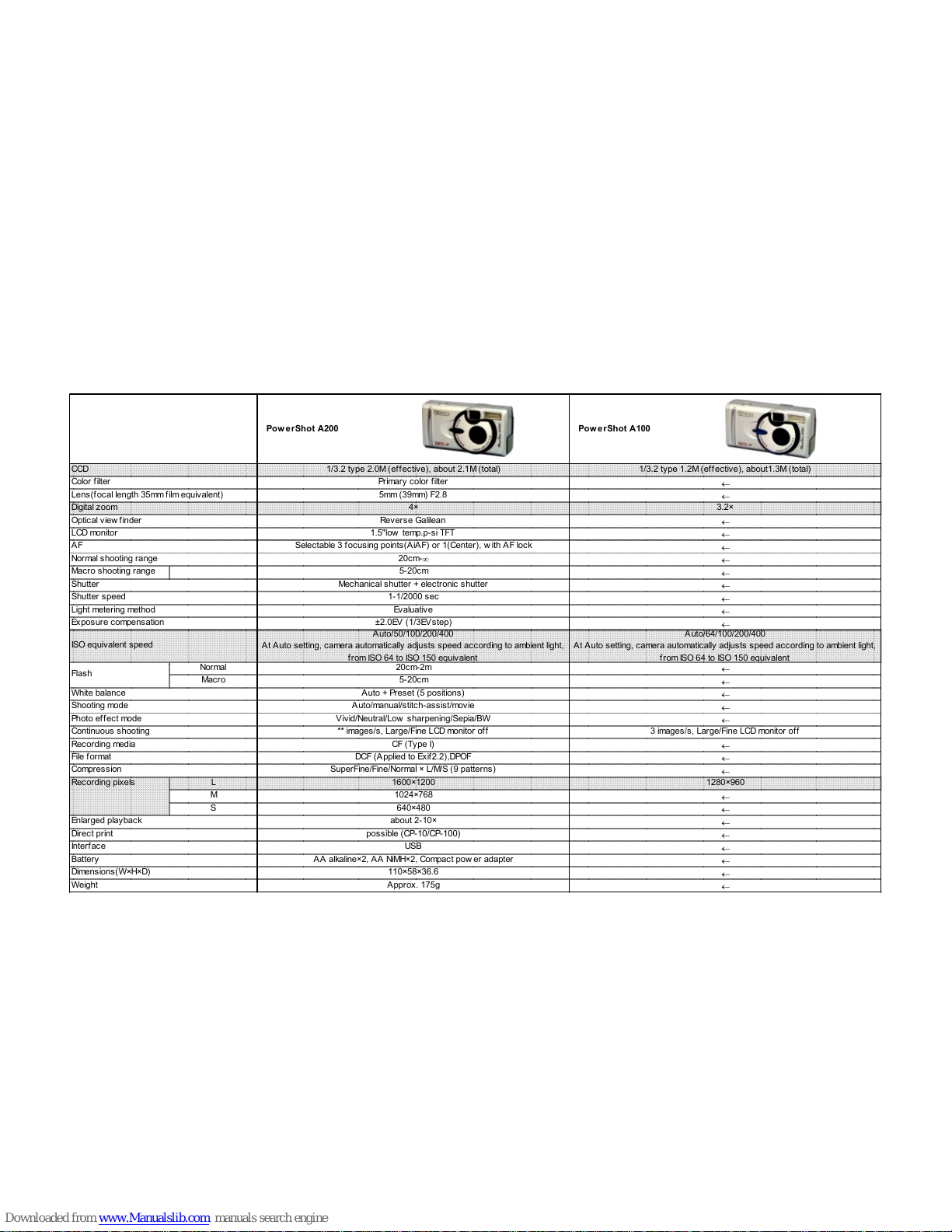

1-4 PS A200/A100 Spec.Comparison



























Pow e rShot A200 Pow e rShot A100

CCD 1/3.2 type 2.0M (eff ective), about 2.1M (total) 1/3.2 type 1.2M (eff ective), about1.3M (total)

Color f ilter Pr imar y c olor f ilter ←

Lens(f ocal length 35mm f ilm equivalent) 5mm (39mm) F2.8 ←

Dig ital z o om 4× 3.2×

Optic al v iew f inder Rev ers e Galilean ←

LCD monitor 1.5"low temp.p-si TFT ←

AF Selectable 3 focusing points(AiAF) or 1(Center), w ith AF lock ←

Normal shooting range 20cm-∞←

Macro shooting range 5-20cm ←

Shutter Mechanical shutter + electronic shutter ←

Shutter speed 1-1/2000 sec ←

Light metering method Evaluative ←

Exposure compensation ±2.0EV (1/3EVstep) ←

ISO equivalent speed

Auto

/

50

/

100

/

200

/

400

At Auto setting, camera automatically adjusts speed according to ambient light,

from ISO 64 to ISO 150 e

q

uivalent

Auto

/

64

/

100

/

200

/

400

At Auto setting, camera automatically adjusts speed according to ambient light,

from ISO 64 to ISO 150 e

q

uivalent

Normal 20cm-2m ←

Macro 5-20cm ←

White balance Auto + Preset (5 positions) ←

Shooting mode Auto/manual/stitch-assist/movie ←

Photo ef fect mode Vivid/Neutral/Low sharpening/Sepia/BW ←

Continuous shooting ** images/s, Large/Fine LCD monitor off 3 images/s, Large/Fine LCD monitor off

Recording media CF (Type I) ←

File format DCF (A pplied to Exif2.2),DPOF ←

Compression SuperFine/Fine/Normal × L/M/S (9 patterns) ←

L 1600×1200 1280×960

M 1024×768 ←

S 640×480 ←

Enlarged playback about 2-10× ←

Direct print possible (CP-10/CP-100) ←

In te r f a c e USB ←

Battery AA alkaline×2, AA NiMH×2, Compact pow er adapter ←

Dimensions(W×H×D) 110×58×36.6 ←

Weight A pprox. 175g ←

Recording pixels

Flash




