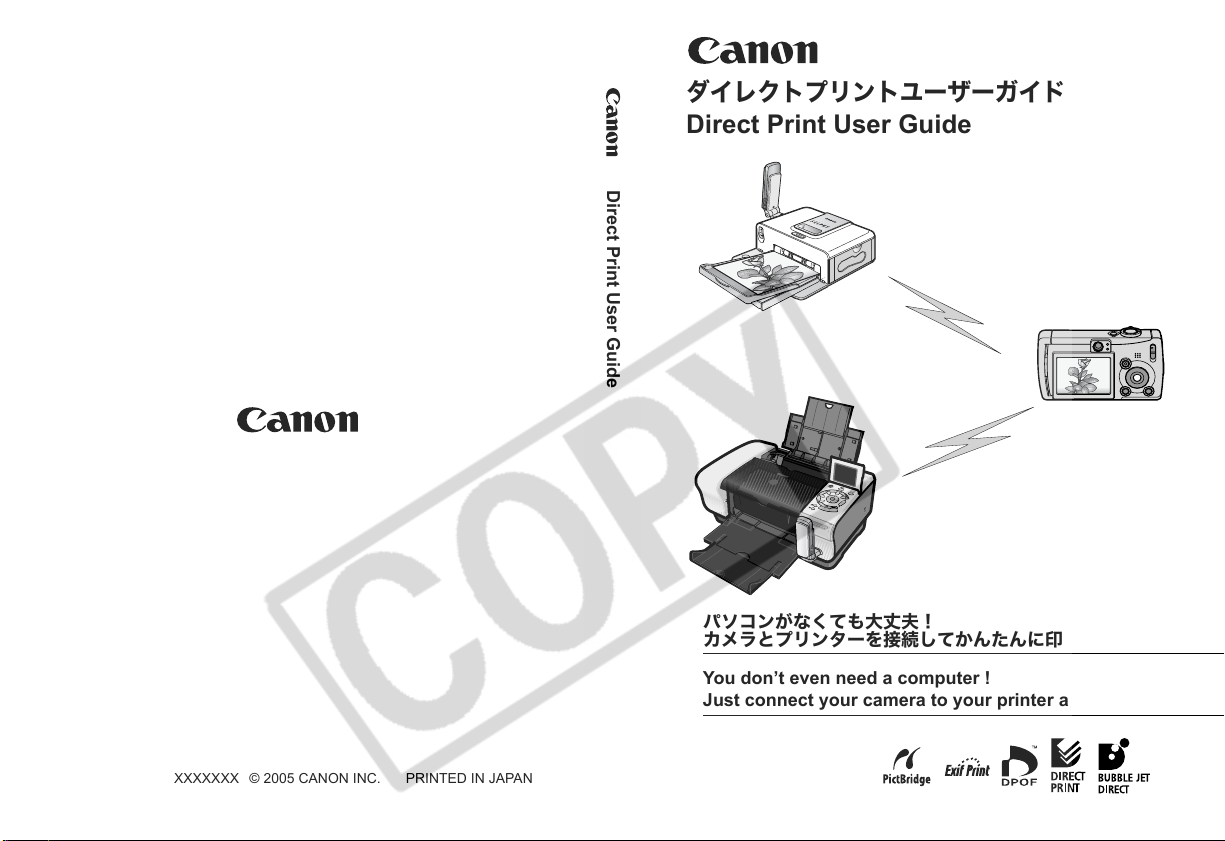

Canon PowerShot SD430 DIGITAL ELPH WIRELESS User manual

CDI-M214-010 XXXXXXX © 2005 CANON INC. PRINTED IN JAPAN
DPUG11
Direct Print User Guide
ダイレクトプリントユーザーガイド
Direct Print User Guide
パソコンがなくても大丈夫！
カメラとプリンターを接続してかんたんに印刷
You don’t even need a computer !
Just connect your camera to your printer and print

ENGLISH

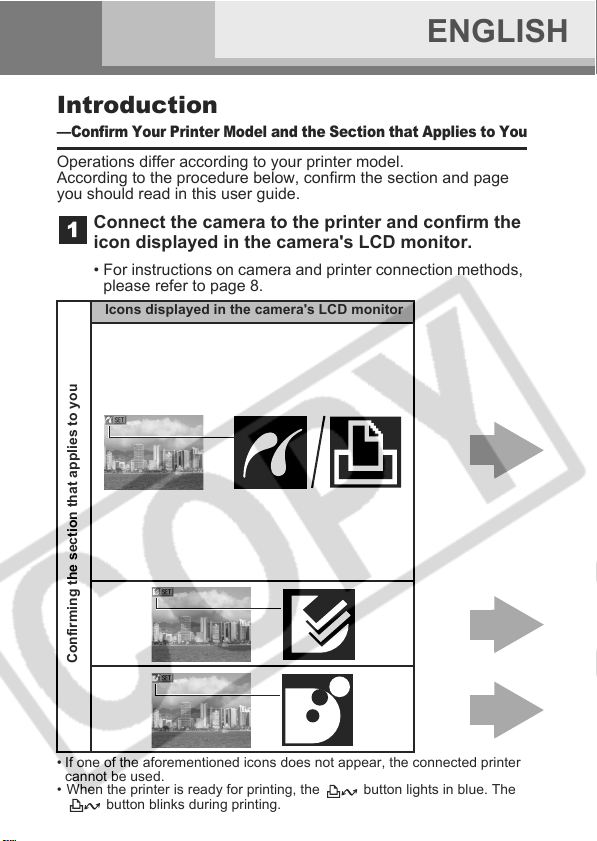

Introduction
— Confirm Your Printer Model and the Section that Applies to You
Operations differ according to your printer model.
According to the procedure below, confirm the section and page
you should read in this user guide.
Connect the camera to the printer and confirm the
icon displayed in the camera's LCD monitor.
• For instructions on camera and printer connection methods,
please refer to page 8.
• If one of the aforementioned icons does not appear, the connected printer
cannot be used.
• When the printer is ready for printing, the button lights in blue. The
button blinks during printing.
Confirming the section that applies to you
Icons displayed in the camera's LCD monitor

1
* Please also refer to the user guide that came with your printer.

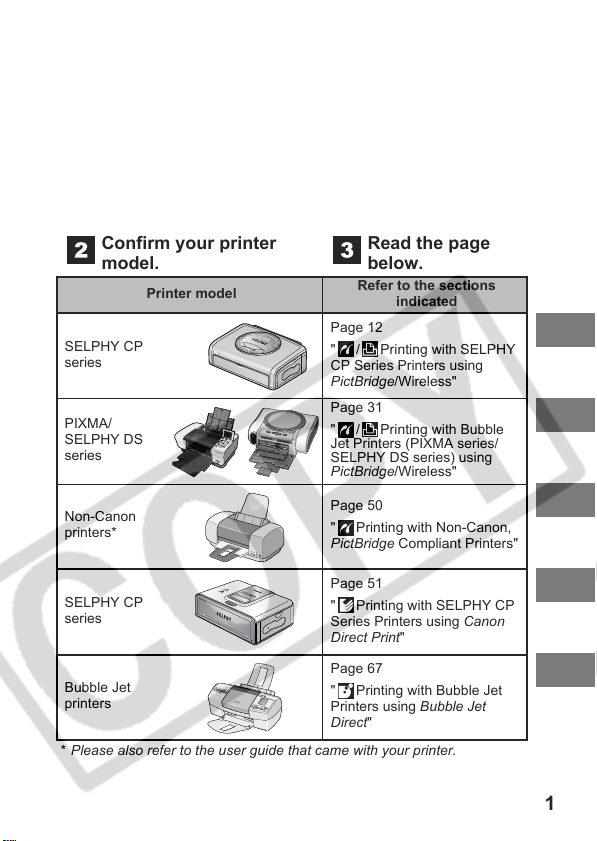

Confirm your printer
model.
Read the page
below.
Printer model Refer to the sections
indicated
SELPHY CP
series
Page 12
" / Printing with SELPHY
CP Series Printers using
PictBridge/Wireless"
PIXMA/
SELPHY DS
series
Page 31
" / Printing with Bubble
Jet Printers (PIXMA series/
SELPHY DS series) using
PictBridge/Wireless"
Non-Canon
printers*
Page 50
" Printing with Non-Canon,
PictBridge Compliant Printers"
SELPHY CP
series
Page 51
" Printing with SELPHY CP
Series Printers using Canon
Direct Print"
Bubble Jet
printers
Page 67
" Printing with Bubble Jet
Printers using Bubble Jet
Direct"

2
Trademark Acknowledgements
• Names and products in this guide may be registered trademarks or
trademarks of their respective companies.
• Copyright © 2005 Canon Inc. All rights reserved.
For the latest information regarding connections between Canon
printers and cameras, please refer to the following URL:
http://web.canon.jp/Imaging/BeBit-e.html
http://www.canon.com/pictbridge/
PictBridge Compliance
This camera complies with the industry standard “PictBridge”*.
This allows you to also connect your camera to non-Canon
PictBridge compliant printers and print images with simple
operations using the camera buttons.
* PictBridge: PictBridge is an industry standard for direct printing that
allows you to print images without using a computer by directly
connecting digital cameras and digital camcorders (hereafter “camera”)
to a printer, regardless of the devices’ brand and model.
Disclaimer
• No part of this guide may be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any language in any form, by any
means, without the prior written permission of Canon.
• Canon reserves the right to change the specifications of the hardware
described herein at any time without prior notice.
• While every effort has been made to ensure that the information contained
in this guide is accurate and complete, no liability can be accepted for any
errors or omissions.
• Canon makes no warranties for damages resulting from corrupted or lost
data due to a mistaken operation or malfunction of the camera, the
software, the memory cards, personal computers, peripheral devices, or
use of non-Canon memory cards.

3
Table of Contents
Direct Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Allows for Printing without the Use of a Computer . . . . 6
Various Printing Operations Can Be Performed . . . . . . . 6
You Can Also Perform the Following Printing Operations . .7
Printing Movies (Movie Print) . . . . . . . . . . . . . . . . . . . . . . 7
Printing Multiple Images on a Sheet of Paper . . . . . . . . . 7
ID Photo Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting the Camera to the Printer. . . . . . . . . . . . . . . . . 8
Connecting the Camera to the Printer Wirelessly . . . . . . 8
Connecting the Camera to the Printer with an
Appropriate Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
/ Printing with SELPHY CP Series Printers using
PictBridge/Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Easy Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Print after Changing the Print Settings. . . . . . . . . . . . . . 13
Selecting Print Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the Date and the File Number Printing Option . . . . 15
Setting the Print Effect . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the Number of Copies . . . . . . . . . . . . . . . . . . . . 16

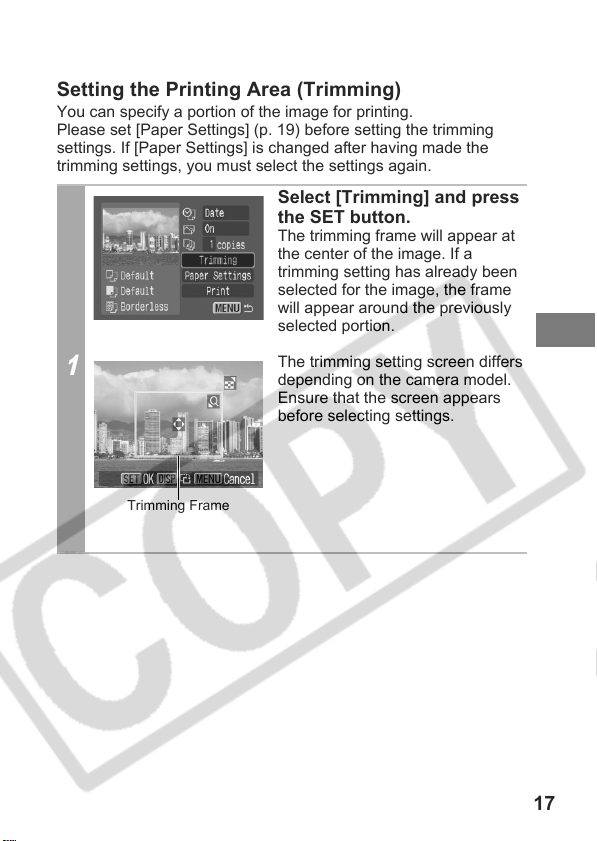

Setting the Printing Area (Trimming) . . . . . . . . . . . . . . . 17
Selecting the Paper Settings . . . . . . . . . . . . . . . . . . . . . 19
Printing Multiple Images on a Sheet of Paper . . . . . . 21
Printing by Specifying the Print Size
(ID Photo Print) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Printing Images in the Fixed Size . . . . . . . . . . . . . . . 24
Printing Movies (Movie Print) . . . . . . . . . . . . . . . . . . . . . 25
Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . 27
List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4

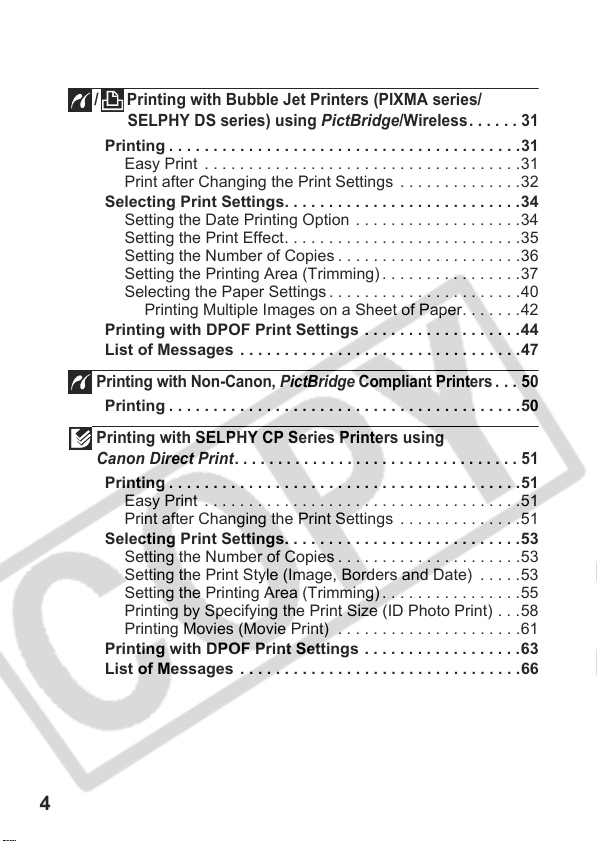

/ Printing with Bubble Jet Printers (PIXMA series/
SELPHY DS series) using PictBridge/Wireless. . . . . . 31
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Easy Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Print after Changing the Print Settings . . . . . . . . . . . . . .32
Selecting Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . .34
Setting the Date Printing Option . . . . . . . . . . . . . . . . . . .34
Setting the Print Effect. . . . . . . . . . . . . . . . . . . . . . . . . . .35
Setting the Number of Copies . . . . . . . . . . . . . . . . . . . . .36
Setting the Printing Area (Trimming) . . . . . . . . . . . . . . . .37
Selecting the Paper Settings . . . . . . . . . . . . . . . . . . . . . .40
Printing Multiple Images on a Sheet of Paper. . . . . . .42
Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . .44
List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Printing with Non-Canon, PictBridge Compliant Printers . . . 50
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Printing with SELPHY CP Series Printers using
Canon Direct Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Easy Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Print after Changing the Print Settings . . . . . . . . . . . . . .51
Selecting Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . .53
Setting the Number of Copies . . . . . . . . . . . . . . . . . . . . .53
Setting the Print Style (Image, Borders and Date) . . . . .53
Setting the Printing Area (Trimming) . . . . . . . . . . . . . . . .55
Printing by Specifying the Print Size (ID Photo Print) . . .58
Printing Movies (Movie Print) . . . . . . . . . . . . . . . . . . . . .61
Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . .63
List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

5
Printing with Bubble Jet Printers using Bubble Jet Direct . .67
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Setting the Print Style . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Settings that Can Be Set with the Camera. . . . . . . . . . . . . . . . .70
/ SELPHY CP Series Printers using PictBridge/
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
/ Bubble Jet Printers (PIXMA series/SELPHY DS
series) using PictBridge/Wireless . . . . . . . . . . . . . 71
SELPHY CP Series Printers using Canon Direct Print
Bubble Jet Printers using Bubble Jet Direct . . . . . . . 73

6

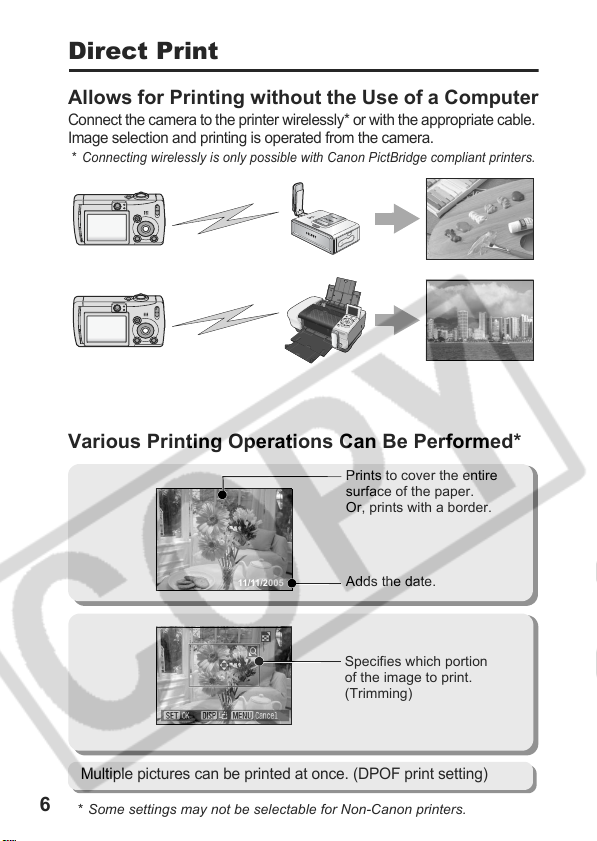

Direct Print
Allows for Printing without the Use of a Computer
Connect the camera to the printer wirelessly* or with the appropriate cable.
Image selection and printing is operated from the camera.
* Connecting wirelessly is only possible with Canon PictBridge compliant printers.
Various Printing Operations Can Be Performed*
Multiple pictures can be printed at once. (DPOF print setting)
Prints to cover the entire
surface of the paper.
Or, prints with a border.
Adds the date.
Specifies which portion
of the image to print.
(Trimming)
11/11/2005
* Some settings may not be selectable for Non-Canon printers.

7

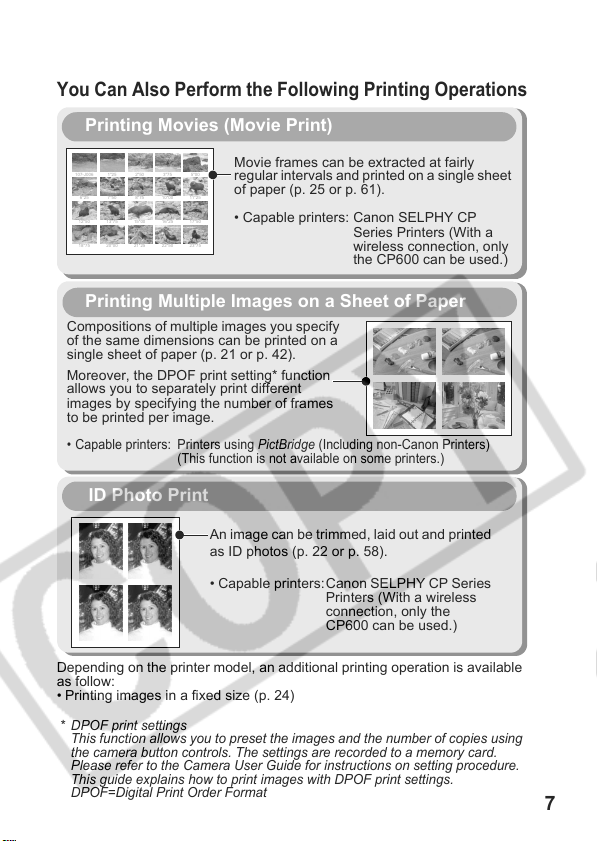

You Can Also Perform the Following Printing Operations
Printing Movies (Movie Print)
107-J006
6"25
12"50
18"75
1"25
7"50
13"75
20"00
2"50
8"75
15"00
21"25
3"75
10"00
16"25
22"50
5"00
11"25
17"50
23"75
Movie frames can be extracted at fairly
regular intervals and printed on a single sheet
of paper (p. 25 or p. 61).
• Capable printers: Canon SELPHY CP
Series Printers (With a
wireless connection, only
the CP600 can be used.)
Compositions of multiple images you specify
of the same dimensions can be printed on a
single sheet of paper (p. 21 or p. 42).
Moreover, the DPOF print setting* function
allows you to separately print different
images by specifying the number of frames
to be printed per image.
Printing Multiple Images on a Sheet of Paper
• Capable printers: Printers using PictBridge (Including non-Canon Printers)
(This function is not available on some printers.)
An image can be trimmed, laid out and printed
as ID photos (p. 22 or p. 58).
• Capable printers:Canon SELPHY CP Series
Printers (With a wireless
connection, only the
CP600 can be used.)
ID Photo Print
Depending on the printer model, an additional printing operation is available
as follow:
• Printing images in a fixed size (p. 24)
* DPOF print settings
This function allows you to preset the images and the number of copies using
the camera button controls. The settings are recorded to a memory card.
Please refer to the Camera User Guide for instructions on setting procedure.
This guide explains how to print images with DPOF print settings.
DPOF=Digital Print Order Format

8
Connecting the Camera to the
Printer
Connect the camera to the printer. If you use a Canon PictBridge
compliant printer, you can connect it to the camera wirelessly by
using the wireless print adapter supplied with the camera. If you
use the appropriate interface cable supplied with the camera, you
can connect it to, and print using, Canon PictBridge compliant
printers, Canon Direct Print compatible printers, and Non-Canon
PictBridge compliant printers. For instructions on printer and
camera operation methods, refer to their respective user guides.
Connecting the Camera to the Printer Wirelessly
The camera can only be connected wirelessly to Canon PictBridge
compliant printers.
Set one of the following into the camera.
• Compact Power Adapter CA-DC10 (supplied with the AC
Adapter Kit ACK-DC10 (sold separately))
• Fully charged battery
Place paper, ink cassette/cartridge, etc. into the
printer.
Connect the Compact Power Adapter CA-DC20/CA-
DC20E to the wireless print adapter supplied with the
camera and attach it to the printer*.
* If you are using a Compact Photo Printer SELPHY CP710/CP510,
you do not need to attach the compact power adapter to the wireless
print adapter.
Attach the Compact
Power Adapter
CA-DC20/CA-DC20E

9
Turn the printer’s power on.
Set the camera to Playback mode, turn the power
on and press the button.
After confirming that [Target Device] is set to
[1.WA-1], use the button to select [Connect]
and press the button.
• The camera will attempt to establish a wireless connection
to the printer.
• After the attempt has started, the wireless lamp on the
camera and the lamp on the wireless print adapter will be
blinking in blue. Once a connection is made, the blinking will
cease and the lamps will light in blue.
Confirm that has appeared in the upper left
corner of the LCD monitor.
• A wireless connection has been established and printing is
now possible.
• The icon will appear on the LCD monitor showing the
strength of the wireless connection.

10
Connecting the Camera to the Printer with an
Appropriate Cable
Set one of the following into the camera.
• Compact Power Adapter CA-DC10 (supplied with the AC
Adapter Kit ACK-DC10 (sold separately))
• Fully charged battery
• For more information on how to attach the wireless print
adapter and connecting the camera to the printer wirelessly,
please refer to the Advanced Camera User Guide.
• In Step 5, if you continue to press the button, wireless
connection will start and the screen from Step 7 will be displayed.
• The following operations are not available during a camera/
printer connection.
• Language settings that use the SET button and the MENU
button.
• Resetting the camera’s settings to default.
Terminating the Wireless Connection
1. Press the camera’s
button and use the
button to select the
(Wireless) menu.
2. Use the button to
select [Connect/Disconnect]
and press .
3. Use the button to select [Disconnect] and
press .
• The wireless connection will be terminated.
• The wireless connection will also be terminated when the
camera mode is changed using the mode switch.

11
Place paper, ink cassette/cartridge, etc. into the
printer.
Connect the camera to the printer with the
appropriate interface cable supplied with the camera.
Some printers require specific connection cables which differ
from the above cable. Please refer to the printer’s user guide.
Turn the printer’s power on.
Set the camera to Playback mode and turn the
power on.
The following operations are not available during a camera/
printer connection.
• Language settings that use the SET button and the MENU
button.
• Resetting the camera’s settings to default.
Disconnecting the Camera and the Printer
1. Detach the cable from the printer.
Pull out the cable while holding the connector plug. Do not
pull out by the cable.
2. Turn the camera’s power off.
3. Detach the cable from the camera.
Pull out the cable while holding the connector plug. Do not
pull out by the cable.
DIGITAL terminal
Camera: Connect the cable to
the DIGITAL terminal.
Printer: Refer to the printer’s
user guide.

12

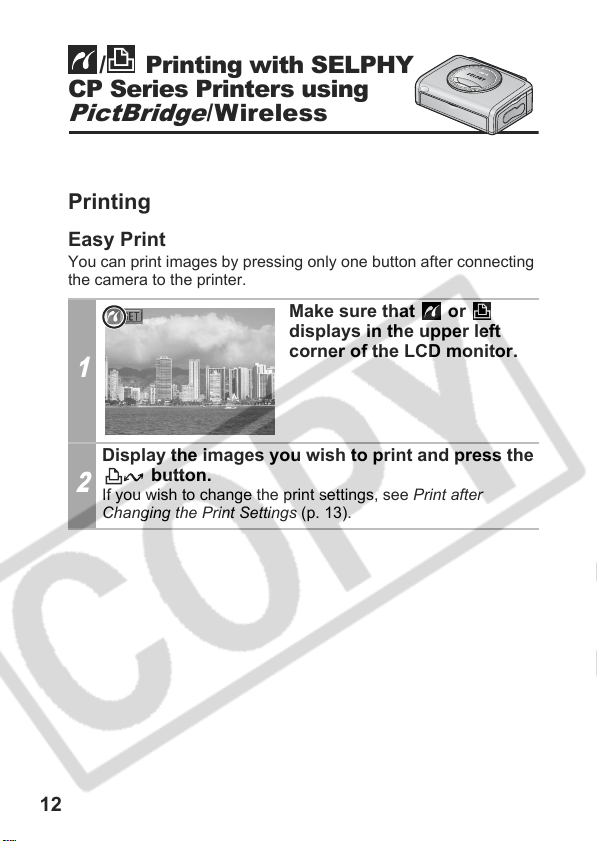

Printing
Easy Print
You can print images by pressing only one button after connecting
the camera to the printer.
1
Make sure that or
displays in the upper left
corner of the LCD monitor.
2
Display the images you wish to print and press the
button.
If you wish to change the print settings, see Print after
Changing the Print Settings (p. 13).
/ Printing with SELPHY
CP Series Printers using
PictBridge /Wireless

13
Print after Changing the Print Settings
You can change the print settings before printing.
1
Make sure that or
displays in the upper left
corner of the LCD monitor.
If displays on the LCD monitor,
please refer to Printing with
SELPHY CP Series Printers using
Canon Direct Print (p. 51).
2
Display the images you wish
to print and press the SET
button.
The print order screen appears.
Depending on the printer model,
some setting options may not
display.
3
Select print settings as needed.
4
Select [Print] and press the SET button.
• The image will start to print and, when it is completely
finished, the display will revert to the standard playback
mode.
• If you press the MENU button, the display will revert to the
standard playback mode and printing will not take place.
Sets the date
and the file number
for printing (p. 15)
Sets the print
effect (p. 16)
Sets the number of copies (p. 16)
Sets the trimming portion (p. 17)
Sets the paper size, type and layout
(p. 19)
Starts the printing process
Print Order Screen

14
• You cannot print the RAW images.
• It may not be possible to play back or print images shot with a
different camera.
• You may not be able to print if the memory card holds a large
number of images (about 1000).
Cancel Printing
• To cancel printing between images, press the SET button.
A confirmation dialog will display. Select [OK] and press the
SET button. The printer will stop printing the current image and
eject the paper.
Printing Errors
• An error message appears if an error occurs for some reason
during the printing process. When the error is resolved, printing
will automatically resume. If printing does not resume, select
[Continue] and press the SET button. If [Continue] cannot be
selected, select [Stop], press the SET button and restart the
print job. See List of Messages (p. 30) for details.

15

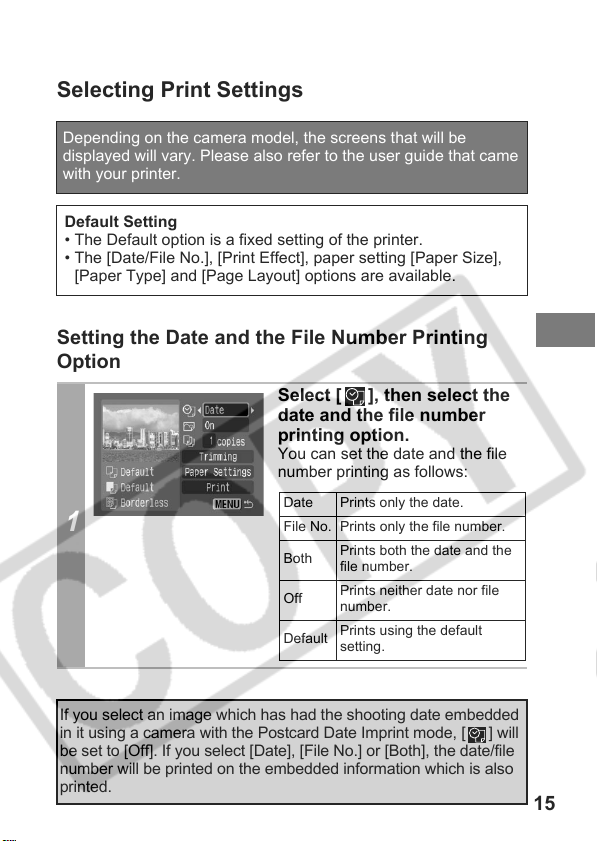

Selecting Print Settings
Setting the Date and the File Number Printing
Option
Depending on the camera model, the screens that will be
displayed will vary. Please also refer to the user guide that came
with your printer.
Default Setting
• The Default option is a fixed setting of the printer.
• The [Date/File No.], [Print Effect], paper setting [Paper Size],
[Paper Type] and [Page Layout] options are available.
1
Select [ ], then select the
date and the file number
printing option.
You can set the date and the file
number printing as follows:
If you select an image which has had the shooting date embedded
in it using a camera with the Postcard Date Imprint mode, [ ] will
be set to [Off]. If you select [Date], [File No.] or [Both], the date/file
number will be printed on the embedded information which is also
printed.
Date Prints only the date.
File No. Prints only the file number.
Both Prints both the date and the
file number.
Off Prints neither date nor file
number.
Default Prints using the default
setting.

16
Setting the Print Effect
This function uses the camera’s shooting information to optimize
the image data, yielding high quality prints. You can select the
following print effects.
Setting the Number of Copies
On Uses the camera’s shooting information to deliver optimum
prints.
Off Prints without any effects.
Default Print settings differ according to your printer model.
1
Select [ ] and choose a
print effect option.
1
Select [ ] and set the
number of prints.
1 to 99 copies can be set.

17
Setting the Printing Area (Trimming)
You can specify a portion of the image for printing.
Please set [Paper Settings] (p. 19) before setting the trimming
settings. If [Paper Settings] is changed after having made the
trimming settings, you must select the settings again.
1
Select [Trimming] and press
the SET button.
The trimming frame will appear at
the center of the image. If a
trimming setting has already been
selected for the image, the frame
will appear around the previously
selected portion.
The trimming setting screen differs
depending on the camera model.
Ensure that the screen appears
before selecting settings.
Trimming Frame

18
2
Trim the image.
Changing the Size of the Trimming Frame
• Press the zoom lever to adjust the size of the trimming
frame.
• The trimming frame can be changed to a minimum selection of
approximately half the displayed image (in width and height) or a
maximum selection that is virtually the same size as the image.
• Expanding the trimming frame beyond its maximum size
cancels the trimming setting.
• When printing an image that has been magnified using the
trimming option, the image quality may become coarser and
grainier depending on the level of magnification.
Moving the Trimming Frame
• Move the trimming frame using the up, down, right and left
buttons.
Rotating the Trimming Frame
• You can rotate the trimming frame by pressing the DISP.
button.
3
Press the SET button to close the setting menu.
Pressing the MENU button cancels the settings.
• The trimming setting only applies to one image.
• The trimming setting is canceled with the following operations.
• When you set the trimming settings for another image.
• When you close the Print mode (when you turn the camera power
off, change the camera mode,terminate a wireless connection to
the printer or detach the connection cable).
• The shooting date or part of the date which has been embedded
in images using a camera with the Postcard Date Imprint mode
may not be printed properly depending on the trimming setting.
• The paper size and page layout settings determine the shape of
the trimming frame.
• Please use the LCD monitor to set the trimming settings. The
trimming frame may not display correctly on a TV screen.
