Camera User Guide
7

Confirming the Package Contents
The following items are included in the package, tf something is
missing, please contact the retail outlet at which you purchased the
3roduct.
r
40) Camera Battery Pack NB-6L _Battery Charger
(with Terminal Cover) CB-2LY/CB-2LYE
Memory Card _ Interface Cable _AV Cable
(32MB) IFC40OPCU AVC-DC4O0
Wrist Strap WS-DC2 Solution Disk
J
_) User Guides
•[_ Camera User Guide
• _ Direct Pdnt User Guide
L..,L.J(Connecting the camera to a printer)
• _ Sol,rare Starter Guide
(Connecting the camera to a computer)
• "Canon Customer Support" Leaflet
• "Use of Genuine Canon Accessories Recommended" Leaflet
See the PDF manuals available on the Canon website.
http:/Iweb.canon.jpllmaging/information-e.html
-_ZoomBrowser EX/ImageBrowser Sof_vare User Guide
,. J
You may not be able to achieve the full performance of this camera ]
with the included memory card.
Canon Digital Camera _Warranty Card

Let's Get Started! [1
Let's Get Started!
This guide is divided into the following two sections.
7
This section explains how to prepare the camera for use and the
basics of shooting, viewing and printing images. Start out by
familiarizing yourself with the camera and mastering the basics.
Once you have mastered the basics, use the camera's many
features to shoot more challenging photos. Details on using each
function are described in this section, including how to connect the
camera to a television to view images.

2ITable of Contents
Table of Contents
Items marked with a_r are lists or charts that summarize camera
functions or procedures.
Please Read ........................................... 6
Preparations ....................................... 8
Shooting Still Images (r"_ Auto Mode) ................... 14
Viewing Still Images ................................ 16
Erasing .......................................... 17
Printing .......................................... 18
Embedding the Date in the Image Data ................. 20
Shooting Movies (1_ Standard Mode) ................... 22
Viewing Movies .................................... 24
Downloading Images to a Computer ................... 25
System Map ...................................... 32
Components Guide 38
How to Use the Mode Switch ........................ 41
Indicators ........................................ 42
Basic Operations 44
_z Menus and Settings ............................... 44
_r Information Displayed on the LCD Monitor and Menus .... 46
Using the LCD Monitor ............................. 56
Commonly Used Shooting Functions 58
[] E)3 Shooting with the Optical Zoom ................ 58
Using the Digital Zoom/Digital Tete-Converter ........... 58
Magnified Close-Up Shooting (Digital Macro) ............ 61
Using the Flash ................................ 62
_1, Shooting Close-Ups/Infinity Shots ............... 62
Using the Self-Timer ............................ 64
Changing the Recording Pixets (Still Images) ............ 66
Changing the Compression (Still Images) ............... 67

I
Table of Contents I3
Setting the Image Stabilizer Function .................. 68
iiS0]Adjusting the ISO Speed ........................ 69
Various Shooting Methods 71
Shooting in Modes for Special Conditions .............. 71
Shooting in Manual Mode ........................... 74
Continuous Shooting ............................ 74
Setting the Flash .................................. 75
p,mMovie Shooting ................................ 77
Shooting Panoramic Images (Stitch Assist) ............. 82
Checking the Focus and Peoples' Expressions
(Focus Check) ..................................... 84
Switching between Focusing Modes ................... 87
Selecting the Face to Focus On (Face Select and Track) .. 90
Shooting Hard-to-Focus Subjects (Focus Lock, AF Lock) .. 92
Locking the Exposure Setting (AE Lock) ................ 93
Locking the Flash Exposure Setting (FE Lock) ........... 94
Adjusting the Exposure Compensation ................. 95
Switching between Metering Modes ................... 96
Setting the Shutter Speed (Long Shutter Mode) .......... 97
Adjusting the Tone (White Balance) ................... 98
Shooting in a My Colors Mode ...................... 101
Changing Colors ................................. 103
Setting the Display Overlays ........................ 108
Categorizing Images Automatically (Auto Category) ..... 109
,B,,,v Registering Settings to the Print/Share Button ...... 110
Playback/Erasing 112
O. Viewing Magnified Images ...................... 112
:-: Viewing Images in Sets of Nine (Index Playback) ..... 113
Checking the Focus and Peoples' Expressions
(Focus Check Display) ............................ 114
Jumping to Images ............................ 116
Organizing Images by Category (My Category) ......... 118
Trimming a Portion of an Image ..................... 121
Viewing Movies .................................. 123
Editing Movies ................................... 125
Rotating Images in the Display ...................... 127
Playback with Transition Effects ..................... 128
Automated Playback (Slide Shows) .................. 129

I
4ITable of Contents
Red-Eye Correction Function ....................... 134
Adding Effects with the My Colors Function ............ 138
Resizing Images ................................. 140
Attaching Sound Memos to Images .................. 142
Sound-Only Recording (Sound Recorder) ............. 144
Protecting Images ................................ 145
Erasing Images .................................. 149
Print Settings/Transfer Settings 154
Setting the DPOF Print Settings ..................... 154
Setting the DPOF Transfer Settings .................. 161
Configuring the Camera 163
Setting the Power Saving Function ................... 163
Setting the World Clock ............................ 164
Formatting Memory Cards ......................... 166
Resetting the File Number ......................... 168
Creating an Image Destination (Folder) ............... 170
Setting the Auto Rotate Function .................... 172
Resetting Settings to Their Default Values ............. 173
Connecting to a TV 174
Shooting/Playback Using a TV ...................... 174
Customizing the Camera (My Camera Settings) 175
Changing My Camera Settings ...................... 175
Registering My Camera Settings .................... 176
Troubleshooting 178
List of Messages 188
Appendix 192
Safety Precautions ............................... 192
Handling Precautions ............................. 196
Using an AC Adapter Kit (Sold Separately) ............ 200
Using an Externally Mounted Flash (Sold Separately) .... 201
Camera Care and Maintenance ..................... 203
Specifications ................................... 204
Index 214
Functions Available in Each Shooting Mode 222

Table of Contents I5
• Symbol Conventions in this Guide
l_ us_.these_ -- Mode switch position
............ of....... " / Shooting (l_l)/Movie (,m)/
.... J Playback (i-_'1)
_.%_"o'_"_'_' _ Some functions may not be
_,.-_,._._o_,,_,,_.._,_._,._ available in certain shooting
0.,_._._=._.,._.,.._,_0-_0._..=._0_ modes, tf there is no notation
and n_ of _¢t* 1-10),
.._,._,._._,_._._,_[_.._ to that effect, the function
._, may be used in all modes.
O- This mark denotes issues that may affect the camera's
operation.
-This mark denotes additional topics that complement the
basic operating procedures.
IExplanations in this guide are based on the camera's default settings
at time of purchase.
Specifications are subject to change without prior notice. As a result,
the illustrations and screenshots used in this guide may differ from
the actual camera.
You can use SD memory cards, SDHC (SD High )
Capacity) memory cards, MultiMediaCards, MMCptus
cards and HC MMCplus cards in this camera. These
cards are collectively referred to as memory cards in this
guide.

6IPlease Read
Please Read
Test Shots
Before you try to photograph importantsubjects, we highly recommend that
you shoot several trial images to confirm that the camera is operating and
being operated correctly.
Please note that Canon Inc., its subsidiaries and affiliates, and its
distributors are not liable for any consequential damages arising from any
malfunction of a camera or accessory, including memory cards, that results
inthe failure of an image to be recorded or to be recorded in a way that is
machine readable.
Warning Against Copyright Infringement
Please note that Canon digital cameras are intended for personal use and
should never be used in a manner that infringesupon or contravenes
internationalor domestic copyright laws and regulations. Please be advised
that in certain cases the copying of imagesfrom performances, exhibitions,
or commercial properties by means of a camera or other device may
contravene copyright or other legal rights even if the image was shot for
personal use.
Warranty Limitations
This camera's warranty isonly effective in the country of sale. If a problem
arises while the camera is in use abroad, please convey it back to the
country of sale before proceeding with a warranty claim to a Canon
Customer Support Help Desk.
For Canon Customer Support contacts, please see the customer
support list supplied with your camera,
Please set the camera's video signal format to the one used in your region
before using it with a TV monitor.
Language Setting
Please see Setting the Display Language (p. 13) to change the language
setting.

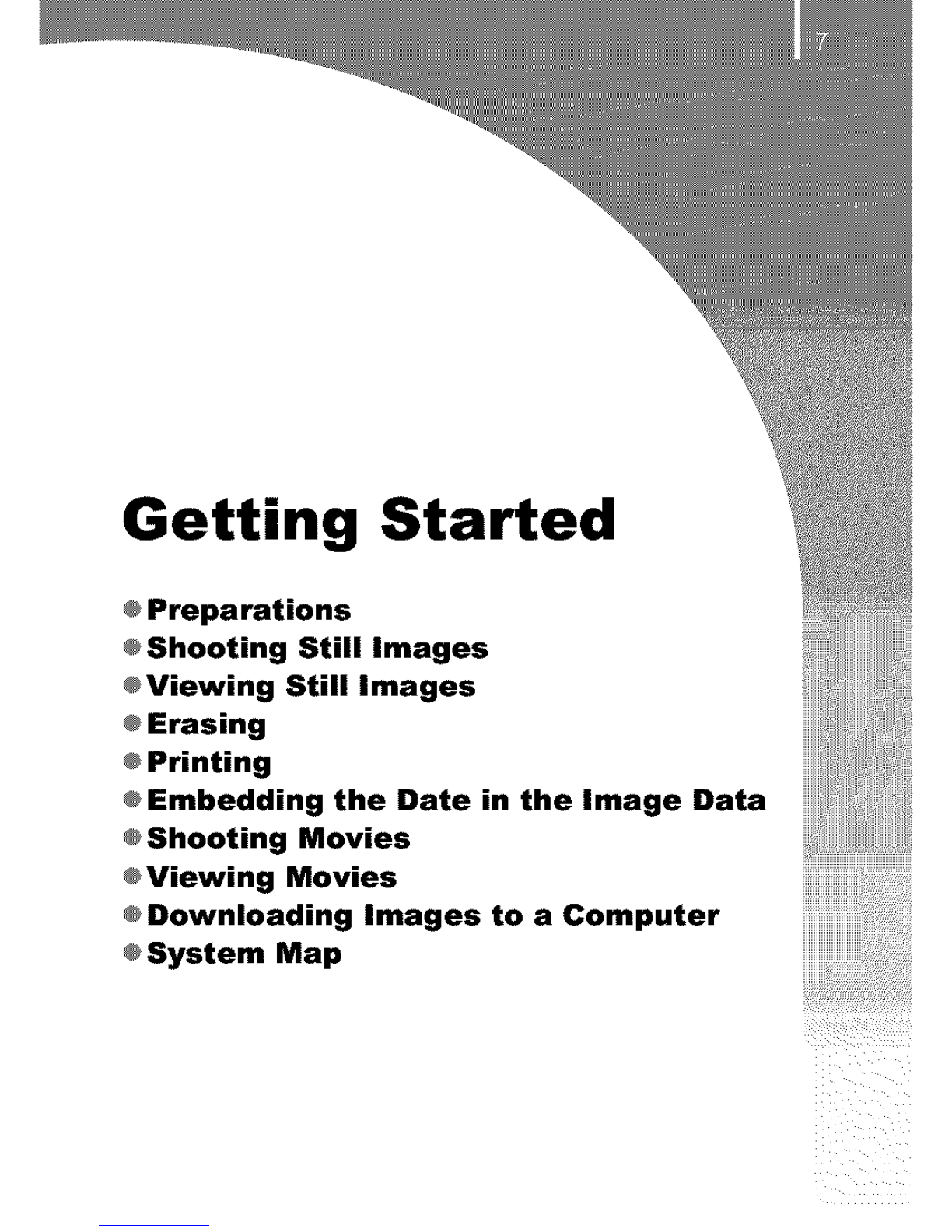

Getting Started
®Shooting Still Images
®Viewing Still Images
®Embedding the Date in the Image Data
®Shooting Movies
®Viewing Movies
®Downloading Images to a Computer
®System Map

8IPreparations
ICharging the Battery
"1_Insert the battery into the battery charger.
Align these symbols
2, Plug the battery charger (CB-2LY) into a power outlet,
or attach the power cord to the battery charger (CB-
2LYE) and plug it into a power outlet.
• Battery charger modet names and types vary by region.
Charge Indicator
Charging:
For CB-2LY For CB-2LYE
3o Remove the battery after charging is complete.
• Chargingtakes approximately 1hour 55 minutes
Charge Indicator
Charging Complete:
Lights green

PreparationsI 9
To protect the battery and prolong its life, do not charge it for
longer than 24 hours continuously.
IInstalling the Battery and Memory Card
"1. Slide the cover (_)) and open it ((_)).
®
2, Insert the battery.
•Itwill lock into place with aclick.
3. Insert the memory card until it clicks into place.
Write Protect Tab
(Only SD and SDHC memory cards)
•Confirm that the write protect tab is
I unlocked (only SD and SDHC
| memory cards).
• Check the memory card for the
correct orientation.
Ensure that the memory card is correctly oriented before
inserting it in the camera. Inserting it backward may cause the
camera to fail to recognize the memory card or to malfunction.

10 IPreparations
4,, Close the cover ((_, (_).
®
To Remove the Battery
Press the battery lock in the direction of
the arrow ((_) and pull the battery out
(®).
®
®
To Remove the Memory Card
Use a finger or the toggle on the wrist strap to push the memory card in
until you hear a click, then release it.

I
Preparations _ 11
Attaching the Wrist Strap
Use the wrist strap when using the camera to prevent yourself from
accidentally dropping the camera.
Toggle
You can change its position on the strap. The
toggle can be used to open the terminal cover
and when inserting or removing memory cards.
To Open the Terminal Cover
Hook your fingernail or the wrist strap toggle
under the bottom edge of the terminal cover
to open it.

12 IPreparations
ISetting the Date and Time
The Date/Time settings menu will appear the first time the power is
turned on.
Power Button
"1. Press the power button.
2. Select the month, day, year and
time, and the display order.
1. Use the ÷or 4, button to select a
category.
2. Use the ÷or ,Ik button to set the
value.
3. Press the _,c_ button.
To Change a Previously Set Date/Time
Use the following procedures to display the Date/Time settings
window, and then perform Steps 2 and 3 above.
t. Press the _ button.
2. Use the 4, or 4, button to select
the [] (Set up) menu.
3o Use the ÷or 4, button to select
[Date/Time].
4, Press the (_ button.
Button
Button

PreparationsI13
_] •A rechargeable lithium battery is built into the camera to
save such settings as the date/time. Insert a charged battery
into the camera. Or if you use the separately sold AC
Adapter Kit ACK-DC40, the battery will charge in about four
hours. It will charge even if the camera is turned off.
• The date/time settings may be lost after approximately three
weeks if you remove the main battery. Reset the date/time
settings if this occurs.
iSetting Display Language
the
You can change the language displayed in the LCD monitor menus
and messages. Power Button
÷1÷1÷1+ Buttons OButton
"1 _ Press the power button.
2. Set the mode switch to [] (Playback).
3_ Hold down the _button and press the 0button.
4, Use the ÷, ÷, ÷or "k button to select a language.
5, Press the @button.

14 I Shooting Still Images
_, /,_ Buttons Button
'1 _ Press the power button.
• The start-up sound will play and the start-up image will display in
the LCD monitor.
• Pressing the power button again turns the power off.
2. Select a shooting mode.
1. Set the mode switch to O
(Shooting).
2. Press the _button.
v
3. Use the 4. or .k button to select
[] (Auto).
4. Press the _button.
3. Aim the camera at the subject.
/Avoiding Camera Shake
Keep your arms tight against your body while
holding the camera firmly by the sides. Using a
tripod is also effective.
_-, Use the wrist strap to avoid
l _ dropping the camera during use.
4. Press the shutter button lightly (press halfway) to set
the focus.
• When the camera focuses, it beeps twice and the indicator lights
green (orange when the flash fires).
Wrist Strap

I
Shooting Still Images I 15
5. Without changing anything else, press the shutter
button all the way (press fully) to shoot.
• The shutter sound will play once and the image will record.
• Recorded images are displayed on the LCD monitor for
approximately 2 seconds immediately atter shooting (Rec.
review). Shooting is possible while the image is displayed.
• Holding down the shutter button after taking a shot will continue
displaying the image.
• The indicator will blink green and the file will record to the
memory card.
To Shoot images in Focus
The camera automatically sets the focus when you press the shutter
button halfway*.
* The shutter button has a two-stage action. Pressing it down to the first stage is
referred as "pressing halfway".
Correct Incorrect

16 I Viewing Still Images
_"/'_ Buttons
ModeSwitch
'1 _ Press the power button.
2, Set the mode switch to [] (Playback).
3. Use the <, or .l, button to display
the image you wish to view.
• Use the 4- button to move to the
previous image and the ,_ button to
move to the next image.
•The images advance more quickly if
you keep the button pressed
continuously, but they will appear
coarse.
• theplaybackFollowing[]last(Play)[Resumei i° eiiher iLasi seeni* °r iLasi sh°ii in iheimagemodethemenuprocedureviewed(*atl°wsDefaultwillyoubelowsetting),displayto specifywill(ResumeIfdisplayyoutheselectimagethePlayback).last[Lastto image,displayseen],in...............
regardless of the [Resume] setting.
- Shooting an image
- Changing the memory card
- Editing an image on the memory card using a computer

Erasing I 17
_ Button
_:_ Button
i•Press the power button.
2, Set the mode switch to [] (Playback).
3. Use the +or "k button to select an image to erase and
press the ,_ button.
4. Confirm that [Erase] is selected
and press the _button.
•Toexit instead oTerasing, select
[Cancel]. HHHHH
_1_ lease notethat erasedimagescannot be recovered Exercse .......................................
adequatecaution before erasing an image.

18 I Printing
_. /,_ Buttons
Interface Cable
t. Connect the camera to a direct print compatible printer.
• Hook your fingernail or the wrist strap toggle under the bottom
edge of the camera's terminal cover to open it, then insert the
interface cable all the way into the connector.
• See the printer's user guide for connection instructions.
• Printing is also possible using a non-Canon-brand printer
provided the printer is PictBridge compliant. Refer to the Direct
Print User Guide for details.
2, Turn on the printer.
3_ Set the camera's mode switch to [] (Playback) and
turn on the power.
•The _.M button will light blue.
4. Use the ÷ or ._ button to select an image to print and
press the _,,_ button.
• The _ button will blink blue and printing will start.
• A1_eryou finish printing, turn off the camera and the printer and
disconnect the interface cable.
