Printer Software Guide
(For Canon CP Printer Solution Disk Version 4)
Macintosh

2
Contents
Safety Precautions ....................................................................................3
Read This First ..........................................................................................4
About the Manuals ............................................................................4
Printing Flow Diagram .......................................................................5
Printing .......................................................................................................7
Starting ImageBrowser .....................................................................8
Selecting an Image for Printing .........................................................8
Selecting a Layout Type .................................................................10
Setting the Printer Driver for Printing ..............................................13
Printing Duplicate Images on an 8-Label Sheet ..............................16
Printing Different Images on an 8-Label Sheet ...............................19
Merging Images to Print a Panorama .............................................21
Printing Part of an Image (Trimming) ..............................................22
Printing with Image Quality Correction ............................................24
Appendices ..............................................................................................26
About the Print Area and Pixels ......................................................26
Print Area ...................................................................................26
Number of Pixels .......................................................................28
Troubleshooting ..............................................................................29
Error Messages ...............................................................................30

3
Safety Precautions
The precautions noted within this guide are intended to instruct you in the safe and
correct use of the products and to prevent injuries or damage to yourself, other
persons and property. Please read and ensure that you understand them before
proceeding to other sections of the guide.
Trademark Acknowledgments
• Macintosh and Mac OS are trademarks of Apple Computer Inc., registered in the United States and other
countries.
• Other names and products not mentioned above may be registered trademarks or trademarks of their
respective companies.
Copyright © 2005 Canon Inc. All rights reserved.
This symbol indicates topics that could lead to death or serious injury if ignored
or handled incorrectly.
Do not play the supplied CD-ROM(s) in any CD player that does not support data CD-ROMs. Playing the
CD-ROM(s) in an audio CD player (music player) could damage the speakers. It is also possible to suffer
from hearing loss from listening with headphones to the loud sounds of a CD-ROM played on a music CD
player.
Disclaimer
• While every effort has been made to ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change
the specifications of the hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken
operation or malfunction of the camera, the software, memory cards, personal computers, peripheral
devices, or use of non-Canon memory cards.
Symbols Used in This Document
Indicates important items or prohibited actions that should always be observed when
operating the machine. These should always be read to avoid damage to the
machine or improper operation.
Indicates items for reference or supplementary information that should be noted by
users.
Warning
Warning

4
Read This First
About the Manuals
These user guides describe how to connect the printer to your computer and
print images.
Printer User Guide
Contains the information necessary to print from your
computer, including printer preparation and handling
notes, names of parts, installation of necessary software
and the printer driver, and connection of the printer to
your computer. Please read before using the printer.
This user guide
Describes how to print using the software provided on the
supplied CD-ROM (Canon CP Printer Solution Disk).
Explanations are based on Mac OS X (v10.3). If you are using another version of
Mac OS, the actual screen contents and procedures may vary slightly from these
shown.
Detailed explanations of operating procedures are given in the [Help]
accompanying each software application.
If a problem occurs, refer to the following:
• Trouble with the printer itself: See the Printer User Guide.
• Printing problems: See this user guide.

5
Printing Flow Diagram
Follow the steps outlined below to prepare the printer and install the
necessary software on your computer to enable printing.
Prepare the printer.
Insert the paper cassette and ink cassette into the printer.
See the Printer User Guide.
Install the software and printer driver on your
computer.
Install the necessary software and printer driver on your
computer from the CP Printer Solution disk.
See the Printer User Guide.
Connect the printer to your computer.
Connect the printer with a commercially available USB
cable, and the turn on the printer.
See the Printer User Guide.
Continued next page.

6
Select an image to print.
Start ImageBrowser and select an image to print.
See
Starting ImageBrowser (➡p.8),
Selecting an Image for Printing (➡p.8)
in this user guide.
Printing.
Print on standard sheet or full-size labels.
To print on an 8-label sheet,
see
Printing Duplicate Images on an 8-Label Sheet (➡p.16) or
Printing Different Images on an 8-Label Sheet (➡p.19) in this
user guide.
See
Selecting a Layout Type (➡p.10),
Setting the Printer Driver for Printing (➡p.13)
in this user guide.

7
Printing
ImageBrowser is an application included on the Canon CP Printer Solution
Disk. This application makes it easy to print. This section describes how to
use ImageBrowser to print images with the printer.
Before printing, verify that the printer is on, and that the printer is properly
connected to your computer with a USB cable.
Printers and computer displays use different color reproduction methods,
and lighting conditions and display settings affect the appearance of colors
on your computer’s display. Therefore, the colors in prints may differ from
what you see on the screen. This is not a printer malfunction.
For information on how to install ImageBrowser, see the Printer User Guide.

8
Starting ImageBrowser
1 Double-click the [Canon ImageBrowser] icon on the desktop.
If the [Canon ImageBrowser] icon does not appear on the desktop, double-click
the [Canon Utilities] folder, [ImageBrowser] folder, and [ImageBrowser] icon.
Selecting an Image for Printing
1 Select an image you want to print from the browser area. Click the
(Print) button to display a menu. From the menu, select
[Layout printing].
To use index printing, display the Index Printing window by clicking the
(Print) button and selecting [Index printing] from the menu that
appears. Set thumbnail and paper sizes, then click the [Start printing]
button to start index printing.
Browser
area

9
The Print window and Layout Options window appear.
Print window
You can check the
layout of the
image.
Layout Options
window
You can adjust the
settings for
printing.
When [Prints to the Canon Compact Photo Printer] is not
displayed, install the printer driver.

10
Selecting a Layout Type
This example prints a single image, fit to a whole postcard size sheet, with
no borders.
1 In the Layout Options window, select “Prints to the Canon
Compact Photo Printer”, select “Photo printer standard printing”,
and then click the [Next] button.
Select the desired image layout in the [Layout Options] window.
Custom layout printing Freely specify the size and position of
print images.
Photo printer standard printing Prints one image over the entire page.
Photo printer multiple printing Prints on an 8-label sheet.
• Printing duplicate images on an
8-label sheet (➡p.16)
• Printing different images on an
8-label sheet (➡p.19)
The image to be
printed appears.

11
2 Click the [Page Setup] button.
3 Select your printer in [Format for], specify [Paper Size] and
[Orientation], and then click the [OK] button.
Select the paper size.
Select the paper
orientation.
Select your printer.

12

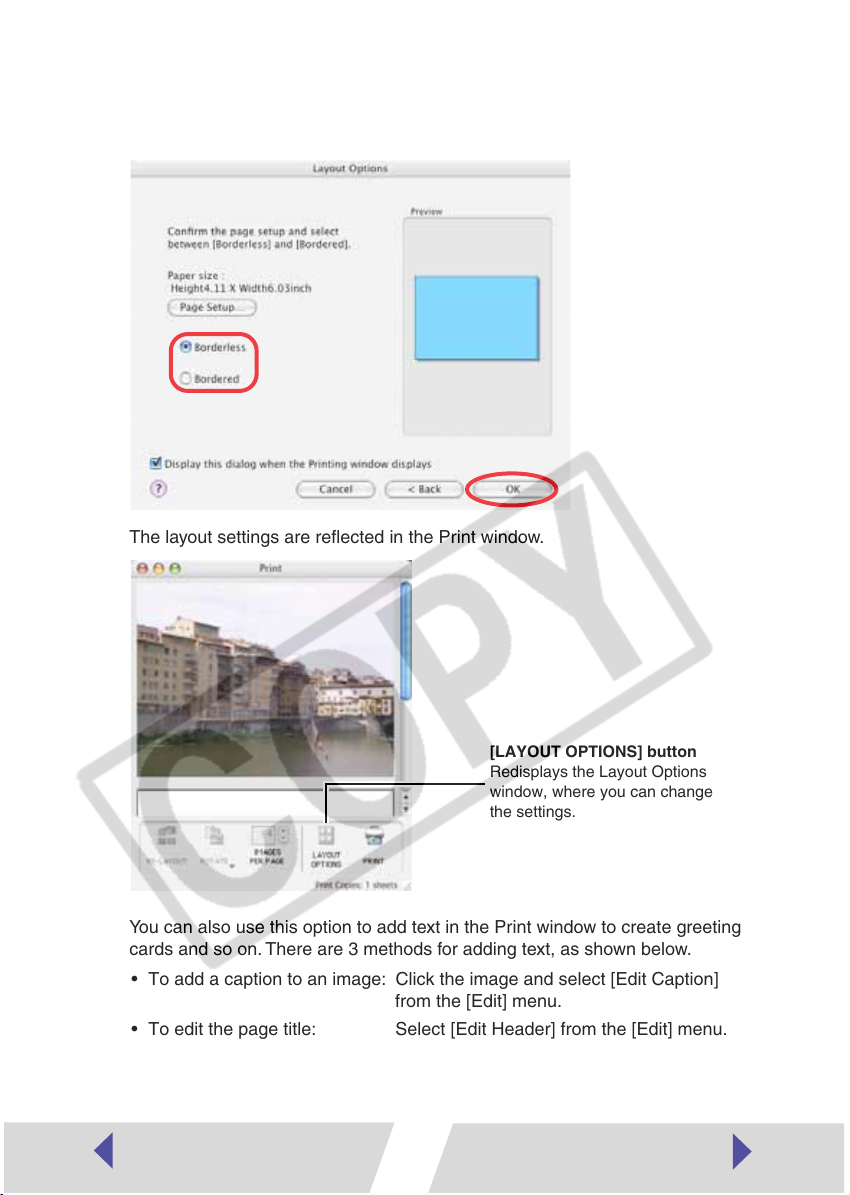

4 After returning to the Layout Options window, select “Bordered”
or “Borderless”, then click the [OK] button.
If you select “Bordered”, the image is automatically resized to fit within the print.
The layout settings are reflected in the Print window.
You can also use this option to add text in the Print window to create greeting
cards and so on. There are 3 methods for adding text, as shown below.
• To add a caption to an image: Click the image and select [Edit Caption]
from the [Edit] menu.
• To edit the page title: Select [Edit Header] from the [Edit] menu.
• To insert text: Select [Add Text] from the [Edit] menu.
[LAYOUT OPTIONS] button
Redisplays the Layout Options
window, where you can change
the settings.

13
Setting the Printer Driver for Printing
This section describes printing with modified printer driver settings.
1 Click the (PRINT) button.
2 Select your printer in [Printer].
3 After selecting [Color], adjust the brightness and color of the print
result.
For details, check the help menu.
This pop-up menu
contains various settings.
(Do not change the
[Layout] setting.)
Adjust the brightness
and contrast of print
results.
Adjust the color of
print results.

14
4 Select [Copies & Pages], and set the various options.
When printing in the background, printing cannot be resumed if the
printer runs out of paper while printing. To avoid this, load more sheets
of paper than required for the number of images to be printed.
Selecting [Save As] ([Save Custom Setting] for Mac OS X v10.1) from the
[Presets] pull-down menu allows you to save the current settings for [Copies
& Pages], [Layout], [Output Options] and [Color].
To enable the saved settings, select the name you specified when saving
with [Save As] (or select [Custom] for Mac OS X v10.1) from the [Presets]
pull-down menu.
When selecting
multiple images,
specify the pages
(images) to be printed.
To print multiple
copies of images,
enter the number of
prints desired.

15
5 Click the [Print] button.
Printing starts.

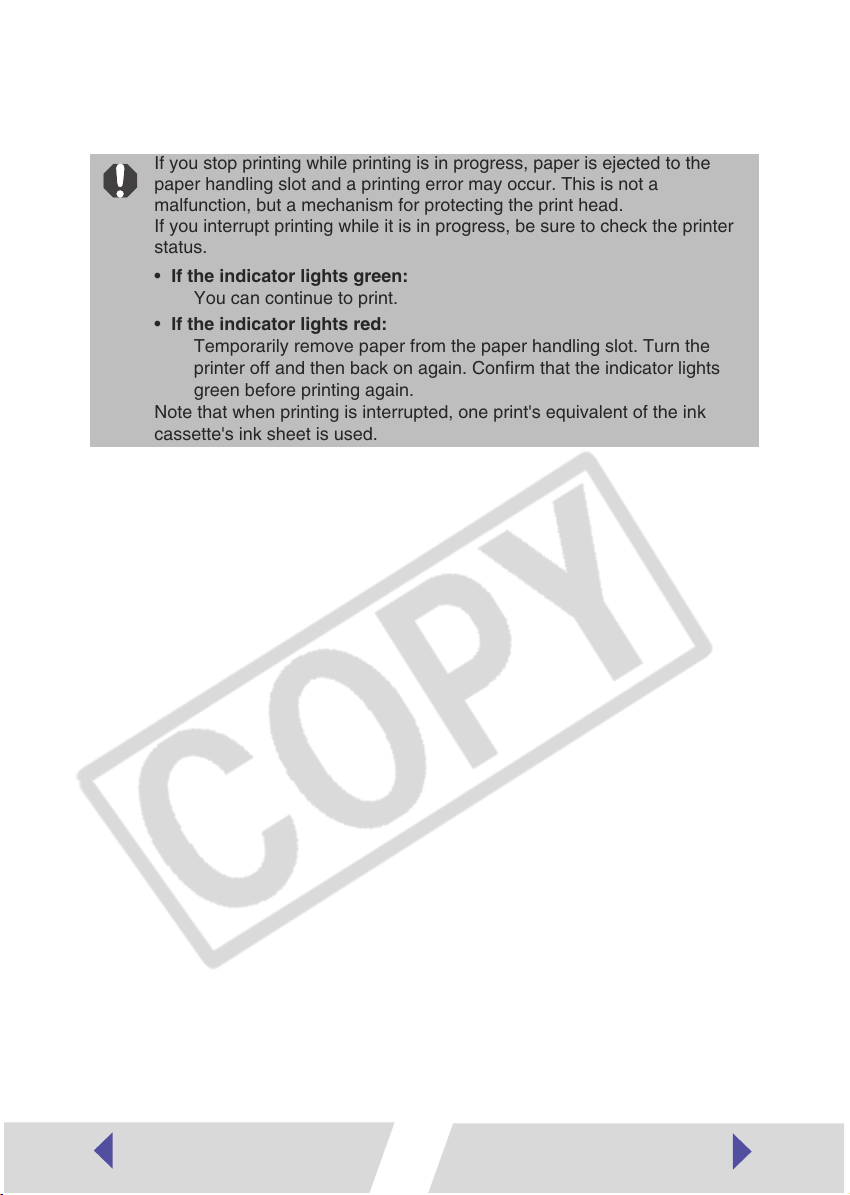

If you stop printing while printing is in progress, paper is ejected to the
paper handling slot and a printing error may occur. This is not a
malfunction, but a mechanism for protecting the print head.
If you interrupt printing while it is in progress, be sure to check the printer
status.
•If the indicator lights green:
You can continue to print.
•If the indicator lights red:
Temporarily remove paper from the paper handling slot. Turn the
printer off and then back on again. Confirm that the indicator lights
green before printing again.
Note that when printing is interrupted, one print's equivalent of the ink
cassette's ink sheet is used.

16
Printing Duplicate Images on an 8-Label
Sheet

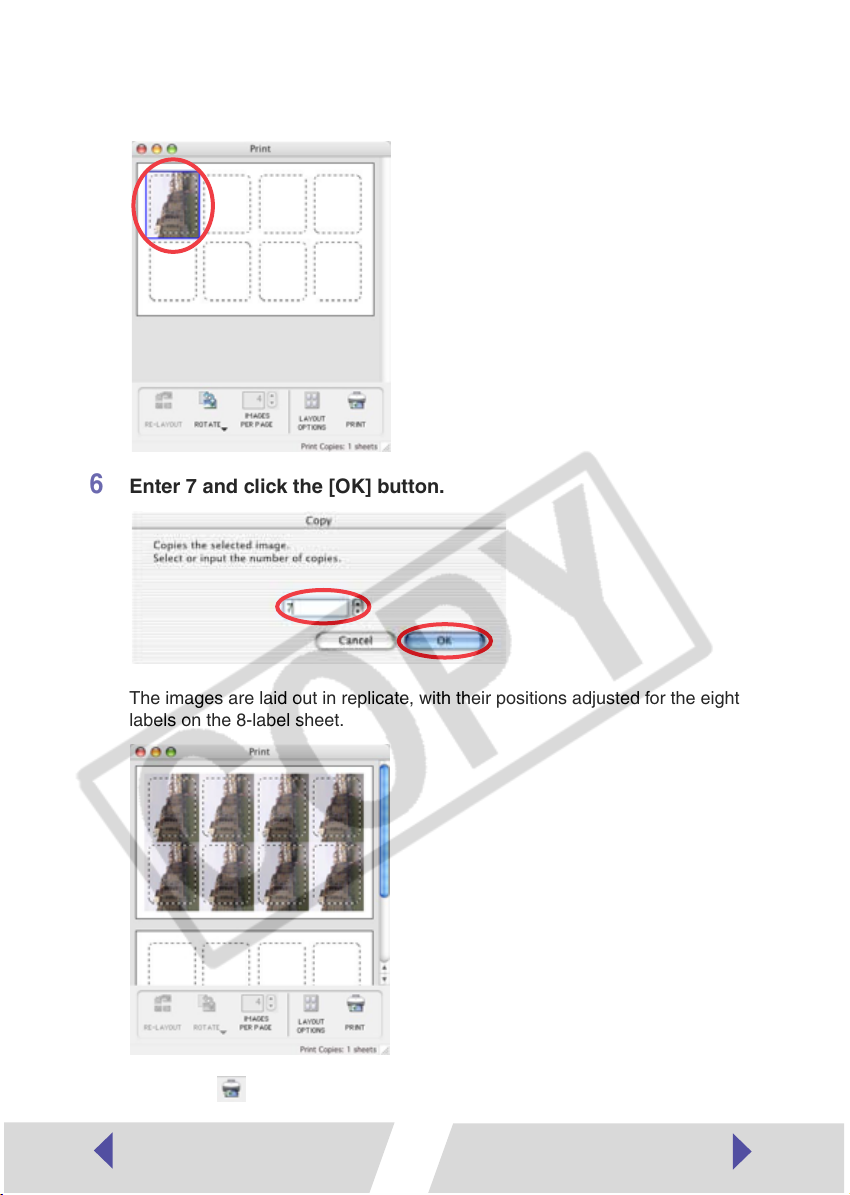

ImageBrowser allows you to print duplicate images. This makes it possible
to print multiple copies of the same image on an 8-label sheet.
1 In the Layout Options window, select “Prints to the Canon
Compact Photo Printer”, select “Photo printer multiple printing”,
and then click the [Next] button.

17
2 Click the [Page Setup] button.
3 Select your printer in [Format for], and select [CP_C size (L)] in
[Paper Size]. Then, specify the printing orientation and click the
[OK] button.
Images are resized to fit the label dimensions and are displayed in the Print
window.
4 After returning to the Layout Options window, click the [OK]
button.
Select landscape
orientation when
printing to an
8-label sheet.

18
5 Click the image and select [Copy Image] from the ImageBrowser
[Edit] menu.
6
Enter 7 and click the [OK] button.
The images are laid out in replicate, with their positions adjusted for the eight
labels on the 8-label sheet.
7
Click the (PRINT) button to start printing.

19
Printing Different Images on an 8-Label
Sheet
You can also print a combination of different images on an 8-label sheet.
1 In the Layout Options window, select “Prints to the Canon
Compact Photo Printer”, select “Photo printer multiple printing”,
and then click the [Next] button.
2
Click the [Page Setup] button.

20
3 Select your printer in [Format for], and select [CP_C size (L)] in
[Paper Size]. Then, specify the printing orientation and click the
[OK] button.
4 After returning to the Layout Options window, click the [OK]
button.
5 From the browser area, drag and drop the images to be printed
onto the Print window.
The different images are laid out with their positions adjusted for the eight labels
on the 8-label sheet.
6 Click the (PRINT) button to start printing.
Select landscape
orientation when
printing to an
8-label sheet.
