Canon 0273B001 - Elura 90 Camcorder User manual

E
Digital Video Software
Version 15 / Version 16
Instruction Manual

2READ CAREFULLY BEFORE USING
READ CAREFULLY BEFORE USING

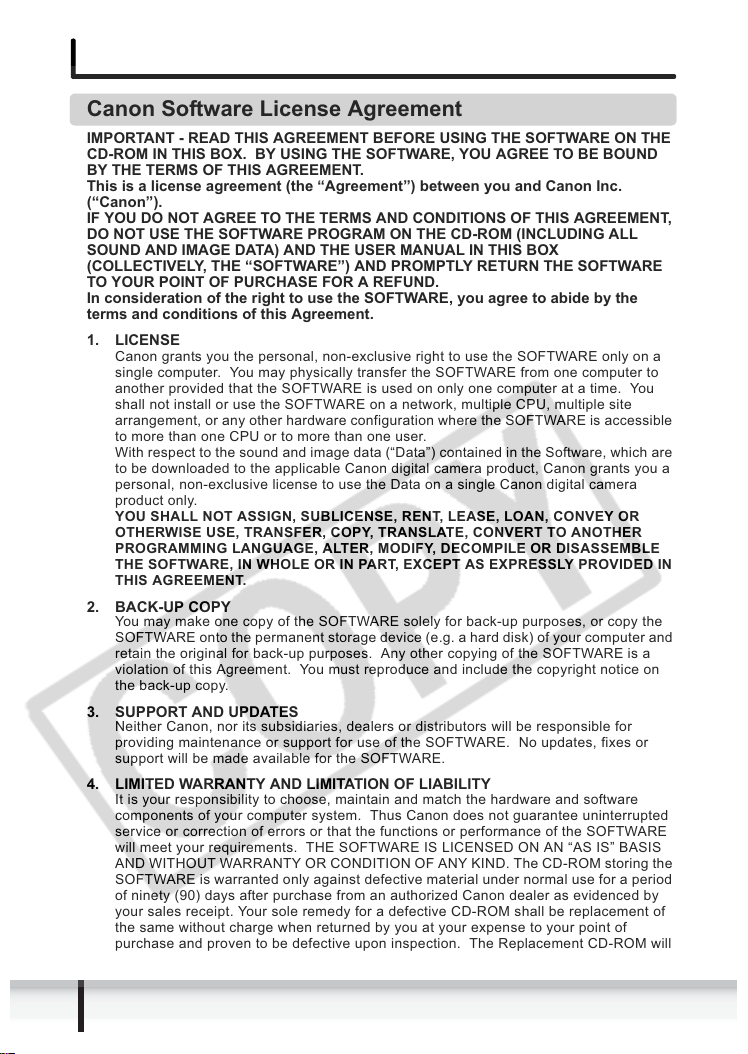

Canon Software License Agreement
IMPORTANT - READ THIS AGREEMENT BEFORE USING THE SOFTWARE ON THE
CD-ROM IN THIS BOX. BY USING THE SOFTWARE, YOU AGREE TO BE BOUND
BY THE TERMS OF THIS AGREEMENT.
This is a license agreement (the “Agreement”) between you and Canon Inc.
(“Canon”).
IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT,
DO NOT USE THE SOFTWARE PROGRAM ON THE CD-ROM (INCLUDING ALL
SOUND AND IMAGE DATA) AND THE USER MANUAL IN THIS BOX
(COLLECTIVELY, THE “SOFTWARE”) AND PROMPTLY RETURN THE SOFTWARE
TO YOUR POINT OF PURCHASE FOR A REFUND.
In consideration of the right to use the SOFTWARE, you agree to abide by the
terms and conditions of this Agreement.
1. LICENSE
Canon grants you the personal, non-exclusive right to use the SOFTWARE only on a
single computer. You may physically transfer the SOFTWARE from one computer to
another provided that the SOFTWARE is used on only one computer at a time. You
shall not install or use the SOFTWARE on a network, multiple CPU, multiple site
arrangement, or any other hardware configuration where the SOFTWARE is accessible
to more than one CPU or to more than one user.
With respect to the sound and image data (“Data”) contained in the Software, which are
to be downloaded to the applicable Canon digital camera product, Canon grants you a
personal, non-exclusive license to use the Data on a single Canon digital camera
product only.
YOU SHALL NOT ASSIGN, SUBLICENSE, RENT, LEASE, LOAN, CONVEY OR
OTHERWISE USE, TRANSFER, COPY, TRANSLATE, CONVERT TO ANOTHER
PROGRAMMING LANGUAGE, ALTER, MODIFY, DECOMPILE OR DISASSEMBLE
THE SOFTWARE, IN WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN
THIS AGREEMENT.
2. BACK-UP COPY
You may make one copy of the SOFTWARE solely for back-up purposes, or copy the
SOFTWARE onto the permanent storage device (e.g. a hard disk) of your computer and
retain the original for back-up purposes. Any other copying of the SOFTWARE is a
violation of this Agreement. You must reproduce and include the copyright notice on
the back-up copy.
3. SUPPORT AND UPDATES
Neither Canon, nor its subsidiaries, dealers or distributors will be responsible for
providing maintenance or support for use of the SOFTWARE. No updates, fixes or
support will be made available for the SOFTWARE.
4. LIMITED WARRANTY AND LIMITATION OF LIABILITY
It is your responsibility to choose, maintain and match the hardware and software
components of your computer system. Thus Canon does not guarantee uninterrupted
service or correction of errors or that the functions or performance of the SOFTWARE
will meet your requirements. THE SOFTWARE IS LICENSED ON AN “AS IS” BASIS
AND WITHOUT WARRANTY OR CONDITION OF ANY KIND. The CD-ROM storing the
SOFTWARE is warranted only against defective material under normal use for a period
of ninety (90) days after purchase from an authorized Canon dealer as evidenced by
your sales receipt. Your sole remedy for a defective CD-ROM shall be replacement of
the same without charge when returned by you at your expense to your point of
purchase and proven to be defective upon inspection. The Replacement CD-ROM will

E
3
READ CAREFULLY BEFORE USING
be warranted for the remainder of the original ninety (90) day warranty period of the
defective CD-ROM. The limited warranty does not apply if the failure of the CD-ROM
resulted from accident, abuse or misapplication of the SOFTWARE and shall not extend
to anyone other than the original user of the SOFTWARE.
EXCEPT AS SPECIFICALLY SET FORTH IN THIS PARAGRAPH 4, CANON,
CANON’S SUBSIDIARIES, DISTRIBUTORS AND DEALERS DISCLAIM ALL
WARRANTIES, OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE.
NEITHER CANON NOR ANY OF CANON’S SUBSIDIARIES, DISTRIBUTORS OR
DEALERS IS LIABLE FOR ANY DAMAGES HOWSOEVER CAUSED, INCLUDING
WITHOUT LIMITATION, DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR
DAMAGE INCLUDING LOSS OF PROFITS, EXPENSE OR INCONVENIENCE
HOWSOEVER CAUSED OR ARISING OUT OF THE SOFTWARE OR THE USE
THEREOF.
NEITHER CANON, NOR ANY OF CANON’S SUBSIDIARIES, DISTRIBUTORS OR
DEALERS SHALL HAVE ANY OBLIGATION TO INDEMNIFY YOU AGAINST ANY
CLAIM OR SUIT BROUGHT BY A THIRD PARTY ALLEGING THAT THE SOFTWARE
OR THE USE THEREOF INFRINGES ANY INTELLECTUAL PROPERTY OF SUCH
THIRD PARTY.
SOME STATES, PROVINCES OR LEGAL JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OF IMPLIED WARRANTIES, OR THE LIMITATION OR EXCLUSION OF
LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR PERSONAL
INJURY OR DEATH RESULTING FROM NEGLIGENCE ON THE PART OF THE
SELLER, SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY TO
YOU.
5. TERM
This Agreement is effective upon your using the SOFTWARE and remains in effect until
expiration of all copyright interests in the SOFTWARE unless earlier terminated. You
may terminate this Agreement by destroying the SOFTWARE. This Agreement will also
terminate without notice to you if you fail to comply with any of the terms of this
Agreement and you must then promptly return the SOFTWARE. In addition, Canon
may enforce its other legal rights.
6. U.S. GOVERNMENT RESTRICTED RIGHTS NOTICE
The SOFTWARE is a “commercial item,” as that term is defined at 48 C.F.R. 2.101 (Oct
1995), consisting of “commercial computer software” and “commercial computer
software documentation,” as such terms are used in 48 C.F.R. 12.212 (Sept 1995).
Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.72024 (June
1995), all U.S. Government End Users shall acquire the SOFTWARE with only those
rights set forth herein. Manufacturer is Canon Inc./30-2, Shimomaruko 3-chome, Ohta-
ku, Tokyo 146-8501, Japan.
7. EXPORT RESTRICTIONS
You agree to comply with all export laws and restrictions and regulations of the country
involved, and not to export or re-export, directly or indirectly, the SOFTWARE in
violation of any such laws and restrictions and regulations, or without all necessary
approvals.
8. SEVERABILITY
In the event that any provision of this Agreement is declared or found to be illegal by
any court or tribunal of competent jurisdiction, such provision shall be null and void with
respect to the jurisdiction of that court or tribunal and all the remaining provisions of this
Agreement shall remain in full force and effect.
9. CONTROLLING LAW
The terms of this Agreement as it relates to purchases of the Software in the United
States of America shall be governed and construed in all respects in accordance with
the laws and regulations of the State of New York, without reference to choice of law

4READ CAREFULLY BEFORE USING
principles. The terms of this Agreement as it relates to purchases of the Software in
Canada shall be governed by the laws of the province of Ontario.

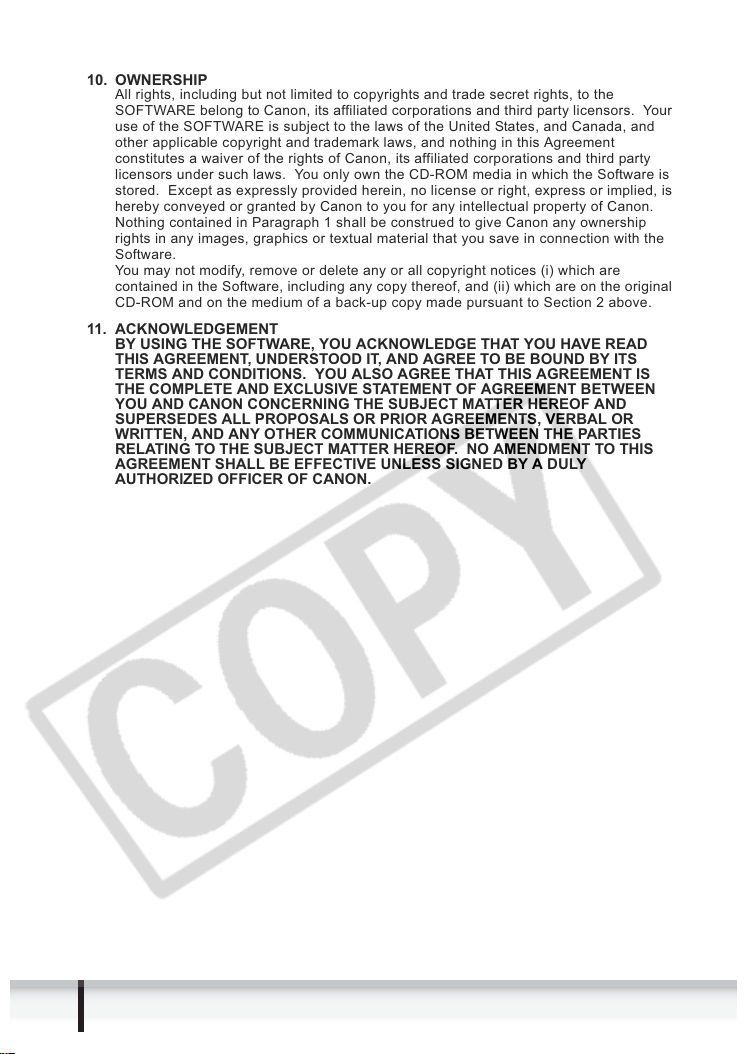

10. OWNERSHIP
All rights, including but not limited to copyrights and trade secret rights, to the
SOFTWARE belong to Canon, its affiliated corporations and third party licensors. Your
use of the SOFTWARE is subject to the laws of the United States, and Canada, and
other applicable copyright and trademark laws, and nothing in this Agreement
constitutes a waiver of the rights of Canon, its affiliated corporations and third party
licensors under such laws. You only own the CD-ROM media in which the Software is
stored. Except as expressly provided herein, no license or right, express or implied, is
hereby conveyed or granted by Canon to you for any intellectual property of Canon.
Nothing contained in Paragraph 1 shall be construed to give Canon any ownership
rights in any images, graphics or textual material that you save in connection with the
Software.
You may not modify, remove or delete any or all copyright notices (i) which are
contained in the Software, including any copy thereof, and (ii) which are on the original
CD-ROM and on the medium of a back-up copy made pursuant to Section 2 above.
11. ACKNOWLEDGEMENT
BY USING THE SOFTWARE, YOU ACKNOWLEDGE THAT YOU HAVE READ
THIS AGREEMENT, UNDERSTOOD IT, AND AGREE TO BE BOUND BY ITS
TERMS AND CONDITIONS. YOU ALSO AGREE THAT THIS AGREEMENT IS
THE COMPLETE AND EXCLUSIVE STATEMENT OF AGREEMENT BETWEEN
YOU AND CANON CONCERNING THE SUBJECT MATTER HEREOF AND
SUPERSEDES ALL PROPOSALS OR PRIOR AGREEMENTS, VERBAL OR
WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN THE PARTIES
RELATING TO THE SUBJECT MATTER HEREOF. NO AMENDMENT TO THIS
AGREEMENT SHALL BE EFFECTIVE UNLESS SIGNED BY A DULY
AUTHORIZED OFFICER OF CANON.

E
5

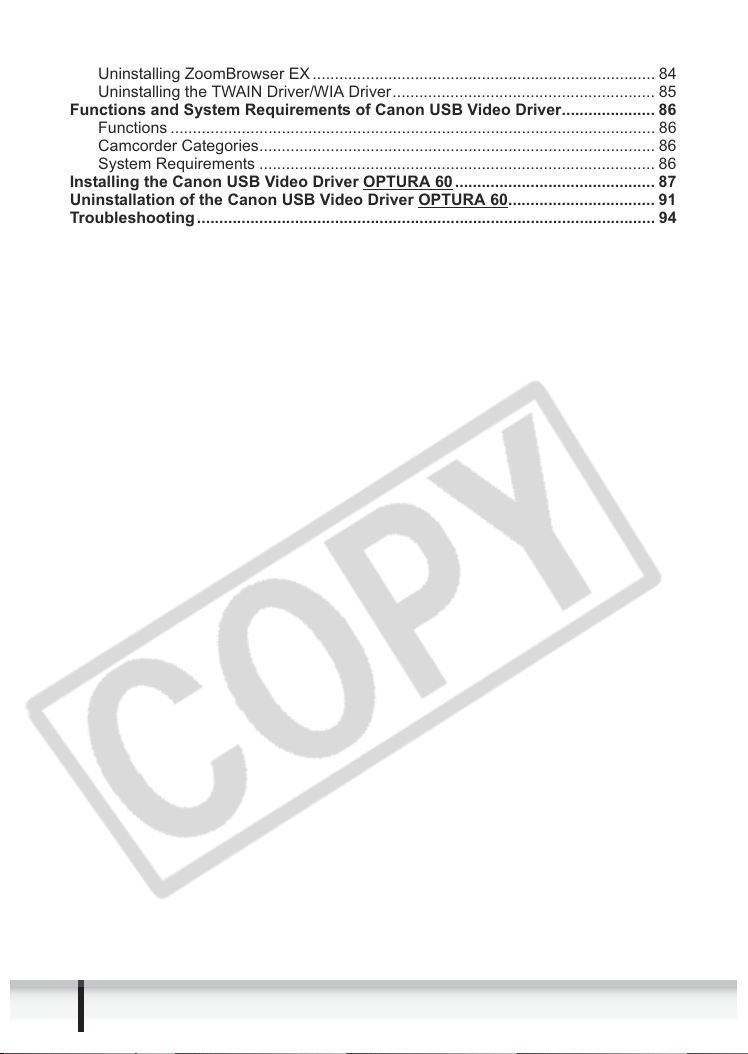

Contents
Contents
READ CAREFULLY BEFORE USING ........................................................................ 2
Canon Software License Agreement ..................................................................... 2
Read This First ........................................................................................................... 7
Checking Supplied Accessories ............................................................................ 8
System Requirements ............................................................................................... 9
What is Digital Video Software................................................................................ 10
Installing the Digital Video Software ...................................................................... 12
Connecting the Camcorder to a Computer............................................................ 16
Downloading Images (ZoomBrowser EX).............................................................. 18
Starting CameraWindow ...................................................................................... 19
Using the Computer to Download Images ........................................................... 20
Auto-Downloading ........................................................................................... 20
Auto-Downloading Settings ............................................................................. 21
Downloading the Selected Images from the CameraWindow ......................... 24
Using the Camcorder to Download Images (Direct Transfer Function) ............... 25
Setting the Direct Transfer Download Destination Folder ............................... 26
Using a PC Card Reader/Writer .......................................................................... 28
ZoomBrowser EX Windows .................................................................................... 29
Main Window ....................................................................................................... 29
[Image Viewer] Window ....................................................................................... 33
Organizing Images ................................................................................................... 35
Classifying the Images......................................................................................... 35
Renaming Multiple Files ...................................................................................... 36
Searching for Images........................................................................................... 38
Applying Star Ratings and Keywords................................................................... 40
Editing Movies.......................................................................................................... 42
Editing Movies ..................................................................................................... 42
Playing Back Movies............................................................................................ 46
Exporting Images ..................................................................................................... 48
Changing the File Type and Save........................................................................ 48
Exporting Movies ................................................................................................. 51
Saving on CD-R/RW Disks (Windows XP Only).................................................. 53
Adding Still Images from Your Computer to the Memory Card ............................ 55
Adding Still Images to the Memory Card ......................................................... 55
Adding Sample Images to the Memory Card .................................................. 57
Using Various Functions ......................................................................................... 60
Attaching Still Images to E-mail Messages.......................................................... 60
Running a Slide Show ......................................................................................... 62
Merging Panoramic Images (PhotoStitch) ........................................................... 63
Printing Still Images (PhotoRecord)..................................................................... 66
Adding Sound to an Image .................................................................................. 70
Applying the Camcorder Settings from the Computer......................................... 71
Customizing the My Camera Settings ................................................................. 71
Displaying the [My Camera] Window .............................................................. 71
Changing the My Camera Settings of the Camcorder .................................... 73
Adding Still Images to the [My Camera] Window ............................................ 74
Creating an Original Sound File and Adding it to the [My Camera] Window .. 75
Applying DPOF Settings ...................................................................................... 79

6Contents
Reviewing and Changing the Settings of the Camcorder .................................... 82
Uninstalling the Software ........................................................................................ 84
Uninstalling ZoomBrowser EX ............................................................................. 84
Uninstalling the TWAIN Driver/WIA Driver........................................................... 85
Functions and System Requirements of Canon USB Video Driver..................... 86
Functions ............................................................................................................. 86
Camcorder Categories......................................................................................... 86
System Requirements ......................................................................................... 86
Installing the Canon USB Video Driver OPTURA 60............................................. 87
Uninstallation of the Canon USB Video Driver OPTURA 60................................. 91
Troubleshooting ....................................................................................................... 94

E
7
Read This First
Windows
Read This First
Disclaimer
• While every effort has been made to ensure that the information contained in
this guide is accurate and complete, no liability can be accepted for any
errors or omissions. Canon reserves the right to change the specifications of
the hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form, by any means,
without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost
data due to mistaken operation or malfunction of the camcorder, the
software, memory cards (MultiMediaCards or SD Memory Cards), personal
computers, or peripheral devices, or due to use of a memory card not
formatted by a Canon camcorder.
Trademark Acknowledgments
• QuickTime is a trademark of Apple Computer, Inc.
•Microsoft
®and Windows®are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
• Other names and products not mentioned above may be registered
trademarks or trademarks of their respective companies.
© Canon Inc. 2005 All rights reserved.
Safety Precautions
Do not play the supplied CD-ROM(s) in any CD player that does not support
data CD-ROMs. Playing the CD-ROM(s) in an audio CD player (music player)
could damage the speakers. It is also possible to suffer from hearing loss from
listening with headphones to the loud sounds of a CD-ROM played on a music
CD player.

8Read This First
Checking Supplied Accessories
Use the following accessories to download recorded images from a memory card
to your computer.
• IFC-300PCU USB Cable
• DIGITAL VIDEO SOLUTION DISK
The explanations in this manual use mainly Windows XP screen shots. The
steps and windows may vary depending on your computer and the version of
software.

E
9
System Requirements
Windows
System Requirements
Please install the software on a computer meeting the following minimum
requirements.
Proper operation is not guaranteed on a dual CPU PC or on a user-built PC.
Proper operation is not guaranteed on any particular system, even if it meets
the requirements outlined above.
A CD-ROM drive is required to install the software.
In this Instruction Manual, product names are abbreviated as follows:
OS: Windows 98 (Second Edition)
Windows Me
Windows 2000 (Service Pack 4)
Windows XP Home Edition or Professional
(Service Pack 1 or 2)
* Proper operation is not guaranteed on an OS that has
been upgraded from a previous version.
Computer Model: Computers that come with above OS preinstalled and
have built-in USB ports.
CPU: Pentium 500 MHz or better
RAM: Windows 98/Windows Me: 128 MB or more
Windows 2000/Windows XP: 256 MB or more
Interface: USB: only preinstalled Windows 98/Windows Me/Windows
2000/Windows XP systems with built-in USB ports
Free Hard Disk Space: • Canon Utilities
- ZoomBrowser EX: 250 MB or more (Including the
PhotoRecord printing program)
- PhotoStitch: 40 MB or more
• Canon DV TWAIN Driver: 25 MB or more
• Canon DV WIA Driver: 25 MB or more
Display: 1024 u768 pixels or better/High Color (16 bit) or better
Microsoft®Windows®98 Second Edition: Windows 98
Microsoft®Windows®Millennium Edition: Windows Me
Microsoft®Windows®2000 (Service Pack 4): Windows 2000
Microsoft®Windows®XP Home Edition or Professional
(Service Pack 1 or 2): Windows XP

10 What is Digital Video Software
What is Digital Video Software
The following software will be installed by installing the Digital Video Software.
ZoomBrowser EX
• Downloading images from a memory card to your computer ( 18)
• Viewing downloaded images ( 29)
• Categorizing, organizing, and searching large volumes of images ( 35)
• Editing still images ( 34)
• Editing movies ( 42)
• Changing the data for still images and save them as new files ( 48)
• Viewing still images in a slide show ( 62)
• Adding sound to an image ( 70)
CameraWindow
• Selecting a method to download images in the Camera Control window
( 20)
• Viewing images recorded on a memory card ( 24)
• Applying DPOF (Digital Print Order Format) settings ( 79)
• Uploading My Camera settings to the camcorder ( 71)
The Remote Capture function is not supported by your camcorder.
The slide show function of the camcorder cannot be used.
PhotoStitch
Merging a series of overlapping still images into a single, seamless panorama
( 63)
PhotoRecord
• Printing still images with background, frame, title and comments ( 69)
• Printing indexes ( 67)
• Creating still image albums ( 66)
USB Driver
• Driver software that enables you to download images from a memory card to
a computer. Users of Windows XP do not need to install this driver software.
An OS standard driver will be installed automatically. ( 14)
• Windows 98/Windows 2000: Canon DV TWAIN Driver
• Windows ME: Canon DV WIA Driver
