Canyon CNS-DPM2 User manual

1
Article: CNS-DPM2 User Manual v1.0
TABLE OF CONTENTS
INTRODUCTION 2
SAFETY PRECAUTIONS 2
PACKAGE CONTENTS 3
HARDWARE OVERVIEW 4
BASIC OPERATION 5
STEP/TIME MODE 5
DISTANCE/STOPWATCH MODE 5
CALORIES/ODO MODE 6
SET CALORIES/DAY CALORIES MODE 6
PULSE RATE MONITOR FUNCTION 6
MOTION SENSITIVITY SWITCH 7
ATTACHING DEVICE 7
REPLACING BATTERY 7

2
Thank you for purchasing CANYON CNS-DPM2, a multi functional yet fashionable
pedometer equipped with latest technology designed specifically for sports-active
users. You have made an excellent choice and we hope you will enjoy all of its
exciting features. To fully utilize the functions and features of CANYON CNS-DPM2,
please read through the user manual carefully before using the product, and follow
all of the procedures in the manual to fully enjoy all features of the product.
Introduction
Safety Precautions
Please observe all safety precautions before using the device. Please follow all
procedures outlined in this manual to properly operate the device.
zDo NOT attempt to disassemble or alter any part of the device that is not
described in this guide.
zDo NOT place the device in contact with water or any other liquids. The device
is NOT designed to be liquid proof of any sort.
zIn the event of liquid entry into device interior, immediately disconnect the
device from the computer. Continuing use of the device may result in fire or
electrical shock. Please consult your product distributor or the closest support
center.
zTo avoid risk of electrical shock, do not connect or disconnect the device with
wet hands.
zDo NOT place the device near a heat source or directly expose it to flame.
zNever place the device in vicinity of equipments generating strong
electromagnetic fields. Exposure to strong magnetic fields may cause
malfunctions.
zAvoid exposing the device to extreme temperatures.
zAvoid taking a pulse reading while the finger is in direct sunlight. Strong sun
light will generate interference through the finger to the pulse sensor.

3
Package Contents
Product Image Item Name
CANYON CNS-DPM2 Main Unit
User Manual
Driver and Documentation CD

4

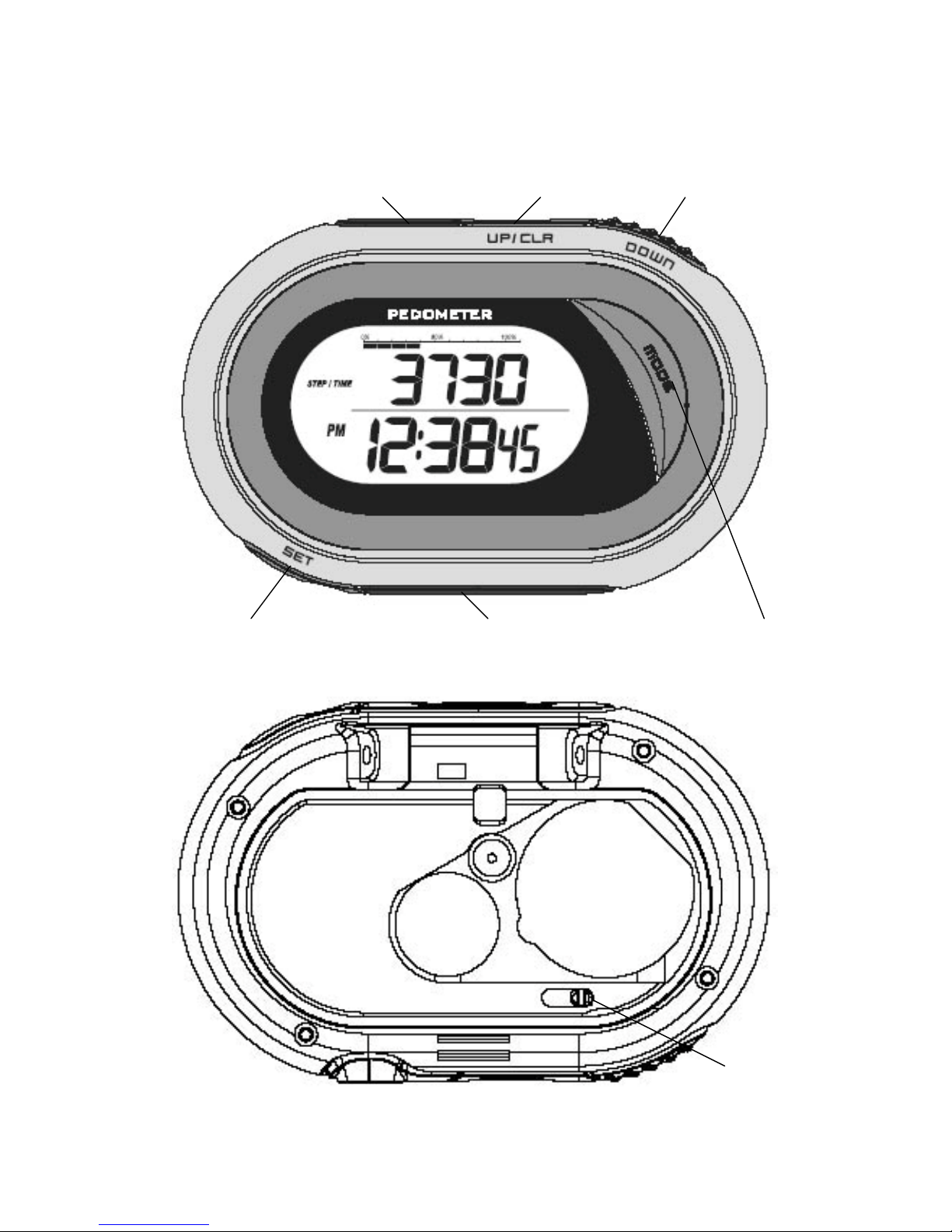

Hardware Overview
Scroll Down
Button
Scroll Up /
Clear Button
Set/Confirm
Button
Pulse Rate
Button
Mode Selection
Button
Pulse Sensor
Motion Sensitivity
Switch

5
Basic Operation
Step/Time Mode

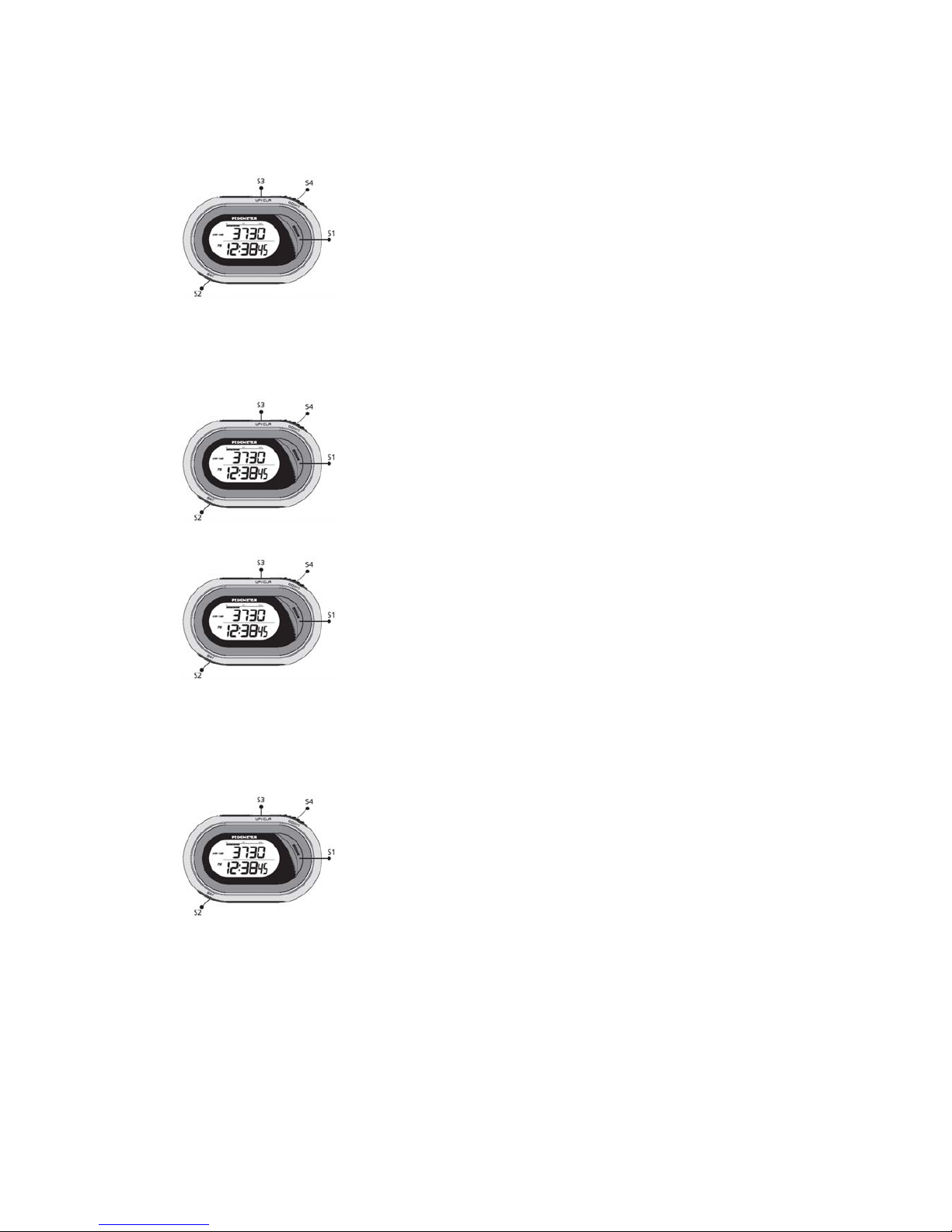

Press MODE to cycle through modes until STEP/TIME is
displayed as shown.
Step Count is displayed at the top portion of the screen
while Time is displayed at the bottom.
Press SET to adjust time/time format/personal data
setting:
zPress UP/CLR or DOWN to toggle between
12Hr/24Hr time format. Press SET to confirm.
zPress UP/CLR or DOWN to adjust hours and
minutes. Hold the buttons for faster scrolling. Press
SET to confirm.
zPress UP/CLR or DOWN to adjust stride distance.
Press SET to confirm.
zPress UP/CLR or DOWN to adjust user weight. Press
SET to confirm.
Distance/Stopwatch Mode

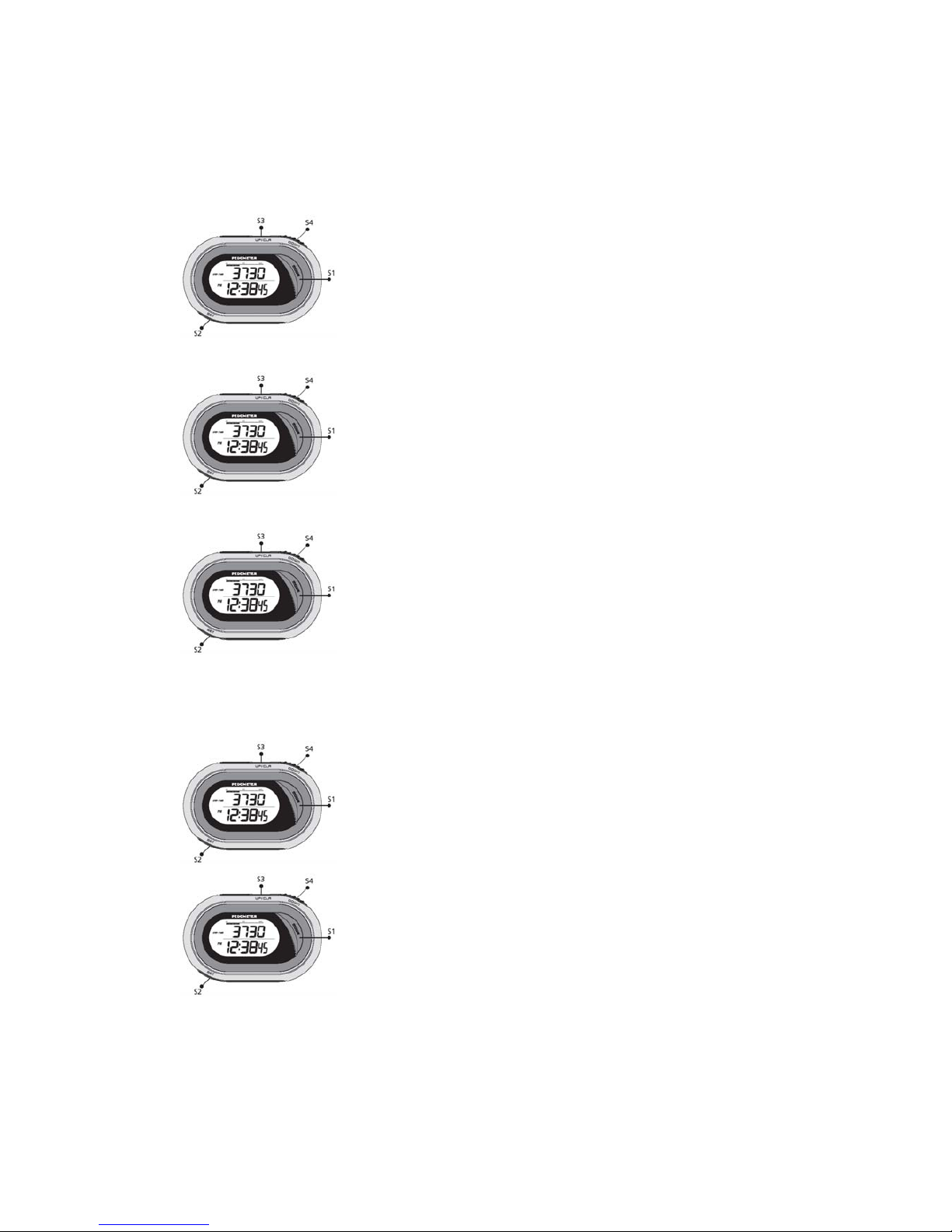

Press MODE to cycle through modes until DIST/STW is
displayed as shown.
Accumulated Distance Traveled is displayed at the top
portion of the screen while Stop Watch Function is
displayed at the bottom.
Press SET to begin counting timer. Press SET again to
stop and Press UP/CLR to reset counting timer.

6
Calories/ODO Mode
Press MODE to cycle through modes until KCAL/ODO is
displayed as shown.
Accumulated Calories Burned (unit: KCAL) is
displayed at the top portion of the screen while
Accumulated Distance Traveled is displayed at the
bottom.
Set Calories/Day Calories Mode
Press MODE to cycle through modes until
SETCAL/DAYCAL is displayed as shown.
Target Calories is displayed at the top portion of the
screen while Actual Daily Calories Burned is displayed
at the bottom.
zPress SET to adjust Target Calories. Press SET to
switch between digits and press UP/CLR to adjust
values.
zA bar scale located at the top edge of screen displays
the Percentage of Target Calories. Both Actual
Daily Calories Burned and Percentage of Target
Calories will be reset daily.
Pulse Rate Monitor Function
zPress Pulse to activate pulse reading mode.
zPlace a finger (preferably the index finger) on the
pulse rate sensor located at the edge of CANYON
CNS-DPM2. The device automatically begins the
pulse examination once the finger is detected.
NOTE:
zPlease avoid placing excessive pressure on the pulse rate sensor. The results
might not be accurate.
zThe device may take more than 10 seconds to correctly display the current
pulse rate. The pulse rate is measured with BPM (Beat per minute) unit.

7
Motion Sensitivity Switch
To adjust the device sensitivity in regards to user motions,
slide the motion sensitivity switch under the rear cover at
the back side of device.
Note:
Experiment with different settings to fine tune device
sensitivity conforming to individual user.
Attaching Device
CANYON CNS-DPM2 is equipped with a clip that can be conveniently clipped onto
either side of the hip portion of trousers or shorts. For best results keep the unit in
line with the “Crease line” of trouser pants.
Various actions may affect the accuracy of the step counting:
1. The device isn’t directly perpendicular to the ground. It is necessary to position
the device at least 60 degree to the ground.
2. Feet dragging, walking with sandals or sandals like shoes, or uneven footstep
in a crowded area or uneven surface.
3. Inside a vehicle (bicycle, motorcar, train, bus and other vehicles), unexpected
vibration might render the result differently.
4. Motion of standing up or sitting down.
Replacing Battery
1. Unlock the battery holder compartment by releasing
the screw.
2. Pull out the battery holder.
3. Take out the old battery and replace with a CR3032
(3V) battery. Please make sure the polarity is
aligned correctly as instructed on battery holder.
4. Push the battery holder back into the device and
fasten the screw.
