Caple RIF125 User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Built in Freezer
Instruction Manual
RIF125

2 3Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before
using your appliance. They provide you with important
information regarding the safe installation, use and
maintenance of the appliance as well as useful advice
for getting the best out of your freezer. Keep this booklet
in a safe place for future reference and pass on to any
future owner.
-This appliance is produced in accordance with all
applicable local and international standards and
regulations.
-This appliance is not designed for commercial use, it
is a household appliance only. It is not intended to be
used in:
› Staff kitchen areas in shops, offices and other
working environments.
› Bed and breakfast type environments.
› By clients in hotels, motels and other residential type
environments.
-This appliance may only be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, if
they are supervised whilst using it. They may only use
it unsupervised if they have been shown how to use it
in a safe manner. They must be able to recognise and
understand the dangers of misuse.
CONTENTS
Warnings 3
Environmental Protection 11
Technical Fiche 11
Electrical Connection 12
Product Overview 13
Using the Appliance 14
Ventilation Requirements 17
Installation 18
Built-in Installation 19
Installing the Furniture Door 23
Reversing the Furniture Door 25
Food Storage 28
Cleaning and Maintenance 33
Transport and Repositioning 35
Troubleshooting 36
Energy Saving Tips 39
Caple Contact Details 40

4 5Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference
SAFETY WITH CHILDREN:
-This appliance can be used by children aged from 8
years and above.
-Children less than 8 years of age should be kept away
unless continuously supervised or they have been
shown how to use it in a safe manner. Children must
be able to understand and recognise the possible
dangers caused by incorrect operation.
-Children should be supervised in the vicinity of
the appliance.
-Never allow children to play with the appliance.
-Cleaning and user maintenance should not be carried
out by children without supervision.
-Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
-Materials used for packaging (nylon, staplers,
Styrofoam etc) may cause harmful effects to children,
they should be disposed of immediately.
-Children can injure themselves on an open door. Do
not let children sit on the open door, lean against it or
swing on it.
TECHNICAL SAFETY:
-Maintenance and repair work must be made only
by authorised Caple service technicians. Installation
and repair work that is carried out by unauthorised
technicians may endanger you.
-While the appliance is under warranty, repairs should
only be undertaken by a Caple authorised service
technician. Otherwise the warranty will be invalidated.
-It is dangerous to alter or modify the specifications of
the appliance in any way. The requirements for this
appliance are stated on the rating label.
-Risk of injury due to electric shock. Any contact with
live connections or tampering with the electrical
or mechanical components of the appliance will
endanger your safety and may lead to the appliance
malfunctioning.
-To maintain the efficiency and safety of your appliance,
we recommend you always use original spare parts
and to call only our authorised Caple Service agents in
case of need.
-Multi-socket adapters and extension leads should
not be used to connect the appliance to the mains
electricity supply.
-The electrical system of this appliance may be used
safely only when it is correctly connected to an
efficient earthing system in compliance with the safety
standards currently in effect.
-Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
-The appliance must be connected with a properly
installed fused socket. The power supply (AC) and
voltage at the operating point must match with the

6 7Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference
details on the rating plate of the appliance.
-Consult a qualified electrician or service person if the
Grounding instructions are not completely understood,
or if you have doubts on whether the appliance is
properly grounded.
-The incorrect grounding may cause breakdown and
electric shock.
-We do not accept responsibility for any damages that
occur due to ungrounded usage.
-If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, a service
agent or similarly qualified persons in order to avoid a
hazard.
-A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 13 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.
INSTALLATION WARNINGS:
-Prior to installation, ensure that the local distribution
conditions (electricity voltage and frequency) and the
requirements of the appliance are compatible.
-During installation the appliance must be completely
disconnected from the mains electricity supply.
-Do not operate the appliance before it is fully installed.
-The appliance must be installed by an authorised
technician.
-Your appliance must be at least 10cm away from gas
hobs, gas ovens and heater cores.
-If your freezer is placed next to a deep freezer, there
must be at least 10cm between them to prevent
humidity forming on the outer surface.
-Caple is not responsible for any damage that may
be caused by defective placement and installation by
unauthorised persons.
-When unpacking the appliance, make sure that it is not
damaged during transportation.
-Check the appliance for any damage.
-In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
-Ensure that the supply cord is not wedged, trapped
or damaged during the installation. If the supply cord
is damaged, it must be replaced by a Caple service
technician or similarly qualified persons in order to
prevent a hazard.
-Never touch the power cord/plug with wet hands. This
may cause a short circuit or electric shock.
-The plug must be accessible after installation.
-Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
-Protect your appliance against atmospheric effects. Do
not expose it to effects such as sun, rain, snow etc.

8 9Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference
DURING USE:
-Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
-Place drinks with high alcohol content vertically in
the fridge compartment and make sure their tops are
tightly closed.
-If you know you will not be using the appliance for a
while switch it off from the main supply and unplug it.
-Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
-Do not place your appliance on a carpeted surface as
this will prevent adequate ventilation.
-When the appliance is not in use, we recommend you
turn it off, and isolate it from the electrical supply.
-This appliance must be used in the vertical position on
a flat surface.
-Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
-The manufacturer will not be held liable for any
damages that might arise out of incorrect or improper
use of the appliance.
-Do not touch frozen goods with wet hands. Your hands
may freeze to the frozen food.
-Do not eat ice-cream or ice cubes immediately after
they are removed from the freezer compartment.
Frozen food can cause frost burn to the lips and
tongue.
-Do not re-freeze partially or fully thawed food. This
may cause health issues such as food poisoning.
Defrosted food may only be re-frozen after it has been
cooked.
-Do not place glass bottles or cans containing
carbonated drinks in the freezer compartment as they
will burst when the contents freezes.
-If using the appliance to quickly cool drinks, do not
leave bottles inside the freezer compartment for more
than 1 hour, otherwise they could burst.
CLEANING AND MAINTENANCE:
-Clean the appliance thoroughly before use.
-Always switch off the appliance from the mains
isolating the electrical supply before any cleaning or
maintenance.
-Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
TRANSPORT:
-Always transport the appliance in its original packaging
and in an upright position. Never tilt the appliance
backwards by more than 45 degrees.
-This model uses R600a as a refrigerant, therefore you
should take care during transportation and installation
to prevent the cooler elements from being damaged.
R600a is an environmentally friendly and natural gas,

10 11Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference
but it is explosive. In the event of a leak due to damage
of the cooler elements, move your freezer away from
open flames or heat sources and ventilate the room
where the appliance is located for a few minutes.
-Never use the door handles for lifting.
-The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
-Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
-If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
-Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk

12 13Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed
for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are
coloured in accordance with the
following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked with
the letter E or with the earth symbol
9
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for
any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings
identifying the terminals in your plug proceed as
follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked
with the letter E or with the earth symbol
or coloured green and yellow.
The blue wire must be connected to the terminal
marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
BLUE
Neutral
Cord Clamp
RI5505 Fridge Freezer Instruction Manual.indd 9RI5505 Fridge Freezer Instruction Manual.indd 9 05/02/2020 14:3005/02/2020 14:30
or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
9
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for
any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings
identifying the terminals in your plug proceed as
follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked
with the letter E or with the earth symbol
or coloured green and yellow.
The blue wire must be connected to the terminal
marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
BLUE
Neutral
Cord Clamp
RI5505 Fridge Freezer Instruction Manual.indd 9RI5505 Fridge Freezer Instruction Manual.indd 9 05/02/2020 14:3005/02/2020 14:30
PRODUCT OVERVIEW
1. Thermostat
2. Drawers
3. Feet (adjustable feet at the front)
4. 1 x Ice Cube Tray, 1 x Ice Scraper
5. Installation Accessories

14 15Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference
USING THE APPLIANCE
› Before using your freezer, wipe all parts with a solution of warm water and a teaspoon of
sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the freezer
after cleaning.
› Remove all transport tapes and foam protection pieces. Clean the interior with a cloth
dampened in lukewarm soap and water. Rinse with clean water and dry.
› Your freezer may have an odour when it is operated for the first time. This is normal and the
odour will fade when your freezer starts to cool.
› When the appliance has been positioned, adjust the feet to ensure the unit is stable. This is
essential to ensure quiet running and proper door opening/closing.
WARNING
Connect to the electrical socket but do not switch the power to the freezer on for at least 3
hours. The coolant within the product needs time to settle after it has been transported and put
into position, failure to do this will affect the cooling performance of your appliance.
› Once the appliance has settled, locate the thermostat dial on the product, set to “5” and
switch the power on. The compressor will begin to work. Close the door.
› We recommend that the door is not opened for a minimum of 4 hours to allow the
appliance to reach the standard operating temperature.
› You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the
cooling system and through the coils or tubing at the rear of the appliance. When the
compressor is in operation you may hear a slight whirring sound. The thermostat controls
the operation of the compressor, and you may hear a slight click as it cycles in and out, this
is normal.
TEMPERATURE CONTROL DIAL:
The temperature in the appliance is controlled by the temperature control dial or thermostat
located at the top of the appliance. Rotate the control dial clockwise and anti-clockwise to
regulate the temperature inside the freezer.
1. TEMPERATURE CONTROL - OFF turns the appliance off, 1 is the warmest setting and 5 is
the coldest setting.
2. POWER INDICATOR - the green light will illuminate when the freezer is switched on.
3. HIGH TEMPERATURE WARNING INDICATOR - the red light will illuminate when the
temperature inside the freezer is too high. This may illuminate after the door has been
opened or when fresh food is added, and should switch off again once the temperature
within the freezer has stabilised.
4. SUPER FREEZE INDICATOR - the yellow light will illuminate when the super freezer
function has been activated with the super freeze button.
5. SUPER FREEZE BUTTON - should only be set 2 hours before a large amount of food is
placed in the freezer so the appliance will be at its coldest so it can rapidly freeze the food
that is added. After 24 hours, the function will be switched off automatically. During fast
freezing, press and hold the fast freezing button for 3 seconds, then the function will be
manually switched off immediately.
TEMPERATURE CONTROL DIAL:
The temperature in the appliance is controlled by the temperature control dial or thermostat
located at the top of the appliance. Rotate the control dial clockwise and anti-clockwise to
regulate the temperature inside the freezer.
1 2 34 5
1. Temperature Control - OFF turns the appliance off, 1 is the warmest setting and 5 is
the coldest setting. .
2. Power Indicator - the green light will illuminate when the freezer is switched on.
3. High Temperature Warning Indicator - the red light will illuminate when the
temperature inside the freezer is too high. This may illuminate after the door has been
opened or when fresh food is added, and should switch off again once the temperature
within the freezer has stabilised.
4. Super Freeze Indicator - the yellow light will illuminate when the super freezer
function has been activated with the super freeze button.
5. Super Freeze Button - should only be set 2 hours before a large amount of food is
placed in the freezer so the appliance will be at its coldest so it can rapidly freeze the food
that is added. After 24 hours, the function will be switched off automatically. During fast
freezing, press and hold the fast freezing button for 3 seconds, then the function will be
manually switched off immediately.

16 17Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference

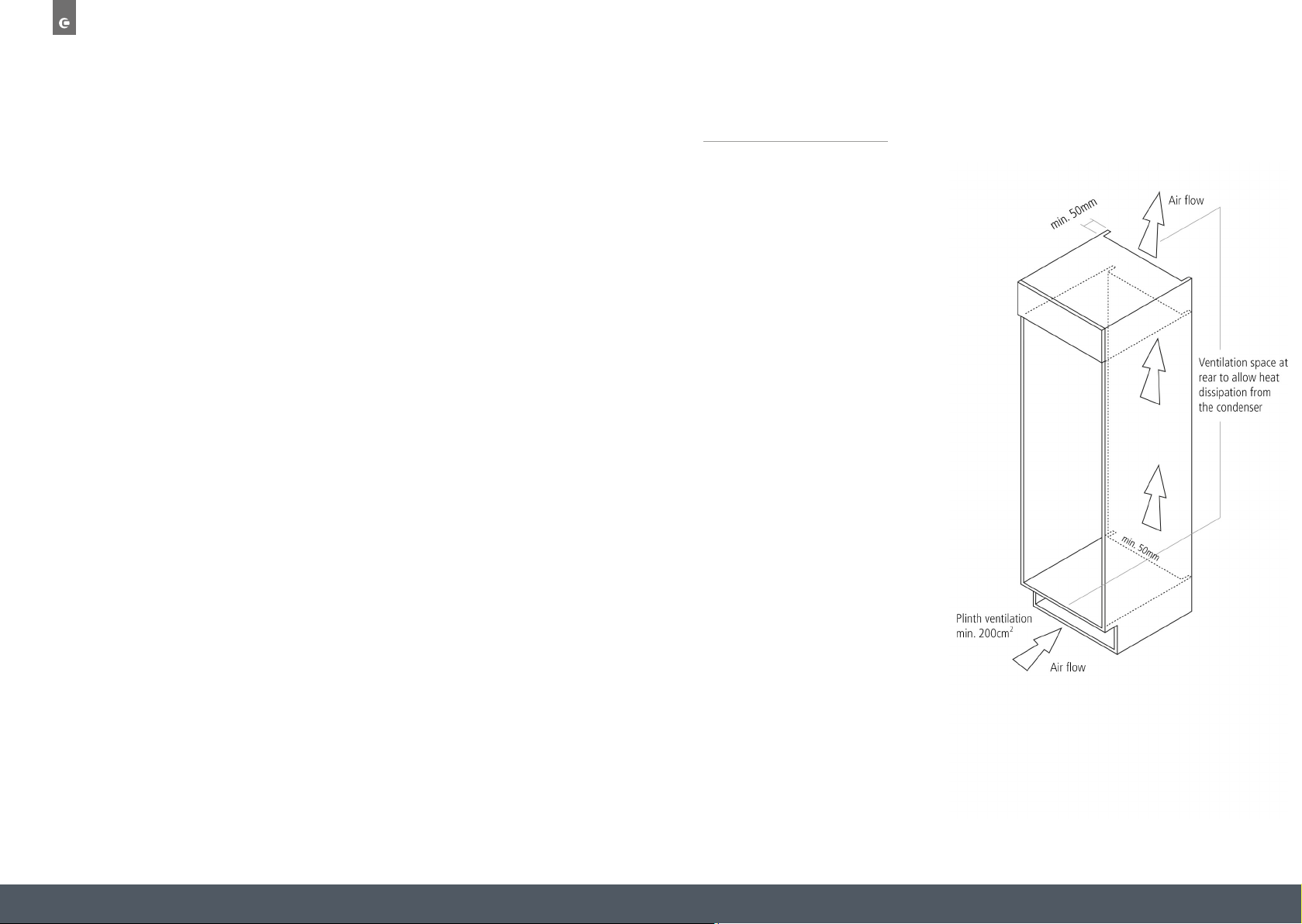

VENTILATION REQUIREMENTS
The main consideration when installing
a refrigeration product into a cabinet is
ventilation. The heat removed from the
appliance needs to be dissipated into the
room. Failure to correctly ventilate the
product can result in increased running
costs and premature failure. It will also
invalidate the guarantee provided with
the appliance.
An air intake in the plinth is required
to allow for the correct air flow
(recommended 540mm x 50mm). If
preferred a decorative stainless steel plinth
grille is available, product code:
GRILL/ SENSE600.
This can be purchased from your
retailer or www.caple.co.uk.
To ensure the correct operation of the
appliance it is important the top of the
housing is not blocked off. The top of
the cabinet needs to be vented into the
room,the recommended minimum size of
the vent opening is 540 x 50mm.
There should also be space at the rear
of the cabinet to allow the cool air to be
drawn over the condenser. This should also
be at least 540mm x 50mm. The more air
available to circulate the product, the more
efficiently it will operate.
Depending on the ambient temperature of the room the appliance is situated in, you may
need to adjust the temperature control dial; in a room with a high ambient temperature, the
temperature control dial may need to be adjusted to a colder setting (moved towards setting
5) or in a room with a low ambient temperature the temperature control dial may need to be
adjusted to a warmer setting (moved towards settings 3).
Once the temperature control has been set, close the door and plug in the appliance. We
recommend that the door is not opened for a minimum of 4 hours to allow the appliance to
reach the standard operating temperature.
NOTE:
The standard operating temperature should be between -18°C and -25°C. The temperature of
freshly stored food and how often the door is opened affects the temperature in the freezer
compartment. If required, change the temperature setting.

18 19Instruction manual RiF125 Instruction manual RiF125Please keep this instruction manual for future reference Please keep this instruction manual for future reference

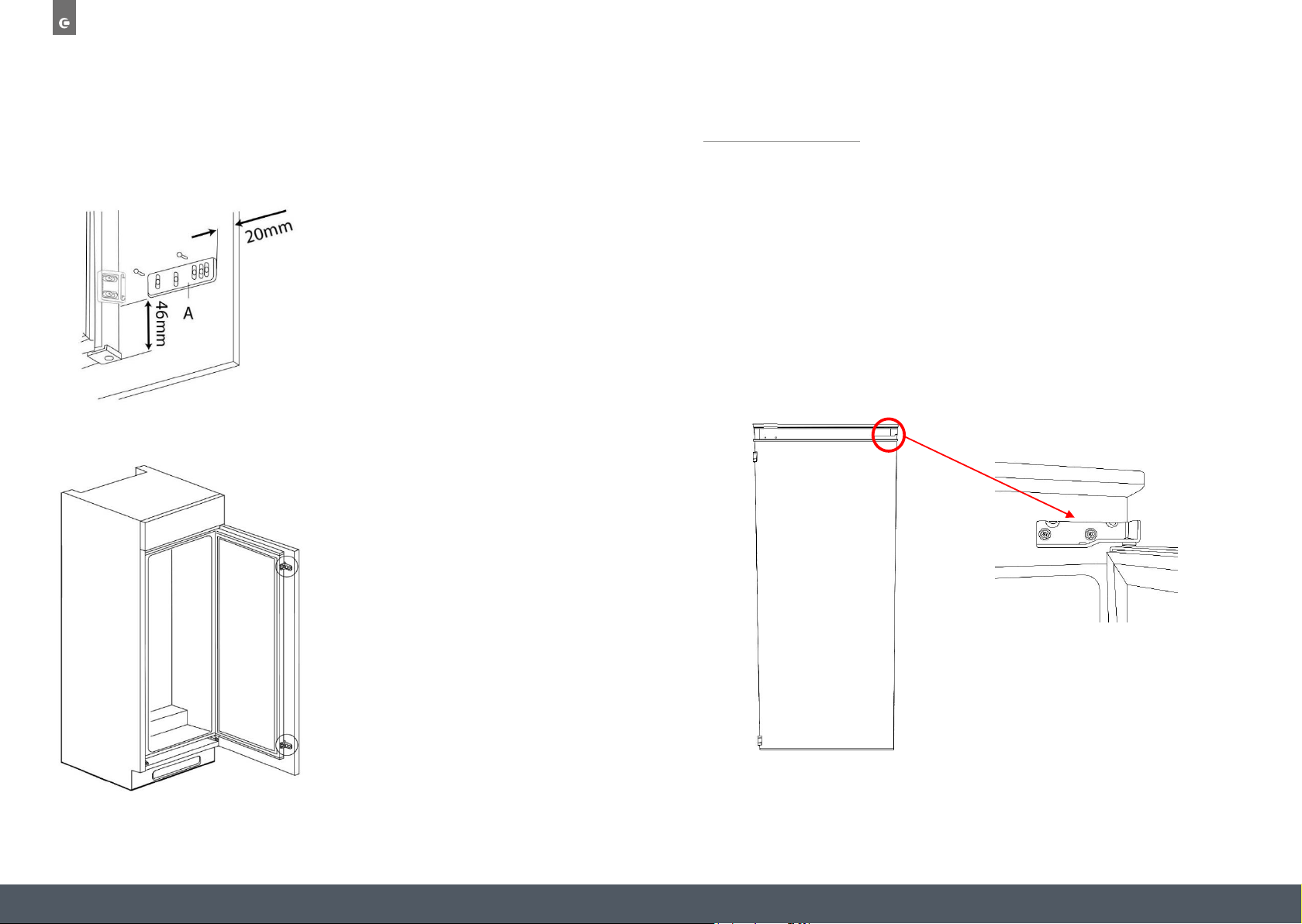

BUILT IN INSTALLATION
NOTE:
The wooden cabinet the appliance is to be housed in must not be enclosed. The back wooden
panel of the cabinet must be removed completely. This is to allow sufficient air circulation to
cool down the condenser unit for energy efficiency.
INSTALLATION
› This appliance is to be installed as a built-in unit only. The clearances shown in the
ventilation diagram must be followed.
› Avoid damaging the product during installation, positioning of the appliance requires two
people in order to avoid injuries or damage to the appliance.
› Your appliance should not be located in direct sunlight or exposed to continuous heat or
extremes of temperature (e.g. next to a radiator or boiler). If this is not feasible, then you
should install an insulation plate between the appliance and the adjacent heat source.
› You should check whether there is an electrical socket available, which will be accessible
after your appliance is installed.
› Place the appliance flatly and firmly on a solid base.
› Be sure to leave enough space for the opening of the door, to avoid damage to the
appliance or personal injury.
The accessories that are required for installation are detailed below:
DIMENSIONS
560mm
1225-1233mm
min 550mm
540mm
595mm
540mm
min. 50mm
1126mm
1224mm
1245mm
40mm
58mm
Ventilation
min 200cm² in plinth
13
INSTALLATION
RI5505 Fridge Freezer Instruction Manual.indd 13RI5505 Fridge Freezer Instruction Manual.indd 13 05/02/2020 14:3005/02/2020 14:30
- This appliance is to be installed as a built-in unit only. The clearances shown in the
ventilation diagram must be followed.
- Avoid damaging the product during installation, positioning of the appliance requires two
people in order to avoid injuries or damage to the appliance.
- Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes
of temperature (e.g. next to a radiator or boiler). If this is not feasible, then you should install an
insulation plate between the appliance and the adjacent heat source.
- You should check whether there is an electrical socket available, which will be accessible after
your appliance is installed.
- Place the appliance flatly and firmly on a solid base.
- Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or
personal injury.
The accessories that are required for installation are detailed below:
1 x Joint
Cover

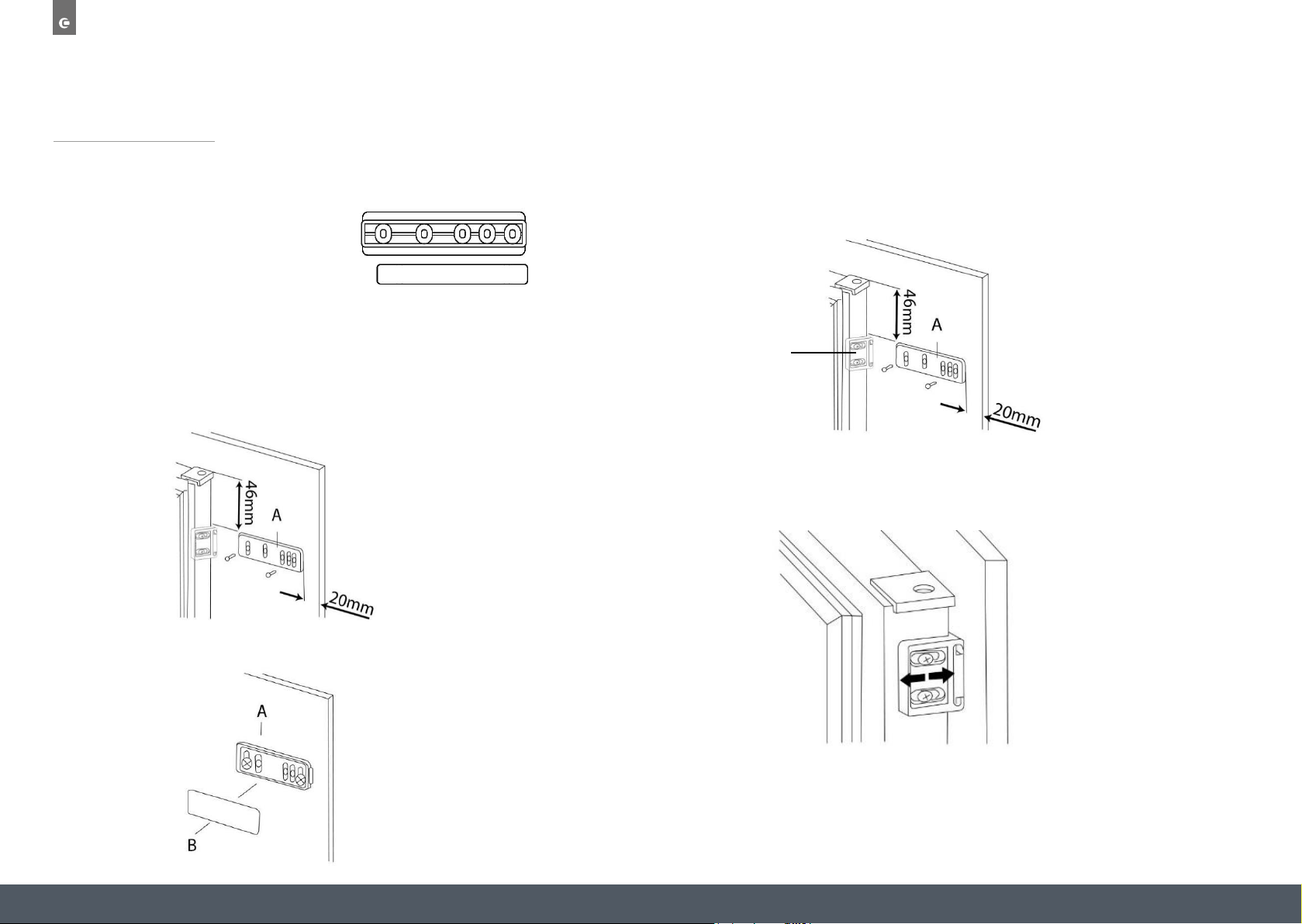

2 x Door Guide
2 x Door Guide Cover
2 x Door Guide Holder
(pre-assembled on the door)
12 x Torx Screws
2 x Foot Blanking Covers
