Caple C2238 Manual

C2238

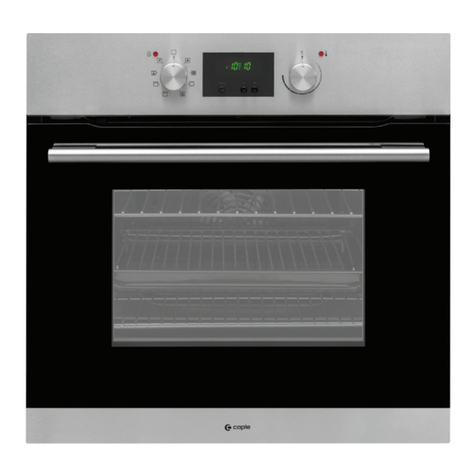

Caple pyrolytic single oven
Technical information
Technical information

Diagram Item Part Code Description
1232012966 OVEN LIGHT 230
1437002148 SCREW (CIRCULAR-HEAD, 3.9*9.5, BLACK
1437002004 SCREW (COUNTERSUNK-HEAD, 3.9*9.5
1437019096 SCREW(CONEHEADED,3.9x9.5
1437025149 SCREW (RYSB, 3.9x9.5) FORM (A,K,H
1437020402 3,9x9,5 TAPERED SCREW,BLAC
1720854869 REAR INSULATION COVER_BUILT_IN_65LT_3
1932013533 FAN MOTOR 230V 23W CL
110 20797488 CAVITY(BUILT-IN,GRILL,LAMP,BLACK)
112 37019627 HINGE COUNTERPART 65 LT PYRO LEFT
112 37019628 HINGE COUNTERPART 65 LT PYRO RIGHT
115 20778193 TEPSI (65, DERIN, SIYAH)PIRO
116 42080672 FIBERGLASS OVEN DOOR GASKET (65LT)
117 37022680 GRID(65LT,ST)
117 37020562 WIRE GRID, FULL EXTENTION RAIL, 65LT
119 20797495 FAN COVER(2009,TURNSPIT,PYROLYTIC OVEN)
1
20
32010288
RING TUBULAR HEATING ELEMENT(240V 2000W)
C2238 - Caple single oven
1
20
32010288
RING
TUBULAR
HEATING
ELEMENT(240V
,
2000W)
121 37007900 FAN IMPELLER ( 6 WINGS )
128 37015698 REAR TOP PANEL (NEW B-IN)
129 20612618 REAR PANEL (BUILT-IN,TERMINAL BOX)
130 32004175 TERMINAL BOX 16A TH500
131 32005226 POWER CORD (UNPLUGGED,WHITE)
132 20731613 SIDE PANEL (NEW B-IN, RIGHT)
132 20731614 SIDE PANEL (NEW B-IN, LEFT)
138 37012428 EXHAUST(PYROLYTIC OVEN)
161 37017795 TELESCOPIC RAIL (DOUBLE EXTENTION,LEFT)
161 37017800 TELESCOPIC RAIL (DOUBLE EXTENTION,RIGHT)
171 37023099 SCREW (KNURLED, 3.9*6.5)
191 37010982 BLIND NUT- FOR FILTER
191 35001942 FLANGE NUT M6
191 37001886 NUT (M4)
1107 37010984 FLAT WASHER- FOR FILTER
1107 37010985 KNURLED WASHER- FOR FILTER
1107 37017459 WASHER (ID4xOD15x1.6mm)
1110 32001560 BOTTOM HEAT.ELEMENT(60*60,1100W,MAIN OVEN)
1111 20613033 BOTTOM HEATING ELEMENT HOLDER
1112 32017633 TOP AND GRILL HEATER(230V1400+1200W 65LT)
1114 37016403 TOP AND GRILL HEATING ELEMENT CLIP 65L
1125 42069028 COOKTOP ASSEMBLY PART (NEW G. B-IN, 3P)
1126 37002841 SCREW (COUNTERSUNK-HEAD, 3.5*25, BLACK)
1170 37002652 SCREW (4.2*9.5 WASHER-HEAD KNURLED)
1171 37002702 SCREW (KNURLED, 4.2*9.5, BLUNT TYPE)
1173 37002304 SCREW (KNURLED, 3.9*13)
1174 37026488 HANDLE ADAPTED DEEP TRAY GRID
1175 37003003 SCREW (CIRCULAR-HEAD, M4*8, STAINLESS)
1200 20731615 BOTTOM PANEL (NEW B-IN)
1
201
32010260
COOLING MOTOR 230V 15W 50Hz CL H
1
201
32010260
COOLING
MOTOR
230V
15W
50Hz
CL
H

Diagram Item Part Code Description
C2238 - Caple single oven
1202 20731616 TOP INSULATION COVER(NEW BUILT-IN)
1203 37017753 COOLING FAN DUCT (NEW B-IN,PYROLYTIC OVN)
1205 32024149 LIMIT THERMOSTAT NC 80°C,250V,16A /ELTH
1207 20746973 TOP PANEL (NEW B-IN)
1242 37012429 PYROLYTIC LOCK BRACKET
1252 37006985 WIRE SHELF FIXING CLIP
1253 37017799 WIRE SHELF (DOUBLE RAIL,RIGHT)
1253 37017798 WIRE SHELF (DOUBLE RAIL,LEFT)
1264 37026489 DEEP TRAY HANDLE
1328 37009032 WASHER (ENAMELLED,BLACK)
1360 42065841 BUILT-IN OVEN DOOR SILICON BUFFER
1390 37013139 SCREW (CIRCULAR-HEAD, 3.9*9.5, STAINLESS)
1391 42046904 DOOR LOCK GASKET
1394 37012413 OVEN LIGHT INSULATION SHIELD
1405 37010983 PYROLYTIC OVEN FILTER NUT
1449 32009198 LIMIT THERMOSTAT NC 140°C, 250V, 16A
1452 32001547 LIMIT THERMOSTAT NO 70ºC
1453 32010292 LIMIT THERMOSTAT 90C 16/5 (DB.CONTACT)
1515 32021165 PT1000 ELECTRONIC THERMOSTAT TECHNOCELL
1521 32023787 WIRE SADDLE BO
1
553
37016411
EXHAUST TOP PANEL (NEW G B IN)
1
553
37016411
EXHAUST
TOP
PANEL
(NEW
G
.
B
-
IN)
1585 20808109 STRING SHELF GROUP
1608 37024382 LIMITER BRACKET WITH SCREWING
2437019096 SCREW (KNURLED, 3.9*6.5
2437002148 SCREW (CIRCULAR-HEAD, 3.9*9.5, BLACK
270 20753243 INNER PANEL(NEW G.B-IN,PYROLYTIC,BLACK)
272 20890486 GLASS FRONT PANEL GR (B-IN,BLACK)
277 32001512 SIGNAL LAMP LENS - RED Ø 6 MM
279 32016342 SIGNAL LAMP BODY
281 32010290 FUNCTION SELECTOR SWITCH
290 42145063 CAPLE KNOB
2113 32016089 PYROLYTIC OVEN THERMOSTATIC TIMER 3 BUTTON
2137 42070389 TIMER BUTTON(BUILTIN,PYRO,3D,GLASS,BLACK
2175 37003003 SCREW (CIRCULAR-HEAD, M4*8, STAINLESS)
2197 42055325 PLASTIC PART
2514 32008373 PYROLYTIC OVEN THERMOSTAT ENCODER
3437002148 SCREW (CIRCULAR-HEAD, 3.9*9.5, BLACK
313 37002589 SCREW (COUNTERSUNK-HEAD, M4*8, BLACK)
349 20682158 HANDLE ASS.GROUP(INNER COVER/SOLID/GLASS)
351 37002011 SCREW (COUNTERSUNK-HEAD, M5*10, BLACK)
351 37026148 SCREW (CIRCULAR-HEAD, M5*12,BLACK)
352 37011004 OVEN DOOR HINGE(9,0-9,5 KG,GDA;14,5)
354 20890495 OUTER GLASS ASS(BUILT-IN,BLACK,PYROLYTIC
356 37026519 CAPLE HANDLE ASM (INOX,DP;420)
3211 42016770 HANDLE ASSEMBLY GASKET
3338 20789055 INNER LID SOURCE PART (NEW G,LOW-E)
3339 37020985 PYROLYTIC DOOR ADDITIONAL PART,BLACK
3340 42083333 FIBERGLASS OVEN DOOR INNER DOUBLE WINDOW
3343 47004764 FLAT PYROLYTIC OVEN DOOR INTERVAL GLASS (SMAL
3344 47004763 FLAT PYROLYTIC OVEN DOOR INTERVAL GLASS (BIG)
3
378
20770061
SOLID TYP OVN DOORASS GR(NEW B IN PYRLYTC)
3
378
20770061
SOLID
TYP
OVN
DOORASS
.
GR(NEW
B
-
IN
,
PYRLYTC)

Diagram Item Part Code Description
C2238 - Caple single oven
3392 42047036 PYROLYTIC OVEN DOOR INNER GLASS BUMPER
3393 37018932 PYROLYTIC DOOR LOCK COUNTER PART

C2230 Wiring Diagram

Electricalcomponent problems
Fanhittingitscover/ workingnoisy
REMOVE THE FANCOVER.
PUSHBACKTHE FANWINGSAND
REPLACE THECOVER.
DOES ITSTILL HITTOCOVER?
DOESIT.CHANGE THEFANCOVER
SOLVE THE PROBLEM?
Fanproblems
YES
Fannotworking
IS THE WIRINGOFFANMOTOR
CORRECTACCORDINGTOTHE
WIRINGDIAGRAM?
THEFANSHOULDNOTHIT/ORBE
LOCKEDONTOTHE FANCOVER.
YES
NO
CORRECTTHE WIRINGOFFANMOTOR
PLEASE SEE :
FANHITTINGITSCOVER
NO
NO
CHANGE THEFAN.
DOES ITSOLVE THE PROBLEM?
NO
CHANGE THE FANMOTOR
WHENOVENSWITCH TURNEDON,
CANYOUMEASUREVOLTAGEAT
FANMOTOR?
CHECK IFTHEFANMOTORASSEMBLY
SCREWSARE FIXEDCORRECLTY.
PROBLEMSOLVED?
CORRECTTHEWIRINGOFOVEN
SWITCH-see circuitdiagram
CONTROLTHEWINDINGSOFFAN
MOTORWITHOHMMETER.
AREMOTORWINDINGSDAMAGED?
YES
YES
CHECKIFTHEROTORGOTLOCKED.
CORRECTTHEPOSITION IFSTILL GOTPROBLEM;
CHANGE OVENSWITCH
NO
NO

Electricalcomponent problems
Turnspitproblems
IS THEWIRINGOFTURNSPITMOTOR
CORRECTACCORDINGTOTHE
WIRINGDIAGRAM?
BE SURETHE TURNSPITSKEWERIS
CORRECTLYPOSITIONED?
YES
NO CORRECTTHE WIRINGOFTURNSPITMOTOR
pleasesee circuit diagram
NO
WHENOVENSWITCH TURNEDON,
CANYOUMEASURETHEVOLTAGE
ATTURNSPITMOTOR?
CONTROLTHE WINDINGSOF
TURNSPITMOTORWITHOHMMETER.
ARE MOTORWINDINGSDAMAGED?
YES
CHANGE TURNSPITMOTOR
YES
NO
NO IFSTILL GOTPROBLEM;
CHANGEOVENSWITCH

Electricalcomponent problems
Hotsurface indicatorlight
(residualheatindicator) notworking
CHANGETHEHOTSURFACE
INDICATOR
(FREESTANDINGCOOKERS)
CHECKTHEWIRINGCONNECTIONS
plssee circuitdiagram
YES
ISTHEREVOLTAGEATTERMINALSOF
INDICATORLIGHT?
REMOVE THETERMINALSOF WIRING
AND APPLYEXTERNALVOLTAGE; DOES
THEINDICATORLIGHTTURN ONNOW?
REMOVE THEHOTSURFACETERMINALSOF HILIGHT
HEATER. TURN ONHEATERAND CONTROLWITHOHMMETER
IF THEHOTSURFACETERMINALSARESHORTCIRCUIT?
NO
NO
YES
NO
CHANGETHEHEATINGELEMENT
(OFCERAMICHOB)
CHANGETHEHOTSURFACE
INDICATOR
(VITROCERAMICHOBS )
CHANGETHEHEATINGELEMENT
(FREESTANDINGVITROCERAMICCOOKERS)
Hotsurface indicatorlightburnt
IF ITISTOO CLOSE TOTHEHEATINGELEMENTS;
CHANGETHEHOTSURFACEINDICATORLIGHT

Electricalcomponent problems
Signal lampproblems:
CHECKTHEWIRINGCONNECTION, ISIT
OK?
ISTHESIGNALLAMPLEDHARMED?
YES
CHANGETHESIGNALLAMP
BE SURETHATTHESIGNALLAMP
TERMINALCONTACTS AREOKWITH
OVENSWITCH
NO IF SIGNALLAMPCABLEISHARMED;
CHANGETHESIGNALLAMP
Signallampnotworking
Signallampblinking
CHECKTHEWIRINGCONNECTIONS
CANYOUSOLVE THEPROBLEM?
NO
YES
CHANGETHESIGNALLAMP

Electrical component problems
Digitaltimerbuttonsstucking
REMOVE TIMER
ANDCORRECTTHE POSITIONOF
TIMER MANUALLY.
CHANGETHE TIMERBUTTONS
YES
ISTHE TIMER ANDFRONTPANEL
HOLES COAXIAL?
NO
Digitaltimernotworking
ISTHERE VOLTAGEATTIMER
TERMINALS?
ISTIMER DISPLAYVISIBLE?
YES
NO CHECKTHE WIRINGCONNECTION
plssee circuit diagramonusermanual
NO
CHANGEDIGITALTIMER
WHENYOUSETTHE TIMER, ISTHERE
VOLTAGEATTIMER RELAYTERMINAL?
YES
NO

Electricalcomponent problems
Ovenlightnotworking
CHECKTHEWIRINGCONNECTION AND
CORRECT.
(pls see circuitdiagram)
DOES IT SOLVE THEPROBLEM?
CHECKTHEELECTRICITYOFOVEN LIGHT
ISTHELAMPDEFECTIVE
(BURNT OR LOOSE)?
OK
ISTHEOVENLIGHT BUTTON WORKING?
NO
NO
ISTHEREVOLTAGEATOVEN LIGHT TERMINAL?
YES
PLUGOFF THEOVEN,
CHANGEONLYLAMP
ISOVEN THERMOSTATAND SWITCHTURNINGON
?
CHANGE THEOVENLIGHT BODY(WITHWIRING)
CHECKTHEOVENLIGHT WIRINGCONNECTION
pls see circuitdiagram
NOTOK
YES
CHECKTHEOVEN LIGHT BUTTONWIRING
CONNECTION
(pls see circuitdiagram)
YES
YES
NO
CHECKTHEWIRINGCONNECTIONSAND
RELEASE THEOPEN CIRCUIT.
NO
IFNOT OKEY;
CHANGETHEOVEN LIGHT BUTTON
IF DEFECTIVE-CHANGE OVEN SWITCH
IF DEFECTIVE-CHANGETHERMOSTAT
NO

Beforeputtingontheknob ;besuretheknob segmentandknob springis setcorrectly
Mechanicalcomponent problems: Hinges&Knobs
Glasslid anglelessthan 90° / more
than100°
CHANGEGLASSLIDHINGE
ISTHELIDHINGECOUNTERPARTFIXED?
FIXTHEHINGECOUNTERPART.
ISITSTILLLESS 90° / MORETHAN100°?
NO
YES
YES
Glasslidhinge noisy
CHANGETHEMETALCOOKTOPLID.
HINGE PROBLEMS
Oven door hinge noisy
KNOB PROBLEMS
REPLACEGASKET.
(KNOBGASKETSMUSTBE SETPROPERLY
ONBOTHSIDES)
KNOBLOOSE IFTHESPIRALKNOBSPRINGISREMOVED,
ASSEMBLEANEWKNOBRING.
KNOBGASKETGETTING OUTOFITS
PLACE
TIGHTENTHEMETALLIDHINGEBOTTOMPART,
DOESITSOLVE?
NO
knobspring
knob segment
knob ring
IFNOTOKEY ;
CHANGETHEKNOBGASKET
Knob gasketsmustbe controlledon both
sides -tosetproperly.
IFKNOBSPRING ISAVAILABLE,
CHANGETHEKNOB.
CHANGEOVENDOORHINGE
Metal lidangle lessthan90° /more than
100°

Cooking problems
Ovendoesntwork
REGULATETHETIMER
pls.see usermanual
CHECK THE WIRINGCONNECTIONSARE
CORRECLTYDONE ?( pleaseseecircuitdiagrams)
ISTHE HEATADJUSTED WITHOVEN HEATER
CONTROLSWITCH?
OK
TIMER (IFAVAILABLEON MODEL) REGULATED
ORWORKING PROPERLY?
YES
NO
EXCHANGETHE APPLIANCE
YES
ADJUSTTHEHEAT
See usermanualfor detailed
instructions
NO
CHECK THATTHEPLUGISON/OFF?
CHECK THE TERMINALBOXHAS VOLTAGE?
OK
CHECK THE ELECTRICALHEATING ELEMENTSOF
OVEN AND HOB ARE WORKINGPROPERLY?
YES
SEE CHAPTER :
HOB HEATING ELEMENTS
NO
IFTIMER NOTWORKINGPROPERLY
:
REFERTOTIMERPROBLEMS
SEE CHAPTER :
OVEN HEATING ELEMENTS

Cooking problems
ISTHETHERMOSTATBULBBRACKET FIXED
CORRECTLY?
Ovencookingunhomogeniously/
long cookingperiod
CHECKSHELF LOCATIONSAND HEATVALUES,
CHECK THE COOKING PERIOD
OK
CHECK WIRINGCONNECTIONS;
BE SURE THATTHEOVEN ADJUSTED AS
APPROPRIATEFORTHEVOLTAGE
(REFER TOLABELS)
YES
FORBEST COOKINGPERFORMANICE;
REFERTOTHE INSTRUCTIONS
INDICATED INTHE USER MANUAL
ISTHE FAN( IFAVAILABLE)
CORRECTLYWORKING?
YES
REPLACE THERMOSTATBULBBRACKET
NO
PLEASE REFERTO
"FANPROBLEMS"
NO

Electrical component problems
OvenElectricalHeating Element(s)notworking;
(Top / Bottom/Ring /GrillHeaters)
CHANGEOVEN SWITCH
ISTHE WIRINGCONNECTIONCORRECLTYDONE?
WHENOVEN SWITCHISTURNED ON ,ISTHERE
VOLTAGEATTERMINALSOFHEATER?
YES
ISTHERE VOLTAGEATTERMINALSOFOVEN
SWITCHORTHERMOSTAT?
NO
YES
CHECKANDRELEASE THEOPEN CIRCUIT
pleaserefertocircuit diagrams
NO
CHANGE OVEN HEATING ELEMENT
CHECK THE WIRINGCONNECTION
see circuit diagram
NO
YES
CHANGETHERMOSTAT

HandleProblems:
Ifhandleisloose;replaceand tightenit. Ifnot solving;changewithanewone
HANDLEASSEMBLYTYPES :
3DSOLID TYPEOVENDOORHANDLE ASSEMBLY
OLDVERSION LASTVERSION
(ForovendoorsbeforeproductionFEB. 2007 ) (ForovendoorsAFTERproductionFEB. 2007 )
Foroldversionhandles;HandleassemblyGroup =(OldHandleassemblystud +screw)
Fornewversionhandles;HandleassemblyGroup =(NewHandleassemblystud +flat washer+screw)
handleassembly stud
(old)
flatwasher
handle
assemblystud (
new)
screw
screw

SOLID TYPEOVENDOORHANDLE ASSEMBLY
OLDVERSION LASTVERSION
(ForovendoorsbeforeproductionFEB. 2007 ) (ForovendoorsAFTERproductionFEB. 2007 )
Foroldversionhandles;HandleassemblyGroup =(OldHandleassemblystud +screw)
Fornewversionhandles;HandleassemblyGroup =(NewHandleassemblystud +gradual washer+screw)
INNERCOVEROVENDOORHANDLE ASSEMBLY
OLDVERSION LASTVERSION
(ForovendoorsbeforeproductionFEB. 2007 ) (ForovendoorsAFTERproductionFEB. 2007 )
WASHER
NEWTYPE HANDLE
ASSEMBLYSTUD
OLD TYPE HANDLE
ASSEMBLY STUD
handleassembly
stud (old) handleassembly
stud (new)
gradual washer
handle assembly
stud (old ) handle
assemblystud
(new)
flatwasher
screw
screw
screw screw

Changingovendoor:
Unlocktheovendoorhinges first.
Thenmanuallytakeoff theovendoor.
doorhinge locked
doorhinge unlocked
