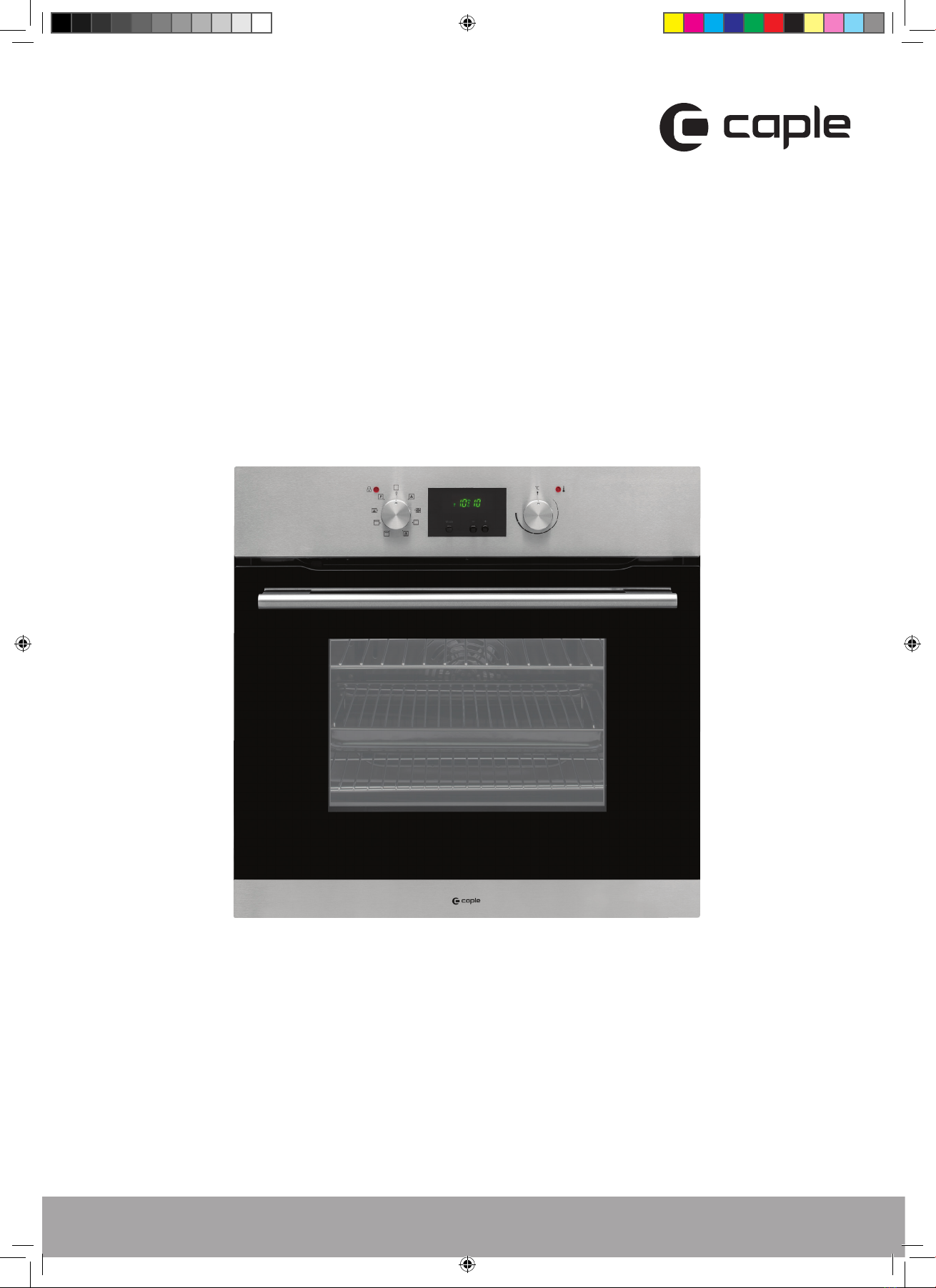

Built-in single oven instruction manual
C2238
C2238 - Instruction Manual.indd 1 15/05/2017 13:18

Instruction manual C2238
2
Please keep this instruction manual for future reference
CONTENTS
Safety instructions 3
Environmental protection 6
Preparation for installation and use 7
Oven installation 8
Maintenance and Cleaning 17
Troubleshooting 17
Transport 18
Caple Service contact details 20
C2238 - Instruction Manual.indd 2 15/05/2017 13:18

Instruction manual C2238
3
Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before using your appliance,
keep it in a convenient place for reference when necessary.
- This appliance can be used by children aged from 8 years and above.
- Persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge must be supervised and given appropriate
instruction concerning the use of the appliance in a safe way and
understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance should not be carried out by children
without supervision.
- The appliance is not intended to be operated by means of an external timer
or separate remote control system.
WARNING:
- The appliance and its accessible parts become hot during use. Care should
be taken to avoid touching heating elements.
- Children less than 8 years of age should be kept away unless continuously
supervised.
- To prevent fire hazards do not store items on the cooking surfaces.
- If the surface is cracked, switch off the appliance to avoid the possibility of
electric shock.
WARNING:
- During use, handles can get hot.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass or any other surface of the appliance as it can scratch the
surface which may result in the glass shattering or permanent damage to
the surface.
- Do not use steam cleaners for cleaning the appliance.
- Ensure the appliance is switched off before replacing the lamp to avoid the
possibility of electric shock.
CAUTION:
- Accessible parts may be hot when the cooking or grilling is in use. Young
children should be kept away.
- During pyrolytic options, excess spillage, oven shelves, shelf supports, wire
shelves and all accessories must be removed before cleaning.
C2238 - Instruction Manual.indd 3 15/05/2017 13:18

Instruction manual C2238
4
Please keep this instruction manual for future reference
- Your appliance is produced in accordance with all applicable local and
international standards and regulations.
- Maintenance and repair work must be made only by authorised Caple
service technicians. Installation and repair work that is carried out by
unauthorised technicians may endanger you.
- It is dangerous to alter or modify the specifications of the appliance in any
way.
- Prior to installation, ensure that the local distribution conditions (electricity
voltage and frequency) and the requirements of the appliance are
compatible. The requirements for this appliance are stated on the rating
label.
- This appliance is designed only for cooking food and is intended for indoor
use.
- This product is not designed for commercial use, it is a household appliance
only. It is not intended to be used in:
- Staff kitchen areas in shops, offices and other working environments.
- Bed and breakfast type environments
- By clients in hotels, motels and other residential type environments
- Do not try to lift or move the appliance by pulling the door handle.
- All possible security measures have been taken to ensure your safety.
Since the glass may break, you should be careful while cleaning to avoid
scratching.
- Avoid hitting or knocking on the glass with accessories.
- Ensure that the supply cord is not wedged during the installation. If the
supply cord is damaged, it must be replaced by a Caple service technician or
similarly qualified persons in order to prevent a hazard.
- While the oven door is open, do not let children climb on the door or sit on
it.
INSTALLATION WARNINGS
- Do not operate the appliance before it is fully installed.
- The appliance must be installed by an authorised technician.
- Caple is not responsible for any damage that may be caused by defective
placement and installation by unauthorised persons.
- When unpacking the appliance, make sure that it is not damaged during
transportation. In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
- Materials used for packaging (nylon, staplers, styrofoam etc) may cause
harmful effects to children they should be disposed of immediately.
- Protect your appliance against atmospheric effects. Do not expose it to
C2238 - Instruction Manual.indd 4 15/05/2017 13:18

Instruction manual C2238
5
Please keep this instruction manual for future reference
effects such as sun, rain, snow etc.
- The surrounding materials of the appliance (i.e. kitchen cabinet or furniture)
must be able to withstand a minimum temperature of 90°C.
DURING USAGE
- Heat the empty oven at max. temperature for 1 hour – removing any unpleasant smells
and smoke caused by working residues and thermal insulation. Make sure you do this
in a well ventilated area.
- During usage, the outer and inner surfaces of the oven get hot. While opening the
oven door, step back to avoid the hot steam coming out of the oven as there may be a
risk of burns.
- Do not put flammable or combustible materials in or near the appliance when it is
operating.
- Always use oven gloves to remove and replace food in the oven.
- Pay close attention to the oven while cooking with solid or liquid oils as they could
potentially catch fire when oven is hot.
- Never pour water on flames that are caused by oil. Cover the saucepan or frying pan
with its lid in order to choke the flame and turn the oven off.
- If you know you will not be using the appliance for a while switch it off from the main
supply and unplug it.
- Make sure the appliance control knobs are always in the ‘0’ (stop) position when it is
not used.
- The oven shelves and trays incline when pulled out. Be careful not to let hot liquid spill
over.
- When the door of the oven is open, do not leave anything on it. It may unbalance your
appliance or damage the door.
- Do not put anything heavy, flammable or ignitable (nylon, plastic bag, paper or cloth
etc) into the oven. This includes cookware with plastic accessories (e.g. handles).Do not
hang towels, dishcloths or clothes from the appliance or its handles.
DURING CLEANING AND MAINTENANCE
- Always switch off the appliance from the mains isolating the electrical supply before
any cleaning or maintenance.
- Do not remove the control knobs to clean the control panel.
To maintain the efficiency and safety of your appliance, we recommend you always use
original spare parts and to call only our authorised Caple Service agents in case of need.
C2238 - Instruction Manual.indd 5 15/05/2017 13:18

Instruction manual C2238
6
Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. The symbol on the product indicates that this product may not be treated
as household waste. Instead it shall be handed over to the applicable collection point
for the recycling of electrical and electronic equipment. Disposal must be carried out in
accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local council, your household waste disposal service or the retailer
where you purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is
missing, you must provide the following information to your retailer in order to receive
a replacement: date of purchase, model and serial number (placed on the inside of the
appliance storage drawer). Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service
together with proof of purchase.
If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
ATTENTION
- Before use, remove all plastic films protecting some parts of the appliance
(fascia - panel, parts in stainless steel, etc)
- Do not use the appliance to heat a room.
- When the appliance is not in use, we recommend you turn it off, isolate it from the
electrical supply and ensure all gas taps are closed.
CE DECLARATIONS OF CONFORMITY
This appliance has been designed, constructed and marketed in compliance with safety
requirements in force. This appliance has been manufactured to the strictest standards
and complies with all applicable legislation.
C2238 - Instruction Manual.indd 6 15/05/2017 13:18

Instruction manual C2238
7
Please keep this instruction manual for future reference
Preparation for installation and use
Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all
respects. Please read the manual thoroughly before use for best results to ensure you do not experience any problems in the
future. The information in this manual outline the necessary procedures for correct positioning and service operations. They
should be read without fail especially by the technician installing the appliance.
Contact an authorised installer for the installation of your oven.
Choosing a place for the oven
There are several points to pay attention to when choosing a place for your oven. Make sure to take into account our
recommendations in order to prevent any problems and dangerous situations, which might occur later
- When choosing a place for the oven, attention should be paid that there are no flammable or combustible materials in
close vicinity, such as curtains, oil, cloth etc. which quickly catch fire.
- Furniture surrounding the oven must be made of materials resistant to heat of at least 90°C.
- The dimensions and materials in which the oven will be installed must be correct and resistant to increases in temperature.
Installing the appliance in close vicinity of a refrigerator or freezer is not recommended as it may affect their performance
due to emanating heat from the oven.
- Once positioned and packaging is removed, check the oven is in a good condition, if the oven is damaged do not use it
and contact your retailer immediately.
C2238 - Instruction Manual.indd 7 15/05/2017 13:18

Instruction manual C2238
8
Please keep this instruction manual for future reference

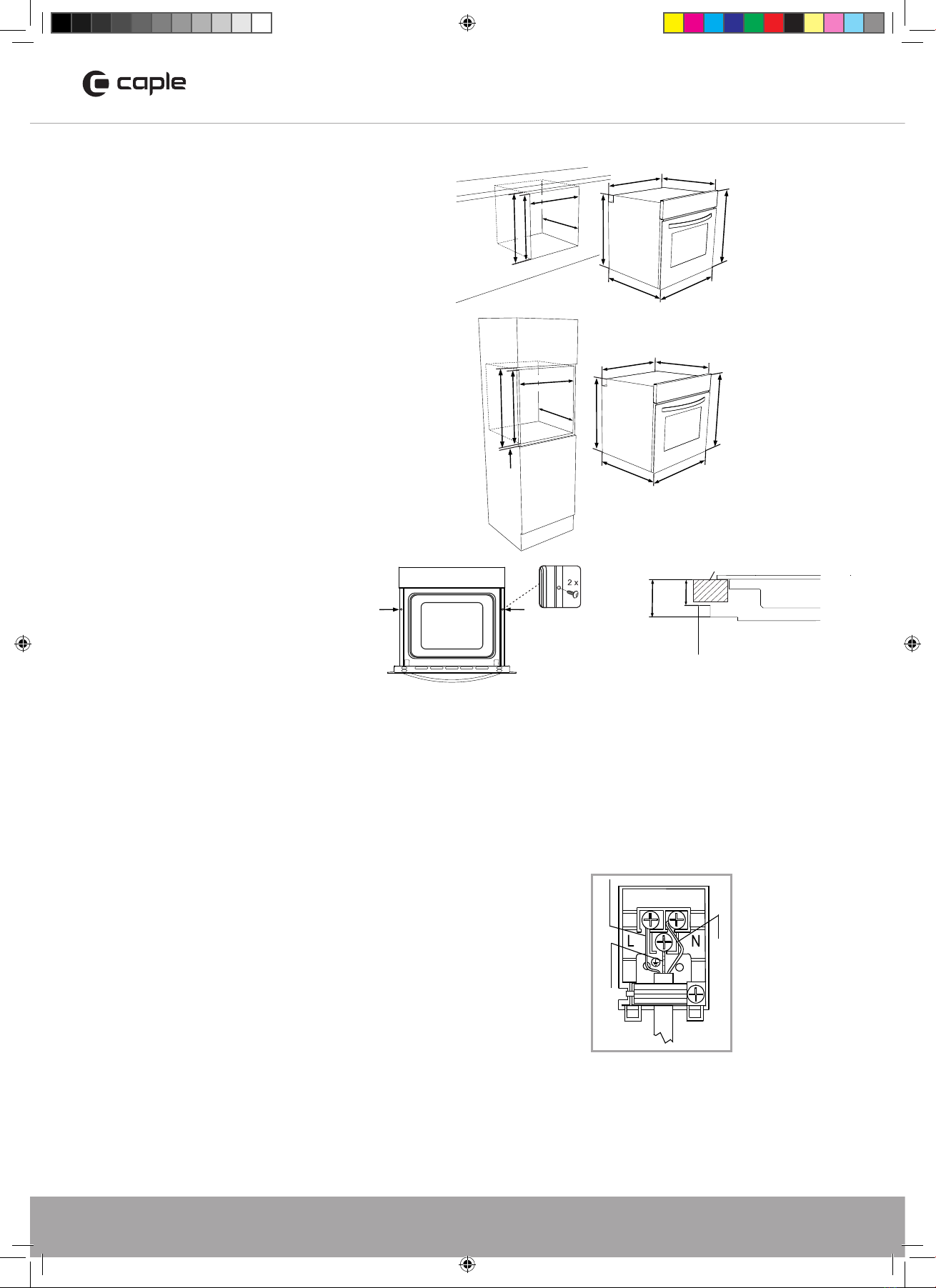

OVEN INSTALLATION
- Insert the oven by pushing it into the cabinet.
- Open the oven door and insert 2 screws in the
holes located on the oven frame.
- While the product frame touches the wooden surface
of cabinet, tighten the screws.
- If the oven is installed under a hob, the distance between
the top surface of the worktop and the top panel of the
oven must be a minimum of 50 mm and the distance
between the top surface of the worktop and the top of
control panel must be minimum 25 mm.
Wiring and safety
The instructions given below must be followed without fail during wiring:
- The earthing cable must be connected via the screw with the earthing mark. Supply cable connection must be as shown
in Figure 2. If there is no earthed outlet conforming to regulations in the installation environment, call Caple Service
immediately.
- The installation must include a suitable isolating switch with a minimum contact opening of 3mm between the appliance
and the mains. The isolating switch should be sized according to the load on the rating plate and should comply with
current regulations.
- The earthed outlet must be in close vicinity of the appliance.
Never use an extension cord.
- The fuse rating for this appliance is 13A
- The supply cable should not make contact with the product’s hot surface.
- In case of any damage to the supply cable, make sure to call Caple Service.
The cable must be replaced by Caple Service.
- Wiring of the appliance must be performed by an authorised installer.
H05VV-F type supply cable must be used.
- Faulty wiring may damage the appliance, such damage will not be covered by the warranty.
- The appliance is designed to connect to 220-240V~ if the electrical supply is different than the value given above, call
Caple Service immediately.
min. 600mm
min. 555mm
min. 560mm
max. 580mm
min. 590mm
595mm
595mm
550mm
575mm
557mm
576mm
min. 555mm
min. 600mmmin. 600mm
min.
5mm
min. 590mm
min. 560mm
max. 580mm
595mm
595mm
550mm
575mm
557mm
576mm
Worktop
min.
50 mm
min.
25 mm Built-in
hob
Built-in
oven
Figure 2
BLUE
BROWN
YELLOW+GREEN
C2238 - Instruction Manual.indd 8 15/05/2017 13:18

Instruction manual C2238
9
Please keep this instruction manual for future reference
Caple declares that its bears no responsibility whatsoever for any kind of damage and loss arising from not complying with
safety norms.
Product description
List of components:
1. Control panel
2. Handle
3. Oven door
4. Lower heating element (behind the plate)
5. Upper heating element (behind the plate)
6. Wire shelf
7. Shelf supports
8. Oven light
9. Turbo heating element (behind the plate)
10. Fan (behind the plate)
11. Air outlet shutters
USING THE OVEN
Control panel
Oven function control knob:
- To select the desired cooking function, turn the knob to the related symbol.
Please see page 10 and 11 for cooking functions and a description of each.
Oven thermostat control knob:
- After the cooking function has been set, the desired temperature can be
adjusted by the oven thermostat knob. The oven will then start to operate
(time must be set, if available).
- The thermostat signal light will turn on when the knob is turned to the
required temperature. The light will turn off once the oven reaches the
required temperature.
1
2
3
4
5
8
9
11
10
6
7
Figure 4
Figure 5
Digital Timer Oven Thermostat Button
Oven Function
Control Button
Oven Thermostat Light
Door Lock Light
Figure 4
Figure 5
Digital Timer Oven Thermostat Button
Oven Function
Control Button
Oven Thermostat Light
Door Lock Light
Figure 4
Figure 5
Digital Timer Oven Thermostat Button
Oven Function
Control Button
Oven Thermostat Light
Door Lock Light
C2238 - Instruction Manual.indd 9 15/05/2017 13:18

Instruction manual C2238
10
Please keep this instruction manual for future reference
TURBO DEFROST
The oven’s warning lights will be turned on, the fan starts operating.
To use the defrost function, take your frozen food and place it in the oven on a shelf placed in the third slot from the
bottom. It is recommended that you can place an oven tray under the defrosting food, to catch the water accumulated
due to melting ice. This function will not cook or bake your food, it will only help to defrost it.
FAN HEAT
The oven’s thermostat and warning lights will be turned on, the ring heating element and fan will start operating.
The fan heat function evenly disperses the heat in the oven. All foods on all racks will be cooked evenly. It is recommended
to pre-heat the oven about 10 minutes.
CONVENTIONAL HEAT
The oven’s thermostat and warning lights will be turned on, the lower and upper heating elements will start operating.
The static cooking function emits heat, ensuring even cooking of the lower and upper food. This is ideal for making
pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to cook
on only one shelf at a time in this function.
TURBO CONVENTIONAL HEAT
The oven’s thermostat and warning lights will be turned on, the upper and lower heating elements and fan will start
operating.
This function is very good for obtaining results in baking pastry. Cooking is carried out by the lower and upper heating
element within the oven and by the fan providing air circulation, which will give a slight grill effect to the food. It is
recommended to pre-heat the oven about 10 minutes.
ECO GRILL
The oven’s thermostat and warning lights will be turned on, the grill heating element will start operating.
The function is used for grilling and toasting foods, use the upper shelves of oven. Lightly brush the wire grid with oil to
stop foods sticking and place foods in the centre of the grid. Always place a tray beneath to catch any drips of oil or fat. It
is recommended to pre-heat the oven about 10 minutes.
WARNING: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190˚C.
FULL GRILL
The oven’s thermostat and warning lights will be turned on, the grill and upper heating elements will start operating.
The function is used for faster grilling and for covering a larger surface area, such as grilling meats, use the upper shelves
of oven. Lightly brush the wire grid with oil to stop foods sticking and place foods in the centre of the grid. Always place a
tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the oven about 10 minutes.
WARNING: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190˚C.
TURBO GRILL
The oven’s thermostat and warning lights will be turned on, the grill, upper heating elements and fan will start operating.
The function is used for faster grilling of thicker foods and for covering a larger surface area. Both the upper heating
elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of oven. Lightly
brush the wire grid with oil to stop foods sticking and place foods in the centre of the grid. Always place a tray beneath to
catch any drips of oil or fat. It is recommended to pre-heat the oven about 10 minutes.
WARNING: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190˚C.
Oven functions
0
0
0
0
0
0
0
C2238 - Instruction Manual.indd 10 15/05/2017 13:18
