Built in 70/30 Fridge Freezer
Instruction Manual
RI7306

2 3Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before
using your appliance. They provide you with important
information regarding the safe installation, use and
maintenance of the appliance as well as useful advice
for getting the best out of your fridge freezer. Keep this
booklet in a safe place for future reference and pass on
to any future owner.
-This appliance is produced in accordance with all
applicable local and international standards
and regulations.
-This appliance is not designed for commercial use, it
is a household appliance only. It is not intended to be
used in:
› Staff kitchen areas in shops, offices and other
working environments.
› Bed and breakfast type environments.
› By clients in hotels, motels and other residential type
environments.
-This appliance may only be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, if
they are supervised whilst using it. They may only use
it unsupervised if they have been shown how to use it
in a safe manner. They must be able to recognise and
understand the dangers of misuse.
CONTENTS
Warnings 3
Environmental Protection 11
Electrical Connection 12
Ventilation Requirements 13
Product Overview 14
Using The Appliance 15
Accessories 21
Caple Fresh 22
Humidity Controlled Drawer 23
Easy Adjustable Door Shelf 24
Food Storage 25
Cleaning And Maintenance 32
Transport And Repositioning 35
Troubleshooting 36
Energy Saving Tips 39
Caple Contact Details 40

4 5Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
SAFETY WITH CHILDREN:
-This appliance can be used by children aged from 8
years and above.
-Children less than 8 years of age should be kept away
unless continuously supervised or they have been
shown how to use it in a safe manner. Children must
be able to understand and recognise the possible
dangers caused by incorrect operation.
-Children should be supervised in the vicinity of
the appliance.
-Never allow children to play with the appliance.
-Cleaning and user maintenance should not be carried
out by children without supervision.
-Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
-Materials used for packaging (nylon, staplers,
Styrofoam etc) may cause harmful effects to children,
they should be disposed of immediately.
-Children can injure themselves on an open door. Do
not let children sit on the open door, lean against it or
swing on it.
TECHNICAL SAFETY:
-Maintenance and repair work must be made only
by authorised Caple service technicians. Installation
and repair work that is carried out by unauthorised
technicians may endanger you.
-While the appliance is under warranty, repairs should
only be undertaken by a Caple authorised service
technician. Otherwise the warranty will be invalidated.
-It is dangerous to alter or modify the specifications of
the appliance in any way. The requirements for this
appliance are stated on the rating label.
-Risk of injury due to electric shock. Any contact with
live connections or tampering with the electrical or
mechanical components of the appliance will endanger
your safety and may lead to the
appliance malfunctioning.
-To maintain the efficiency and safety of your appliance,
we recommend you always use original spare parts
and to call only our authorised Caple Service agents in
case of need.
-Multi-socket adapters and extension leads should
not be used to connect the appliance to the mains
electricity supply.
-The electrical system of this appliance may be used
safely only when it is correctly connected to an
efficient earthing system in compliance with the safety
standards currently in effect.
-Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
-The appliance must be connected with a properly
installed fused socket. The power supply (AC) and
voltage at the operating point must match with the
details on the rating plate of the appliance.

6 7Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
-Consult a qualified electrician or service person if the
Grounding instructions are not completely understood,
or if you have doubts on whether the appliance is
properly grounded.
-The incorrect grounding may cause breakdown and
electric shock.
-We do not accept responsibility for any damages that
occur due to ungrounded usage.
-If the socket does not match the refrigerator plug, it
must be replaced by the manufacturer, a service agent
or similarly qualified persons in order to avoid
a hazard.
-A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 13 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.
INSTALLATION WARNINGS:
-Prior to installation, ensure that the local distribution
conditions (electricity voltage and frequency) and the
requirements of the appliance are compatible.
-During installation the appliance must be completely
disconnected from the mains electricity supply.
-Do not operate the appliance before it is fully installed.
-The appliance must be installed by an
authorised technician.
-In order to avoid any hazards resulting from the
instability of the appliance, it must be fixed in
accordance with the following instructions.
-This appliance is not intended for use at altitudes
exceeding 2000m.
-Your appliance must be at least 50 cm away from
stoves, gas ovens and heater cores, and at least 5 cm
away from electrical ovens.
-If your fridge freezer is placed next to a deep freezer,
there must be at least 2cm between them to prevent
humidity forming on the outer surface.
-Clearance of at least 150 mm is required at the top of
your appliance. Do not place anything on top of
your appliance.
-Caple is not responsible for any damage that may
be caused by defective placement and installation by
unauthorised persons.
-When unpacking the appliance, make sure that it is not
damaged during transportation.
-Check the appliance for any damage.
-In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
-Ensure that the supply cord is not wedged, trapped
or damaged during the installation. If the supply cord
is damaged, it must be replaced by a Caple service
technician or similarly qualified persons in order to
prevent a hazard.

8 9Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
-Never touch the power cord/plug with wet hands. This
may cause a short circuit or electric shock.
-The plug must be accessible after installation.
-Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
-Protect your appliance against atmospheric effects. Do
not expose it to effects such as sun, rain, snow etc.
DURING USE:
-Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
-Place drinks with high alcohol content vertically in
the fridge compartment and make sure their tops are
tightly closed.
-If you know you will not be using the appliance for a
while switch it off from the main supply and unplug it.
-Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
-Do not place your appliance on a carpeted surface as
this will prevent adequate ventilation.
-When the appliance is not in use, we recommend you
turn it off, and isolate it from the electrical supply.
-This appliance must be used in the vertical position on
a flat surface.
-Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
-The manufacturer will not be held liable for any
damages that might arise out of incorrect or improper
use of the appliance.
-Do not touch frozen goods with wet hands. Your hands
may freeze to the frozen food.
-Do not eat ice-cream or ice cubes immediately after
they are removed from the freezer compartment.
Frozen food can cause frost burn to the lips
and tongue.
-Do not re-freeze partially or fully thawed food. This
may cause health issues such as food poisoning.
Defrosted food may only be re-frozen after it has been
cooked.
-Do not place glass bottles or cans containing
carbonated drinks in the freezer compartment as they
will burst when the contents freezes.
-If using the appliance to quickly cool drinks, do not
leave bottles inside the freezer compartment for more
than 1 hour, otherwise they could burst.
CLEANING AND MAINTENANCE:
-Clean the appliance thoroughly before use.
-Always switch off the appliance from the mains
isolating the electrical supply before any cleaning or
maintenance.
-Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.

10 11Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
TRANSPORT:
-Always transport the appliance in its original packaging
and in an upright position.
-If your appliance uses R600a as a refrigerant, you
should take care during transportation and installation
to prevent the cooler elements from being damaged.
R600a is an environmentally friendly and natural
gas, but it is explosive. In the event of a leak due to
damage of the cooler elements, move your fridge away
from open flames or heat sources and ventilate the
room where the appliance is located for a few minutes.
-Never use the door handles for lifting.
-The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
-Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
-If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
-Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
7
RI5505 Fridge Freezer Instruction Manual.indd 7RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:3005/02/2020 14:30
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
- Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
- If your old fridge or freezer has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
- Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.

12 13Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed
for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are
coloured in accordance with the
following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked with
the letter E or with the earth symbol
9
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for
any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings
identifying the terminals in your plug proceed as
follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked
with the letter E or with the earth symbol
or coloured green and yellow.
The blue wire must be connected to the terminal
marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
BLUE
Neutral
Cord Clamp
RI5505 Fridge Freezer Instruction Manual.indd 9RI5505 Fridge Freezer Instruction Manual.indd 9 05/02/2020 14:3005/02/2020 14:30
or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
9
ELECTRICAL CONNECTION
For your safety please read the following information
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for
any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug.
HOW TO WIRE A 13 AMP PLUG.
IMPORTANT:
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings
identifying the terminals in your plug proceed as
follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked
with the letter E or with the earth symbol
or coloured green and yellow.
The blue wire must be connected to the terminal
marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN/YELLOW
Earth
BROWN
Live
FUSE
13 Amps
BLUE
Neutral
Cord Clamp
RI5505 Fridge Freezer Instruction Manual.indd 9RI5505 Fridge Freezer Instruction Manual.indd 9 05/02/2020 14:3005/02/2020 14:30
VENTILATION REQUIREMENTS
VENTILATION REQUIREMENTS
The main consideration when installing
a refrigeration product into a cabinet is
ventilation. The heat removed from the
appliance needs to be dissipated into the
room. Failure to correctly ventilate the
product can result in increased running
costs and premature failure. It will also
invalidate the guarantee provided with
the appliance.
An air intake in the plinth is required to
allow for the correct air flow (recommended
500mm x 75mm). If preferred a decorative
stainless steel plinth grille is available,
product code: GRILL/ SENSE600.
This can be purchased from your retailer or
www.caple.co.uk.
To ensure the correct operation of the
appliance it is important the top of the
housing is not blocked off. The top of
the cabinet needs to be vented into the
room,the recommended minimum size of
the vent opening is 500 x 75mm.
There should also be space at the rear
of the cabinet to allow the cool air to be
drawn over the condenser. This should also
be at least 540mm x 50mm. The more air
available to circulate the product, the more
efficiently it will operate.
Instruction manual RiL1795
Please keep this instruction manual for future reference
23
min. 75mm
Ventilation space at
rear to allow heat
dissipation from the
condenser
Plinth ventilation
min. 200cm2
Air flow
Air flow
min. 75mm
VENTILATION REQUIREMENTS
The main consideration when installing a
refrigeration product into a cabinet is ventilation.
The heat removed from the appliance needs to
be dissipated into the room. Failure to correctly
ventilate the product can result in increased
running costs and premature failure. It will also
invalidate the guarantee provided with the
appliance.
An air intake in the plinth is required to allowfor
the correct air flow (recommended 500mm x
40mm). If preferred a decorative stainless steel
plinth grille is available, product code:
GRILL/SENSE600. This can be purchased from
your retailer or www.caple.co.uk.
To ensure the correct operation of the appliance
it is important the top of the housing is not
blocked off. The top of the cabinet needs to
be vented into the room, the recommended
minimum size of the vent opening is 500x40mm.
There should also be space at the rear of the
cabinet to allow the cool air to be drawn over the
condenser. This should also be at least 500mm
x 40mm. The more air available to circulate the
product, the more efficiently it will operate
RIL1795_Larder Instruction Manual.indd 23 07/02/2017 10:35

14 15Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
PRODUCT OVERVIEW
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.
USING THE APPLIANCE
› Before using your appliance, wipe all parts with a solution of warm water and a teaspoon of
sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the appliance
after cleaning.
› Remove all transport tapes and foam protection pieces. Clean the interior with a cloth
dampened in lukewarm soap and water. Rinse with clean water and dry.
› Your appliance may have an odour when it is operated for the first time. This is normal and
the odour will fade when your fridge starts to cool.
› When the appliance has been positioned, adjust the feet to ensure the unit is stable. This is
essential to ensure quiet running and proper door opening/closing.
WARNING:
Connect to the electrical socket but do not switch the power to the refrigerator on for at least
12 hours. The coolant within the product needs time to settle after it has been transported and
put into position, failure to do this will affect the cooling performance of your appliance.
A) Refrigerator compartment
B) Freezer compartment
1) Control panel
2) Turbo fan
3) Refrigerator shelves
4) Crisper cover
5) Crisper
6) Freezer upper flap / drawer
7) Freezer drawers
8) Ice box tray
9) Freezer glass shelves
10) Bottle shelf
11) Adjustable door shelf
12) Door shelf
13) Egg tray
EN - 12
3. DESCRIPTION OF THE
APPLIANCE
A
B
1
2
3
4
5
6
7
8
9
10
11
12
13
This presentation is only for information
about the parts of the appliance. Parts
may vary according to the appliance model.
A) Refrigerator compartment
B) Freezer compartment
1) Control panel
2) Turbo fan *
3) Refrigerator shelves
4) Crisper cover
5) Crisper
6) Freezer upper lap / Drawer
7) Freezer drawers
8) Ice box tray
9) Freezer glass shelves
10) Bottle shelf
11) Adjustable door shelf / Door shelf
12) Door shef
13) Egg holder

16 17Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference

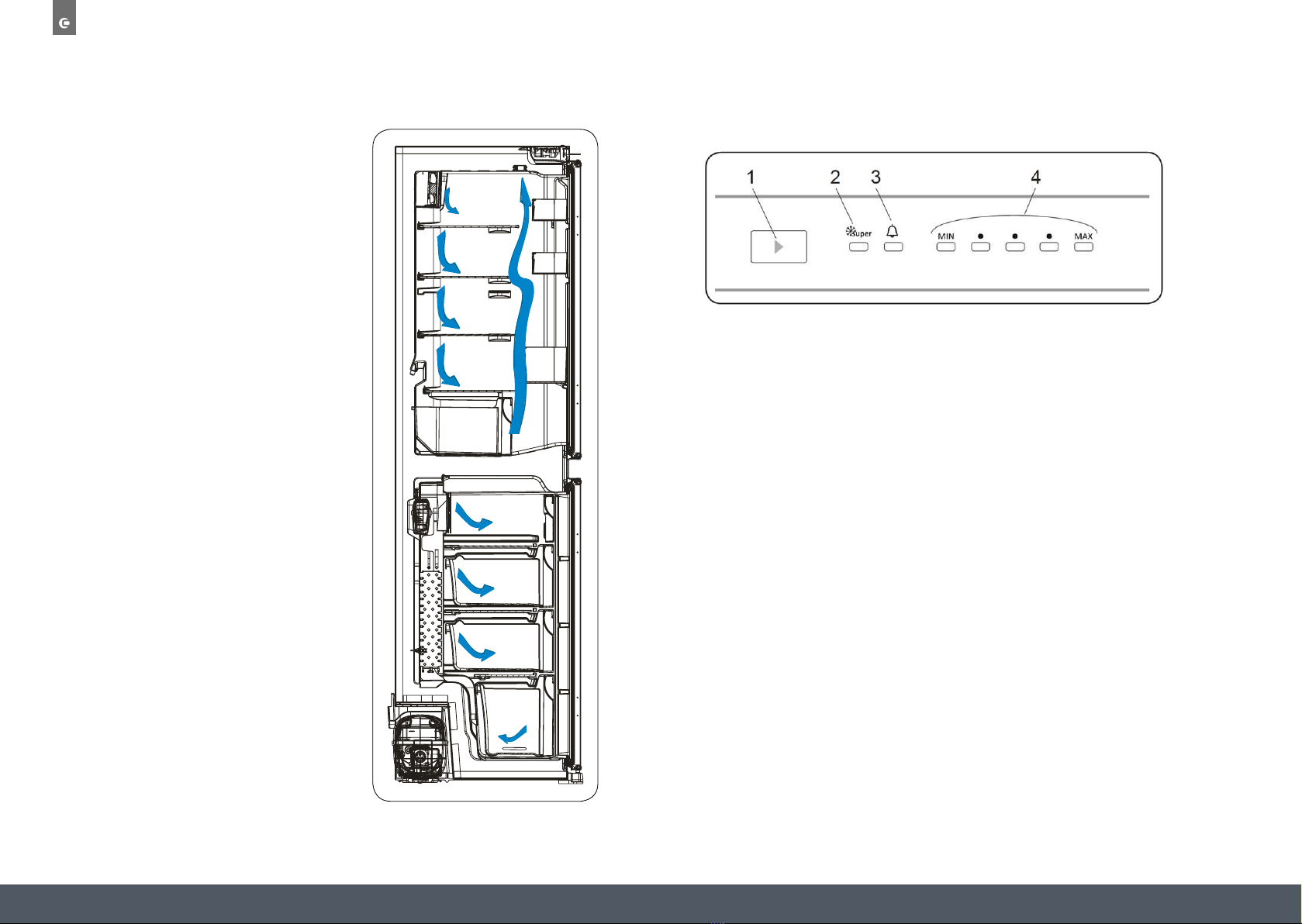

FROST FREE TECHNOLOGY
Frost Free refrigerators have a different operating
system to static refrigerators.
In normal (static) fridges, the humidity entering the
fridge due to opening the door, and the humidity
inherent in the food, causes frost build-up in the
freezer compartment.
To defrost the frost and ice in the freezer
compartment, you are required to periodically switch
off the fridge, place the frozen food in a separate
cooled container, then remove the ice gathered in
the freezer compartment. The situation is completely
different in Frost free fridges.
A built-in fan blows dry and cold air evenly
throughout the cooler and freezer compartments.
The cold air disperses uniformly between the
shelves, ensuring all your food is cooled equally,
thus preventing humidity and frost build-up.
Therefore, your Frost free fridge allows ease of use,
in addition to its huge capacity and
stylish appearance.
DISPLAY AND CONTROL PANEL
1) Temperature set button
2) Super cooling mode LED
3) Alarm indicator LED
4) Temperature setting indicator

18 19Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
TEMPERATURE SET BUTTON
This button allows you to change and set the temperature of the fridge freezer. In order to set
the temperature of the fridge freezer, press this button until the desired temperature setting is
selected. Use this button also to activate super cooling mode.
TEMPERATURE SETTINGS
› The initial temperature of the setting display is middle temperature indicator.
› Every time you press the button, the set temperature will decrease.
› If you press temperature set button until the Super cooling symbol is displayed on the
display and you do not press any button within the following 3 seconds, the super cooling
LED will blink.
› If you keep on pressing the button, it will restart from the last value. It may be set to any
value ranging from MIN to MAX. As you press temperature set button from MIN to MAX,
the temperature decreases. To save energy in winter months, operate your refrigerator in a
lower position.
SUPER COOLING MODE - WHEN WOULD IT BE USED?
› To cool/freeze huge quantities of food.
› To cool/freeze fresh food.
› To cool/freeze quickly.
› To store seasonal food for a long time.
HOW TO USE?
› Press temperature set button until super cooling light comes on.
› Super cooling LED will light during this mode.
› For optimal appliance performance in maximum cooling capacity, set the
appliance to active Super Cooling mode 5 hours before you put the fresh food into
the fridge.
› During this mode if you press the temperature set button, the mode will be cancelled
and the setting will be restore back to the MAX setting. Super cooling mode will be
automatically cancelled after 5 hours.
ALARM LIGHT
› In case of a problem within the fridge, the alarm LED will illuminate red.
TEMPERATURE ADJUSTMENT WARNINGS
› It is not recommended that you operate your fridge in environments colder than 10°C in
terms of its efficiency.
› Do not start another adjustment while you are already making an adjustment.
› Temperature adjustments should be made according to the frequency of door openings, the
quantity of food kept inside the fridge and the ambient temperature in the location of
your fridge.
› In order to allow your fridge to reach the operating temperature after being connected
to mains, do not open the doors frequently or place large quantities of food in the fridge.
Please note that, depending on the ambient temperature, it may take 24 hours for your
fridge to reach the operating temperature.
› A 5 minute delay function is applied to prevent damage to the compressor of your fridge
when connecting or disconnecting to mains, or when an energy breakdown occurs. Your
fridge will begin to operate normally after 5 minutes.
› Your appliance is designed to operate in the ambient temperature range
T/N = 16°C - 43°C intervals stated in the standards, according to the climate class
displayed on the information label. We do not recommend operating your appliance out of
the stated temperature limits in terms of cooling effectiveness.
EN - 14
Alarm light
In case of a problem within the fridge,
the alarm LED will illuminate red.
Temperature Adjustment Warnings
•It is not recommended that you operate
your fridge in environments colder than
10°C in terms of its efficiency.
•Do not start another adjustment while
you are already making an adjustment.
•Temperature adjustments should be
made according to the frequency of
door openings, the quantity of food
kept inside the fridge and the ambient
temperature in the location of your
fridge.
•In order to allow your fridge to reach
the operating temperature after being
connected to mains, do not open the
doors frequently or place large
quantities of food in the fridge. Please
note that, depending on the ambient
temperature, it may take 24 hours for
your fridge to reach the operating
temperature.
•A 5 minute delay function is applied to
prevent damage to the compressor of
your fridge when connecting or
disconnecting to mains, or when an
energy breakdown occurs. Your fridge
will begin to operate normally after 5
minutes.
•Your appliance is designed to operate
in the ambient temperature range
T/N = 16°C - 43°C intervals stated in
the standards, according to the climate
class displayed on the information
label. We do not recommend operating
your appliance out of the stated
temperature limits in terms of cooling
effectiveness.
Climate
Class Ambient Temperature oC
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)
The Turbo Fan
Do not block the air inlet and outlet openings
when storing food, otherwise air circulation
provided by the turbo fan will be impaired.
Turbo fan

20 21Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
THE TURBO FAN
› Do not block the air inlet and outlet openings when storing food, otherwise air circulation
provided by the turbo fan will be impaired.
Turbo fan
ACCESSORIES
ICE TRAY
› Fill the ice tray with water and place
in the freezer compartment.
› After the water has completely frozen,
you can twist the tray as shown below
to remove the ice cubes.
EN - 14
4.3. Accessories
4.3.1. Ice Tray
•Fill the ice tray with water and place in
the freezer compartment.
•After the water has completely frozen,
you can twist the tray as shown below
to remove the ice cubes.
4.3.2. The Plastic Scraper
After some time, frost will
build up in certain areas of the
freezer. The frost accumulated
in the freezer should be removed
regularly. Use the plastic scraper
provided, if necessary. Do not
use sharp metal objects for this operation.
They could puncture the refrigerator circuit
and cause irreparable damage to the unit.
4.3.3. The Bottle Holder
Use the bottle holder to prevent bottles from
slipping or falling over.
5. FOOD STORAGE
5.1. Refrigerator Compartment
•To reduce humidity and avoid the
consequent formation of frost, always
store liquids in sealed containers
in the refrigerator. Frost tends to
concentrate in the coldest parts of the
evaporating liquid and, in time, your
appliance will require more frequent
defrosting.
•Never place warm food in the
refrigerator. Warm food should be
allowed to cool at room temperature
and should be arranged to ensure
adequate air circulation in the
refrigerator compartment.
•Make sure no items are in direct
contact with the rear wall of the
appliance as frost will develop and
packaging will stick to it. Do not open
the refrigerator door frequently.
•We recommend that meat and clean
ish are loosely wrapped and stored on
the glass shelf just above the
vegetable bin where the air is cooler,
as this provides the best storage
conditions.
•Store loose fruit and vegetable items in
the crisper containers.
•Storing fruit and vegetables separately
helps prevent ethylene-sensitive
vegetables (green leaves, broccoli,
carrot, etc.) being affected by
ethylene-releaser fruits (banana,
peach, apricot, etc.).
•Do not put wet vegetables into the
refrigerator.
•Storage time for all food products
depends on the initial quality of
the food and an uninterrupted
refrigeration cycle before refrigerator
storage.
•To avoid cross-contamination do not
store meat products with fruit and

22 23Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
CAPLE FRESH
(MAXI-FRESH PRESERVER)
› Caple-Fresh technology eliminates the ethylene gas (a by-product of fresh foods) inside
the vegetable draw. By this method, it maximises the fresh foods shelf life, especially green
vegetables. Caple Fresh also blocks the bad smells produced in the refrigerator.
› The Caple Fresh filter must be cleaned once a year. It can be cleaned by leaving in sunlight
for one day.
› When you want to clean the filter, remove the back side in the direction of the arrow.
› Don’t wet this part with water or detergent.
Caple Fresh
(Maxi-fresh preserver)
13
(a
. By this
it maximizes the fresh foods shelf life, especially
blocks the bad smells
ilter, remove the back side in the
Fresh technology eliminates the ethylene gas (a
vegetable draw. By this
it maximizes the fresh foods shelf life, especially
blocks the bad smells
must be cleaned once a year. It can be
sunlight for one day.
ilter, remove the back side in the
• Don’t wet this part with water or detergent.
Caple Fresh
(Maxi-fresh preserver)
HUMIDITY CONTROLLED DRAWER
When the humidity controller is in the closed position, it allows fresh fruit and vegetables to be
stored longer.
When the drawer is totally full, the humidity controller should be opened. By means of this the
air in the draw and humidity rate will be controlled and endurance life will be increased. If you
see any condensation on the glass shelf above, the humidity control should be moved into the
open position.
NOTE:
The drawers are specifically designed to store fruit & vegetables only. We do not recommend
storing meats and/or fish in these drawers.
Humidity Control

24 25Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
EASY ADJUSTABLE DOOR SHELF
One door shelf is adjustable (the rest are fixed). To adjust the
shelf to the appropriate height, hold the bottom of the shelf and
pull on the button on each end to unlock as shown in below.
Whilst pulled down move the door shelf to the appropriate
height (there are 6 height positions). Once set at the correct
height, release the buttons to lock it into position.
NOTE:
Please ensure the shelf is empty before adjusting.
EASY ADJUSTABLE DOOR BALCONY
Your fridge comes included with 1 adjustable door balcony (along with the other
normal door balconies). To adjust this door balcony to
the appropriate height, hold the bottom of the balcony
and pull on the button on each end to unlock as shown
in Fig.1. Whilst pulled down move the door balcony to
the appropriate height (there are 6 height positions).
Once set at the correct height, release the buttons to
lock it into position.
NOTE:
Please ensure the balcony is empty before adjusting.
FOOD STORAGE
REFRIGERATOR COMPARTMENT
› To reduce humidity and avoid the consequent formation of frost, always store liquids in
sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the
evaporating liquid and, in time, your appliance will require more frequent defrosting.
› Never place warm food in the refrigerator. Warm food should be allowed to cool at room
temperature and should be arranged to ensure adequate air circulation in the
refrigerator compartment.
› Make sure no items are in direct contact with the rear wall of the appliance as frost will
develop and packaging will stick to it. Do not open the refrigerator door frequently.
› We recommend that meat and clean fish are loosely wrapped and stored on the glass
shelf just above the vegetable bin where the air is cooler, as this provides the best storage
conditions.
› Store loose fruit and vegetable items in the crisper containers.
› Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green
leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach,
apricot, etc.).
› Do not put wet vegetables into the refrigerator.
› Storage time for all food products depends on the initial quality of the food and an
uninterrupted refrigeration cycle before refrigerator storage.
› To avoid cross-contamination do not store meat products with fruit and vegetables. Water
leaking from meat may contaminate other products in the refrigerator. You should package
meat products and clean any leakages on the shelves.
› Do not put food in front of the air flow passage.
› Consume packaged foods before the recommended expiry date.
NOTE:
Potatoes, onions and garlic should not be stored in the refrigerator. The table below is a quick
guide to show you the most efficient way to store the major food groups in your
refrigerator compartment.

26 27Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
TO AVOID CONTAMINATION OF FOOD, PLEASE RESPECT THE
FOLLOWING INSTRUCTIONS:
› Opening the door for long periods can cause significant increase of the temperature in the
compartments of the appliance.
› Regularly clean surfaces that can come in contact with food accessible drainage systems.
› Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drips onto other food.
› Two -star frozen-food compartments are suitable for storing pre-frozen food, storing or
making ice cream and making ice cubes.
› One-, two- and three-star compartments are not suitable for freezing of fresh food.
› If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry and
leave the door open to prevent mould developing within the appliance.
FOOD MAXIMUM STORAGE
TIME*
HOW AND WHERE
TO STORE
Vegetables and fruits 1 week Vegetable bin
Meat and fish 2 - 3 days Wrap in plastic foil, bags, or in a meat
container and store on the glass shelf
Fresh cheese 3 - 4 days On the designated door shelf
Butter and margarine 1 week On the designated door shelf
Bottled products e.g. milk and
yoghurt
Until the expiry date recommended
by the producer On the designated door shelf
Eggs 1 month On the designated egg tray
Cooked food 2 days All shelves
These are guidelines only, always refer to the expiry date, or best before date recommended by
the producer.
FREEZER COMPARTMENT
› The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
› To freeze fresh food, ensure that as much of the surface of the food as possible is in contact
with the cooling surface.
› Do not store fresh food next to frozen food as it can thaw the frozen food.
› Before freezing fresh food, divide it into portions that can be consumed in one sitting.
› Consume thawed frozen food within a short period of time after defrosting
› Never place warm food in the freezer compartment as it will thaw the frozen food.
› Always follow the manufacturer’s instructions on food packaging when storing frozen food.
If no information is provided food, should not be stored for more than 3 months from the
date of purchase.
› When purchasing frozen food, make sure that it has been stored under appropriate
conditions and that the packaging is not damaged.
› Frozen food should be transported in appropriate containers and placed in the freezer as
soon as possible.
› Do not purchase frozen food if the packaging shows signs of humidity band abnormal
swelling. It is probable that it has been stored at an unsuitable temperature and that the
contents have deteriorated.
› The storage life of frozen food depends on the room temperature, the thermostat setting,
how often the door is opened, the type of food, and the length of time required to transport
the product from the shop to your home. Always follow the instructions printed on the
packaging and never exceed the maximum storage life indicated.
› The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on
the appliance label.
› To use the maximum capacity of the freezer compartment, use the glass shelves for the
upper and middle section, and use the lower basket for the bottom section.
NOTE:
If you attempt to open the freezer door immediately after closing it, you will find that it will not
open easily. This is normal. Once equilibrium has been reached, the door will
open easily.

28 29Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
IMPORTANT NOTE:
› Never refreeze thawed frozen food.
› The taste of some spices found in cooked dishes (aniseed, watercress, vinegar, assorted
spices, ginger, garlic, onion, mustard, thyme, black pepper, etc.) changes and they assume a
strong taste when they are stored for a long period of time. Therefore, add small amounts of
spices to food to be frozen, or the desired spice should be added after the food has thawed.
› The storage time of food is dependent on the type of oil used. Suitable oils are margarine,
calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
› Food in liquid form should be frozen in plastic cups and other food should be frozen
in plastic or bags or containers. The table below is a quick guide to show you the most
efficient way to store the major food groups in your freezer compartment.
MEAT AND FISH PREPARATION MAXIMUM STORAGE TIME
(MONTHS)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using
spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if
it has a membrane
Chicken and turkey Wrap in foil 4 - 6
Goose and duck Wrap in foil 4 - 6
Deer, rabbit, wild boar In 2.5 kg portions or as fillets 6 - 8
Freshwater fish (Salmon, Carp, Crane,
Catfish)
After cleaning the bowels and
scales of the fish,wash and dry
it. If necessary, remove the tail
and head.
2
Lean fish (Bass, Turbot, Flounder) 4
Fatty fishes (Tuna, Mackarel, Bluefish,
Anchovy) 2 - 4
Shellfish Clean and in a bag 4 - 6
Caviar In its packaging, or in an
aluminium or plastic container 2 - 3
NOTE:
Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after
defrosting, it must not be re-frozen.

30 31Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
VEGETABLES AND FRUITS PREPARATION MAXIMUM STORAGE
TIME (MONTHS)
String beans and beans Wash, cut into small pieces and boil in water 10 - 13
Beans Hull, wash and boil in water 12
Cabbage Clean and boil in water 6 - 8
Carrot Clean, cut into slices and boil in water 12
Pepper Cut the stem, cut into two pieces, remove
the core and boil in water 8 - 10
Spinach Wash and boil in water 6 - 9
Cauliflower
Remove the leaves, cut the heart into pieces
and leave it in water with a little lemon juice
for a while
10 - 12
Aubergine Cut into pieces of 2cm after washing 10 - 12
Sweet corn Clean and pack with its stem or as sweet
corn 12
Apple and pear Peel and slice 8 -10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry Wash and hull 8 - 12
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry, raspberry Wash and hull the stems 8 - 12
MAXIMUM
STORAGE TIME
(MONTHS)
THAWING TIME AT
ROOM TEMPERATURE
(HOURS)
THAWING TIME IN
OVEN (MINUTES)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1.5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1.5 3 - 4 5-8 (190-200 °C)
Filo dough 2 - 3 1 - 1.5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)
DAIRY
PRODUCTS PREPARATION MAXIMUM STORAGE
TIME (MONTHS) STORAGE CONDITIONS
Packet (Homogenized)
Milk In its own packet 2 - 3 Pure Milk – in its own packet
Cheese - excluding
white cheese In slices 6 - 8
Original packaging may be
used for short-term storage.
Keep wrapped in foil for longer
periods.
Butter, margarine In its packaging 6

32 33Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
CLEANING AND MAINTENANCE
Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing,
rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug
to the mains supply with dry hands.
› Make sure that no water enters the lamp housing and other electrical components.
› The appliance should be cleaned regularly using a solution of bicarbonate of soda and
lukewarm water.
› Clean the accessories separately by hand with soap and water. Do not wash accessories in
a dish washer.
› Clean the condenser with a brush at least twice a year. This will help you to save on energy
costs and increase productivity.
NOTE:
The power supply must be disconnected during cleaning.
DEFROSTING THE REFRIGERATOR COMPARTMENT
› Defrosting occurs automatically in the
refrigerator compartment during operation.
The water is collected by the evaporation
tray and evaporates automatically.
› The evaporation tray and the water drain
hole should be cleaned periodically with
the defrost drain plug to prevent the
water from collecting at the bottom of the
refrigerator instead of flowing out.
› You can also clean the drain hole by
pouring half a glass of water down it.
EN - 22
•Do the food packages prevent closing
of the door?
•Are the door compartments, shelves
and drawers placed properly?
•Are door joints broken or torn?
•Is your fridge freezer on a level
surface?
Recommendations
•To stop the appliance completely,
unplug from main socket (for cleaning
and when the door is left open)
Replacing LED Lighting
To replace any of the LEDs, please
contact Caple service to arrange. This
should only be performed by a qualified
electrician.
Note: The numbers and location of the
LED strips may change according to the
model.
LED strip
6.1. Defrosting the refrigerator compartment
•Your refrigerator performs automatic
defrosting. The water formed as a
result of defrosting passes through
the water collection spout, ows into
the vaporisation container behind your
refrigerator and evaporates there.
•Make sure you have disconnected
the plug of your refrigerator before
cleaning the vaporisation container.
•Remove the vaporisation container
from its position by removing the
screws as indicated. Clean it with
soapy water at specic time intervals.
This will prevent odours from forming.

34 35Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
TRANSPORT AND REPOSITIONING
TRANSPORTATION AND CHANGING POSITIONING
› The original packaging and foam may be kept for re-transportation (optional).
› Fasten your appliance with thick packaging, bands or strong cords and follow the
instructions for transportation on the packaging.
› Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into
the appliance against shocks using bands/tape when re-positioning or transporting.
› Always carry your appliance in the upright position.
REPLACING LED LIGHTING
To replace any of the LEDs, please contact Caple service to arrange. This should only be
performed by a qualified electrician.
NOTE:
The numbers and location of the LED strips may change according to the model.
HOLIDAY
SHORT HOLIDAYS: Leave the fridge freezer operating during holidays of less than
three weeks.
LONG HOLIDAYS: If the appliance will not be used for several months, remove all items and
turn off the appliance. Clean and dry the interior thoroughly. To prevent
odour and mould growth, leave the door open slightly (blocking it open
if necessary).
EN - 22
LED strip
Left and right LED lights

36 37Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
YOUR FRIDGE FREEZER IS OPERATING NOISILY
CRACKING (ICE CRACKING):
› During automatic defrosting.
› When the appliance is cooled or warmed (due to expansion of appliance material).
SHORT CRACKING:
Heard when the thermostat switches the compressor on/ off.
COMPRESSOR NOISE:
Normal motor noise. This noise means that the compressor operates normally Compressor may
cause more noise for a short time when it is activated.
BUBBLING NOISES:
This noise is caused by the flow of the refrigerant in the tubes of the system.
WATER FLOW NOISE:
Normal flow noise of water flowing to the evaporation container during defrosting. This noise
can be heard during defrosting.
AIR BLOW NOISE:
Normal fan noise. This noise can be heard in fridges during normal operation of the system due
to the circulation of air.
DOOR JOINTS
If the edges of fridge cabinet that the door joint contact are warm; especially in summer (hot
weather), the surfaces that the joint contact may get warmer during the operation of the
compressor, this is normal. If humidity builds up inside the fridge freezer.
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE
Reviewing the information below may save you from calling for service.
ERRORS
Your fridge will warn you if the temperatures for the fridge and freezer are at improper levels or
if a problem occurs with the appliance.
THE APPLIANCE DOES NOT OPERATE CHECK IF:
› There is power to the unit
› The general switch in your home is connected
› The socket is working. To check this, plug in another appliance that you know is working
into the same socket.
THE APPLIANCE PERFORMS POORLY CHECK IF:
› You have not overloaded the appliance
› The fridge temperature set to MAX
› The door is closed perfectly
› There is no dust on the condenser
› There is enough space at the rear and side walls for ventilation
ALARM INDICATOR
LED IS TURNING ON MEANING WHY WHAT TO DO
Failure Warning
There is/are some part(s) out of
order or there is a failure in the
cooling process.
The product has been plugged in
for the first time, or power has
been interrupted for more than
1 hour
Check if the door is open or
not. Check the appliance in 1
hour to see if it is now working,
and the alarm has turned off.
If the door is not open, or the
appliance is still not working
after 1 hour, call Caple service
for assistance.
EN - 21
TROUBLESHOOTING
Errors
Your fridge will warn you if the temperatures for the fridge and freezer are at improper levels
or if a problem occurs with the appliance.
AAllaarrmm
iinnddiiccaattoorr LLEEDD
iiss ttuurrnniinngg oonn
MMeeaanniinnggWWhhyyWWhhaatt ttoo ddoo
Failure Warning
There is/are some part(s) out
of order or there is a failure in
the cooling process.
The product has been plugged
in for the first time, or power
has been interrupted for more
than 1 hour
Check if the door is open or not. Check the
appliance in 1 hour to see if it is now working,
and the alarm has turned off. If the door is not
open, or the appliance is still not working after
1 hour, call Caple service for assistance
•There if their is power to the unit
•The general switch in your home is
connected
• The socket is working. To check this,
plug in another appliance that you
know is working into the same
socket.
What to do if your appliance performs
poorly;
Check that;
•You have not overloaded the
appliance,
•The fridge temperature set to MAX.
•The door is closed perfectly,
•There is no dust on the condenser,
•There is enough space at the rear
and side walls for venitlation.
If your fridge is operating too loudly;
Normal Noises
Cracking (Ice cracking) Noise:
•During automatic defrosting.
•When the appliance is cooled or
warmed (due to expansion of appliance
material).
Short cracking: Heard when the
thermostat switches the compressor on/
off.
If the edges of fridge cabinet that the
door joint contact are warm;
Especially in summer (hot weather),
the surfaces that the joint contact may
get warmer during the operation of the
compressor, this is normal.
If humidity builds up inside the fridge
freezer;
•Are all food packed properly? Are the
containers dried before placing them
in the fridge?
•Are the fridge freezeer's doors opened
frequently? Humidity of the room gets
in the fridge when the door is opened.
Humidity build up will be faster when
you open the door more frequently,
especially if the humidity of the room
is high.
If the doors are not opened and closed
properly;

38 39Instruction manual Ri7306 Instruction manual Ri7306Please keep this instruction manual for future reference Please keep this instruction manual for future reference
ENERGY SAVING TIPS
1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near
a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment. The low temperature of the frozen
food will help cool the refrigerator compartment while the food is thawing. This will save
energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered,
the humidity inside the appliance will increase, therefore the appliance uses more energy.
Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as
warm air will enter the appliance and cause the compressor to switch on
unnecessarily often.
6. Keep the covers of the different temperature compartments ( such as the crisper and
chiller) closed.
7. The door gasket must be clean and pliable. Replace gaskets if worn.
IS ALL THE FOOD PACKED PROPERLY?
› Are the containers dried before placing them in the fridge?
› Are the fridge freezer’s doors opened frequently? Humidity of the room gets in the fridge
when the door is opened. Humidity build up will be faster when you open the door more
frequently, especially if the humidity of the room is high.
IF THE DOORS ARE NOT OPENED AND CLOSED PROPERLY
› Do the food packages prevent closing of the door?
› Are the door compartments, shelves and drawers placed properly?
› Are door joints broken or torn?
› Is your fridge freezer on a level surface?
RECOMMENDATIONS
› To stop the appliance completely, unplug from main socket (for cleaning and when the
door is left open).
› If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the
appliance in or restarting it in order to prevent damage to the compressor.
If the problem persists or more help is required, please contact our Caple service team on
Other manuals for RI7306
1
Table of contents
Other Caple Refrigerator manuals
Popular Refrigerator manuals by other brands

KitchenAid
KitchenAid FOR THE WAY IT'S MADE KSSS42QDX00 parts list

Haier
Haier HRZ-60 User instructions

Frigidaire
Frigidaire FRT21HR6A Factory parts catalog

Ariston
Ariston BCS 311 T Instructions for installation and use

AstroAI
AstroAI PORTABLE MINI REFRIGERATOR quick start guide

Frigidaire
Frigidaire Gallery FGHF2369MF use & care
