Capstone Thin cast User manual

I M A G I N E D B Y C A P S T O N E

Getting

Started

Wardrobe/Fitness Smart Mirror

Standard Smart Mirror

V 1.1

Carefully unpack your Smart Mirror.

Never lay the glass side of the mirror facing down.

WHAT'S INCLUDED

• Capstone Connected Smart Mirror

• Wall Mounting Bracket

• 3 Screws & 3 Anchors

• A/C Power Adapter

• Aluminum Phone Stand

Stand the Wardrobe/Fitness mirror upright and fully extend the floor stand or

mount to a wall (see mounting instructions)

Mount the Standard Smart Mirror to a wall

(see mounting instructions)

Mounting the Mirror

NOTE: Check the wall for studs and electrical wires using a Wall Stud Finder. If wall studs are present,

the bracket can be mounted directly without the need of wall anchors.

1. Determine where and how high to hang the mirror. Consider the location of your outlet and cord

length.

2. Use a pencil to make a light point on the wall for the top-center of the mirror.

3. Wardrobe/Fitness Mirror:Measure down 1.5” from the point and pencil a second mark.

Standard Mirror: Measure down 5” from the point and pencil a second mark.

4. Center the wall bracket under the second mark and pencil in the 3 holes. We recommend using

a level to help align the bracket.

5. Drill holes with a 1/4” drill bit.

6. Insert drywall anchors inside each drilled hole.

7. Align mounting bracket over the anchors.

8. Insert screws into each anchor and tighten.

9. The wall bracket should now be secured.

10. Plug the USB-C cable into the back of the mirror BEFORE hooking the mirror on the wall bracket.

Be careful not to crimp or pinch the cable.

Mounting Instructions

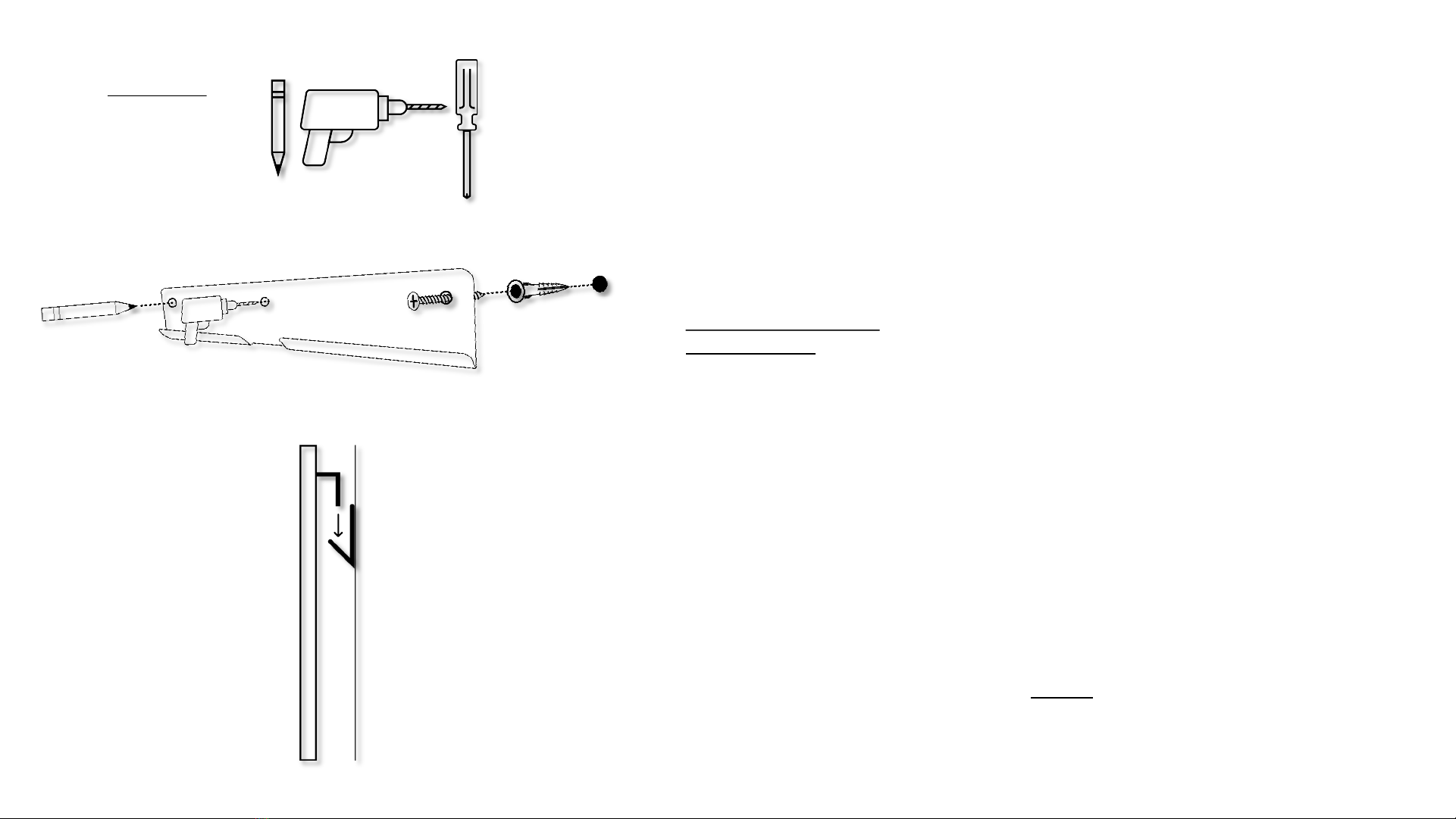

Tools Required:

Pencil

Drill with 1/4” bit

Philips head screwdriver

Level (recommended)

Wall Bracket

Mirror hooks onto wall bracket

*The bumpers were designed to protect the backing of the mirror and your wall. It is normal that the mirror is

not flushed against the wall.

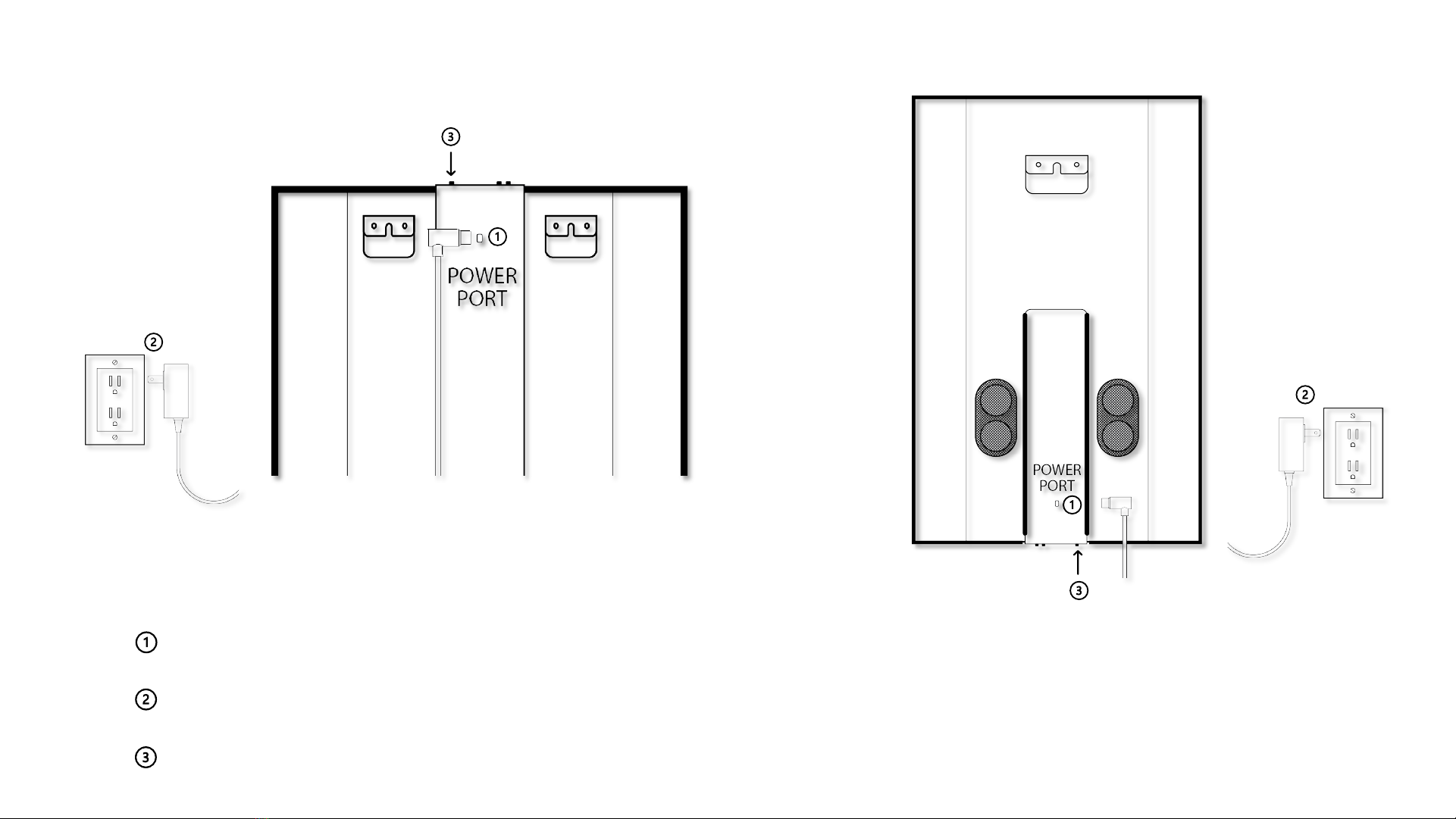

Insert the USB-C cable into the power port behind the mirror (do this step before hanging the mirror).

Plug power adapter into a wall outlet. The logo on the front of the mirror will illuminate & the display will briefly turn on.

Hold down the power button for about 3 seconds and release. The mirror will start in a few moments.

Wardrobe/Fitness Smart Mirror

Standard Smart Mirror

Powering on the Mirror

Power Button

After powering on the mirror, a brief Animation will play on the display (approx. 60 sec) and then take you to you

to the Home Screen.

Connect to your Wi-Fi Network:

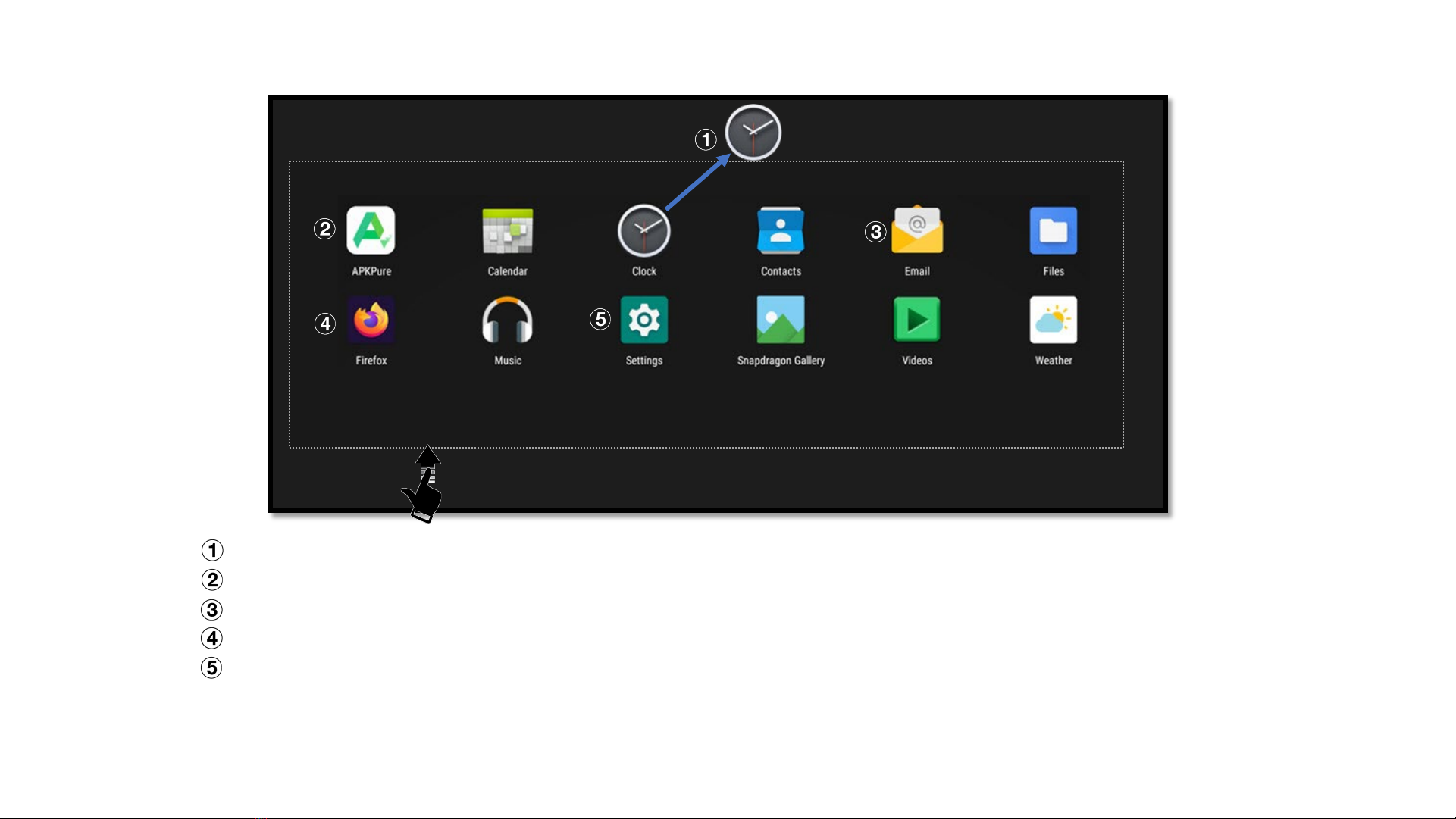

From the Home Screen, swipe up from the bottom edge of the display to reveal the App Folder and open the

Settings App .

Select Network & Internet > Wi-Fi > Tap your home network > Enter Wi-Fi password and connect to the internet.

Connecting to Wi-Fi

Animation Home Screen App Folder

Add shortcuts to Home Screen: Hold down on an App and drag it outside of the App Folder.

APKPure App Store: Download more of your favorite Apps right onto the mirror.

E-mail: Check & compose E-mails. Alternate E-mail Apps (i.e., Outlook) are available for download on APKPure.

Firefox: Browse the web (i.e., YouTube.com, Twitter.com).

Settings: Modify system settings (i.e., Bluetooth, Wi-Fi).

Smart 1 –Browse the Web and explore Apps right on the Smart Mirror

Swipe up from the bottom edge of the display to reveal the app folder

iPhone Instructions:

Make sure your iPhone is on the same Wi-Fi network as the Smart Mirror.

On iPhone Xor later swipe down from the top-right corner of the screen.

On earlier iPhone models swipe up from the bottom edge of the screen.

Tap Screen Mirroring and select ‘CapstoneThinCast’.

Adjust the mirror or phone’s volume to your liking.

Tap Screen Mirroring again to disconnect.

Android Instructions:

Make sure your Android phone is on the same Wi-Fi network as the Smart Mirror.

Swipe down from the top edge of your phone to reveal the Quick Settings Menu.

Tap the Cast Icon* and select ‘CapstoneThinCast’.

Adjust the mirror or phone’s volume to your liking.

Tap the Cast Icon again to disconnect.

iOS (iPhone):

Android Smartphone:

Smart 2 -Cast your Smartphone’s screen and audio directly to the mirror.

Use the included stand to hold your phone in landscape orientation.

*Some Android phone manufactures have a different term for casting

(i.e. SmartView).

If your Android phone does not support casting, install our free app

from our website on your phone at:

www.capstoneconnected.com/help/casting

Wardrobe/Fitness Standard

Back/Return Home Screen Show opened Apps

Volume Control

We recommend using a gentle, non-

abrasive screen cleaner and wiping

the mirror with a microfiber cloth.

Do not spray the mirror directly.

Widgets: Tap and hold down on a blank area of

the Home Screen > Release & select Widgets >

Drag out your favorite widget

Connect Bluetooth devices such as external

speakers and headphones:

Set your Bluetooth device to pairing mode (refer

to the manufactures' instructions).

Swipe up from the bottom edge of the display to

reveal the App Folder and open the Settings App

Select Connected Devices > Pair New Device >

Select your device

Weather Widget

Display:

Helpful Hints

(Wardrobe/Fitness)

Top of mirror

Hold down the mirror’s Power Button to show:

Power Off/Restart/Screenshot

Power Button: Press and let go to hide the display.

Tap the display to unhide.

*For additional tips, visit our online video guide: capstoneconnected.com/help

Back/Return Home Screen Show opened Apps

Display:

We recommend using a gentle, non-

abrasive screen cleaner and wiping

the mirror with a microfiber cloth.

Do not spray the mirror directly.

Volume Control

Widgets: Tap and hold down on a blank area

of the Home Screen > Release & select

Widgets > Drag out your favorite widget

Connect Bluetooth devices such as external

speakers and headphones:

Set your Bluetooth device to pairing mode (refer

to the manufactures' instructions).

Swipe up from the bottom edge of the display to

reveal the App Folder and open the Settings App

Select Connected Devices > Pair New Device >

Select your device

Helpful Hints

(Standard Size)

Bottom of mirror

Hold down the mirror’s Power Button to show:

Power Off/Restart/Screenshot

Power Button: Press and let go to hide the display.

Tap the display to unhide.

*For additional tips, visit our online video guide: capstoneconnected.com/help

Weather Widget

Information for the below can be found at

www.capstoneconnected.com/warranty

• WARRANTY

• ACTIVATE WARRANTY

• RETURN POLICY

• DAMAGED IN TRANSIT
