Caraudio-Systems V5-NTG45-PNP User manual

Version 03.06.2015 V5-NTG45-PNP
v.LOGiC Intelligent Solution
Interface
V5-NTG45-PNP
compatible with Mercedes Benz vehicles with
COMAND Online NTG4.5 navigation and Audio20
NTG45 system with 4pin HSD LVDS connector

Version 03.06.2015 V5-NTG45-PNP
Page1
Product features
Control by factory infotainment
Own on-screen display and setup
2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC,
rear-view camera, reverse gear)
Rear-view camera input
Front camera input
Automatic switching to rear-view camera input on engagement of reverse gear from
all operation modes
Manual switching to rear-view camera
Manual return from rear-view and front camera (cancellation of automatic switching)
Compatible with all factory video accessories (e.g. rear-view camera, DVD-changer,
TV-tuner)
USB update-port for software-updates by consumer
Plug&
Play installation

Version 03.06.2015 V5-NTG45-PNP
Page2
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the interface-box V5C-M613
1.4. LED’s of the interface-box V5C-M613
2. Connection schema
3. Installation
3.1. Connecting interface-box and harnesses
3.2. LVDS connection
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
3.2.1.2. Settings for connecting an after-market front camera

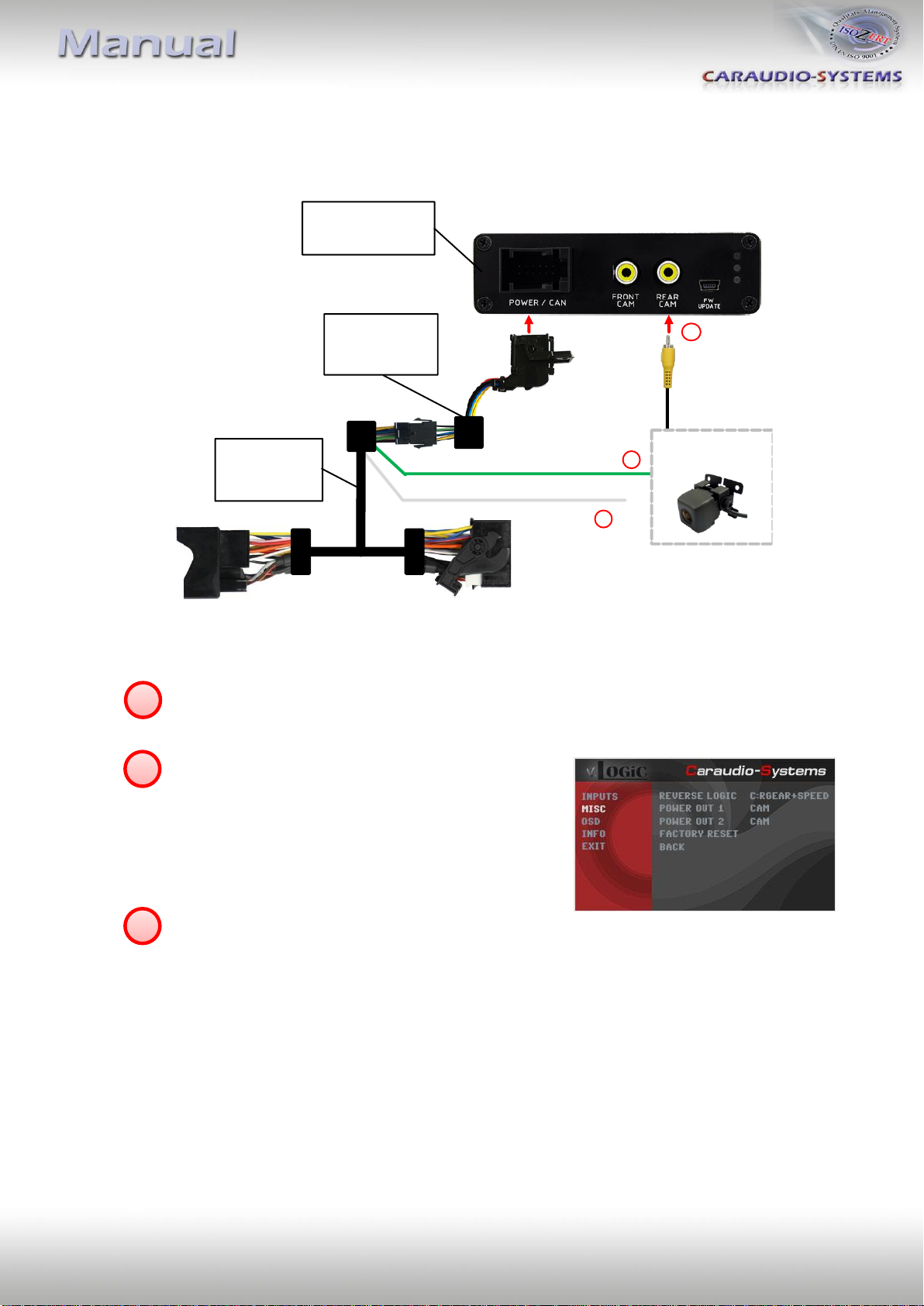

3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
3.2.2.2. Settings for connecting an after-market rear-view camera
3.2.3. Configurable trigger outputs
3.3. Picture settings
4. Operation
4.1. OSD –On-screen display
4.1.1. OSD –Operation
4.1.2. OSD –Additional setting options
4.2. Selecting the interface as current video source
5. Specifications
6. Connections (interface-box)
7. Technical support

Version 03.06.2015 V5-NTG45-PNP
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
Interface-box
V5C-M613
HW_____ SW_____
LVDS cable
CAB-HSD-DD075-O
V5C-UNI01
harness
LVDS cable
CAB-HSD-MR-060-OZ
V5C-MBN45
harness

Version 03.06.2015 V5-NTG45-PNP
Page4
1.2. Check compatibility of vehicle and accessories
1.3. Setting the dip switches of the interface-box V5C-M613
Dip 1 on the back of the interface-box V5C-M613 is used to set the monitor type.
Device
Dip 1
COMAND Online NTG4.5
ON
Audio20 NTG4.5
OFF
After each change of the dip switch settings you have to execute a power reset of the
interface interface-box!
1.4. LED‘s of the interface-box V5C-M613
Requirements
Vehicle Mercedes Benz with 6”/ 7“ monitor and 4pin HSD LVDS connector
Device COMAND Online NTG4.5, Audio20 NTG4.5
Validinput source
CAN ok
Power

Version 03.06.2015 V5-NTG45-PNP
Page5
2. Connection schema
Rear-view
camera
Interface-box
V5C-M613
REAR
LVDS cable
CAB-HSD-DD075-O
Back of
head unit
4-Pin HSD
LVDS female
vehicle harness
LVDS cable
CAB-HSD-MR-060-OZ
Interface-box
V5C-M613
FRONT
Quadlock female
vehicle harness
Front camera
+12V switching
output
Rear gear signal
input (+12V)
V5C-UNI01
harness
V5C-MBN45
harness +12V switching
output

Version 03.06.2015 V5-NTG45-PNP
Page6
3. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
Prior to wire and device installation we suggest to connect and test correct function of all
after-market and factory infotainment equipment!
The interface is installed on the backside of the head unit.
3.1. Connecting interface-box and harnesses
Remove the female Quadlock connector of the vehicle harness from the rear of the
navigation computer.
Remove optical leads from the female Quadlock connector of the vehicle harness and
insert them into the female Quadlock connector of harness V5C-MBN45 at the same
position.
Connect female Quadlock connector of vehicle harness to the male Quadlock
connector of harness V5C-MBN45.
Connect female Quadlock connector of harness V5C-MBN45 to the male Quadlock
connector of the navigation computer
1
2
3
4
V5C-MBN45
harness
Quadlock male
on rear side
of navigation
Quadlock female
vehicle harness
3
4
2
1
Interface-box
V5C-M613
FRONT
5
6
V5C-UNI01
harness

Version 03.06.2015 V5-NTG45-PNP
Page7
Connect female 8 pin molex connector of the harness V5C-MBN45 to the
male 8 pin molex connector of the harness V5C-UNI01.
Connect female 12pin AMP connector of the harness V5C-UNI01 to the
front site of the V5C-M613 interface box.
Connection for Comand NTG4.5 / Audio20 NTG4.5
(except C-class W204 with Comand NTG4.5)
Connection for C-class W204 with Comand NTG4.5
j
Main
input
COMAND
/ AUDIO20
- NTG4.5
j
Main
input
COMAND
/ AUDIO20
- NTG4.5
j
C-Class W204
COMAND
- NTG4.5
C-Class W204
COMAND
- NTG4.5
j
Main
input
j
Main
input
j
C-Class W204
COMAND
- NTG4.5
COMAND
/ AUDIO20
- NTG4.5
C-Class W204
COMAND
- NTG4.5
COMAND
/ AUDIO20
- NTG4.5
5
6

Version 03.06.2015 V5-NTG45-PNP
Page8
3.2. LVDS connection
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O
to the male 4pin HSD LVDS connector (LVDS-IN) on the rear of the
interface-box V5C-M613.
Remove the grey female 4pin HSD LVDS connector of the vehicle harness at the back
of the head unit and connect it to the male 4pin HSD LVDS of the
CAB-HSD-MR-060-OZ LVDS cable.
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-MR-060-OZ
to the male 4pin HSD LVDS connector (LVDS-OUT) on the rear of the
interface-box V5C-M613.
Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O
to the grey male 4pin HSD LVDS connector on the rear of the head unit.
1
2
3
4
Interface-box
V5C-M613
REAR
LVDS cable
CAB-HSD-DD075-O
Back of
head unit
4-Pin HSD
LVDS female
vehicle harness
LVDS cable
CAB-HSD-MR-060-OZ
13
2
4

Version 03.06.2015 V5-NTG45-PNP
Page9
3.2.1. After-market front camera
3.2.1.1. Connection to the after-market front camera
Connect the video RCA of the after-market front camera to the female RCA connector
“FRONT CAM” of the interface box V5C-M613.
-The pink wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market front camera. Configure in the OSD-
menu “MISC”, menu item “POWER OUT 1” the
designated electric power supply (see chapter
“Configurable switching outputs”).
1
2
Interface-box
V5C-M613
FRONT
Front camera
+12V camera
power
V5C-UNI01
harness
Power Out 1 (max. 1A)
1
2

Version 03.06.2015 V5-NTG45-PNP
Page10

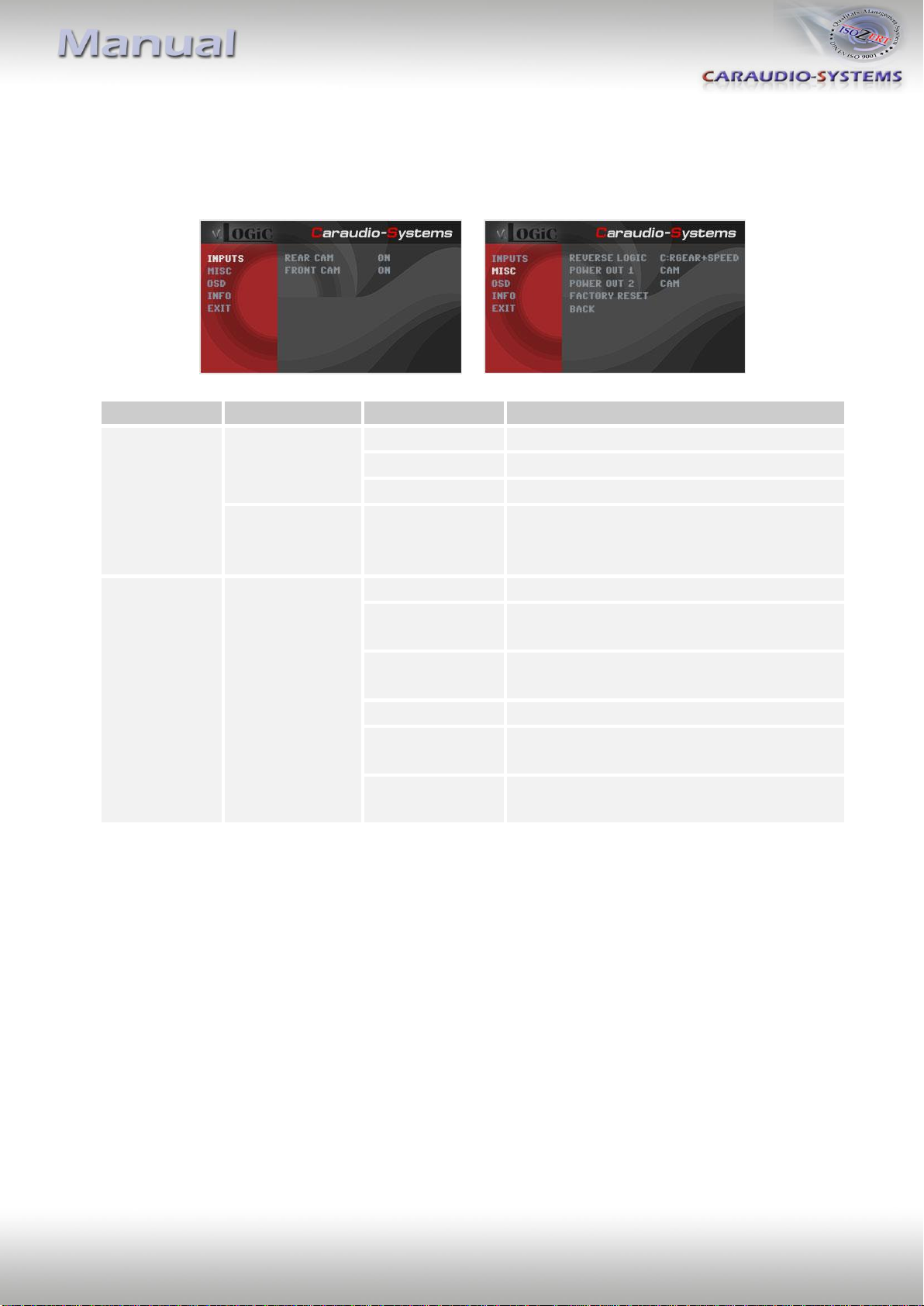

3.2.1.2. Settings for connecting an after-market front camera
You have to configure some settings in the OSD-menus INPUTS and MISC if you want to
connect an after-market front camera (Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
INPUTS
REAR CAM
OFF
No rear view-camera
ON
Rear view-camera connected
OEM
Factory rear view-camera connected
FRONT CAM
ON
Switches to front camera if parking
process is enabled and reverse gear is
released
MISC
REVERSE LOGIC
C:RGEAR
Enabled while parking process
C:RGEAR+TIME
Enabled with +12V on white wire and up
to 20 second
C:RGEAR+SPEED
Enabled while parking process and up to
20 km/h
A:RGEAR
Enabled with +12V on white wire
A:RGEAR+TIME
Enabled with +12V on white wire and up
to 20 second
A:RGEAR+SPEED
Enabled with +12V on white wire and up
to 20 km/h
Note: RGEAR+SPEED / RGEAR+TIME setting: After deactivation you can’t enable the parking
process again until the vehicle is driving faster than 20km/h / less than 20 seconds has
passed or the ignition is switched off and on.

Version 03.06.2015 V5-NTG45-PNP
Page11
3.2.2. After-market rear-view camera
3.2.2.1. Connection to the after-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector “REAR CAM” of the interface box V5C-M613.
-The green wire of harness V5C-UNI01 can be used
for +12V electric power supply (max. 1A) of the
after-market rear-view camera. Configure in the
OSD-menu “MISC”, menu item “POWER OUT 2” the
designated electric power supply (see chapter
“Configurable switching outputs”).
-
-On some vehicles the reverse light signal doesn’t exist on the CAN-bus. Connect the
white wire of harness V5C-UNI01 to reverse light signal (+12V of reverse light) if the
system doesn’t switch to the rear-view camera automatically after the described
OSD-setup (see next chapter).
1
2
3
+12V reverse gear analogue (exception)
V5C-MBN45
harness
3
2
1
Interface-box
V5C-M613
FRONT
V5C-UNI01
harness
Rear-view
camera
Power Out 2 (max. 1A)

Version 03.06.2015 V5-NTG45-PNP
Page12
3.2.2.2. Settings for connecting an after-market rear-view camera
You have to configure some settings in the OSD-menus INPUTS and MISC if you want to
connect an after-market rear-view camera (Operation of the OSD: see chapter “OSD-
Operation”).
OSD-menu
Menu item
Setting
Explication
INPUTS
REAR CAM
OFF
No rear view-camera
ON
Rear view-camera connected
OEM
Factory rear view-camera connected
FRONT CAM
ON
Switches to front camera if parking
process is enabled and reverse gear is
released
MISC
REVERSE LOGIC
C:RGEAR
Enabled while parking process
C:RGEAR+TIME
Enabled with +12V on white wire and up
to 20 second
C:RGEAR+SPEED
Enabled while parking process and up to
20 km/h
A:RGEAR
Enabled with +12V on white wire
A:RGEAR+TIME
Enabled with +12V on white wire and up
to 20 second
A:RGEAR+SPEED
Enabled with +12V on white wire and up
to 20 km/h
Note: RGEAR+SPEED / RGEAR+TIME setting: After deactivation you can’t enable the parking
process again until the vehicle is driving faster than 20km/h / less than 20 seconds has
passed or the ignition is switched off and on.

Version 03.06.2015 V5-NTG45-PNP
Page13
3.2.3. Configurable trigger outputs
You can configure the both +12V trigger outputs separately. The pink wire is POWER
OUT 1 and the green wire is POWER OUT 2.
Note: You can configure the both trigger outputs in the OSD-menu MISC separately
(Operation of the OSD: see chapter “OSD-Operation”).
OSD-menu
Menu item
Setting
Explication
MISC
POWER OUT 1
(pink)
POWER OUT 2
(green)
OFF
Port disabled
CAN
+12V when the interface is on (red LED on)
Ignition
+12V when ignition is on
RearCam
+12V when reverse gear is active
CAM
+12V when parking process is active
1
V5C-MBN45
harness
1
Interface-box
V5C-M613
FRONT
V5C-UNI01
harness
Power Out 2 (max. 1A)
Power Out 1 (max. 1A)

Version 03.06.2015 V5-NTG45-PNP
Page14
3.3. Picture settings
You can change the picture settings in the OSD-menu IMAGE (activation only from interface
AV level possible).
◦ Brightness
◦ Contrast
◦ Saturation
◦ Hue
◦ Sharpness
Note: The picture settings will be retained for each AV-source separately.
4. Operation
4.1. OSD –On-screen display
You can change the basic configurations of the interface in the OSD (on screen display).
4.1.1. OSD –Operation
You can control the OSD by the knob.
OK
Back+leavingOSD OK
Op ons
Op ons

Longpress=enter/leaveOSD
Op ons

Version 03.06.2015 V5-NTG45-PNP
Page15
4.1.2. OSD –Additional setting options
The following settings in the OSD-menus OSD and MISC can be configured over and above
the described settings in this manual (Operation of the OSD: see chapter “OSD-Operation”):
OSD-Menü
Menüpunkt
Einstellung
Erklärung
MISC
FACTORY RESET
Resetting to factory settings
OSD
H POSITION
0-xxx
Horizontal position of the OSD
V POSITION
0-xxx
Vertical position of the OSD
SIZE
SMALL
OSD window small
LARGE
OSD window large
INFO
COMPANY
CA-S.info
Displays manufacturer website address
PRODUCT
V4-NTG45
Displays product number
VERSION
X.X.X
Displays the current software version
4.2. Selecting the interface as current AV-source
Press long C button to choose the interface as current video source.
Short press C button to switch the video sources. Each short press will switch to the next
enabled input. If all inputs are enabled the order is:
FRONT CAM  REAR CAM  …
Inputs which are not enabled are skipped.

Version 03.06.2015 V5-NTG45-PNP
Page16
5. Specifications
Operation voltage 10.5 –14.8V DC
Stand-by power drain <0,1mA
Operation power drain 190mA
Power consumption 2,6W
Temperature range -20°C to +80°C
Weight (box only) 285g
Measurements (box only) B x H x T 141 x 30 x 105 mm
6. Connections (interface-box)
7. Technical Support
Caraudio-Systems Vertriebs GmbH
manufacturer/distribution
In den Fuchslöchern 3
D-67240 Bobenheim-Roxheim
email [email protected]
Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered
trademarks ® of their corresponding legal owners.
Interface-box
V5C-M613
REAR
Male 4pin HSD
LVDS connector
Male 12pin AMP
connector
Rear-view
camera input
Female
update-connector
Mini USB
Interface-box
V5C-M613
FRONT
Male 4pin HSD
LVDS connector
Front camera
input
