Supremo Umbrella
Operating Instructions
Caravita

Shade Factor specialises in
custom made, high-performance
shading products.
We are proud to be the exclusive
agents of Caravita and the
Warema Group in Australia and
engage in projects around the
world.
Caravita is an international
leading brand of high-grade,
customisable outdoor umbrellas,
known for quality and design. As
part of the renowned Warema
Group of Germany, Caravita
oers precision engineered and
innovative parasols for hospitality
and premium architectural
applications using world-class
manufacturing.
Operation instructions are to
follow. Please keep this document
for future reference. Please
contact Shade Factor if you have
any questions.
Australia’s exclusive
Caravita distributor.
shadefactor.com.au

Foreword
1 Foreword
Foreword
Thank you for choosing our product. By selecting a CARAVITA product, you purchased a quality product that was designed to
highest standards with the best materials.
Read the instructions in this document carefully in order to set up the product safely. Be sure to comply with the safety
instructions described here and do not make changes to the product without permission.
Legal details
© Copyright
This publication including the document is copyrighted. Every consumption or use must be previously approved in writing by
CARAVITA GmbH. This especially applies to the duplication, dissemination, processing, translation, microfilming and editing in
electronic system, including databases and online services. Any infringement shall entail the full compensation in damages.
CARAVITA GmbH
Hans-Wilhelm-Renkhoff-Straße 2
D-97828 Marktheidenfeld, Germany
Tel.: [phone]
E-mail: [email protected]
www.caravita.de
4000261 [v0]/2022-01-01 23 | 84

Introduction
2 Introduction
2.1 Information on safety
It is important to follow these instructions in the interest of personal safety. Failure to comply with these instructions when
operating the product may result in personal injury and/or property damage. Failure to comply with these instructions relieves
CARAVITA of liability.
Warnings are marked in the instructions with this symbol or a similar symbol.
Read through the product instructions before installation and use.
Read and follow all safety, setting, operating and maintenance instructions.
Include these instructions when passing the product on to a new owner.
Keep the instructions for use until you dispose of the product.
2.2 Explanation of the signal words
DANGER
Identifies an imminent danger that may result in death or serious injury.
WARNING
Identifies a potential danger that may result in death or serious injury.
CAUTION
Identifies a potential danger that may result in light injury.
NOTICE
Identifies a potential situation that may result in product or property damage.
2.3 Basic safety instructions
The safety instructions and warnings described here are intended to safeguard your health and to protect the product. These
instructions must be read carefully and followed.
Damage resulting from inappropriate use or the failure to follow these instructions is not covered by the warranty. Liability will
not be accepted for secondary damage.
General safety instructions
DANGER
Danger to life and limb if the parasol falls over.
The weather or mechanical impact can cause the parasol to tip or fall over on account of its high weight.
■Only use the parasol as intended.
■Disassemble the parasol and do not set it up in high winds and thunderstorms.
■Do not climb on to the parasol.
■Do not leave children unattended in the vicinity of the parasol.
■Do not use the parasol without a suitable base.
■Do not leave the parasol unattended.
■Only set up the parasol fully opened.
DANGER
Danger of fire from flying sparks
The fabric of the parasol is flammable.
DANGER
Danger to life and limb due to lighting strike
The parasol can act as a lightning rod.
■Never seek shelter under the parasol in a thunderstorm.
4000261 [v0]/2022-01-01 25 | 84

Introduction
DANGER
Danger of suffocation from packaging materials
Plastic film, polystyrene parts and small parts from the packaging, etc., can be dangerous for children to play with.
■Keep children away from small parts.
■Do not leave the packaging material lying about.
CAUTION
Danger of injury from tipping over
Lack of care can cause the parasol to tip over on account of its high weight.
■Two people are required to install the parasol.
■The base must be heavy enough to prevent the parasol from tipping over in high winds when closed.
WARNING
Danger of injury to bystanders
People located within the opening radius of the canopy may be injured when the canopy is opened.
■Before opening the canopy, ensure that there are no bystanders in the opening radius of the canopy.
Operation
The operation of a faulty product may injure persons and/or damage adjacent parts.
Only operate the product if it is in technically perfect condition.
Preparing for installation
Improper installation may impair the safety, function and service life of the product. It may result in injury to persons and/or
cause damage to the product and adjacent parts.
Comply with the specified installation steps and their sequence.
Install the product only if it is in technically flawless condition.
Before installation, check the mounting substructure to make sure it can bear the loads.
26 | 84 4000261 [v0]/2022-01-01

Product information
3 Product information
Product description
The Supremo parasol provides protection against direct sunlight and some protection against inclement weather. The product
is installed in a fixed stainless steel base and, depending on the model, is operated using a crank-operated cable winch
or a lever mechanism. The inclination of the canopy can be levelled if desired. The fabric of the canopy consists of low-
maintenance and washable fabric. The canopy is available in a variety of shapes.
Technical data
All products from CARAVITA are individual units made to specification and with customized designs. The dimensions and
weight vary with the particular design of the model.
The exact weight and size specifications of the product are stated in the order form or delivery note.
4000261 [v0]/2022-01-01 27 | 84

Operation
5 Operation
5.1 Opening the canopy
WARNING
Danger of injury to bystanders
People located within the opening radius of the canopy may be injured when the canopy is opened.
■Before opening the canopy, ensure that there are no bystanders in the opening radius of the canopy.
The plastic nets attached to the ribs are intended to protect against transport damage. After the canopy is opened, they can be
removed carefully with a knife or scissors.
INFO
When removing the plastic nets with scissors or a knife, be careful not to damage the fabric of the canopy.
NOTICE
Property damage from incorrectly pulling the ribs apart
■If the parasol cannot be easily opened and closed, call our service hotline or correct the problem by applying the
steps described in section see Chapter 8/Page 41.
The parasol is securely attached in the ground sleeve or mobile base.
The strap is removed.
The protective cover is removed.
1 Check the stability of the parasol:
The pole is securely anchored in the pipe.
The clamping screws are tightened.
2 Pull the ribs outward slightly.
The ribs are loosened.
4000261 [v0]/2022-01-01 33 | 84

Operation
3 Operate the release button.
4 Push the lever up.
The canopy opens slowly.
5 Check that the lever is in the "CLOSED" position.
6 Push the lever up forcefully until the lock engages.
34 | 84 4000261 [v0]/2022-01-01

Operation
5.2 Closing the canopy
1 Move the lever to the "OPEN" position.
The parasol closes slowly.
2 Push the lever all the way down or press the parasol ribs against the pole
gently.
The parasol closes completely.
3 Pull the parasol fabric out from between the ribs to prevent the fabric from
being pinched or damaged.
4 Press the canopy against the pole until the latch on the bottom crown
engages in the lock.
INFO
The latch only engages if there is no fabric between the ribs.
5 Lock the parasol against being opened using a padlock on the latch.
4000261 [v0]/2022-01-01 35 | 84

Operation

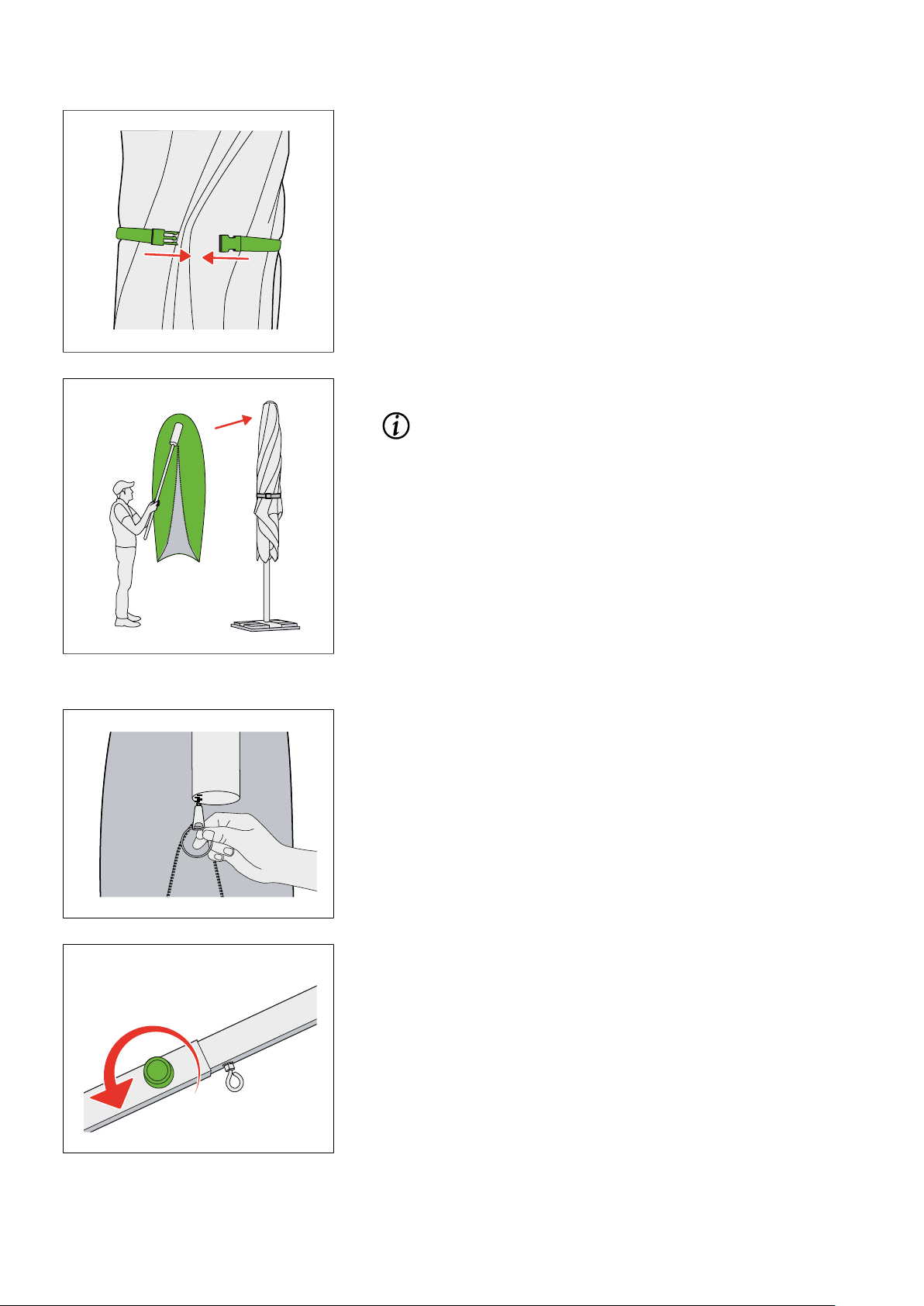

6 Always secure the closed canopy using the strap.
7 Pull the protective cover over the canopy.
INFO
The telescope rod helps perform operating tasks such as pulling on
the protective cover. The telescope rod must be ordered separately
as it is not included in the scope of delivery.
5.3 Use of the telescope rod (optional)
1 Attach the key ring to the zipper of the protective cover.
2 Open the knurled screw on the telescope rod.
36 | 84 4000261 [v0]/2022-01-01

Operation
3 Extend the telescope rod to the necessary length.
4 Tighten the knurled screw on the telescope rod.
5 Insert the telescope rod into the pocket of the protective cover.
6 Lift the protective cover over the parasol using the telescope rod.
4000261 [v0]/2022-01-01 37 | 84

Operation

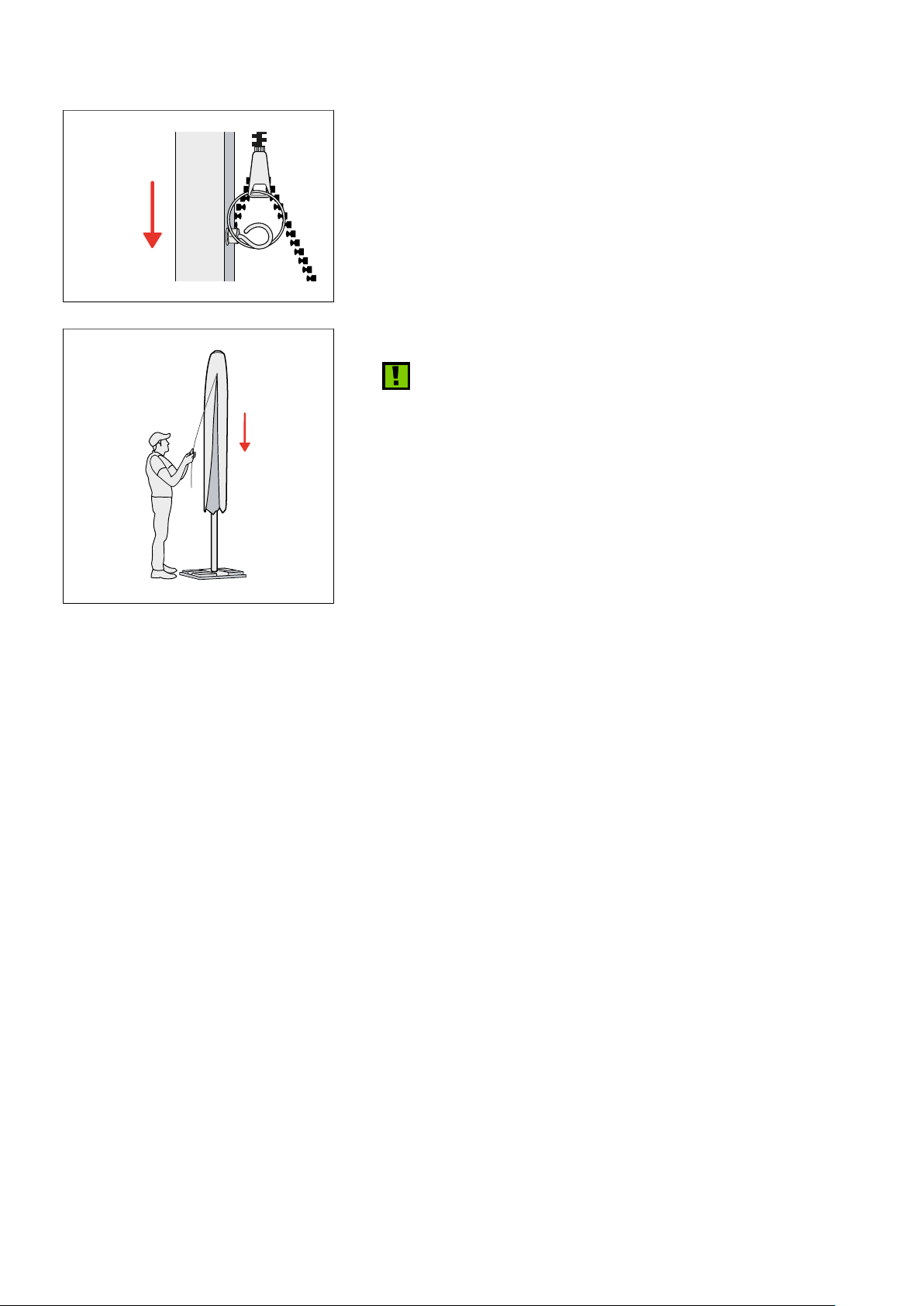

7 Attach the ring screw of the telescope rod to the key ring of the zipper of
the protective cover.
8 Pull the zipper down.
NOTICE
Property damage due to pulling too forcefully on the zipper
The closure of the protective cover could be damaged.
■If the zipper becomes jammed: release the zipper by moving it
back and forth gently
38 | 84 4000261 [v0]/2022-01-01

Care instructions
6 Care instructions
Parasol fabric
NOTICE
Property damage to the parasol fabric due to incorrect cleaning procedure and cleaning agent
The acrylic fabric of the canopy is impregnated and requires a special cleaning procedure and cleaning agent.
■Only wash the parasol fabric using cold water.
■Never use a high pressure washer to clean the parasol fabric.
■Avoid heavy friction, e.g. from hard brushes or sponges, when cleaning.
Cleaning the parasol fabric
■Remove fallen leaves as soon as possible (these create the conditions necessary for microbial activity).
■Brush off soiling at regular intervals while dry.
■Treat light spots with lukewarm water and a soft brush.
■Treat stubborn spots by washing them manually with a small amount of mild detergent, rinse well with fresh water, let it dry
and retreat with impregnating agent.
Arm and pole
Cleaning and servicing the arm and pole
■Wash the surfaces with a mild cleaning agent.
■Revive the stainless steel parts with commercially available stainless steel polish.
■To protect against corrosion, treat the joints and rollers with spray oil or silicone spray at regular intervals.
4000261 [v0]/2022-01-01 39 | 84

Bearing
7 Bearing
NOTICE
Property damage from abrasion of the parasol fabric
Permanent fluttering in the wind can damage the parasol fabric due to abrasion against the ribs. Claims for
compensation cannot be asserted against CARAVITA for this type of damage.
■Always secure the closed canopy using the strap.
NOTICE
Property damage from mould
If the protective cover is used while the fabric is still wet, mould will form.
■Only use the protective cover if the fabric is completely dry.
The parasol can be stored outdoors and in a protected, dry room. The following applies to both options:
■Secure the canopy using the strap.
■Let the fabric dry completely for storage.
■Pull the protective cover over the product.
Storage outdoors
CAUTION
Danger of injury from tipping over
Lack of care and high winds can cause the parasol to tip over on account of its high weight.
■The mobile base must be heavy enough to prevent the parasol from tipping over in high winds when closed.
Storing in a dry room
The following applies when storing in a dry room:
■Pack the parasol in the box in which it was delivered.
■Store the parasol horizontally in a dry room.
40 | 84 4000261 [v0]/2022-01-01

Troubleshooting
8 Troubleshooting
If the parasol exhibits malfunctions that cannot be eliminated by following the steps below, contact us at the CARAVITA service
hotline. The contact data can be found on the first and last pages of these instructions
The following malfunctions can occur when using the parasol:
Problem Cause Remedy
The canopy can no longer be opened
or closed.
The cable is loose and has become
knotted in the housing.
■Pull out the cable forcefully by hand
while turning the crank to the left.
Do not turn the crank with too much
force.
■If the knot in the cable cannot be
released, disassemble the gear.
■With the canopy open: close the
canopy and loosen the canopy ribs.
The ribs must not be turned inward.
Loosen the ribs again.
The crank cannot be turned. The cable is too loose and not under
tension.
■Grasp the cable with one hand
above the gear and pull it out while
turning the crank with the other
hand.
An initial resistance when turning (left)
the crank.
The gear is blocked. ■Keep turning the crank forcefully.
The canopy jumps downward slightly
when opening it.
The cable windings in the gear are
positioned on top of each other and slip
off.
■This has no impact on the function of
the parasol.
The zipper of the protective cover is
jammed.
The canopy fabric has become stuck in
the zipper teeth.
The zipper is soiled.
■Release the zipper by moving it back
and forth gently.
■Rub soap into the slider of the
zipper.
4000261 [v0]/2022-01-01 41 | 84

shadefactor.com.au
Updated 25.01.2023
Victoria
Boonwurrung Country
6 Plane Tree Avenue
Dingley Village VIC 3172
03 9558 3006
New South Wales
Kuring-gai Country
7A Green Street
Brookvale NSW 2100
02 9938 3006
[e-mail]
Please note: While we aim to ensure the details are correct at time of release,
Shade Factor reserves the right to modify information shown without prior
notification. The Shade Factor logo and ‘S’ logomark are trademarks of Shade
Factor Pty Ltd.
