Cardas Schuko Plug Assembly
Instruction
Cardas Audio, Ltd
2
Parts
-Power Head
-Internal Wire Clamp with screws
-Body (Top and Bottom)
-External Body Screws (2)
-Internal Body Screws (2)
-Ground Strap with retaining screw
-Grommet
Cardas Audio, Ltd
3
Assembly
-Strip outer jacket of the desired cable 1-1/4”
-Strip the individual conductors 3/8”
-Slide Plug end Grommet over cable
-Remove Ground retaining screw and Ground Strap from Power head
-Install stripped conductors into the end of the power pins and tighten set screw
using a 5/64” allen wrench
-Fit Bottom section of the Plug Body onto the Power Head

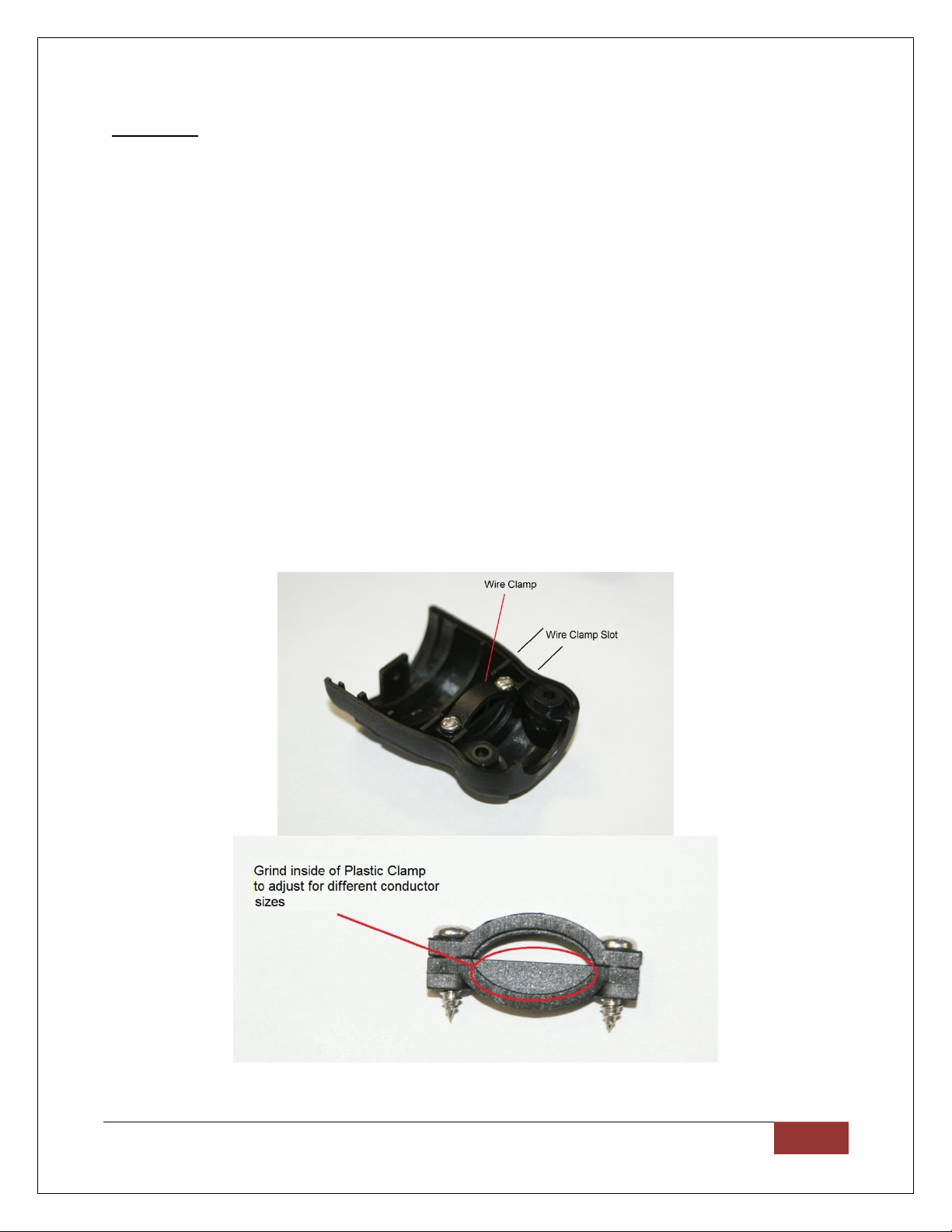

-Fit Wire Clamp onto the conductors and align it with the channel in the lower
Body. (Note: Grind lower half of wire clamp, if necessary, to accommodate larger
size of conductors
Cardas Audio, Ltd
4
-Align grommet in the end of lower body
-Fit top of body to the Power head
-Insert internal Body Screws into the face of the Power Head and secure
Cardas Audio, Ltd
5
-Insert Ground Strap into Power Head and secure with Ground Retaining screw
-Insert External Body Screws and the Cardas Schuko Plug is complete.
