Cardini RH9B500 User manual

90cm BUILT-IN RANGEHOOD
INSTRUCTION MANUAL
Read this manual carefully before operation
Note: Pictures in this manual are for reference only.
RH9B500

Contents
Recommendations and Suggestions..................... 3
01
02
03
04
05
07
Technical Parameters............................................ 5
Installation.............................................................
Warnings............................................................... 6
Warranty & Service.................................................6
2
Contents.................................................................
06
Maintenance..........................................................
2
4
5

3
3
The instructions for use apply to several versions of this appliance. Accordingly, you
may find descriptions of individual features that do not apply to your specific appliance.

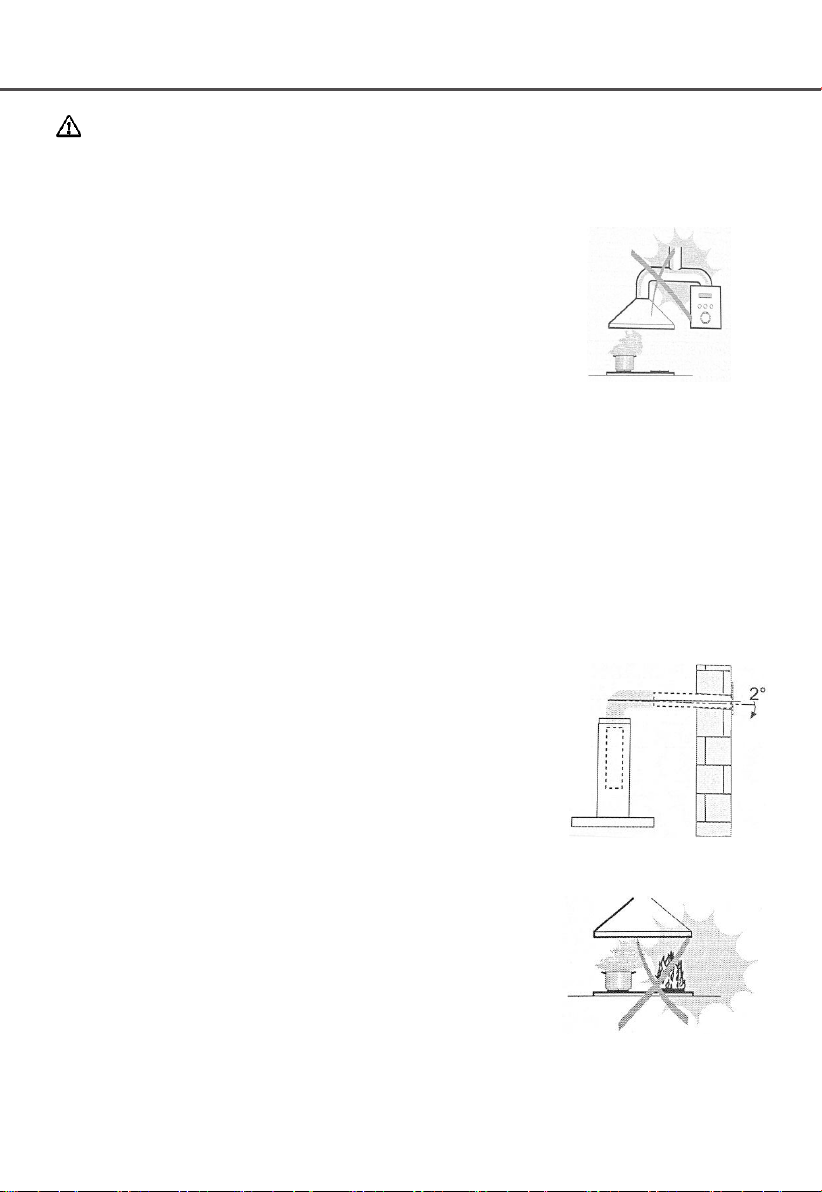

INSTALLATION
•The manufacturer will not be held liable for any damages resulting from incorrect or improper
installation.
•The minimum distance between the supporting surface for the cooking vessels on the hob
and the lowest part of the range hood. ( When the rangehood is located above a gas
appliance, this distance shall be at least 70cm. If the instructions for installation for the gas
hob specify a greater distance, this has to be taken into account. The distance of 70cm can
be reduced for: non-combustible parts of rangehoods and parts operating at safety extra low
voltage, provided these parts do not give access to live parts if deformed)
•Check that the mains voltage corresponds to that indicated on the rating plate fixed to the
rangehood.
•For Class I appliances, check that the domestic power supply guarantees adequate earthing.
•Connect the rangehood to the exhaust flue through a pipe of minimum diameter 150mm. The
route of the flue must be as short as possible.
•The air must not be discharged into a flue that is used for exhausting fumes from appliances
burning gas or other fuels.
•If the rangehood is used in conjunction with non-electrical appliances (e.g. gas burning
appliances),a sufficient degree of aeration must be guaranteed in the room in order to
prevent the backflow of exhaust gas. The kitchen must have an opening connected directly
with the open air in order to guarantee the entry of clean air. When the rangehood is used in
conjunction with appliances supplied with energy other than electric, the negative pressure in
the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by
the rangehood.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
•Regulations concerning the discharge of air have to be fulfilled.
USE
•The rangehood is only for home use, not suitable for barbecue, roast shop or other commercial
purposes.
•Never use the rangehood for purposes other than for which it has been designed.
•Never leave high naked flames under the rangehood when it is in operation.
•Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that
it does not engulf the sides.
•Deep fat fryers must be continuously monitored during use: overheated oil can burst
into flames.
•Do not allow flames directly under the rangehood; risk of fire.
•This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Children should be supervised to ensure that they do not play with the appliance.
•Cleaning and user maintenance shall not be carried out by children without
supervision.
•CAUTION: Accessible parts may become hot when used with cooking appliances.
MAINTENANCE
•The rangehood and its filter should be cleaned regularly according to the instructions.
•Switch off or unplug the appliance from the mains supply before carrying out any
maintenance work.
•Clean and/or replace the filters after the specified period (fire hazard).
•Clean the rangehood using a damp cloth and a neutral liquid detergent.
•The appliance will function correctly when using 4 hob elements at most.
Recommendations and Suggestions

Installation
4
The built-in rangehood shall be fitted by a cabinetmaker into overhead cabinets, mounted
directly above the cooktop.
Install the one way valve on top of the rangehood and assemble the exhaust pipe and
decorative cover.
Affix the decorative cover with two M4 tapping screws on the hood body.
Make sure all switches are off, then insert the electrical plug into an outlet.
700mm
290mm
266mm
836mm
860mm

5
ITEM
Rated Voltage
Rated frequency
Motor input power
Lamp power
Air volume
Air pressure
Noise Level
Air output diameter
unit
V
Hz
W
W
m3/h
Pa
dB(A)
mm
PARAMETER
240
50
198
≤2 x 1W
700-850
>160
<70
150
Maintenance
Technical Parameters
•Make sure to switch off and remove the plug from the outlet before maintenance in
order to ensure your safety.
•Clean the inside and outside of the rangehood with warm water containing neutral
detergent then dry with a piece of dry cloth. Do not scrub with rough materials such
as a cleansing ball to avoid damage to the surface. We recommend wearing gloves
to avoid injuring your hands when cleaning the inside. Cleaning should occur monthly
or more frequently if necessary.
•Do not crush the wind wheel when cleaning the inside of the wind track of the wind
wheel to avoid deformation of the wind wheel. This will result in more noise and
influence the effect of absorbing the oil-smoke.
•Frequent cleaning of the filters shall be carried out. First press the spring on the edge
of the filter to dismantle the filter, dip it into strong detergent and brush its surface
with a soft brush; then hold the filter with both hands and move it up and down in the
detergent, clean it with clean water, after which dry it by airing and re-install. Filters
should be cleaned monthly or more frequently if necessary.

Warnings
6
•Do not attempt to install this appliance yourself without appropriate electrical and
technical qualifications.
•When maintaining this rangehood or changing a light bulb, please ensure that all
power switches are in the off position.
•Avoid water ingress into the electric appliance box and the switches when cleaning the
inside of the range hood to avoid shorting out the electricity.
•Do not allow flames directly under the rangehood.
•There is a fire risk if cleaning is not carried out regularly in accordance to the
instructions.
•This appliance is not intended for use by young children and infirm persons unless
they are being adequately supervised by a responsible person to ensure that they can
use the appliance safely.
•Young children should be supervised to ensure that they do not play with the
appliance.
•There should be adequate ventilation of the room when the rangehood is used at the
same time as an appliance burning gas or other fuels.
•The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels.
•The minimum distance between the cooktop and the lowest part of the rangehood,
when the rangehood is located above a gas cooktop shall be 700mm. If the
instructions for the installation of the gas cooktop specify a greater distance, then this
must be adhered to.
•Regulations concerning the discharge of air must be fulfilled.
•Warning: If the supply cable is damaged, it must be replaced by the manufacturer, it's
service agent or an electrical contractor in order to avoid a hazard.
Warranty & Service
For warranty information, please visit the Cardini website: www.cardini.com.au
For any service issues, please email our customer care team: [email protected]
Rev A
