CardioMed Treadmills CMT 20-58 User manual

CardioMed Treadmills Operators Manual V 2.0
1
CardioMed Treadmills
Operators Manual
CMT 20-58
CMT 22-63
CMT 26-73

CardioMed Treadmills Operators Manual V 2.0
2
Contents
Product Information...............................................................................................................3
Safety Precautions................................................................................................................4
Installation and Assembly .....................................................................................................5
Main Controls........................................................................................................................6
Treadmill Operation ..............................................................................................................9
Treadmill Placement .............................................................................................................9
Operating Environment.........................................................................................................9
Alignment of Walking Belt .....................................................................................................9
Using the Treadmill.............................................................................................................10
Input / Output USB or Serial................................................................................................11
Technical Specifications......................................................................................................12
Maintenance.......................................................................................................................13
Trouble Shooting.................................................................................................................13
Service Table and Repairs..................................................................................................14

CardioMed Treadmills Operators Manual V 2.0
3
Product Information
CardioMed Treadmills are designed be used in medical facilities, physician offices, health
clubs and elite athletic training centers. CardioMed treadmills can be interfaced with a stress
testing / cardio-pulmonary system or used as stand-alone treadmill controlled by a pc tablet
using the optional CardioMed rehabilitation software.
Contact:
HealthCare International, Inc.
P.O Box 1509
Langley, WA 98260 USA
TEL. [phone]
FAX [phone]
e-mail: [e-mail]
Internet: www.hcifitness.com
Model: CMT 20-58, ___CMT 22-63, ___CMT 26-73, ___
Serial Number: ______________________________
Purchase Date: ______________________________
For control errors or treadmill repairs we request that you contact the product supplier or
HealthCare International, Inc.
Attention! High Voltage
Danger of contact, with material that has high power, short-circuit,
burn
Do not connect the instrument to the power supply and do not
operate with the protective lid of the mechanisms open. Before
opening the protective lid of the mechanisms, disconnect the
product from the power network.
Attention! Moving parts
Danger of contact with moving parts

CardioMed Treadmills Operators Manual V 2.0
4
The manufacturer prompts the owner to thoroughly read this handbook upon
receiving the product and in every case before they execute any operation on the
product. Please keep manual in a safe place for future reference. If a replacement
is needed please contact HealthCare Intl.
The manufacturer may not be considered responsible for any damage to individuals or
materials emanating from the following reasons.
•Incorrect use of the product
•Use of the product against any specific local laws
•Incorrect installation
•Incorrect and lack of periodical maintenance
•Unauthorised changes and operations on the product.
•Use of non-authentic parts, or parts that have not been designed specifically for the
particular model.
•Exceptional situations
Safety Precautions
This treadmill was designed and built for optimum safety. However, certain precautions
apply whenever you operate a piece of exercise equipment. Be sure to read the entire
manual before assembly and operation of this machine.
Also, please note the following safety precautions:
1. Read all instructions carefully before using the machine.
2. Consult your physician or other health care professional before beginning this or any type
of exercise program.
3. Always wear proper exercise apparel when using the machine.
4. If at any time you feel faint, light-headed or dizzy while operating the machine, stop
exercise immediately. You should also stop exercising if you are experiencing pain or
pressure.
5. Keep children and pets away from the machine while in use.
6. Only one person can use the machine at a time.
7. Make sure your machine is correctly assembled before you use it. Be sure all screws,
nuts, and bolts are tightened prior to use and retighten periodically.
8. Do not operate this or any exercise equipment if it is damaged.
9. Keep hands and feet away from any moving parts. Do not insert any objects into any
openings.
10.Keep clothes, jewelry or loose items away from moving parts.
11.Always position the treadmill on a flat, level surface.
12.Do not start the treadmill while you are standing on the walking belt.
13.Keep the treadmill away from water. Avoid getting water or other liquids on the electronics
or power cord.

CardioMed Treadmills Operators Manual V 2.0
5
Installation and Assembly
The instrument should be handle only by individuals that know from handling of such products.
All the individuals that will deal with the installation of instrument will need to read the operators
manual prior to the installation and apply all the directions that are noted in this manual.

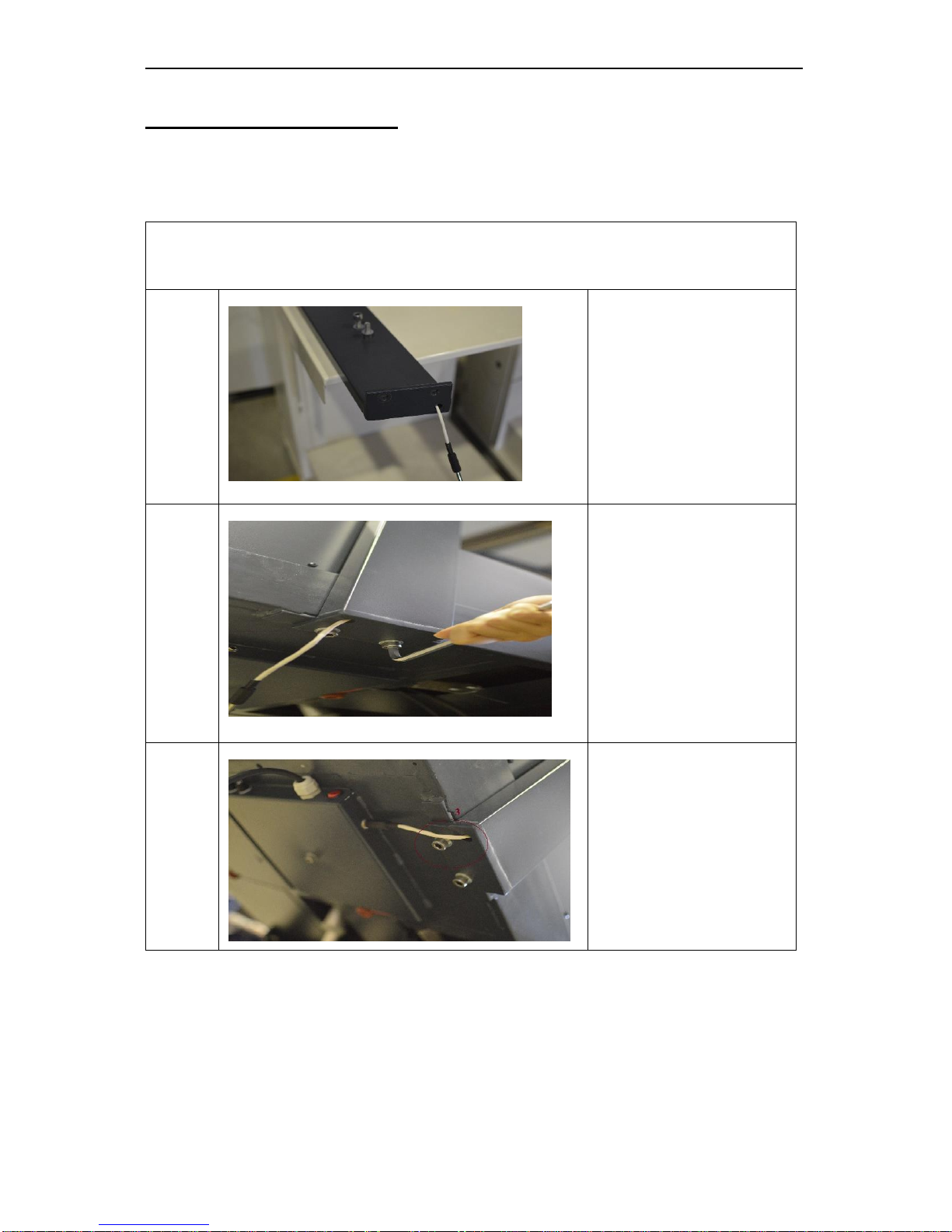

Treadmill Assembly
1.
Unpack the components and
find the support arm with the
white cord.
2.
Screw the support arm with
the white cord in to the right
side of the treadmill with the
two hex screws provided. Be
sure to securely tighten the
screws.
Repeat this step for the left
support arm as well.

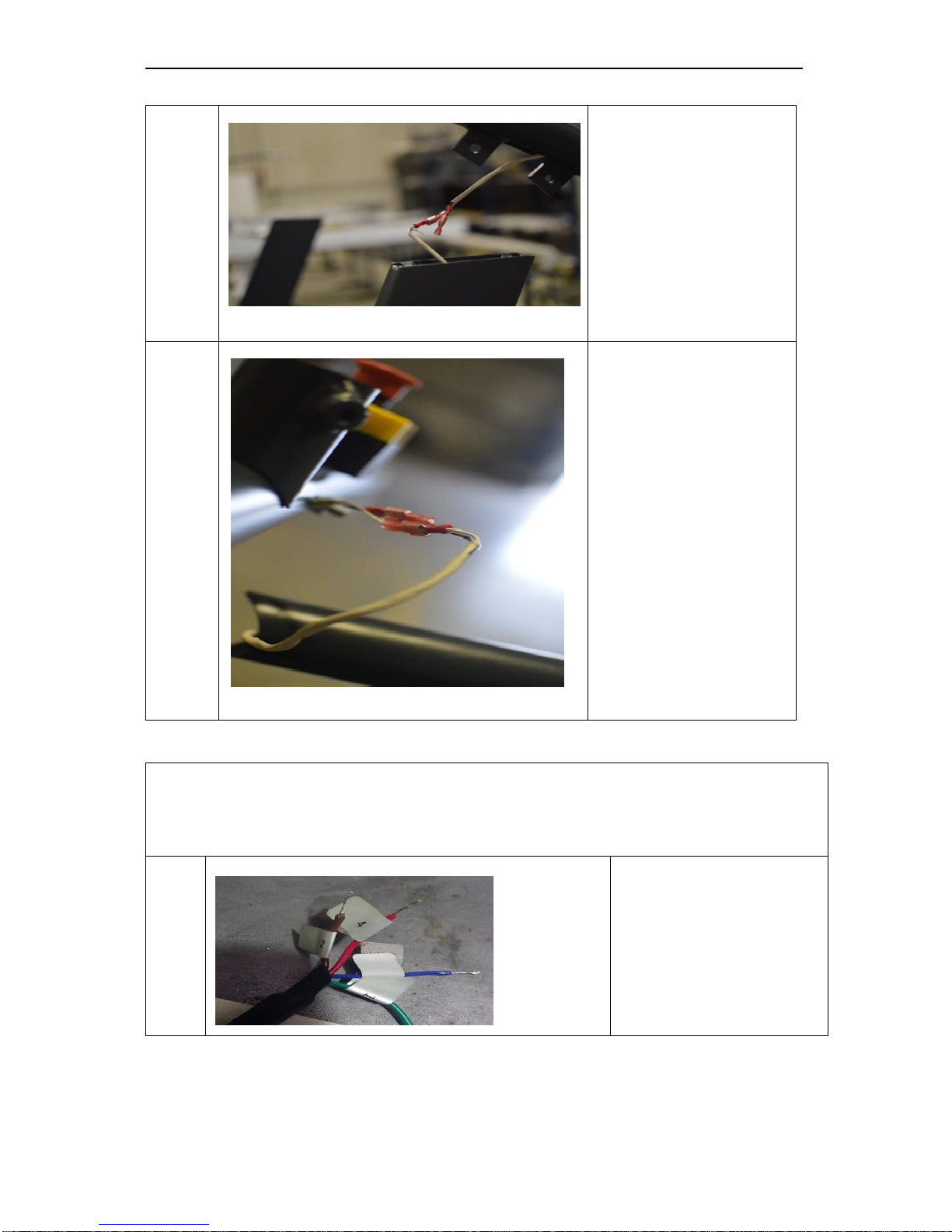

3.
Plug the white cable into the
emergency stop cord
receiver.
Do Not Pinch Wire

CardioMed Treadmills Operators Manual V 2.0
6
4.
Then attach the handrails to
the support arm. First
connect the cables to the
appropriate clips.
Then screw the two hex
screws into the left and right
support arm.
Do Not Pinch Wire
Leave loose for Step 5
5.
Now attach the middle
handrail. First connect the
cables (Brown to Brown /
White to White)
Align the center handrail and
then tighten the hex screw
from the outside of the side
handrail.
Once assembled, retighten
all of the screws to ensure
stability while the treadmill is
in use.
Do Not Pinch Wire
Optional Touch Screen Assembly
1.
Find the exact wire with
the numbers.

CardioMed Treadmills Operators Manual V 2.0
7

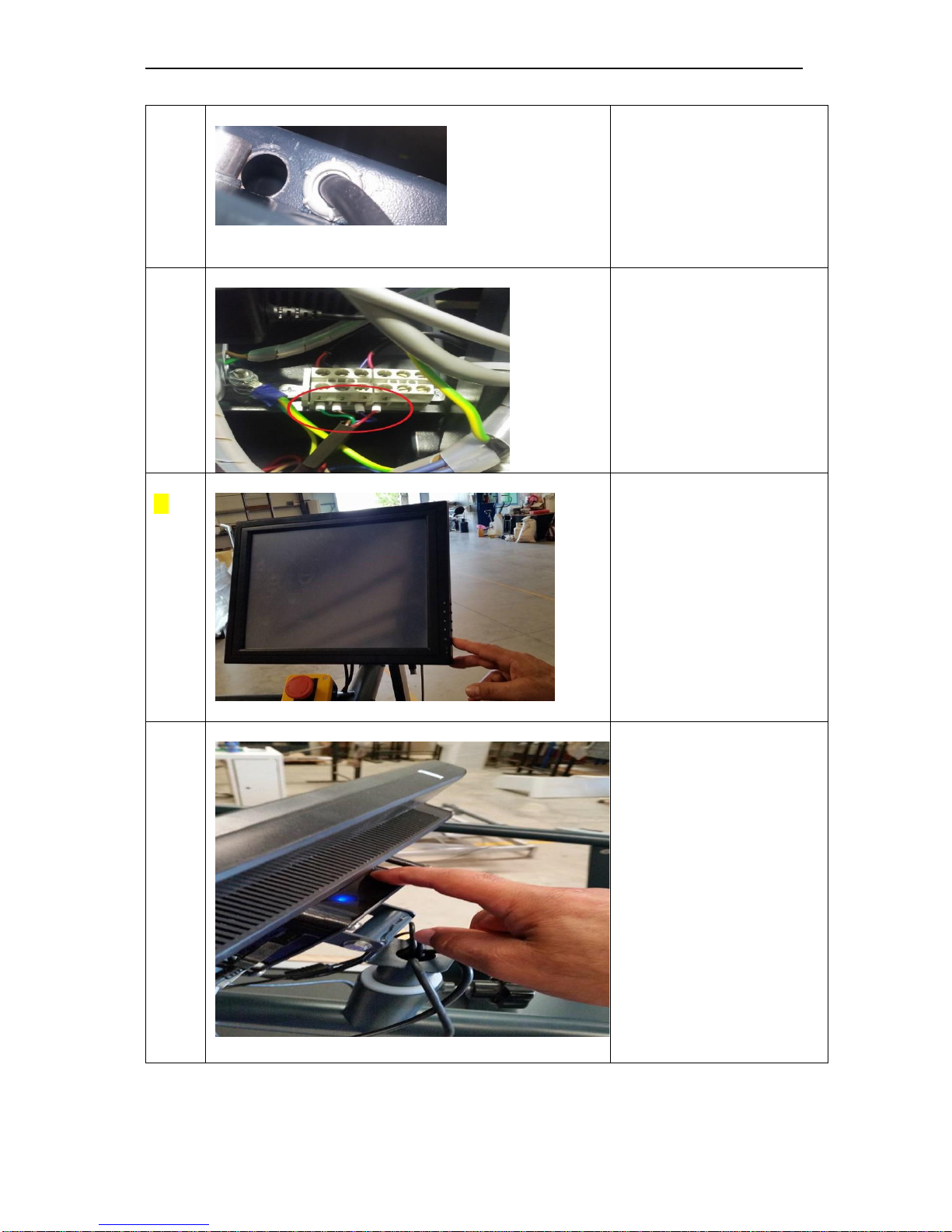

2.
Insert the wire with the
numbered ends into
through the black circle
and then into the cord
box located under the
front of the treadmill.
3.
Match the wiring to the
inputs labeled 1-4.
4.
Connect the wires to the
monitor. Then turn on the
monitor.
Turn on the Screen
First, Then the Mini PC.
5.
Find the Mini PC power
button and power on the
Mini PC.

CardioMed Treadmills Operators Manual V 2.0
8

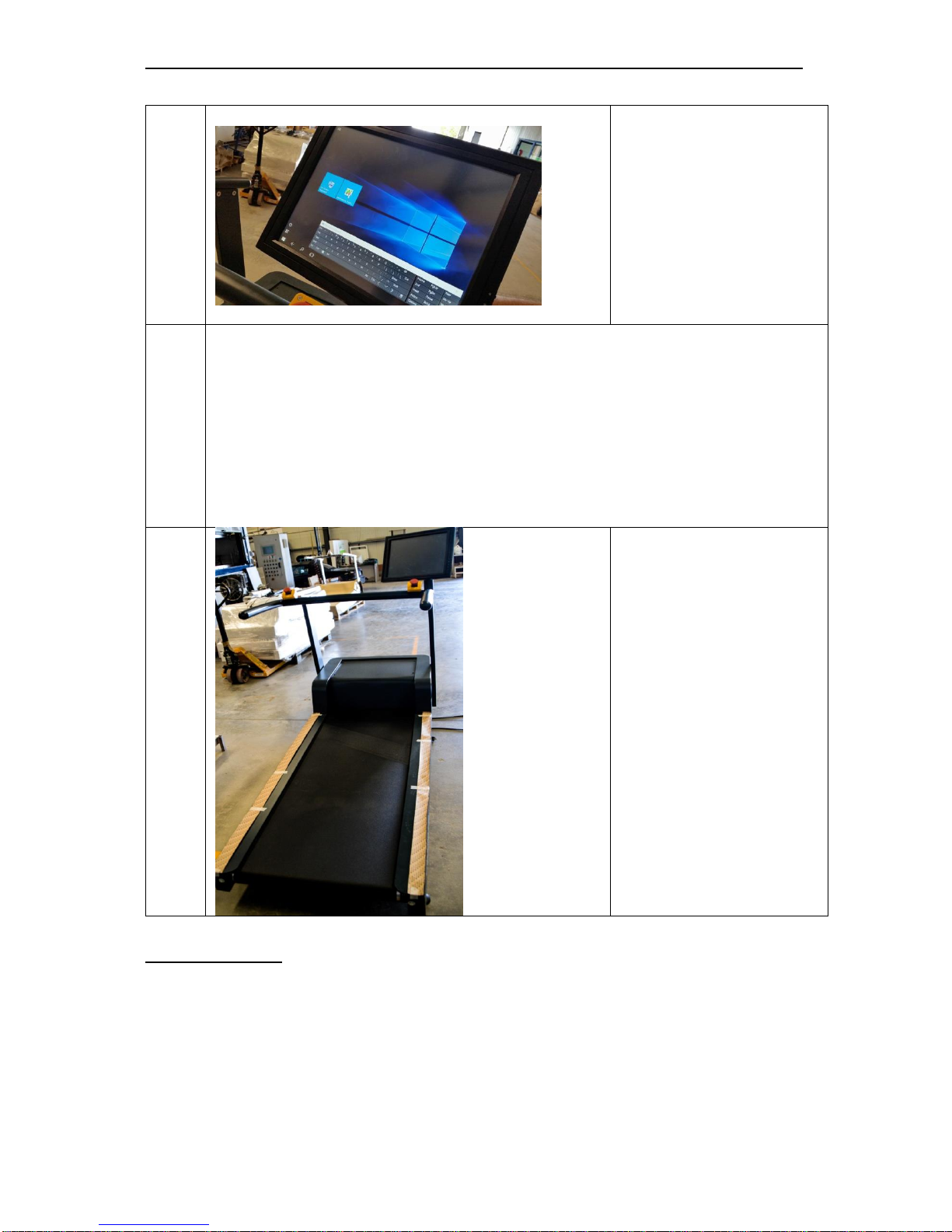

6.
Open the “Treadmill”
application used to
control the treadmill.
7.
Setting up Communication Port:
1.Open “device manager” on windows.
2. Select Treadmill
3. Right Click, Select Properties.
4. Port Settings.
5. Advanced.
6. Change Port to “COM1”
7. Save Changes.
8. If needed update Java using wifi then restart the Mini PC.
8.
Assembly Complete!
The correct order to
power the treadmill is
below:
1. Power on
Treadmill
2. Power on Monitor
Screen
3. Power on Mini PC
Main Controls
1. Main Power Switch: Located in the front of the treadmill, the red light indicates that the
power is on.
2. Emergency Stop Switches: Located on each side of the treadmill, press the red button
will bring the treadmill to an abrupt stop.

CardioMed Treadmills Operators Manual V 2.0
9
Treadmill Operation
1. Plug in the treadmill to the power source.
2. While both the treadmill and control device are off, connect the treadmill to the control
device via USB or Serial Cable.
3. Once connected, turn on the power to the treadmill first then the control device.
4. Use the control device to select the proper COM Port for operation.
5. If the treadmill losses connection or the COM Port cannot be found, repeat steps 1-4.
Treadmill Placement
The product should be positioned in a place that is stable and horizontal.
1. Check if there is any obstacle in front or behind the front wheels
2. Check that the product is stable and secure, if not tighten screws and adjust levellers.
Operating Environment
The product is designed to operate under the following conditions:
Temperature from +15oC until +30oC
The instrument was not designed to operate outdoors or in places with high humidity, or where
there is danger of fire or explosion.
The position of the user is in front of the console.
There should exist no environmental conditions (for instance powerful noise, bright light etc)
that would contribute to the natural or intellectual difficulty of the user.
The product should be positioned at an area with enough peripheral space, so that access for
use or maintenance is allowed. It should not be placed near any source of heat and it should
be continuously ventilated.
Alignment of Walking Belt
The alignment of the belt is correct when it moves to the middle of walking surface without
slipping. The alignment can be achievedfrom the bolt that is onthe left hand side of the frame.
In order to move the belt left you turn the screw counter clockwise (quarter turns are
recommended). If the belt is traveling too much to the left then you would turn the screw
clockwise see picture. Use only the left screw for alignment, using both screws to adjust
the tracking can create excessive tension on the belt which can result in decreasing the life
expectancy of the drive motor and walking belt.

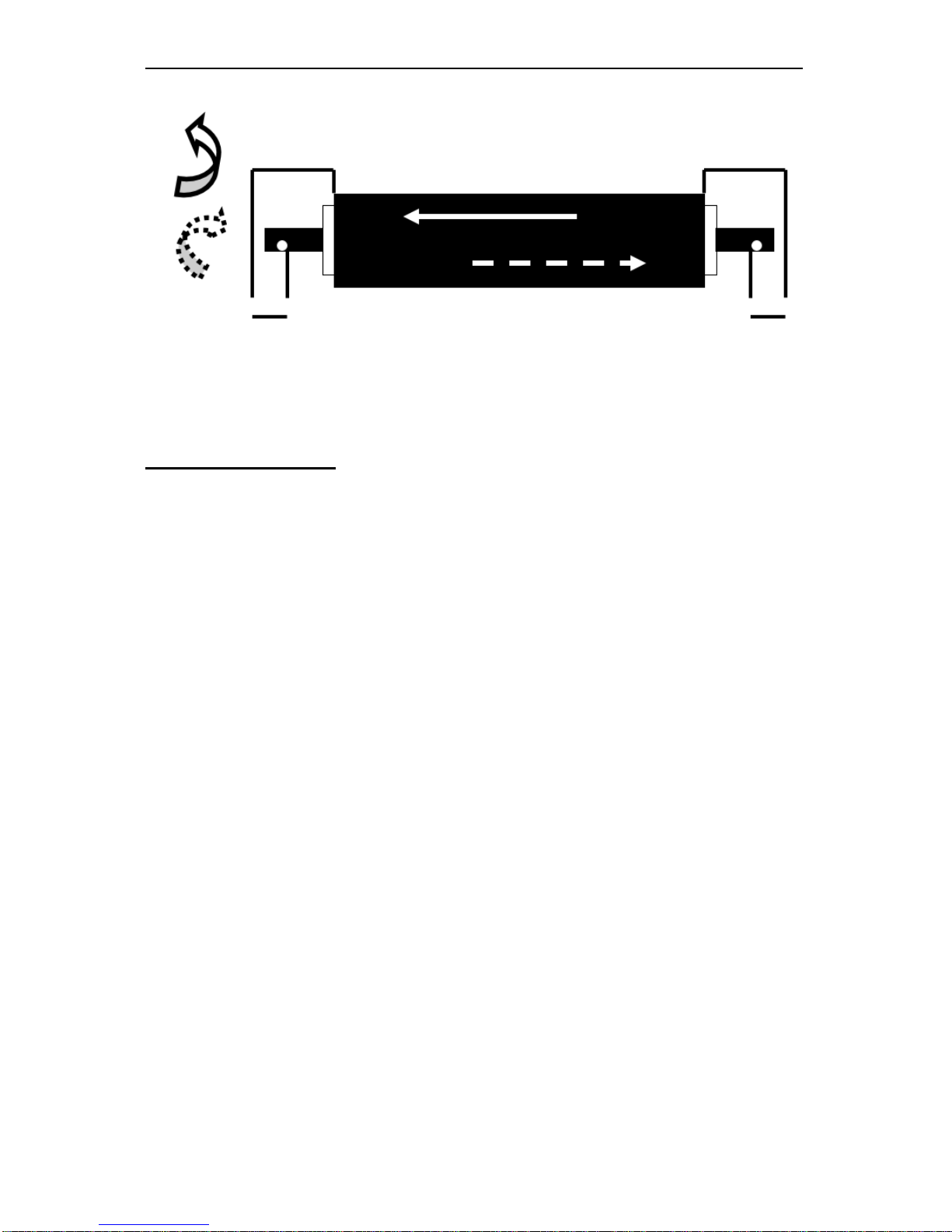

Direction of rotating the screw

CardioMed Treadmills Operators Manual V 2.0
10
In order to check the alignment after the initialization, start the treadmill at 7 MPH/12Km/H
speed without standing on it for 2 minutes. Walk on the treadmill with medium speed for a
short period of time. Check if the belt moves to the middle surface without slipping. If it does
not repeat procedure.
Using the Treadmill
Step onto the treadmill only when it is stopped. Place each of your feet on the right and left-
edge margin of the treadmill. Start the treadmill manually or automatically as it is described
before. Step on the belt and start to walk. If you are operating the treadmill manually increase
or decrease the speed with the corresponding keys.
Begin to run slowly and increase the speed of the treadmill, do not try to stop the belt with your
legs .When you reach desired speed let go of the handle bar and run for as long as you wish.
When you want to stop running, decrease the speed or press the emergency off switch to
stop.
ATTENTION
If you must jump off the walking belt hold firm to the side or front handrails.
Always push the Stop Key when you want to stop the treadmill!!!
Do not step on the treadmill when the belt is moving.
Other Precautions
1. Do not touch the running belt with your hands when the belt is moving.
2. Hold the protective bars in the beginning and at the end of each exercise session, when
changing speed and before you push the Stop Button, because this results in stopping the
movement of the belt.
3. Use the treadmill only with one person at time.
4. When you use the treadmill wear suitable clothes and shoes.
5. When the belt is running do not step heavily and do not try to stop it, run with the same
speed.
6. If you feel dizziness, nausea, or you feel some other unusual symptom, stop exercising
and consult a doctor before you continuing.

CardioMed Treadmills Operators Manual V 2.0
11

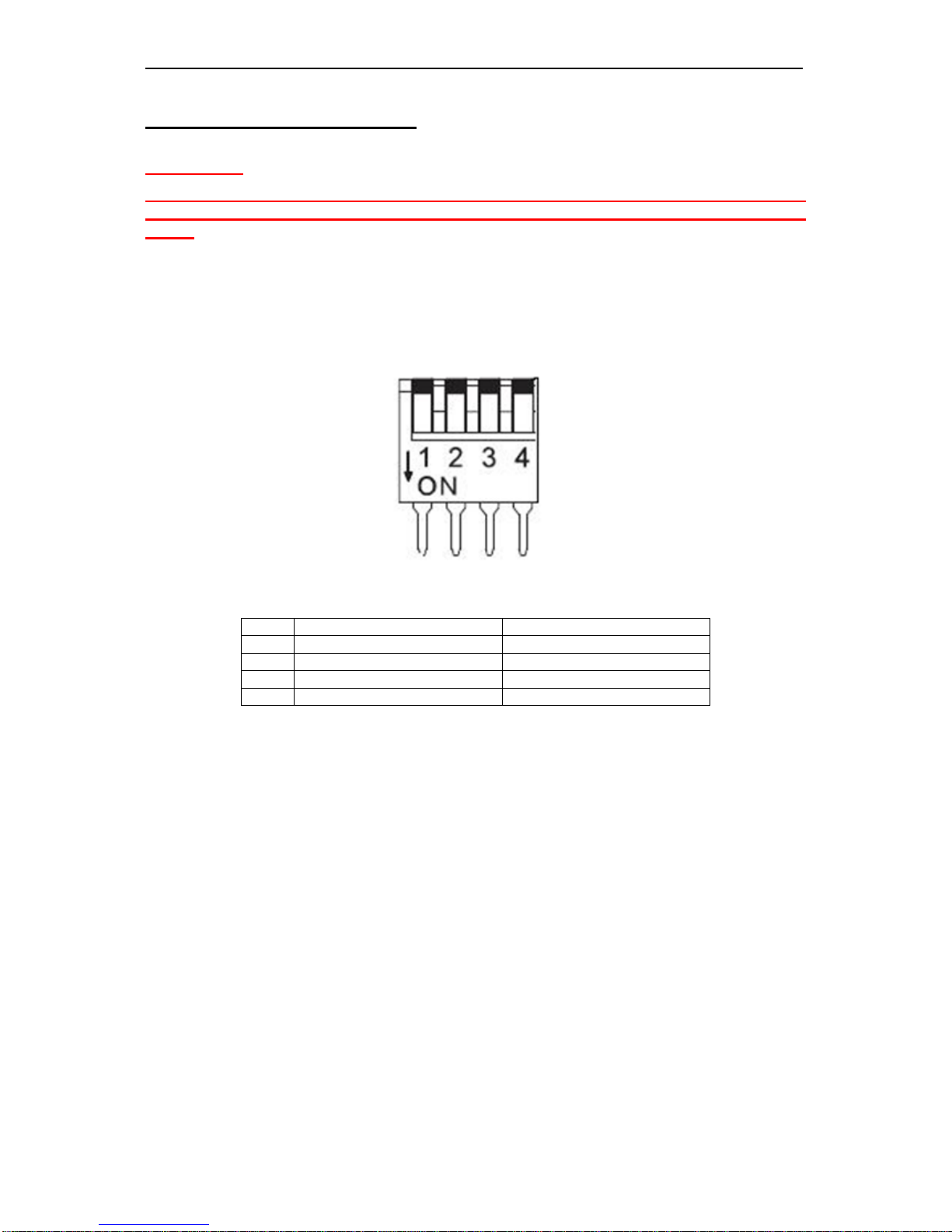

Input / Output USB or Serial
ATTENTION!
To connect or disconnect the serial interface cable with the treadmill, shut down the
power from the treadmill and the PC. Otherwise problems in the communication may
occur.
The treadmill is provided with an input/output RS 232 and a USB port for connection with
computer. You cannot use the treadmill with both USB and RS232 port. Choose one port from
the dip switch on the front of the treadmill next to the serial port. When the treadmill is
connected with this port then will be supposed is removed the console of handling. Last but
not least there is an option from changing the speed of the treadmill from Km/h to Miles/h. The
next table illustrates the operation of each switch.
Sw1
On
Off
1
12V on
12V off
2
3
M/h
Km/h
4
USB
Serial

CardioMed Treadmills Operators Manual V 2.0
12
Technical Specifications
Modes of operation: Automatically
a) Medium RS 232, USB from PC.
b) Optionally manual from the control panel.
Automatic programs: 10
Programmed from User with auto exec. 5
Programmable operation: With PC with program.
Input / output: RS 232 C (Trackmaster protocol)
Display: Time, Speed, Grade, HR, Elevation, Run
Time, Distance, Program
FEATURES
SPECIFICATIONS
Drive System
Digitally Controlled 3 or 4 HP AC High Torque
Commercial Drive System
Running Surface
CMT 20-58 20 x 58 in. (51 x 147 cm )
CMT 22-63 22 x 63 in. (56 x 160 cm )
CMT 26-73 26 x 73 in. (66 x 185 cm )
Speed Range
CMT 20-58 0.1-12 mph (.16-20 km/h)
CMT 22-63 0.2-15 mph (.32-25 km/h)
CMT 26-73 0.3-22 mph (.48-35 km/h)
Incline Range
0 – 25%, in 0.5% Increments
User W eight Capacity
500 lb . (228 k g )
Deck Height
Patient Step Up Height Only 7.5 in. (19 cm)
Emergency Stop
Included on all Standalone Models
Regulatory Info for all CMT
Models
ETL, CE, ISO 9001-2000, ISO 957.1,
ISO 957.6, SA CE 0653, Class 1 MDD 93/42/EEC, EMI, EMC
Warranty
Domestic - 2 Years Parts, 1 Year Labor
International - 3 Years Parts

CardioMed Treadmills Operators Manual V 2.0
13
Maintenance
The individual that will provide the maintenanceis not required to have particular qualifications,
but must read and follow the instructions in this handbook and should feel.
Attention! High voltage
Danger of contact, with material that has high power, short-circuit, burn
Do not connect the instrument to the power supply and do not operate with the
protective lid of the mechanisms open. Before opening the protective lid of the
mechanisms, disconnect the product from the power network
Attention! Moving parts
Danger of contact with moving parts
User Maintenance
1. Lubrication of belt
Before lubricating the belt disconnect the treadmill from the power.
If you feel that the belt is sticking:
Elevate the belt and spray a small amount of lubricant between the belt and the walking
deck surface. Do not spray too much because you can cause the belt slip to slip on
the front roller.
2. Exterior cleaning
Before the cleaning disconnect the treadmill from the power.
•Cleaning the surface of belt with a mild detergent.
•Do not use solvent.
Instructions for small repairs
Before performing any repairs disconnect the treadmill from the power.
The individual that will execute the maintenance is not required to have particular
qualifications, but must thoroughly read and follow the instructions in this handbook.
*The owner and his personnel are kindly requested to refrain from attempting to repair
or replace broken parts of the product.
In case where it is required we request to contact with the supplier of product or with the
manufacturer.
Trouble Shooting
List of likely problems that can cause immobilization of instrument:
PROBLEM
PROCESS
1
Treadmill is not responding to the
control device.
1. Check that the treadmill is
plugged in.

CardioMed Treadmills Operators Manual V 2.0
14
2. Check On/Off Switch is in the On
position.
3. Check that the Emergency Stop
is released.
4. View Treadmill Operation on
Page 6.
5. Check Input / Output on Page 8.
6. Call Service.
2
No Speed / Wrong Speed
Call for service
3
The belt sticks
1. Stop Treadmill and turn off the
power.
2. View Maintenance on page 10.
4
Belt Misalignment
1. Stop Treadmill and turn off the
power.
2. View Page 7 for belt alignment
instructions.
5
No Elevation
1. Stop Treadmill and turn off the
power.
2. Check the fuse on the font of the
treadmill and if it has been blown,
replace with same type.
6
The optional CardioMed Software
is not responding.
View the supplemental CardioMed
Software manual.
Service Table and Repairs
ACTION
PROBLEM
EXECUTED BY
DATE
1
2
3
4
5
6
7
8
9
10
NOTES:
